Loose fuelcap warning message
GUID-1B 265639-6AD C-4A76-95BA-C77D721 22232
Push thereset switch
*
A
for more than1
second toreset theLOOSE FUELCAPwarning
message afterthefuel cap hasbeen tightened.
For additional information seeªFuel-filler capº
(P .3-18) ofthis
manual.
JVI1178X
Check tirepressure warningmessage
GUID-1EFE6 59B-2B0B-4654-8D74-A2 F2486D0ED9
The CHECK TIREPRES (pressure) warning
message isdisplayed whenthelow tirepressure
warning
light
is illuminated andlowtire
pressure isdetected. Checkandadjust thetire
pressure tothe recommended COLDtire
pressure shownonthe Tire andLoading
Information label.TheCHECK TIREPRES
warning message turnsoffwhen thelow tire
pressure warninglight
turns off.
The lowtirepressure warninglight
remains
illuminated untilthetires areinflated tothe
recommended COLDtirepressure. TheCHECK
TIRE PRES warning message isdisplayed each
time theignition switchisplaced inthe ON position
aslong asthe low tirepressure warning
light
remains illuminated.
The CHECK TIREPRES warning message can
be turned offbypushing thereset switch
*
A
.
For more information seeªLow tirepressure
warning lightº(P.2-15) ,ªTire Pressure Monitor-
ing System (TPMS)º (P.5-3) ,and ªWheels and
tiresº (P.8-31) .
Extended storagefusewarning message
GUID-9D5 F7996-2B45 -477F-8A6C-7904F0D81 301
The SHIP PHASE On/PUSH FUSEInwarning
message maybedisplayed ifthe extended
storage fuseswitch isnot pushed in(switched
on) .When thismessage isdisplayed, pushin
(switch on)theextended storagefuseswitch to
turn offthe message. Formore information, see
ªExtended storagefuseswitchº (P.8-23) .
Instrumen tsand controls
2-7
&RQGLWLRQ


> (GLW   0RGHO )'@
2-8
Instrumen tsand controls
SIC4506
T ACHOMETER
GUID-215 DFAC7-AA2 5-4799-B7 6A-5C7F245 14E30
The tachometer indicatesenginespeedin
revolutions perminute (RPM).Do not revthe
engine intothered zone
*
1
.
CAUTION
When engine speedapproaches thered
zone, shifttoahigher gearorreduce
engine speed.Operating theengine in
the red zone maycause serious engine
damage.
SIC4123
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-34 DD45D3-B 4F2-44CD-AAC 9-21491CEBB243
The gauge
*
1
indicates theengine coolant
temperature.
The engine coolant temperature iswithin the
normal rangewhenthegauge iswithin thezone
*
2
shown inthe illustration.
The engine coolant temperature varieswiththe
outside airtemperature anddriving conditions.
CAUTION
If the gauge indicates enginecoolant
temperature nearthehot (H)end ofthe normal
range,reduce vehicle speedto
decrease temperature. Ifgauge isover
the normal range,stopthevehicle as
soon assafely possible. Ifthe engine is
overheated, continuedoperationofthe
vehicle mayseriously damagetheen-
gine. SeeªIfyour vehicle overheatsº
(P .6-10) forimmediate actionrequired.
&RQGLWLRQ


> (GLW   0RGHO )'@
SIC4124

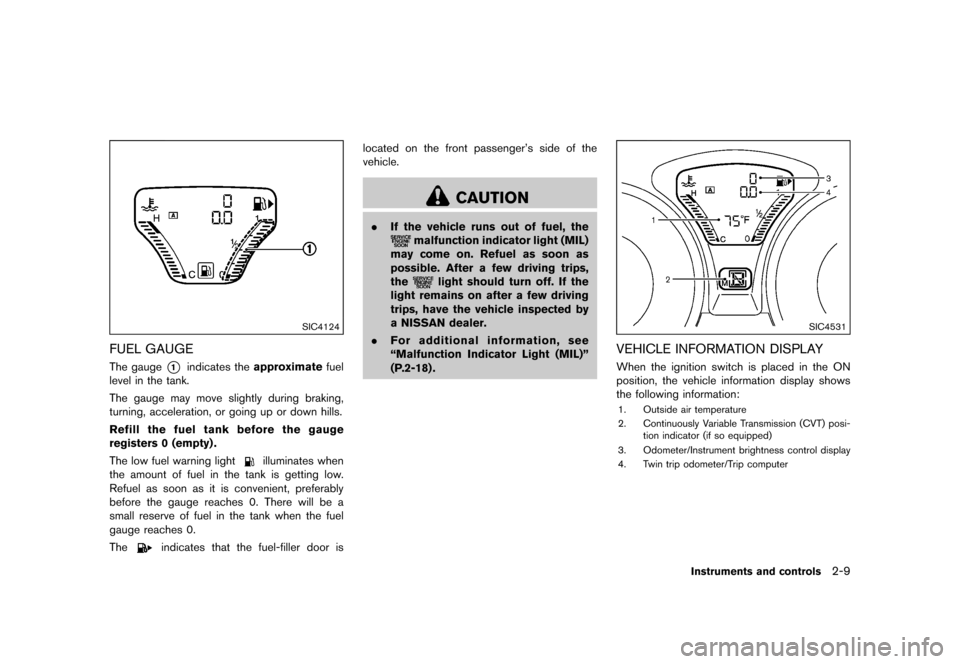

FUEL GAUGE
GUID-35 3F5508-A4 71-4C58-AF1 8-C779D3376019
The gauge
*
1
indicates theapproximate fuel
level inthe tank.
The gauge maymove slightly duringbraking,
turning, acceleration, orgoing upordown hills.
Refill thefuel tank before thegauge
registers 0(empty) .
The lowfuel warning
light
illuminates when
the amount offuel inthe tank isgetting low.
Refuel assoon asitis convenient, preferably
before thegauge reaches 0.There willbea
small reserve offuel inthe tank when thefuel
gauge reaches 0.
The
indicates thatthefuel-filler doorislocated
onthe front passenger's sideofthe
vehicle.
CAUTION
. Ifthe vehicle runsoutoffuel, the
malfunction indicatorlight(MIL)
may come on.Refuel assoon as
possible. Afterafew driving trips,
the
light should turnoff.Ifthe
light remains onafter afew driving
trips, havethevehicle inspected by
a NISSAN dealer.
. For additional information, see
ªMalfunction IndicatorLight(MIL)º
(P .2-18)
.
SIC4531
VEHICLE INFORMATIONDISPLA Y
GUID-EC22 30F2-740F-4 EDF-A5DE-7642ED3AEC5 3
When theignition switchisplaced inthe ON
position, thevehicle information displayshows
the following information:
1. Outside airtemperature
2. Continuously Variable Transmission (CVT)posi-
tion indicator (ifso equipped)
3. Odometer/Instrument brightnesscontroldisplay
4. Twin tripodometer/T ripcomputer
Instrumen tsand controls
2-9
&RQGLWLRQ


> (GLW   0RGHO )'@
2-10
Instrument sand controls

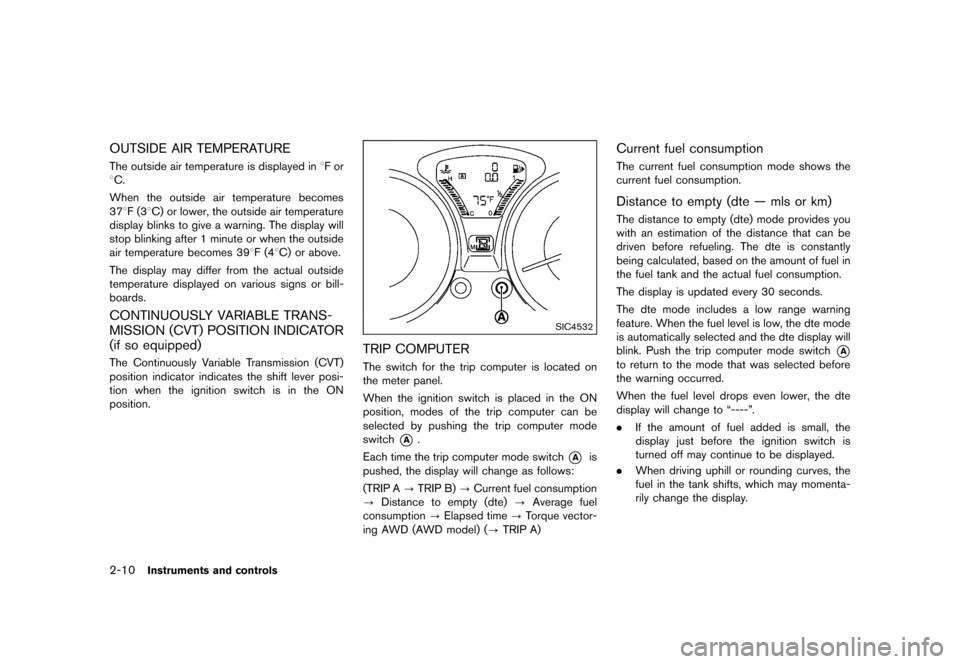

OUTSIDE AIRTEMPERA TURE
GUID-1A15 7006-4054-4973-972 4-C2D210223480
The outside airtemperature isdisplayed in8F or
8C.
When theoutside airtemperature becomes
378F (38C) orlower, theoutside airtemperature
display blinkstogive awarning. Thedisplay will
stop blinking after1minute orwhen theoutside
air temperature becomes398F(48C) orabove.
The display maydiffer fromtheactual outside
temperature displayedonvarious signsorbill-
boards.
CONTINUOUS LY VARIABLE TRANS-
MISSION (CVT)POSITION INDICATOR
(if so equipped)
GUID-A EF6AFF6-79C 9-4BA4-B0D3-EC97DBF7DA83
The Continuously Variable Transmission (CVT)
position indicator indicates theshift lever posi-
tion when theignition switchisin the ON
position.
SIC4532
TRIP COMPUTER
GUID-761 D7DC4-8A 71-4FAE-9686 -B06903798D 36
The switch forthe trip computer islocated on
the meter panel.
When theignition switchisplaced inthe ON
position, modesofthe trip computer canbe
selected bypushing thetrip computer mode
switch
*
A
.
Each timethetrip computer modeswitch
*
A
is
pushed, thedisplay willchange asfollows:
(TRIP A? TRIP B)?Current fuelconsumption
? Distance toempty (dte)?Average fuel
consumption ?Elapsed time?Torque vector-
ing AWD (AWD model) (?TRIP A)
Current fuelconsumption
GUID-0A5 E70EC-4694- 4D89-8DA2-A1 60792B4EB3
The current fuelconsumption modeshows the
current fuelconsumption.
Distance toempty (dteÐmls orkm)
GUID-423 8E3D0-30E 9-4AEC-8B23-BEE5EE4 E1E0B
The distance toempty (dte)mode provides you
with anestimation ofthe distance thatcanbe
driven before refueling. Thedteisconstantly
being calculated, basedonthe amount offuel in
the fuel tank andtheactual fuelconsumption.
The display isupdated every30seconds.
The dtemode includes alow range warning
feature. Whenthefuel level islow ,the dte mode
is automatically selectedandthedte display will
blink. Pushthetrip computer modeswitch
*
A
to return tothe mode thatwas selected before
the warning occurred.
When thefuel level drops evenlower, thedte
display willchange toª----º .
. Ifthe amount offuel added issmall, the
display justbefore theignition switchis
turned offmay continue tobe displayed.
. When driving uphillorrounding curves,the
fuel inthe tank shifts, which maymomenta-
rily change thedisplay .
&RQGLWLRQ


> (GLW   0RGHO )'@

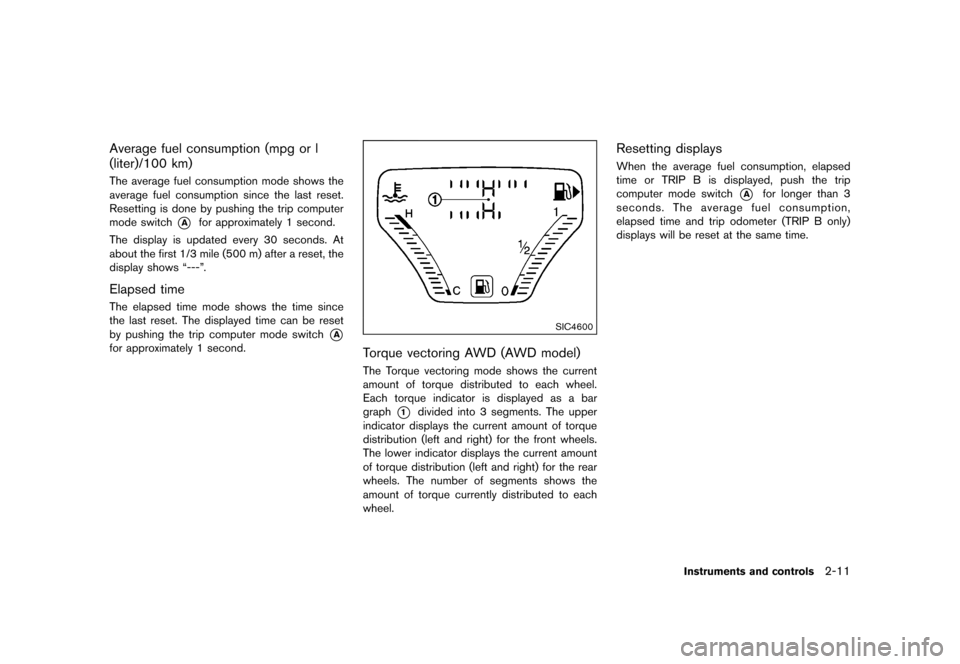

Average fuelconsumption (mpgorl
(liter)/100 km)
GUID-E78 85AB9-206 3-4E90-897 B-7200C49E7707
The average fuelconsumption modeshows the
average fuelconsumption sincethelast reset.
Resetting isdone bypushing thetrip computer
mode switch
*
A
for approximately 1second.
The display isupdated every30seconds. At
about thefirst 1/3mile (500 m)after areset, the
display showsª---º.
Elapsed time
GUID-A 16D6909-E777 -4207-BB06-A5B7201 C9049
The elapsed timemode shows thetime since
the last reset. Thedisplayed timecanbereset
by pushing thetrip computer modeswitch
*
A
for approximately 1 second.
SIC4600
T orque vectoring AWD (AWD model)
GUID-5D8 074C6-FF7E -4BFD-9621-AE 02515CD69A
The Torque vectoring modeshows thecurrent
amount oftorque distributed toeach wheel.
Each torque indicator isdisplayed asabar
graph
*
1
divided into3segments. Theupper
indicator displaysthecurrent amount oftorque
distribution (leftandright) forthe front wheels.
The lower indicator displaysthecurrent amount
of torque distribution (leftandright) forthe rear
wheels. Thenumber ofsegments showsthe
amount oftorque currently distributed toeach
wheel.
Resetting displays
GUID-C3B 30EF4-F9E7-424B-B5 39-122D78C3AE9F
When theaverage fuelconsumption, elapsed
time orTRIP Bisdisplayed, pushthetrip
computer modeswitch
*
A
for longer than3
seconds. Theaverage fuelconsumption,
elapsed timeandtripodometer (TRIPBonly)
displays willbereset atthe same time.
Instrume ntsand controls
2-11
&RQGLWLRQ


> (GLW   0RGHO )'@
2-12
Instrument sand controls
GUID-0AD 04023-03AE- 4553-915A-04F0D33BD0B8
All-Wheel Drive(AWD) warning light(AWD
model) (ifso equipped)
Low fuelwarning light
Cruise indicator light
Anti-lock BrakingSystem(ABS)warning
light
Low tirepressure warninglight
Engine startoperation indicatorlight
Low washer fluidwarning light(ifso
equipped)
Exterior lightindicator
Brake warning light
P position selecting warninglight
Front foglight indicator light(ifso equipped)
Seat beltwarning light
Front passenger airbag status light
Charge warning light
Supplemental airbag warning light
High beam indicator light
Door open warning light
V ehicle Dynamic Control(VDC)warning light
Malfunction IndicatorLight(MIL)
Electric powersteering warninglight
All-Wheel Drive(AWD) indicator light(AWD
model) (ifso equipped)
Security indicator light
Engine oilpressure warninglight
All-Wheel Drive(AWD) -Vindicator light
(A WD model) (ifso equipped)
T urn signal/hazard indicatorlights
Intelligent Key system warning light
Continuously Variable Transmission (CVT)
indicator light(ifso equipped)
V ehicle Dynamic Control(VDC)offindicator
light

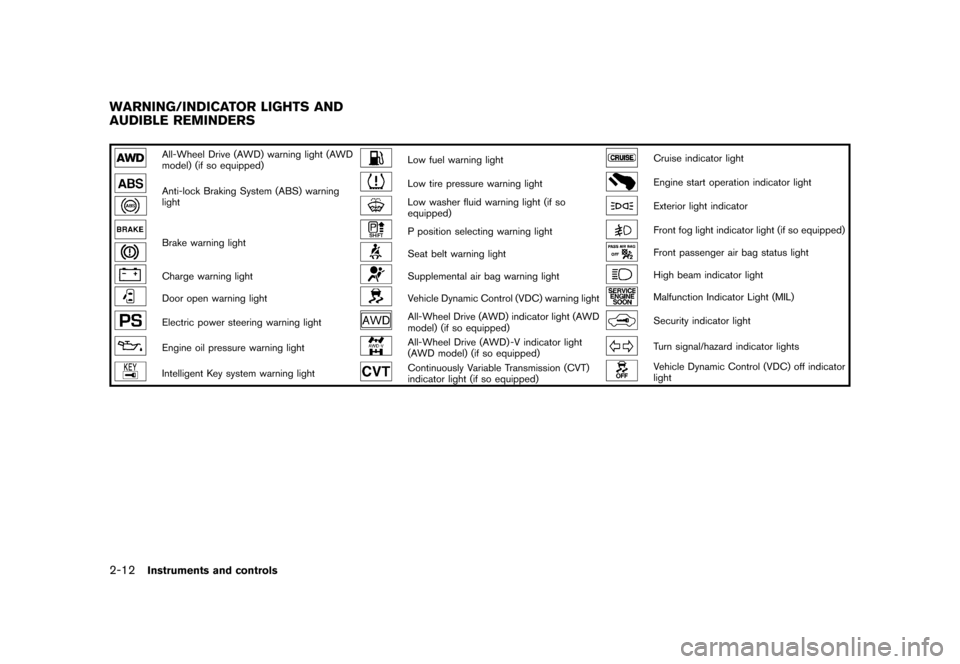

WARNING/IND ICATOR LIGHTS AND
AUDIBLE REMINDERS
&RQGLWLRQ


> (GLW   0RGHO )'@
CHECKING BULBS
GUID-C22 DF306-092D -4583-8CB3-A6AC7219AD 77
With alldoors closed, applytheparking brake
and place theignition switchinthe ON position
without starting theengine. Thefollowing lights
will come on(ifso
equipped):
,
or
,
,
,
,
,
The following lightscome onbriefly andthen go
off (ifso equipped):
,
or
,
,
,
,
,
,
,
If any light does notcome on,itmay indicate a
burned-out bulboran open circuit inthe
electrical system.Havethesystem checked by
a NISSAN dealer.
W ARNING LIGHTS
GUID-6B 8C70F3-46 8B-4200-B5D0-854A7 1617076
All-Wheel Drive(AWD) warning
light (AWD model)
GUID-045 1414D-383 B-4466-A18 3-5E0504D41E4D
When theignition switchisin the ªONº position,
the All-Wheel Drive(AWD) warning lightwill
illuminate. Itwill turn offsoon aftertheengine is
started.
If the AWD system malfunctions orthe revolu-
tion orradius ofthe front andtherear wheel
differs, theAWD warning lightwilleither remain
illuminated orblink. (SeeªAll-Wheel Drive
(A WD)º (P.5-29) .)
or
Anti-lock BrakingSystem
(ABS) warning light
GUID-94 D8EF69-CB 1A-45F8-A40 A-491B3BA0299B
When theignition switchisin the ON position,
the Anti-lock BrakingSystem(ABS)warning
light illuminates andthen turns off.This indicates
the ABS isoperational.
If the ABS warning lightilluminates whilethe
engine isrunning, orwhile driving, itmay
indicate theABS isnot functioning properly.
Have thesystem checked byaNISSAN dealer.
If an ABS malfunction occurs,theanti-lock
function isturned off.The brake system then
operates normally,but without anti-lock assis-
tance. (SeeªBrake systemº (P.5-35) .)
or
Brake warning light
GUID-21F07 80E-8D92-4B48-8AC5-495231853B E1
This light functions forboth theparking brake
and thefoot brake systems.
Parking brakeindicator:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theignition switchisin the ON position,
the light illuminates whentheparking brakeis
applied.
Low brake fluidwarning light:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theignition switchisin the ON position,
the light warns ofalow brake fluidlevel. Ifthe
light illuminates whiletheengine isrunning with
the parking brakenotapplied, stopthevehicle and
perform thefollowing:
1. Check thebrake fluidlevel. Ifbrake fluidis
necessary ,add fluid andhave thesystem
checked byaNISSAN dealer.(SeeªBrake
and clutch fluidº(P.8-12) .)
2. Ifthe brake fluidlevel iscorrect, havethe
warning systemchecked byaNISSAN
dealer.
Anti-lock BrakingSystem(ABS)warning
indicator:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theparking brakeisreleased andthe
brake fluidlevel issufficient, ifboth thebrake
warning lightandtheAnti-lock BrakingSystem
(ABS) warning lightilluminate, itmay indicate
the ABS isnot functioning properly.Have the
brake system checked, andifnecessary re-
paired, byaNISSAN dealerpromptly .(See
ª Anti-lock BrakingSystem(ABS)warning lightº
(P .2-13) .)
WARNING
. Your brake system maynotbe
working properly ifthe warning light
is on. Driving couldbedangerous. If
you judge itto be safe, drive care-
fully tothe nearest servicestation
for repairs. Otherwise, haveyour
Instrume ntsand controls
2-13
&RQGLWLRQ


> (GLW   0RGHO )'@
2-14
Instrument sand controls
vehicle towedbecause drivingit
could bedangerous.
. Pressing thebrake pedalwiththe
engine stopped and/orlowbrake
fluid level mayincrease yourstop-
ping distance andbraking willre-
quire greater pedaleffortaswell as
pedal travel.
. Ifthe brake fluidlevel isbelow the
minimum orMIN mark onthe brake
fluid reservoir, donot drive untilthe
brake system hasbeen checked ata
NISSAN dealer.
Charge warning light
GUID-DAF 8C1DB-0D6 5-48DD-A5B2-B2111E 95A603
If the light illuminates whiletheengine isrunning,
it may indicate thecharging systemisnot
functioning properly.Turn theengine offand
check thealternator belt.Ifthe belt isloose,
broken, missing orifthe light remains on,see a
NISSAN dealerimmediately .
CAUTION
Do not continue drivingifthe alternator
belt isloose, broken ormissing.
Door open warning light
GUID-F110CD 39-C8B9-4AB9-A2C5-D 73957A7EAD 7
This light illuminates whenanyofthe doors and/
or lift gate arenot closed securely whilethe
ignition switchisin the ON position.
Electric powersteering warning
light
GUID-EC2 6B3D5-0AAE-4 63D-BE20-5E9CDE7BC 487
When theignition switchisin the ON position,
the electric powersteering warninglightillumi-
nates. Afterstarting theengine, theelectric
power steering warninglightturns off.This
indicates theelectric powersteering systemis
operational.
If the electric powersteering warninglight
illuminates whiletheengine isrunning, itmay
indicate theelectric powersteering systemis
not functioning properlyandmay need servicing.
Have theelectric powersteering system
checked byaNISSAN dealer.
When theelectric powersteering warninglight
illuminates withtheengine running, thepower
assist tothe steering willcease operation but
you willstill have control ofthe vehicle. Atthis
time, greater steering effortsarerequired to
operate thesteering wheel,especially insharp
turns andatlow speeds.
See ªElectric powersteering systemº(P.5-34) .
Engine oilpressure warninglight
GUID-F5619 3A3-64A7-4AB4-A970-38C6EC7 51913
This light warns oflow engine oilpressure. Ifthe
light flickers orilluminates duringnormal driving,
pull offthe road inasafe area, stoptheengine
immediately andcallaNISSAN dealerorother
authorized repairshop.
The engine oilpressure warninglightis
not designed toindicate alow oillevel.
Use thedipstick tocheck theoillevel. (See
ªEngine oilº(P.8-8) .)
CAUTION
Running theengine withtheengine oil
pressure warninglightoncould cause
serious damage tothe engine almost
immediately. Suchdamage isnot cov-
ered bywarranty. Turn offthe engine as
soon asitis safe todo so.
Intelligent Key system warning light
GUID-852 70370-A7A 5-4880-859A-F992DB FE71BD
After theignition switchisplaced inthe ON
position, thislight comes onfor about 2seconds
and then turns off.
This light illuminates orblinks asfollows:
&RQGLWLRQ


> (GLW   0RGHO )'@
. The light blinks inyellow whenthedoor is
closed withtheIntelligent Key left outside
the vehicle andtheignition switchinthe
ACC orON position. Makesurethatthe
Intelligent Key isinside thevehicle.
. The light blinks ingreen whentheIntelligent
K ey battery isrunning outofpower. Replace
the battery withanew one. (See ªIntelligent
K ey battery replacementº (P.8-23) .)
. The light illuminates inyellow whenitwarns
of amalfunction withIntelligent Key system.
If the warning lightilluminates inyellow whilethe
engine isstopped, itmay beimpossible tostart
the engine. Ifthe light comes onwhile theengine
is running, youcan drive thevehicle. However in
these cases, contact aNISSAN dealerforrepair
as soon aspossible.
Low fuelwarning light
GUID-07 84D1EC-08F8- 48E5-8112-AC14204A8 2C8
This light illuminates whenthefuel inthe tank is
getting low.Refuel assoon asitis convenient,
preferably beforethefuel gauge reaches the0
(empty) position.
There willbeasmall reserve offuel
remaining inthe tank when thefuel gauge
reaches the0position.
Low tirepressure warninglight
GUID-CE4F 38F6-4622-4 692-88BA-0B 338FB86AAF
Y our vehicle isequipped withaTire Pressure
Monitoring System(TPMS) thatmonitors thetire
pressure ofall tires except thespare.
The lowtirepressure warninglightwarns oflow
tire pressure orindicates thattheTPMS isnot
functioning properly.
After theignition switchisplaced inthe ON
position, thislight illuminates forabout 1second
and turns off.
Low tirepressure warning:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the vehicle isbeing driven withlowtire
pressure, thewarning lightwillilluminate. A
CHECK TIREPRES (pressure) warningmes-
sage isalso displayed inthe vehicle information
display .
When thelow tirepressure warninglight
illuminates, youshould stopandadjust thetire
pressure tothe recommended COLDtire
pressure shownonthe Tire andLoading
Information label.Thelowtirepressure warning
light does notautomatically turnoffwhen thetire
pressure isadjusted. Afterthetireisinflated to
the recommended pressure,thevehicle mustbe
driven atspeeds above16MPH (25km/h) to
activate theTPMS andturn offthe low tire
pressure warninglight.Useatire pressure
gauge tocheck thetirepressure. The
lowtirepressure warninglightremains
illuminated untilthetires areinflated tothe
recommended COLDtirepressure. TheCHECK
TIRE PRES warning message isdisplayed each
time theignition switchisplaced inthe ON
position aslong asthe low tirepressure warning
light remains illuminated.
For additional information, seeªCheck tire
pressure warningmessageº (P.2-7) ,ªTire Pres-
sure Monitoring System(TPMS)º (P.5-3) and
ªTire Pressure Monitoring System(TPMS)º (P.6-
3) .
TPMS malfunction:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the TPMS isnot functioning properly,the low
tire pressure warninglightwillflash forapproxi-
mately 1minute whentheignition switchis
placed inthe ON position. Thelight willremain
on after 1minute. TheCHECK TIREPRES
warning message isnot displayed ifthe low tire
pressure warninglightilluminates toindicate a
TPMS malfunction. Havethesystem checked by
a NISSAN dealer.
For additional information, seeªTire Pressure
Monitoring System(TPMS)º (P.5-3) .
Instrume ntsand controls
2-15
&RQGLWLRQ


> (GLW   0RGHO )'@
2-16
Instrument sand controls
WARNING
. Ifthe light does notilluminate with
the ignition switchplaced inthe ON
position, havethevehicle checked
by aNISSAN dealerassoon as
possible.
. Ifthe light illuminates whiledriving,
avoid sudden steering maneuvers or
abrupt braking, reducevehicle
speed, pulloffthe road toasafe
location andstop thevehicle as
soon aspossible. Drivingwithun-
der-inflated tiresmaypermanently
damage thetires andincrease the
likelihood oftire failure. Serious
vehicle damage couldoccurand
may lead toan accident andcould
result inserious personal injury.
Check thetire pressure forallfour
tires. Adjust thetire pressure tothe
recommended COLDtirepressure
shown onthe Tire andLoading
Information labeltoturn thelow
tire pressure warninglightOFF.If
the light stillilluminates whiledriv-
ing after adjusting thetire pressure,
a tire may beflat. Ifyou have aflat
tire, replace itwith aspare tireas soon
aspossible.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
CAUTION
. The TPMS isnot asubstitute forthe
regular tirepressure check.Besure
to check thetire pressure regularly.
. Ifthe vehicle isbeing driven at
speeds ofless than 16MPH (25
km/h) ,the TPMS maynotoperate
correctly.
. Besure toinstall thespecified size
of tires tothe four wheels correctly.
Low washer fluidwarning light
(Canada only)
GUID-ADABB 354-FD0A-4635-ABE1-7 FD833E3E73 4
This light illuminates whenthewasher fluidisat
a low level. Addwasher fluidasnecessary .(See
ªWindow washerfluidº(P.8-12) .)
P position selecting warninglight
GUID-2CE9 58E5-DAA1-48FB-A4F0-B 392F12FCD77
The warning lightblinks inred when theignition
switch ispushed tostop theengine withthe
shift lever inany position excepttheP(Park)
position.
If this warning appears, movetheshift lever to
the P(Park) position orpush theignition switch
to the ON position.
An inside warning chimewillalso sound.
See ªIntelligent Key systemº (P.3-6) .
Seat beltwarning light
GUID-91E 8D2F7-3908 -4392-874C- F4665FD344E7
The light andchime remind youtofasten seat
belts. Thelight illuminates whenevertheignition
switch isplaced inthe ON position, andwill
remain illuminated untilthedriver's seatbeltis
fastened. Atthe same time,thechime willsound
for about 6seconds unlessthedriver's seatbelt
is securely fastened.
The seat beltwarning lightforthe front
passenger willilluminate ifthe seat beltisnot
&RQGLWLRQ
