LA TCH lower anchor location
LA TCH lower anchor location
GUID-314DDAD E-62FA-4785-9B6C -1D828EF69E 8F
The LATCH anchors arelocated atthe rear of
the seat cushion neartheseatback. Alabel is
attached tothe seatback tohelp youlocate the
LA TCH
anchors.
SSS0643
LA TCH webbing-mount edattachment
Installing childrestraint LATCH lower
anchor attachments
GUID-4EF A1AAF-57 A0-4B14-A 569-0E962 10E7D64
LA TCH compatible childrestraints includetwo
rigid orwebbing-mounted attachmentsthatcan
be connected totwo anchors locatedatcertain
seating positions inyour vehicle. Withthis
system, youdonot have touse avehicle seat
belt tosecure thechild restraint. Checkyour
child restraint foralabel stating thatitis
compatible withLATCH. This information may
also beinthe instructions providedbythe child
restraint
manufacturer.
SSS0644
LA TCH rigid attachment
When installing achild restraint, carefullyread
and follow theinstructions inthis manual and
those supplied withthechild restraint.
T op tether anchor
GUID-4D6 67252-E94 B-46E4-ADC9 -149C6C62D735
WARNING
. Ifthe cargo cover(ifso equipped)
contacts thetop tether strapwhen it
is attached tothe top tether anchor,
remove thecargo coverfromthe
vehicle orsecure iton the cargo
floor below itsattachment location.
If the cargo coverisnot removed, it
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-21
&RQGLWLRQ


> (GLW   0RGHO )'@
1-22
Safety ÐSeats, seatbelts andsupplement alrestraint system
may damage thetop tether strap
during acollision. Your child could
be seriously injuredorkilled ina
collision ifthe child restraint top
tether strapisdamaged.
. Do not allow cargo tocontact the
top tether strapwhen itis attached
to the top tether anchor. Properly
secure thecargo soitdoes not
contact thetop tether strap.Cargo
that isnot properly securedorcargo
that contacts thetop tether strap
may damage thetop tether strap
during acollision. Your child could
be seriously injuredorkilled ina
collision ifthe child restraint top
tether strapis
damaged.
JVR0198X
T op tether anchor pointlocations
GUID-736 E1361-7B4 7-4C6A-81AB-E737B20 4EE42
WARNING
Child restraint anchorages arede-
signed towithstand onlythose loads
imposed bycorrectly fittedchildre-
straints. Undernocircumstances are
they tobe used toattach adultseat
belts, orother items orequipment to
the vehicle. Doingsocould damage the
child restraint anchorages. Thechild
restraint willnotbeproperly installed
using thedamaged anchorage, anda
child could beseriously injuredorkilled in
acollision.
Anchor pointsarelocated onthe back sideof
the seatbacks.
The child restraint toptether strapmustbeused
when installing childrestraints withtheLATCH
lower anchor attachments orseat belts.
If you have anyquestions wheninstalling a
top tether strapchildrestraint onthe rear
seat, consult aNISSAN dealerfordetails.
REAR-F ACING CHILDRESTRAINT IN-
ST ALLA TION USING LATCH
GUID-08 EF5DE6-11 DF-49EE-85 BC-ACD4FAC67524
Refer toall Warnings andCautions inthe ªChild
safetyº andªChild restraintsº sectionsbefore
installing achild restraint.
Do not use thelower anchors ifthe combined
weight ofthe child andthechild restraint
exceeds 65lbs (29.5 kg).If the combined
weight ofthe child andthechild restraint is
greater than65lbs (29.5 kg),use thevehicle's
seat belt(not thelower anchors) toinstall the
child restraint. Besure tofollow thechild
restraint manufacturer's instructionsforinstalla-
tion.
Follow thesestepstoinstall arear-facing child
restraint usingtheLATCH system:
&RQGLWLRQ


> (GLW   0RGHO )'@
1. Position thechild restraint onthe seat.
Always followthechild restraint manufac-
turer's
instructions.

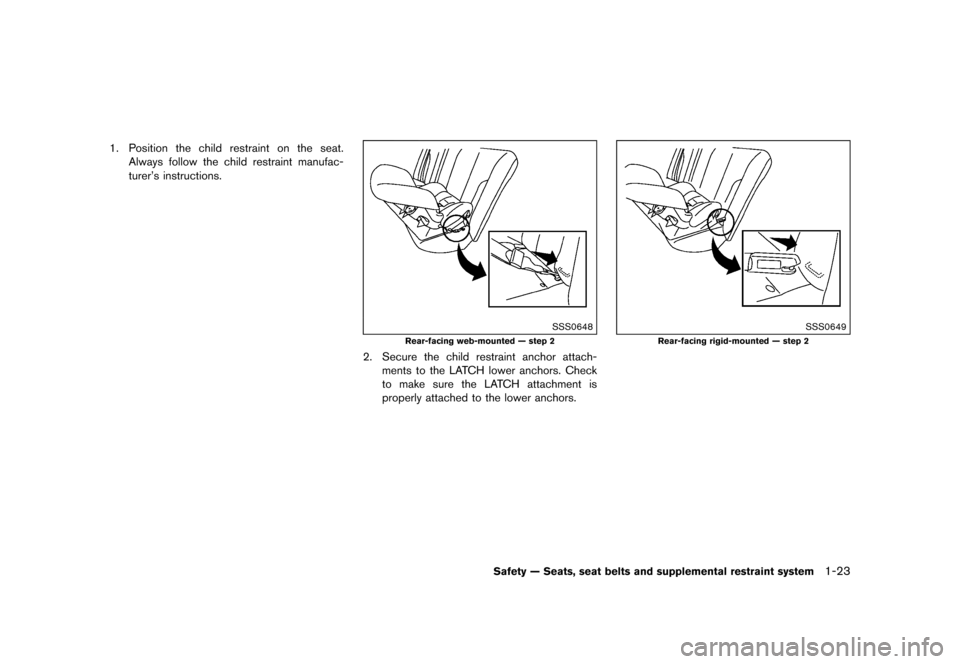

SSS0648
Rear-facing web-mounted Ðstep 2
2. Secure thechild restraint anchorattach-
ments tothe LATCH lower anchors. Check
to make suretheLATCH attachment is
properly attached tothe lower
anchors.
SSS0649
Rear-facing rigid-mounte dÐ step 2
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-23
&RQGLWLRQ


> (GLW   0RGHO )'@
1-24
Safety ÐSeats, seatbelts andsupplement alrestraint system
SSS0639

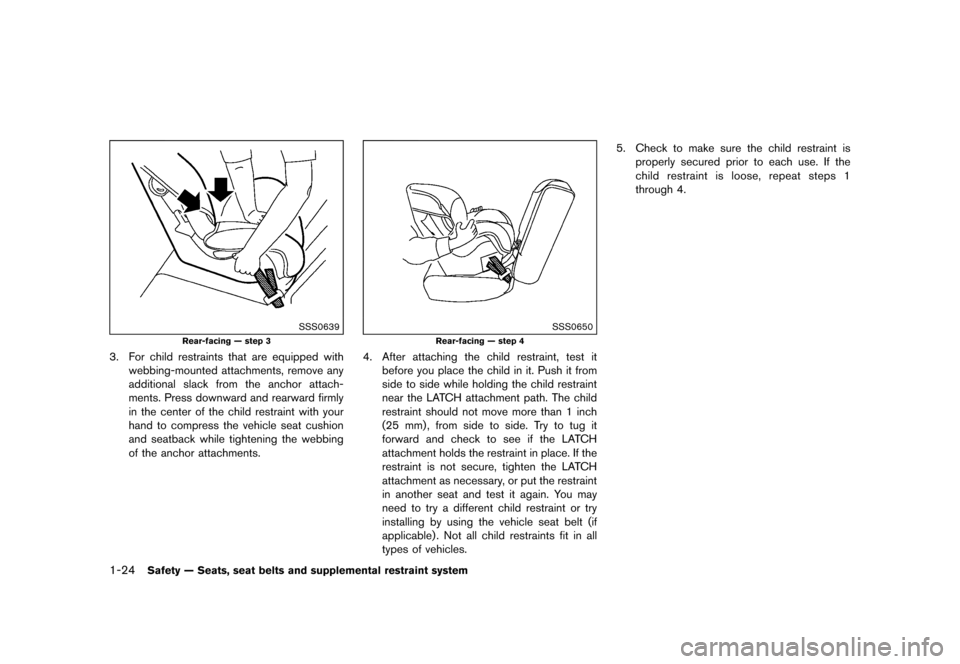

Rear-facing Ðstep 3
3. For child restraints thatareequipped with
webbing-mounted attachments,removeany
additional slackfromtheanchor attach-
ments. Pressdownward andrearward firmly
in the center ofthe child restraint withyour
hand tocompress thevehicle seatcushion
and seatback whiletightening thewebbing
of the anchor
attachments.
SSS0650
Rear-facing Ðstep 4
4. After attaching thechild restraint, testit
before youplace thechild init.Push itfrom
side toside while holding thechild restraint
near theLATCH attachment path.Thechild
restraint shouldnotmove morethan1inch
(25 mm),from sidetoside. Try to tug it
forward andcheck tosee ifthe LATCH
attachment holdstherestraint inplace. Ifthe
restraint isnot secure, tightentheLATCH
attachment asnecessary ,or put therestraint
in another seatandtestitagain. You may
need totry adifferent childrestraint ortry
installing byusing thevehicle seatbelt(if
applicable) .Not allchild restraints fitinall
types ofvehicles. 5.
Check tomake surethechild restraint is
properly securedpriortoeach use.Ifthe
child restraint isloose, repeat steps1
through 4.
&RQGLWLRQ


> (GLW   0RGHO )'@
SSS0100
REAR-F ACING CHILDRESTRAINT IN-
ST ALLA TION USING THESEATBEL TS
GUID-885 06413-410 5-490D-9F68 -4682274FA11D
WARNING
The three-point seatbeltwith Auto-
matic Locking Retractor (ALR)mustbe
used when installing achild restraint.
Failure touse theALR mode willresult
in the child restraint notbeing properly
secured. Therestraint couldtipover or
be loose andcause injurytoachild ina
sudden stoporcollision. Also,itcan
change theoperation ofthe front
passenger airbag. SeeªFront passen- ger
airbag andstatus lightº(P.1-46) .
SSS0100
Rear-facing Ðstep 1
Refer toall Warnings andCautions inthe ªChild
safetyº (P.1-16) andªChild restraintsº (P.1-18)
before installing achild restraint.
Do not use thelower anchors ifthe combined
weight ofthe child andthechild restraint
exceeds 65lbs (29.5 kg).If the combined
weight ofthe child andthechild restraint is
greater than65lbs (29.5 kg),use thevehicle's
seat belt(not thelower anchors) toinstall the
child restraint. Besure tofollow thechild
restraint manufacturer's instructionsforinstalla-
tion.
Follow thesestepstoinstall arear-facing child
restraint usingthevehicle seatbelts inthe rear
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-25
&RQGLWLRQ


> (GLW   0RGHO )'@
1-26
Safety ÐSeats, seatbelts andsupplement alrestraint system
seats:
1. Child restraints forinfants mustbe
used inthe rear-facing directionand
therefore mustnotbeused inthe front
seat. Position thechild restraint onthe seat.
Always followtherestraint manufacturer's
instructions.

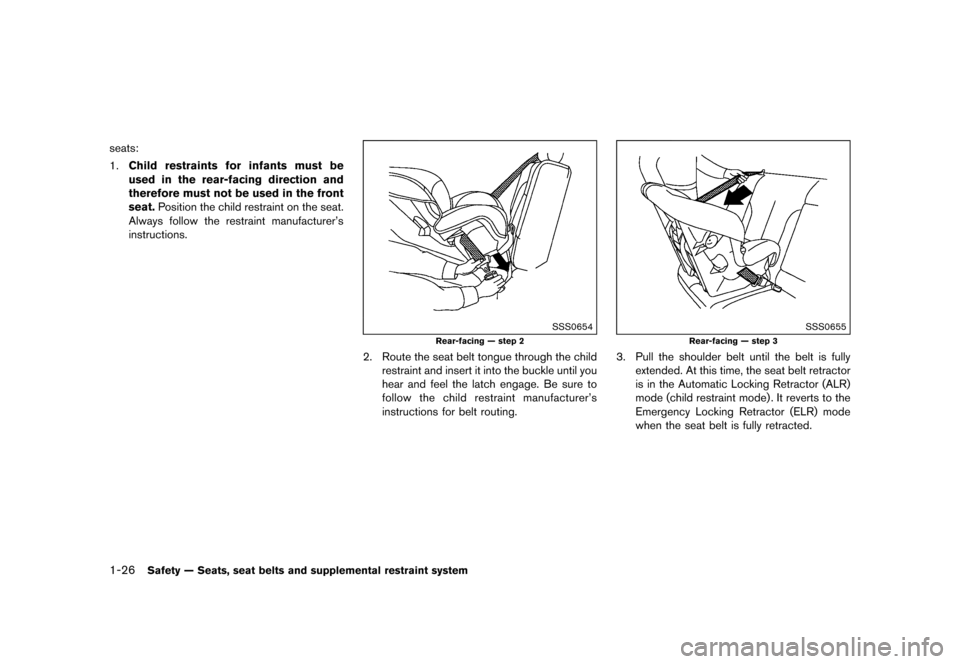

SSS0654
Rear-facing Ðstep 2
2. Route theseat belttongue through thechild
restraint andinsert itinto thebuckle untilyou
hear andfeelthelatch engage. Besure to
follow thechild restraint manufacturer's
instructions forbelt
routing.
SSS0655
Rear-facing Ðstep 3
3. Pull theshoulder beltuntil thebelt isfully
extended. Atthis time, theseat beltretractor
is in the Automatic LockingRetractor (ALR)
mode (childrestraint mode).It reverts tothe
Emergency LockingRetractor (ELR)mode
when theseat beltisfully retracted.
&RQGLWLRQ


> (GLW   0RGHO )'@
SSS0656

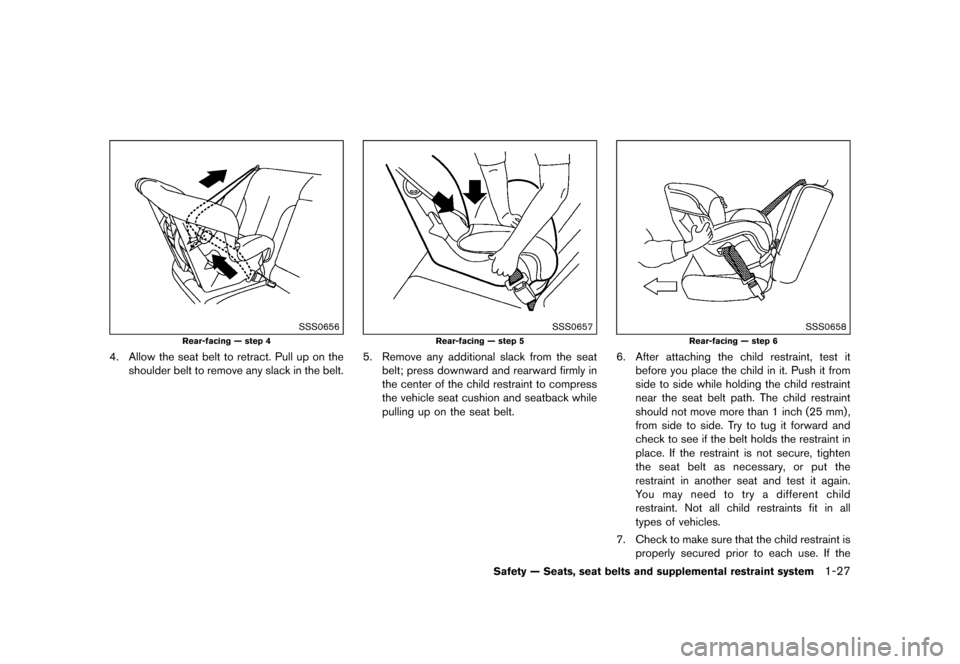

Rear-facing Ðstep 4
4. Allow theseat belttoretract. Pulluponthe
shoulder belttoremove anyslack inthe
belt.
SSS0657
Rear-facing Ðstep 5
5. Remove anyadditional slackfromtheseat
belt; press downward andrearward firmlyin
the center ofthe child restraint tocompress
the vehicle seatcushion andseatback while
pulling uponthe seat
belt.
SSS0658
Rear-facing Ðstep 6
6. After attaching thechild restraint, testit
before youplace thechild init.Push itfrom
side toside while holding thechild restraint
near theseat beltpath. Thechild restraint
should notmove morethan1inch (25mm) ,
from sidetoside. Try to tug itforward and
check tosee ifthe belt holds therestraint in
place. Ifthe restraint isnot secure, tighten
the seat beltasnecessary ,or put the
restraint inanother seatandtestitagain.
Y ou may need totry adifferent child
restraint. Notallchild restraints fitinall
types ofvehicles.
7. Check tomake surethatthechild restraint is
properly securedpriortoeach use.Ifthe
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-27
&RQGLWLRQ


> (GLW   0RGHO )'@
1-28
Safety ÐSeats, seatbelts andsupplement alrestraint system
seat beltisnot locked, repeatsteps1
through 6.
After thechild restraint isremoved andtheseat
belt fully retracted, theALR mode (childrestraint
mode) iscanceled.
FORW ARD-FACING CHILDRE-
STRAINT INSTALLA TION USING
LA TCH
GUID-3E6F0 E65-F435-4645-B38E -9EE9239F0DF8
Refer toall Warnings andCautions inthe ªChild
safetyº andªChild restraintsº sectionsbefore
installing achild restraint.
Do not use thelower anchors ifthe combined
weight ofthe child andthechild restraint
exceeds 65lbs (29.5 kg).If the combined
weight ofthe child andthechild restraint is
greater than65lbs (29.5 kg),use thevehicle's
seat belt(not thelower anchors) toinstall the
child restraint. Besure tofollow thechild
restraint manufacturer's instructionsforinstalla-
tion.
Follow thesestepstoinstall aforward-facing
child restraint usingtheLATCH system:
1. Position thechild restraint onthe seat.
Always followthechild restraint manufac-
turer's
instructions.
SSS0645
Forward-facing web-mountedÐstep 2
2. Secure thechild restraint anchorattach-
ments tothe LATCH lower anchors. Check
to make suretheLATCH attachment is
properly attached tothe lower anchors.
If the child restraint isequipped withatop
tether strap,routethetop tether strapand
secure thetether straptothe tether anchor
point. SeeªInstalling toptether strapº (P.1-
30) .Do not install childrestraints that
require theuse ofatop tether strapin
seating positions thatdonot have atop
tether
anchor.
SSS0646
Forward-facing rigid-mountedÐstep 2
3. The back ofthe child restraint shouldbe
secured againstthevehicle seatback.
If necessary ,adjust orremove thehead
restraint toobtain thecorrect childrestraint
fit. Ifthe head restraint isremoved, storeitin
a secure place.Besure toreinstall the
head restraint whenthechild restraint
is removed. SeeªHead restraints/head-
restsº (P.1-5) forhead restraint adjustment
information.
If the seating position doesnothave ahead
restraint anditis interfering withtheproper
child restraint fit,try another seatingposition
or adifferent childrestraint.
&RQGLWLRQ


> (GLW   0RGHO )'@
SSS0647

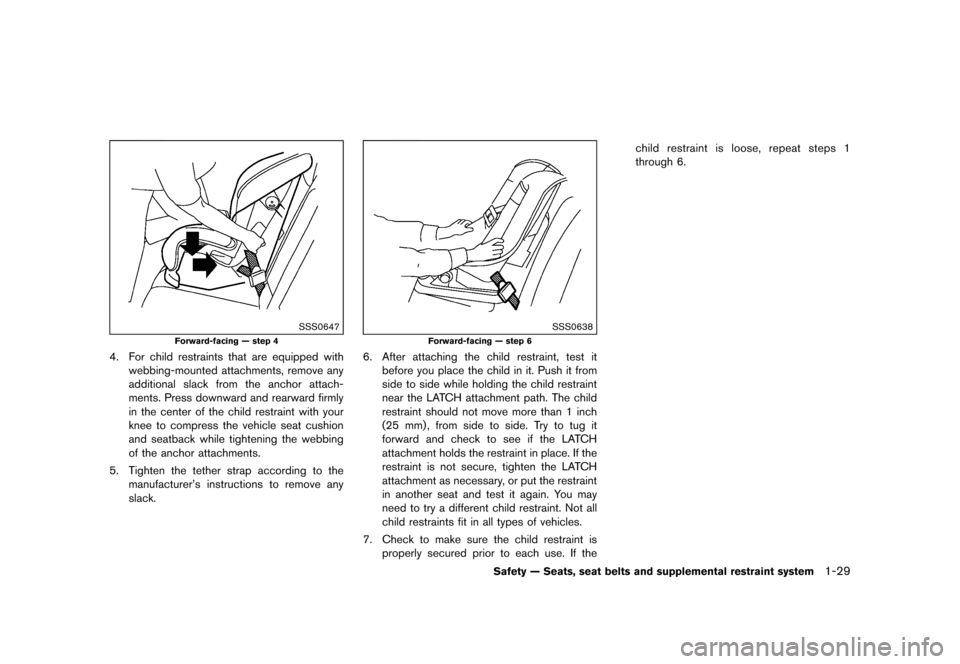

Forward-facing Ðstep 4
4. For child restraints thatareequipped with
webbing-mounted attachments,removeany
additional slackfromtheanchor attach-
ments. Pressdownward andrearward firmly
in the center ofthe child restraint withyour
knee tocompress thevehicle seatcushion
and seatback whiletightening thewebbing
of the anchor attachments.
5. Tighten thetether strapaccording tothe
manufacturer's instructionstoremove any
slack.
SSS0638
Forward-facing Ðstep 6
6. After attaching thechild restraint, testit
before youplace thechild init.Push itfrom
side toside while holding thechild restraint
near theLATCH attachment path.Thechild
restraint shouldnotmove morethan1inch
(25 mm),from sidetoside. Try to tug it
forward andcheck tosee ifthe LATCH
attachment holdstherestraint inplace. Ifthe
restraint isnot secure, tightentheLATCH
attachment asnecessary ,or put therestraint
in another seatandtestitagain. You may
need totry adifferent childrestraint. Notall
child restraints fitinall types ofvehicles.
7. Check tomake surethechild restraint is
properly securedpriortoeach use.Ifthe child
restraint isloose, repeat steps1
through 6.
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-29
&RQGLWLRQ


> (GLW   0RGHO )'@
1-30
Safety ÐSeats, seatbelts andsupplement alrestraint system
JVR0274X
Installing toptether strap
GUID-A62FAF6C-4393-492C- 8238-F74E13E6D8D7
WARNING
Child restraint anchorages arede-
signed towithstand onlythose loads
imposed bycorrectly fittedchildre-
straints. Undernocircumstances are
they tobe used toattach adultseat
belts, orother items orequipment to
the vehicle. Doingsocould damage the
child restraint anchorages. Thechild
restraint willnotbeproperly installed
using thedamaged anchorage, anda
child could beseriously injuredorkilled in
acollision.
The child restraint toptether strapmustbeused
when installing thechild restraint withthe
LA TCH lower anchor attachments.
First, secure thechild restraint withtheLATCH
lower anchors (rearoutboard seatpositions
only) .
1. Remove thehead restraint andstore itin a
secure place.Besure toreinstall thehead
restraint whenthechild restraint isremoved
(rear outboard seatpositions) .
See ªHead restraints/headrestsº (P.1-5) for
head restraint adjustment, removaland
installation information.
P osition thetop tether strapoverthetop of
the seatback.
2. Secure thetop tether straptothe tether
anchor pointonthe back ofthe seatback
behind thechild restraint.
3. Refer tothe appropriate childrestraint
installation procedurestepsinthis section
before tightening thetether strap.
If you have anyquestions wheninstalling a
top tether strap,consult yourNISSAN
dealer fordetails.
FORW ARD-FACING CHILDRE-
STRAINT INSTALLA TION USING THE
SEA TBEL TS
GUID-810B4D 72-35F4-4DCB-9430-D7 CED8049F7A
WARNING
The three-point seatbeltwith Auto-
matic Locking Retractor (ALR)mustbe
used when installing achild restraint.
Failure touse theALR mode willresult
in the child restraint notbeing properly
secured. Therestraint couldtipover or
be loose andcause injurytoachild ina
sudden stoporcollision. Also,itcan
change theoperation ofthe front
passenger airbag. SeeªFront passen-
ger airbag andstatus lightº(P.1-46) .
&RQGLWLRQ
