> ( G L W 0 R G H O ) ' @

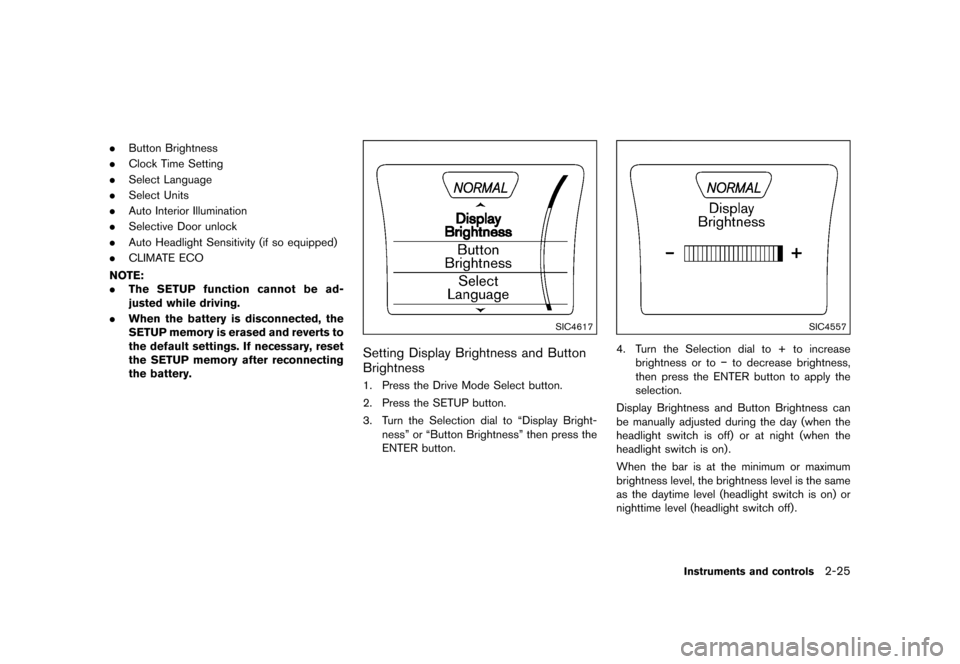

.Button Brightness
. Clock Time Setting
. Select Language
. Select Units
. Auto Interior Illumination
. Selective Door unlock
. Auto Headlight Sensitivity (if so equipped)
. CLIMATE ECO
NOTE:
. The SETUP function cannot be ad-
justed while driving.
. When the battery is disconnected, the
SETUP memory is erased and reverts to
the default settings. If necessary, reset
the SETUP memory after reconnecting
the battery.
SIC4617
Setting Display Brightness and Button
Brightness
GUID-27E9F256-C04B-4006-9271-055B958717481. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªDisplay Bright-
nessº or ªButton Brightnessº then press the
ENTER button.
SIC4557
4. Turn the Selection dial to + to increasebrightness or to
Page 102 of 399
> ( G L W 0 R G H O ) ' @
2-26Instruments and controls

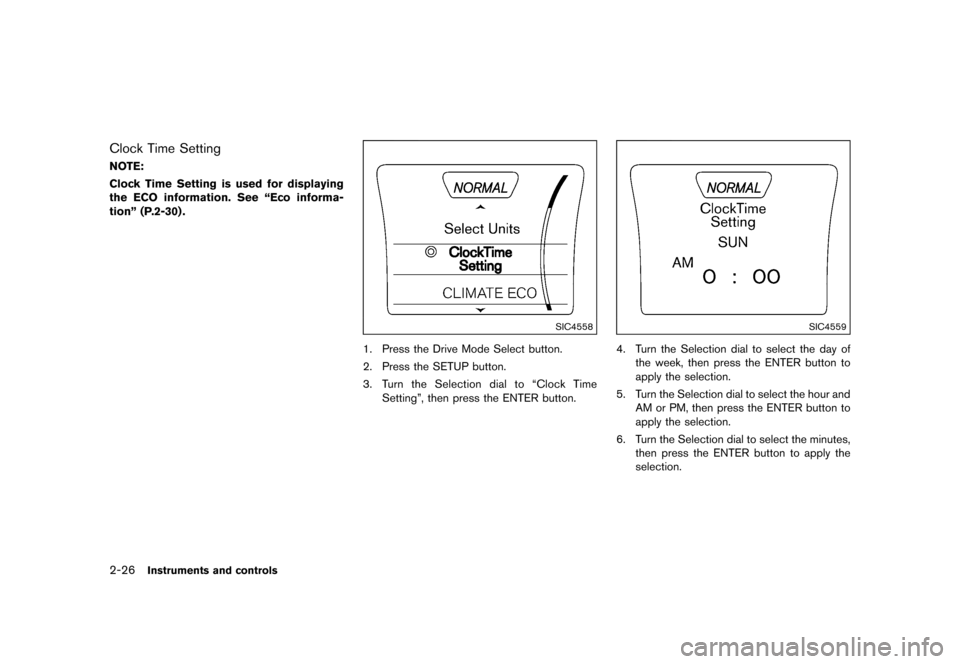

Clock Time SettingGUID-2812E6D3-7933-4DFF-89C0-F87C59706668NOTE:
Clock Time Setting is used for displaying
the ECO information. See ªEco informa-
tionº (P.2-30) .
SIC4558
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªClock Time
Settingº, then press the ENTER button.
SIC4559
4. Turn the Selection dial to select the day of
the week, then press the ENTER button to
apply the selection.
5. Turn the Selection dial to select the hour and AM or PM, then press the ENTER button to
apply the selection.
6. Turn the Selection dial to select the minutes, then press the ENTER button to apply the
selection.
& R Q G L W L R Q
Page 103 of 399
> ( G L W 0 R G H O ) ' @

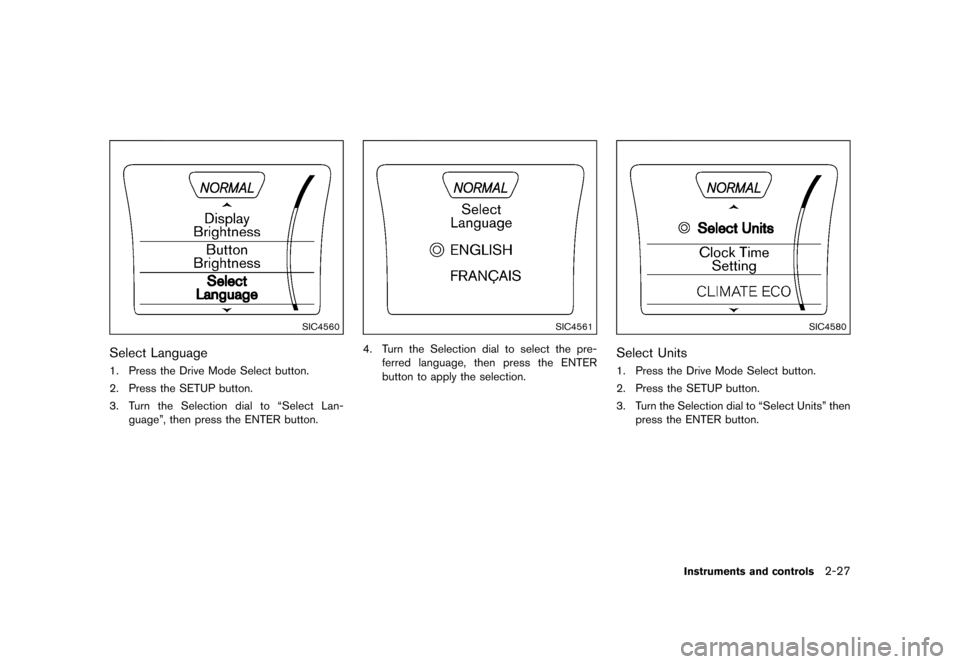

SIC4560
Select LanguageGUID-BEC48047-A67F-46E3-90C7-828B6A0EEAA11. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªSelect Lan-
guageº, then press the ENTER button.
SIC4561
4. Turn the Selection dial to select the pre-
ferred language, then press the ENTER
button to apply the selection.
SIC4580
Select UnitsGUID-774E4284-E836-45B2-9C03-2EB133B47B951. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªSelect Unitsº thenpress the ENTER button.
Instruments and controls2-27
& R Q G L W L R Q
Page 104 of 399
> ( G L W 0 R G H O ) ' @
2-28Instruments and controls

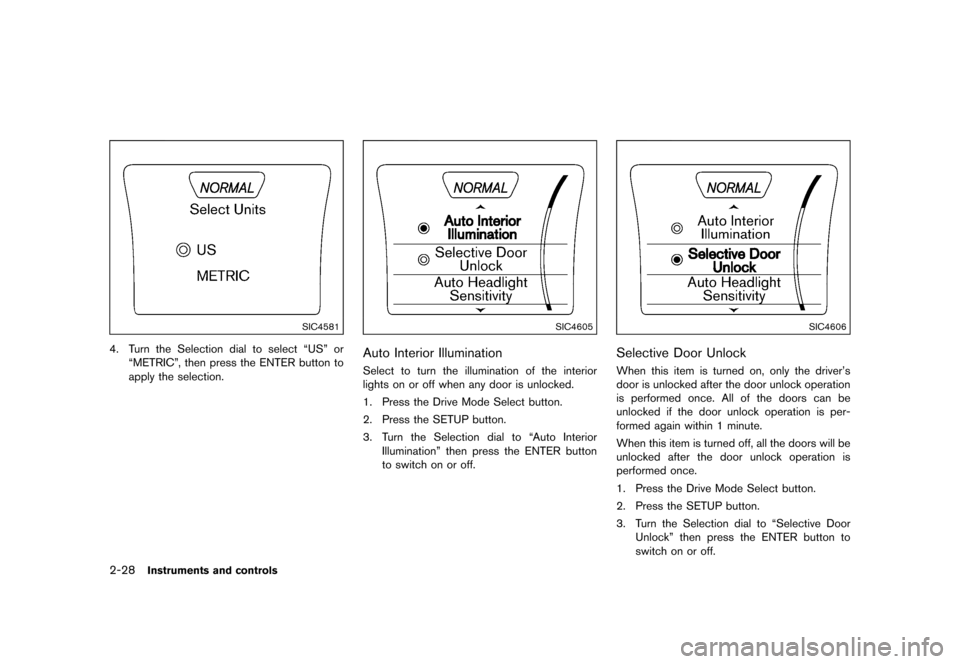

SIC4581
4. Turn the Selection dial to select ªUSº orªMETRICº, then press the ENTER button to
apply the selection.
SIC4605
Auto Interior IlluminationGUID-73C0C534-32F7-4478-94B8-BD493A21A348Select to turn the illumination of the interior
lights on or off when any door is unlocked.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to ªAuto Interior
Illuminationº then press the ENTER button
to switch on or off.
SIC4606
Selective Door UnlockGUID-D7CB0C67-3FC9-41B8-9A49-41124D8166DAWhen this item is turned on, only the driver's
door is unlocked after the door unlock operation
is performed once. All of the doors can be
unlocked if the door unlock operation is per-
formed again within 1 minute.
When this item is turned off, all the doors will be
unlocked after the door unlock operation is
performed once.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªSelective Door
Unlockº then press the ENTER button to
switch on or off.
& R Q G L W L R Q
Page 105 of 399
> ( G L W 0 R G H O ) ' @

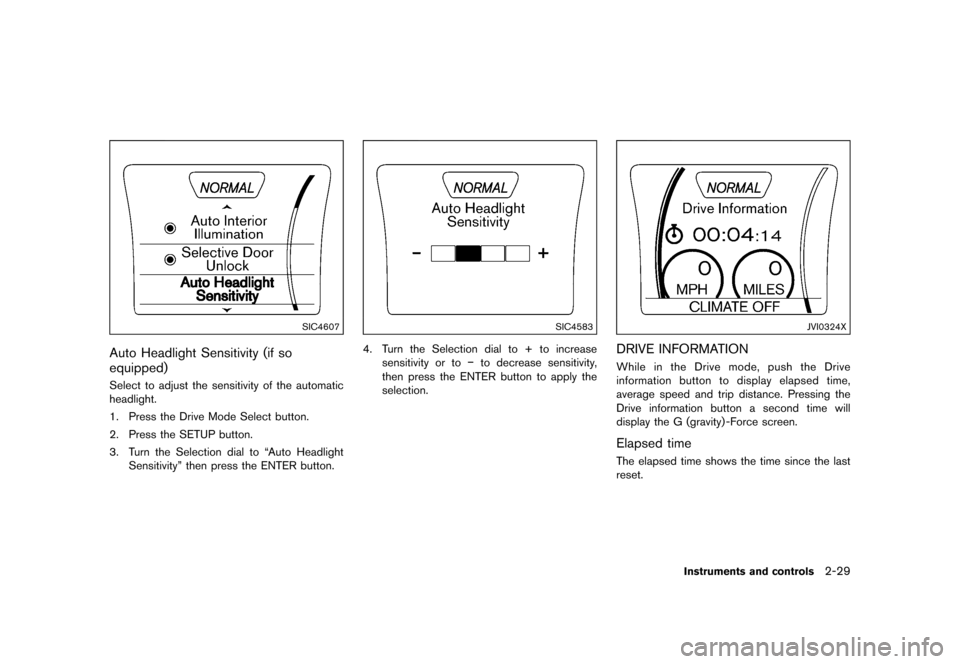

SIC4607
Auto Headlight Sensitivity (if so
equipped)
GUID-E8605F81-0011-489E-98B9-32D5ACC252FESelect to adjust the sensitivity of the automatic
headlight.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to ªAuto HeadlightSensitivityº then press the ENTER button.
SIC4583
4. Turn the Selection dial to + to increase
sensitivity or to
Page 106 of 399
> ( G L W 0 R G H O ) ' @
2-30Instruments and controls

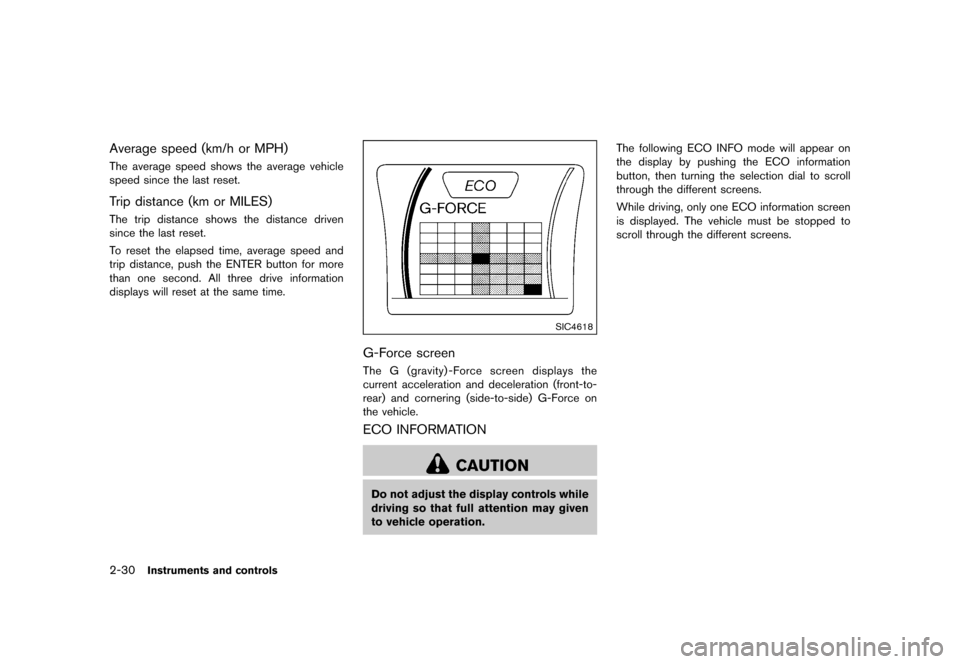

Average speed (km/h or MPH)GUID-9C3C1498-7E06-42C4-96D5-12BCDDAA68EBThe average speed shows the average vehicle
speed since the last reset.
Trip distance (km or MILES)GUID-FE7A52DC-03FE-40C7-8350-CD409A5F214FThe trip distance shows the distance driven
since the last reset.
To reset the elapsed time, average speed and
trip distance, push the ENTER button for more
than one second. All three drive information
displays will reset at the same time.
SIC4618
G-Force screenGUID-7CA54F31-AFA0-446D-97A9-40A1CD8D276AThe G (gravity) -Force screen displays the
current acceleration and deceleration (front-to-
rear) and cornering (side-to-side) G-Force on
the vehicle.
ECO INFORMATIONGUID-FF86F9FC-E590-4E56-85D1-34E86F1F19FD
CAUTION
Do not adjust the display controls while
driving so that full attention may given
to vehicle operation.The following ECO INFO mode will appear on
the display by pushing the ECO information
button, then turning the selection dial to scroll
through the different screens.
While driving, only one ECO information screen
is displayed. The vehicle must be stopped to
scroll through the different screens.
& R Q G L W L R Q
Page 107 of 399
> ( G L W 0 R G H O ) ' @

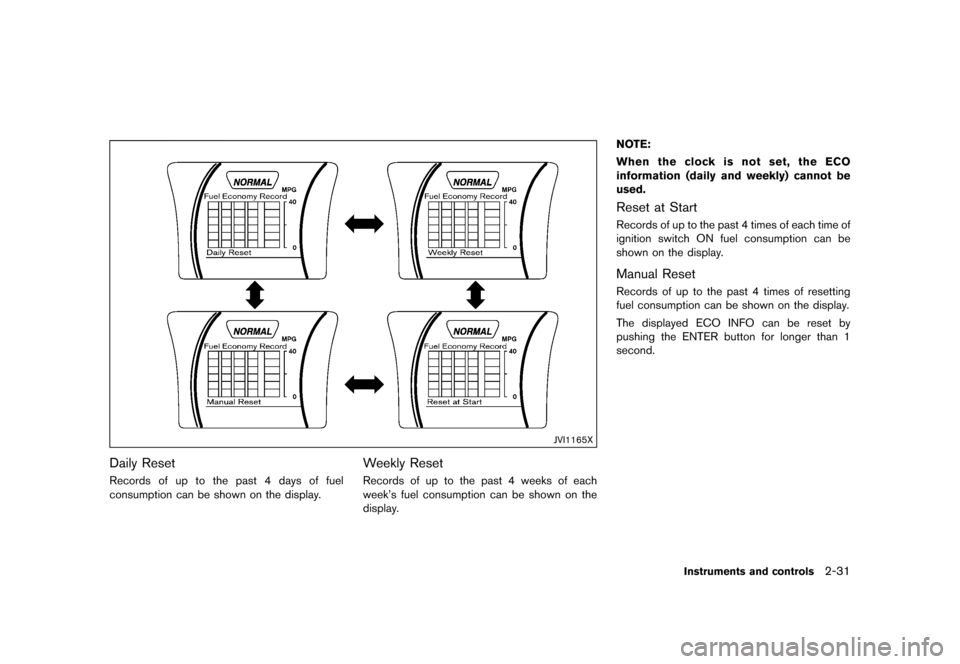

JVI1165X
Daily ResetGUID-9E852481-4855-4C98-AD8C-A7AF08E10E28Records of up to the past 4 days of fuel
consumption can be shown on the display.
Weekly ResetGUID-EB7B5C4A-19C8-433E-AFD3-A165E5C4C2E8Records of up to the past 4 weeks of each
week's fuel consumption can be shown on the
display.NOTE:
When the clock is not set, the ECO
information (daily and weekly) cannot be
used.
Reset at StartGUID-F852259B-B08A-4BC8-BAC5-9ACC5A687EEBRecords of up to the past 4 times of each time of
ignition switch ON fuel consumption can be
shown on the display.
Manual ResetGUID-B6A62823-AFB2-4ADC-A65B-72B63B1719C0Records of up to the past 4 times of resetting
fuel consumption can be shown on the display.
The displayed ECO INFO can be reset by
pushing the ENTER button for longer than 1
second.
Instruments and controls2-31
& R Q G L W L R Q
Page 108 of 399
> ( G L W 0 R G H O ) ' @
2-32Instruments and controls

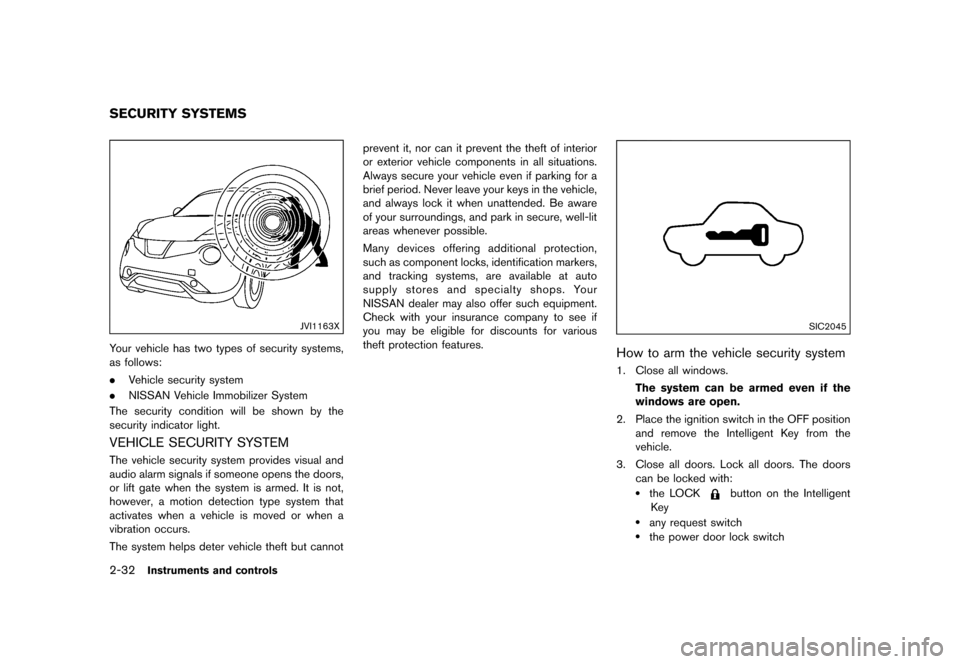

GUID-E521ED90-7BA2-4FC3-91C7-F35E3C88DAF5
JVI1163X
Your vehicle has two types of security systems,
as follows:
.Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-B38A9882-E3CB-4884-A546-D9C91260263BThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security systemGUID-0B0D54E3-2D2E-4E66-84C2-DB089A802C9C1. Close all windows.
The system can be armed even if the
windows are open.
2. Place the ignition switch in the OFF position and remove the Intelligent Key from the
vehicle.
3. Close all doors. Lock all doors. The doors can be locked with:
.the LOCKbutton on the Intelligent
Key
.any request switch.the power door lock switch
SECURITY SYSTEMS
& R Q G L W L R Q
Page 109 of 399
> ( G L W 0 R G H O ) ' @

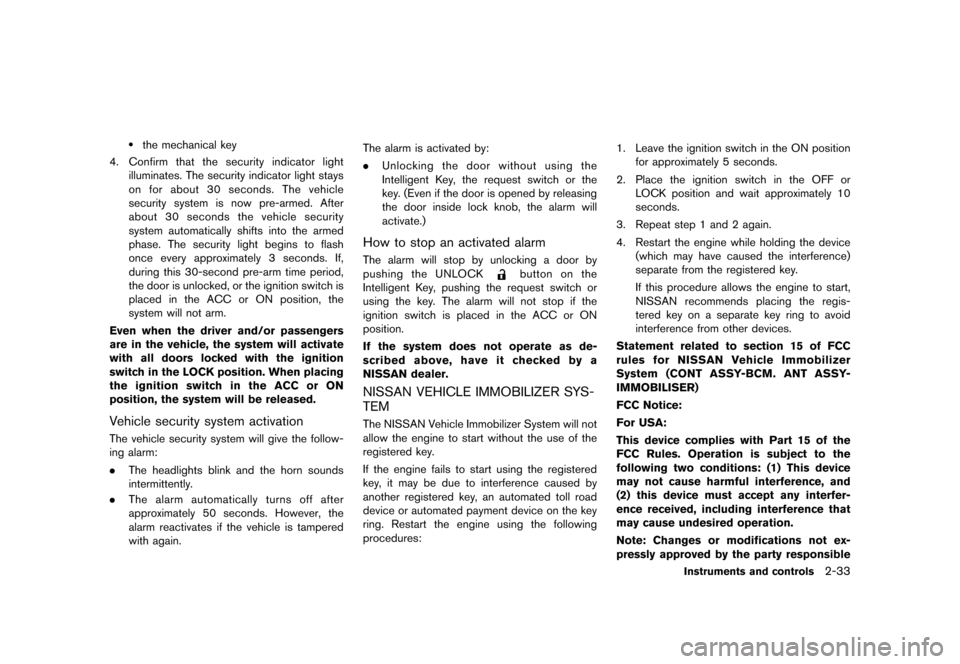

.the mechanical key
4. Confirm that the security indicator light
illuminates. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
placed in the ACC or ON position, the
system will not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked with the ignition
switch in the LOCK position. When placing
the ignition switch in the ACC or ON
position, the system will be released.
Vehicle security system activationGUID-5860D76E-23D8-4381-99F0-0DD8252DADA1The vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 50 seconds. However, the
alarm reactivates if the vehicle is tampered
with again. The alarm is activated by:
.
Unlocking the door without using the
Intelligent Key, the request switch or the
key. (Even if the door is opened by releasing
the door inside lock knob, the alarm will
activate.)
How to stop an activated alarmGUID-C58BB668-0D8A-41CA-8C30-D900891ABB1AThe alarm will stop by unlocking a door by
pushing the UNLOCK
button on the
Intelligent Key, pushing the request switch or
using the key. The alarm will not stop if the
ignition switch is placed in the ACC or ON
position.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER SYS-
TEM
GUID-82475EC2-840C-467B-A31D-97F570513B2FThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures: 1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position and wait approximately 10
seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the regis-
tered key on a separate key ring to avoid
interference from other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY-BCM. ANT ASSY-
IMMOBILISER)
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
Instruments and controls2-33
& R Q G L W L R Q
Page 110 of 399
> ( G L W 0 R G H O ) ' @

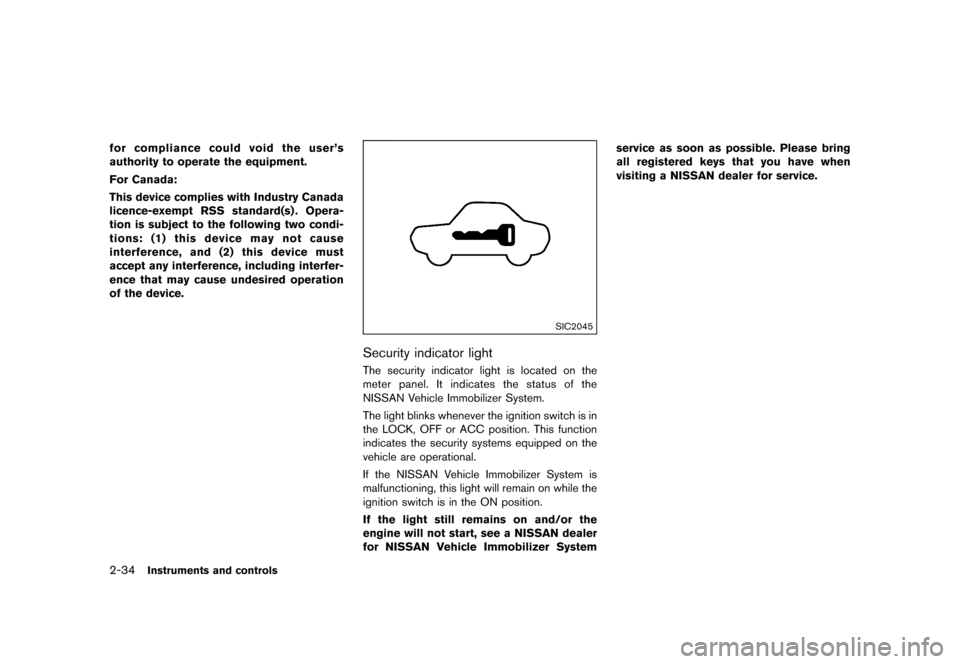

2-34Instruments and controls
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
SIC2045
Security indicator lightGUID-91936668-A20A-48BD-8CB2-340577FB611DThe security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
& R Q G L W L R Q
