NISSAN JUKE 2016 F15 / 1.G Manual Online
Manufacturer: NISSAN, Model Year: 2016, Model line: JUKE, Model: NISSAN JUKE 2016 F15 / 1.GPages: 399, PDF Size: 3.36 MB
Page 81 of 399
> ( G L W 0 R G H O ) ' @
GUID-DF36AE97-4508-4B81-8D84-DB4C25F6792E
JVC0850X

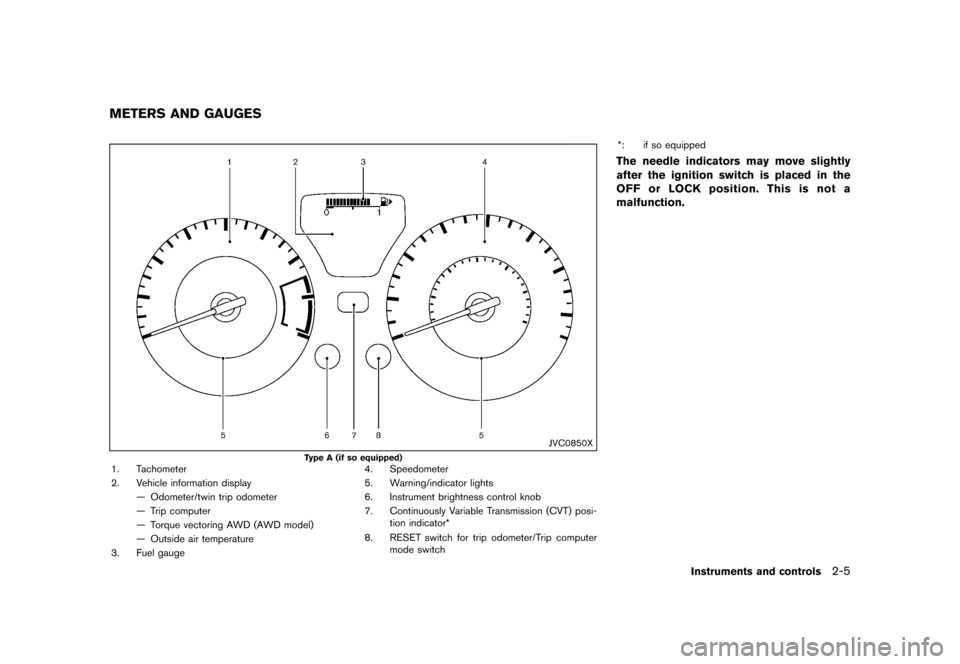

Type A (if so equipped)1. Tachometer
2. Vehicle information displayÐ Odometer/twin trip odometer
Ð Trip computer
Ð Torque vectoring AWD (AWD model)
Ð Outside air temperature
3. Fuel gauge 4. Speedometer
5. Warning/indicator lights
6. Instrument brightness control knob
7. Continuously Variable Transmission (CVT) posi-
tion indicator*
8. RESET switch for trip odometer/Trip computer mode switch *: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
Instruments and controls2-5
METERS AND GAUGES
& R Q G L W L R Q

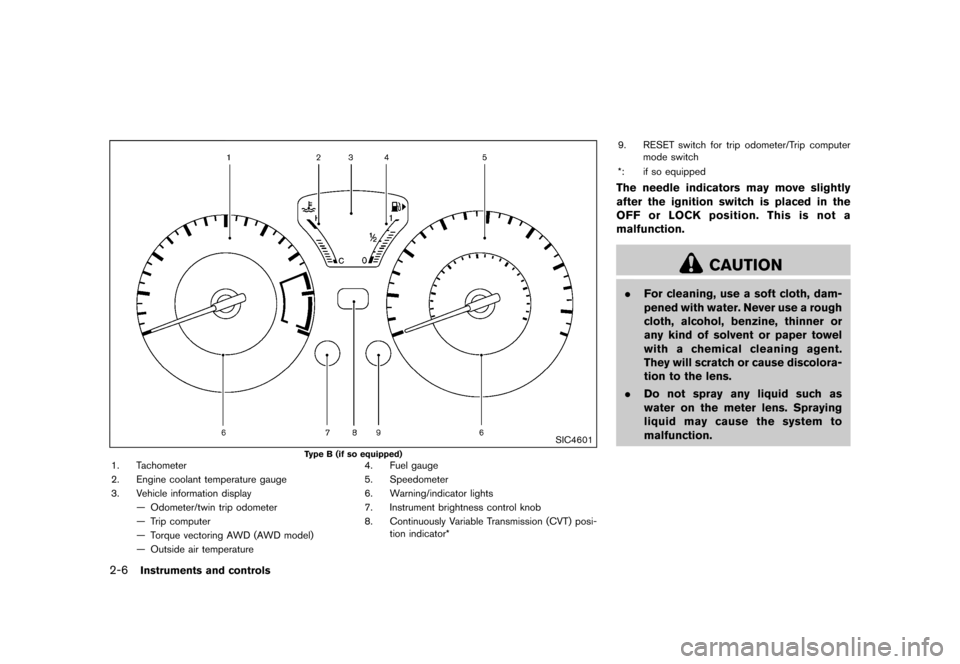

Page 82 of 399
> ( G L W 0 R G H O ) ' @
2-6Instruments and controls
SIC4601
Type B (if so equipped)1. Tachometer
2. Engine coolant temperature gauge
3. Vehicle information displayÐ Odometer/twin trip odometer
Ð Trip computer
Ð Torque vectoring AWD (AWD model)
Ð Outside air temperature 4. Fuel gauge
5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. Continuously Variable Transmission (CVT) posi-
tion indicator* 9. RESET switch for trip odometer/Trip computer
mode switch
*: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
& R Q G L W L R Q
Page 83 of 399
> ( G L W 0 R G H O ) ' @

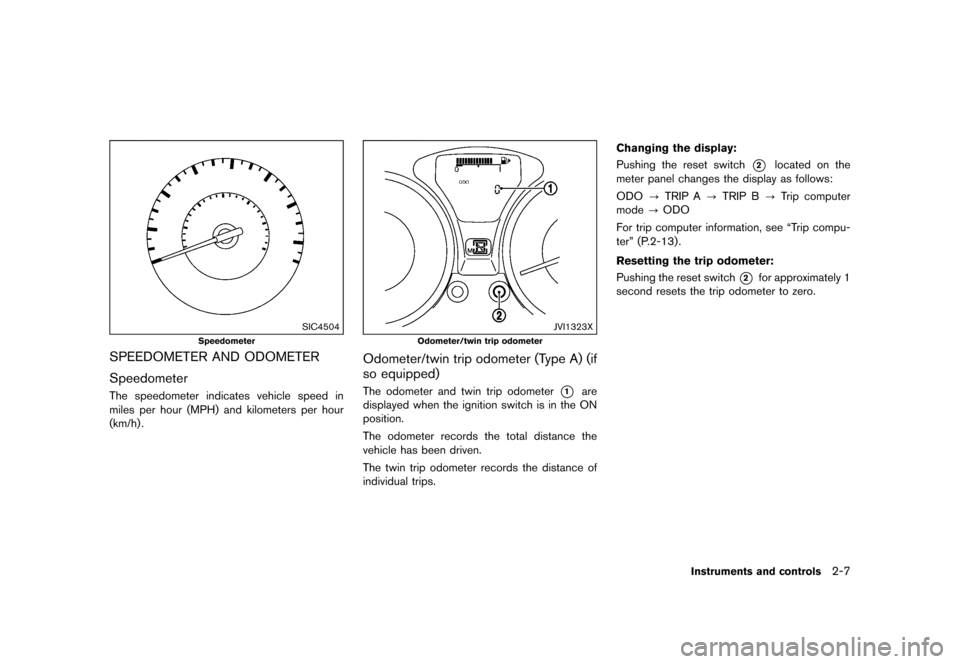

SIC4504
Speedometer
SPEEDOMETER AND ODOMETERGUID-51A241D7-04C6-4D12-AE1B-0180C370F35E
SpeedometerGUID-C27FC7F5-4696-4462-8629-B031ED3004EEThe speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
JVI1323X
Odometer/twin trip odometer
Odometer/twin trip odometer (Type A) (if
so equipped)
GUID-A41D0989-DB08-4D3A-BE30-03AEC3FEFFE0The odometer and twin trip odometer*1are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the reset switch*2located on the
meter panel changes the display as follows:
ODO ?TRIP A ?TRIP B ?Trip computer
mode ?ODO
For trip computer information, see ªTrip compu-
terº (P.2-13) .
Resetting the trip odometer:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the reset switch*2for approximately 1
second resets the trip odometer to zero.
Instruments and controls2-7
& R Q G L W L R Q
Page 84 of 399
> ( G L W 0 R G H O ) ' @

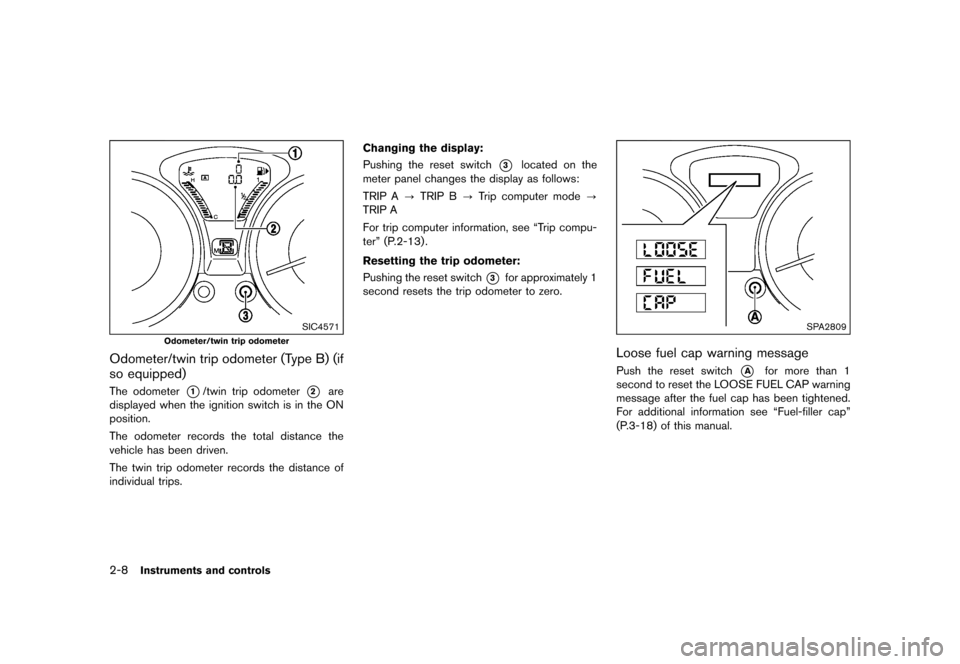

2-8Instruments and controls
SIC4571
Odometer/twin trip odometer
Odometer/twin trip odometer (Type B) (if
so equipped)
GUID-828220B2-283C-4173-A56D-93562848EB89The odometer*1/twin trip odometer*2are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the reset switch*3located on the
meter panel changes the display as follows:
TRIP A ?TRIP B ?Trip computer mode ?
TRIP A
For trip computer information, see ªTrip compu-
terº (P.2-13) .
Resetting the trip odometer:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the reset switch*3for approximately 1
second resets the trip odometer to zero.
SPA2809
Loose fuel cap warning messageGUID-1B265639-6ADC-4A76-95BA-C77D72122232Push the reset switch*Afor more than 1
second to reset the LOOSE FUEL CAP warning
message after the fuel cap has been tightened.
For additional information see ªFuel-filler capº
(P.3-18) of this manual.
& R Q G L W L R Q

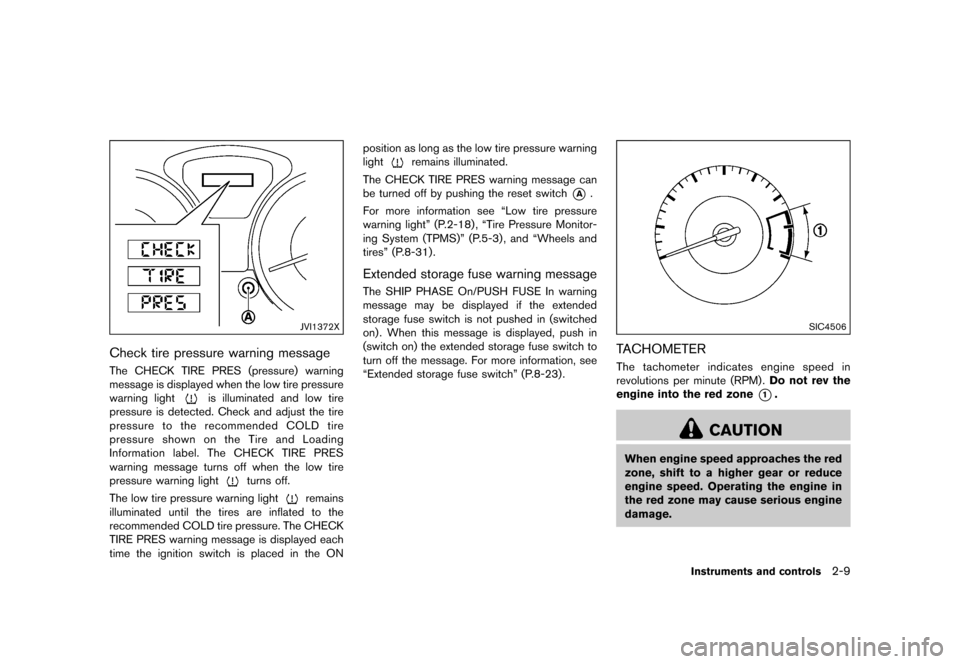

Page 85 of 399
> ( G L W 0 R G H O ) ' @
JVI1372X
Check tire pressure warning messageGUID-1EFE659B-2B0B-4654-8D74-A2F2486D0ED9The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light
is illuminated and low tire
pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light
turns off.
The low tire pressure warning light
remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON position as long as the low tire pressure warning
light
remains illuminated.
The CHECK TIRE PRES warning message can
be turned off by pushing the reset switch
*A.
For more information see ªLow tire pressure
warning lightº (P.2-18) , ªTire Pressure Monitor-
ing System (TPMS)º (P.5-3) , and ªWheels and
tiresº (P.8-31).
Extended storage fuse warning messageGUID-9D5F7996-2B45-477F-8A6C-7904F0D81301The SHIP PHASE On/PUSH FUSE In warning
message may be displayed if the extended
storage fuse switch is not pushed in (switched
on) . When this message is displayed, push in
(switch on) the extended storage fuse switch to
turn off the message. For more information, see
ªExtended storage fuse switchº (P.8-23).
SIC4506
TACHOMETERGUID-215DFAC7-AA25-4799-B76A-5C7F24514E30The tachometer indicates engine speed in
revolutions per minute (RPM) . Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Instruments and controls2-9
& R Q G L W L R Q
Page 86 of 399
> ( G L W 0 R G H O ) ' @

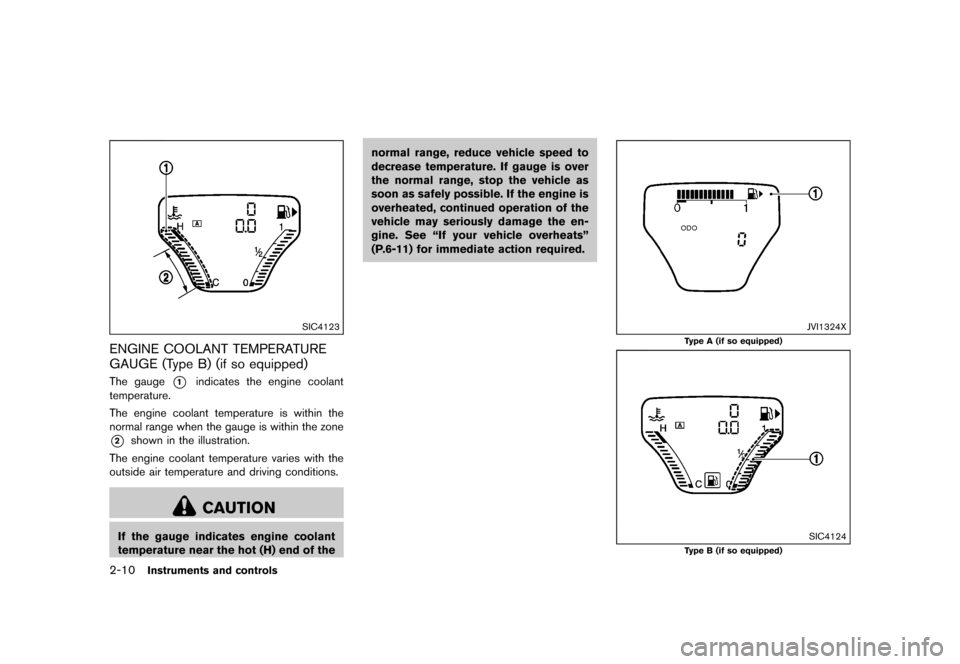

2-10Instruments and controls
SIC4123
ENGINE COOLANT TEMPERATURE
GAUGE (Type B) (if so equipped)
GUID-34DD45D3-B4F2-44CD-AAC9-21491CEBB243The gauge*1indicates the engine coolant
temperature.
The engine coolant temperature is within the
normal range when the gauge is within the zone
*2shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See ªIf your vehicle overheatsº
(P.6-11) for immediate action required.
JVI1324X
Type A (if so equipped)
SIC4124
Type B (if so equipped)
& R Q G L W L R Q
Page 87 of 399
> ( G L W 0 R G H O ) ' @

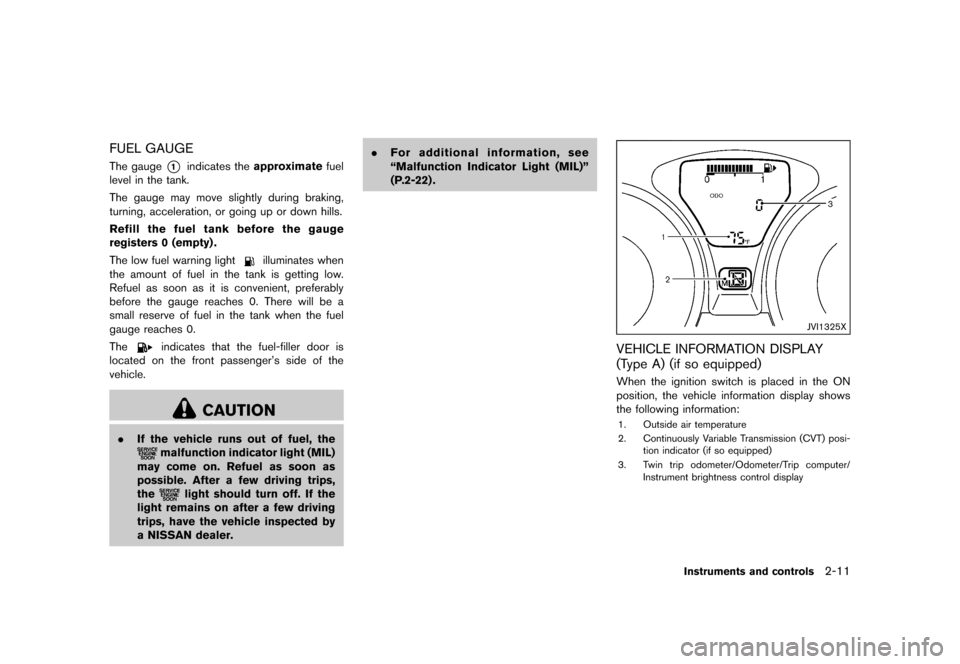

FUEL GAUGEGUID-353F5508-A471-4C58-AF18-C779D3376019The gauge*1indicates theapproximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers 0 (empty) .
The low fuel warning light
illuminates when
the amount of fuel in the tank is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches 0. There will be a
small reserve of fuel in the tank when the fuel
gauge reaches 0.
The
indicates that the fuel-filler door is
located on the front passenger's side of the
vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer. .
For additional information, see
ªMalfunction Indicator Light (MIL)º
(P.2-22) .
JVI1325X
VEHICLE INFORMATION DISPLAY
(Type A) (if so equipped)
GUID-EC2230F2-740F-4EDF-A5DE-7642ED3AEC53When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:
1. Outside air temperature
2. Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)
3. Twin trip odometer/Odometer/Trip computer/
Instrument brightness control display
Instruments and controls2-11
& R Q G L W L R Q
Page 88 of 399
> ( G L W 0 R G H O ) ' @

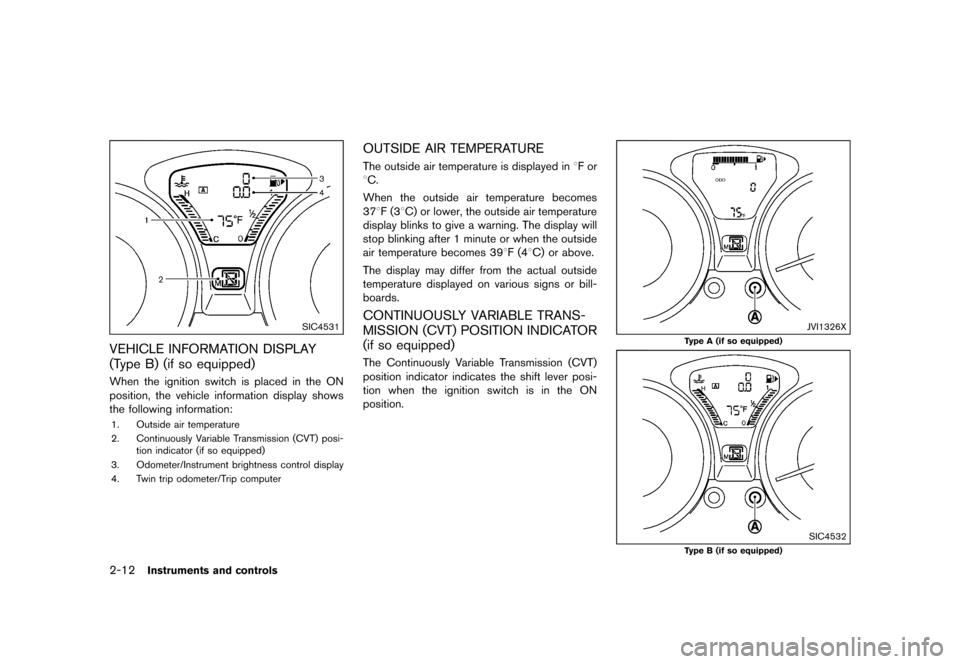

2-12Instruments and controls
SIC4531
VEHICLE INFORMATION DISPLAY
(Type B) (if so equipped)
GUID-AF3BD135-ACE2-43DA-A3C3-324557A1AAC2When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:
1. Outside air temperature
2. Continuously Variable Transmission (CVT) posi-tion indicator (if so equipped)
3. Odometer/Instrument brightness control display
4. Twin trip odometer/Trip computer
OUTSIDE AIR TEMPERATUREGUID-1A157006-4054-4973-9724-C2D210223480The outside air temperature is displayed in 8F or
8C.
When the outside air temperature becomes
378F (38C) or lower, the outside air temperature
display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 398F (48C) or above.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)
GUID-AEF6AFF6-79C9-4BA4-B0D3-EC97DBF7DA83The Continuously Variable Transmission (CVT)
position indicator indicates the shift lever posi-
tion when the ignition switch is in the ON
position.
JVI1326X
Type A (if so equipped)
SIC4532
Type B (if so equipped)
& R Q G L W L R Q
Page 89 of 399
> ( G L W 0 R G H O ) ' @

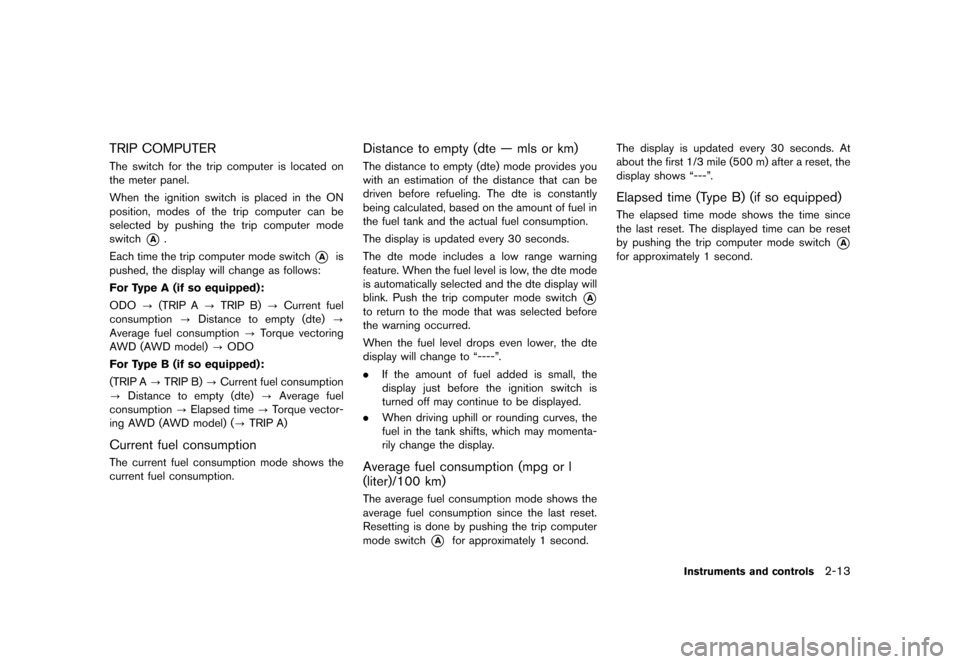

TRIP COMPUTERGUID-761D7DC4-8A71-4FAE-9686-B06903798D36The switch for the trip computer is located on
the meter panel.
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch
*A.
Each time the trip computer mode switch
*Ais
pushed, the display will change as follows:
For Type A (if so equipped):
ODO ?(TRIP A ?TRIP B) ?Current fuel
consumption ?Distance to empty (dte) ?
Average fuel consumption ?Torque vectoring
AWD (AWD model) ?ODO
For Type B (if so equipped):
(TRIP A ?TRIP B) ?Current fuel consumption
? Distance to empty (dte) ?Average fuel
consumption ?Elapsed time ?Torque vector-
ing AWD (AWD model) (? TRIP A)
Current fuel consumptionGUID-0A5E70EC-4694-4D89-8DA2-A160792B4EB3The current fuel consumption mode shows the
current fuel consumption.
Distance to empty (dte Ð mls or km)GUID-4238E3D0-30E9-4AEC-8B23-BEE5EE4E1E0BThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch
*A
to return to the mode that was selected before
the warning occurred.
When the fuel level drops even lower, the dte
display will change to ª----º.
.If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
Average fuel consumption (mpg or l
(liter)/100 km)
GUID-E7885AB9-2063-4E90-897B-7200C49E7707The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
mode switch
*Afor approximately 1 second. The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows ª---º.
Elapsed time (Type B) (if so equipped)GUID-A16D6909-E777-4207-BB06-A5B7201C9049The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the trip computer mode switch
*A
for approximately 1 second.
Instruments and controls2-13
& R Q G L W L R Q
Page 90 of 399
> ( G L W 0 R G H O ) ' @
2-14Instruments and controls

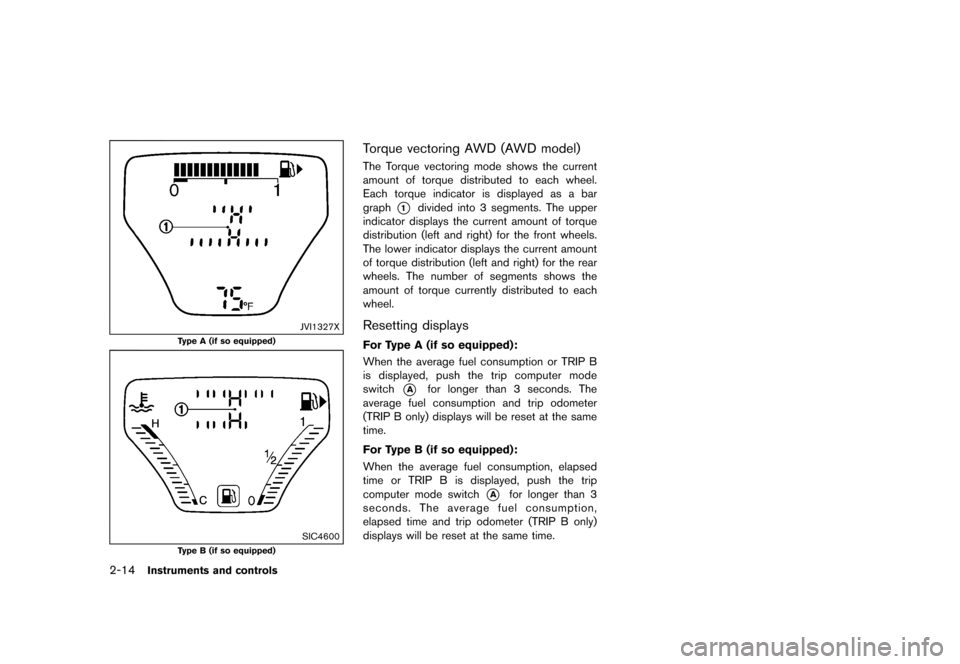

JVI1327X
Type A (if so equipped)
SIC4600
Type B (if so equipped)
Torque vectoring AWD (AWD model)GUID-5D8074C6-FF7E-4BFD-9621-AE02515CD69AThe Torque vectoring mode shows the current
amount of torque distributed to each wheel.
Each torque indicator is displayed as a bar
graph
*1divided into 3 segments. The upper
indicator displays the current amount of torque
distribution (left and right) for the front wheels.
The lower indicator displays the current amount
of torque distribution (left and right) for the rear
wheels. The number of segments shows the
amount of torque currently distributed to each
wheel.
Resetting displaysGUID-C3B30EF4-F9E7-424B-B539-122D78C3AE9F
For Type A (if so equipped):GUID-F83C168B-173D-4313-B631-F712588C0463When the average fuel consumption or TRIP B
is displayed, push the trip computer mode
switch
*Afor longer than 3 seconds. The
average fuel consumption and trip odometer
(TRIP B only) displays will be reset at the same
time.
For Type B (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463When the average fuel consumption, elapsed
time or TRIP B is displayed, push the trip
computer mode switch
*Afor longer than 3
seconds. The average fuel consumption,
elapsed time and trip odometer (TRIP B only)
displays will be reset at the same time.
& R Q G L W L R Q
