trical equipment should also be
done by a NISSAN dealer. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the air bag system.
. A cracked windshield should be
replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner's Manual.
SSS0978
FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM-
PACT SUPPLEMENTAL AIR BAG SYS-
TEMS
GUID-AFC089FF-C2BE-4725-8D68-1254F9F7376FThe side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails. All of the
information, cautions and warnings in this
manual apply and must be followed. The
side air bags and curtain air bags are designed
to inflate in higher severity side collisions,
although they may inflate if the forces in another
type of collision are similar to those of a higher
severity side impact. They are designed to inflate on the side where the vehicle is impacted. They
may not inflate in certain side collisions.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, followed
by release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be
taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front occupants. Curtain
air bags help to cushion the impact force to the
head of occupants in the front and rear outboard
seating positions. They can help save lives and
reduce serious injuries. However, an inflating
side air bag or curtain air bag may cause
abrasions or other injuries. Side air bags and
curtain air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain air bags
Safety Ð Seats, seat belts and supplemental restraint system1-51
&RQGLWLRQ


> (GLW    0RGHO )' @
1-52Safety Ð Seats, seat belts and supplemental restraint system
inflate quickly in order to help protect the
occupants. Because of this, the force of the
side air bags and curtain air bags inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bags and curtain air
bags will deflate quickly after the collision is
over.
The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.
After turning the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
WARNING
.Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous
projectiles and cause injury if a side
air bag inflates. .
Right after inflation, several side air
bag and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.
. No unauthorized changes should be
made to any components or wiring
of the side air bag and curtain air
bag systems. This is to prevent
damage to or accidental inflation
of the side air bag and curtain air
bag systems.
. Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.
. Tampering with the side air bag
system may result in serious perso-
nal injury. For example, do not
change the front seats by placing
material near the seatbacks or by
installing additional trim material,
such as seat covers, around the side
air bag.
. Work around and on the side air bag
and curtain air bag systems should
be done by a NISSAN dealer. In- stallation of electrical equipment
should also be done by a NISSAN
dealer. The Supplemental Restraint
System (SRS) wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the side air
bag or curtain air bag systems.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner's Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats)
GUID-779314D5-D874-4704-827E-12924B389912
WARNING
. The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
&RQGLWLRQ


> (GLW    0RGHO )' @
tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.
. No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
. Work around and on the preten-
sioner system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. Un-
authorized electrical test equipment
and probing devices should not be
used on the pretensioner system.
. If you need to dispose of a preten-
sioner or scrap the vehicle, contact a
NISSAN dealer. Correct preten-
sioner disposal procedures are set
forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.
The pretensioner system may activate with the supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful and does not indicate a
fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. See ªSupplemental air bag warning
lightº (P.1-54). If the operation of the supple-
mental air bag warning light indicates there is a
malfunction, have the system checked by a
NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner's Manual.
SSS1020
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-A2B5F7BA-51AD-49EB-AC0F-EEAE3CB9BFF2Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.
*1SRS air bagGUID-E033C14C-F117-4774-BCAB-E71179C2BD64The warning labels are located on the surface of
the sun visors.
Safety Ð Seats, seat belts and supplemental restraint system1-53
&RQGLWLRQ


> (GLW    0RGHO )' @
1-54Safety Ð Seats, seat belts and supplemental restraint system
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-69289B9F-E343-42A6-B8EA-704F9439322FThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational. If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-F6741CCA-2FCA-4CB8-ABDF-9276497D620CThe front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag modules and pretensioner
system cannot be repaired.
&RQGLWLRQ


> (GLW    0RGHO )' @
.The front air bag, side air bag and
curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle.
. If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.
. If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should
be checked by a NISSAN dealer to
verify it is still functioning correctly.
The OCS should be checked even if
no air bags deploy as a result of the
impact. Failure to verify proper OCS
function may result in an improper
air bag deployment resulting in
injury or death.
Safety Ð Seats, seat belts and supplemental restraint system1-55
&RQGLWLRQ


> (GLW    0RGHO )' @

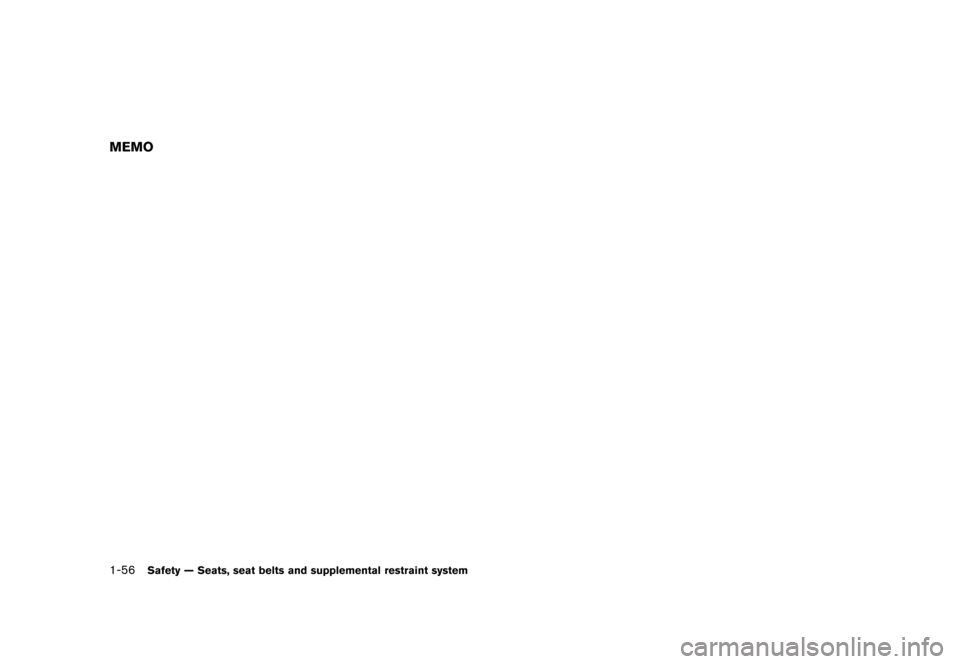

1-56Safety Ð Seats, seat belts and supplemental restraint system
MEMO
&RQGLWLRQ


> (GLW    0RGHO )' @
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-7
Tachometer ...
........................................................................\
... 2-9
Engine coolant temperature gauge (Type B) (if
so equipped) ...
..................................................................... 2-10
Fuel gauge ...
........................................................................\
. 2-11
Vehicle information display (Type A) (if
so equipped) ...
..................................................................... 2-11
Vehicle information display (Type B) (if
so equipped) ...
..................................................................... 2-12
Outside air temperature ...
.................................................. 2-12
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ...
............................................... 2-12
Trip computer ...
.................................................................... 2-13
Warning lights, indicator lights and
audible reminders ...
................................................................... 2-15
Checking lights ...
................................................................. 2-16
Warning lights ...
................................................................... 2-16
Indicator lights ...
................................................................... 2-21
Audible reminders ...
............................................................ 2-23
Integrated control system (if so equipped) ...
..................... 2-24
Drive mode ...
........................................................................\
. 2-24
Setup function ...
................................................................... 2-24 Drive information
...
............................................................ 2-29
Eco information ...
............................................................... 2-30
Security systems ...
................................................................... 2-32
Vehicle Security System ...
............................................... 2-32
NISSAN Vehicle Immobilizer System ...
........................ 2-33
Wiper and washer switch ...
................................................... 2-35
Rear window wiper and washer switch ...
.......................... 2-36
Rear window and outside mirror defroster switch ...
....... 2-37
Headlight and turn signal switch ...
....................................... 2-38
Xenon headlights (if so equipped) ...
............................ 2-38
Headlight switch ...
............................................................ 2-39
Turn signal switch ...
.......................................................... 2-42
Fog light switch (if so equipped) ...
.............................. 2-43
Horn ...
........................................................................\
.................. 2-43
Vehicle Dynamic Control (VDC) off switch ...
.................... 2-43
Heated seats (if so equipped) ...
........................................... 2-44
Power outlet ...
........................................................................\
.... 2-45
Storage ...
........................................................................\
............ 2-46
Cup holders ...
..................................................................... 2-46
Cargo floor box ...
............................................................... 2-47
Glove box ...
........................................................................\
. 2-47
Coat hook ...
........................................................................\
2-47
Cargo cover (if so equipped) ...
..................................... 2-48
&RQGLWLRQ
!


> (GLW    0RGHO )' @

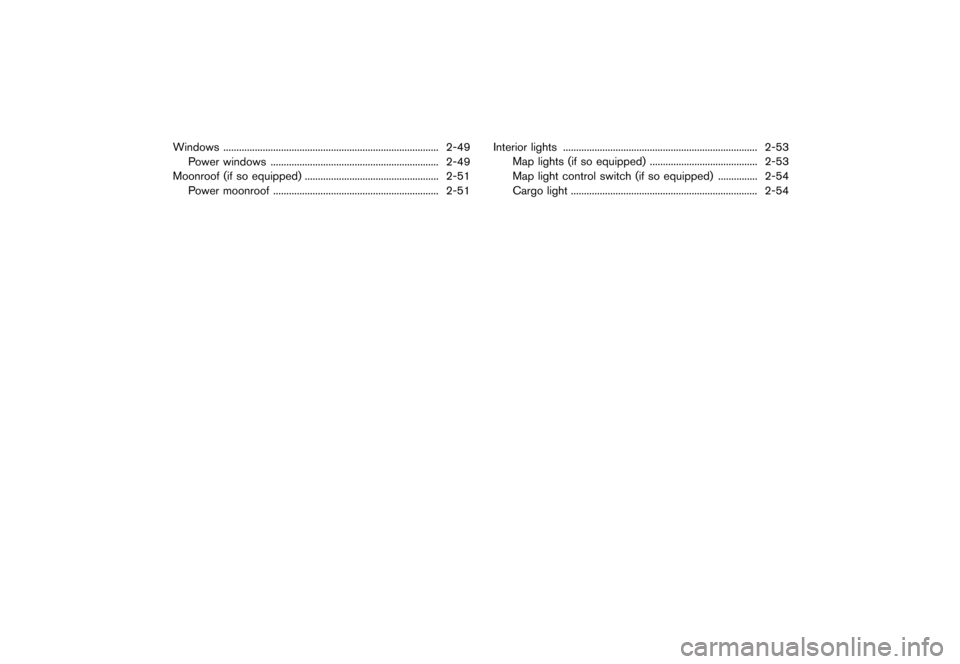

Windows...
........................................................................\
.......... 2-49
Power windows ...
................................................................ 2-49
Moonroof (if so equipped) ...
................................................... 2-51
Power moonroof ...
............................................................... 2-51 Interior lights
...
........................................................................\
.. 2-53
Map lights (if so equipped) ...
......................................... 2-53
Map light control switch (if so equipped) ...
............... 2-54
Cargo light ...
....................................................................... 2-54
&RQGLWLRQ


> (GLW    0RGHO )' @
GUID-3FDA5A2B-0FD2-4B28-A467-442E14E466B3
JVC0725X
1. Outside mirror remote control switch
2. Headlight, fog light and turn signal switchÐ Headlight
Ð Turn signal light
Ð Fog light*
3. Paddle shifter*
4. Steering wheel Ð Electric power steering
Ð Horn
Ð Driver's supplemental air bag
5. Wiper and washer switch
6. Shift lever Ð Continuously Variable Transmission (CVT)
Ð Manual Transmission (MT) 7. Fuse box cover
8. Vehicle Dynamic Control (VDC) OFF switch
9. All-Wheel Drive (AWD) switch*
10. Tilting steering wheel lever
11. Steering-wheel-mounted controls (left side)
Ð Audio control
Ð Siri


> (GLW    0RGHO )' @
2-4Instruments and controls
GUID-FB213085-0645-47E7-A4BE-9D16E00CA9C4
JVC0607X
1. Meters and gauges
2. Center ventilator
3. Audio system* or Navigation system**
4. Hazard warning flasher switch
5. Integrated Control System*Ð Drive mode
Ð Heater and air conditioner control Ð Defroster switch
5. Heater and air conditioner control (models
without Integrated Control System)
Ð Defroster switch
6. Front passenger supplemental air bag
7. Side ventilator
8. Fuel-filler door release handle 9. Hood release handle
10. Push-button ignition switch
11. Auxiliary input jack/USB connection port*
12. Parking brake
13. Cup holder
14. Power outlet
15. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own-
er's Manual.
INSTRUMENT PANEL
&RQGLWLRQ
