Page 151 of 399
> ( G L W 0 R G H O ) ' @
GUID-0C588194-A689-4766-88CA-BC25DAECEE47

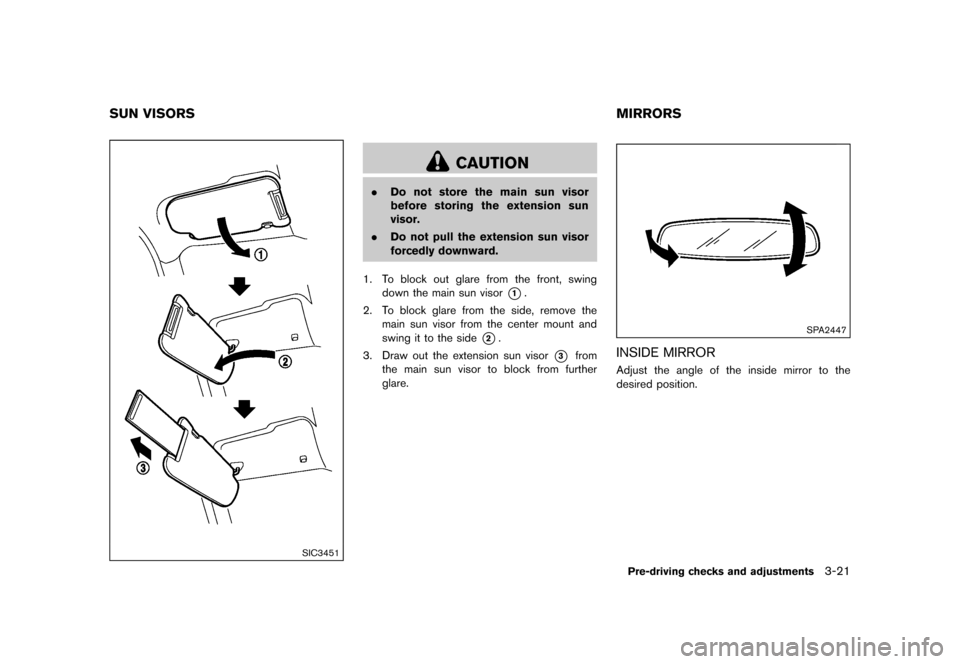

SIC3451
CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downward.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3from
the main sun visor to block from further
glare.
GUID-7EFE8433-9BF0-4D21-9989-FB2D38316637
SPA2447
INSIDE MIRRORGUID-9C609EA8-A3B9-4975-983B-54EA13FA811EAdjust the angle of the inside mirror to the
desired position.
Pre-driving checks and adjustments3-21
SUN VISORS MIRRORS
& R Q G L W L R Q
Page 152 of 399
> ( G L W 0 R G H O ) ' @

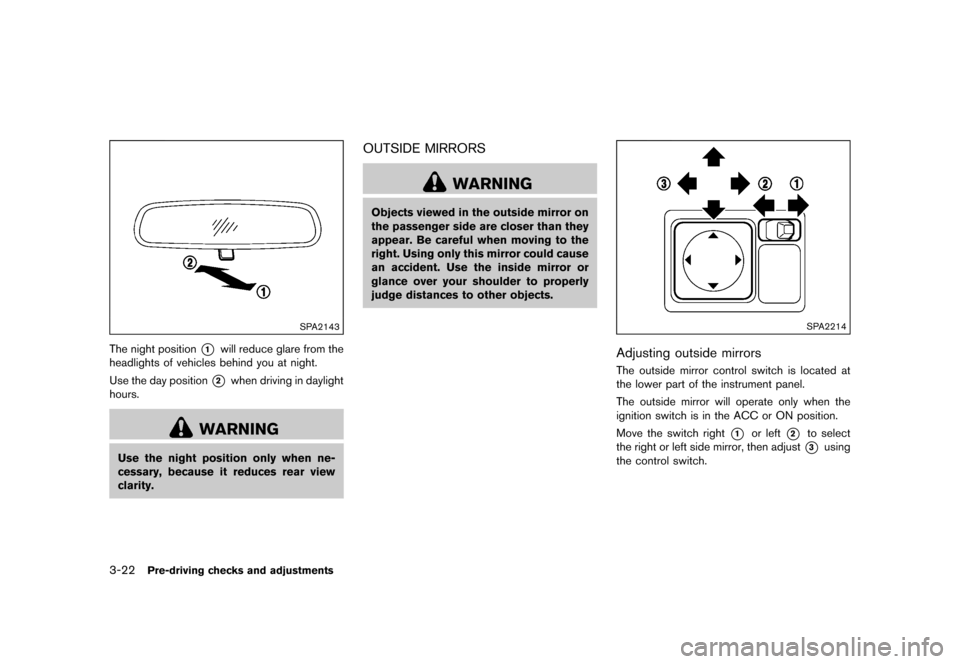

3-22Pre-driving checks and adjustments
SPA2143
The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
OUTSIDE MIRRORSGUID-510D14F7-96A8-42DE-A36F-11C39E241D3B
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
SPA2214
Adjusting outside mirrorsGUID-8B70B968-C9B3-4093-8096-7A9C567F354DThe outside mirror control switch is located at
the lower part of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Move the switch right
*1or left*2to select
the right or left side mirror, then adjust
*3using
the control switch.
& R Q G L W L R Q
Page 153 of 399
> ( G L W 0 R G H O ) ' @

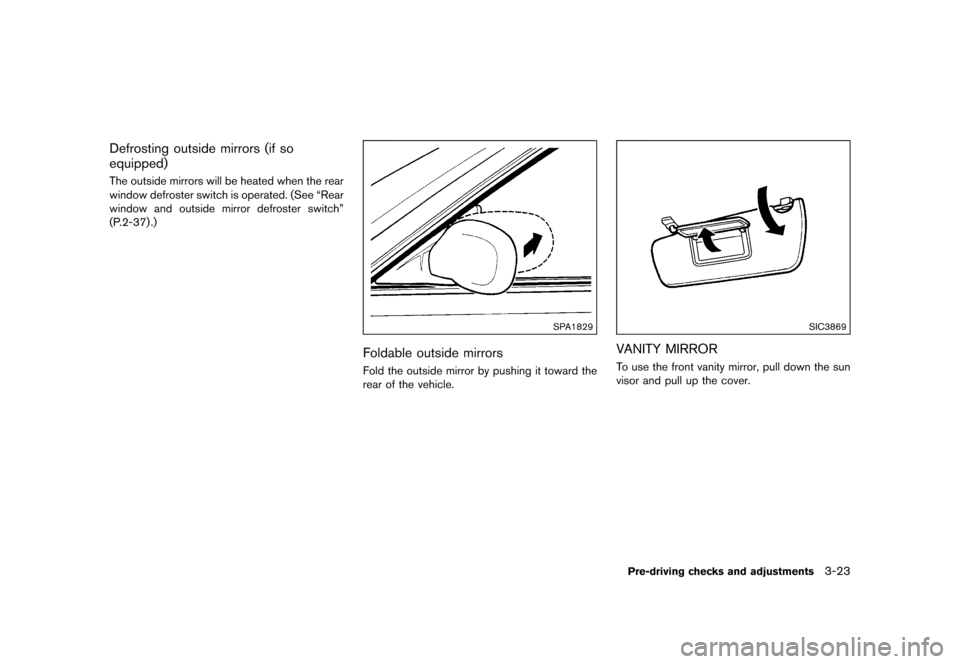

Defrosting outside mirrors (if so
equipped)
GUID-0E6517BD-BCCB-4DB1-84F6-0B2BB7759B83The outside mirrors will be heated when the rear
window defroster switch is operated. (See ªRear
window and outside mirror defroster switchº
(P.2-37) .)
SPA1829
Foldable outside mirrorsGUID-E3E5B6C2-2DF1-49B4-809C-998B5A0A1B3BFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-21E8F75F-AC0C-4F4E-9E32-61A89D0A8B52To use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-23
& R Q G L W L R Q
Page 154 of 399
> ( G L W 0 R G H O ) ' @

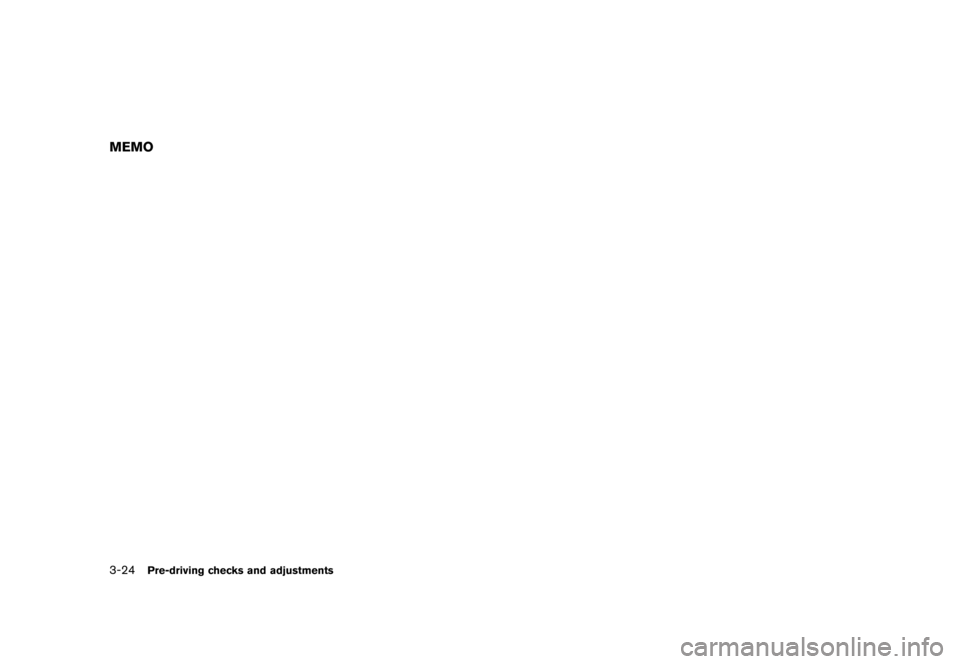

3-24Pre-driving checks and adjustments
MEMO
& R Q G L W L R Q
Page 155 of 399
> ( G L W 0 R G H O ) ' @

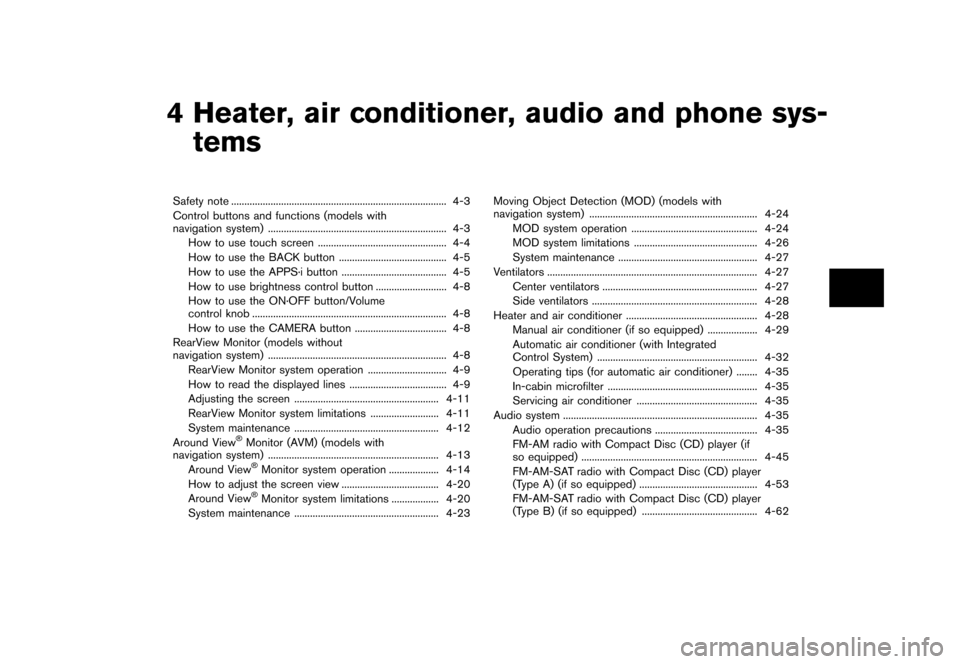

4 Heater, air conditioner, audio and phone sys-tems
Safety note ...
........................................................................\
.......... 4-3
Control buttons and functions (models with
navigation system) ...
.................................................................... 4-3
How to use touch screen ...
................................................. 4-4
How to use the BACK button ...
......................................... 4-5
How to use the APPS´i button ...
........................................ 4-5
How to use brightness control button ...
........................... 4-8
How to use the ON´OFF button/Volume
control knob ...
........................................................................\
.. 4-8
How to use the CAMERA button ...
................................... 4-8
RearView Monitor (models without
navigation system) ...
.................................................................... 4-8
RearView Monitor system operation ...
.............................. 4-9
How to read the displayed lines ...
..................................... 4-9
Adjusting the screen ...
....................................................... 4-11
RearView Monitor system limitations ...
.......................... 4-11
System maintenance ...
....................................................... 4-12
Around View
Page 156 of 399
> ( G L W 0 R G H O ) ' @

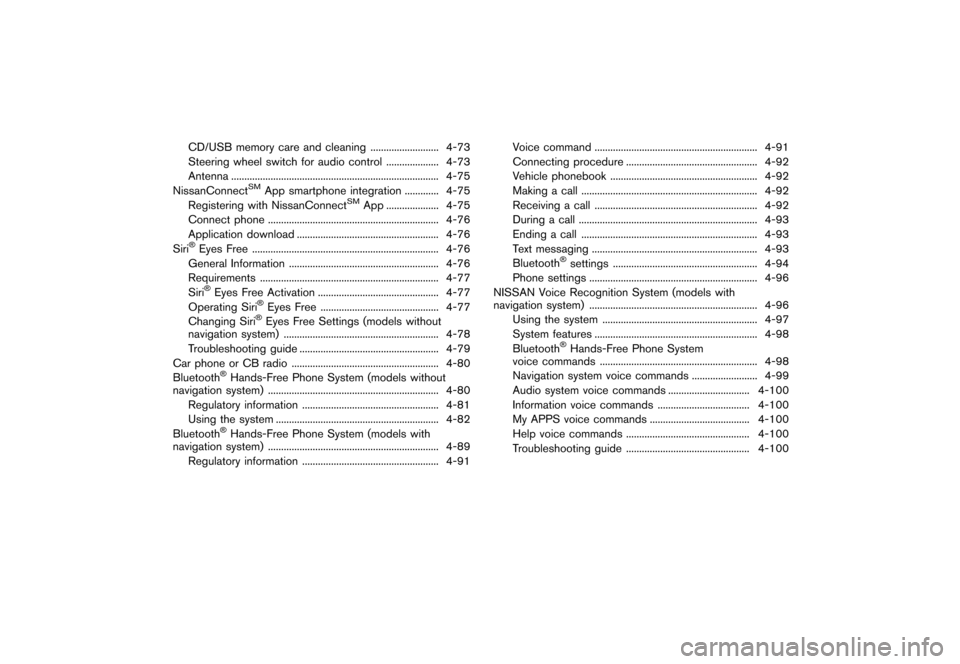

CD/USB memory care and cleaning...
.......................... 4-73
Steering wheel switch for audio control ...
.................... 4-73
Antenna ...
........................................................................\
....... 4-75
NissanConnect
SMApp smartphone integration ...
............. 4-75
Registering with NissanConnectSMApp ...
.................... 4-75
Connect phone ...
................................................................. 4-76
Application download ...
...................................................... 4-76
Siri
Page 157 of 399
> ( G L W 0 R G H O ) ' @

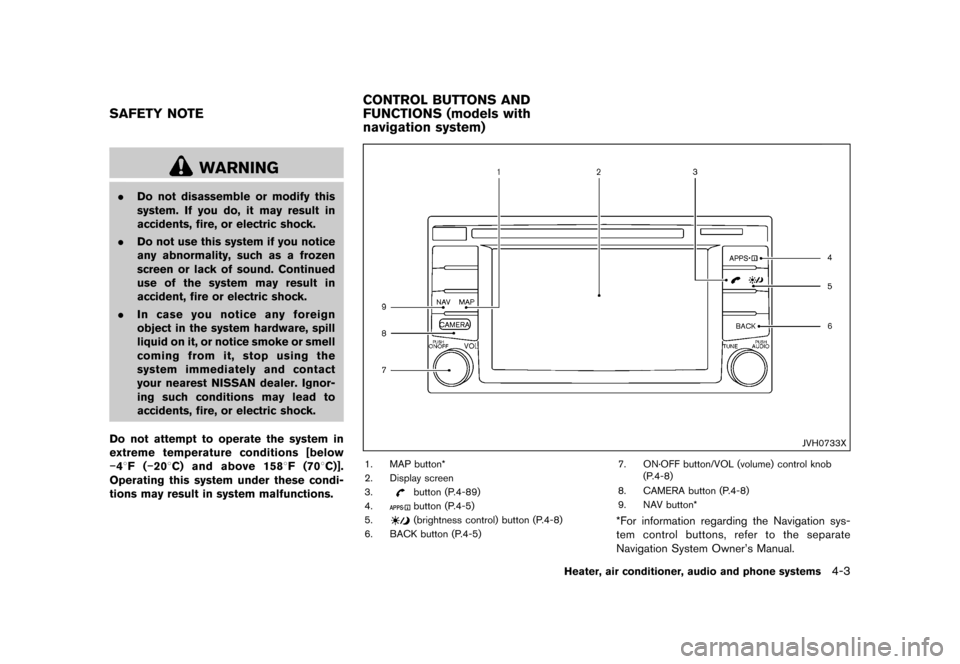

GUID-A94094A4-AFB5-4790-B5D0-B9A753AE417A
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
Page 158 of 399
> ( G L W 0 R G H O ) ' @

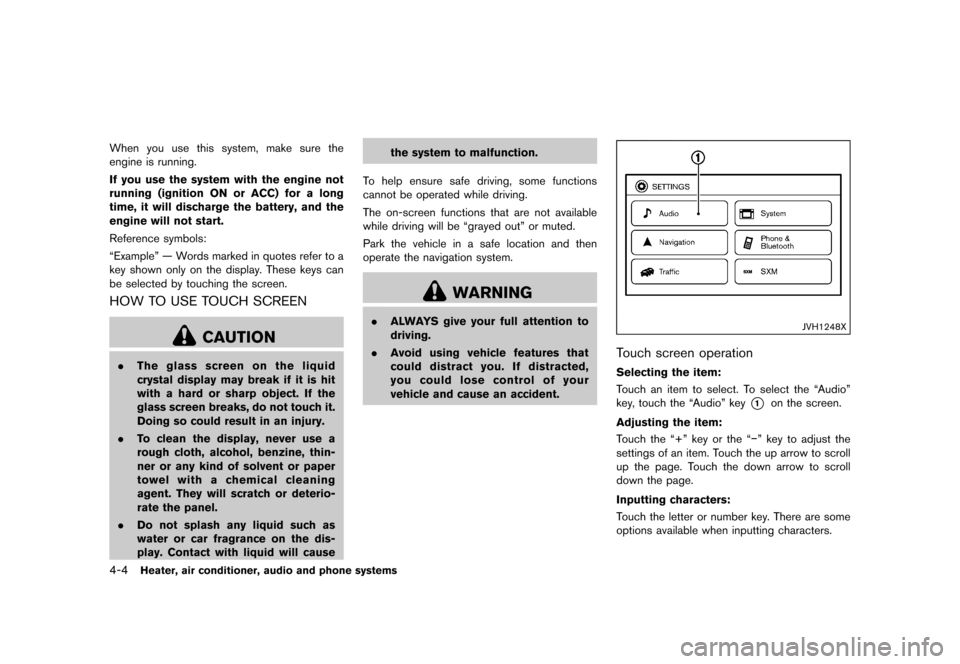

4-4Heater, air conditioner, audio and phone systems
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ªExampleº Ð Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-7CCFD255-7CCA-4FE0-A64E-C9A30213AA2F
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause the system to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.JVH1248X
Touch screen operationGUID-F45BCBA5-784B-4464-9407-86458F60C9EB
Selecting the item:GUID-F83C168B-173D-4313-B631-F712588C0463Touch an item to select. To select the ªAudioº
key, touch the ªAudioº key
*1on the screen.
Adjusting the item:
GUID-F83C168B-173D-4313-B631-F712588C0463Touch the ª+º key or the ª
Page 159 of 399
> ( G L W 0 R G H O ) ' @

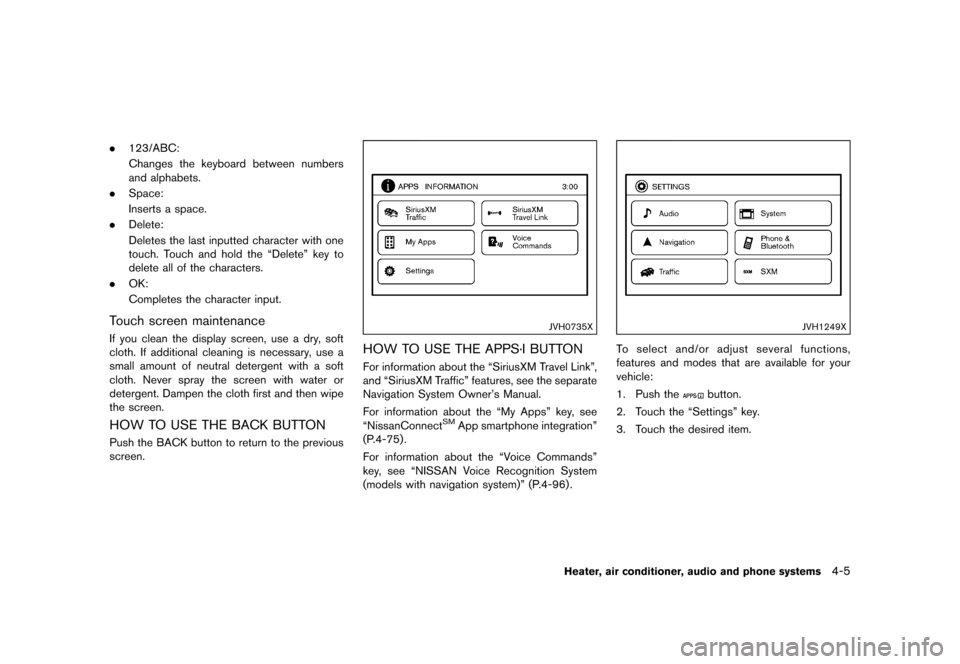

.123/ABC:
Changes the keyboard between numbers
and alphabets.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the ªDeleteº key to
delete all of the characters.
. OK:
Completes the character input.
Touch screen maintenanceGUID-77C3133A-9596-4196-B911-A0948F0FFCA3If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-A5D1F746-2A2E-4A3C-BC32-793B3C61BD05Push the BACK button to return to the previous
screen.
JVH0735X
HOW TO USE THE APPS´I BUTTONGUID-EE87C90E-709A-44F4-A0A2-03BFBA7B5D5EFor information about the ªSiriusXM Travel Linkº,
and ªSiriusXM Trafficº features, see the separate
Navigation System Owner's Manual.
For information about the ªMy Appsº key, see
ªNissanConnect
SMApp smartphone integrationº
(P.4-75) .
For information about the ªVoice Commandsº
key, see ªNISSAN Voice Recognition System
(models with navigation system)º (P.4-96).
JVH1249X
To select and/or adjust several functions,
features and modes that are available for your
vehicle:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the desired item.
Heater, air conditioner, audio and phone systems4-5
& R Q G L W L R Q
Page 160 of 399
> ( G L W 0 R G H O ) ' @

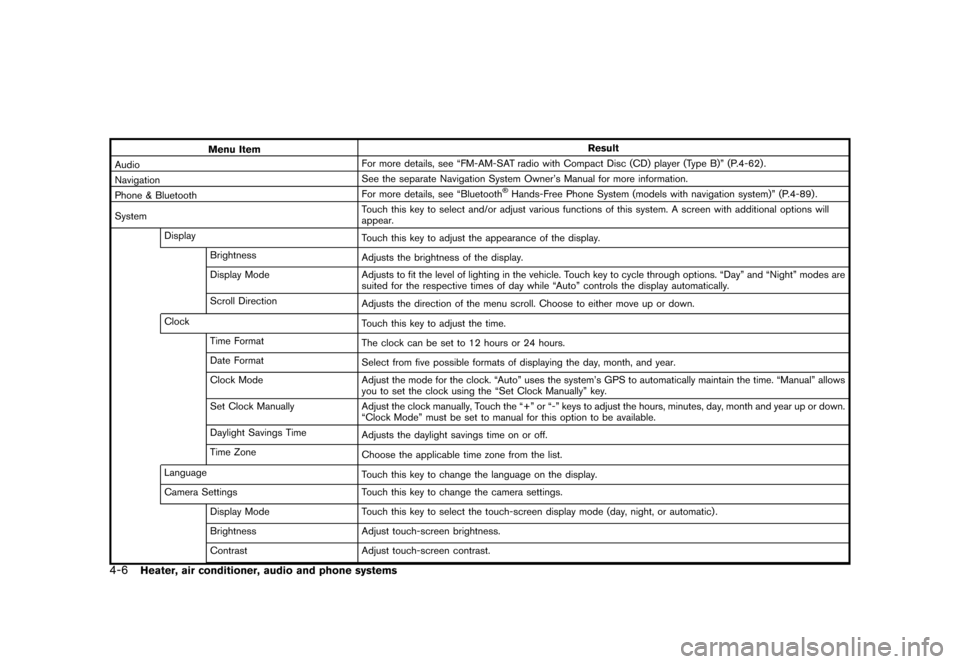

4-6Heater, air conditioner, audio and phone systems
Menu ItemResult
Audio For more details, see ªFM-AM-SAT radio with Compact Disc (CD) player (Type B)º (P.4-62) .
Navigation See the separate Navigation System Owner's Manual for more information.
Phone & Bluetooth For more details, see ªBluetooth
