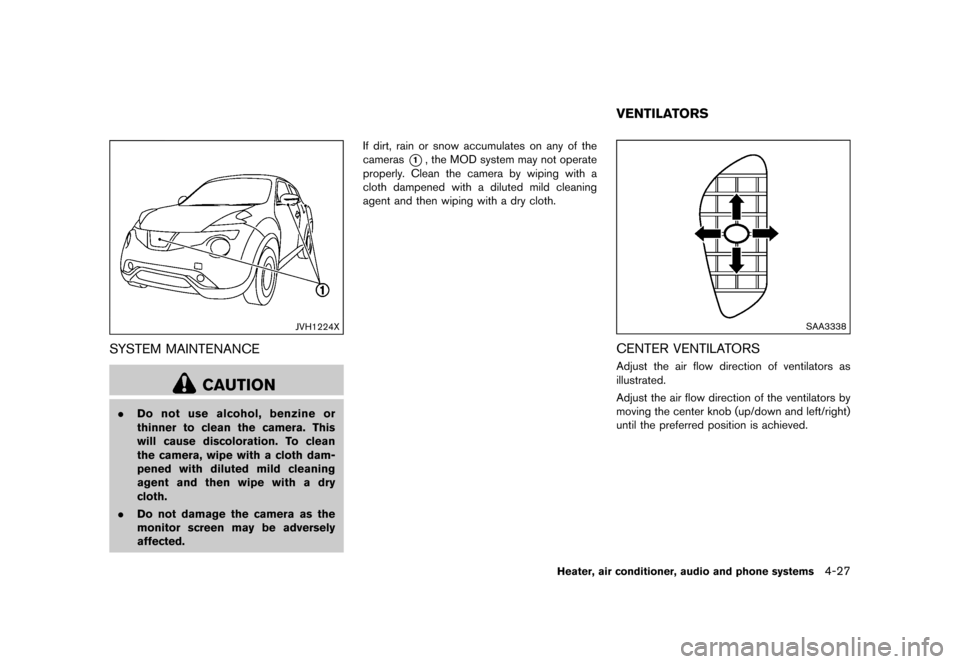

SYSTEM MAINTENANCEGUID-6E3883AB-CE07-4F38-B1AA-CD2519C9F3D8
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected. If dirt, rain or snow accumulates on any of the
cameras
*1, the MOD system may not operate
properly. Clean the camera by wiping with a
cloth dampened with a diluted mild cleaning
agent and then wiping with a dry cloth.
GUID-61D1CD55-228C-4E52-9461-782B71C38C8B
SAA3338
CENTER VENTILATORSGUID-64E14B11-BF5F-4D35-97C4-552604CBA3E1Adjust the air flow direction of ventilators as
illustrated.
Adjust the air flow direction of the ventilators by
moving the center knob (up/down and left/right)
until the preferred position is achieved.
Heater, air conditioner, audio and phone systems4-27
VENTILATORS
& R Q G L W L R Q
Page 182 of 399
> ( G L W 0 R G H O ) ' @

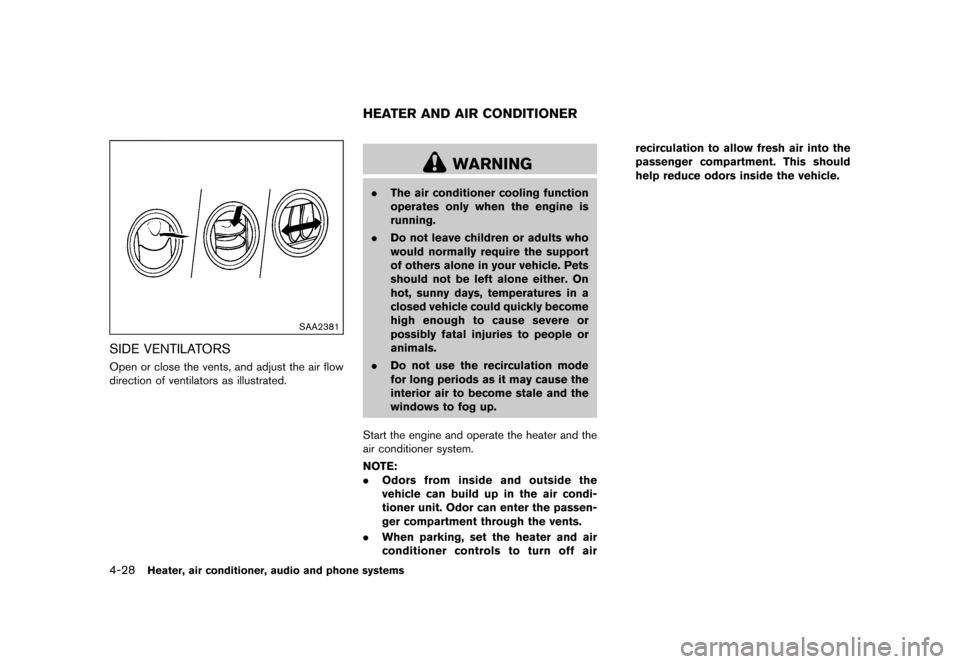

4-28Heater, air conditioner, audio and phone systems
SAA2381
SIDE VENTILATORSGUID-032F27BA-821C-405D-8DDF-C8E8265CDAB1Open or close the vents, and adjust the air flow
direction of ventilators as illustrated.
GUID-F6744F12-5D11-4E4D-82E1-CE3DF32B9B61
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and the
air conditioner system.
NOTE:
. Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.
. When parking, set the heater and air
conditioner controls to turn off air recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
HEATER AND AIR CONDITIONER
& R Q G L W L R Q
Page 183 of 399
> ( G L W 0 R G H O ) ' @
SAA3447

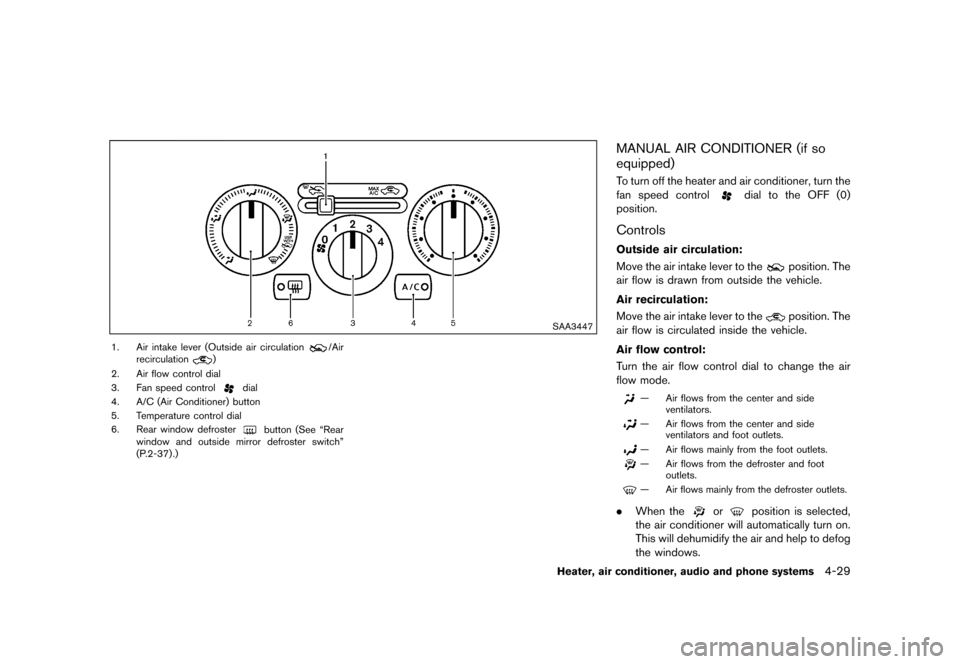

1. Air intake lever (Outside air circulation/Air
recirculation)
2. Air flow control dial
3. Fan speed control
dial
4. A/C (Air Conditioner) button
5. Temperature control dial
6. Rear window defroster
button (See ªRear
window and outside mirror defroster switchº
(P.2-37) .)
MANUAL AIR CONDITIONER (if so
equipped)
GUID-0B7EAAF5-3B63-4A28-A9B4-0A19613BC0A2To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF (0)
position.
ControlsGUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53
Outside air circulation:GUID-F83C168B-173D-4313-B631-F712588C0463Move the air intake lever to theposition. The
air flow is drawn from outside the vehicle.
Air recirculation:
GUID-F83C168B-173D-4313-B631-F712588C0463Move the air intake lever to theposition. The
air flow is circulated inside the vehicle.
Air flow control:
GUID-F83C168B-173D-4313-B631-F712588C0463Turn the air flow control dial to change the air
flow mode.
Ð Air flows from the center and side ventilators.
Ð Air flows from the center and sideventilators and foot outlets.
Ð Air flows mainly from the foot outlets.
Ð Air flows from the defroster and footoutlets.
Ð Air flows mainly from the defroster outlets.
.When theorposition is selected,
the air conditioner will automatically turn on.
This will dehumidify the air and help to defog
the windows.
Heater, air conditioner, audio and phone systems4-29
& R Q G L W L R Q
Page 184 of 399
> ( G L W 0 R G H O ) ' @

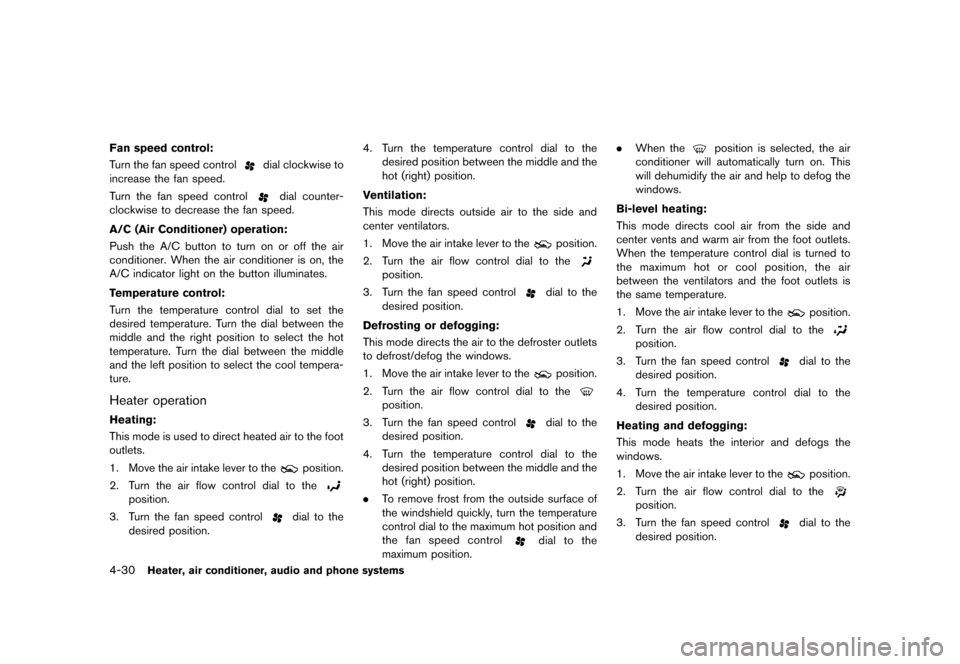

4-30Heater, air conditioner, audio and phone systems
Fan speed control:GUID-F83C168B-173D-4313-B631-F712588C0463Turn the fan speed controldial clockwise to
increase the fan speed.
Turn the fan speed control
dial counter-
clockwise to decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Temperature control:
GUID-F83C168B-173D-4313-B631-F712588C0463Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position to select the hot
temperature. Turn the dial between the middle
and the left position to select the cool tempera-
ture.
Heater operationGUID-C8150974-E365-4C3D-88F2-33DCA6CCD2F4
Heating:GUID-F83C168B-173D-4313-B631-F712588C0463This mode is used to direct heated air to the foot
outlets.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position. 4. Turn the temperature control dial to the
desired position between the middle and the
hot (right) position.
Ventilation:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode directs outside air to the side and
center ventilators.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
Defrosting or defogging:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to the
maximum position. .
When the
position is selected, the air
conditioner will automatically turn on. This
will dehumidify the air and help to defog the
windows.
Bi-level heating:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature control dial is turned to
the maximum hot or cool position, the air
between the ventilators and the foot outlets is
the same temperature.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Heating and defogging:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode heats the interior and defogs the
windows.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
& R Q G L W L R Q
Page 185 of 399
> ( G L W 0 R G H O ) ' @

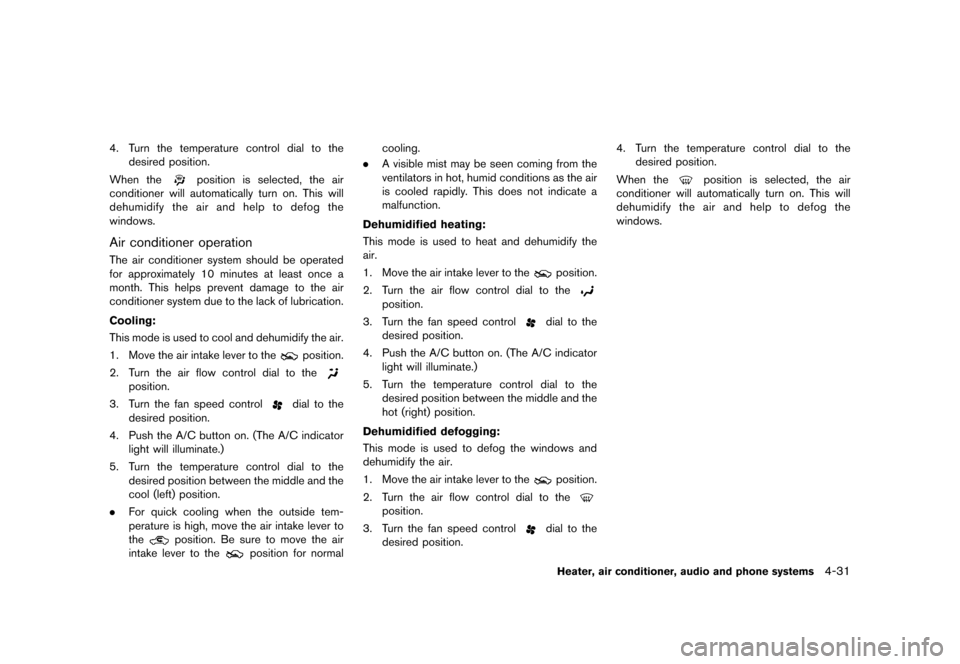

4. Turn the temperature control dial to thedesired position.
When the
position is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
Air conditioner operationGUID-6B0AC811-3583-46CD-A00A-10ACB2584EE9The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode is used to cool and dehumidify the air.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
cool (left) position.
. For quick cooling when the outside tem-
perature is high, move the air intake lever to
the
position. Be sure to move the air
intake lever to the
position for normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode is used to heat and dehumidify the
air.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Dehumidified defogging:
GUID-F83C168B-173D-4313-B631-F712588C0463This mode is used to defog the windows and
dehumidify the air.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position. 4. Turn the temperature control dial to the
desired position.
When the
position is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
Heater, air conditioner, audio and phone systems4-31
& R Q G L W L R Q
Page 186 of 399
> ( G L W 0 R G H O ) ' @

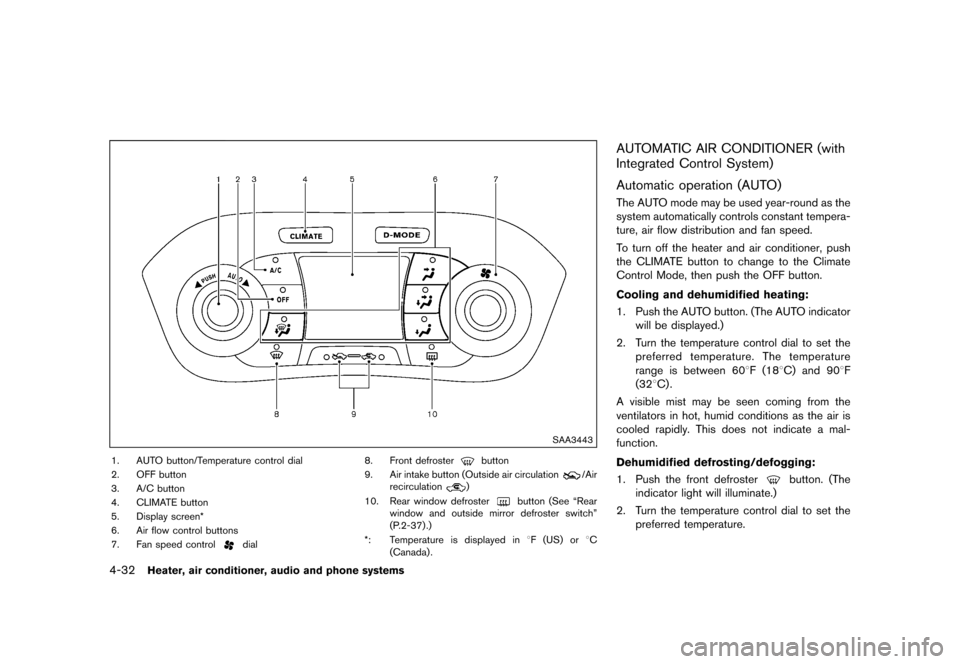

4-32Heater, air conditioner, audio and phone systems
SAA3443
1. AUTO button/Temperature control dial
2. OFF button
3. A/C button
4. CLIMATE button
5. Display screen*
6. Air flow control buttons
7. Fan speed control
dial8. Front defroster
button
9. Air intake button (Outside air circulation
/Air
recirculation)
10. Rear window defroster
button (See ªRear
window and outside mirror defroster switchº
(P.2-37) .)
*: Temperature is displayed in 8F (US) or8C
(Canada) .
AUTOMATIC AIR CONDITIONER (with
Integrated Control System)
GUID-E5656247-BCEF-4D17-B8ED-1DDD0B568CAB
Automatic operation (AUTO)GUID-EA5A1D8F-7A77-47B0-ADB5-C8E5A7F686B7The AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed.
To turn off the heater and air conditioner, push
the CLIMATE button to change to the Climate
Control Mode, then push the OFF button.
Cooling and dehumidified heating:
GUID-F83C168B-173D-4313-B631-F712588C04631. Push the AUTO button. (The AUTO indicator will be displayed.)
2. Turn the temperature control dial to set the preferred temperature. The temperature
range is between 608F (188C) and 908F
(328C) .
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Dehumidified defrosting/defogging:
GUID-F83C168B-173D-4313-B631-F712588C04631. Push the front defrosterbutton. (The
indicator light will illuminate.)
2. Turn the temperature control dial to set the preferred temperature.
& R Q G L W L R Q
Page 187 of 399
> ( G L W 0 R G H O ) ' @

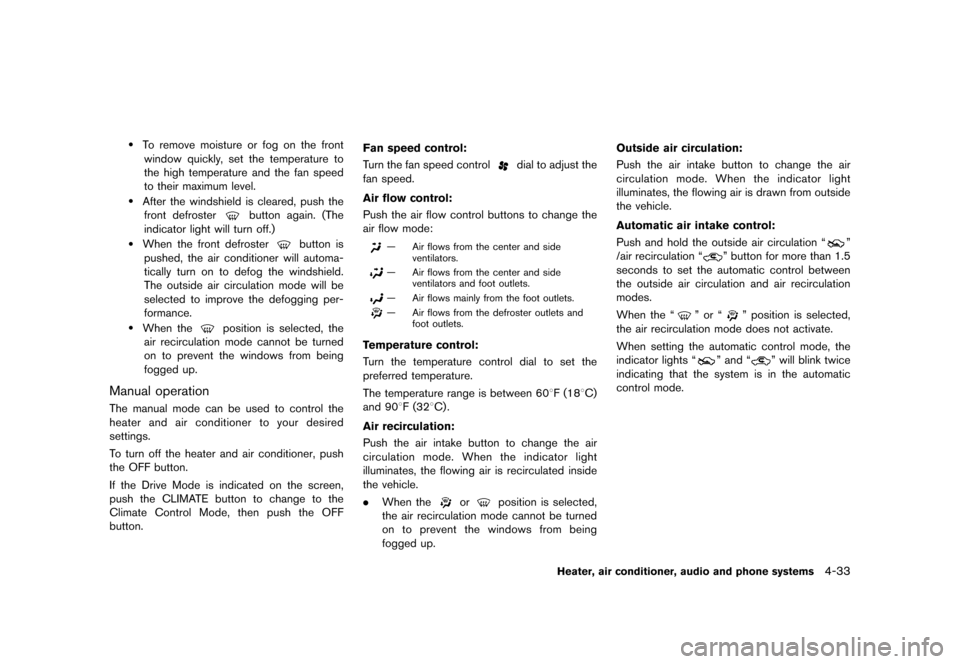

.To remove moisture or fog on the frontwindow quickly, set the temperature to
the high temperature and the fan speed
to their maximum level.
.After the windshield is cleared, push the
front defroster
button again. (The
indicator light will turn off.)
.When the front defrosterbutton is
pushed, the air conditioner will automa-
tically turn on to defog the windshield.
The outside air circulation mode will be
selected to improve the defogging per-
formance.
.When theposition is selected, the
air recirculation mode cannot be turned
on to prevent the windows from being
fogged up.
Manual operationGUID-3EFCC2B5-D341-447E-B937-C69EC1981FF8The manual mode can be used to control the
heater and air conditioner to your desired
settings.
To turn off the heater and air conditioner, push
the OFF button.
If the Drive Mode is indicated on the screen,
push the CLIMATE button to change to the
Climate Control Mode, then push the OFF
button. Fan speed control:
GUID-F83C168B-173D-4313-B631-F712588C0463Turn the fan speed controldial to adjust the
fan speed.
Air flow control:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the air flow control buttons to change the
air flow mode:
Ð Air flows from the center and side ventilators.
Ð Air flows from the center and sideventilators and foot outlets.
Ð Air flows mainly from the foot outlets.
Ð Air flows from the defroster outlets andfoot outlets.
Temperature control:GUID-F83C168B-173D-4313-B631-F712588C0463Turn the temperature control dial to set the
preferred temperature.
The temperature range is between 608F (188C)
and 908F (328C) .
Air recirculation:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the air intake button to change the air
circulation mode. When the indicator light
illuminates, the flowing air is recirculated inside
the vehicle.
.When the
orposition is selected,
the air recirculation mode cannot be turned
on to prevent the windows from being
fogged up. Outside air circulation:
GUID-F83C168B-173D-4313-B631-F712588C0463Push the air intake button to change the air
circulation mode. When the indicator light
illuminates, the flowing air is drawn from outside
the vehicle.
Automatic air intake control:
GUID-F83C168B-173D-4313-B631-F712588C0463Push and hold the outside air circulation ªº
/air recirculation ª
º button for more than 1.5
seconds to set the automatic control between
the outside air circulation and air recirculation
modes.
When the ª
º or ªº position is selected,
the air recirculation mode does not activate.
When setting the automatic control mode, the
indicator lights ª
º and ªº will blink twice
indicating that the system is in the automatic
control mode.
Heater, air conditioner, audio and phone systems4-33
& R Q G L W L R Q
Page 188 of 399
> ( G L W 0 R G H O ) ' @
4-34Heater, air conditioner, audio and phone systems
JVH1245X

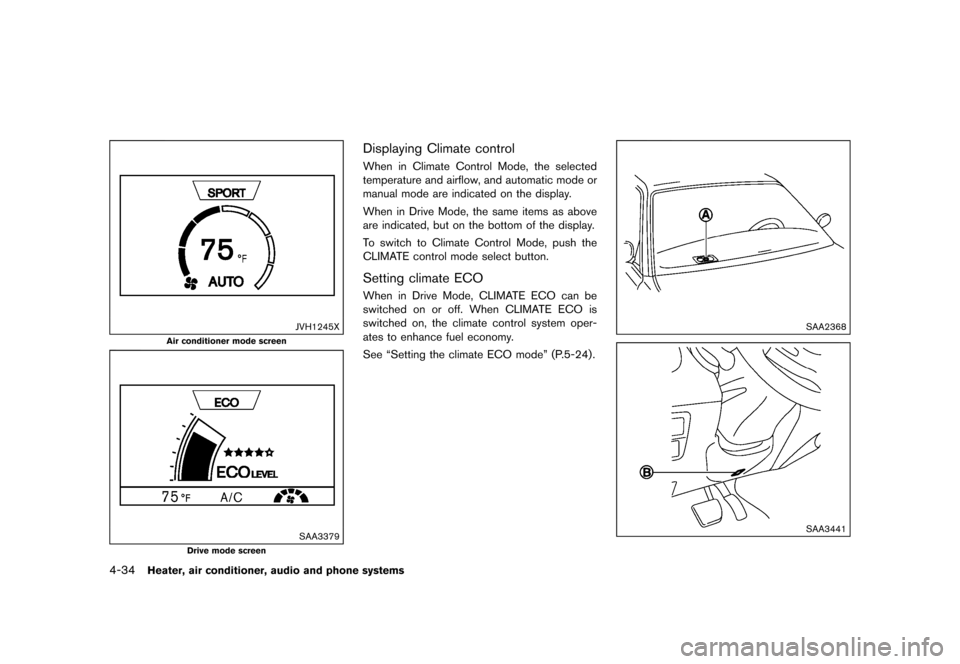

Air conditioner mode screen
SAA3379
Drive mode screen
Displaying Climate controlGUID-F698EF0E-FF82-497B-A075-EDA6612CE5F6When in Climate Control Mode, the selected
temperature and airflow, and automatic mode or
manual mode are indicated on the display.
When in Drive Mode, the same items as above
are indicated, but on the bottom of the display.
To switch to Climate Control Mode, push the
CLIMATE control mode select button.
Setting climate ECOGUID-D64B3B69-5EBD-4ADD-B114-9DE5C32FFD80When in Drive Mode, CLIMATE ECO can be
switched on or off. When CLIMATE ECO is
switched on, the climate control system oper-
ates to enhance fuel economy.
See ªSetting the climate ECO modeº (P.5-24).
SAA2368
SAA3441
& R Q G L W L R Q
Page 189 of 399
> ( G L W 0 R G H O ) ' @

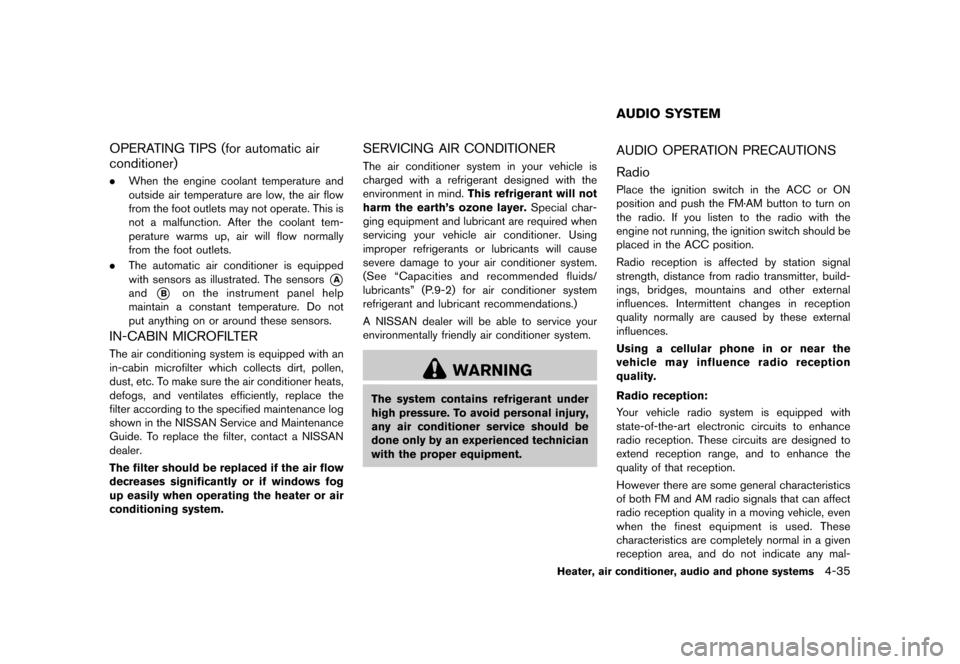

OPERATING TIPS (for automatic air
conditioner)
GUID-0CAD1583-372A-44FE-BAC7-174E3DF52F96.When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. This is
not a malfunction. After the coolant tem-
perature warms up, air will flow normally
from the foot outlets.
. The automatic air conditioner is equipped
with sensors as illustrated. The sensors
*A
and*Bon the instrument panel help
maintain a constant temperature. Do not
put anything on or around these sensors.
IN-CABIN MICROFILTERGUID-C6D3FA40-DA1E-49EA-83BF-EFD310A3448AThe air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter according to the specified maintenance log
shown in the NISSAN Service and Maintenance
Guide. To replace the filter, contact a NISSAN
dealer.
The filter should be replaced if the air flow
decreases significantly or if windows fog
up easily when operating the heater or air
conditioning system.
SERVICING AIR CONDITIONERGUID-B5C6FE62-1A42-48C1-9AE1-B0167BBB8E1AThe air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind. This refrigerant will not
harm the earth's ozone layer. Special char-
ging equipment and lubricant are required when
servicing your vehicle air conditioner. Using
improper refrigerants or lubricants will cause
severe damage to your air conditioner system.
(See ªCapacities and recommended fluids/
lubricantsº (P.9-2) for air conditioner system
refrigerant and lubricant recommendations.)
A NISSAN dealer will be able to service your
environmentally friendly air conditioner system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.
GUID-12293C34-B52D-459D-8938-1D72052450B5AUDIO OPERATION PRECAUTIONSGUID-4E771DD8-F559-4351-AB5E-78EA8C2D203D
RadioGUID-7E775105-86FF-4980-8793-C9A43E44715APlace the ignition switch in the ACC or ON
position and push the FM´AM button to turn on
the radio. If you listen to the radio with the
engine not running, the ignition switch should be
placed in the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.
Using a cellular phone in or near the
vehicle may influence radio reception
quality.
Radio reception:
GUID-F83C168B-173D-4313-B631-F712588C0463Your vehicle radio system is equipped with
state-of-the-art electronic circuits to enhance
radio reception. These circuits are designed to
extend reception range, and to enhance the
quality of that reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any mal-
Heater, air conditioner, audio and phone systems4-35
AUDIO SYSTEM
& R Q G L W L R Q
Page 190 of 399
> ( G L W 0 R G H O ) ' @

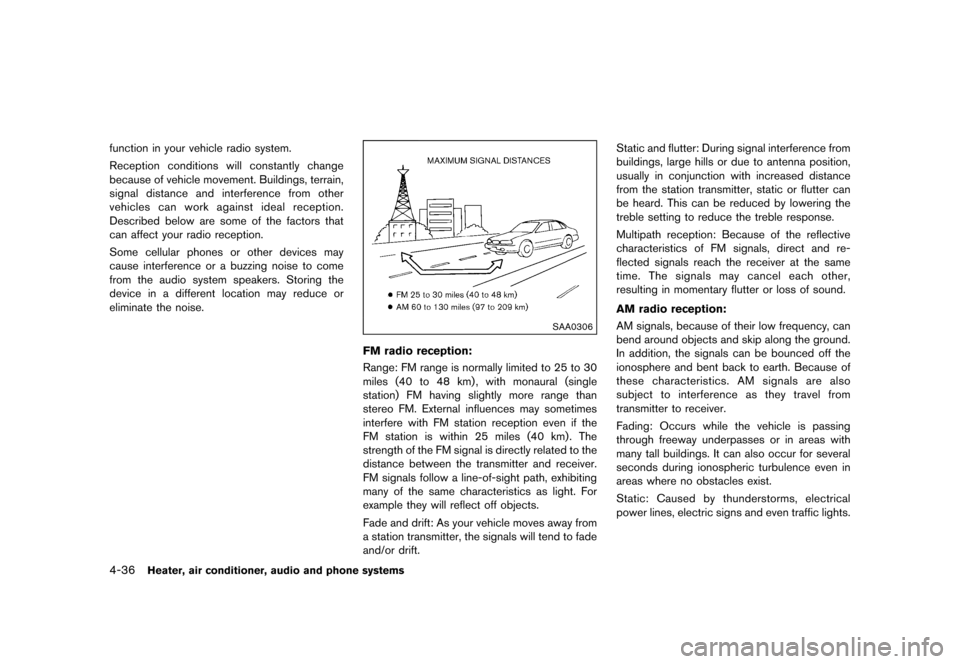

4-36Heater, air conditioner, audio and phone systems
function in your vehicle radio system.
Reception conditions will constantly change
because of vehicle movement. Buildings, terrain,
signal distance and interference from other
vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
SAA0306
FM radio reception:GUID-F83C168B-173D-4313-B631-F712588C0463Range: FM range is normally limited to 25 to 30
miles (40 to 48 km) , with monaural (single
station) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the
FM station is within 25 miles (40 km). The
strength of the FM signal is directly related to the
distance between the transmitter and receiver.
FM signals follow a line-of-sight path, exhibiting
many of the same characteristics as light. For
example they will reflect off objects.
Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by lowering the
treble setting to reduce the treble response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other,
resulting in momentary flutter or loss of sound.
AM radio reception:
GUID-F83C168B-173D-4313-B631-F712588C0463AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also
subject to interference as they travel from
transmitter to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.
& R Q G L W L R Q
