> ( G L W 0 R G H O ) ' @

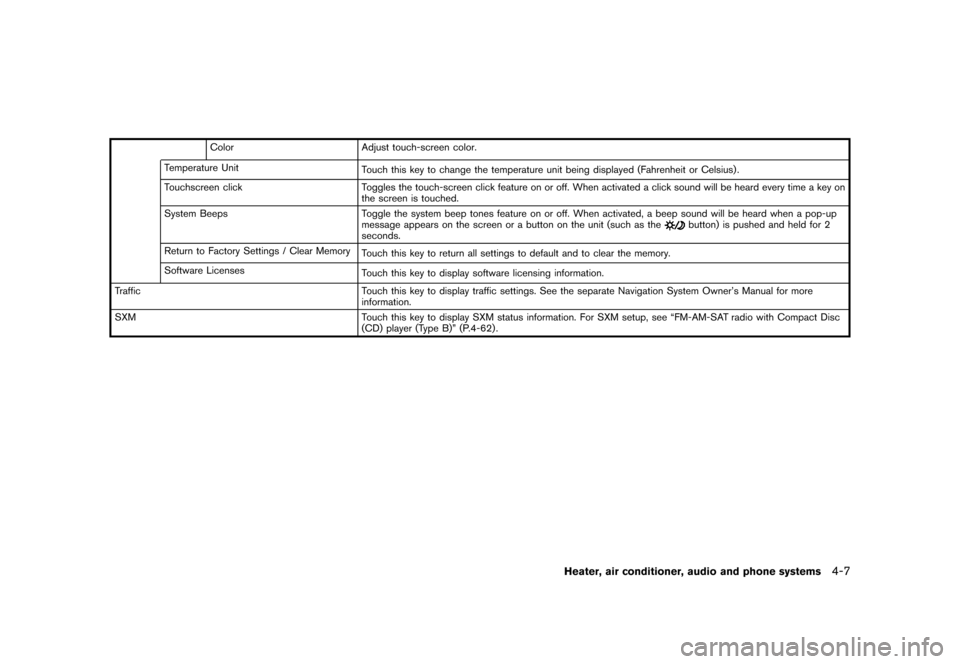

ColorAdjust touch-screen color.
Temperature Unit Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius) .
Touchscreen click Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on
the screen is touched.
System Beeps Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up
message appears on the screen or a button on the unit (such as the
button) is pushed and held for 2
seconds.
Return to Factory Settings / Clear Memory Touch this key to return all settings to default and to clear the memory.
Software Licenses Touch this key to display software licensing information.
Traffic Touch this key to display traffic settings. See the separate Navigation System Owner's Manual for more
information.
SXM Touch this key to display SXM status information. For SXM setup, see ªFM-AM-SAT radio with Compact Disc
(CD) player (Type B)º (P.4-62) .
Heater, air conditioner, audio and phone systems4-7
& R Q G L W L R Q
Page 162 of 399
> ( G L W 0 R G H O ) ' @
4-8Heater, air conditioner, audio and phone systems

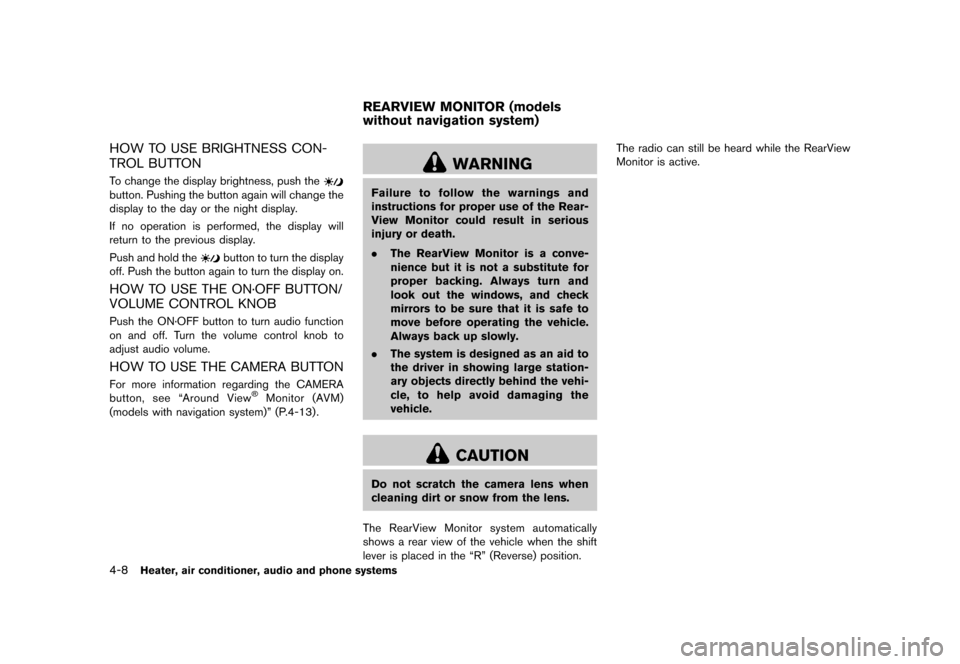

HOW TO USE BRIGHTNESS CON-
TROL BUTTON
GUID-82D32811-A50D-4D51-9384-8B20106BD16ATo change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed, the display will
return to the previous display.
Push and hold the
button to turn the display
off. Push the button again to turn the display on.
HOW TO USE THE ON´OFF BUTTON/
VOLUME CONTROL KNOB
GUID-D692787F-E163-4A05-A783-F4654D74489FPush the ON´OFF button to turn audio function
on and off. Turn the volume control knob to
adjust audio volume.
HOW TO USE THE CAMERA BUTTONGUID-716100D9-D1B9-46BF-AA2A-F670AD2BDE88For more information regarding the CAMERA
button, see ªAround View
Page 163 of 399
> ( G L W 0 R G H O ) ' @

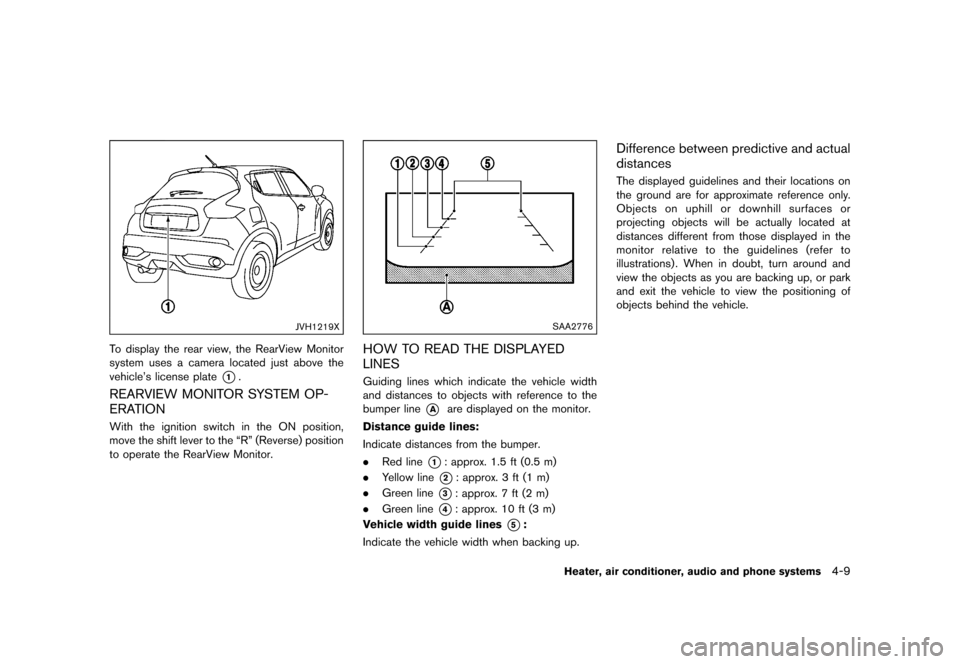

JVH1219X
To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle's license plate
*1.
REARVIEW MONITOR SYSTEM OP-
ERATION
GUID-6D91C4EA-6F91-4864-8872-367E41A22325With the ignition switch in the ON position,
move the shift lever to the ªRº (Reverse) position
to operate the RearView Monitor.
SAA2776
HOW TO READ THE DISPLAYED
LINES
GUID-D20F3487-0821-4A93-857D-7074E42B5DCEGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Difference between predictive and actual
distances
GUID-B0CBD45C-C473-4E14-9E08-0ADAA810B264The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guidelines (refer to
illustrations) . When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.
Heater, air conditioner, audio and phone systems4-9
& R Q G L W L R Q
Page 164 of 399
> ( G L W 0 R G H O ) ' @
4-10Heater, air conditioner, audio and phone systems

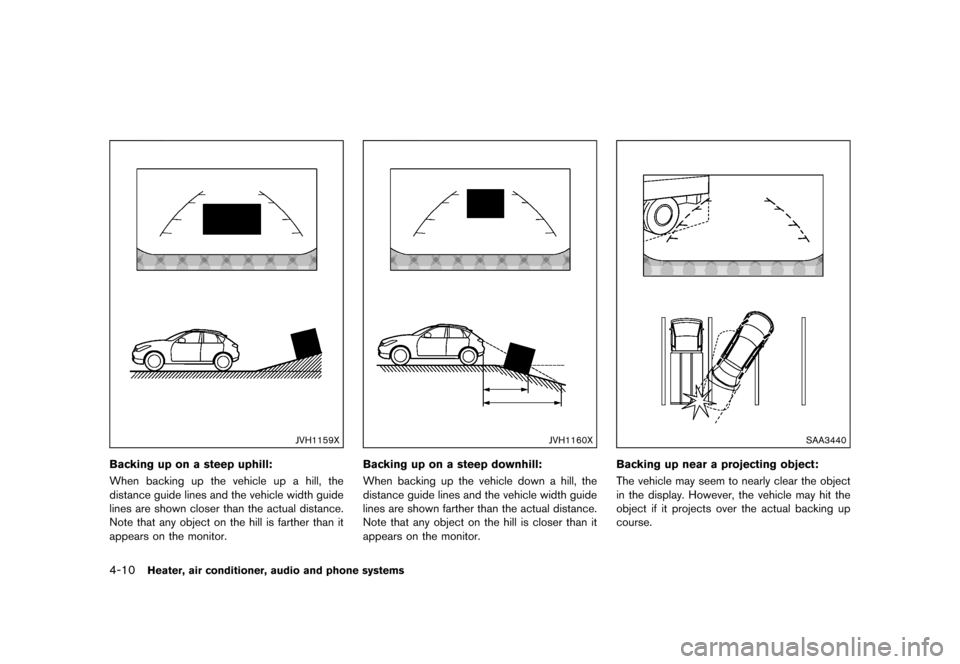

JVH1159X
Backing up on a steep uphill:GUID-F83C168B-173D-4313-B631-F712588C0463When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is farther than it
appears on the monitor.
JVH1160X
Backing up on a steep downhill:GUID-F83C168B-173D-4313-B631-F712588C0463When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
SAA3440
Backing up near a projecting object:GUID-F83C168B-173D-4313-B631-F712588C0463The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
& R Q G L W L R Q
Page 165 of 399
> ( G L W 0 R G H O ) ' @

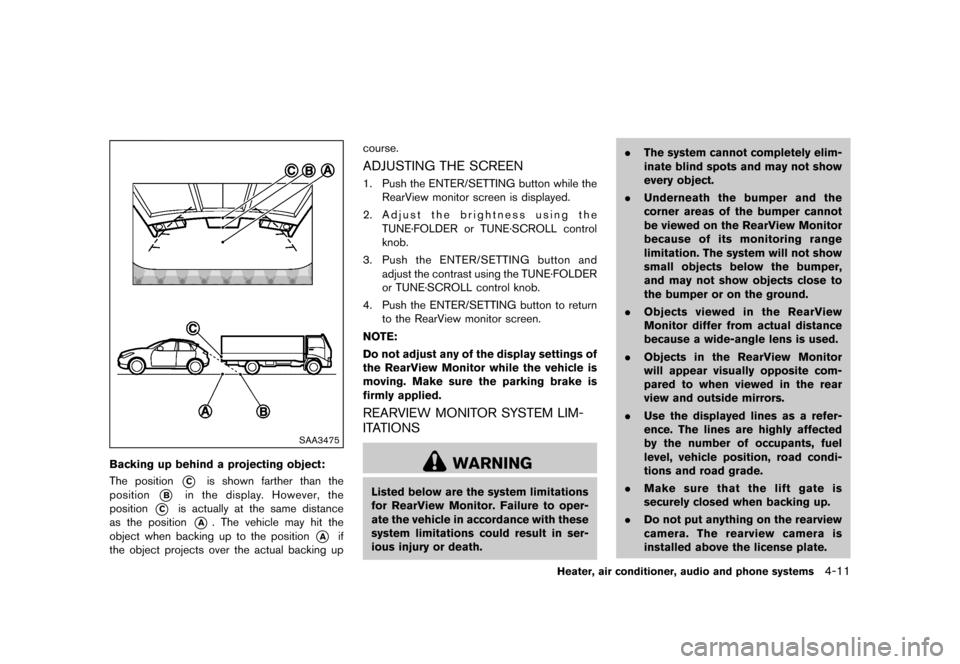

SAA3475
Backing up behind a projecting object:GUID-F83C168B-173D-4313-B631-F712588C0463The position*Cis shown farther than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
ADJUSTING THE SCREENGUID-54416AD3-192F-4BD6-9F2D-D870FB593E1B1. Push the ENTER/SETTING button while the
RearView monitor screen is displayed.
2. Adjust the brightness using the
TUNE´FOLDER or TUNE´SCROLL control
knob.
3. Push the ENTER/SETTING button and
adjust the contrast using the TUNE´FOLDER
or TUNE´SCROLL control knob.
4. Push the ENTER/SETTING button to return to the RearView monitor screen.
NOTE:
Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.
REARVIEW MONITOR SYSTEM LIM-
ITATIONS
GUID-EFFF2C63-07DF-4C45-BC34-87E0A099AC03
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death. .
The system cannot completely elim-
inate blind spots and may not show
every object.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite com-
pared to when viewed in the rear
view and outside mirrors.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tions and road grade.
. Make sure that the lift gate is
securely closed when backing up.
. Do not put anything on the rearview
camera. The rearview camera is
installed above the license plate.
Heater, air conditioner, audio and phone systems4-11
& R Q G L W L R Q
Page 166 of 399
> ( G L W 0 R G H O ) ' @
4-12Heater, air conditioner, audio and phone systems

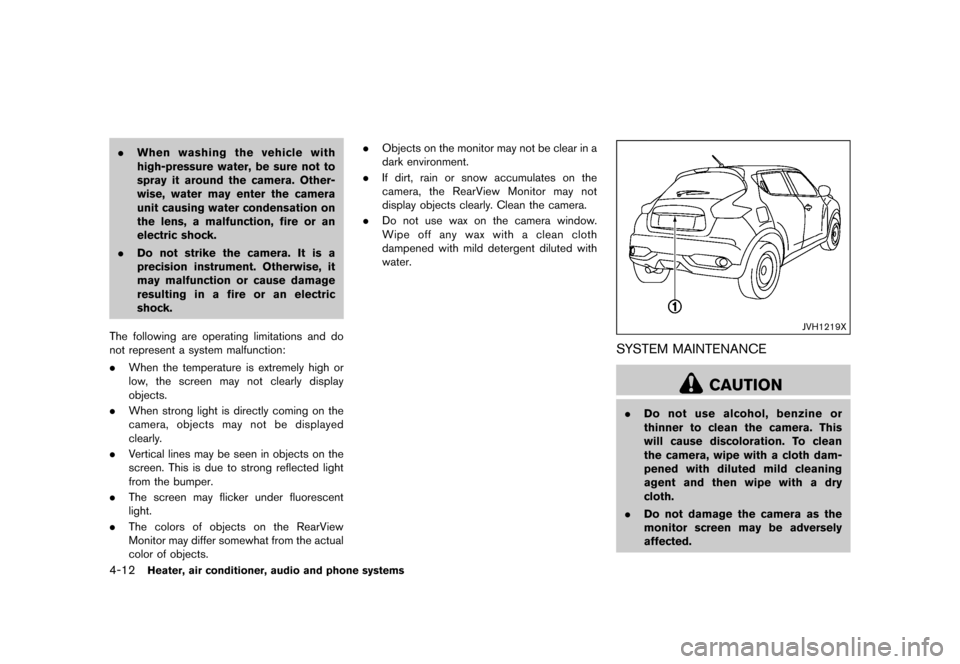

.When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
The following are operating limitations and do
not represent a system malfunction:
. When the temperature is extremely high or
low, the screen may not clearly display
objects.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper.
. The screen may flicker under fluorescent
light.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. .
Objects on the monitor may not be clear in a
dark environment.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
JVH1219X
SYSTEM MAINTENANCEGUID-A02CC587-5E86-43E2-BA3D-983BBBDAD052
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
& R Q G L W L R Q
Page 167 of 399
> ( G L W 0 R G H O ) ' @

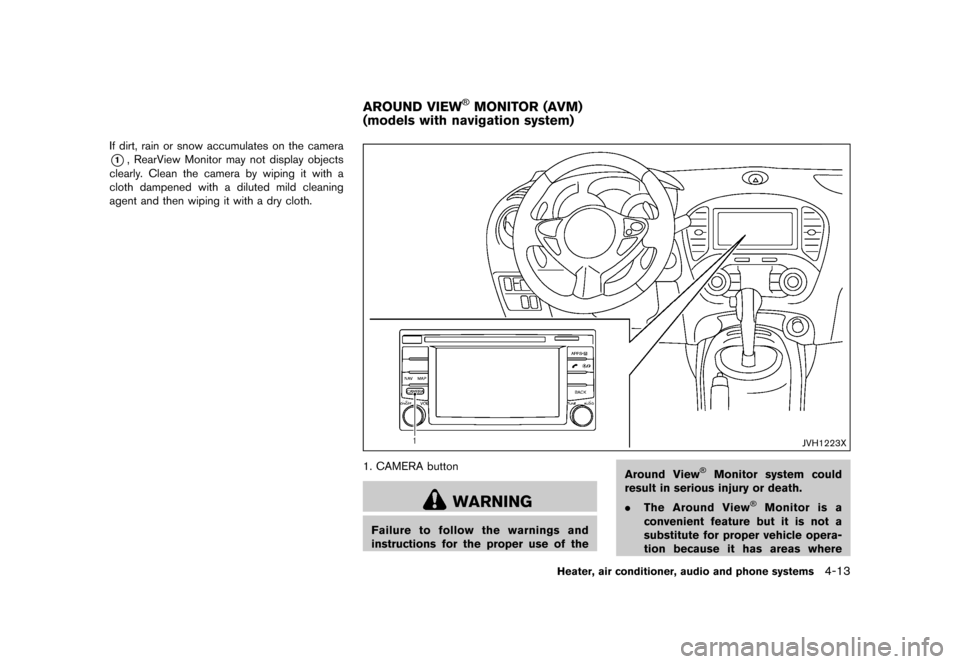

If dirt, rain or snow accumulates on the camera
*1, RearView Monitor may not display objects
clearly. Clean the camera by wiping it with a
cloth dampened with a diluted mild cleaning
agent and then wiping it with a dry cloth.
GUID-F8C01C15-8078-4B3F-B98A-3557D53F791C
JVH1223X
1. CAMERA button
WARNING
Failure to follow the warnings and
instructions for the proper use of the Around View
Page 168 of 399
> ( G L W 0 R G H O ) ' @
4-14Heater, air conditioner, audio and phone systems

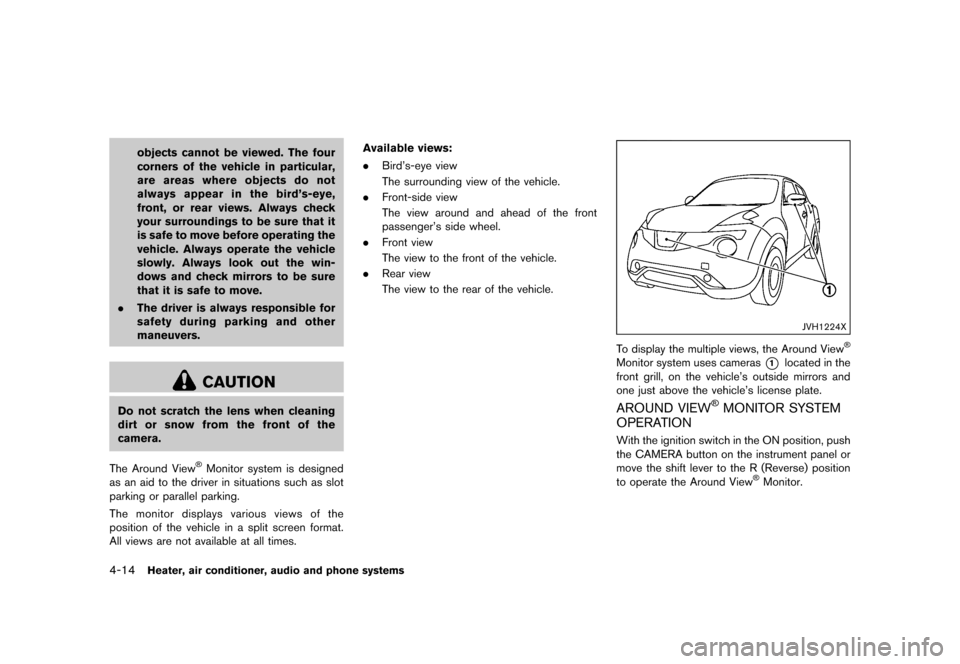

objects cannot be viewed. The four
corners of the vehicle in particular,
are areas where objects do not
always appear in the bird's-eye,
front, or rear views. Always check
your surroundings to be sure that it
is safe to move before operating the
vehicle. Always operate the vehicle
slowly. Always look out the win-
dows and check mirrors to be sure
that it is safe to move.
. The driver is always responsible for
safety during parking and other
maneuvers.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
The Around View
Page 169 of 399
> ( G L W 0 R G H O ) ' @

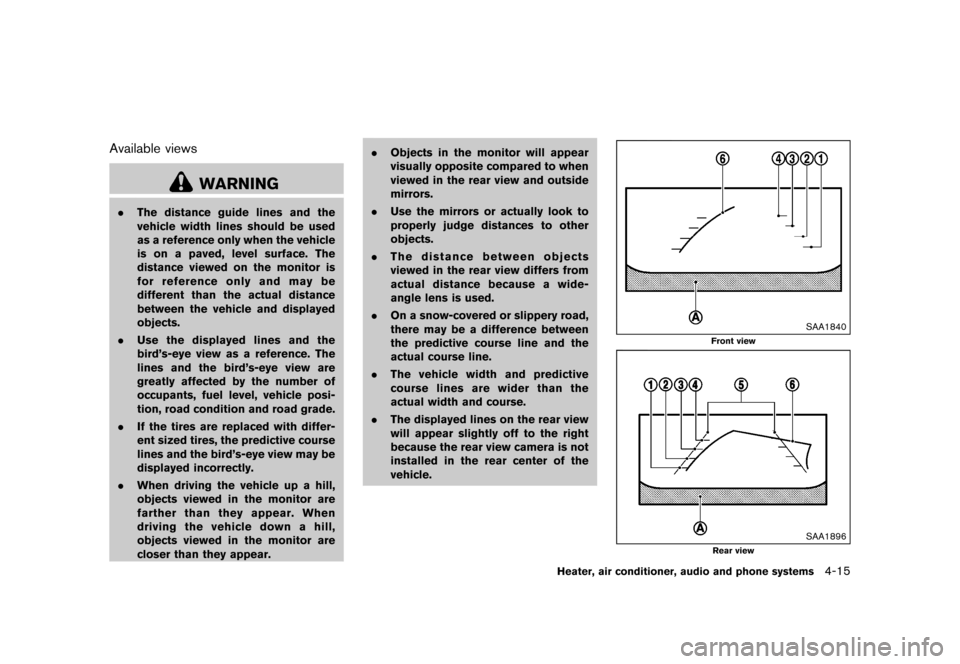

Available viewsGUID-7572CB5C-AACC-45EB-97C2-D9FFC5DFBA77
WARNING
.The distance guide lines and the
vehicle width lines should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the
bird's-eye view as a reference. The
lines and the bird's-eye view are
greatly affected by the number of
occupants, fuel level, vehicle posi-
tion, road condition and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
lines and the bird's-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
farther than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. .
Objects in the monitor will appear
visually opposite compared to when
viewed in the rear view and outside
mirrors.
. Use the mirrors or actually look to
properly judge distances to other
objects.
. The distance between objects
viewed in the rear view differs from
actual distance because a wide-
angle lens is used.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The vehicle width and predictive
course lines are wider than the
actual width and course.
. The displayed lines on the rear view
will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.
SAA1840
Front view
SAA1896
Rear view
Heater, air conditioner, audio and phone systems4-15
& R Q G L W L R Q
Page 170 of 399
> ( G L W 0 R G H O ) ' @
4-16Heater, air conditioner, audio and phone systems
Front and rear view:GUID-F83C168B-173D-4313-B631-F712588C0463Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*A, are displayed on the
monitor.

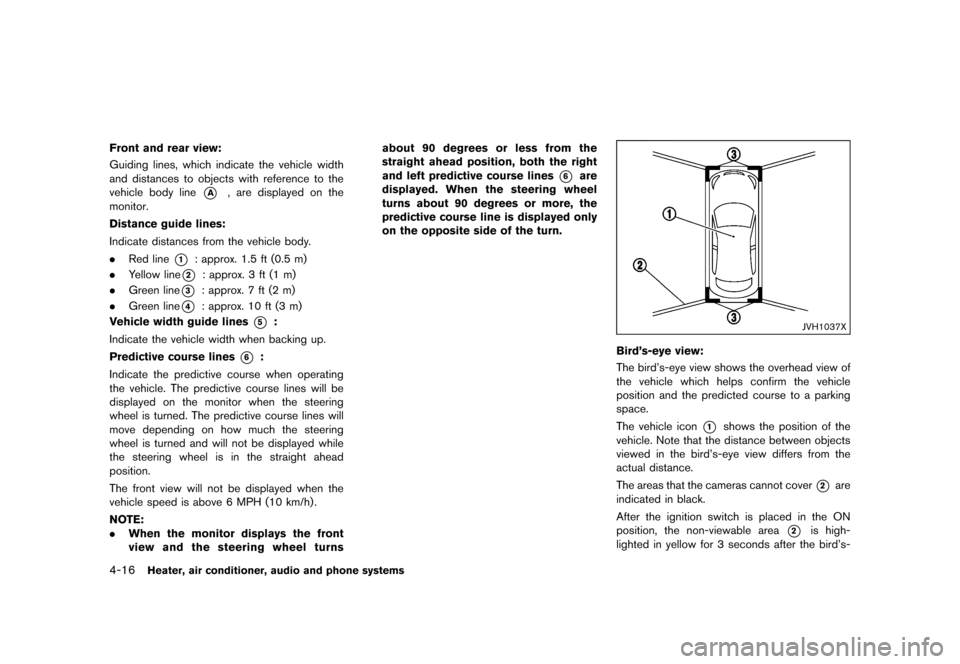

Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead
position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h) .
NOTE:
. When the monitor displays the front
view and the steering wheel turns about 90 degrees or less from the
straight ahead position, both the right
and left predictive course lines
*6are
displayed. When the steering wheel
turns about 90 degrees or more, the
predictive course line is displayed only
on the opposite side of the turn.
JVH1037X
Bird's-eye view:GUID-F83C168B-173D-4313-B631-F712588C0463The bird's-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird's-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the ignition switch is placed in the ON
position, the non-viewable area
*2is high-
lighted in yellow for 3 seconds after the bird's-
& R Q G L W L R Q
