PREPARATION
WT-3
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Special Service ToolEES002ET
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEES002EF
Tool number
(Kent-Moore No.)
Tool nameDescription
KV991B1000
(J-45295)
Transmitter activation tool

Transmitter wake up operation

ID registration procedure
W EIA0144E
Tool nameDescription
Power toolRemoving wheel nuts
PBIC0190E

WT-4
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: June 20062007 Versa
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartEES002D6
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
FA X - 5WT-5

WT-6
WT-29—
—
—
—
FAX -4, "
NVH Troubleshooting Chart
",
FSU-5, "
NVH Troubleshooting Chart
"
RAX-3, "
NVH Troubleshooting Chart
",
RSU-4, "
NVH Troubleshooting Chart
"
Refer to TIRES in this chart
Refer to ROAD WHEEL in this chart
FAX -4, "
NVH Troubleshooting Chart
"
BR-5, "
NVH Troubleshooting Chart
"
PS-5, "
NVH Trouble Shooting Chart
"
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Out-of-round
Imbalance
Incorrect tire pressure
Uneven tire wear
Deformation or damage
Non-uniformity
Incorrect tire size
FRONT AXLE AND FRONT SUSPENSION
REAR AXLE AND REAR SUSPENSION
TIRES
ROAD WHEELS
DRIVE SHAFT
BRAKE
STEERING
SymptomTIRESNoise× ×××××× × × ××××
Shake× ××××× × × × ××××
Vibration××××××
Shimmy× ××××××× × × × ××
Shudder× ××××× × × × × ××
Poor quality
ride or handling× ××××× × × × ×
ROAD WHEELNoise××× × × × × ×××
Shake××× × × × × ×××
Shimmy, Shud-
der×××× ×××××
Poor quality
ride or handling××× × × × ×

ROAD WHEEL
WT-5
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: June 20062007 Versa
ROAD WHEELPFP:40300
InspectionEES002D7
ALUMINUM WHEEL
1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.
a. Remove tire from aluminum wheel and mount on a tire balance machine.
b. Set dial indicator as shown.
STEEL WHEEL
1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.
a. Remove tire from steel wheel and mount on a tire balance machine.
b. Set two dial indicators as shown.
c. Set each dial indicator to 0.
d. Rotate wheel and check dial indicators at several points around
the circumference of the wheel.
e. Calculate runout at each point as shown.
f. Select maximum positive runout value and the maximum nega-
tive value.
Add the two values to determine total runout. In case a positive
or negative value is not available, use the maximum value (neg-
ative or positive) for total runout. If the total runout value
exceeds the limit, replace steel wheel.Wheel runout
(Dial indicator value): Refer to WT-29, "
Road Wheel" .
SFA975B
Radial runout = (A+B)/2
Lateral runout = (C+D)/2
Wheel runout : Refer to WT-29, "
Road Wheel" .
SEIA0558E

WT-6
ROAD WHEEL TIRE ASSEMBLY
Revision: June 20062007 Versa
ROAD WHEEL TIRE ASSEMBLYPFP:40300
Balancing WheelsEES002D8
Adjust wheel balance using road wheel center.
CAUTION:

Be careful not to scratch the road wheel during removal.

Use clip-on type wheel balance weights only.
Wheel balance (Maximum allowable unbalance):
RotationEES002D9

Follow the maintenance schedule for tire rotation service inter-
vals. Refer to MA-7, "
PERIODIC MAINTENANCE" .

Do not include the T-type spare tire when rotating tires.
CAUTION:

When installing wheels, tighten them diagonally by divid-
ing the work two to three times in order to prevent the
wheels from developing any distortion.

Be careful not to tighten wheel nut at torque exceeding
the specification to prevent damage of disc rotor.
Maximum allowable unbalanceDynamic (At rim flange) Less than 5 g (0.18 oz) (one side)
Static (At rim flange) Less than 10 g (0.35 oz)
Wheel nut : 113 N·m (12 kg-m, 83 ft-lb)SM A82 9C

LOW TIRE PRESSURE WARNING SYSTEM
WT-7
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: June 20062007 Versa
LOW TIRE PRESSURE WARNING SYSTEMPFP:40300
System ComponentsEES002FF
System DescriptionEES002FG
BODY CONTROL MODULE (BCM)
The BCM is shown with the glove box removed. The BCM reads the
air pressure signal received by the remote keyless entry receiver,
and controls the low tire pressure warning lamp as shown below. It
also has a self-diagnosis function to detect a system malfunction.
WEIA0185E
1. BCM
M18, M202. Transmitters 3. Tire pressure warning check connector
M39
4. Combination meter
M245. Remote keyless entry receiver
M23
Condition Low tire pressure warning lamp
System normal On for 1 second after ignition ON
Tire less than 193 kPa (2.0 kg/cm
2 , 28 psi)
[Flat tire]ON
Low tire pressure warning system malfunc-
tionAfter key ON, flashes once per sec-
ond for 1 minute, then stays ON
WEIA0187E

WT-8
LOW TIRE PRESSURE WARNING SYSTEM
Revision: June 20062007 Versa
TRANSMITTER
A sensor-transmitter integrated with a valve is installed in each
wheel, and transmits a detected air pressure signal in the form of a
radio wave. The radio signal is received by the remote keyless entry
receiver.
REMOTE KEYLESS ENTRY RECEIVER
The remote keyless entry receiver is shown with the glove box
removed. The remote keyless entry receiver receives the air pres-
sure signal transmitted by the transmitter in each wheel.
COMBINATION METER
The combination meter receives tire pressure status from the BCM
using CAN communication. When a low tire pressure condition is
sensed by the BCM, the combination meter low tire pressure warn-
ing lamp is activated.
WEIA0137E
WEIA0186E
LEIA0055E

CAN COMMUNICATION
WT-9
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: June 20062007 Versa
CAN COMMUNICATIONPFP:23710
System DescriptionEES002EU
Refer to LAN-4, "SYSTEM DESCRIPTION" .

WT-10
TROUBLE DIAGNOSES
Revision: June 20062007 Versa
TROUBLE DIAGNOSESPFP:00004

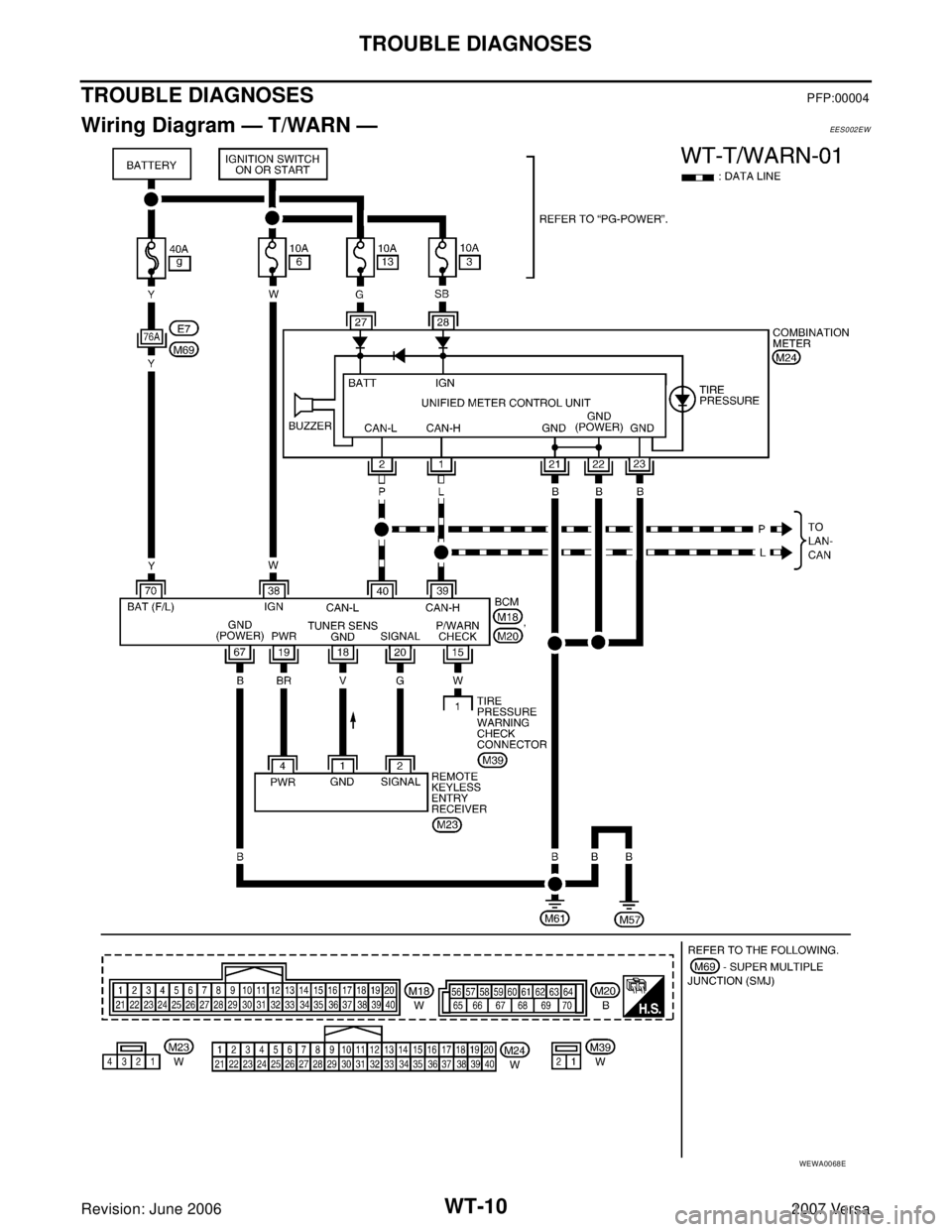

Wiring Diagram — T/WARN —EES002EW
WEWA0068E

TROUBLE DIAGNOSES
WT-11
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEES002EX
Refer to BCS-12, "Terminals and Reference Values for BCM" .
ID Registration ProcedureEES002EY
ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL
NOTE:
This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.
New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter
Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-II. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “AIR PRESSURE MONITOR” on "SELECT TEST ITEM" screen.
3. Select “WORK SUPPORT” on "SELECT DIAG MODE" screen,
and select "ID REGIST".
4. Push the transmitter activation tool against the tire near the front
left transmitter. Press the button for 5 seconds.
5. Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has
been completed, a buzzer sounds and the hazard warning lamps flash.
6. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.
BCIA0031E
Tool number : (J-45295)
LEIA0036E
Activation tire position Buzzer Hazard warning lamp CONSULT-II
1Front LH Once
2 times flashing“YET”
↓
“DONE” 2 Front RH 2 times
3 Rear RH 3 times
4 Rear LH 4 times

WT-12
TROUBLE DIAGNOSES
Revision: June 20062007 Versa
ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
NOTE:
This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.
New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter
Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-II. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “AIR PRESSURE MONITOR” on “SELECT TEST ITEM" screen.
3. Select “WORK SUPPORT” on “SELECT DIAG MODE" screen,
and select "ID REGIST".
4. Adjust the tire pressure to the values shown in the table below
and drive the vehicle at 15 km/h (9.4 MPH) or more for a few
minutes.
5. After completing all ID registrations, press “END” to complete the procedure.
6. Inflate all tires to proper pressure. Refer to WT-29, "
Tire" .
BCIA0031E
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front – Left 250 (2.5, 36)
Front – Right 230 (2.3, 33)
Rear – Right 210 (2.1, 30)
Rear – Left 190 (1.9, 27)
Activation tire position CONSULT-II
Front LH
“YET”
↓
“DONE” Front RH
Rear RH
Rear LH
