NISSAN LATIO 2010 Service Repair Manual

EC-616
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
VEHICLE SPEED
[km/h] or [MPH]• The vehicle speed computed from the vehicle speed signal
sent from TCM is displayed.
IDL A/V LEARN
[YET/CMPLT] • Display the condition of idle air volume learning
YET: Idle Air Volume Learning has not been performed yet.
CMPLT: Idle Air Volume Learning has already been per-
formed successfully.
TRVL AFTER MIL
[km] or [mile] • Distance traveled while MIL is activated.
A/F S1 HTR(B1)
[%] • Indicates A/F sensor 1 heater control value computed by
ECM according to the input signals.
• The current flow to the heater becomes larger as the value in-
creases.
AC PRESS SEN
[V] • The signal voltage from the refrigerant pressure sensor is dis-
played.
VHCL SPEED SE
[km/h] or [MPH] • The vehicle speed computed from the vehicle speed signal
sent from TCM is displayed.
SET VHCL SPD
[km/h] or [MPH] • The preset vehicle speed is displayed.
MAIN SW
[ON/OFF] • Indicates [ON/OFF] condition from MAIN switch signal.
CANCEL SW
[ON/OFF] • Indicates [ON/OFF] condition from CANCEL switch signal.
RESUME/ACC SW
[ON/OFF] • Indicates [ON/OFF] condition from RESUME/ACCELERATE
switch signal.
SET SW
[ON/OFF] • Indicates [ON/OFF] condition from
SET/COAST switch signal.
BRAKE SW1
[ON/OFF] • Indicates [ON/OFF] condition from ASCD brake switch sig-
nal.
BRAKE SW2
[ON/OFF] • Indicates [ON/OFF] condition of stop lamp switch signal.
VHCL SPD CUT
[NON/CUT] • Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD set speed.
CUT: Vehicle speed increased to excessively high compared
with the ASCD set speed, and ASCD operation is cut off.
LO SPEED CUT
[NON/CUT] • Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD set speed.
CUT: Vehicle speed decreased to excessively low compared
with the ASCD set speed, and ASCD operation is cut off.
AT O D M O N I T O R
[ON/OFF] • Indicates [ON/OFF] condition of A/T O/D according to the in-
put signal from the TCM. • For M/T models always “OFF” is displayed
AT OD CANCEL
[ON/OFF] • Indicates [ON/OFF] condition of A/T O/D cancel signal sent
from the TCM. • For M/T models always “OFF” is displayed
CRUISE LAMP
[ON/OFF] • Indicates [ON/OFF] condition of CRUISE lamp determined
by the ECM according to the input signals.
SET LAMP
[ON/OFF] • Indicates [ON/OFF] condition of SET lamp determined by the
ECM according to the input signals.
A/F ADJ-B1 • Indicates the correction factor stored in ECM. The factor is
calculated from the difference between the target air/fuel ratio
stored in ECM and the air/fuel ratio calculated from air fuel ra-
tio (A/F) sensor 1 signal.
HO2 S2 DIAG1 (B1)
[INCMP/CMPLT] • Indicates DTC P0139 self-diagnosis (delayed response) con-
dition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
Monitored item [Unit]
Description Remarks
Revision: January 20102010 Versa

TROUBLE DIAGNOSISEC-617
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
HO2 S2 DIAG2 (B1)
[INCMP/CMPLT]
• Indicates DTC P0139 self-diagnosis (slow response) condi-
tion.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG1(B1)
[INCMP/CMPLT] • Indicates DTC P015A or P015B self-diagnosis condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG2(B1)
[INCMP/CMPLT] • Indicates DTC P014C or P014D self-diagnosis condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG3(B1)
[ABSNT/PRSNT] • Indicates DTC P014C, P014D, P015A or P015B self-diagno-
sis condition.
ABSNT: The vehicle condition is not within the diagnosis
range.
PRSNT: The vehicle condition is within the diagnosis range.
Monitored item [Unit]
Description Remarks
Test itemCondition JudgmentCheck item (Remedy)
FUEL INJEC-
TION • Engine: Return to the original
trouble condition
• Change the amount of fuel injec- tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING • Engine: Return to the original
trouble condition
• Timing light: Set
• Retard the ignition timing using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Perform Idle Air Volume Learning.
POWER BAL-
ANCE • Engine: After warming up, idle the
engine.
• A/C switch OFF
• Shift lever: P or N (A/T, CVT), Neutral (M/T)
• Cut off each fuel injector signal one at a time using CONSULT-III. Engine runs rough or dies.
• Harness and connectors
• Compression
• Fuel injector
• Power transistor
•Spark plug
• Ignition coil
COOLING FAN* • Ignition switch: ON
• Turn the cooling fan “LOW”, “HI”
and “OFF” with CONSULT-III. Cooling fan moves and stops.
• Harness and connectors
• Cooling fan relay
• Cooling fan motor
ENG COOLANT
TEMP • Engine: Return to the original
trouble condition
• Change the engine coolant tem-
perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM. • Harness and connectors
• Engine coolant temperature sen-
sor
• Fuel injector
FUEL PUMP RE-
LAY • Ignition switch: ON
(Engine stopped)
• Turn the fuel pump relay ON and
OFF using CONSULT-III and lis-
ten to operating sound. Fuel pump relay makes the operat-
ing sound.
• Harness and connectors
• Fuel pump relay
PURG VOL
CONT/V • Engine: After warming up, run en-
gine at 1,500 rpm.
• Change the EVAP canister purge volume control solenoid valve
opening percent using CON-
SULT-III. Engine speed changes according to
the opening percent.
• Harness and connectors
• EVAP canister purge volume con-
trol solenoid valve
FUEL/T TEMP
SEN • Change the fuel tank temperature using CONSULT-III.
Revision: January 20102010 Versa

EC-618
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-542, "Emission-related Diagnostic Information".
PERMANENT DTC STATUS Mode
For details, refer to
EC-542, "Emission-related Diagnostic Information".
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to comp lete the driving pattern that is reguired for erasing
permanent DTC.
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
DTC WORK SUPPORT Mode
*: DTC P1442 and P1456 does not apply to C11 models but appears in DTC Work Support Mode screens.
Generic Scan Tool (GST) FunctionINFOID:0000000005532422
DESCRIPTION
VENT CON-
TROL/V• Ignition switch: ON
(Engine stopped)
• Turn solenoid valve “ON” and “OFF” with the CONSULT-III and
listen to operating sound. Solenoid valve makes an operating
sound.
• Harness and connectors
• EVAP canister vent control valve
V/T ASSIGN AN-
GLE • Engine: Return to the original
trouble condition
• Change intake valve timing using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Intake valve timing control sole-
noid valve
Test item
Condition JudgmentCheck item (Remedy)
Test mode Test itemCorresponding DTC No. Reference
EVAPORATIVE SYS-
TEM PURG FLOW P0441
P0441EC-810
EVP SML LEAK P0442/P1442* P0442
EC-815P0455EC-866
EVP V/S LEAK P0456/P1456* P0456EC-873
PURG VOL CN/V P1444 P0443EC-822
A/F SEN1 A/F SEN1 (B1) P1276
P0130EC-704A/F SEN1 (B1) P1278/P1279 ——
HO2S2 HO2S2 (B1) P0139
P0139EC-741
HO2S2 (B1) P1146 P0138EC-731
HO2S2 (B1) P1147 P0137EC-722
Revision: January 20102010 Versa

TROUBLE DIAGNOSISEC-619
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Generic Scan Tool (OBDII scan tool) complying with SAE J1978/ISO
15031-4 has 8 different functions explained below.
ISO 15765-4 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.
FUNCTION
NOTE:
*: Service $0A is not applied for regions where it is not mandated.
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
SEF139P
Diagnostic test mode
Function
Service $01 READINESS TESTS This diagnostic service gains access to current emission-related data values, including an-
alog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA) This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to
EC-612, "
CONSULT-III Function (EN-
GINE)".
Service $03 DTCs This diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.
Service $04 CLEAR DIAG INFO This diagnostic service can clear all emission-related diagnostic information. This in-
cludes:
• Clear number of diagnostic trouble codes (Service $01)
• Clear diagnostic trouble codes (Service $03)
• Clear trouble code for freeze frame data (Service $01)
• Clear freeze frame data (Service $02)
• Reset status of system monitoring test (Service $01)
• Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS) This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS) This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 —This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, EVAP canister vent control valve can
be closed. In the following conditions, this diagnostic service cannot function.
• Low ambient temperature
• Low battery voltage
• Engine running
• Ignition switch OFF
• Low fuel temperature
• Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID) This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.
Service $0A
*PERMANENT DTCs This diagnostic service gains access to permanent DTCs which were stored by ECM.
Revision: January 20102010 Versa

EC-620
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
2. Connect GST to data link connector (1), which is located under
LH dash panel.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are
shown.)
5. Perform each diagnostic service according to each service pro- cedure.
For further information, see the GST Operation Manual of
the tool maker.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005532423
Remarks:
z Specification data are reference values.
z Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly relate d to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in spite of the
ignition timing not being adjusted to the specification data. This IGN TIMING moni tors the data calculated by the ECM according to the signals
input from the camshaft position sensor and other ignition timing related sensors.
BBIA0734E
SEF398S
SEF416S
Monitor item Condition Specification
ENG SPEED • Run engine and compare CONSULT-III value with the tachometer indica-
tion. Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-624
.
B/FUEL SCHDL See EC-624
.
A/F ALPHA-B1 See EC-624
.
COOLAN TEMP/S • Engine: After warming up More than 70°C (158 °F)
A/F SEN1 (B1) • Engine: After warming up Maintaining engine speed at 2,000 rpm Fluctuates around 2.2 V
Revision: January 20102010 Versa

TROUBLE DIAGNOSISEC-621
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HO2S2 (B1)
• Revving engine from idle to 3,000 rpm quickly after the following conditions
are met
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1 minute under no load 0 - 0.3 V
←→ Approx. 0.6 -
1.0 V
HO2S2 MNTR (B1) LEAN ←→ RICH
VHCL SPEED SE • Turn drive wheels and compare CONSULT-III value with the speedometer
indication. Almost the same speed as the
speedometer indication.
BATTERY VOLT • Ignition switch: ON (Engine stopped) 11 - 14 V
ACCEL SEN 1 • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released
0.6 - 0.9 V
Accelerator pedal: Fully depressed 4.0 - 4.8 V
ACCEL SEN 2* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released
0.6 - 0.9 V
Accelerator pedal: Fully depressed 3.9 - 4.8 V
EVAP SYS PRES • Ignition switch: ON Approx. 1.8 - 4.8 V
TP SEN 1-B1
TP SEN 2-B1* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released
More than 0.36 V
• Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully depressed
Less than 4.75 V
START SIGNAL • Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS • Ignition switch: ON Accelerator pedal: Fully released
ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG • Engine: After warming up, idle the
engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW • Ignition switch: ON Shift lever: P or N (A/T, CVT),
Neutral (M/T)
ON
Shift lever: Except above OFF
PW/ST SIGNAL • Engine: After warming up, idle the
engine Steering wheel: Not being turned
OFF
Steering wheel: Being turned ON
LOAD SIGNAL • Ignition switch: ON Rear window defogger switch: ON
and/or Lighting switch: 2nd
ON
Rear window defogger switch and light-
ing switch: OFF OFF
IGNITION SW • Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW • Ignition switch: ON Heater fan: Operating
ON
Heater fan: Not operating OFF
BRAKE SW • Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1 • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idl
e
8° -
18
° BTDC
2,000 rpm 25° - 45 ° BTDC
CAL/LD VALUE • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
10% - 35%
2,500 rpm 10% - 35%
Monitor item
Condition Specification
Revision: January 20102010 Versa

EC-622
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
MASS AIRFLOW• Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
1.0 - 4.0 g·m/s
2,500 rpm 2.0 - 10.0 g·m/s
PURG VOL C/V • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
(Accelerator pedal is not depressed
even slightly, after engine starting)
0%
2,000 rpm 0 - 50%
INT/V TIM (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
−5 ° - 5 °CA
When revving engine up to 2,000 rpm
quickly Approx. 0
° - 40 °CA
INT/V SOL (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
0% - 2%
When revving engine up to 2,000 rpm
quickly Approx. 0% - 90%
AIR COND RLY • Engine: After warming up, idle the
engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY • For 1 second after turning ignition switch ON
• Engine running or cranking
ON
• Except above conditions OFF
VENT CONT/V • Ignition switch: ON OFF
THRTL RELAY • Ignition switch: ON ON
COOLING FAN • Engine: After warming up, idle the
engine
• Air conditioner switch: OFF Engine coolant temperature: 97
°C
(207 °F) or less OFF
Engine coolant temperature: Between
98 °C (208 °F) and 99 °C (210 °F) LOW
Engine coolant temperature: 100 °C
(212 °F) or more HIGH
HO2S2 HTR (B1) • Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
• Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD • Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as the
tachometer indication
VEHICLE SPEED • Turn drive wheels and compare CONSULT-III value with the speedometer
indication. Alm
os
t the same speed as the
speedometer indication
TRVL AFTER MIL • Ignition switch: ON Vehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 mile)
A/F S1 HTR (B1) • Engine: After warming up, idle the engine
(More than 140 seconds after starting engine.) 4 - 100%
AC PRESS SEN • Engine: Idle
• Air conditioner switch: ON (Compressor operates) 1.0 - 4.0 V
VHCL SPEED SE • Turn drive wheels and compare speedometer indication with the CONSULT-
III value. Almost the same speed as the
speedometer indication
SET VHCL SPD • Engine: Ru nningASCD: Operating The preset vehicle speed is
displayed.
Monitor item
Condition Specification
Revision: January 20102010 Versa

TROUBLE DIAGNOSISEC-623
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they
differ from
ECM terminals voltage signal. MAIN SW
• Ignition switch: ON MAIN switch: Pressed
ON
MAIN switch: Released OFF
CANCEL SW • Ignition switch: ON CANCEL switch: Pressed
ON
CANCEL switch: Released OFF
RESUME/ACC SW • Ignition switch: ON RESUME/ACCELERATE switch:
Pressed
ON
RESUME/ACCELERATE switch: Re-
leased OFF
SET SW • Ignition switch: ON SET/COAST switch: Pressed
ON
SET/COAST switch: Released OFF
BRAKE SW1 • Ignition switch: ON • Brake pedal: Fully released (A/T,
CVT)
• Brake pedal and clutch pedal: Fully
released (M/T) ON
• Brake pedal: Slightly depressed (A/T, CVT)
• Brake pedal and/or clutch pedal:
Slightly depressed (M/T) OFF
BRAKE SW2 • Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
CRUISE LAMP • Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP • MAIN switch: ON
• Vehicle speed: Between 40 km/h
(25 MPH) and 144 km/h (89
MPH) ACSD: Operating
ON
ASCD: Not operating OFF
HO2 S2 DIAG1 (B1) DTC P0139 self-diagnosis (delayed response) is incomplete.
INCMP
DTC P0139 self-diagnosis (delayed response) is complete. CMPLT
HO2 S2 DIAG2 (B1) DTC P0139 self-diagnosis (slow
response) is incomplete. INCMP
DTC P0139 self-diagnosis (slo w response) is complete. CMPLT
A/F SEN1 DIAG1 (B1) DTC P015A and P015B self-diagnosis is incomplete.
INCMP
DTC P015A and P015B self-diagnosis is complete. CMPLT
A/F SEN1 DIAG2 (B1) DTC P014C and P014D self-diagnosis is incomplete.
INCMP
DTC P014C and P014D self-diagnosis is complete. CMPLT
A/F SEN1 DIAG3 (B1) The vehicle condition is not within the diagnosis range of DTC P014C, P014D,
P015A or P015B.
ABSNT
The vehicle condition is within the diagnosis range of DTC P014C, P014D,
P015A or P015B. PRSNT
Monitor item
Condition Specification
Revision: January 20102010 Versa

EC-624
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000005532424
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode of CONSULT-III during normal operation of the Engine Control System. When the value in
“SPEC” of “DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When
the value in “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may
have one or more malfunctions.
The SP value is used to detect malfunctions that may af fect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
• B/FUEL SCHDL (The fuel injection pulse width progr ammed into ECM prior to any learned on board correc-
tion)
• A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionINFOID:0000000005532425
• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
• Atmospheric temperature: 20 - 30 °C (68 - 86° F)
• Engine coolant temperature: 75 - 95 °C (167 - 203° F)
• Transmission: Warmed-up
- A/T and CVT models: After the engine is warmed up to normal operating temperature, drive vehicle until
“FLUID TEMP SE” (A/T or CVT) fluid temperature sensor signal) indicates more than 60 °C (140° F).
- M/T models: After the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
• Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight ahead.
• Engine speed: Idle
Inspection ProcedureINFOID:0000000005532426
NOTE:
Perform “SPEC” of “DATA MONITOR” mode in maximum scale display.
1. Perform EC-574, "
Basic Inspection".
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode
with CONSULT-III.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-624, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005532427
OVERALL SEQUENCE
Revision: January 20102010 Versa

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-625
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

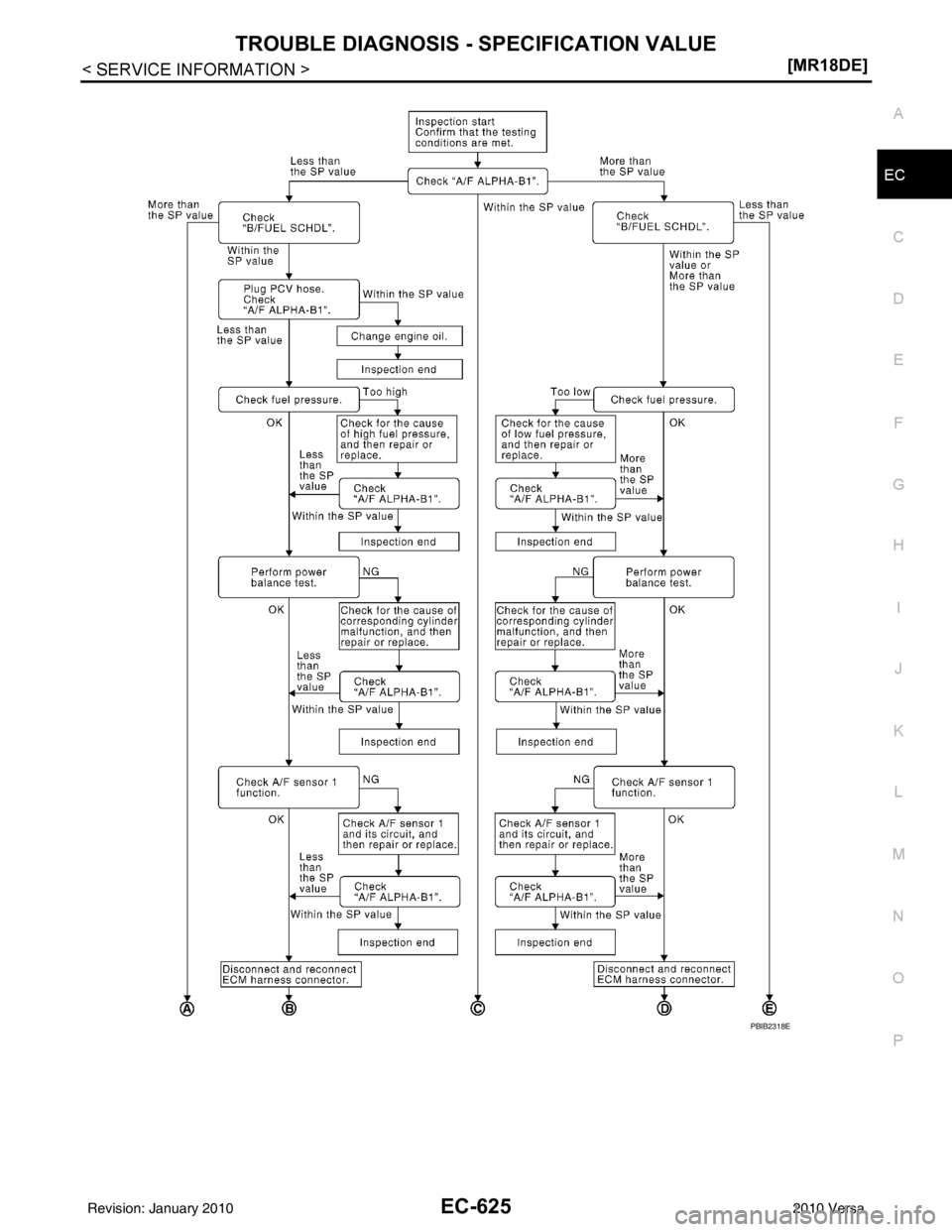

PBIB2318E
Revision: January 20102010 Versa
