AT-354
< SERVICE INFORMATION >
ASSEMBLY
b. Install needle bearing on bearing retainer.CAUTION:
Be careful to direction of needle bearing.
c. Install output shaft on transaxle case.
d. Measure dimensions (
1) and (2) at side cover and then cal-
culate dimension (A).
• Measure dimension ( 1) and ( 2) in at least two places.
e. Measure dimensions (
2) and (3) and then calculate dimen-
sion (B).
• Measure dimension ( 2)and ( 3) in at least two places.
f. Select proper thickness of output shaft adjusting shim so that output shaft end play (clearance between side cover and output
shaft bearing) is within specifications. Refer to “Parts Informa-
tion” for output shaft adjusting shim selection.
g. Install output shaft adjusting shim on output shaft bearing.
SCIA4917E
SAT035F
(A) : Distance between transaxle case fitting sur- face and adjusting shim mating surface.
A =
1 − 2
2
: Height of gauge
SAT374F
(B) : Distance between the end of output shaft bearing outer race and the side cover fitting
surface of transaxle case.
B =
2 − 3
2
: Height of gauge
SAT375F
Output shaft end play (A
− B):
Refer to AT-379, "
Output Shaft".
SCIA4918E
Revision: January 20102010 Versa
Page 372 of 3745

ASSEMBLYAT-355
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
2. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent.) to transaxle case as shown.
: Inside of side cover
CAUTION:
• Apply the sealant on the center between the bolt holes.
• Completely remove all moisture, oil and old sealant, etc. from the transaxle case and side cover mounting surfaces.
3. Fit mounting part of output shaft bearing on side cover to output shaft bearing, and after adjusting knock pin position, install it
with light taps of a soft hammer and things like that.
CAUTION:
When installing, to avoid getting damaged and deformed,
set mounting part straight to parallel with the mounting sur-
face.
4. Tighten side cover bolts to specified torque. Refer to AT-237,
"Component".
CAUTION:
• Do not mix bolts (A) and (B).
• Always replace bolts (A) as they are self-sealing bolts.
Assembly (2)INFOID:0000000005397452
1. Remove paper rolled around bearing retainer.
2. Install thrust washer on bearing retainer. CAUTION:
Align pawls of thrust washer with holes of bearing retainer.(A) : 3 - 5 mm (0.12 - 0.20 in)
(B) : 8 mm (0.31 in) R
(C) : 1.5 mm (0.059 in) dia.
(D) : 4 mm (0.16 in)
SCIA7089E
SAT442D
SCIA7939E
SAT354D
Revision: January 20102010 Versa
Page 373 of 3745

AT-356
< SERVICE INFORMATION >
ASSEMBLY
3. Install forward clutch assembly and overrun clutch assembly (1)into transaxle case.
CAUTION:
• Align teeth of low & reverse brake drive plates beforeinstalling.
• Make sure that bearing retainer seal rings are not spread.
4. Install needle bearing (1) on bearing retainer. CAUTION:
Be careful with the dir ection of needle bearing.
5. Install thrust washer (1) on overrun clutch hub (2). CAUTION:
Align pawls of thrust washer (1) with holes of overrun
clutch hub (2).
6. Install overrun clutch hub (1) into forward clutch drum. CAUTION:
Align teeth of overrun clutch drive plates before installing.
7. Hold forward clutch hub, and check that rear internal gear locks when tried to rotate counterclockwise.
CAUTION:
If rear internal gear rotat es counterclockwise, check instal-
lation direction of forward one-way clutch.
SCIA5900J
SCIA8014E
SCIA5899J
SCIA5898J
SCIA7078E
Revision: January 20102010 Versa
Page 374 of 3745

ASSEMBLYAT-357
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
8. Install needle bearing (1) on rear internal gear (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
9. Install rear internal gear (1) and forward clutch hub (2) as a set into forward clutch drum.
CAUTION:
Align teeth of forward clutch drive plates before installing.
10. Install needle bearing (1) on rear planetary carrier (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
11. Install rear sun gear on rear planetary carrier. CAUTION:
Be careful with the dir ection of rear sun gear.
12. Install rear planetary carrier in transaxle case.

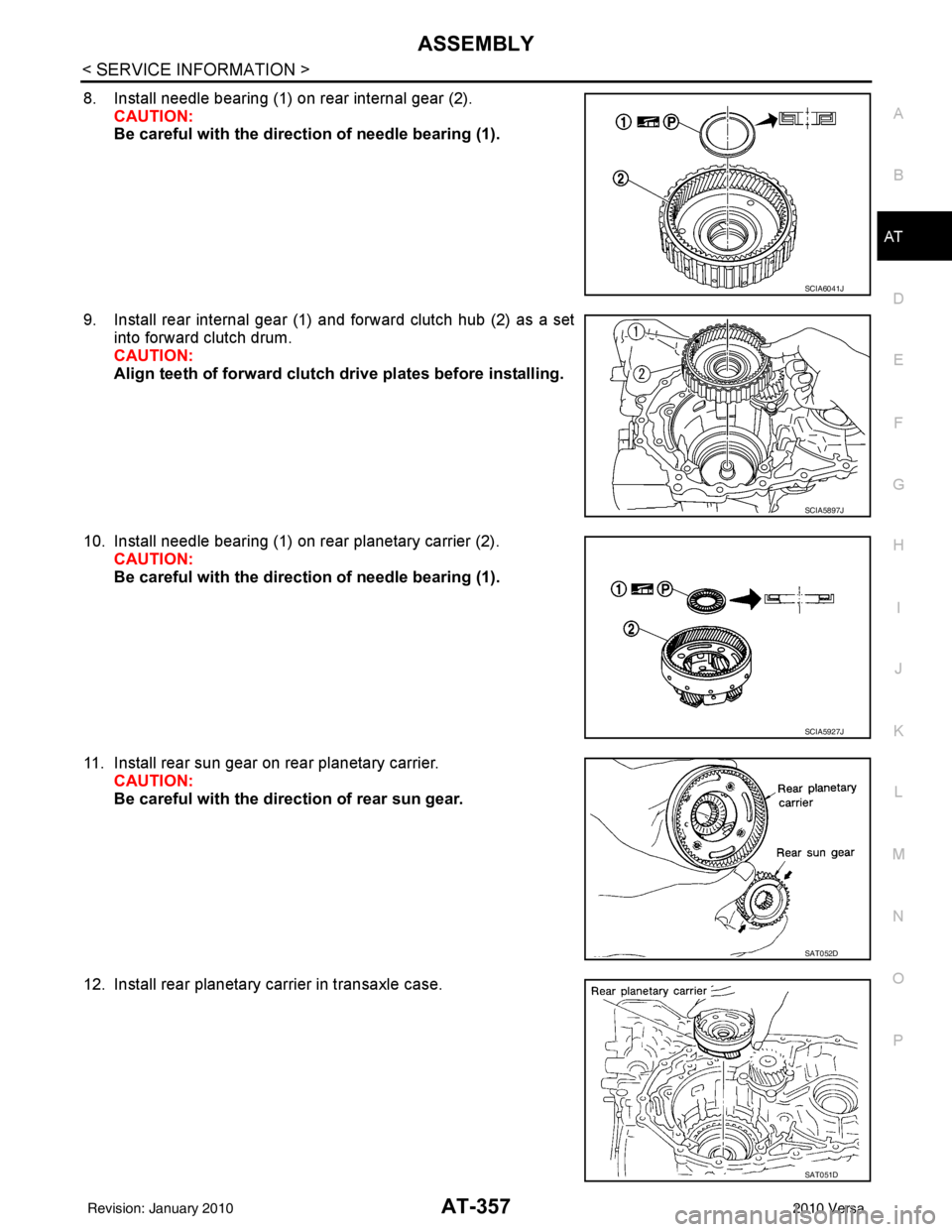

SCIA6041J
SCIA5897J
SCIA5927J
SAT052D
SAT051D
Revision: January 20102010 Versa
Page 375 of 3745

AT-358
< SERVICE INFORMATION >
ASSEMBLY
13. Install needle bearing (1) on front planetary carrier (2).CAUTION:
Be careful with the direct ion of needle bearing (1).
14. Install low one-way clutch to front planetary carrier by turning it in the direction of unlock.
15. Check that low one-way clutch rotates counterclockwise around front planetary carrier. Then try to turn it clockwise and check
that it is locked.
16. Install front planetary carrier (2) and low one-way clutch (1) as a set into transaxle case.
17. Install snap ring into transaxle case using a flat-bladed screw- driver.
18. Install needle bearing (1) on front sun gear (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
SCIA6047J
SAT048D
SCIA5896J
SCIA3633E
SCIA6960E
Revision: January 20102010 Versa
Page 376 of 3745

ASSEMBLYAT-359
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
19. Install front sun gear on front planetary carrier.
20. Install needle bearing on front sun gear. CAUTION:
Be careful with the dir ection of needle bearing.
21. Install high clutch hub on front sun gear.
22. Install needle bearing on high clutch hub. CAUTION:
Be careful with the dir ection of needle bearing.
23. Remove paper rolled around input shaft assembly (high clutch drum).
24. Install input shaft assembly (high clutch assembly) (1). CAUTION:
Align teeth of high clutch dr ive plates before installing.

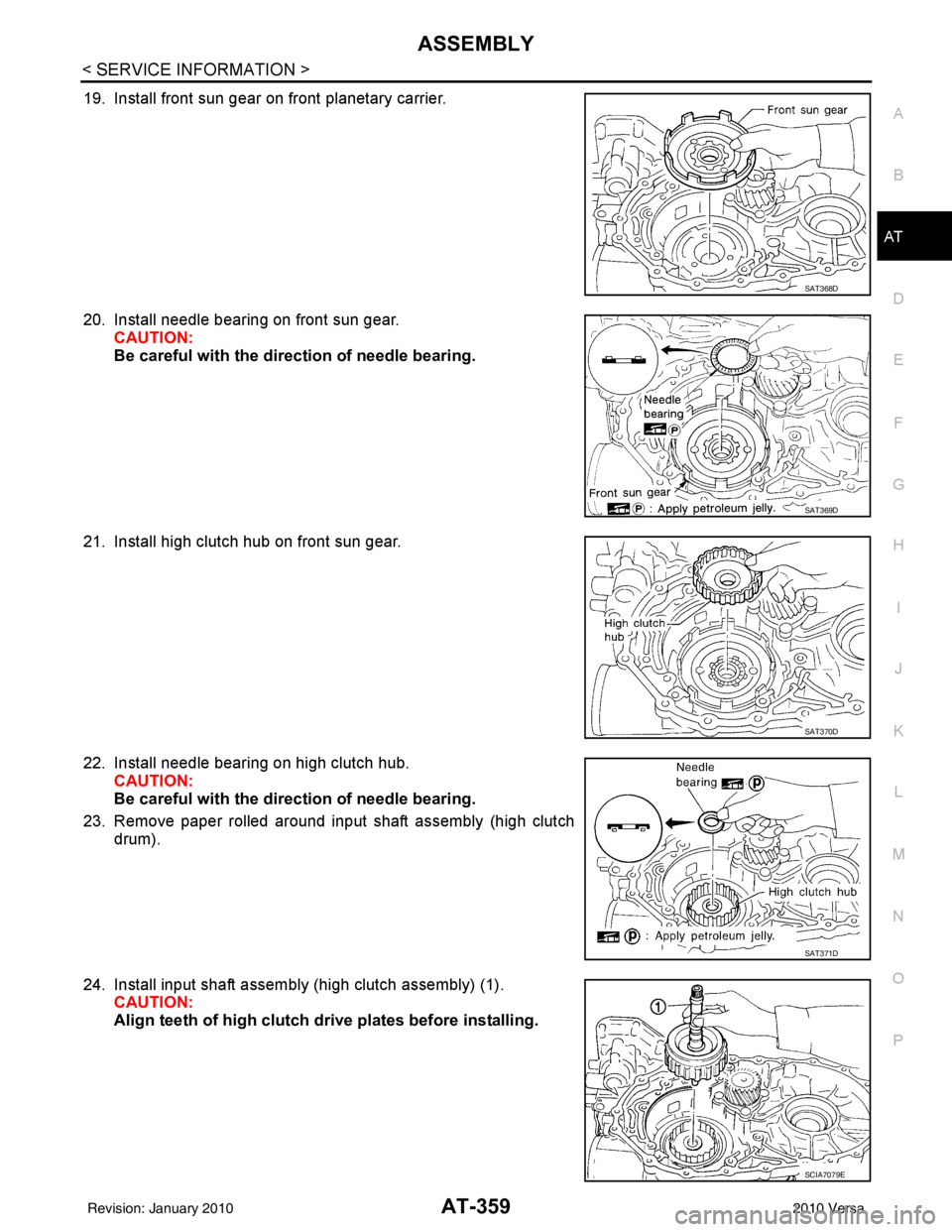

SAT368D
SAT369D
SAT370D
SAT371D
SCIA7079E
Revision: January 20102010 Versa
Page 377 of 3745

AT-360
< SERVICE INFORMATION >
ASSEMBLY
25. Install reverse clutch assembly.CAUTION:
Align teeth of reverse clutch dr ive plates before installing.
Adjustment (2)INFOID:0000000005397453
When any parts listed below are replaced, adjust total end play and reverse clutch end play.
TOTAL END PLAY
• Measure clearance between reverse clutch drum and needle bear-
ing for oil pump cover.
• Select proper thickness of bearing race so that end play is within specifications.
1. Measure dimensions (K) and (L ), and then calculate dimension
(J).

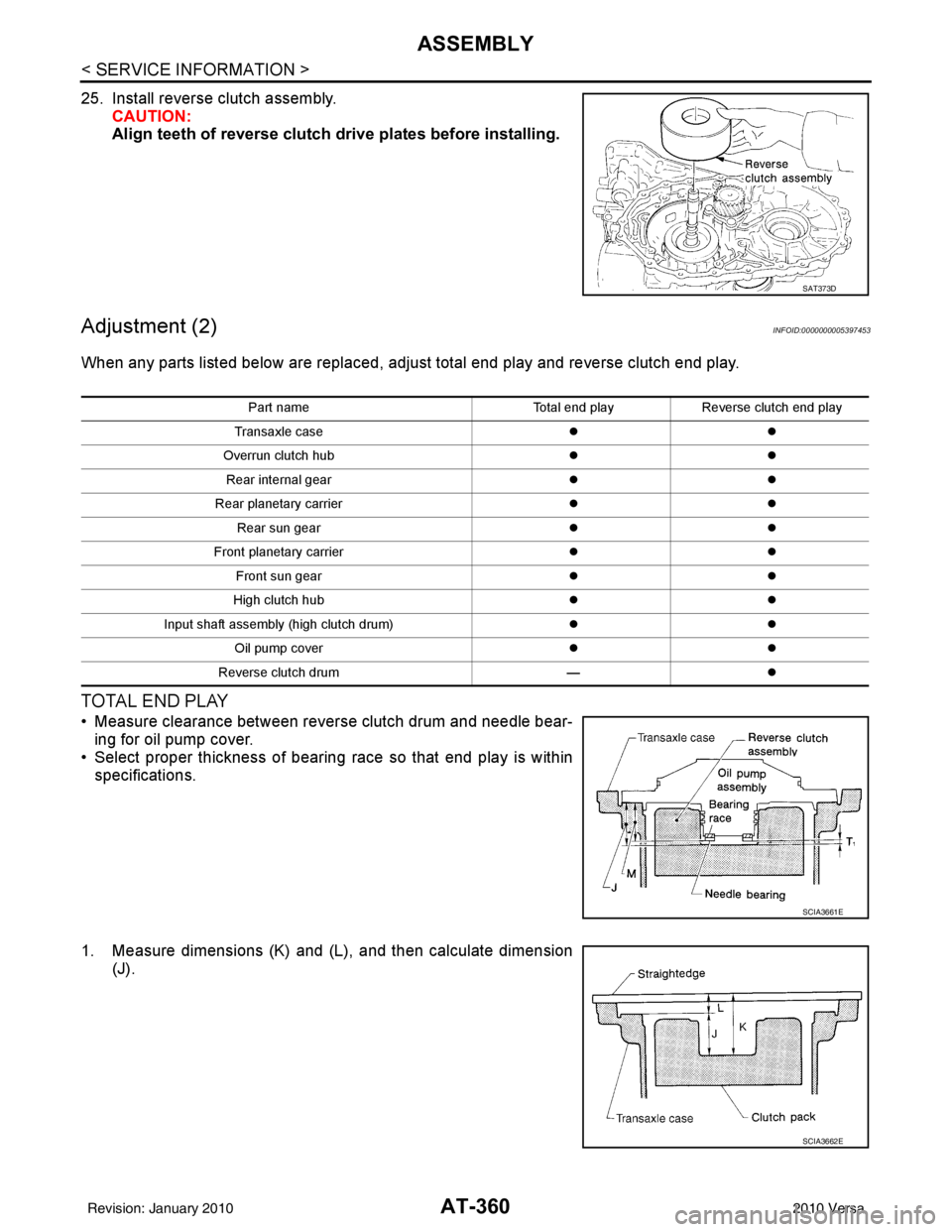

SAT373D
Part name Total end playReverse clutch end play
Transaxle case z z
Overrun clutch hub z z
Rear internal gear z z
Rear planetary carrier z z
Rear sun gear z z
Front planetary carrier z z
Front sun gear z z
High clutch hub z z
Input shaft assembly (high clutch drum) z z
Oil pump cover z z
Reverse clutch drum — z
SCIA3661E
SCIA3662E
Revision: January 20102010 Versa
Page 378 of 3745

ASSEMBLYAT-361
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
a. Measure dimension (K).
b. Measure dimension (L).
c. Calculate dimension (J).
2. Measure dimension (M).
a. Place bearing race and needle bearing on oil pump assembly.
b. Measure dimension (M).
c. Measure thickness of straightedge (t).
3. Adjust total end play (T
1).

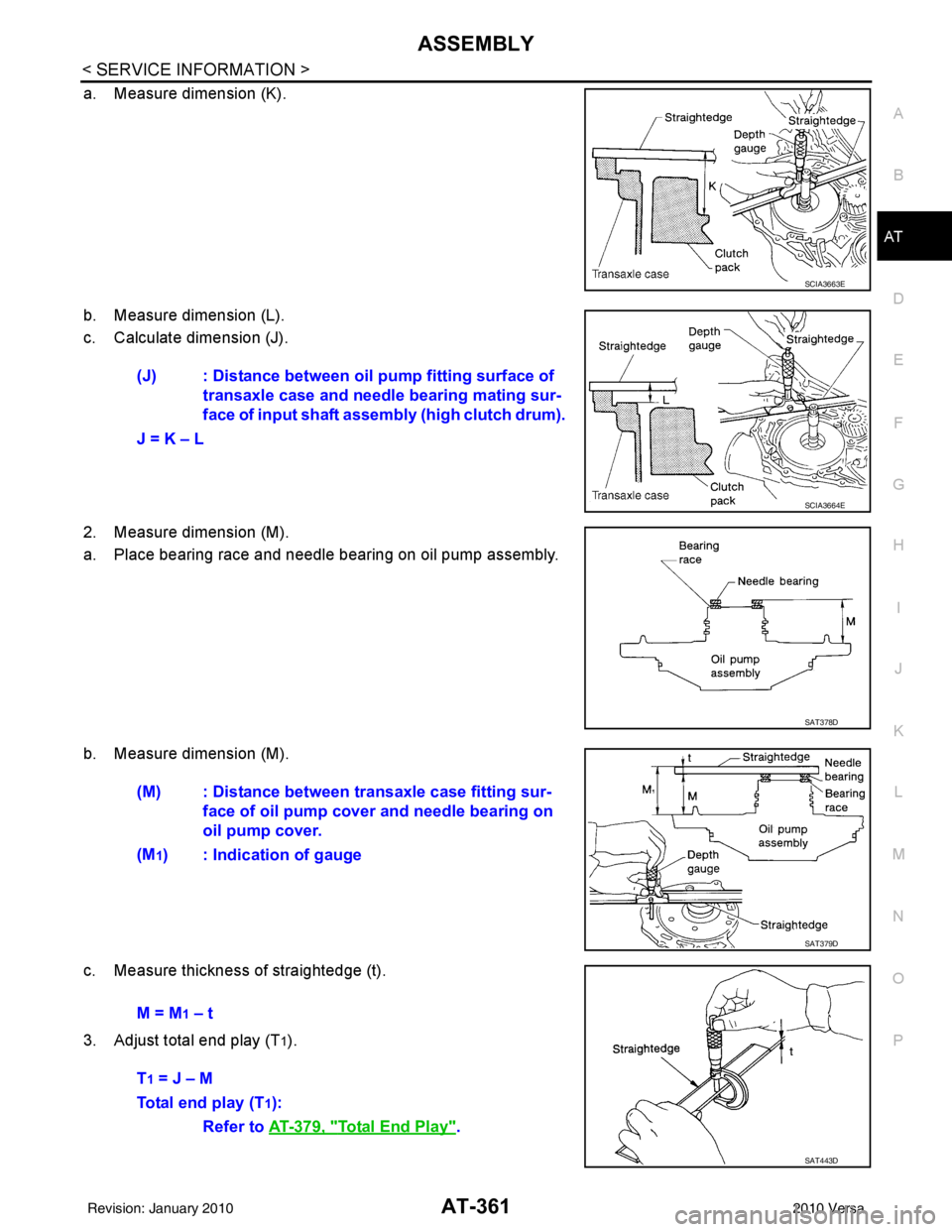

SCIA3663E
(J) : Distance between oi l pump fitting surface of
transaxle case and needle bearing mating sur-
face of input shaft assembly (high clutch drum).
J = K – L
SCIA3664E
SAT378D
(M) : Distance between transaxle case fitting sur- face of oil pump cover and needle bearing on
oil pump cover.
(M
1) : Indication of gauge
SAT379D
M = M1 – t
T
1 = J – M
Total end play (T
1):
Refer to AT-379, "
Total End Play".
SAT443D
Revision: January 20102010 Versa
Page 379 of 3745

AT-362
< SERVICE INFORMATION >
ASSEMBLY
• Select proper thickness of bearing race so that total end play is within specifications. Refer to “PartsInformation” for bearing race selection.
REVERSE CLUTCH END PLAY
• Measure clearance between oil pump cover and thrust washer forreverse clutch drum.
• Select proper thickness of thrust washer so that end play is within
specification.
1. Measure dimensions O and P), and then calculate dimension N).
a. Place thrust washer on reverse clutch drum.
b. Measure dimension (O).
c. Measure dimension (P).
d. Calculate dimension (N).

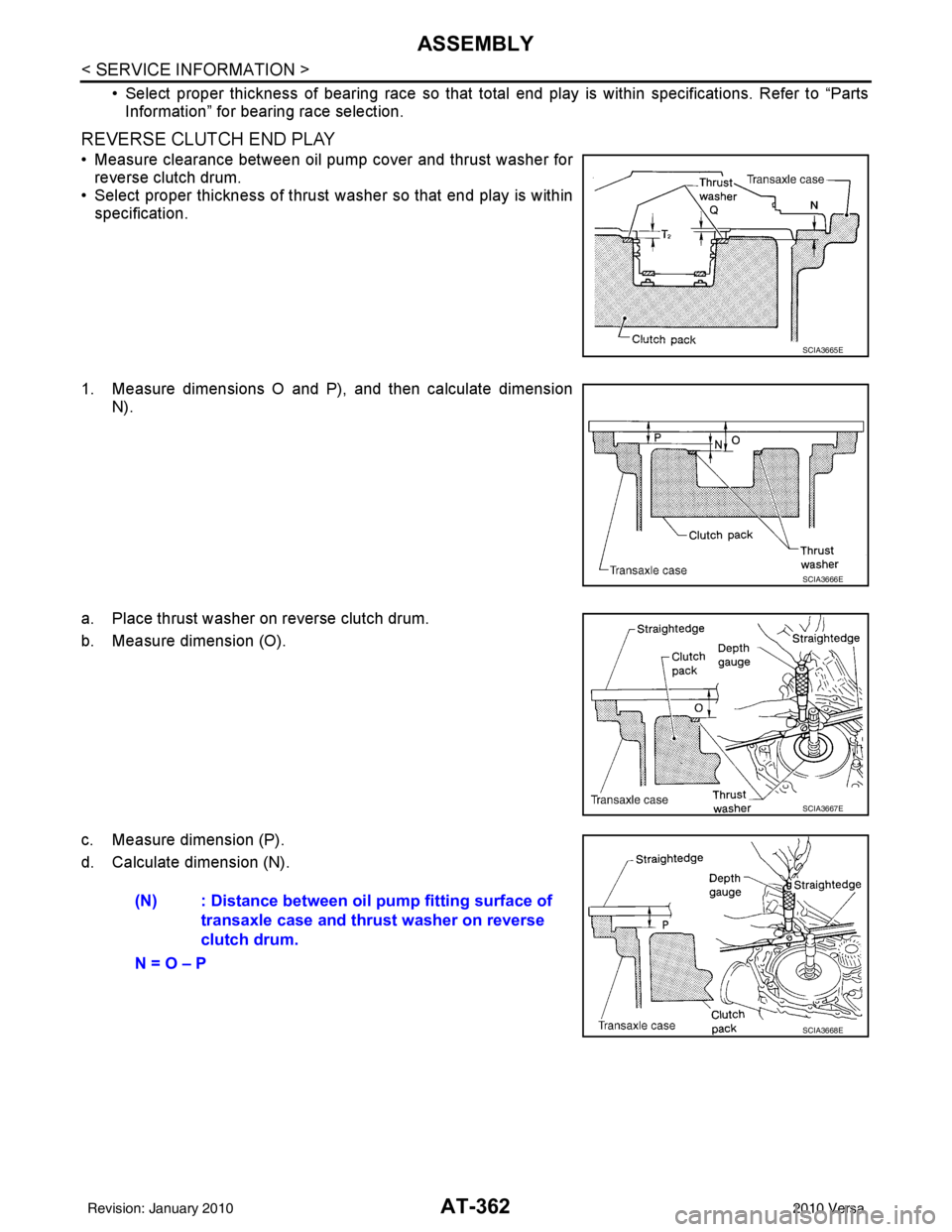

SCIA3665E
SCIA3666E
SCIA3667E
(N) : Distance between oi l pump fitting surface of
transaxle case and thrust washer on reverse
clutch drum.
N = O – P
SCIA3668E
Revision: January 20102010 Versa
Page 380 of 3745

ASSEMBLYAT-363
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
2. Measure dimensions (R) and (S), and then calculate dimension (Q).
a. Measure dimension (R).
b. Measure dimension (S).
c. Calculate dimension (Q).
3. Adjust reverse clutch end play (T
2).
• Select proper thickness of thrust washer so that reve rse clutch end play is within specifications. Refer to
“Parts Information” for thrust washer selection.
Assembly (3)INFOID:0000000005397454
1. Remove reverse clutch assembly.
2. Install needle bearing on input shaft assembly (high clutch drum).
CAUTION:
Be careful with the dir ection of needle bearing.
3. Install reverse clutch assembly. CAUTION:
Align teeth of reverse clutch dr ive plates before installing.
SAT384D
SAT385D
(Q) : Distance between transaxle case fitting sur-
face and thrust washer mating surface.
Q = R – S
SAT386D
T2 = N – Q
Reverse clutch end play: Refer to AT-379, "
Reverse Clutch End Play".
SAT387D
