NISSAN LATIO 2010 Service Repair Manual

BL-322
< SERVICE INFORMATION >
BODY REPAIR
OUTRIGGER
Change partsz Front side member partial zFront side member closing plate par-
tial z
Frame bracket outer
z Frame bracket
LIIA2896E
Revision: January 20102010 Versa

BODY REPAIRBL-323
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

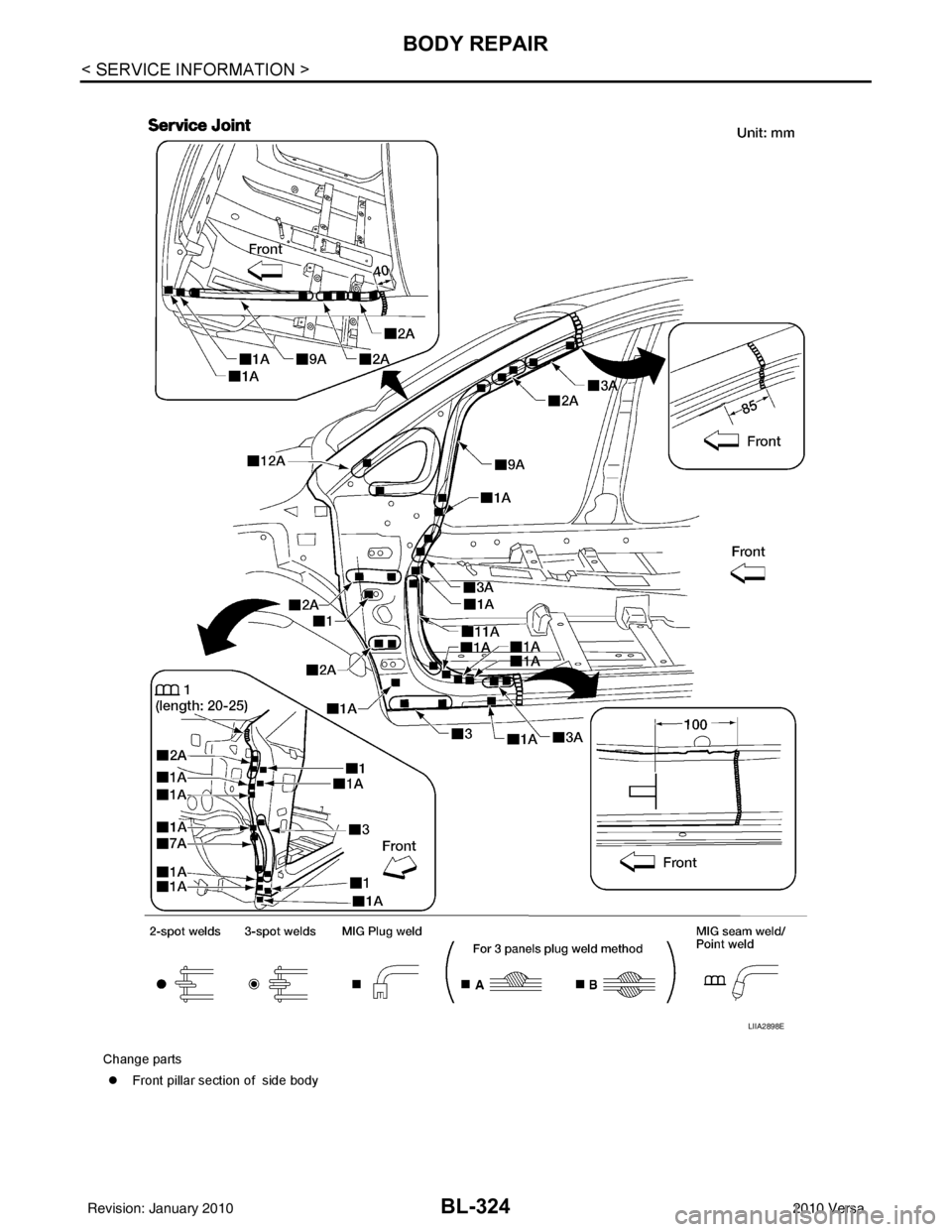

FRONT PILLAR
• Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed.
Change parts z Outrigger zFront suspension bracket
LIIA2897E
Revision: January 20102010 Versa

BL-324
< SERVICE INFORMATION >
BODY REPAIR
Change partsz Front pillar section of side body
LIIA2898E
Revision: January 20102010 Versa

BODY REPAIRBL-325
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Change parts z Front pillar upper reinforcement zFront pillar lower reinforcement
LIIA2899E
Revision: January 20102010 Versa

BL-326
< SERVICE INFORMATION >
BODY REPAIR

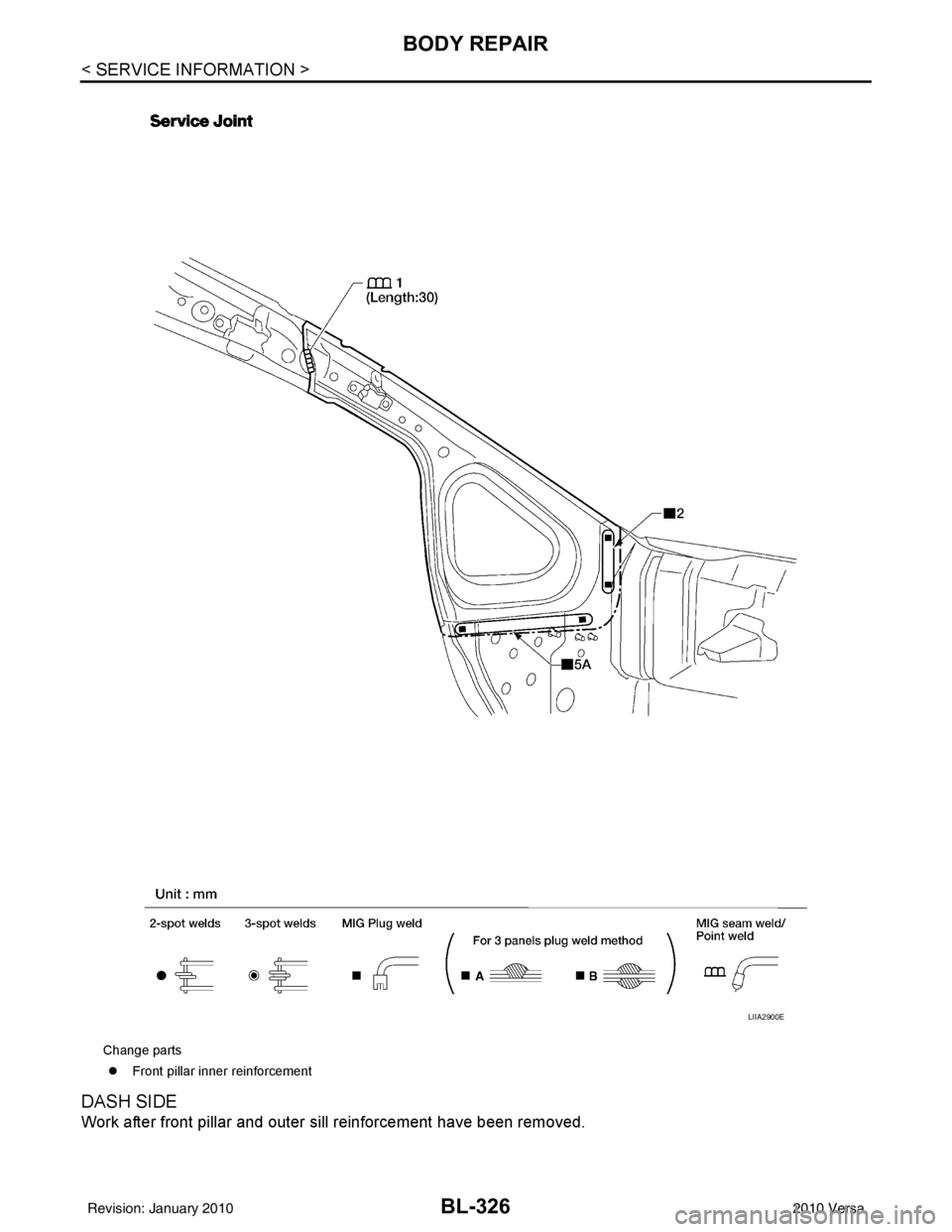

DASH SIDE
Work after front pillar and outer sill reinforcement have been removed.
Change partsz Front pillar inne r reinforcement
LIIA2900E
Revision: January 20102010 Versa

BODY REPAIRBL-327
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

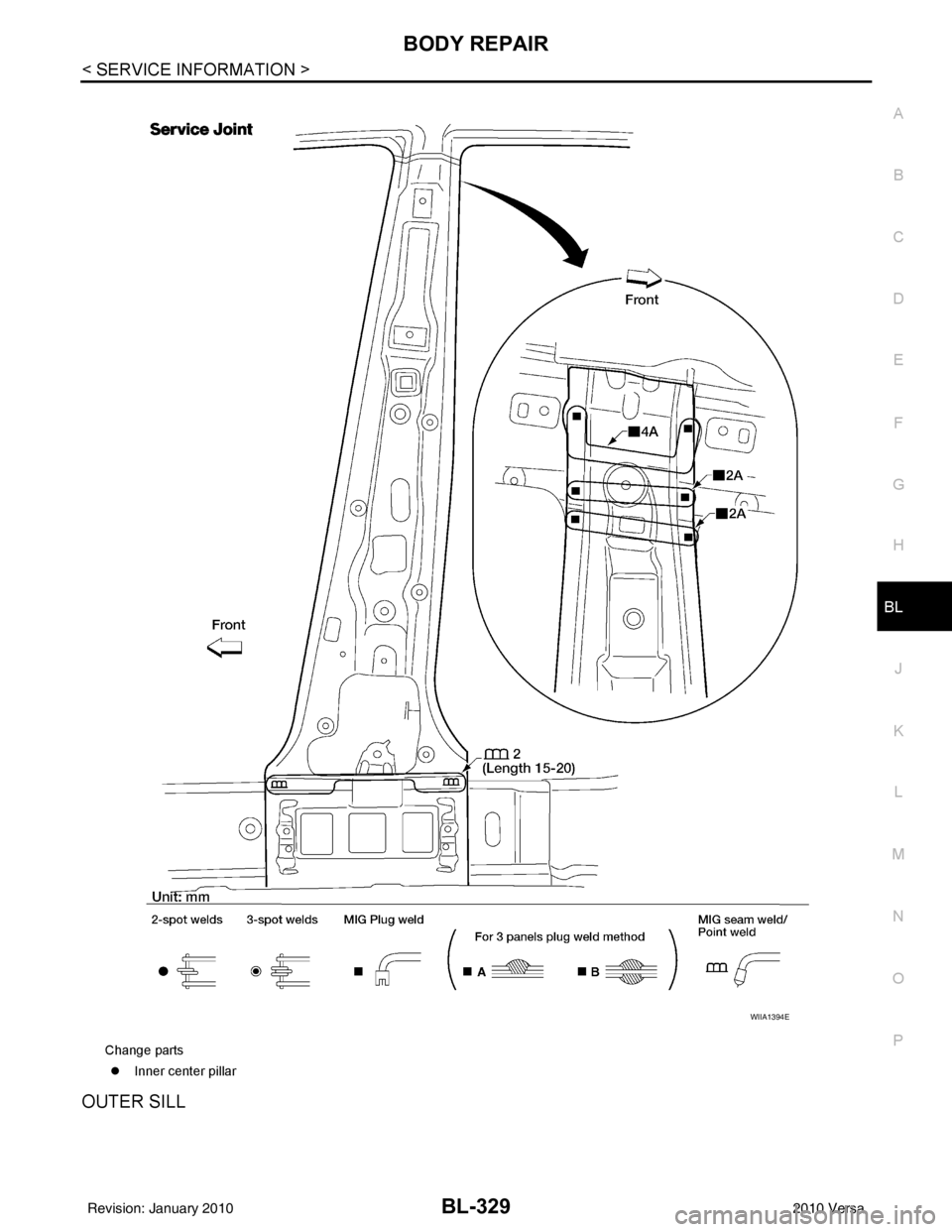

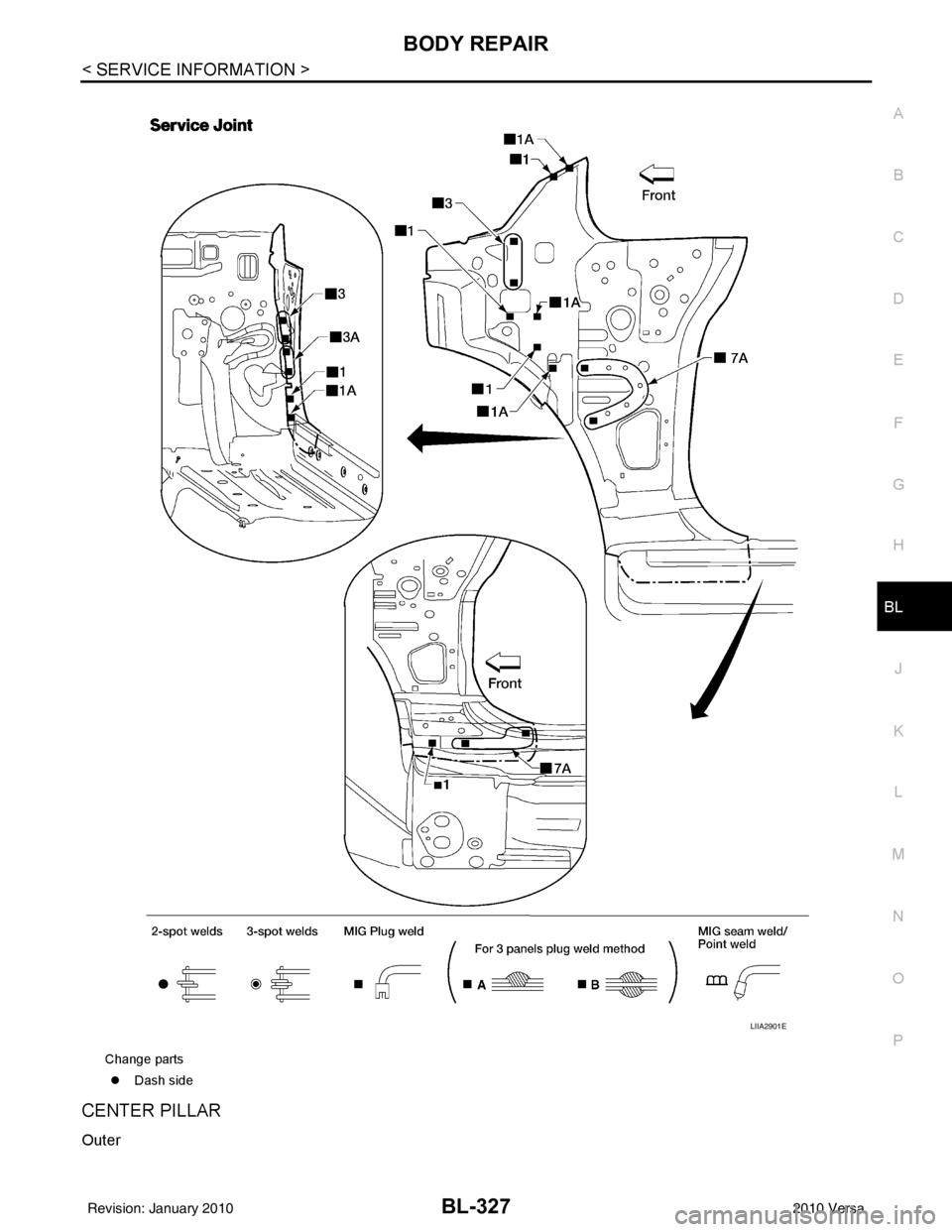

CENTER PILLAR
Outer
Change parts z Dash side
LIIA2901E
Revision: January 20102010 Versa

BL-328
< SERVICE INFORMATION >
BODY REPAIR

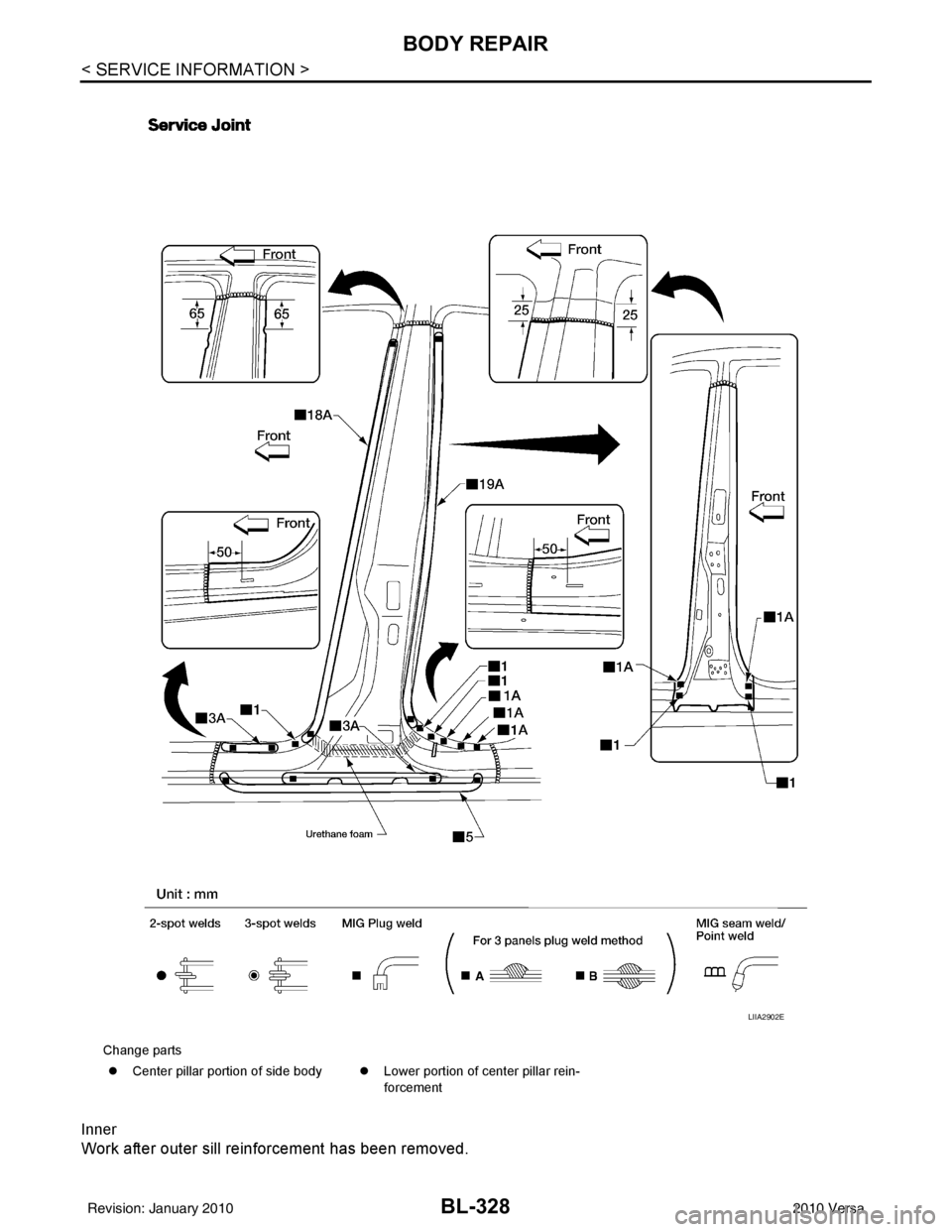

Inner
Work after outer sill reinforcement has been removed.
Change partsz Center pillar portion of side body zLower portion of center pillar rein-
forcement
LIIA2902E
Revision: January 20102010 Versa

BODY REPAIRBL-329
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

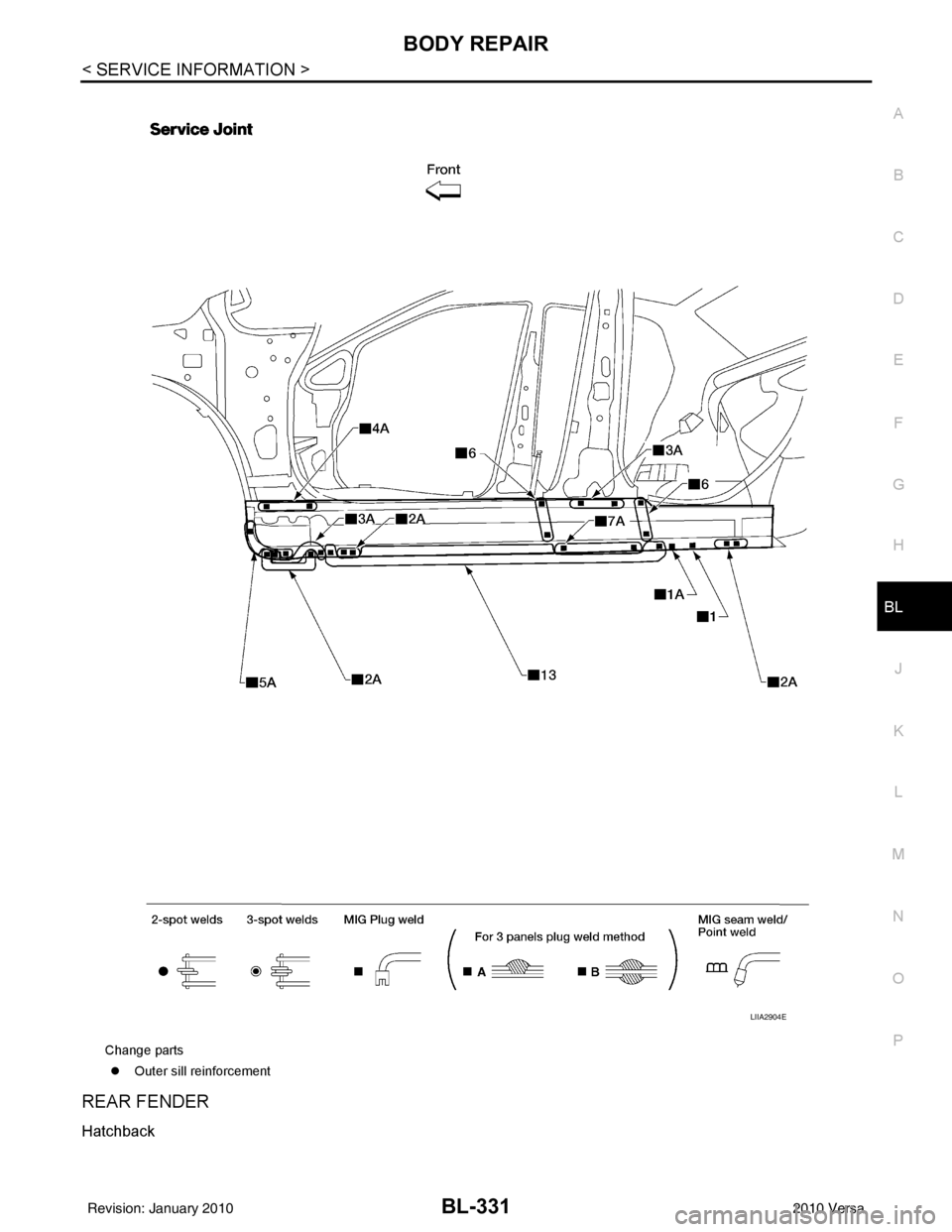

OUTER SILL
Change parts z Inner center pillar
WIIA1394E
Revision: January 20102010 Versa

BL-330
< SERVICE INFORMATION >
BODY REPAIR

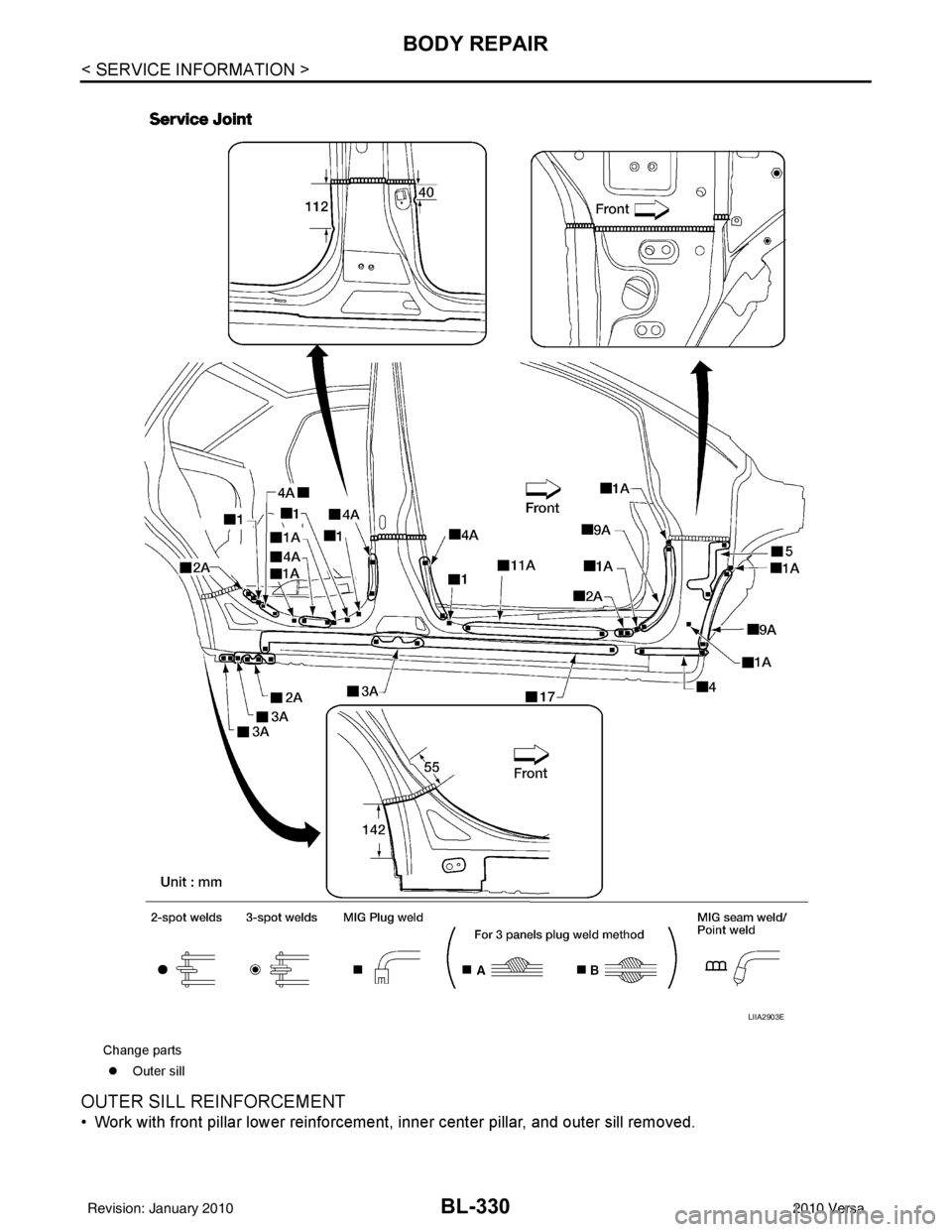

OUTER SILL REINFORCEMENT
• Work with front pillar lower reinforcement, inner center pillar, and outer sill removed.
Change parts
z Outer sill
LIIA2903E
Revision: January 20102010 Versa

BODY REPAIRBL-331
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
REAR FENDER
Hatchback
Change parts z Outer sill reinforcement
LIIA2904E
