CVT-36
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS

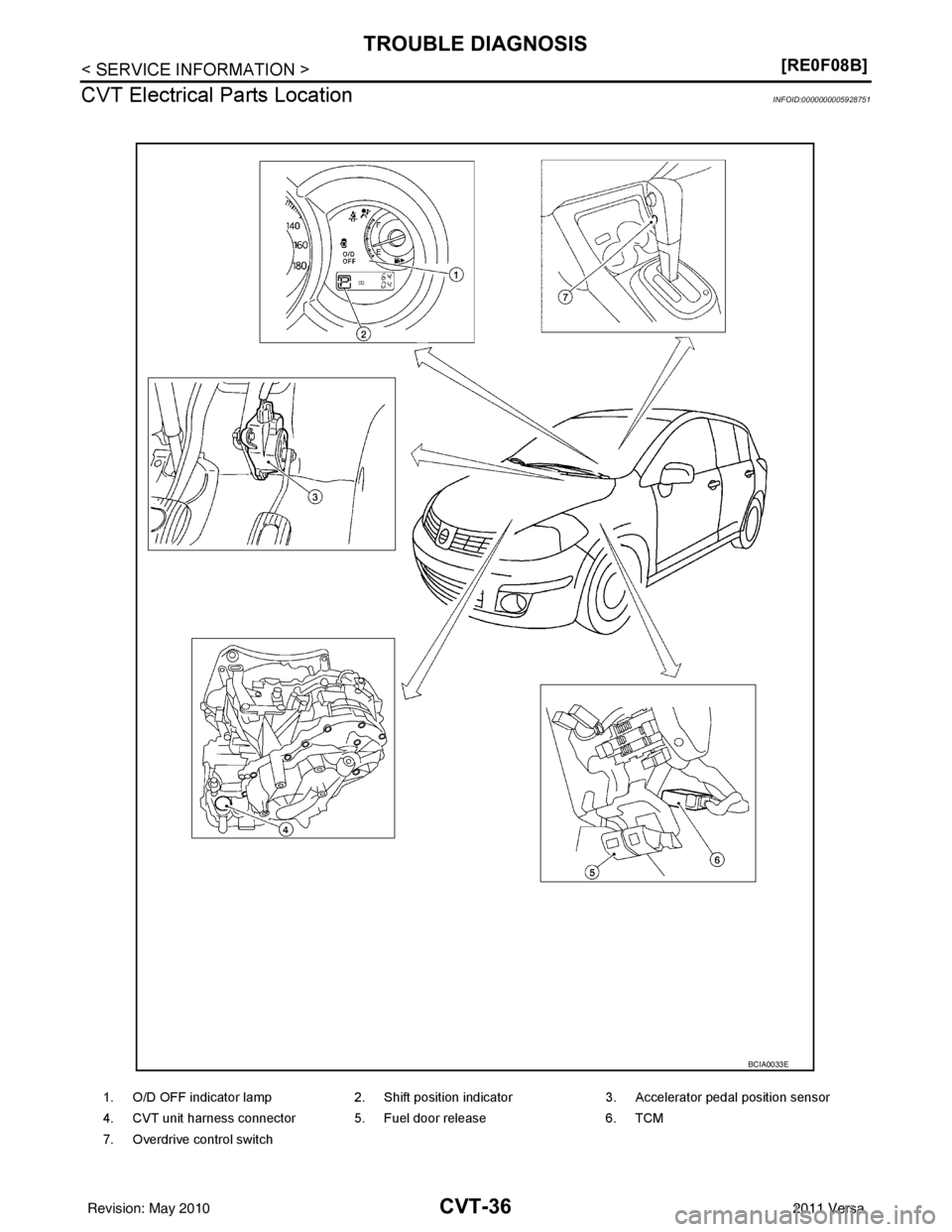

CVT Electrical Parts Location
INFOID:0000000005928751
1. O/D OFF indicator lamp 2. Shift position indicator3. Accelerator pedal position sensor
4. CVT unit harness connector 5. Fuel door release 6. TCM
7. Overdrive control switch
BCIA0033E
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISCVT-37
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

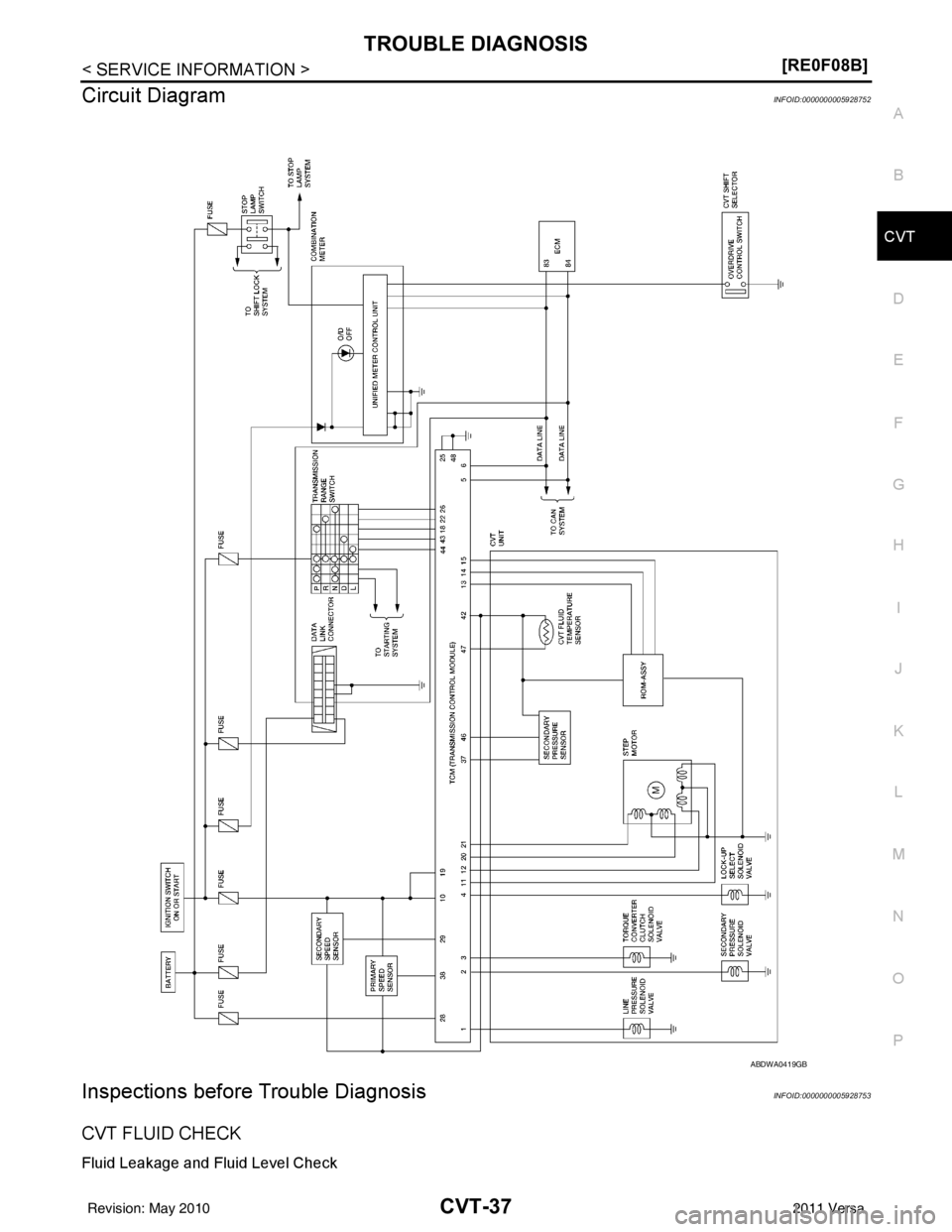

Circuit DiagramINFOID:0000000005928752
Inspections before Trouble DiagnosisINFOID:0000000005928753
CVT FLUID CHECK
Fluid Leakage and Fluid Level Check
ABDWA0419GB
Revision: May 2010 2011 Versa

CVT-38
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
• Inspect for fluid leakage and check the fluid level. Refer to
CVT-14, "Checking CVT Fluid" .
Fluid Condition Check
Inspect the fluid condition.
STALL TEST
Stall Test Procedure
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the
CVT fluid temperature is 50 to 80 °C (122 to 176° F). Inspect the
amount of CVT fluid. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.
4. Install a tachometer where it can be seen by driver during test. •It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in “D” position.
Fluid status Conceivable cause Required operation
Varnished (viscous
varnish state) Clutch, brake
scorchedReplace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)
Milky white or
cloudy Water in the fluidReplace the CVT fluid and check for
places where water is getting in.
Large amount of
metal powder mixed
in Unusual wear of
sliding parts within
CVT
Replace the CVT fluid and check for
improper operation of the CVT.
SAT638A
SAT647B
SAT513G
SAT775B
Revision: May 2010
2011 Versa

TROUBLE DIAGNOSISCVT-39
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
6. While holding down the foot brake, gradually press down the accelerator pedal.
7. Quickly read off the stall speed, and then quickly remove your foot from the accelerator pedal.
CAUTION:
Do not hold down the accelerat or pedal for more than 5 sec-
onds during this test.
8. Move the selector lever to the “N” position.
9. Cool down the CVT fluid. CAUTION:
Run the engine at idle for at least 1 minute.
10. Repeat steps 6 through 9 with selector lever in “R” position.
Judgement Stall Test
O: Stall speed within standard value position.
H: Stall speed is higher than standard value.
L: Stall speed is lower than standard value.
LINE PRESSURE TEST
Line Pressure Test Port
Line Pressure Test Procedure
1. Inspect the amount of engine oil and replenish if necessary.
2. Drive the car for about 10 minutes to warm it up so that the CVT fluid reaches in the range of 50 to 80°C
(122 to 176 °F), then inspect the amount of CVT fluid and replenish if necessary.
NOTE: Stall speed:
CVT-183, "
Stall Speed"
SAT514G
SAT771B
Selector lever position
Expected problem location
“D” “R”
Stall rotation HO•F
orw ard c lu tc h
O H • Reverse brake
L L • Engine and torque converter one-way clutch
HH • Line pressure low
• Primary pulley
• Secondary pulley
•Steel belt
SCIA6184E
Revision: May 2010
2011 Versa

CVT-40
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
The CVT fluid temperature rises in the range of 50 - 80
°C (122 - 176° F) during 10 minutes of driving.
3. After warming up CVT, remove the oil pressure detection plug and install the oil pressure gauge [special service tool: - (OTC3492)].
CAUTION:
When using the oil pressure gauge, be sure to u se the O-ring attached to the oil pressure detec-
tion plug.
4. Securely engage the parking brake so that the tires do not turn.
5. Start the engine, and then measure the line pressure at both idle and the stall speed.
CAUTION:
• Keep the brake pedal pressed all the way down duringmeasurement.
• When measuring the line pressure at the stall speed, refer
to "STALL TEST" .
6. After the measurements are complete, install the oil pressure detection plug and tighten to the specified torque below.
CAUTION:
• Do not reuse O-ring.
• Apply CVT fluid to O-ring.
Line Pressure
Judgement of Line Pressure Test
SAT513G
: 7.5 N·m (0.77 kg-m, 66 in-lb)SAT493G
Engine speed Line pressure kPa (kg/cm
2 , psi)
“R”, “D” and “L” positions
At idle CVT-183, "
Line Pressure"At stall
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISCVT-41
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Road TestINFOID:0000000005928754
DESCRIPTION
• The purpose of the test is to determine overall performance of CVT and analyze causes of problems.
• The road test consists of the following three parts:
1. “Check Before Engine Is Started” CVT-42
.
2. “Check at Idle”CVT-42
.
3. “Cruise Test”CVT-43
.
• Before road test, familiarize yourself with all test procedures and items to check.
• Perform tests on all items until specified symptom is found. Trou-
bleshoot items which check out No Good after road test.
Judgement Possible cause
Idle speed Low for all positions
(“P”, “R”, “N”, “D”, “L”)
Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example
• Oil pump wear
• Pressure regulator valve or plug sticking or spring fatigue
• Oil strainer
⇒ oil pump ⇒ pressure regulator valve passage oil leak
• Engine idle speed too low
Only low for a specific
position Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
High Possible causes include a sensor malfunction or malfunction in the line pressure adjustment
function.
For example
• Accelerator pedal position signal malfunction
• CVT fluid temperature sensor malfunction
• Line pressure solenoid) malfunction (sticking in OFF state, filter clog, cut line)
• Pressure regulator valve or plug sticking
Stall speed Line pressure does
not rise higher than
the line pressure for
idle.
Possible causes include a sensor malfunction or malfunction in the pressure adjustment func-
tion.
For example
• Accelerator pedal position signal malfunction
•TCM malfunction
• Line pressure solenoid) malfunction (shorting, sticking in ON state)
• Pressure regulator valve or plug sticking
The pressure rises,
but does not enter the
standard position. Possible causes include malfunctions in the pressure supply system and malfunction in the pres-
sure adjustment function.
For example
• Accelerator pedal position signal malfunction
• Line pressure solenoid) malfunction (sticking, filter clog)
• Pressure regulator valve or plug sticking
Only low for a specific
position Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
SAT786A
SAT496G
Revision: May 2010
2011 Versa

CVT-42
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
CONSULT-III START PROCEDURE
• Using CONSULT-III, perform a cruise test and record the result.
• Print the result and ensure that shifts
and lock-ups take place as per Shift Schedule.
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch “MAIN SIGNALS” to set recording condition.
3. See “Numerical Display”, “Barchart Display” or “Line Graph Display”.
4. Touch “START”.
5. When performing cruise test. Refer to CVT-43, "
Cruise Test" .
6. After finishing cruise test part, touch “RECORD”.
7. Touch “STORE”.
8. Touch “BACK”.
9. Touch “DISPLAY”.
10. Touch “PRINT”.
11. Check the monitor data printed out.
Check before Engine Is StartedINFOID:0000000005928755
1.CHECK O/D OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does O/D OFF indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF. 2. Perform self-diagnosis and note NG items.
Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)" .
3. Go to CVT-42, "
Check at Idle" .
NO >> Stop “Road Test”. Go to CVT-143, "
O/D OFF Indicator Lamp Does Not Come On" .
Check at IdleINFOID:0000000005928756
1.CHECK STARTING THE ENGINE
1. Park vehicle on flat surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch OFF.
4. Turn ignition switch START.
Is engine started?
YES >> GO TO 2.
NO >> Stop “Road Test”. Mark the box on the CVT-31, "
How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-145, "Engine Cannot Be Started in "P" and "N" Position" .
2.CHECK STARTING THE ENGINE
1. Turn ignition switch ON.
2. Move selector lever to “D”, “L” or “R” position.
3. Turn ignition switch START.
Is engine started?
YES >> Stop “Road Test”. Mark the box on the CVT-31, "How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-145, "Engine Cannot Be Started in "P" and "N" Position" .
NO >> GO TO 3.
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISCVT-43
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3.CHECK “P” POSITION FUNCTION
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
5. Apply parking brake.
Does vehicle move when it is pushed forward or backward?
YES >> Mark the box CVT-145, "In "P" Position, Vehicle Moves Forward or Backward When Pushed" on
the CVT-31, "
How to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road
Te s t ” .
NO >> GO TO 4.
4.CHECK “N” POSITION FUNCTION
1. Start engine.
2. Move selector lever to “N” position.
3. Release parking brake.
Does vehicle move forward or backward?
YES >> Mark the box CVT-146, "In "N" Position, Vehicle Moves" on the CVT-31, "How to Perform Trouble
Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
NO >> GO TO 5.
5.CHECK SHIFT SHOCK
1. Apply foot brake.
2. Move selector lever to “R” position.
Is there large shock when changing from
“N” to “R” position?
YES >> Mark the box CVT-146, "Large Shock "N" → "R" Position" on the CVT-31, "How to Perform Trou-
ble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
NO >> GO TO 6.
6.CHECK “R” POSITION FUNCTION
Release foot brake for several seconds.
Does vehicle creep backward w hen foot brake is released?
YES >> GO TO 7.
NO >> Mark the box CVT-147, "
Vehicle Does Not Creep Backward in "R" Position" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
7.CHECK “D”, “L” POSITIONS FUNCTION
Move selector lever to “D” and “L” positions and check if vehicle creeps forward.
Does vehicle creep forward in all positions?
YES >> Go to CVT-43, "Cruise Test" .
NO >> Stop “Road Test”. Mark the box on the CVT-31, "
How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-148, "Vehicle Does Not Creep Forward in "D" or "L" Position" .
Cruise TestINFOID:0000000005928757
1.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 1
1. Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.
2. Park vehicle on flat surface.
3. Move selector lever to “P” position.
4. Start engine.
5. Move selector lever to “L” position. CVT fluid operating temperature: 50 - 80
°C (122 - 176° F)
Revision: May 2010 2011 Versa

CVT-44
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
6. Accelerate vehicle to 2/8-way throttle depressing accelerator
pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 2.
NG >> Mark the box of CVT-149, "
Vehicle Speed Does Not
Change in "L" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
2.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 2
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)
4. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 3.
NG >> Mark the box of CVT-150, "
Vehicle Speed Does Not
Change in overdrive-off mode" on the CVT-31, "How to
Perform Trouble Diagnosis for Quick and Accurate
Repair" . Continue “Road Test”.
3.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 3
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is off.)
4. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 4.
NG >> Mark the box of CVT-151, "
Vehicle Speed Does Not
Change in "D" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
4.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 4
1. Park vehicle on flat surface.
2. Move selector lever to “L” position.
3. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 5.
NG >> Mark the box of CVT-149, "
Vehicle Speed Does Not
Change in "L" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
5.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 5
SCIA6644E
SCIA6644E
SCIA6644E
SCIA4366E
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISCVT-45
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)
4. Accelerate vehicle to full depressing depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 6.
NG >> Mark the box of CVT-150, "
Vehicle Speed Does Not
Change in overdrive-off mode" on the CVT-31, "How to
Perform Trouble Diagnosis for Quick and Accurate
Repair" . Continue “Road Test”.
6.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 6
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is off.)
4. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 7.
NG >> Mark the box of CVT-151, "
Vehicle Speed Does Not
Change in "D" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
7.CHECK ENGINE BRAKE FUNCTION — PART 1
1. Release accelerator pedal.
2. Check engine brake. (O/D OFF indicator lamp is off.)
Does engine braking effectively reduce speed in
“D” position?
YES >> GO TO 8.
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
8.CHECK ENGINE BRAKE FUNCTION — PART 2
1. Push overdrive control switch. (O/D OFF indicator lamp is on.)
2. Check engine brake.
Does engine braking effectively reduce speed in
“D” position?
YES >> GO TO 9.
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
9.CHECK ENGINE BRAKE FUNCTION — PART 3
1. Move selector lever to “L” position.
2. Check engine brake.
Does engine braking effectively reduce speed in
“L” position?
YES >> 1. Stop the vehicle. 2. Perform self-diagnosis. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)" .
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Then continue trouble diagnosis.
Vehicle Speed When Shifting GearsINFOID:0000000005928758
Numerical value data are reference values.
SCIA4366E
SCIA4366E
Revision: May 2010 2011 Versa
