DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-837
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

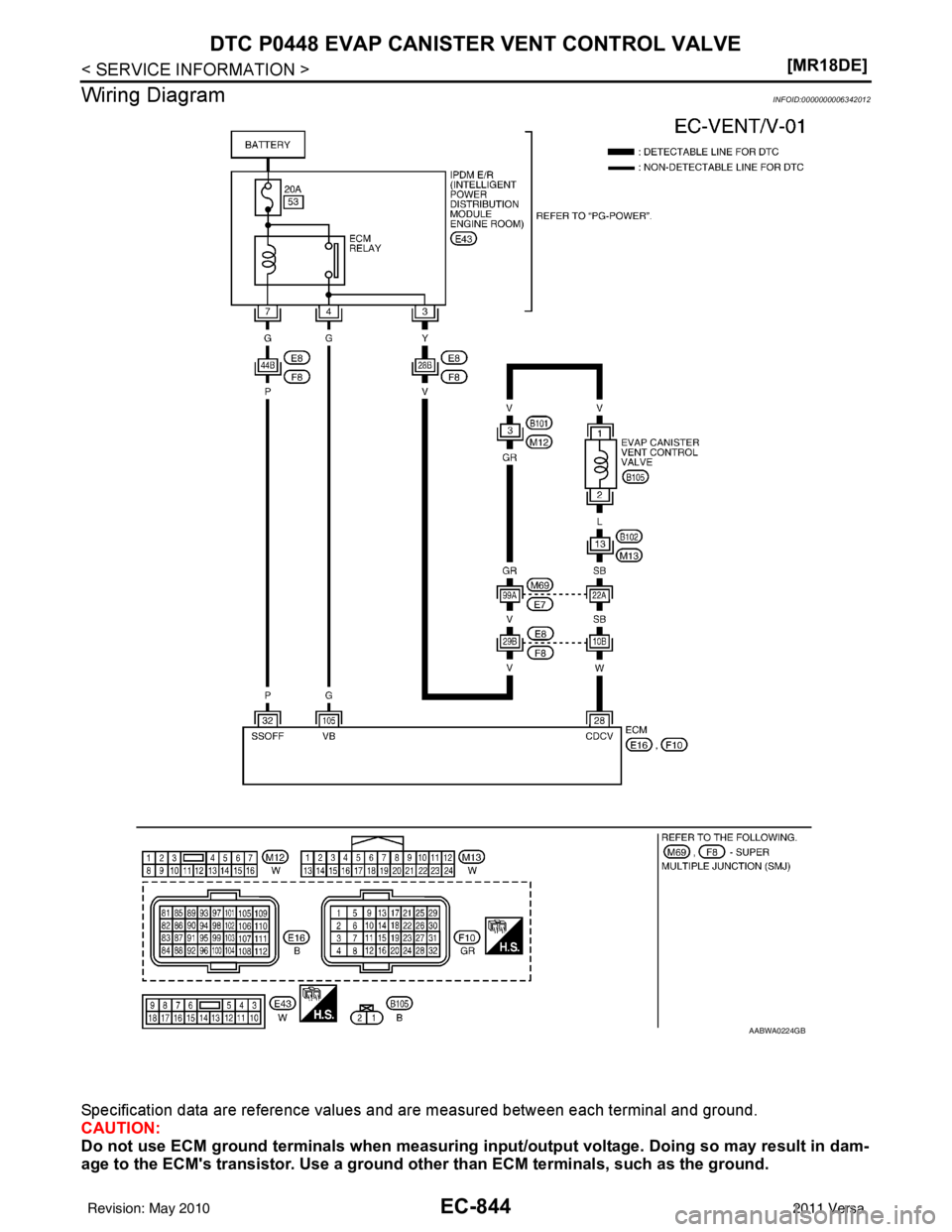

Wiring DiagramINFOID:0000000006342005
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
AABWA0224GB
Revision: May 2010 2011 Versa

EC-838
< SERVICE INFORMATION >[MR18DE]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Diagnosis Procedure
INFOID:0000000006342006
1.INSPECTION START
1. Do you have CONSULT-III?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.
2.CHECK EVAP CANISTER VE NT CONTROL VALVE CIRCUIT
With CONSULT-III
1. Turn ignition switch OFF and then turn ON.
2. Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT-III.
3. Touch “ON/OFF” on CONSULT-III screen.
4. Check for operating sound of the valve.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3.CHECK EVAP CANISTER VENT CONT ROL VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect EVAP canister vent control valve (3) harness con- nector.
- EVAP control system pressure sensor (1)
- EVAP canister (2)
3. Turn ignition switch ON.
TER-
MI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
28 W EVAP canister vent control
valve [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
32 P ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.0 V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14 V)
105 G Power supply for ECM [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14 V)
Clicking noise should be heard.
BBIA0693E
Revision: May 2010 2011 Versa

DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-839
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Check voltage between EVAP canister vent control valve termi-
nal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness connectors E7, M69
• Harness connectors M12, B101
• Harness for open or short between EVAP cani ster vent control valve and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 28 and EVAP canister vent control valve terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness connectors E7, M69
• Harness connectors M13, B102
• Harness for open or short between EVAP c anister vent control valve and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK RUBBER TUBE FOR CLOGGING
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
OK or NG
OK >> GO TO 8.
NG >> Clean the rubber tube using an air blower.
8.CHECK DRAIN FILTER
Refer to EC-814, "
Component Inspection".
OK or NG
OK >> GO TO 9.
NG >> Replace drain filter.
9.CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-840, "
Component Inspection".
Voltage: Battery voltage
PBIB0080E
Continuity should exist.
Revision: May 2010
2011 Versa

EC-840
< SERVICE INFORMATION >[MR18DE]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
OK or NG
OK >> GO TO 10.
NG >> Replace EVAP canister vent control valve.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006342007
EVAP CANISTER VENT CONTROL VALVE
With CONSULT-III
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time. Make sure new O-ring is installed properly.
Operation takes less than 1 second.
If NG, go to next step.
7. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again. If NG, replace EVAP canister vent control valve.
Without CONSULT-III
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
PBIB1033E
Condition VENT CONTROL/V Air passage continuity between A and B
ON No
OFF Yes
PBIB1033E
Revision: May 2010 2011 Versa

DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-841
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check air passage continuity and operation delay time under the
following conditions.
Make sure new O-ring is installed properly.
Operation takes less than 1 second.
If NG, go to next step.
4. Clean the air passage (Portion A to B ) of EVAP canister vent
control valve using an air blower.
5. Perform step 3 again. If NG, replace EVAP canister vent control valve.
Condition Air passage continuity between A and B
12 V direct current supply between
terminals 1 and 2 No
OFF Yes
PBIB1034E
Revision: May 2010 2011 Versa

EC-842
< SERVICE INFORMATION >[MR18DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Component DescriptionINFOID:0000000006342008
The EVAP canister vent control valve (3) is located on the EVAP
canister (2) and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
control system diagnoses.
• EVAP control system pressure sensor (1)
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006342009
Specification data are reference values.
On Board Diagn
osis LogicINFOID:0000000006342010
DTC Confirmation ProcedureINFOID:0000000006342011
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 1 minute.
4. Repeat next procedures three times.
PBIB3642E
BBIA0693E
Monitor item Condition Specification
VENT CONT/V • Ignition switch: ON OFF
DTC No. Trouble diagnosis nameDTC detecting condition Possible cause
P0448
0448 EVAP canister vent con-
trol valve close EVAP canister vent control valve remains
closed under specified driving conditions. • EVAP canister vent control valve
• EVAP control system pressure sensor
and the circuit
• Blocked rubber tube to EVAP canister
vent control valve
• Drain filter
• EVAP canister is saturated with water
Revision: May 2010 2011 Versa

DTC P0448 EVAP CANISTER VENT CONTROL VALVE
EC-843
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
a. Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 min-
utes.
Never exceed 3 minutes.
b. Fully released accelerator pedal and keep engine idle for about 5 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-845, "
Diagnosis Procedure".
If 1st trip DTC is not detected, go to the next step.
7. Repeat next procedure 20 times.
a. Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.
b. Fully released accelerator pedal and keep engine idle for at least 35 seconds.
8. Check 1st trip DTC.
9. If 1st trip DTC is detected, go to EC-845, "
Diagnosis Procedure".
PBIB0972E
Revision: May 2010 2011 Versa

EC-844
< SERVICE INFORMATION >[MR18DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE

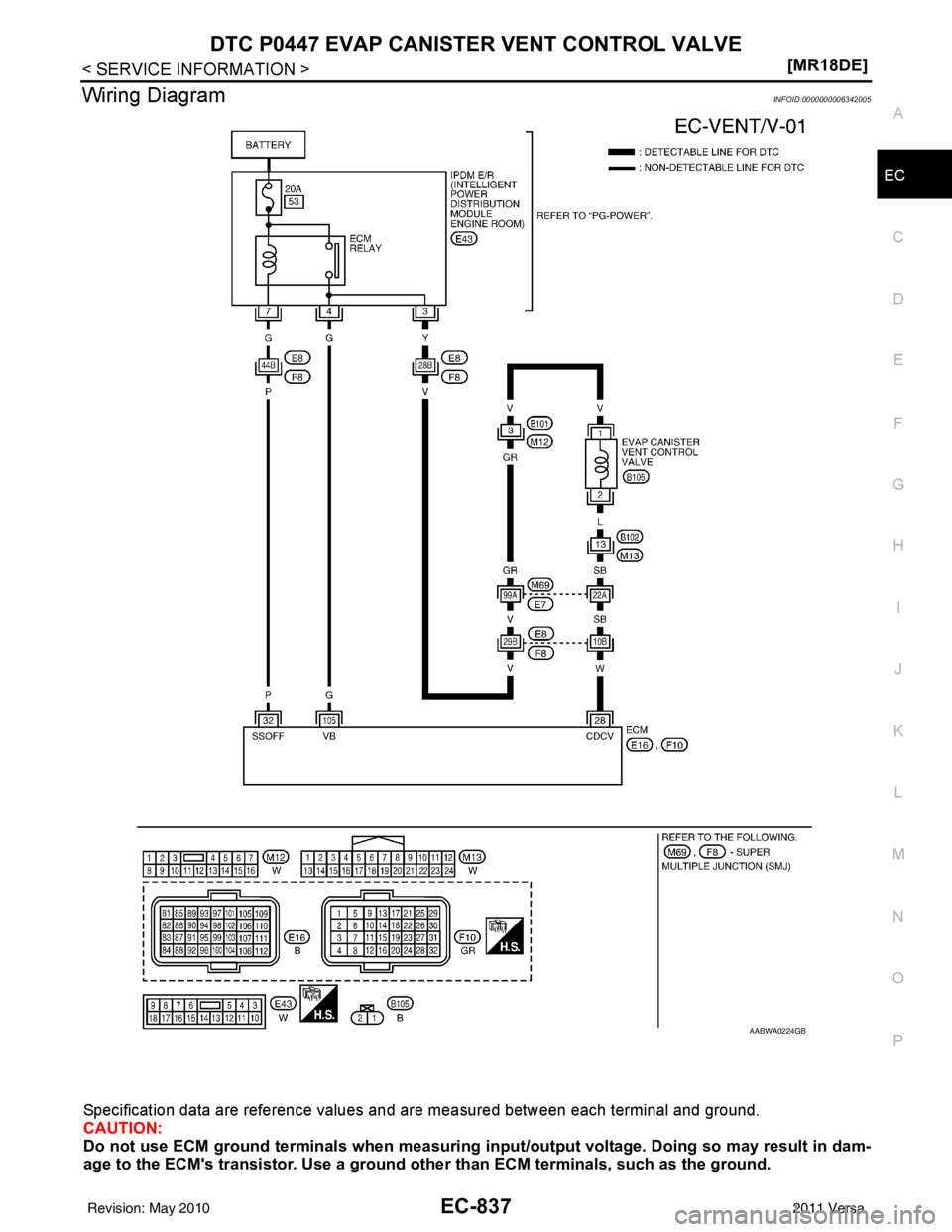

Wiring Diagram
INFOID:0000000006342012
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doi ng so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
AABWA0224GB
Revision: May 2010 2011 Versa

DTC P0448 EVAP CANISTER VENT CONTROL VALVE
EC-845
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000006342013
1.CHECK RUBBER TUBE
1. Turn ignition switch OFF.
2. Disconnect rubber tube connected to EVAP canister vent control valve (3).
3. Check the rubber tube for clogging.
- EVAP control system pressure sensor (1)
- EVAP canister (2)
OK or NG
OK >> GO TO 2.
NG >> Clean rubber tube using an air blower.
2.CHECK DRAIN FILTER
Refer to EC-814, "
Component Inspection".
OK or NG
OK >> GO TO 3.
NG >> Replace drain filter.
3.CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-840, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace EVAP canister vent control valve.
4.CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP c anister vent control valve attached.
TER-
MI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
28 W EVAP canister vent control
valve [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
32 P ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.0 V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14 V)
105 G Power supply for ECM [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14 V)
BBIA0693E
Revision: May 2010 2011 Versa

EC-846
< SERVICE INFORMATION >[MR18DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
2. Does water drain from the EVAP canister.
Ye s o r N o
Ye s > > G O T O 5 .
No >> GO TO 7.
5.CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 1.9 kg (4.2 lb).
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
7.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor (1) harness connector.
- EVAP canister (2)
- EVAP canister vent control valve (3)
2. Check connectors for water.
OK or NG
OK >> GO TO 8.
NG >> Replace EVAP control system pressure sensor.
8.CHECK EVAP CONTROL SY STEM PRESSURE SENSOR
Refer to EC-850, "
Component Inspection".
OK or NG
OK >> GO TO 9.
NG >> Replace EVAP control system pressure sensor.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006342014
EVAP CANISTER VENT CONTROL VALVE
PBIB1213E
Water should not exist.
BBIA0693E
Revision: May 2010 2011 Versa
