DTC P1572 ASCD BRAKE SWITCHEC-937
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD brake switch.
9.CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD clutch switch terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ASCD CLUTCH SWITCH
Refer to EC-938, "
Component Inspection"
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD clutch switch.
11 .CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
- ASCD brake switch (2)
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10 A fuse Continuity should exist.
BBIA0708E
Voltage: Battery voltage
PBIB3317E
Revision: May 2010
2011 Versa

EC-938
< SERVICE INFORMATION >[MR18DE]
DTC P1572 ASCD BRAKE SWITCH
• Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 99 and stop lamp switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK STOP LAMP SWITCH
Refer to EC-938, "
Component Inspection"
OK or NG
OK >> GO TO 15.
NG >> Replace stop lamp switch.
15.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006342135
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6
, and
perform step 3 again.
ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector. Continuity should exist.
Condition
Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
SEC023D
Revision: May 2010 2011 Versa

DTC P1572 ASCD BRAKE SWITCHEC-939
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check continuity between ASCD clutch switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD clutch switch installation, refer to CL-6
, and
perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6
, and perform step 3 again.
ConditionContinuity
Clutch pedal: Fully released. Should exist.
Clutch pedal: Slightly depressed. Should not exist.
SEC023D
ConditionContinuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB3318E
Revision: May 2010 2011 Versa

EC-940
< SERVICE INFORMATION >[MR18DE]
DTC P1574 ASCD VEHICLE SPEED SENSOR
DTC P1574 ASCD VEHICLE SPEED SENSOR
Component DescriptionINFOID:0000000006342136
The ECM receives two vehicle speed signals via CAN co
mmunication line. One is sent from "ABS actuator
and electric unit (control unit)" or combination meter, and the other is from TCM (Transmission control mod-
ule). The ECM uses these signals for ASCD control. Refer to EC-523
for ASCD functions.
On Board Diagnosis LogicINFOID:0000000006342137
NOTE:
•If DTC P1574 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1574 is displayed with DTC P0500, first perform the trouble diagno sis for DTC P0500. Refer
to EC-887
.
• If DTC P1574 is displayed with DTC P0605, first perform the trouble diagno sis for DTC P0605. Refer
to EC-895
.
• If DTC P1574 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-897
.
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureINFOID:0000000006342138
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
1. Start engine.
2. Drive the vehicle at more than 40 km/h (25MPH).
3. Check DTC.
4. If DTC is detected, go to EC-940, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000006342139
1.CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 9
(A/T) or CVT-27 (CVT).
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2.CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT”
Refer to BRC-46
.
OK or NG
OK >> GO TO 3.
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
P1574
1574 ASCD vehicle speed
sensor ECM detects a difference between two vehicle
speed signals is out of the specified range. • Harness or connectors
(CAN communication line is open or shorted.)
• Harness or connectors (Combination meter circuit is open or shorted.)
•TCM
• ABS actuator and electric unit (control unit)
• Combination meter
•ECM
Revision: May 2010 2011 Versa

DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-941
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NG >> Repair or replace.
3.CHECK COMBINATION METER
Check combination meter function.
Refer to DI-4
.
>> INSPECTION END
Revision: May 2010 2011 Versa

EC-942
< SERVICE INFORMATION >[MR18DE]
DTC P1715 INPUT SPEED SENSOR
DTC P1715 INPUT SPEED SENSOR
A/T
A/T : DescriptionINFOID:0000000006342140
ECM receives input speed sensor signal from TCM through CAN communication line. ECM uses this signal for
engine control.
A/T : CONSULT-III Reference
Value in Data Monitor ModeINFOID:0000000006342141
Specification data are reference values.
A/T : On Board Diagnosis LogicINFOID:0000000006342142
NOTE:
•If DTC P1715 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1715 is displayed with DTC P0335, first perform the trouble diagno sis for DTC P0335. Refer
to EC-793
.
• If DTC P1715 is displayed with DTC P0340 first perform the trouble diagnosis for DTC P0340.
Refer to EC-799
.
• If DTC P1715 is displayed with DTC P0605, first perform the trouble diagno sis for DTC P0605. Refer
to EC-895
.
• If DTC P1715 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-897
.
The MIL will not lights up for this diagnosis.
A/T : Diagnosis ProcedureINFOID:0000000006342143
1.CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 9
.
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2.REPLACE TCM
Replace TCM. Refer to AT-212
.
>> INSPECTION END
CVT
CVT : DescriptionINFOID:0000000006342144
ECM receives input speed sensor signal from TCM through CAN communication line.
CVT : CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006342145
Specification data are reference values.
Monitor item Condition Specification
I/P PULLY SPD • Vehicle speed: More than 20 km/h (12MPH) Almost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition
Possible cause
P1715
1715 Input speed sensor
(TCM output) Input speed sensor signal is different from
the theoretical value calculated by ECM
from output speed sensor signal and en-
gine rpm signal. • Harness or connectors
(CAN communication line is open or shorted)
• Harness or connectors (Input speed sensor circuit is open or shorted)
•TCM
Revision: May 2010 2011 Versa

DTC P1715 INPUT SPEED SENSOREC-943
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OCVT : On Board Diagnosis LogicINFOID:0000000006342146
NOTE:
•
If DTC P1715 is displayed with DTC UXXXX, first perform the tr ouble diagnosis for DTC UXXXX.
• If DTC P1715 is displayed with DT C P0335, first perform the trouble diagnosis for DTC P0335. Refer
to EC-793
.
• If DTC P1715 is displayed with DTC P0340 first perform the trouble diagnosis for DTC P0340.
Refer to EC-799
.
• If DTC P1715 is displayed with DT C P0605, first perform the trouble diagnosis for DTC P0605. Refer
to EC-895
.
• If DTC P1715 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-897
.
The MIL will not lights up for this diagnosis.
CVT : DTC Confirmation ProcedureINFOID:0000000006342147
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Start engine.
2. Drive vehicle at a speed of more than 50 km/h (31 MPH) for at least 5 seconds.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-943, "
CVT : Diagnosis Procedure".
CVT : Diagnosis ProcedureINFOID:0000000006342148
1.CHECK DTC WITH TCM
Check DTC with TCM. Refer to CVT-27
.
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2.REPLACE TCM
Replace TCM. Refer to CVT-159
.
>> INSPECTION END
Monitor item Condition Specification
I/P PULLY SPD • Vehicle speed: More than 20 km/h (12MPH) Almost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition
Possible cause
P1715
1715 Input speed sensor
(TCM output) Input speed sensor signal is different from
the theoretical value calculated by ECM
from output speed sensor signal and en-
gine rpm signal. • Harness or connectors
(CAN communication line is open or shorted)
• Harness or connectors (Input speed sensor circuit is open or shorted)
•TCM
Revision: May 2010 2011 Versa

EC-944
< SERVICE INFORMATION >[MR18DE]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
DescriptionINFOID:0000000006342149
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006342150
Specification data are reference values.
On Board Diagn
osis LogicINFOID:0000000006342151
The MIL will not light up for this self-diagnosis.
FA I L - S A F E M O D E
When the malfunction is detected, the ECM enters in fail-safe mode.
DTC Confirmation ProcedureINFOID:0000000006342152
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to EC-946, "
Diagnosis Procedure".
Monitor item Condition Specification
BRAKE SW • Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis nameDTC detecting condition Possible cause
P1805
1805 Brake switch A brake switch signal is not sent to ECM for
extremely long time while the vehicle is driv-
ing. • Harness or connectors
(Stop lamp switch circuit is open or shorted.)
• Stop lamp switch
Engine operation condition in fail-fail safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
Engine: Idling Normal
Accelerating Poor acceleration
Revision: May 2010 2011 Versa

DTC P1805 BRAKE SWITCHEC-945
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

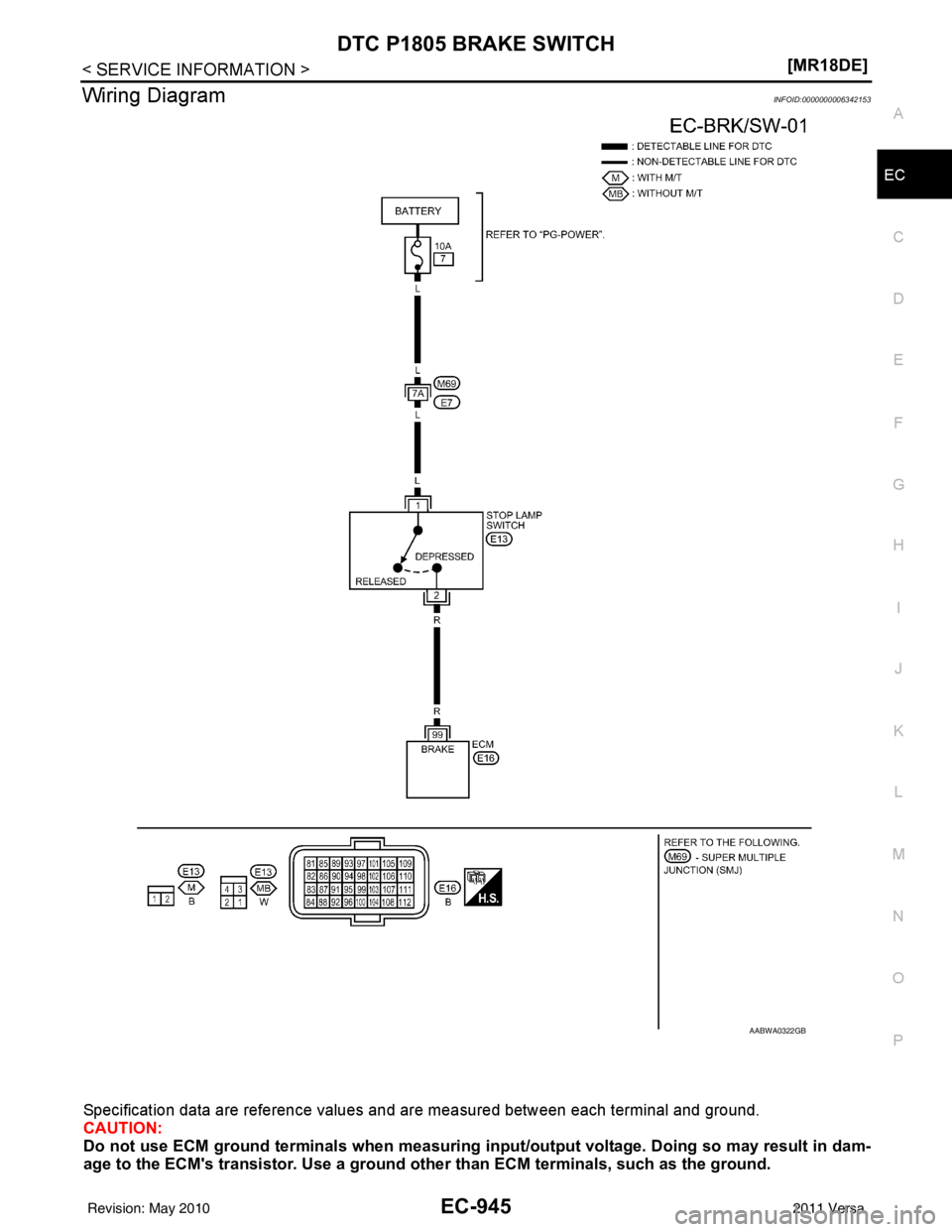

Wiring DiagramINFOID:0000000006342153
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
AABWA0322GB
Revision: May 2010 2011 Versa

EC-946
< SERVICE INFORMATION >[MR18DE]
DTC P1805 BRAKE SWITCH
Diagnosis Procedure
INFOID:0000000006342154
1.CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK STOP LAMP SWIT CH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch (1) harness connector.
- Brake pedal (2)
2. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10 A fuse
• Harness for open and short between stop lamp switch and battery
TERMI- NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
99 R Stop lamp switch [Ignition switch: OFF]
• Brake pedal: Fully released
Approximately 0 V
[Ignition switch: OFF]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14 V)
Brake pedal Stop lamp
Fully released Not illuminated
Slightly depressed Illuminated
BBIA0710E
Voltage: Battery voltage
PBIB3317E
Revision: May 2010 2011 Versa
