NISSAN LATIO 2011 Service Repair Manual

ASCD BRAKE SWITCHEC-997
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

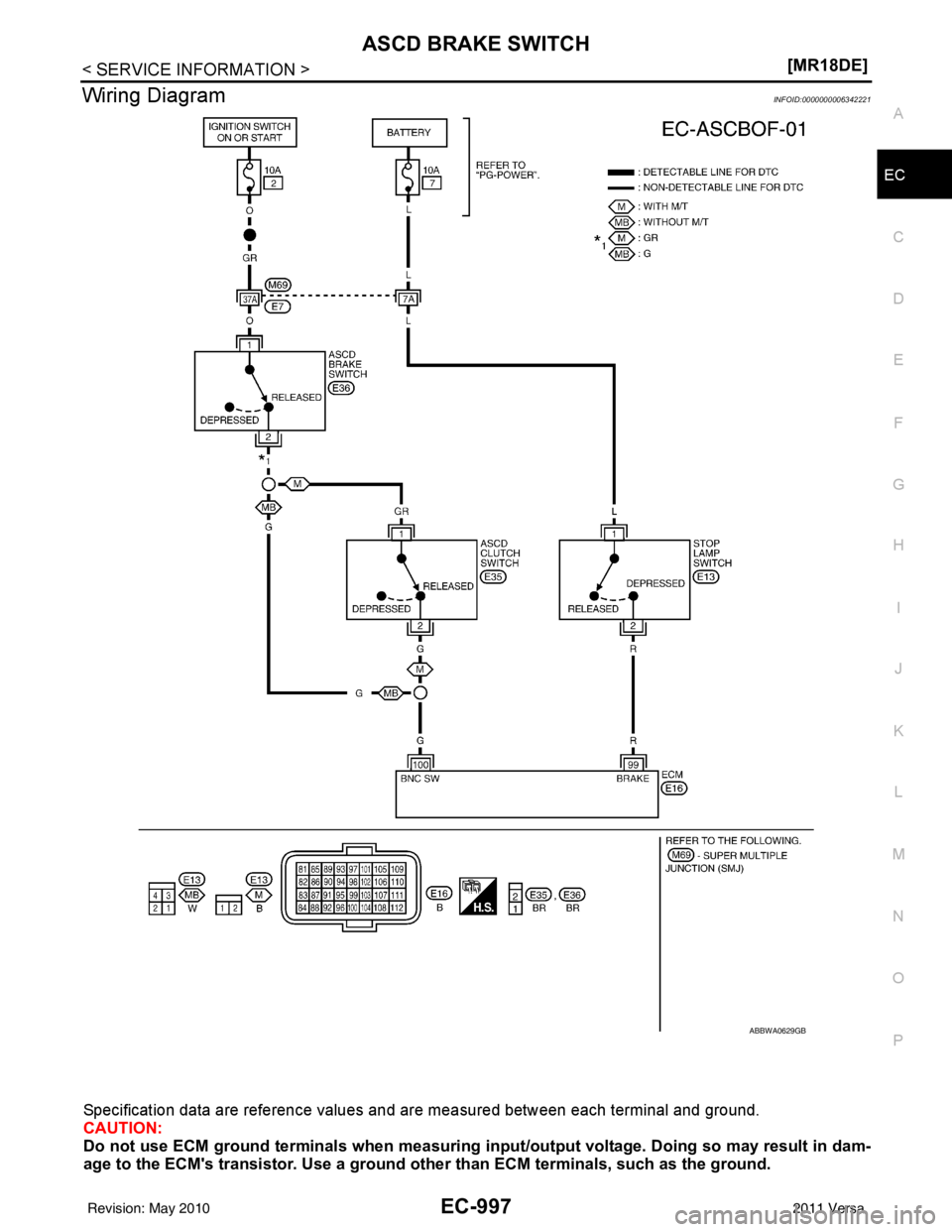

Wiring DiagramINFOID:0000000006342221
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
ABBWA0629GB
Revision: May 2010 2011 Versa

EC-998
< SERVICE INFORMATION >[MR18DE]
ASCD BRAKE SWITCH
Diagnosis Procedure
INFOID:0000000006342222
1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DAT A MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
M/T models
A/T and CVT models
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 100 and ground under the following conditions.
M/T models
A/T and CVT models
OK or NG
OK >> GO TO 2.
NG (M/T models) >>GO TO 3.
NG (A/T and CVT models) >>GO TO 4.
2.CHECK OVERALL FUNCTION-II
With CONSULT-III
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
TERMI-
NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
99 R Stop lamp switch [Ignition switch: ON]
• Brake pedal: Fully released
Approximately 0 V
[Ignition switch: ON]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14 V)
100 G ASCD brake switch [Ignition switch: ON]
• Brake pedal: Slightly depressed (A/T, CVT)
• Brake pedal and/or clutch pedal: Slightly de-
pressed (M/T) Approximately 0 V
[Ignition switch: ON]
• Brake pedal: Fully released (A/T, CVT)
• Brake pedal and clutch pedal: Fully released (M/T) BATTERY VOLTAGE
(11 - 14 V)
Condition Indication
Clutch pedal and/or brake pedal: Slightly depressed OFF
Clutch pedal and brake pedal: Fully released ON
Condition Indication
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
Condition Voltage
Clutch pedal and/or brake pedal: Slightly depressed Approximately 0 V
Clutch pedal and brake pedal: Fully released Battery voltage
Condition Voltage
Brake pedal: Slightly depressed Approximately 0 V
Brake pedal: Fully released Battery voltage
PBIB3315E
Revision: May 2010 2011 Versa

ASCD BRAKE SWITCHEC-999
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Without CONSULT-III
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG
OK >> INSPECTION END.
NG >> GO TO 11.
3.CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch (1) harness connector.
- Clutch pedal (2)
3. Turn ignition switch ON.
4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-III or
tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 4.
4.CHECK ASCD BRAKE SWITCH POWER SUPPLY
1. Turn ignition switch OFF.
Condition Indication
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
ConditionVoltage
Brake pedal: Fully released Approximately 0 V
Brake pedal: Slightly depressed Battery voltage
PBIB0311E
BBIA0709E
ConditionVoltage
Brake pedal: Fully released Battery voltage
Brake pedal: Slightly depressed Approx. 0 V
PBIB0857E
Revision: May 2010 2011 Versa

EC-1000
< SERVICE INFORMATION >[MR18DE]
ASCD BRAKE SWITCH
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-III or tester.
OK or NG
OK (M/T models) >>GO TO 6.
OK (A/T and CVT m odels) >>GO TO 7.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10 A fuse
• Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD brake switch terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ASCD BRAKE SWITCH
Refer to EC-938, "
Component Inspection".
BBIA0708E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Continuity should exist.
Revision: May 2010 2011 Versa

ASCD BRAKE SWITCHEC-1001
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD brake switch.
9.CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD clutch switch terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ASCD CLUTCH SWITCH
Refer to EC-938, "
Component Inspection"
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD clutch switch.
11 .CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
- ASCD brake switch (2)
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10 A fuse Continuity should exist.
BBIA0708E
Voltage: Battery voltage
PBIB3317E
Revision: May 2010
2011 Versa

EC-1002
< SERVICE INFORMATION >[MR18DE]
ASCD BRAKE SWITCH
• Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 99 and stop lamp switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK STOP LAMP SWITCH
Refer to EC-938, "
Component Inspection".
OK or NG
OK >> GO TO 15.
NG >> Replace stop lamp switch.
15.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006342223
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6
, and
perform step 3 again.
ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector. Continuity should exist.
Condition
Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
SEC023D
Revision: May 2010 2011 Versa

ASCD BRAKE SWITCHEC-1003
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check continuity between ASCD clutch switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD clutch switch installation, refer to CL-6
, and
perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6
, and perform step 3 again.
ConditionContinuity
Clutch pedal: Fully released. Should exist.
Clutch pedal: Slightly depressed. Should not exist.
SEC023D
ConditionContinuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB3318E
Revision: May 2010 2011 Versa

EC-1004
< SERVICE INFORMATION >[MR18DE]
ASCD INDICATOR
ASCD INDICATOR
Component DescriptionINFOID:0000000006342224
ASCD indicator lamp illuminates to indicate ASCD
operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD st eering switch is turned ON to indicate that ASCD
system is ready for operation.
SET indicator illuminates when following conditions are met.
• CRUISE indicator is illuminated.
• SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD setting.
SET indicator remains lit during ASCD control.
Refer to EC-523
for the ASCD function.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006342225
Specification data are reference value.
Monitor item Condition Specification
CRUISE LAMP • Ignition switch: ON MAIN switch: Pressed at 1st time
→ 2nd
ON
→ OFF
SET LAMP • MAIN switch: ON
• Vehicle: Between 40 km/h (25
MPH) and 144 km/h (89 MPH) ASCD: Operating
ON
ASCD: Not operating OFF
Revision: May 2010 2011 Versa

ASCD INDICATOREC-1005
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

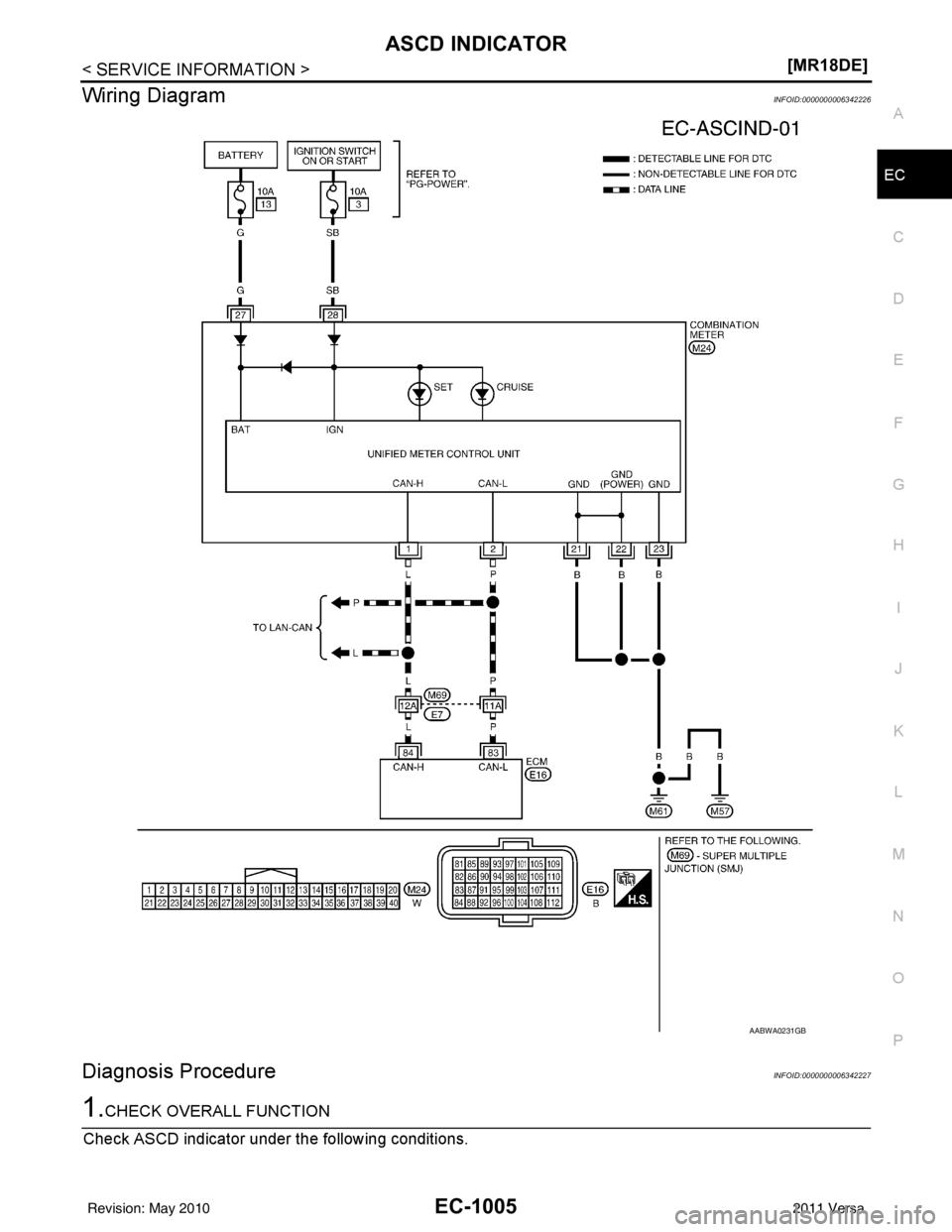

Wiring DiagramINFOID:0000000006342226
Diagnosis ProcedureINFOID:0000000006342227
1.CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
AABWA0231GB
Revision: May 2010 2011 Versa

EC-1006
< SERVICE INFORMATION >[MR18DE]
ASCD INDICATOR
OK or NG
OK >>
INSPECTION END
NG >> GO TO 2.
2.CHECK DTC
Check that DTC UXXXX is not displayed.
Ye s o r N o
Yes >> Perform trouble diagnoses for DTC UXXXX.
No >> GO TO 3.
3.CHECK COMBINATION METER OPERATION
Does combination meter operate normally?
Ye s o r N o
Ye s > > G O T O 4 .
No >> Check combination meter circuit. Refer to DI-4
.
4.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
ASCD Indicator ConditionSpecification
CRUISE LAMP • Ignition switch: ONMAIN switch: Pressed at 1st
time
→ 2nd ON
→ OFF
SET LAMP •MAIN switch: ON
• Vehicle: Between 40 km/h (25
MPH) and 144 km/h (89
MPH) ASCD: Operating
ON
ASCD: Not operating OFF
Revision: May 2010 2011 Versa
