REAR BUMPEREI-21
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
Removal and Installation - SedanINFOID:0000000005929557
REMOVAL
1. Open trunk lid.
2. Remove rear combination lamp RH/LH. Refer to LT-88, "
Removal and Installation".
3. Remove rear bumper fascia spring nuts and screws RH/LH.
4. Remove rear fender protector. Refer to EI-26, "
Removal and Installation".
5. Pull the rear bumper fascia side outward and release the bumper side bracket.
6. Remove rear bumper fascia upper clips and screws.
7. Release rear bumper upper retainer (1), then pull rear bumper fascia outward away from rear of vehicle.
8. Release the clips and remove the rear bumper corner finisher and finisher end (if equipped).
9. Remove energy absorbing foam and rear bumper reinforcement.
10. Remove the bumper side bracket (1) RH/LH. • : Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
Rear bumper - Rear combination lamp
surface B-B
-1.7 (-0.067) 0.0 (0.000)1.7 (0.067)
Rear bumper - Rear fender clearance C-C
D-D
0.0 (0.000)
0.0 (0.000)1.0 (0.039)
Rear bumper - Rear fender surface C-C -1.7 (-0.067)-0.7 (-0.028) 0.3 (0.012)
Rear bumper - Rear fender surface D-D -0.3 (-0.012)0.7 (0.028)1.7 (0.067)
Component
PortionMinimum Target Value Maximum
LIIA2580E
LIIA2921E
ALKIA1931ZZ
Revision: May 2010 2011 Versa

EI-22
< ON-VEHICLE REPAIR >
REAR BUMPER
mm (in)
ComponentPortionMinimum Target Value Maximum
Rear bumper - Trunk lid clearance A-A 4.8 (0.189)7.0 (0.276)9.2 (0.362)
Rear bumper - Rear combination lamp
clearance B-B
1.0 (0.039) 2.0 (0.079)3.5 (0.138)
Rear bumper - Rear combination lamp
surface B-B
-1.2 (-0.047) 0.0 (0.000)1.2 (0.047)
Rear bumper - Rear fender clearance C-C
D-D 0.0 (0.000)
0.0 (0.000)1.0 (0.039)
Rear bumper - Rear fender surface C-C
D-D-1.7 (-0.067)
-0.7 (0.028)0.3 (0.012)
Revision: May 2010 2011 Versa

FRONT GRILLEEI-23
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
FRONT GRILLE
Removal and InstallationINFOID:0000000005929558
REMOVAL
1. Open hood assembly.
2. Remove the clips, then remove upper radiator cover.
3. Remove the upper clips and release the lower pawls, then pull outward to remove the front grille.
INSTALLATION
Installation is in the reverse order of removal.
LIIA2564E
1. Upper radiator cover2. Front grille3. Front bumper fascia
4. Clip C205 Pawl
Revision: May 2010 2011 Versa

EI-24
< ON-VEHICLE REPAIR >
COWL TOP
COWL TOP
Removal and InstallationINFOID:0000000005929559
REMOVAL
1. Remove front wiper arm RH/LH from vehicle. Refer to WW-20, "Removal and Installation of Front Wiper
Arms".
2. Disconnect washer tube.
3. Remove fender seal and fender cover RH/LH.
4. Release the cowl top seal clips, then remove cowl top seal.
LIIA2565E
1. Fender cover 2. Fender seal3. Washer tube
4. Cowl top seal 5. Cowl extension panel6. Dual lock fastener
7. Double-faced adhesive tape 8. Cowl top cover 9. Clip C205
10. EPT sealer 11. Cowl extension clip12. Cover
Clip CE103 Vehicle front
PIIB2555J
Revision: May 2010 2011 Versa

COWL TOPEI-25
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
5. Release the cowl extension clip (1) by prying the center pawls apart and pulling clip outward. Remove remaining clips, then
remove cowl top cover (2).
6. Disconnect and remove the front wiper motor and linkage assembly. Refer to WW-22, "
Removal and Installation of Front
Wiper Drive Assembly".
CAUTION:
To avoid damage, make sure to cover the lower edge of
windshield with suitable protection material.
7. Remove cowl extension panel bolts, then remove cowl extension panel.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
• For wiper arm RH/LH installation and adjustment, Refer to WW-20, "
Removal and Installation of Front Wiper
Arms".
• Always replace EPT sealer and double-faced adhesive tape when installing cowl top cover.
LIIA2566E
PIIB6038E
Revision: May 2010 2011 Versa

EI-26
< ON-VEHICLE REPAIR >
FENDER PROTECTOR
FENDER PROTECTOR

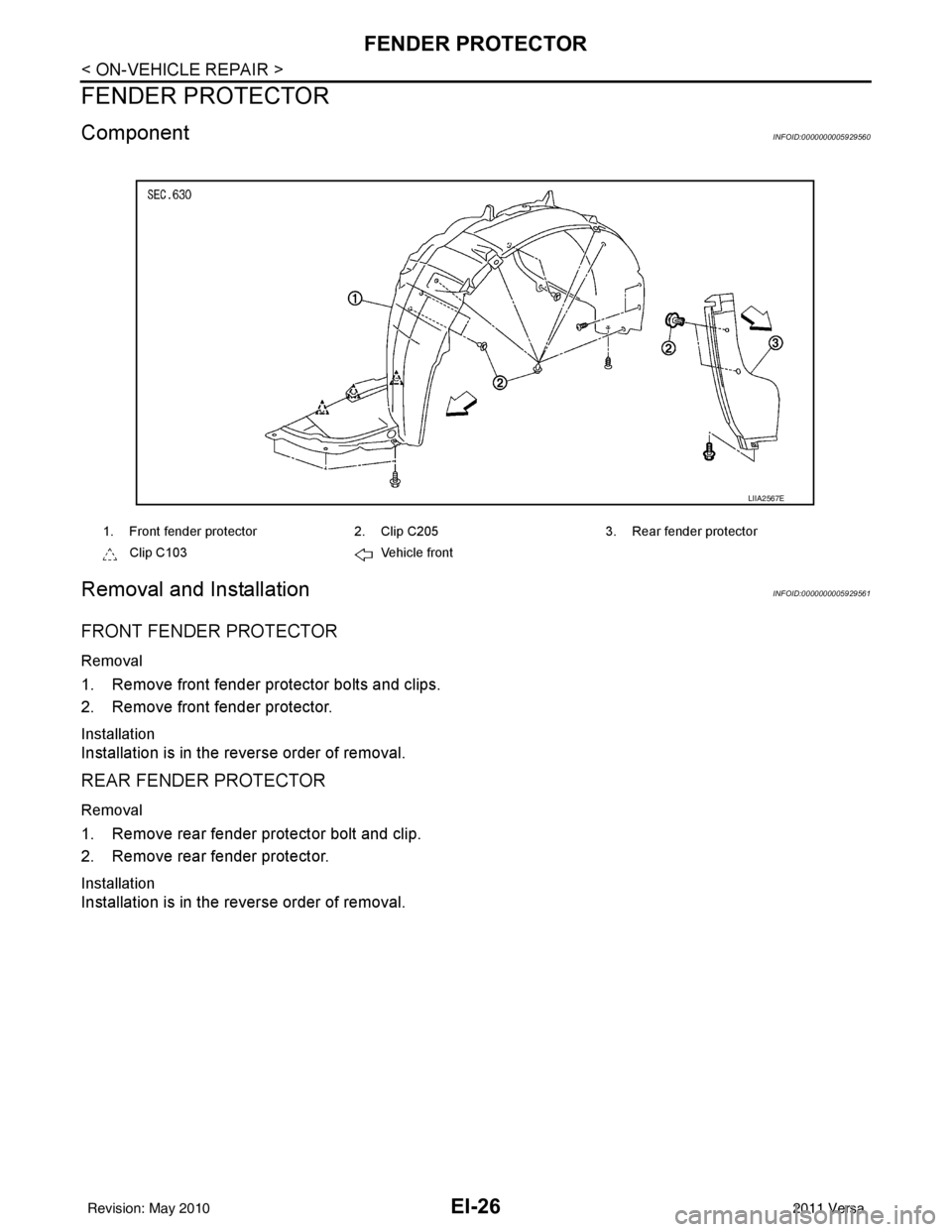

ComponentINFOID:0000000005929560
Removal and InstallationINFOID:0000000005929561
FRONT FENDER PROTECTOR
Removal
1. Remove front fender protector bolts and clips.
2. Remove front fender protector.
Installation
Installation is in the reverse order of removal.
REAR FENDER PROTECTOR
Removal
1. Remove rear fender protector bolt and clip.
2. Remove rear fender protector.
Installation
Installation is in the reverse order of removal.
1. Front fender protector 2. Clip C2053. Rear fender protector
Clip C103 Vehicle front
LIIA2567E
Revision: May 2010 2011 Versa

ROOF SIDE MOLDINGEI-27
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
ROOF SIDE MOLDING

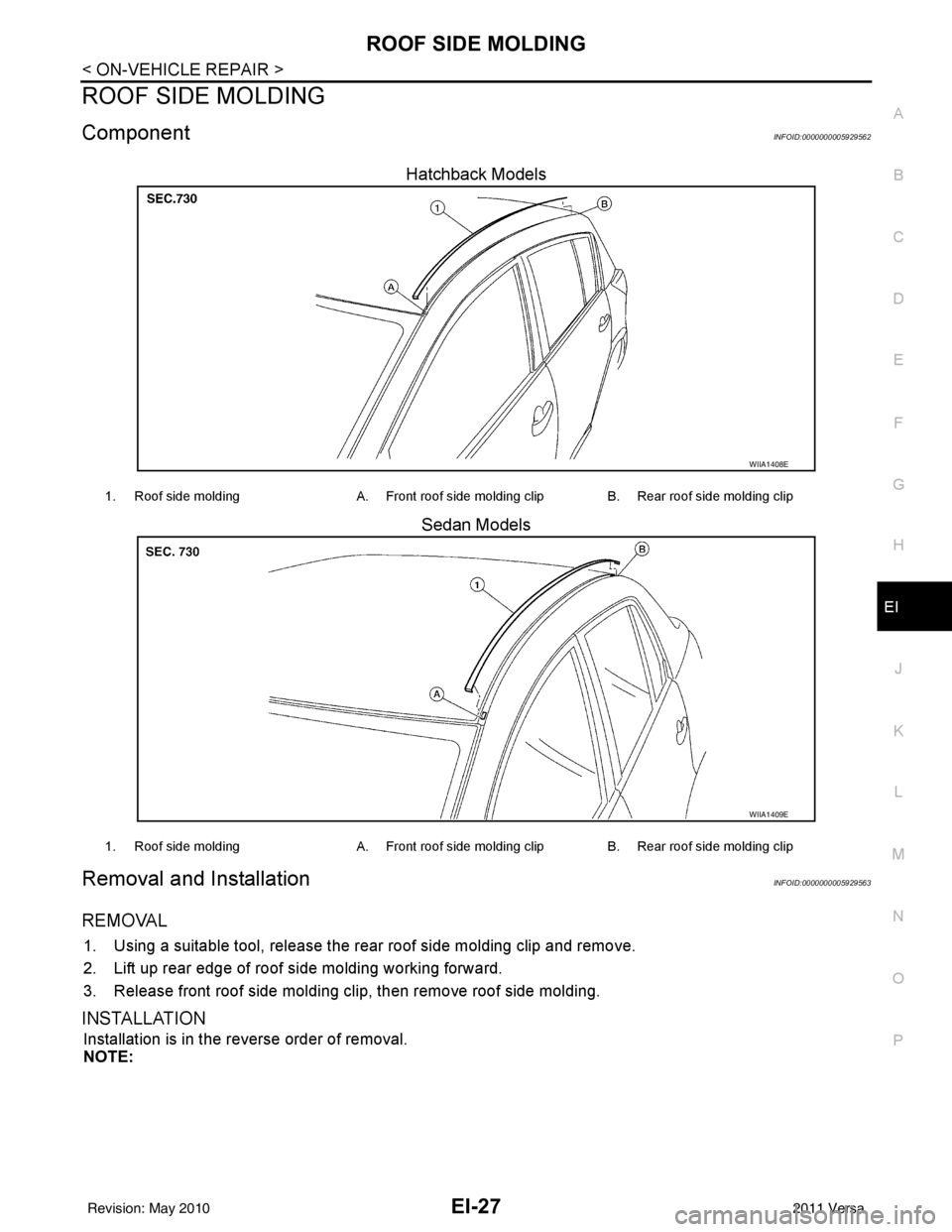

ComponentINFOID:0000000005929562
Hatchback Models
Sedan Models
Removal and InstallationINFOID:0000000005929563
REMOVAL
1. Using a suitable tool, release the rear roof side molding clip and remove.
2. Lift up rear edge of roof side molding working forward.
3. Release front roof side molding clip, then remove roof side molding.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
WIIA1408E
1. Roof side molding A. Front roof side molding clip B. Rear roof side molding clip
WIIA1409E
1. Roof side moldingA. Front roof side molding clip B. Rear roof side molding clip
Revision: May 2010 2011 Versa

EI-28
< ON-VEHICLE REPAIR >
ROOF SIDE MOLDING
Make sure front edge of roof side molding contacts windshield mold-
ing with no gap.
• For setting a new clip A or B, use Epoxy Adhesive DP-100C madeby 3M. For adhesive DP-100C application use an applicator 9170
EPX W 1:1 and mixer nozzle 9742 EPX 50ML made by 3M.
PIIB2599J
Revision: May 2010 2011 Versa

DOOR OUTSIDE MOLDINGEI-29
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
DOOR OUTSIDE MOLDING

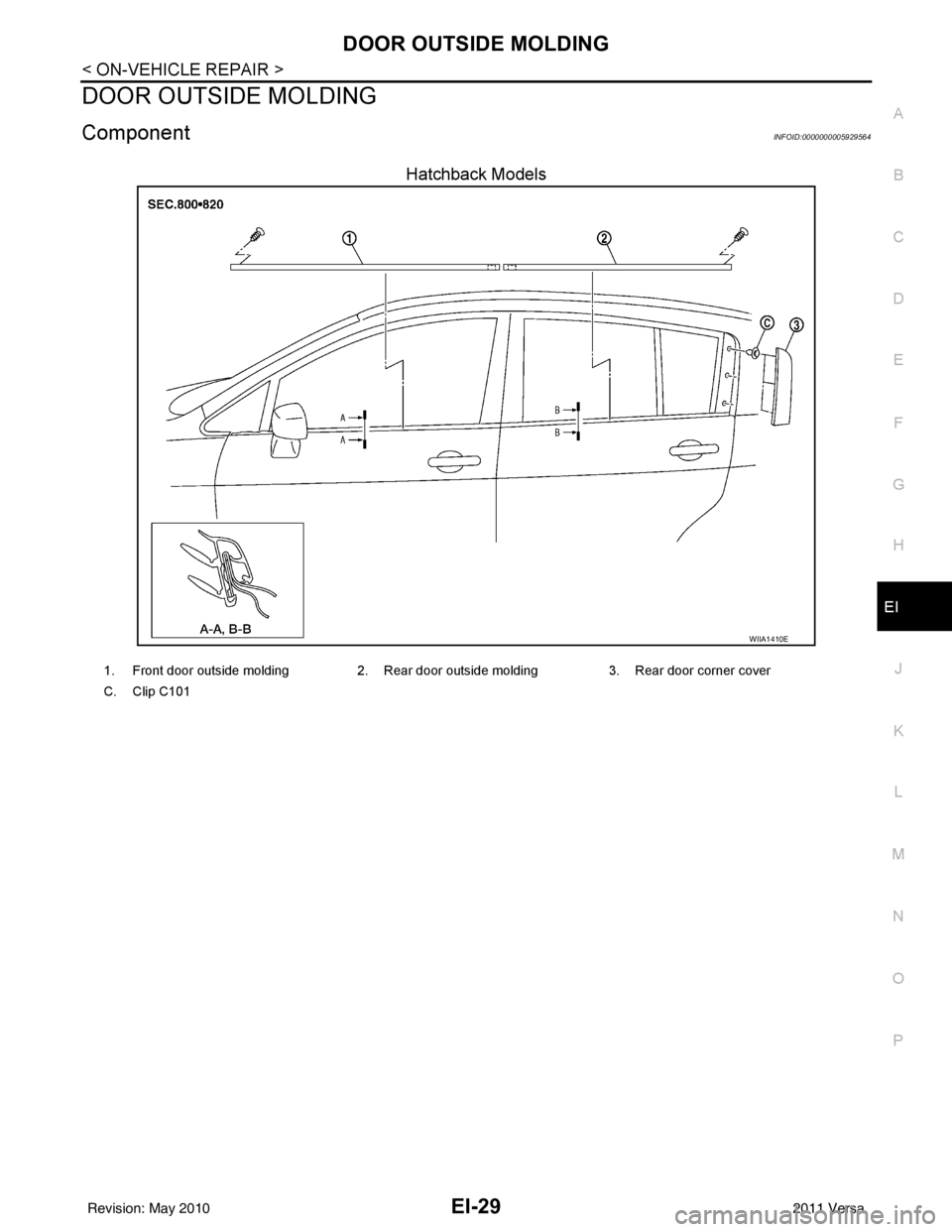

ComponentINFOID:0000000005929564
Hatchback Models
WIIA1410E
1. Front door outside molding 2. Rear door outside molding3. Rear door corner cover
C. Clip C101
Revision: May 2010 2011 Versa

EI-30
< ON-VEHICLE REPAIR >
DOOR OUTSIDE MOLDING

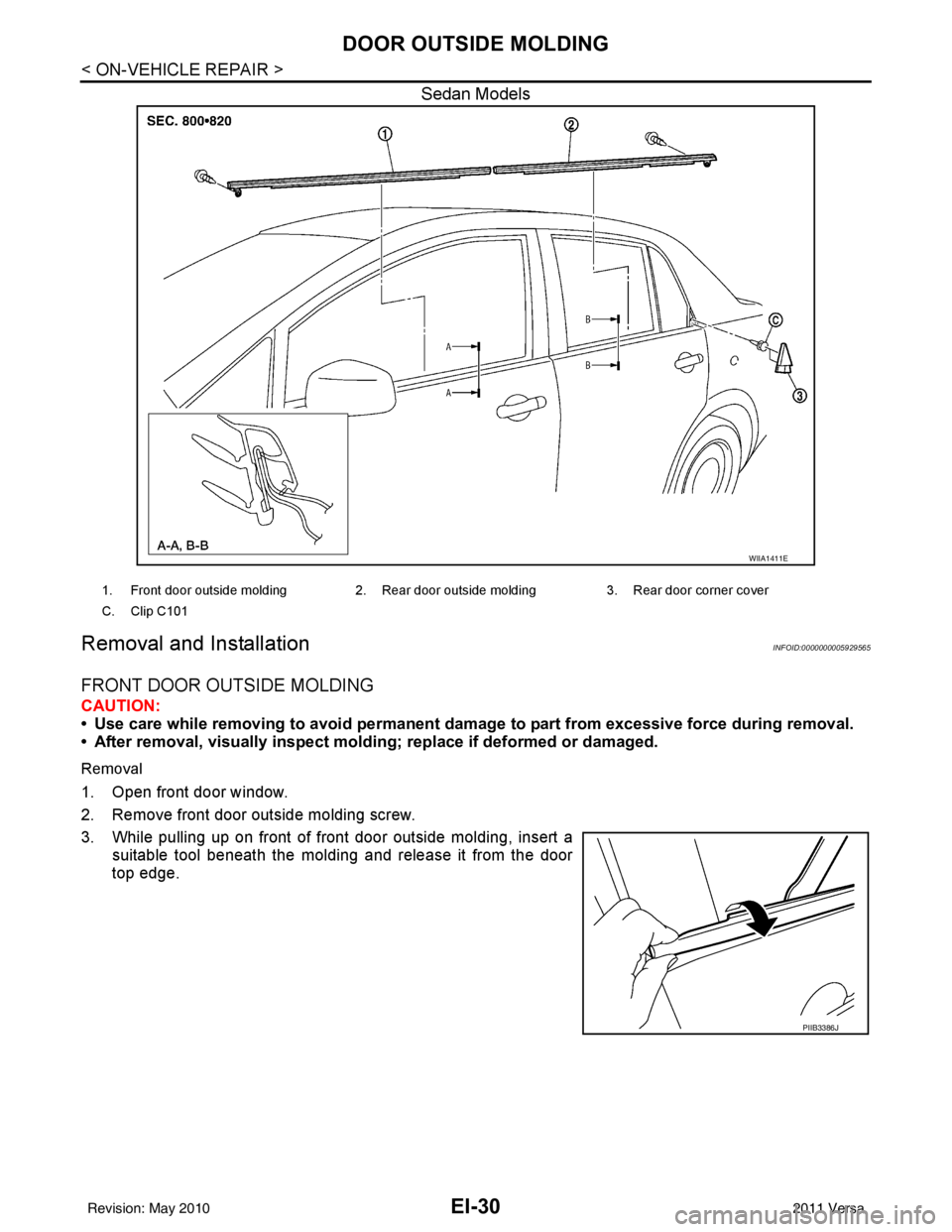

Sedan Models
Removal and InstallationINFOID:0000000005929565
FRONT DOOR OUTSIDE MOLDING
CAUTION:
• Use care while removing to avoid permanent damage to part from excessive force during removal.
• After removal, visually inspect mold ing; replace if deformed or damaged.
Removal
1. Open front door window.
2. Remove front door outside molding screw.
3. While pulling up on front of front door outside molding, insert a
suitable tool beneath the molding and release it from the door
top edge.
WIIA1411E
1. Front door outside molding 2. Rear door outside molding3. Rear door corner cover
C. Clip C101
PIIB3386J
