NISSAN LATIO 2011 Service Repair Manual

TIMING CHAINEM-161
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
9. Hold crankshaft pulley (1) using Tool (A), while loosening crank-
shaft pulley bolt using suitable tool, and locate bolt seating sur-
face at 10 mm (0.39 in) from its original position.
CAUTION:
Never remove the crankshaft pulley bolt as it will be used as
a supporting point for the pulley puller.
10. Attach Tool (A) in the M6 thread hole on crankshaft pulley (1), and remove crankshaft pulley.
11. Remove oil pan (lower). Refer to EM-144, "
Component".
CAUTION:
Never use an impact or other power tool to remo ve the engine oil pump sprocket bolt. If an impact
or other power tool is used to remove the en gine oil pump sprocket bolt, the crankshaft sprocket
may break.
NOTE:
When crankshaft sprocket, oil pump sprocket and other related parts are not removed, this step is unnec-
essary.
12. Remove intake valve timing control solenoid valve.
13. Remove drive belt auto-tensioner.
14. Loosen bolts in reverse order as shown. Tool number (A) : KV10109300 ( — )
PBIC3961E
Tool number : KV11103000 ( — )
PBIC3962E
PBIC3164J
Revision: May 2010
2011 Versa

EM-162
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN
15. Cut liquid gasket by prying the position ( ) shown, and then
remove the front cover.
CAUTION:
• Be careful not to damage the mating surface.
• A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off
the position not specified.
16. Remove front oil seal from front cover. • Lift up front oil seal using a suitable tool.
CAUTION:
Be careful not to damage front cover.
17. Push in timing chain tensioner plunger.
18. Insert a stopper pin (A) into the body hole to retain the plunger in collapsed position.
NOTE:
Use approximately 1.5 mm (0.059 in) diameter hard metal pin as
a stopper pin.
19. Remove timing chain tensioner (1).
20. Remove timing chain slack guide (2), timing chain tension guide (3) and timing chain (1).
CAUTION:
Never rotate each crankshaft and camshaft individually
while timing chain is re moved. It causes interference
between valve and piston.
PBIC3357J
PBIC3165J
AWBIA0138ZZ
Revision: May 2010 2011 Versa

TIMING CHAINEM-163
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
21. Press stopper tab (A) in the direction shown to push the timing
chain slack guide (B) toward ti ming chain tensioner (for oil
pump) (1).
• The slack guide (B) is released by pressing the stopper tab
(A). As a result, the slack guide (B) can be moved.
22. Insert stopper pin (D) into tensioner body hole (C) to secure tim- ing chain slack guide (B).
NOTE:
Use a hard metal pin with a diameter of approximately 1.2 mm
(0.047 in) as a stopper pin.
23. Remove timing chain tensioner (for oil pump), if necessary.
24. Hold the WAF part of oil pump shaft (A), and then loosen the oil pump sprocket bolt and remove them. CAUTION:
• Secure the oil pump shaft with the WAF part (A).
• Never loosen the oil pump sprocket bolt by tightening theoil pump drive chain.
CAUTION:
Never use an impact or other power tool to remove the
engine oil pump sprocket bolt. If an impact or other power
tool is used to remove the e ngine oil pump sprocket bolt,
the crankshaft sprocket may break.
25. Remove crankshaft sprocket, oil pump sprocket and oil pump drive chain as a set, if necessary.
26. Remove timing chain tension guide (front cover side) from front cover, if necessary.
INSPECTION AFTER REMOVAL
Timing Chain
PBIC5314E
1 : Oil pan (upper)
2: Oil pump
: Engine front
PBIC3539J
Revision: May 2010 2011 Versa

EM-164
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN
• Check timing chain and oil pump drive chain for cracks (A) and any
excessive wear (B) at the roller links of timing chain.
• Replace timing chain and/or oil pum p drive chain, if necessary.
INSTALLATION
NOTE:
The figure shows the relationship between the matching mark on
each timing chain and that on the corresponding sprocket, with the
components installed.
1. Make sure that crankshaft key points are aligned.
NOTE:
*: There are two outer grooves in camshaft spro cket (INT). The wider one is a matching mark.
2. If the timing chain tension guide (front cover si de) is removed, install it to the front cover.
CAUTION:
Check the joint condition by sound or feeling.
3. Install crankshaft sprocket (2), oil pump sprocket (3) and oil pump drive chain (1).
• Install it by aligning matching marks on each sprocket and oil
pump drive chain.
• If these matching marks are not aligned, rotate the oil pump
shaft slightly to correct the position.
CAUTION:
Check matching mark position of each sprocket after
installing the oil pump drive chain.
CAUTION:
PBIC3169J
1 : Timing chain
2 : Camshaft sprocket (EXH)
3 : Timing chain slack guide
4 : Timing chain tensioner
5 : Oil pump sprocket
6 : Oil pump drive chain
7 : Chain tensioner (for oil pump)
8 : Crankshaft sprocket
9 : Timing chain tension guide
10 : Camshaft sprocket (INT)
A : Matching mark (dark blue link)
B : Matching mark (stamping)
C : Crankshaft key position (straight up)
D : Matching mark (orange link)
E : Matching mark (orange link)
F : Matching mark (outer groove*)
A : Matching mark (stamping)
B : Matching mark (orange link)
C : Matching mark (dark blue link)
AWBIA0140ZZ
PBIC3171J
Revision: May 2010 2011 Versa

TIMING CHAINEM-165
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

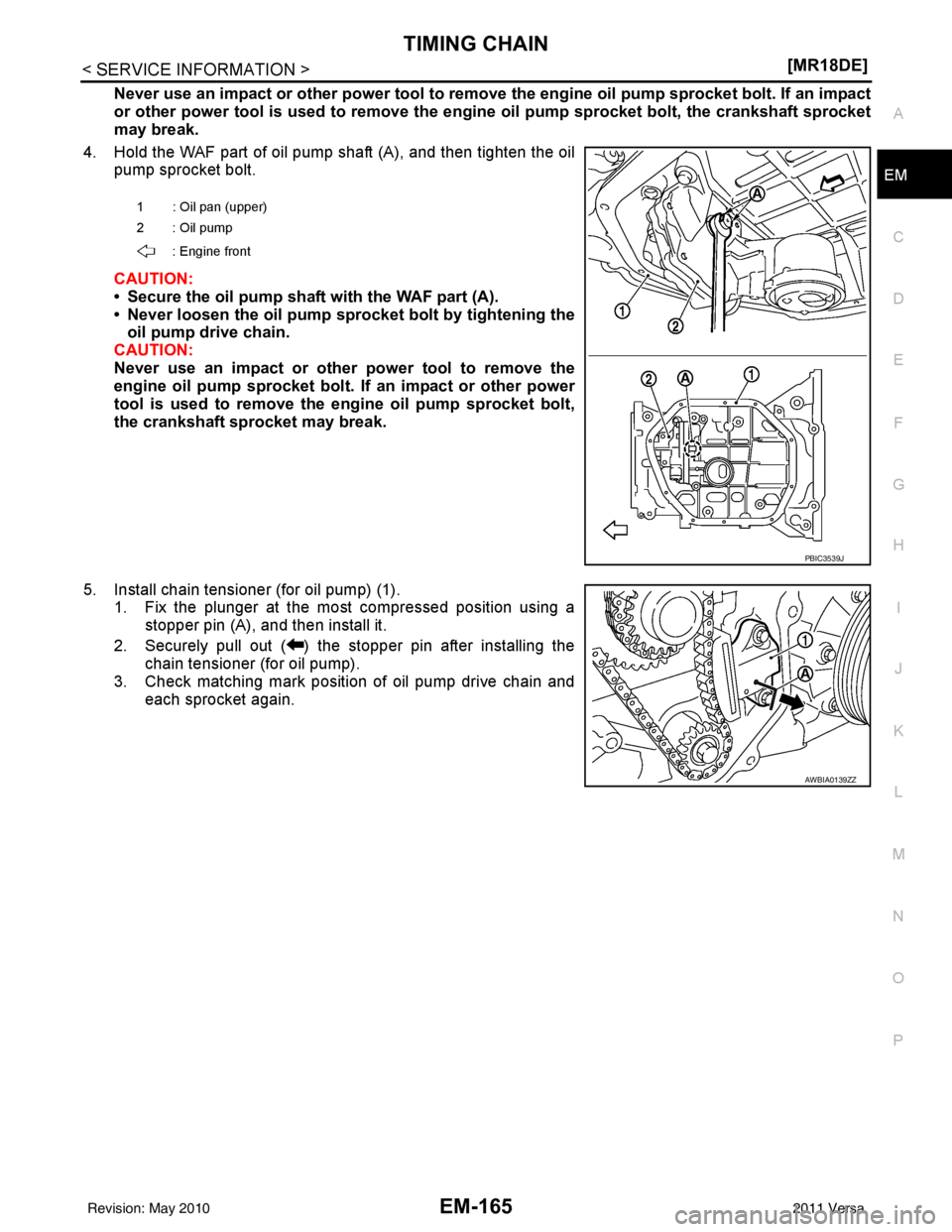

Never use an impact or other power tool to remo
ve the engine oil pump sprocket bolt. If an impact
or other power tool is used to remove the en gine oil pump sprocket bolt, the crankshaft sprocket
may break.
4. Hold the WAF part of oil pump shaft (A), and then tighten the oil pump sprocket bolt.
CAUTION:
• Secure the oil pump shaft with the WAF part (A).
• Never loosen the oil pump sprocket bolt by tightening theoil pump drive chain.
CAUTION:
Never use an impact or other power tool to remove the
engine oil pump sprocket bolt. If an impact or other power
tool is used to remove the e ngine oil pump sprocket bolt,
the crankshaft sprocket may break.
5. Install chain tensioner (for oil pump) (1). 1. Fix the plunger at the most compressed position using a
stopper pin (A), and then install it.
2. Securely pull out ( ) the stopper pin after installing the chain tensioner (for oil pump).
3. Check matching mark position of oil pump drive chain and each sprocket again.
1 : Oil pan (upper)
2 : Oil pump
: Engine front
PBIC3539J
AWBIA0139ZZ
Revision: May 2010 2011 Versa

EM-166
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN

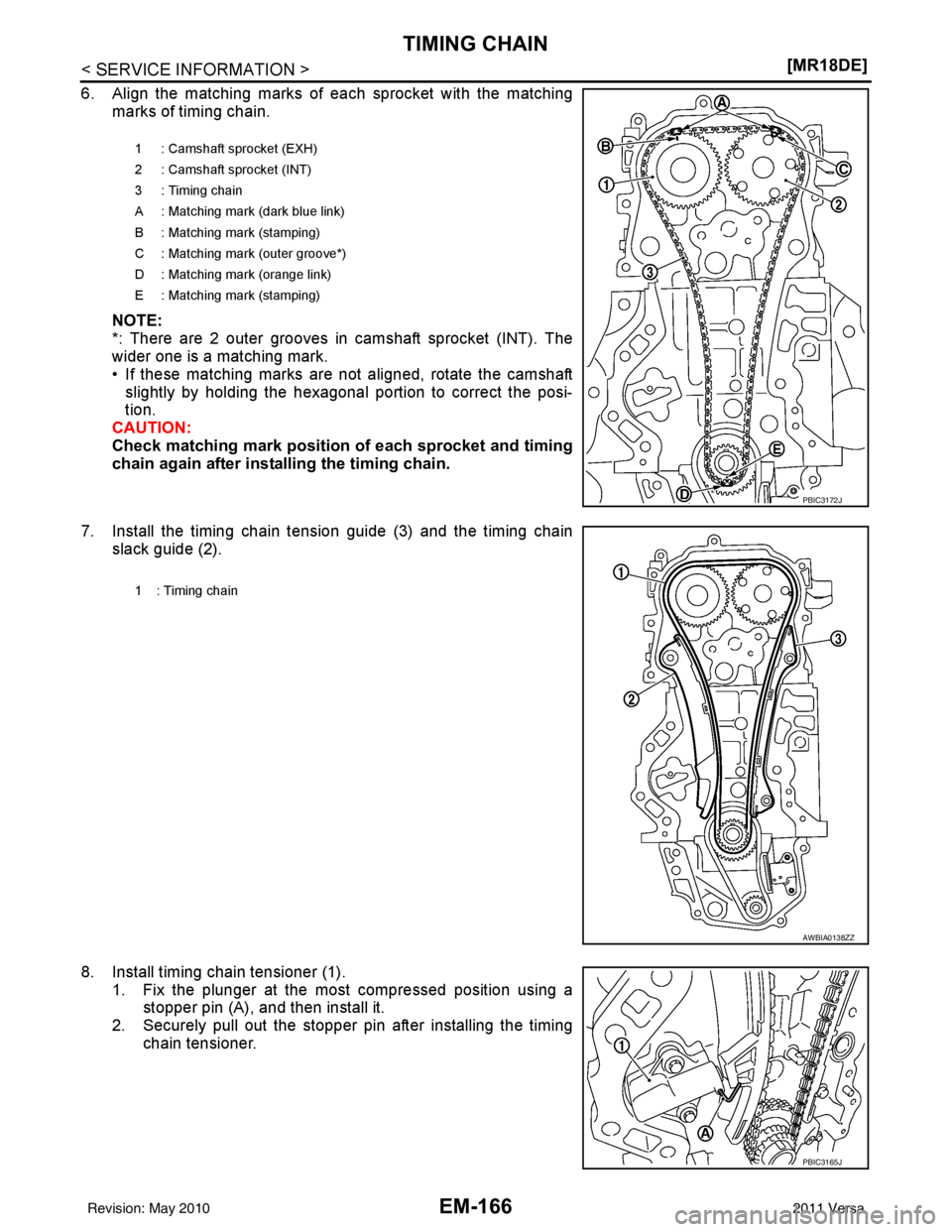

6. Align the matching marks of each sprocket with the matching
marks of timing chain.
NOTE:
*: There are 2 outer grooves in camshaft sprocket (INT). The
wider one is a matching mark.
• If these matching marks are not aligned, rotate the camshaftslightly by holding the hexagonal portion to correct the posi-
tion.
CAUTION:
Check matching mark position of each sprocket and timing
chain again after instal ling the timing chain.
7. Install the timing chain tension guide (3) and the timing chain slack guide (2).
8. Install timing chain tensioner (1). 1. Fix the plunger at the most compressed position using astopper pin (A), and then install it.
2. Securely pull out the stopper pin after installing the timing chain tensioner.
1 : Camshaft sprocket (EXH)
2 : Camshaft sprocket (INT)
3 : Timing chain
A : Matching mark (dark blue link)
B : Matching mark (stamping)
C : Matching mark (outer groove*)
D : Matching mark (orange link)
E : Matching mark (stamping)
PBIC3172J
1 : Timing chain
AWBIA0138ZZ
PBIC3165J
Revision: May 2010 2011 Versa

TIMING CHAINEM-167
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

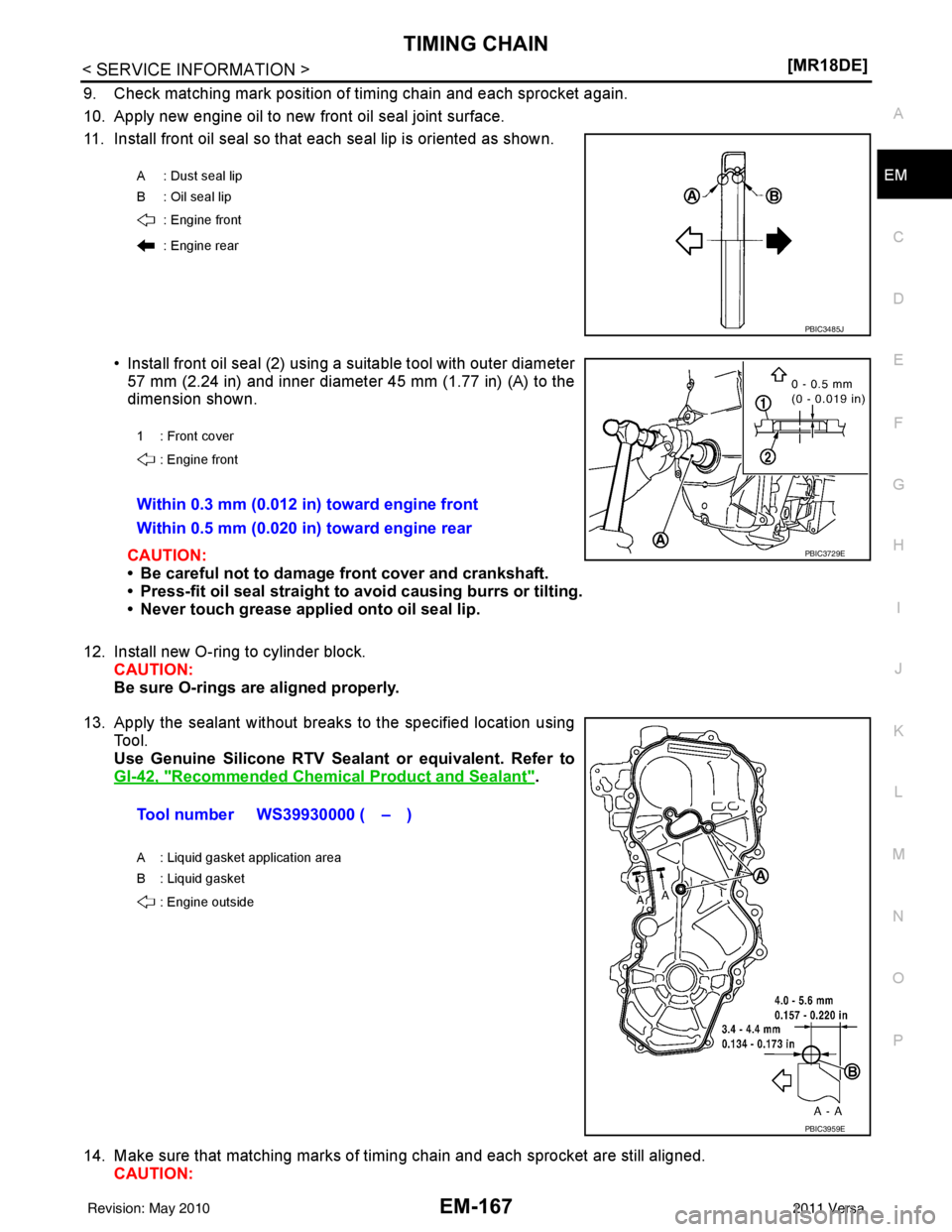

9. Check matching mark position of timing chain and each sprocket again.
10. Apply new engine oil to new front oil seal joint surface.
11. Install front oil seal so that each seal lip is oriented as shown.
• Install front oil seal (2) using a suitable tool with outer diameter57 mm (2.24 in) and inner diameter 45 mm (1.77 in) (A) to the
dimension shown.
CAUTION:
• Be careful not to damage front cover and crankshaft.
• Press-fit oil seal straight to avoid causing burrs or tilting.
• Never touch grease applied onto oil seal lip.
12. Install new O-ring to cylinder block. CAUTION:
Be sure O-rings are aligned properly.
13. Apply the sealant without breaks to the specified location using Tool.
Use Genuine Silicone RTV Seal ant or equivalent. Refer to
GI-42, "
Recommended Chemical Product and Sealant".
14. Make sure that matching marks of timi ng chain and each sprocket are still aligned.
CAUTION:
A : Dust seal lip
B: Oil seal lip
: Engine front
: Engine rear
PBIC3485J
1 : Front cover: Engine front
Within 0.3 mm (0.012 in) toward engine front
Within 0.5 mm (0.020 in) toward engine rear
PBIC3729E
Tool number WS39930000 ( – )
A : Liquid gasket application area
B : Liquid gasket
: Engine outside
PBIC3959E
Revision: May 2010 2011 Versa

EM-168
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN
• Make sure O-ring on cylinder block is correctly installed.
• Be careful not to damage front oil seal by
interference with front end of crankshaft.

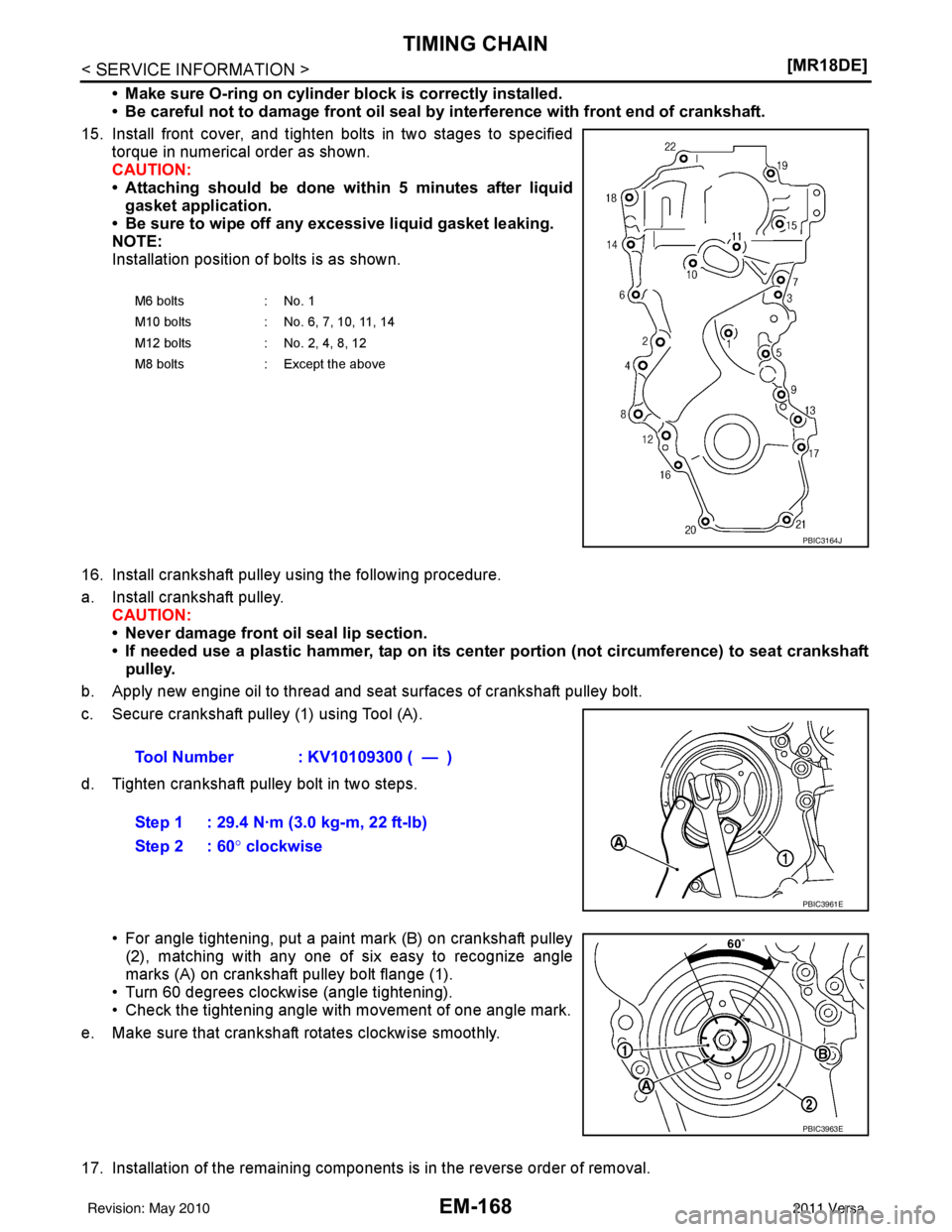

15. Install front cover, and tighten bolts in two stages to specified torque in numerical order as shown.
CAUTION:
• Attaching should be done within 5 minutes after liquidgasket application.
• Be sure to wipe off any excessive liquid gasket leaking.
NOTE:
Installation position of bolts is as shown.
16. Install crankshaft pulley using the following procedure.
a. Install crankshaft pulley. CAUTION:
• Never damage front oil seal lip section.
• If needed use a plastic hammer, tap on its center portion (not circumference) to seat crankshaft
pulley.
b. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
c. Secure crankshaft pulley (1) using Tool (A).
d. Tighten crankshaft pulley bolt in two steps.
• For angle tightening, put a paint mark (B) on crankshaft pulley(2), matching with any one of six easy to recognize angle
marks (A) on crankshaft pulley bolt flange (1).
• Turn 60 degrees clockwise (angle tightening).
• Check the tightening angle with movement of one angle mark.
e. Make sure that crankshaft rotates clockwise smoothly.
17. Installation of the remaining components is in the reverse order of removal.
M6 bolts : No. 1
M10 bolts : No. 6, 7, 10, 11, 14
M12 bolts : No. 2, 4, 8, 12
M8 bolts : Except the above
PBIC3164J
Tool Number : KV10109300 ( — )
Step 1 : 29.4 N·m (3.0 kg-m, 22 ft-lb)
Step 2 : 60° clockwise
PBIC3961E
PBIC3963E
Revision: May 2010 2011 Versa

TIMING CHAINEM-169
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
InspectionINFOID:0000000006413291
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl
uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
Fluids and Lubricants".
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak- age at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to make sure there is no leak age of fuel, exhaust gas, or any oils/fluids including
engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec- ified level, if necessary.
• Summary of the inspection items:
*Power steering fluid, brake fluid, etc. Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Transmission/
transaxle fluid A/T and CVT Models
LeakageLevel/Leakage Leakage
M/T Models Level/Leakage LeakageLevel/Leakage
Other oils and fluids* LevelLeakage Level
Fuel LeakageLeakageLeakage
Exhaust gas —Leakage —
Revision: May 2010 2011 Versa

EM-170
< SERVICE INFORMATION >[MR18DE]

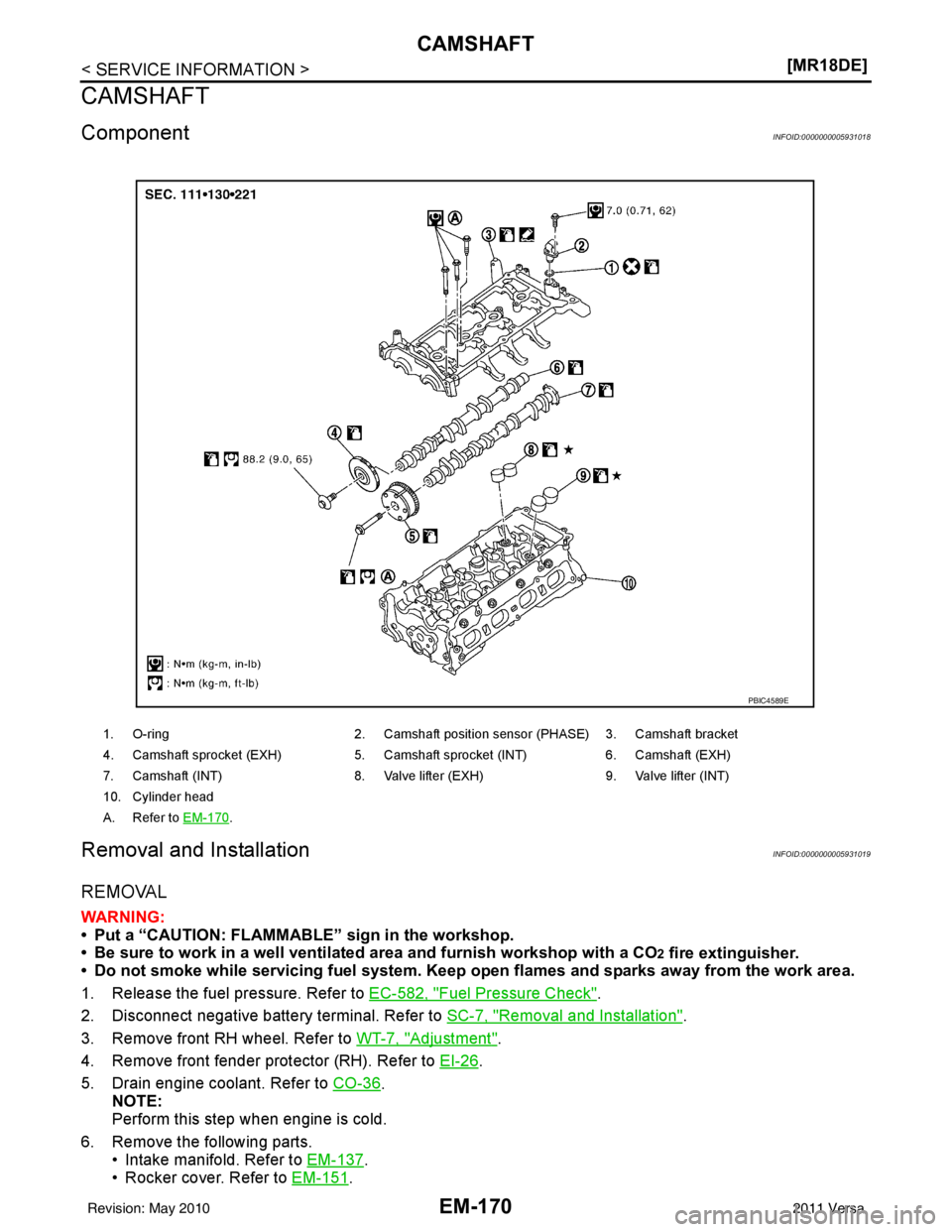

CAMSHAFT
CAMSHAFT
ComponentINFOID:0000000005931018
Removal and InstallationINFOID:0000000005931019
REMOVAL
WARNING:
• Put a “CAUTION: FLAMMABLE”
sign in the workshop.
• Be sure to work in a well ventilate d area and furnish workshop with a CO
2 fire extinguisher.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
1. Release the fuel pressure. Refer to EC-582, "
Fuel Pressure Check".
2. Disconnect negative battery terminal. Refer to SC-7, "
Removal and Installation".
3. Remove front RH wheel. Refer to WT-7, "
Adjustment".
4. Remove front fender protector (RH). Refer to EI-26
.
5. Drain engine coolant. Refer to CO-36
.
NOTE:
Perform this step when engine is cold.
6. Remove the following parts. • Intake manifold. Refer to EM-137
.
• Rocker cover. Refer to EM-151
.
1. O-ring 2. Camshaft position sensor (PHASE) 3. Camshaft bracket
4. Camshaft sprocket (EXH) 5. Camshaft sprocket (INT) 6. Camshaft (EXH)
7. Camshaft (INT) 8. Valve lifter (EXH) 9. Valve lifter (INT)
10. Cylinder head
A. Refer to EM-170
.
PBIC4589E
Revision: May 2010 2011 Versa
