NISSAN LATIO 2011 Service Repair Manual

GROUND CIRCUITPG-31
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
ABMIA2311GB
Revision: May 2010 2011 Versa

PG-32
< SERVICE INFORMATION >
GROUND CIRCUIT
ABMIA2312GB
Revision: May 20102011 Versa

GROUND CIRCUITPG-33
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
ENGINE ROOM HARNESS
ABMIA1587GB
Revision: May 2010 2011 Versa

PG-34
< SERVICE INFORMATION >
GROUND CIRCUIT
ABMIA2313GB
Revision: May 20102011 Versa

GROUND CIRCUITPG-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
ENGINE CONTROL HARNESS
AAMIA0162GB
Revision: May 2010 2011 Versa

PG-36
< SERVICE INFORMATION >
GROUND CIRCUIT
BODY HARNESS
ABMIA2314GB
Revision: May 20102011 Versa

GROUND CIRCUITPG-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
BODY NO. 2 HARNESS
ABMIA2315GB
Revision: May 2010 2011 Versa

PG-38
< SERVICE INFORMATION >
GROUND CIRCUIT
BACK DOOR HARNESS (HATCHBACK)
WKIA5995E
Revision: May 20102011 Versa

HARNESSPG-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

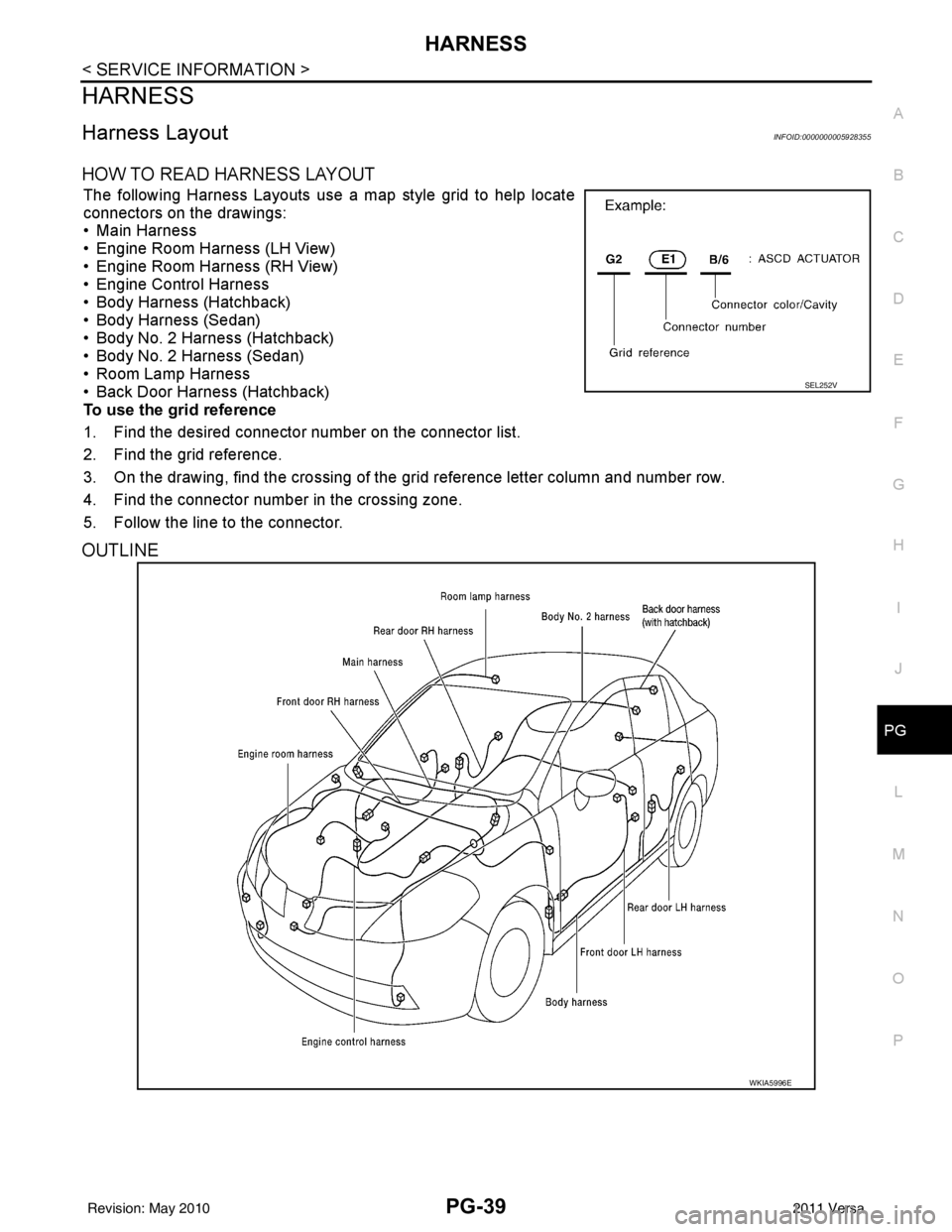

HARNESS
Harness LayoutINFOID:0000000005928355
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
• Main Harness
• Engine Room Harness (LH View)
• Engine Room Harness (RH View)
• Engine Control Harness
• Body Harness (Hatchback)
• Body Harness (Sedan)
• Body No. 2 Harness (Hatchback)
• Body No. 2 Harness (Sedan)
• Room Lamp Harness
• Back Door Harness (Hatchback)
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line to the connector.
OUTLINE
SEL252V
WKIA5996E
Revision: May 2010 2011 Versa

PG-40
< SERVICE INFORMATION >
HARNESS
MAIN HARNESS
ABMIA2317GB
G1 M1 W/16 : To R1D4 M38 W/8 : CVT shift selector (with intelligent key)
B3 M2 B/5 : Passenger select unlock relay B3 M39 W/2 : Tire pressure warning check connector
B2 M3 W/1 : Fuse block (J/B) D2 M40 W/8 : Audio unit
B3 M4 W/1 : Fuse block (J/B) D2 M41 W/2 : Defrost A/C switch
B3 M5 W/3 : Illumination control switch D3 M42 W/3 : Thermo control amp.
