NISSAN LEAF 2015 1.G Navigation Manual


> (GLW    0RGHO 1DYL(9 @
GUID-811B4F8E-8E41-435D-BA44-76204FB0B276The settings included in this section should be
performed before using the system for the first
time.
SUBSCRIPTION TO CARWINGSTM
SERVICEGUID-79859816-B70D-4DAD-AB81-2CEDA8C9C449It is necessary to subscribe to CARWINGSTMin
order to use the CARWINGSTMservice. For the
details about the subscription, visit the NISSAN
Owner's Portal Website or contact a NISSAN
certified LEAF dealer.
INPUTTING USER ID AND PASS-
WORD
GUID-E4FFEB78-D420-4E1D-8312-A4993AD0642DUser registration is required before using the
CARWINGSTMservice. CARWINGSTMis a
service that provides various types of informa-
tion by communicating with the NISSAN
CARWINGS Data Center. Access the NISSAN
Owner's Portal Website before starting the
service. Confirm the terms of service and
complete the user registration form. After
registration is completed, a user ID and pass-
word are provided.
Inputting procedureGUID-05073FE6-9D14-44B9-A85C-E3DA080DF2B3Enter the user ID and password in the system by
preforming the following procedure. 1. Push the
(Zero Emission menu) button
and touch [CARWINGS].
2. Touch [CARWINGS Settings].
3. Touch [Sign in].
LNC0023X
4. Touch [User ID]. The user ID input screen is displayed.
LNC0024X
5. Enter the user ID and touch [OK]. Return tothe previous screen.
LNC0093X
6.Touch [Password]. The password input
screen is displayed.
LNC0025X
7. Enter your password and touch [OK]. Return
to the previous screen.
Getting Started1-11
ITEMS TO BE SET INITIALLY
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-12Getting Started
LNC0026X
8. Touch [Send ID and password]. A confirma-tion message is displayed.
9. Confirm the contents of the message, then touch [Yes]. It takes approximately 30
seconds to send the information. The
system connects to the NISSAN CARW-
INGS Data Center, and then the CAR-
WINGS
TMservice can then be used.
INFO:
. The following can be used when inputting a
user ID or password: letters of the alphanu-
meric characters, symbols, + , - , # , / , .
(period) , _ (underscore) , @, etc.
. The ID that is registered to the vehicle is
required to match the ID that is obtained
from the NISSAN Owner's Portal Website in
order to activate the system. If the IDs do not
match, the system cannot be activated. in
this case visit the NISSAN Owner's Portal Website and obtain an ID again.
. The setting of the ID and password is only
required during initial registration. However,
it is recommended to regularly change the
password. For details about how to receive
a new password, refer to the NISSAN
Owner's Portal Website.
. When selling your vehicle, be sure to delete
the ID and password in the registration
screen. To delete the user ID and the
password, touch [Clear ID and Password].
. The CARWINGS
TMservice uses the TCU
(Telematics Communication Unit) which is
like a cellular. Even if the signal strength bar
of the TCU indicates good reception, con-
nection to the NISSAN CARWINGS Data
Center may be disabled. This does not
indicate a malfunction. Operate the system
again after a few minutes.
. The CARWINGS
TMservice cannot be used
under the following conditions:
Ð The vehicle moves outside the service
area of the TCU connection to the
system.
Ð The vehicle is in a location with poor signal reception such as a tunnel, under-
ground parking, behind a building or in a
mountainous area.
STORING HOME LOCATIONGUID-18F9446E-22F6-4B69-B465-63E96AFC7E1DIf your home location is already stored in the
Address Book, it can be easily retrieved to set
the route to your home. The procedure to store
your home location is the same as for storing any
other location.
As an example, the procedure for storing your
home location by searching for a destination by
map is described here.
1. Push the MENUbutton and touch [Destina-
tion].
LNC0199X
2. Touch [Home]. A confirmation message is displayed.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNC0200X
3. Confirm the contents of the message, thentouch [Yes].
LNC0029X
4.Touch [Map]. The current location map
screen is displayed.
LNC0030X
5. If necessary, adjust your home location by
touch panel operation.
6. After adjusting the location, touch [OK]. A message is displayed and your home loca-
tion is stored in the Address Book.
LNC0031X
7. Adjust the location of a stored item and edit
the contents of a stored item as necessary.
8. Touch [OK] to return to the Destination screen.
INFO:
You can also perform the same setting by
pushing the MENUbutton and selecting [Set-
tings].
ªStoring locationº (page 3-38)
CONNECTING CELLULAR PHONEGUID-0E418F5B-07F0-4047-977C-447142C17340Your vehicle is equipped with Bluetooth


> (GLW    0RGHO 1DYL(9 @

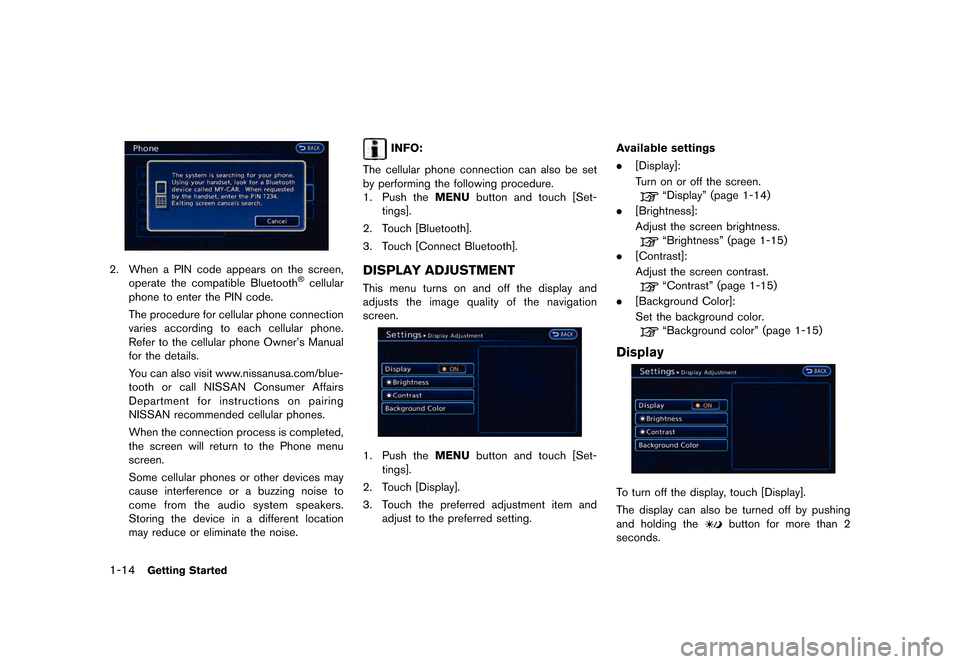

1-14Getting Started
LNC0033X
2. When a PIN code appears on the screen,operate the compatible Bluetooth


> (GLW    0RGHO 1DYL(9 @
LNC0036X
When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, push the
button.
BrightnessGUID-2879B020-3DC2-405E-82FA-E10F80586C2C
LNC0037X
1. Touch [Brightness].
2. Adjust the display brightness by touching[+] or [-].
ContrastGUID-D109E07C-6E82-4966-A2BF-B086F27D282D
LNC0038X
1. Touch [Contrast].
2. Adjust the display contrast by touching [+]or [-].
Background colorGUID-E394FC85-8919-4E4D-A990-4DCE6F6F5100
LNC0039X
1. Touch [Background Color].
2. Touch [Day] or [Night]. The indicator of theselected color illuminates.
LNC0040X
Day screen
LNC0041X
Night screen
INFO:
The background color setting can also be
changed by pushing the
button.
Getting Started1-15
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-16Getting Started
VOLUME SETTINGSGUID-210F184A-892E-4546-8D2A-0868DA7C4F52This turns on and off, as well as adjusts, the
phone function (ringer, incoming and outgoing
volume) , the voice guide function and the beep
function.
LNC0042X
1. Push theMENUbutton and touch [Set-
tings].
2. Touch [Volume & Beeps].
3. Touch the item you would like to adjust.
Available settings
. [Audio Volume]:
Adjust the volume level of the audio system
by touching [+] or [-].
. [Guidance Volume]:
Adjust the volume level of voice guidance by
touching [+] or [-].
. [Ringtone]:
Adjust the volume level of the ringtone by
touching [+] or [-]. .
[Incoming Call]:
Adjust the incoming call volume by touching
[+] or [-].
. [Outgoing Call]:
Adjust the outgoing call volume by touching
[+] or [-].
. [CARWINGS Volume]:
Adjust the volume level of the CAR-
WINGS
TMinformation channel by touching
[+] or [-].
. [Switch Beeps]:
Select to toggle the beep function between
ON and OFF. The indicator light illuminates
when the beep function is set to ON. The
beep sounds when pushing and holding a
button or when a prohibited operation is
performed.
. [Guidance Voice]:
Select to toggle the voice guidance function
between ON and OFF. The indicator light
illuminates when the voice guidance func-
tion is set to ON.
CLOCK SETTINGSGUID-6FB05DB7-7A72-4B43-A7A5-4796C1370711This changes the clock settings.
LNC0043X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Others].
3. Touch [Clock].
4. Touch the item you would like to adjust.
5. Adjust the preferred setting. Touch the item to set ON or OFF.
Available settings
. [On-screen Clock]:
Select to toggle the clock display located in
the top right corner of the display between
ON and OFF. The indicator light illuminates
when the clock display is set to ON.
. [Clock Format (24h)]:
Select the clock format between 12-hour
and 24-hour times. The indicator light
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
illuminates when the clock is set to the 24-
hour format.
. [Offset (hour)]:
Touch [+] or [


> (GLW    0RGHO 1DYL(9 @
1-18Getting Started
LNC0047X
5. Touch the preferred unit. The indicator of theselected unit illuminates.
Available units
.US: mile, 8F, mile/kWh
.Metric: km, 8C, km/kWh
6. Push the MAPbutton to return to the
current location map screen.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2 Unique EV functions
Zero Emission menu screen...
................................................... 2-2
Displaying estimated driving range and charging
station information ...
..................................................................... 2-3
Displaying estimated driving range ...
................................. 2-3
Displaying charging station icons on map ...
.................... 2-5
Confirming charging station availability ...
.......................... 2-6
Updating charging station information ...
........................... 2-7
Energy information display ...
....................................................... 2-8
Viewing energy economy information ...
............................. 2-8 Viewing energy economy history
...
................................... 2-9
Viewing energy usage information ...
................................ 2-9
Timer function operation ...
...................................................... 2-10
Setting timer charge ...
...................................................... 2-10
Setting Climate Ctrl. Timer ...
........................................... 2-12
Unique EV function settings ...
................................................ 2-14
Setting messages that are displayed on screen ...
.... 2-15
Battery and power information ...
.................................... 2-16
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-2Unique EV functions
GUID-C21D2150-F7F0-4C39-BE4B-58106A8753F0Push the(Zero Emission menu) button to
display the menu that includes useful functions
for electric vehicle driving.
LND0093X
Available settings
. [Driving Range]:
The estimated driving area within range,
including the current position is displayed on
the map screen.
ªDisplaying estimated driving rangeº
(page 2-3)
. [Nearby Stations]:
Charging station information for the current
position area is displayed.
ªFinding charging stationº (page 3-25)
. [Update Stations]:
Charging station information is updated
through connection to the NISSAN CARW-
INGS Data Center.
ªUpdating charging station informa-
tionº (page 2-7) .
[Energy Info]:
Energy information is displayed on the
screen.
ªEnergy information displayº
(page 2-8)
. [Charging Timer]:
The timer charge function can be set.
ªSetting timer chargeº (page 2-10)
. [Climate Ctrl. Timer]:
The Climate Ctrl. Timer function can be set.
ªSetting Climate Ctrl. Timerº
(page 2-12)
. [CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
ª5. CARWINGSTMº
. [Settings]:
Set messages that are displayed on the
screen and email messages that can by
received using a personal computer or
cellular phone.
ªUnique EV function settingsº
(page 2-14) NOTE:
.
Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
ÐThe vehicle must be located in a
cellular phone or smart phone cov-
erage area.
Ð The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
ZERO EMISSION MENU SCREEN
&RQGLWLRQ 1$0
