NISSAN LEAF 2015 1.G Navigation Manual


> (GLW    0RGHO 1DYL(9 @
LNE0045X
.[New Dest.]:
Sets the destination to the map location
where [New Dest.] was touched. If a
destination is already set, the location will
be set as the new destination.
ªSetting point on mapº (page 3-36)
. [Add to Route]:
Sets the map location where [Add to Route]
was touched as the destination or a
waypoint. This is available only when a
suggested route is already set.
ªSetting destination or waypointº
(page 3-48)
. [Nearby Places]:
Searches for points of interest such as
restaurants and charging stations, etc. near
the location by scrolling the map.
ªFinding nearby Points of Interestº
(page 3-29) .
[Store Location]:
Store the map location where [Store loca-
tion] was touched in the Address Book. The
stored location can be retrieved to set it as a
destination or waypoint.
ªStoring locationº (page 3-38)
. [Update Stations]:
Contact the NISSAN CARWINGS Data
Center to update charging station around
the point of the cursor.
ªUpdating charging station informa-
tionº (page 2-7)
. [Delete]:
Deletes a destination, waypoint or stored
location. To delete, place the cross pointer
over the corresponding icon.
Navigation3-15
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-16Navigation
MAP SYMBOLSGUID-EBC19CB7-4FEE-471C-A328-FBDF3BA8C997This navigation system uses symbols to display facilities.
2-dimensional icons (Plan View)GUID-B222DA06-BDDC-476B-A65B-8ACA237E1427
LNE0628X
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Road colorGUID-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by colors.
Freeway:
(Red or light red (zoomed in))
Main road:
(Brown or dark yellow)
Narrow street:
(Gray)
Road with incomplete map data:
(Dark green)
Traffic information on mapGUID-76DF2039-9D48-4277-86E8-FF7C624B9B6DWith a subscription to the NavTraffic service,
traffic information is displayed.
ªViewing available traffic informationº
(page 6-6)
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
The following traffic information icons may be displayed
Accident
Closed road
Information
Road work
Slippery road
Weather
Incident
GUID-501A39C4-2FAD-451F-B110-26D6B2F785A4
DESTINATION SCREENGUID-B2EBC8BC-3B61-48B8-A7CB-A84B9994A079There are several methods that can be used to
set a destination. Understand the advantages of
each method and select the best method for
finding and setting a preferred destination.
LNC0199X
1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch the preferred method for setting the destination.
Available settings
. [Street Address]:
Searches for a destination by address.
ªFinding addressº (page 3-20)
. [Points of Interest]:
Searches for a destination from various
categories of businesses or locations.
ªFinding points of interestº
(page 3-21)
Navigation3-17
SETTING DESTINATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-18Navigation
.[Home]:
Searches for a route from the current
location to the previously stored home
destination.
ªSetting home as destinationº
(page 3-24)
. [Charging Stations]:
Searches for charging stations located near
the current vehicle location.
ªFinding charging stationº (page 3-25)
. [POIs powered by GoogleTM]:
Key words can be searched for using
Google.
ªGoogle searchº (page 5-10)
. [Address Book]:
Searches for a destination from the list of the
stored locations.
ªSearching from address bookº
(page 3-28)
. [Previous Destinations]:
Sets the previous starting point as the
destination. Searches for the destination
from the previous destinations.
ªSearching from historyº (page 3-28)
. [Nearby Points of Interest]:
Searches for points of interest near the
current vehicle location, such as restaurants
and charging stations, etc.
ªFinding nearby Points of Interestº
(page 3-29)
Available settings (next page screen)
. [ Google(TM) Send-To-Car]:
Searches for a destination using Google
Maps.
ªUsing Google Mapº (page 3-30)
. [Route Planner]:
Sets a route plan downloaded from the
NISSAN Owner's Portal Website.
ªUsing route plannerº (page 3-31)
. [Stored Routes]:
Selects a stored route.
ªSetting from stored routesº
(page 3-31)
. [Phone Number]:
Searches for a point of interest by a
telephone number.
ªSetting by phone numberº
(page 3-32)
. [Intersection]:
Searches for a destination from an intersec-
tion.
ªSetting intersectionº (page 3-32)
. [City Center]:
Sets the center of a city as the destination.
ªSetting city centerº (page 3-34) .
[Freeway Entrance/Exit]:
Searches for a destination from a freeway
entrance/exit.
ªSetting freeway entrance/exitº
(page 3-35)
INFO:
. If the required battery power level may be
insufficient when the destination is set, the
system provides guidance to any available
charging stations.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
CHANGING REGIONGUID-3E25FCC3-C8B2-44CB-BCC5-732F43DB2522When setting a destination, the location can be
narrowed down by specifying the region or city.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

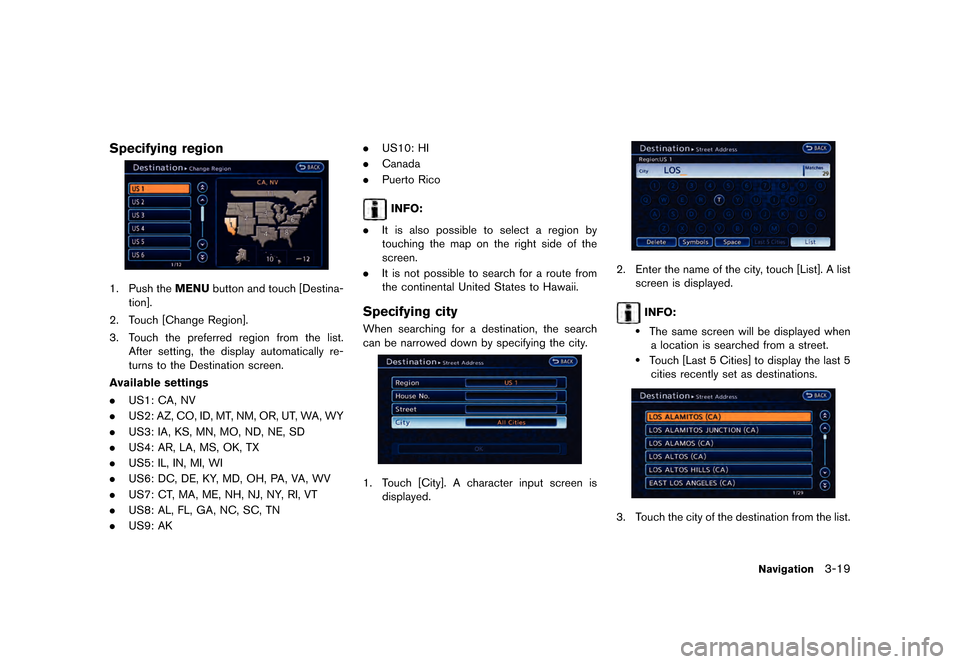

Specifying regionGUID-47A13C7F-143A-4A58-9FA9-3EF03611FAA4
LNE0904X
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Change Region].
3. Touch the preferred region from the list. After setting, the display automatically re-
turns to the Destination screen.
Available settings
. US1: CA, NV
. US2: AZ, CO, ID, MT, NM, OR, UT, WA, WY
. US3: IA, KS, MN, MO, ND, NE, SD
. US4: AR, LA, MS, OK, TX
. US5: IL, IN, MI, WI
. US6: DC, DE, KY, MD, OH, PA, VA, WV
. US7: CT, MA, ME, NH, NJ, NY, RI, VT
. US8: AL, FL, GA, NC, SC, TN
. US9: AK .
US10: HI
. Canada
. Puerto Rico
INFO:
. It is also possible to select a region by
touching the map on the right side of the
screen.
. It is not possible to search for a route from
the continental United States to Hawaii.
Specifying cityGUID-40AD6857-AA78-4C83-9D64-B7572E33A7AAWhen searching for a destination, the search
can be narrowed down by specifying the city.
LNE0047X
1. Touch [City]. A character input screen is
displayed.
LNE0048X
2. Enter the name of the city, touch [List]. A listscreen is displayed.
INFO:
.The same screen will be displayed whena location is searched from a street.
.Touch [Last 5 Cities] to display the last 5cities recently set as destinations.
LNE0049X
3. Touch the city of the destination from the list.
Navigation3-19
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-20Navigation
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the ªMatchesº column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING ADDRESSGUID-E974693C-B055-4844-9B8F-849E0623EC34When the address of the destination is known,
use the following method to enter the address
and then have the system calculate a route. A
location near the preferred destination can also
be searched by entering the house number if the
map data contains the relevant data.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Street Address].
LNE0050X
3. Touch [House No.]. A character input screen is displayed.
INFO:
Touch [Region] or [City] to narrow down the
specified region and city.
ªChanging regionº (page 3-18)
LNE0051X
4. Enter the house number, then touch [OK]. If the house number is not available, touch [No
House #].
5. Touch [Street]. A street name input screen is displayed.
LNE0052X
6. Enter the name of the street. After finishingthe entry, touch [List]. A list of streets is
displayed.
LNE0053X
7. Touch the correct street of the destination
from the list.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the "Matches" column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
LNE0054X
8. Touch [OK].
LNE0055X
9. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location
can be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address:
"Navigation" "Address"
INFO:
When you touch [Manual Controls] displayed on
the screen, voice recognition is canceled. You
can then input the destination manually by
operating the touch screen.
FINDING POINTS OF INTERESTGUID-E537C75F-F389-4D0C-BDC4-80E087FFBD4FThis allows you to find a facility by type, and then
have the system calculate a route to that
destination. Specify the region and city of the
destination to find it more quickly.
NOTE:
Locations and business hours of facilities
are subject to change, which may not be
reflected in the map data. Double-check
this information before you go to an
emergency facility to ensure that you can
receive the proper support. Otherwise, you
may not receive emergency help even
when you arrive at the destination.
A confirmation message also appears on
the navigation screen. Follow the dis-
played instructions and check the items
required.
Navigation3-21
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-22Navigation
Searching by a landmark nameGUID-42622348-4B68-4A78-9240-986407C6723B1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest].
LNE0056X
3. Touch [By Name]. A character input screen is displayed.
LNE0057X
4. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
INFO:
When [City] is touched, a city can be
specified by typing the city name.
ªSpecifying cityº (page 3-19)
LNE0058X
5. Touch the preferred destination facility from the list.
INFO:
.In some cases, when a POI name hasbeen entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [By Category], you candisplay the list that summarizes the
entered names into categories. Select
the category to narrow down the search.
LNE0059X
6. The selected destination is displayed at the
center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Searching from the landmark cate-
gory
GUID-351BE659-0AB9-473A-AC1A-38ABCADA93D61. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest]. The main category list is displayed.
LNE0060X
3. Touch the main category. The subcategorylist is displayed.
LNE0061X
4. Touch the subcategory from the list.
LNE0062X
5. Set the narrow down conditions for thelandmarks.
An example of choosing [By Name] is
explained below.
Narrow down conditions:
.[By Name]:
Input the facility name to narrow down
the target facility.
.[Select a City]:Input the city to narrow down the target
city.
.[Near Current Location]:Shows a list of facilities that are near
current vehicle location.
.[Near Destination]:When the destination is set, indicates the
facility list around the destination. 6. Touch [By Name]. A character input screen
is displayed.
LNE0063X
7. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
LNE0064X
8. Touch the preferred destination facility from
the list.
Navigation3-23
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-24Navigation
INFO:
.In some cases, when a POI name hasbeen entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [New Category], you can
perform a search from another category.
LNE0065X
9. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat- ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
SETTING HOME AS DESTINATIONGUID-EFD628DF-FD10-4DDD-BDF4-340E595F2B4EThe home location can be set as the destination
to which the system calculates a route. This
function is especially useful when searching for
a route to return to the home location.
1. Puch the MENUbutton and touch [Destina-
tion].
LNE0935X
2. Touch [Home].
3. The home location is displayed, and the system sets the home location as the
destination.
INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
ªStoring home locationº (page 1-12)
LNE0936X
4. The entire route to the home location is shown on the map. Touch [Start] after
confirming the displayed route. The system
starts route guidance to the home location.
INFO:
Before starting route guidance, the route con-
dition can be changed and the route can be
stored in the Address Book, etc.
ªProcedures after setting routeº
(page 3-39)
&RQGLWLRQ 1$0
