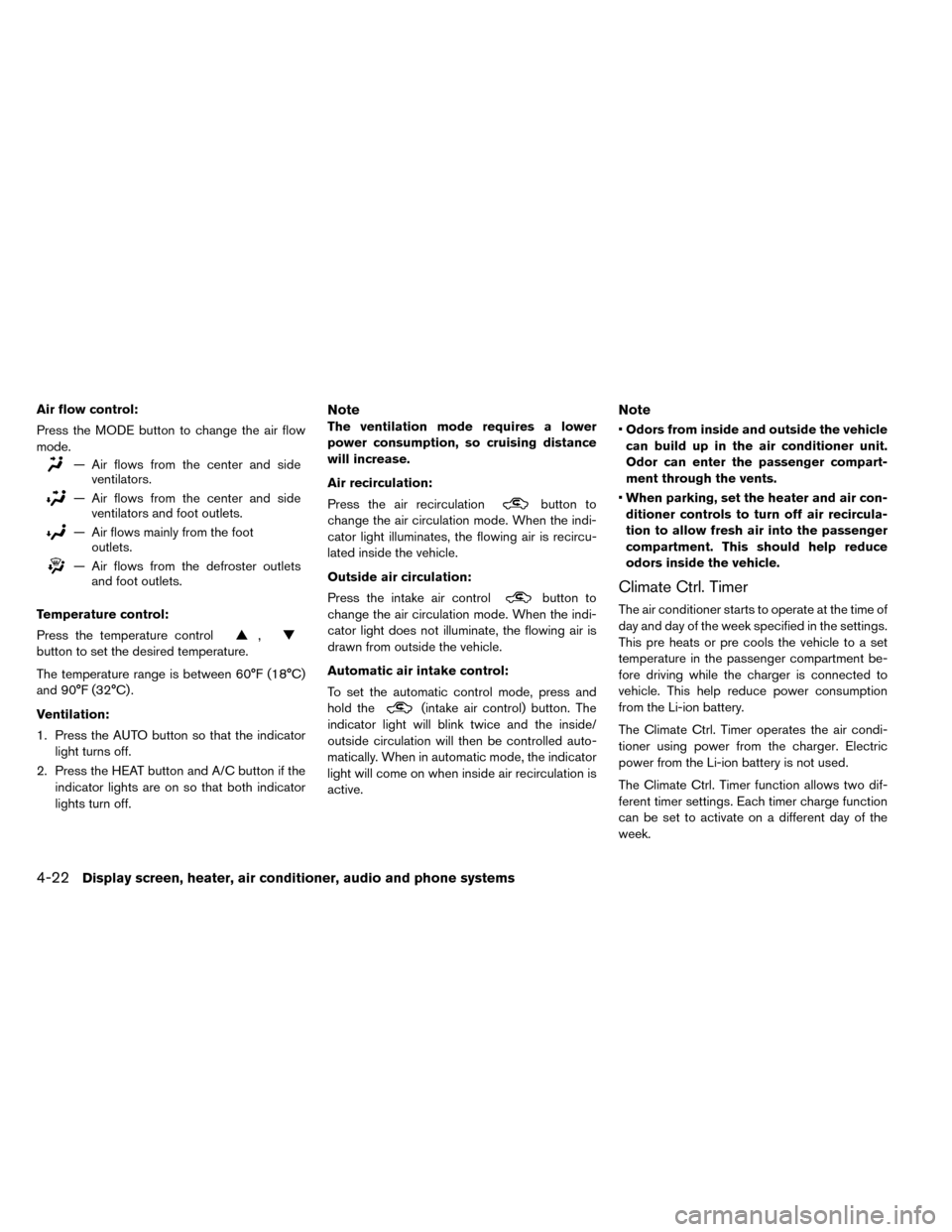

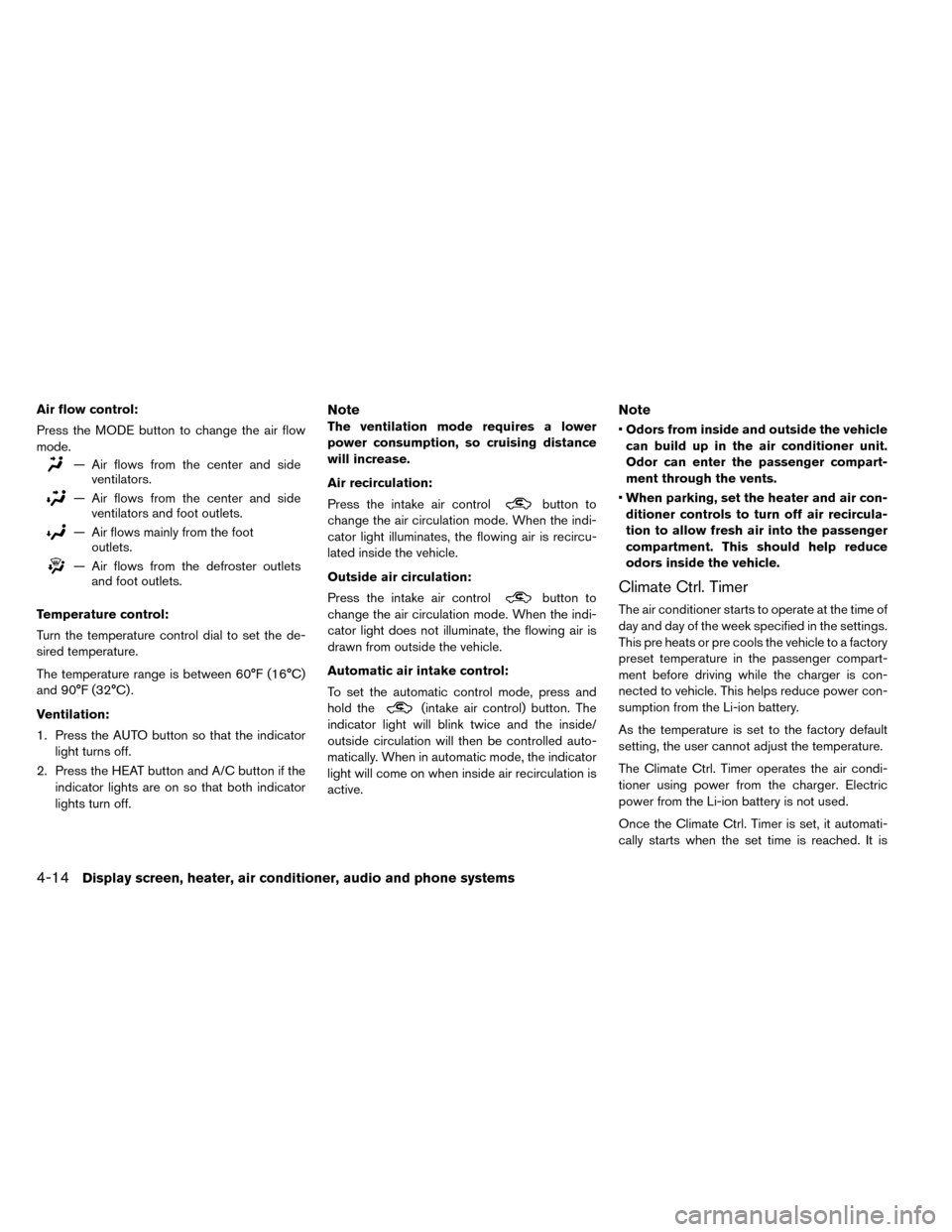

Air flow control:
Press the MODE button to change the air flow
mode.
— Air flows from the center and sideventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the footoutlets.
— Air flows from the defroster outletsand foot outlets.
Temperature control:
Turn the temperature control dial to set the de-
sired temperature.
The temperature range is between 60°F (16°C)
and 90°F (32°C) .
Ventilation:
1. Press the AUTO button so that the indicator light turns off.
2. Press the HEAT button and A/C button if the indicator lights are on so that both indicator
lights turn off.
Note
The ventilation mode requires a lower
power consumption, so cruising distance
will increase.
Air recirculation:
Press the intake air control
button to
change the air circulation mode. When the indi-
cator light illuminates, the flowing air is recircu-
lated inside the vehicle.
Outside air circulation:
Press the intake air control
button to
change the air circulation mode. When the indi-
cator light does not illuminate, the flowing air is
drawn from outside the vehicle.
Automatic air intake control:
To set the automatic control mode, press and
hold the
(intake air control) button. The
indicator light will blink twice and the inside/
outside circulation will then be controlled auto-
matically. When in automatic mode, the indicator
light will come on when inside air recirculation is
active.
Note
• Odors from inside and outside the vehicle
can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.
• When parking, set the heater and air con-
ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
Climate Ctrl. Timer
The air conditioner starts to operate at the time of
day and day of the week specified in the settings.
This pre heats or pre cools the vehicle to a factory
preset temperature in the passenger compart-
ment before driving while the charger is con-
nected to vehicle. This helps reduce power con-
sumption from the Li-ion battery.
As the temperature is set to the factory default
setting, the user cannot adjust the temperature.
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
Once the Climate Ctrl. Timer is set, it automati-
cally starts when the set time is reached. It is
4-14Display screen, heater, air conditioner, audio and phone systems

therefore not necessary to set the Climate Ctrl.
Timer everyday.

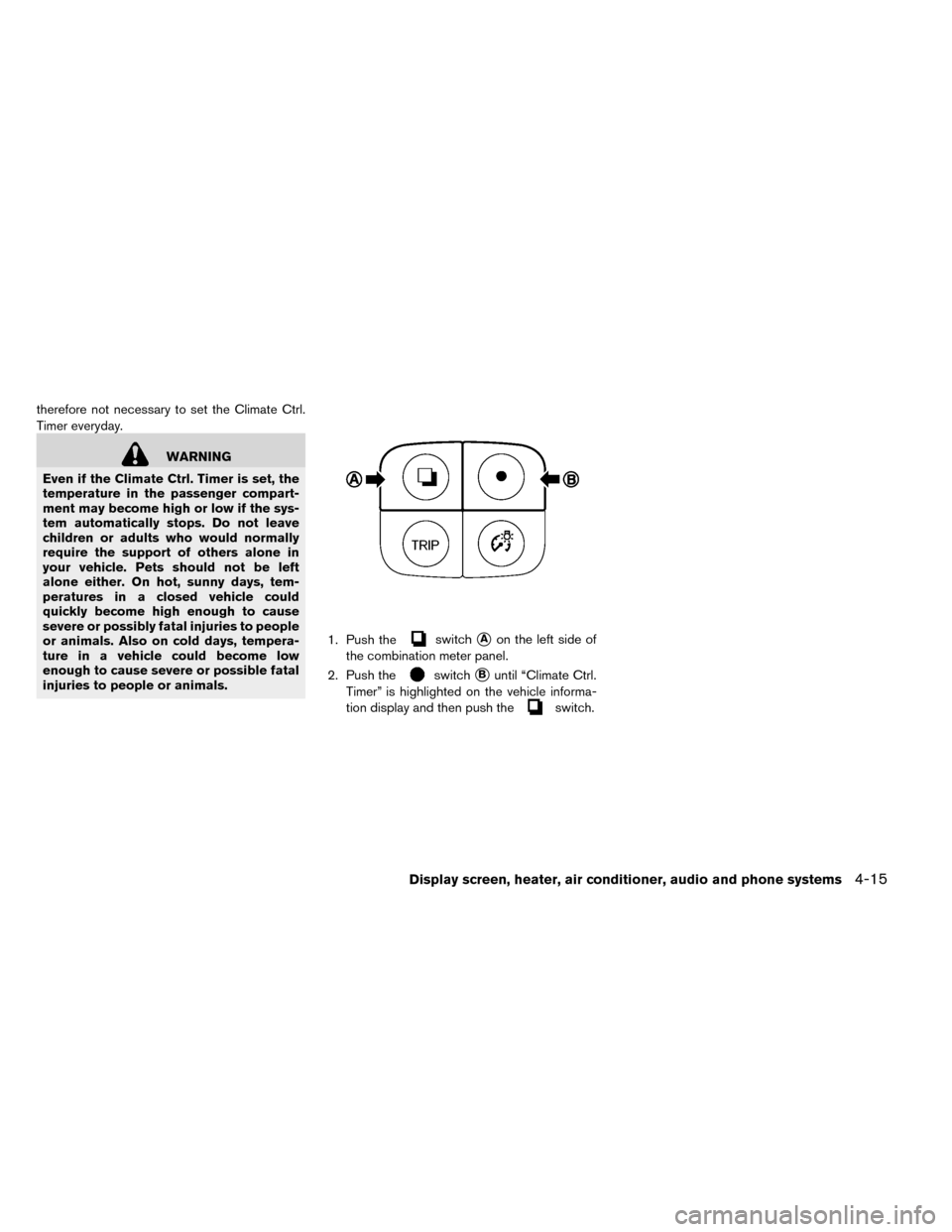

WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high or low if the sys-
tem automatically stops. Do not leave
children or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
alone either. On hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to people
or animals. Also on cold days, tempera-
ture in a vehicle could become low
enough to cause severe or possible fatal
injuries to people or animals. 1. Push the
switchAon the left side of
the combination meter panel.
2. Push the
switchBuntil “Climate Ctrl.
Timer” is highlighted on the vehicle informa-
tion display and then push the
switch.
Display screen, heater, air conditioner, audio and phone systems4-15

3. The “Climate Ctrl. Timer” screen is displayed.To change the time of day and the day of the
week that the climate control timer turns on or
off, or to turn the climate control timer on or
off, push the
switch.
4. To turn the timer on or off, use the
switch to highlight “On” or “Off” and then
push the
switch. If “On” is selected, an
additional screen is displayed that allows you
to change the time or the climate control
timer. 5. The hour portion of the time is highlighted on
the screen. Push the
switch to change
the hour field in increments of one hour. Push
and hold the
switch to fast forward the
hours. Push the
switch to move to the
minutes field.
4-16Display screen, heater, air conditioner, audio and phone systems

6. Push theswitch to change the minute
field in increments of ten minutes. Push and
hold the
switch to fast forward the
minutes. Push the
switch to move to the
day of the week setting. 7. Push the
switch to set the day to on or
off. Push the
switch and then set the
next day with the same procedure. When all
days of the week have been set, push the
switch.
Display screen, heater, air conditioner, audio and phone systems4-17

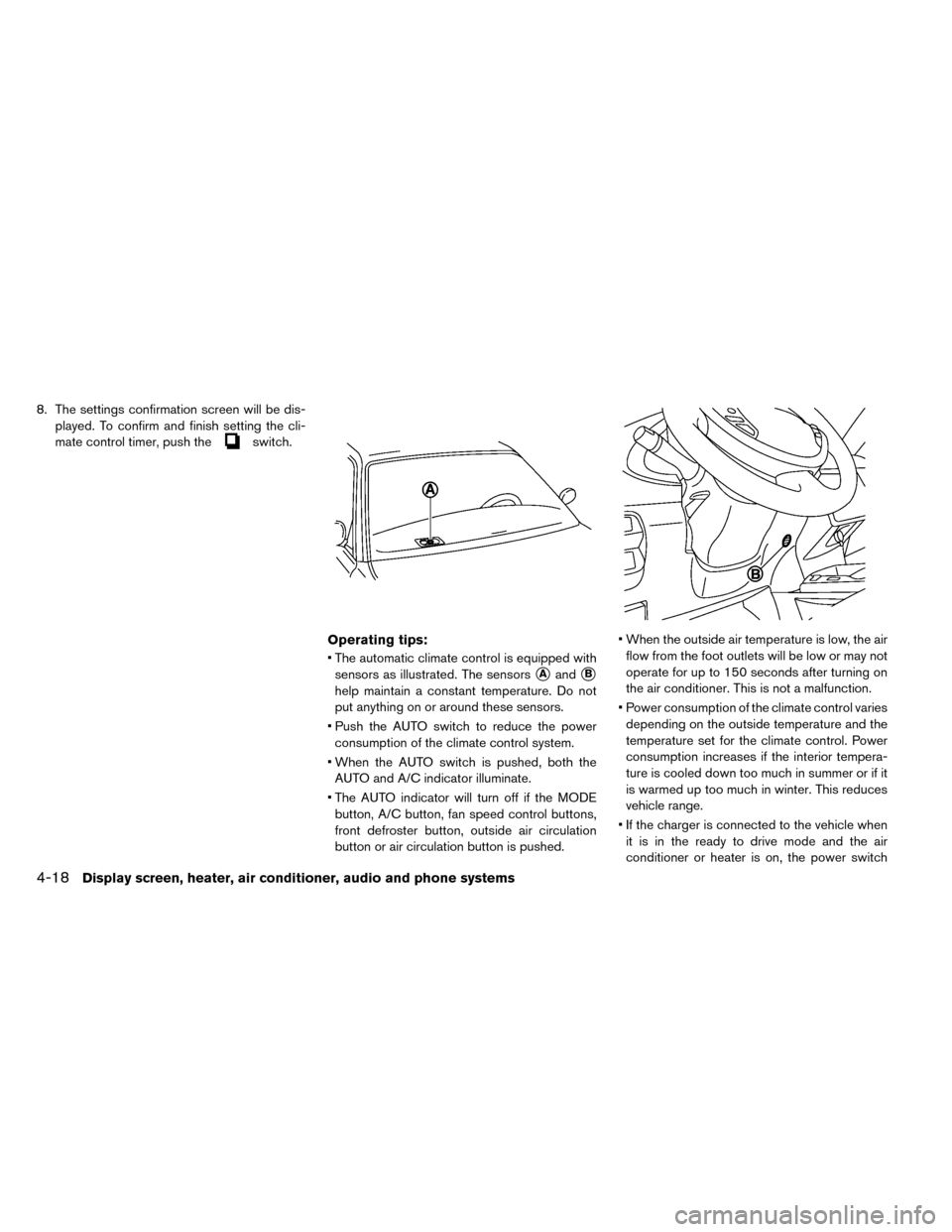

8. The settings confirmation screen will be dis-played. To confirm and finish setting the cli-
mate control timer, push the
switch.
Operating tips:
• The automatic climate control is equipped withsensors as illustrated. The sensors
AandB
help maintain a constant temperature. Do not
put anything on or around these sensors.
• Push the AUTO switch to reduce the power consumption of the climate control system.
• When the AUTO switch is pushed, both the AUTO and A/C indicator illuminate.
• The AUTO indicator will turn off if the MODE button, A/C button, fan speed control buttons,
front defroster button, outside air circulation
button or air circulation button is pushed. • When the outside air temperature is low, the air
flow from the foot outlets will be low or may not
operate for up to 150 seconds after turning on
the air conditioner. This is not a malfunction.
• Power consumption of the climate control varies depending on the outside temperature and the
temperature set for the climate control. Power
consumption increases if the interior tempera-
ture is cooled down too much in summer or if it
is warmed up too much in winter. This reduces
vehicle range.
• If the charger is connected to the vehicle when it is in the ready to drive mode and the air
conditioner or heater is on, the power switch
4-18Display screen, heater, air conditioner, audio and phone systems

automatically changes to the ON position. The
climate control system automatically turns off
the heater or air conditioner and switches to the
air recirculation mode. Place the power switch
in the off position to begin charging. Turn on the
desired climate control function.
• The remote climate control or climate control timer may fog up windows depending on the set
temperature or outside temperature.
• When turning on the seat heater switch prior to operating the remote climate control or climate
control timer, the seat heater also will turn on.
The steering wheel heater will turn on automati-
cally when the outside temperature is low.

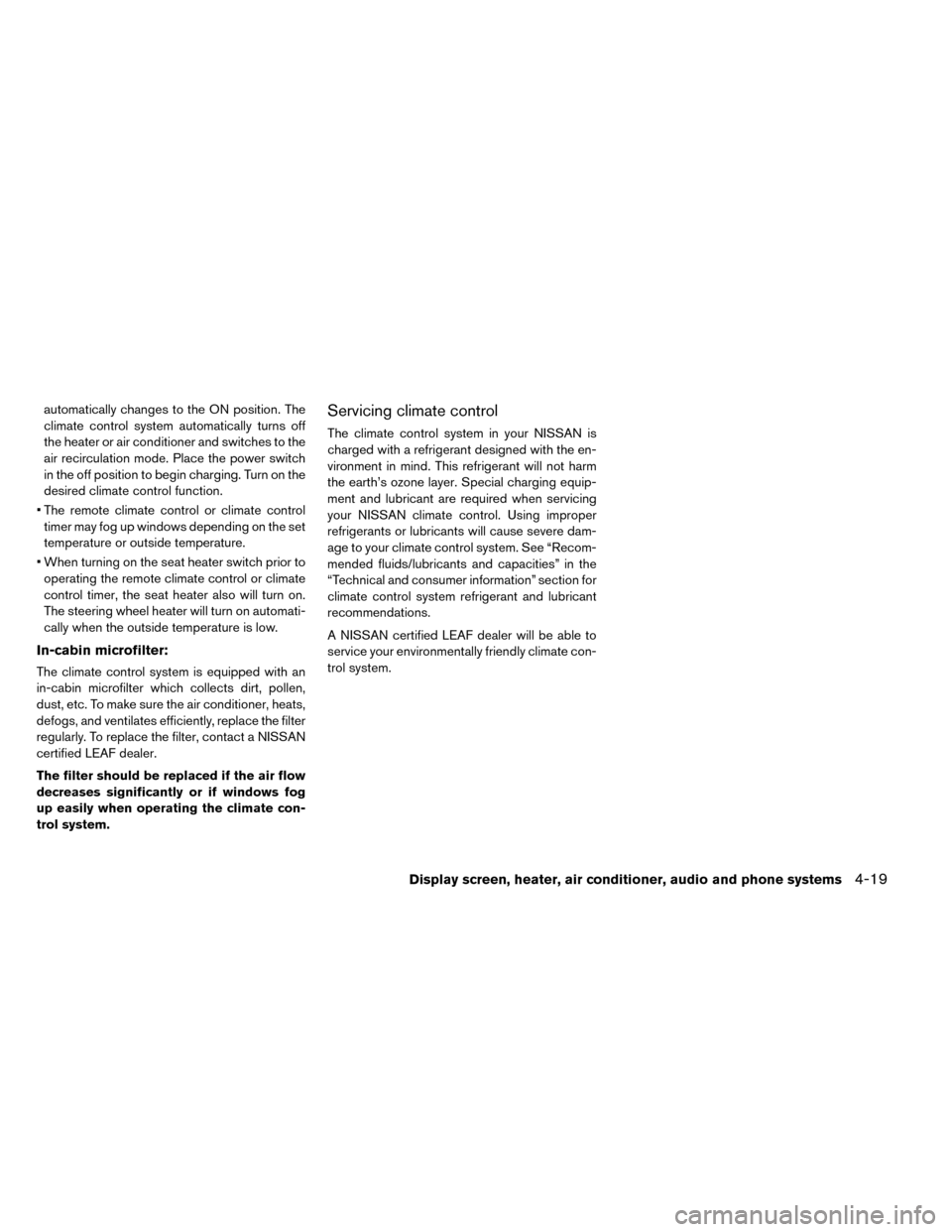

In-cabin microfilter:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner, heats,
defogs, and ventilates efficiently, replace the filter
regularly. To replace the filter, contact a NISSAN
certified LEAF dealer.
The filter should be replaced if the air flow
decreases significantly or if windows fog
up easily when operating the climate con-
trol system.
Servicing climate control
The climate control system in your NISSAN is
charged with a refrigerant designed with the en-
vironment in mind. This refrigerant will not harm
the earth’s ozone layer. Special charging equip-
ment and lubricant are required when servicing
your NISSAN climate control. Using improper
refrigerants or lubricants will cause severe dam-
age to your climate control system. See “Recom-
mended fluids/lubricants and capacities” in the
“Technical and consumer information” section for
climate control system refrigerant and lubricant
recommendations.
A NISSAN certified LEAF dealer will be able to
service your environmentally friendly climate con-
trol system.
Display screen, heater, air conditioner, audio and phone systems4-19

AUTOMATIC CLIMATE CONTROL
(MODELS WITH NAVIGATION
SYSTEM)
1. Temperature control button
2. HEAT button
3. Climate Ctrl. Timer indicator4.
(front defroster) button
5.
(fan speed control) button
6.
(rear window defroster) button (See
“Rear window and outside mirror defroster
switch” in the “Instruments and controls”
section.)
7.
(intake air control) button 8. A/C-Heater ON·OFF button
9. AUTO climate control ON button
10. MODE (manual air flow control) button
11. A/C (air conditioner) ON·OFF button
Automatic operation (AUTO)
The AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed.
To turn off the climate control, press the A/C-
Heater ON·OFF button.
The same operating mode (Heater or A/C) that
was active when the system is turned off is active
when system is turned back on.
While operating the climate control in the AUTO
mode, selecting any other climate control button
de-activates the AUTO mode and activates
manual mode.
Cooling and/or dehumidified heating:
The dehumidified heating mode can be used to
keep the windows from fogging. In this mode, the
heat pump compressor is used in A/C mode for
dehumidifying the air instead of heating it. The
PTC heater is also used in conjunction to heat the
air. This mode will increase energy consumption
and therefore reduce range.
4-20Display screen, heater, air conditioner, audio and phone systems

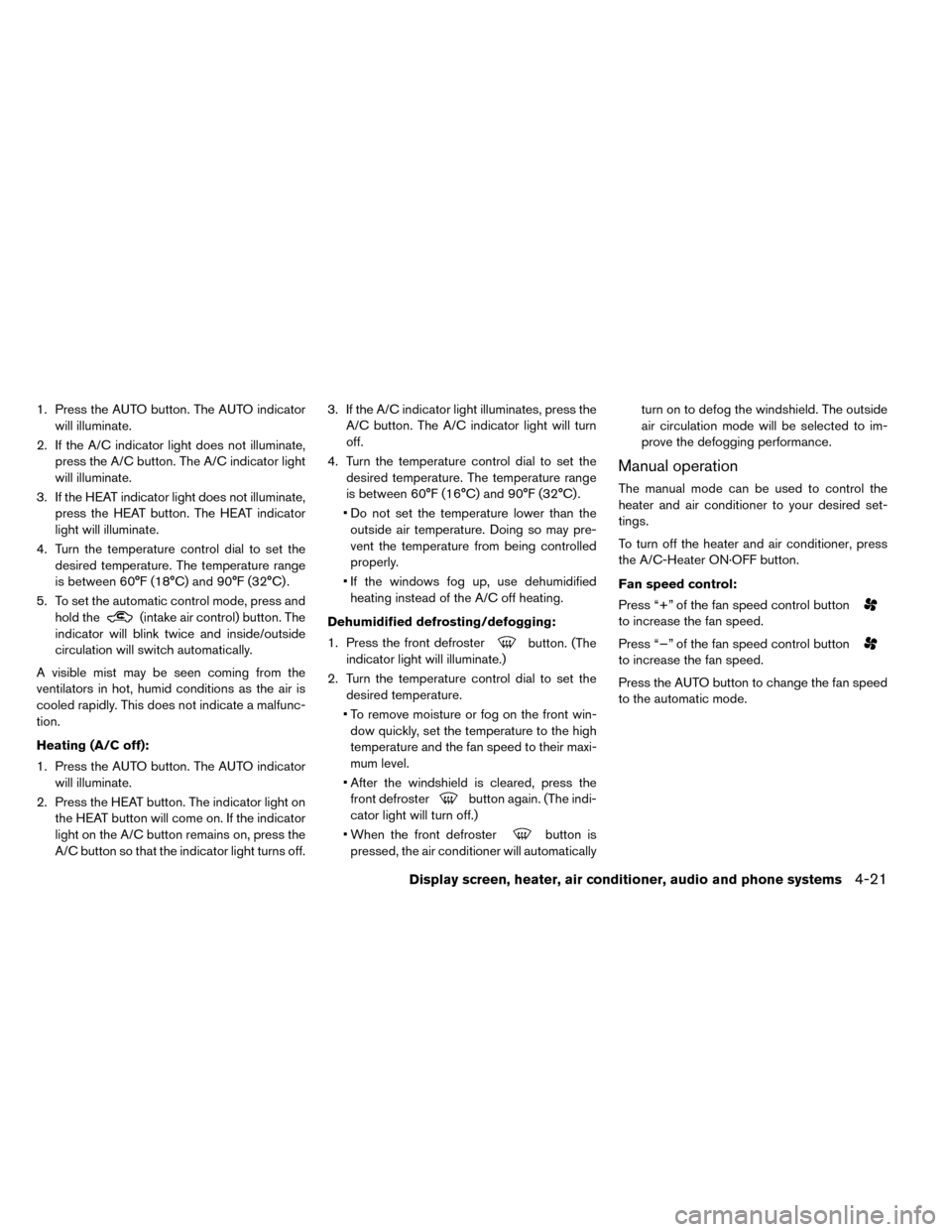

1. Press the AUTO button. The AUTO indicatorwill illuminate.
2. If the A/C indicator light does not illuminate, press the A/C button. The A/C indicator light
will illuminate.
3. If the HEAT indicator light does not illuminate, press the HEAT button. The HEAT indicator
light will illuminate.
4. Turn the temperature control dial to set the desired temperature. The temperature range
is between 60°F (18°C) and 90°F (32°C) .
5. To set the automatic control mode, press and hold the
(intake air control) button. The
indicator will blink twice and inside/outside
circulation will switch automatically.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a malfunc-
tion.
Heating (A/C off):
1. Press the AUTO button. The AUTO indicator will illuminate.
2. Press the HEAT button. The indicator light on the HEAT button will come on. If the indicator
light on the A/C button remains on, press the
A/C button so that the indicator light turns off. 3. If the A/C indicator light illuminates, press the
A/C button. The A/C indicator light will turn
off.
4. Turn the temperature control dial to set the desired temperature. The temperature range
is between 60°F (16°C) and 90°F (32°C) .
• Do not set the temperature lower than the outside air temperature. Doing so may pre-
vent the temperature from being controlled
properly.
• If the windows fog up, use dehumidified heating instead of the A/C off heating.
Dehumidified defrosting/defogging:
1. Press the front defroster
button. (The
indicator light will illuminate.)
2. Turn the temperature control dial to set the desired temperature.
• To remove moisture or fog on the front win- dow quickly, set the temperature to the high
temperature and the fan speed to their maxi-
mum level.
• After the windshield is cleared, press the front defroster
button again. (The indi-
cator light will turn off.)
• When the front defroster
button is
pressed, the air conditioner will automatically turn on to defog the windshield. The outside
air circulation mode will be selected to im-
prove the defogging performance.
Manual operation
The manual mode can be used to control the
heater and air conditioner to your desired set-
tings.
To turn off the heater and air conditioner, press
the A/C-Heater ON·OFF button.
Fan speed control:
Press “+” of the fan speed control button
to increase the fan speed.
Press “−” of the fan speed control button
to increase the fan speed.
Press the AUTO button to change the fan speed
to the automatic mode.
Display screen, heater, air conditioner, audio and phone systems4-21

Air flow control:
Press the MODE button to change the air flow
mode.
— Air flows from the center and sideventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the footoutlets.
— Air flows from the defroster outletsand foot outlets.
Temperature control:
Press the temperature control
,
button to set the desired temperature.
The temperature range is between 60°F (18°C)
and 90°F (32°C) .
Ventilation:
1. Press the AUTO button so that the indicator light turns off.
2. Press the HEAT button and A/C button if the indicator lights are on so that both indicator
lights turn off.
Note
The ventilation mode requires a lower
power consumption, so cruising distance
will increase.
Air recirculation:
Press the air recirculation
button to
change the air circulation mode. When the indi-
cator light illuminates, the flowing air is recircu-
lated inside the vehicle.
Outside air circulation:
Press the intake air control
button to
change the air circulation mode. When the indi-
cator light does not illuminate, the flowing air is
drawn from outside the vehicle.
Automatic air intake control:
To set the automatic control mode, press and
hold the
(intake air control) button. The
indicator light will blink twice and the inside/
outside circulation will then be controlled auto-
matically. When in automatic mode, the indicator
light will come on when inside air recirculation is
active.
Note
• Odors from inside and outside the vehicle
can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.
• When parking, set the heater and air con-
ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
Climate Ctrl. Timer
The air conditioner starts to operate at the time of
day and day of the week specified in the settings.
This pre heats or pre cools the vehicle to a set
temperature in the passenger compartment be-
fore driving while the charger is connected to
vehicle. This help reduce power consumption
from the Li-ion battery.
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
The Climate Ctrl. Timer function allows two dif-
ferent timer settings. Each timer charge function
can be set to activate on a different day of the
week.
4-22Display screen, heater, air conditioner, audio and phone systems

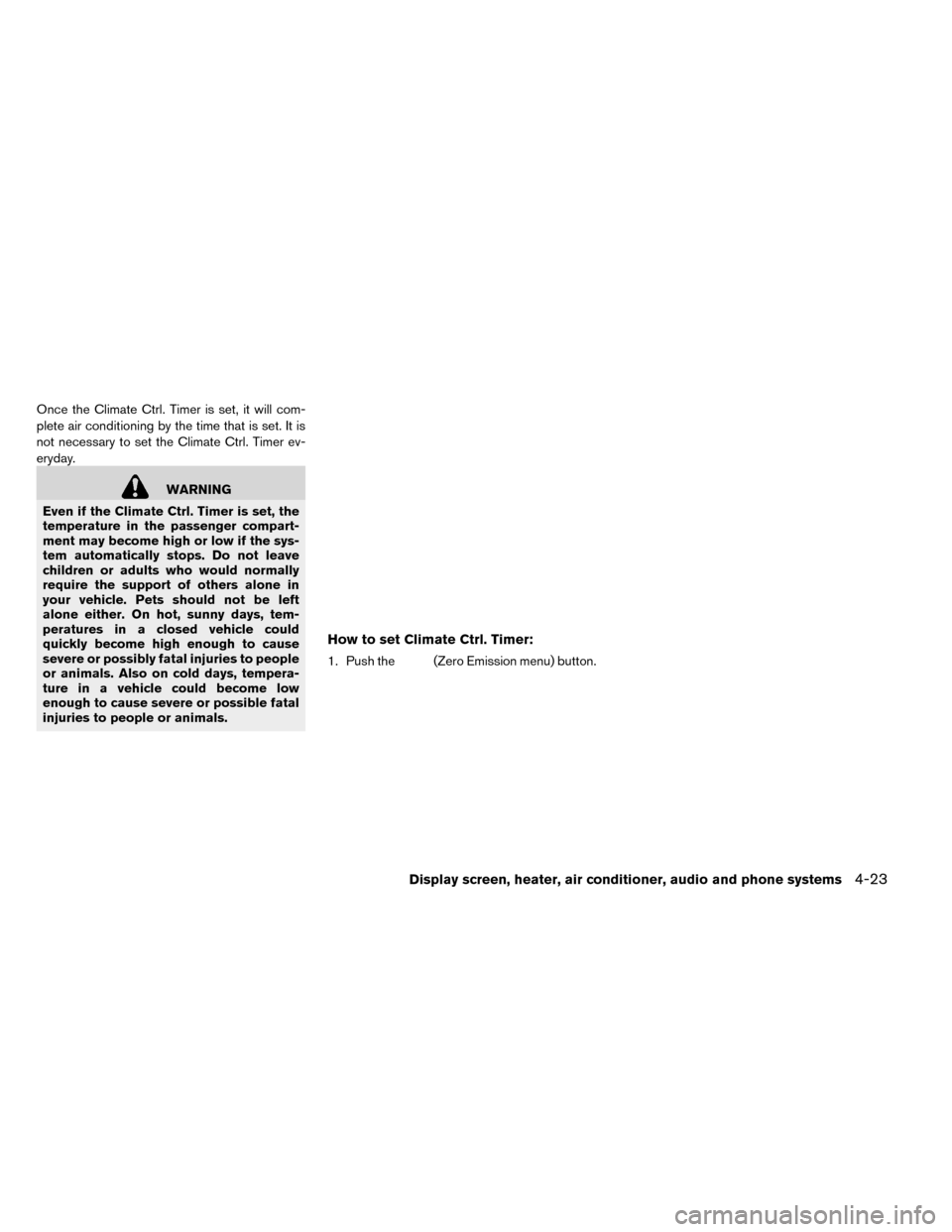

Once the Climate Ctrl. Timer is set, it will com-
plete air conditioning by the time that is set. It is
not necessary to set the Climate Ctrl. Timer ev-
eryday.
WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high or low if the sys-
tem automatically stops. Do not leave
children or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
alone either. On hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to people
or animals. Also on cold days, tempera-
ture in a vehicle could become low
enough to cause severe or possible fatal
injuries to people or animals.
How to set Climate Ctrl. Timer:
1. Push the(Zero Emission menu) button.
Display screen, heater, air conditioner, audio and phone systems4-23
