Page 221 of 412

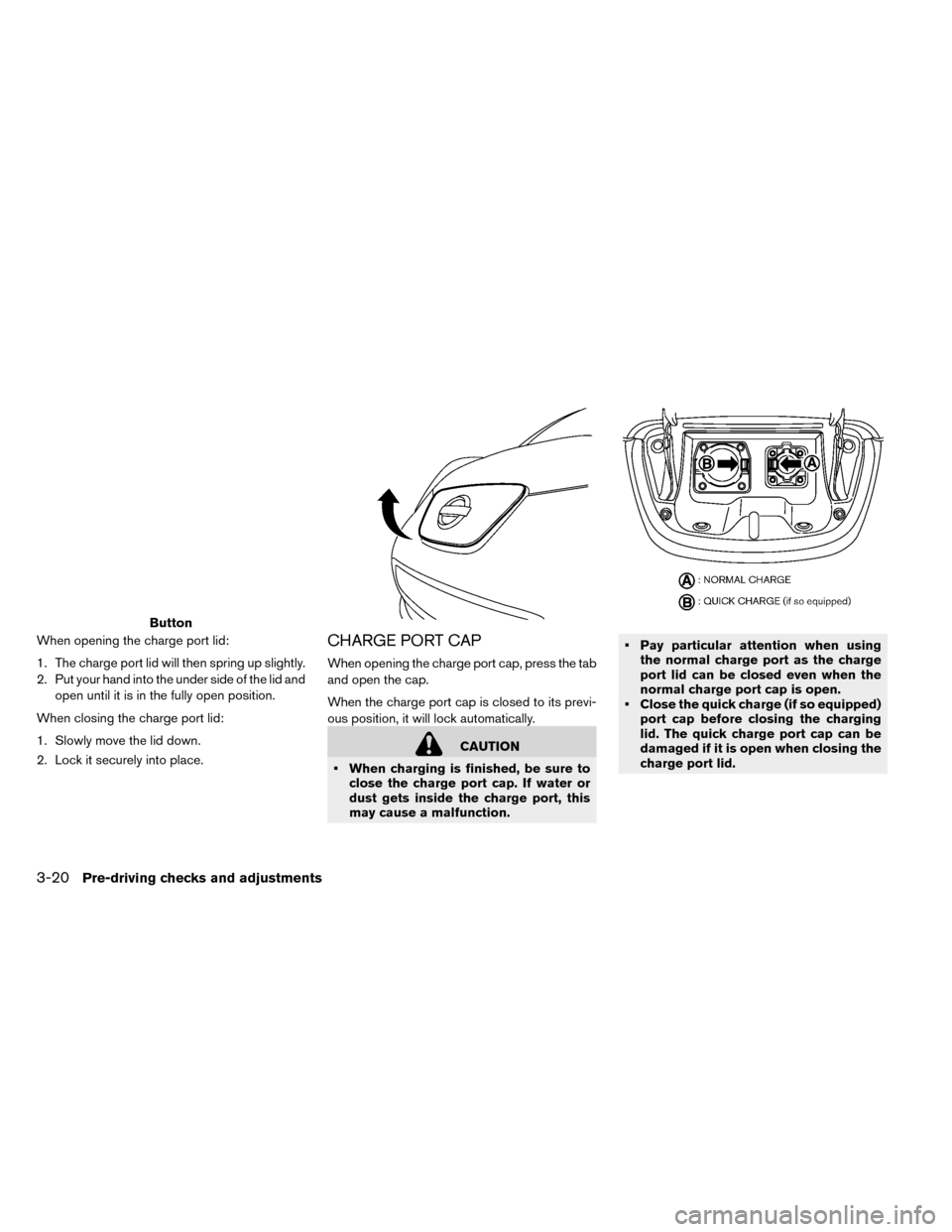

When opening the charge port lid:
1. The charge port lid will then spring up slightly.
2. Put your hand into the under side of the lid andopen until it is in the fully open position.
When closing the charge port lid:
1. Slowly move the lid down.
2. Lock it securely into place.CHARGE PORT CAP
When opening the charge port cap, press the tab
and open the cap.
When the charge port cap is closed to its previ-
ous position, it will lock automatically.
CAUTION
• When charging is finished, be sure to close the charge port cap. If water or
dust gets inside the charge port, this
may cause a malfunction. • Pay particular attention when using
the normal charge port as the charge
port lid can be closed even when the
normal charge port cap is open.
• Close the quick charge (if so equipped) port cap before closing the charging
lid. The quick charge port cap can be
damaged if it is open when closing the
charge port lid.
Button
3-20Pre-driving checks and adjustments
Page 222 of 412

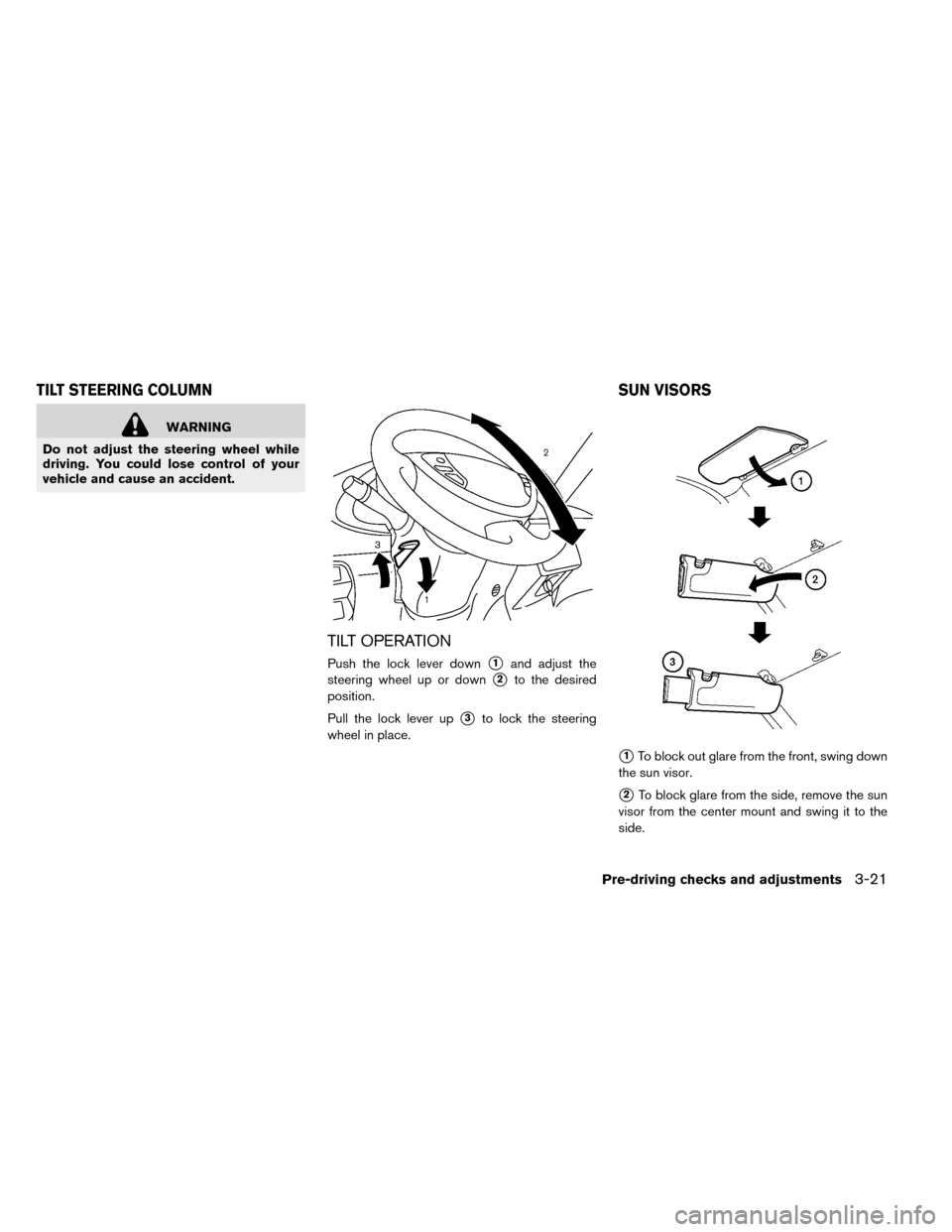

WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
TILT OPERATION
Push the lock lever down1and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever up
3to lock the steering
wheel in place.
1To block out glare from the front, swing down
the sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing it to the
side.
TILT STEERING COLUMN SUN VISORS
Pre-driving checks and adjustments3-21
Page 223 of 412

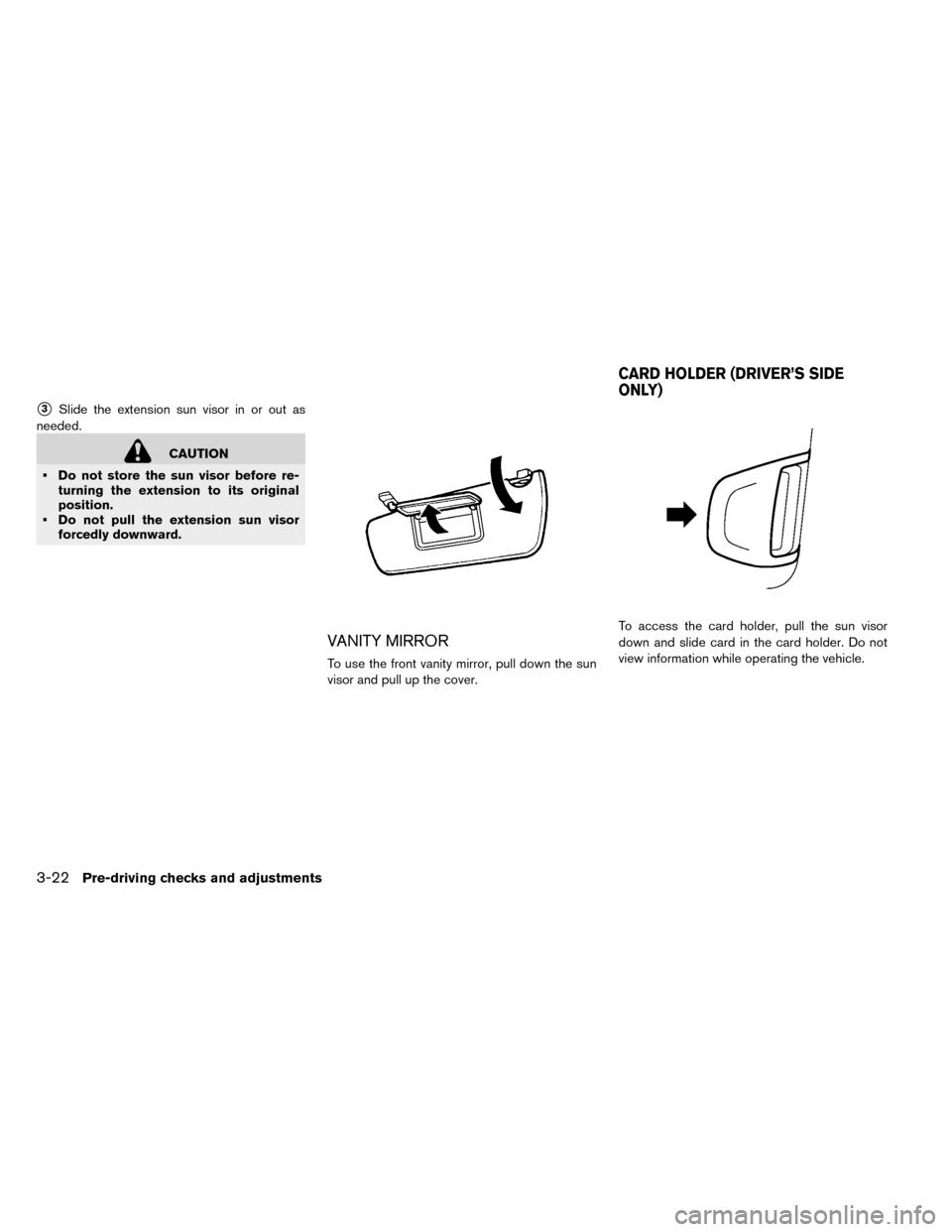

3Slide the extension sun visor in or out as
needed.
CAUTION
• Do not store the sun visor before re- turning the extension to its original
position.
• Do not pull the extension sun visor forcedly downward.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover. To access the card holder, pull the sun visor
down and slide card in the card holder. Do not
view information while operating the vehicle.
CARD HOLDER (DRIVER’S SIDE
ONLY)
3-22Pre-driving checks and adjustments
Page 224 of 412

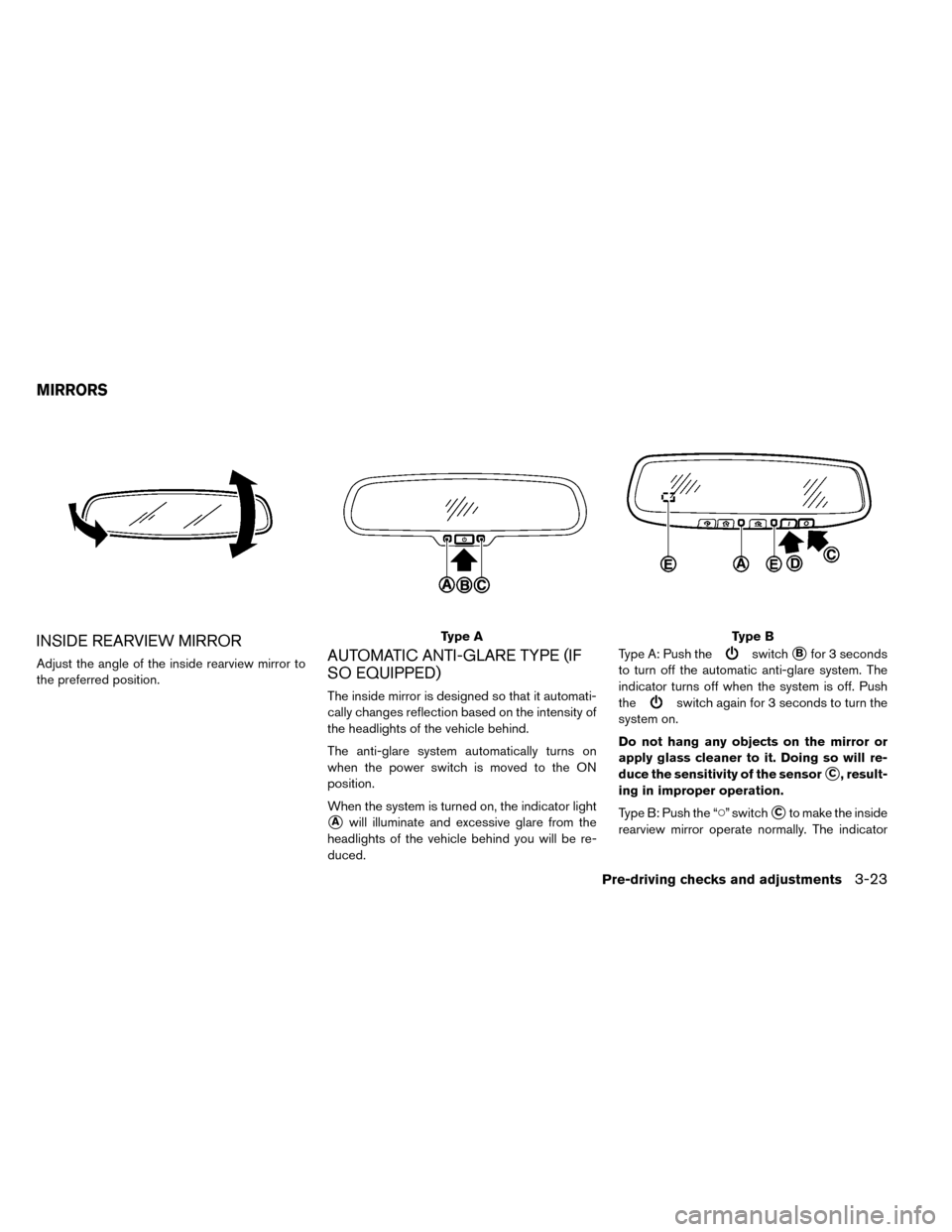

INSIDE REARVIEW MIRROR
Adjust the angle of the inside rearview mirror to
the preferred position.AUTOMATIC ANTI-GLARE TYPE (IF
SO EQUIPPED)
The inside mirror is designed so that it automati-
cally changes reflection based on the intensity of
the headlights of the vehicle behind.
The anti-glare system automatically turns on
when the power switch is moved to the ON
position.
When the system is turned on, the indicator light
Awill illuminate and excessive glare from the
headlights of the vehicle behind you will be re-
duced. Type A: Push the
switchBfor 3 seconds
to turn off the automatic anti-glare system. The
indicator turns off when the system is off. Push
the
switch again for 3 seconds to turn the
system on.
Do not hang any objects on the mirror or
apply glass cleaner to it. Doing so will re-
duce the sensitivity of the sensor
C, result-
ing in improper operation.
Type B: Push the “” switch
Cto make the inside
rearview mirror operate normally. The indicator
Type AType B
MIRRORS
Pre-driving checks and adjustments3-23
Page 225 of 412

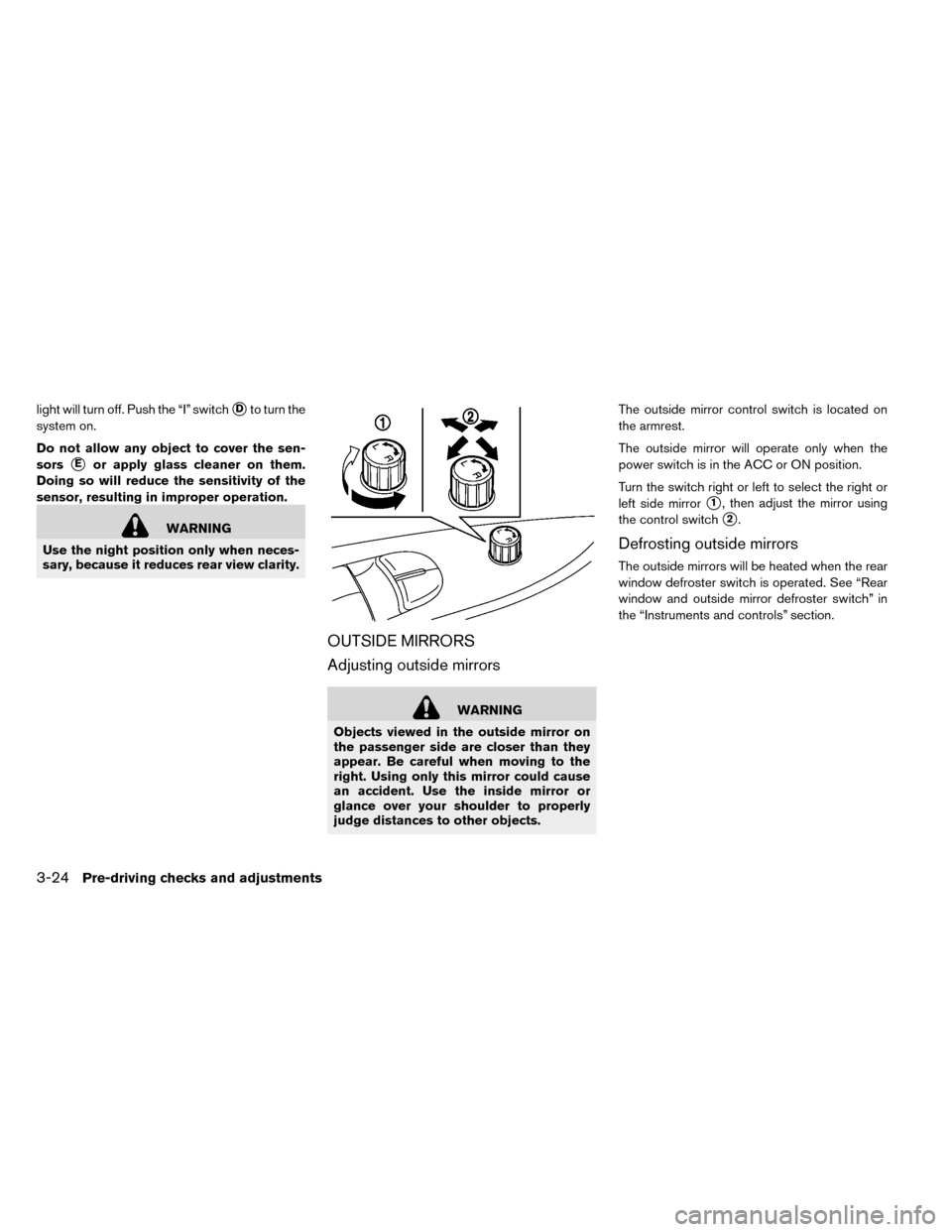

light will turn off. Push the “I” switchDto turn the
system on.
Do not allow any object to cover the sen-
sors
Eor apply glass cleaner on them.
Doing so will reduce the sensitivity of the
sensor, resulting in improper operation.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
OUTSIDE MIRRORS
Adjusting outside mirrors
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects. The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
power switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust the mirror using
the control switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the rear
window defroster switch is operated. See “Rear
window and outside mirror defroster switch” in
the “Instruments and controls” section.
3-24Pre-driving checks and adjustments
Page 226 of 412

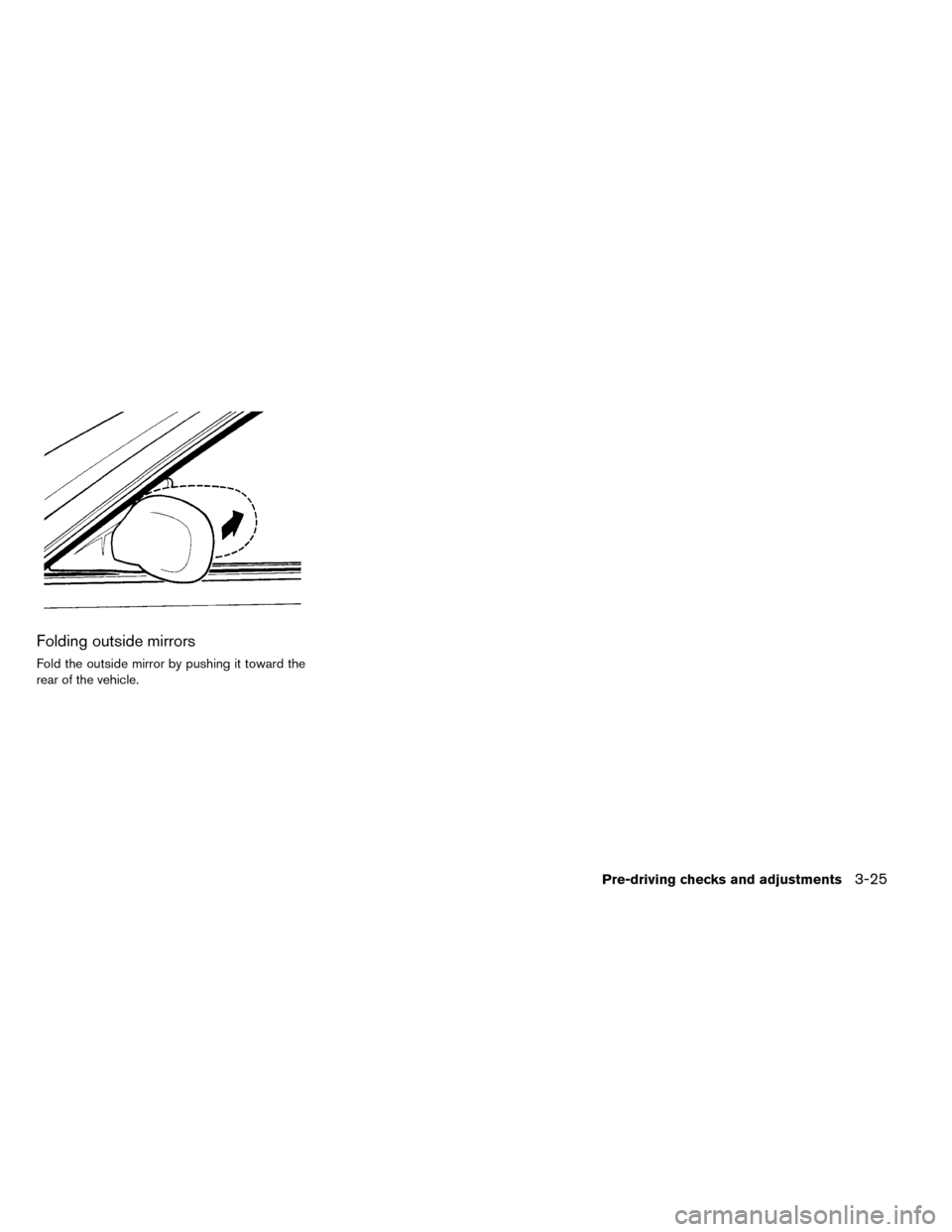

Folding outside mirrors
Fold the outside mirror by pushing it toward the
rear of the vehicle.
Pre-driving checks and adjustments3-25
Page 227 of 412

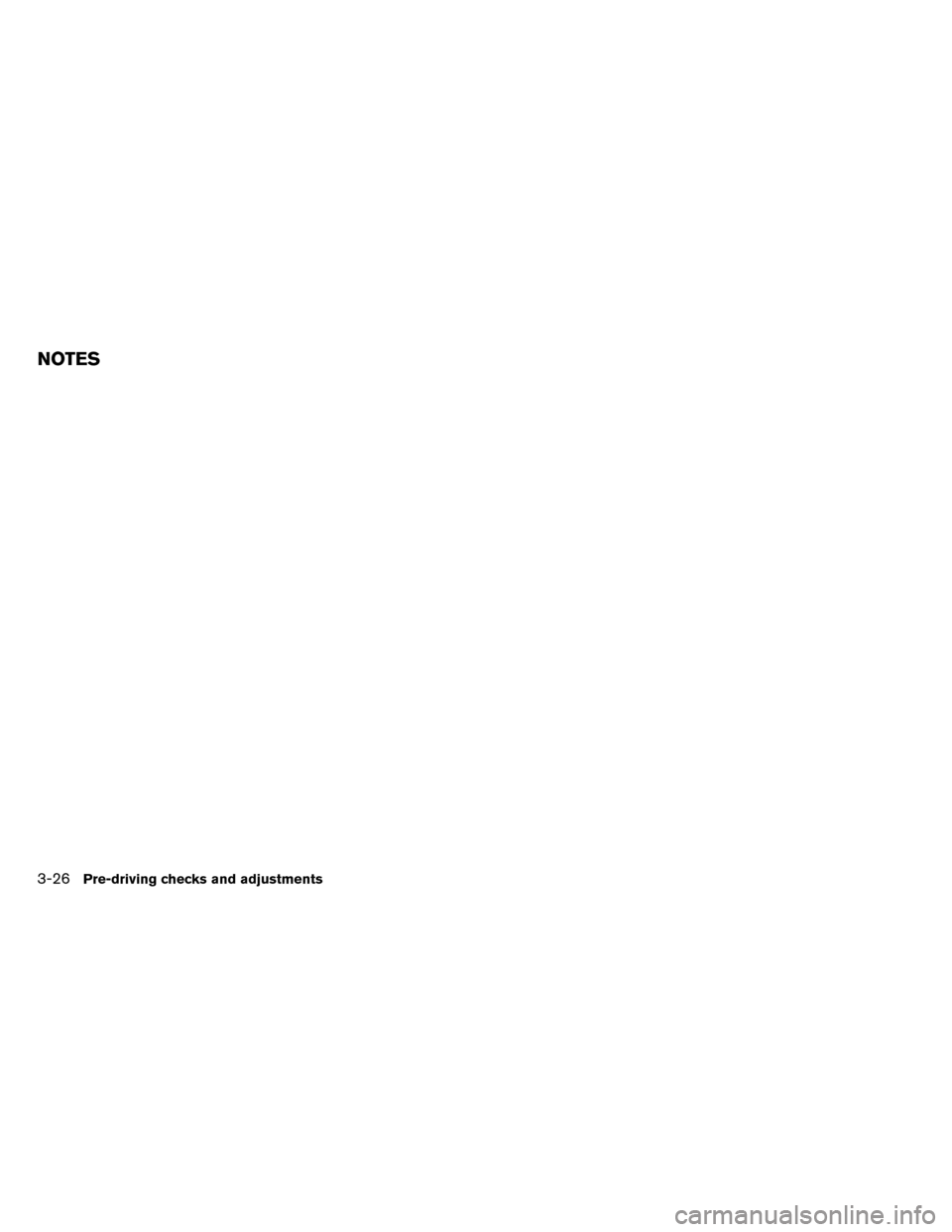

NOTES
3-26Pre-driving checks and adjustments
Page 228 of 412

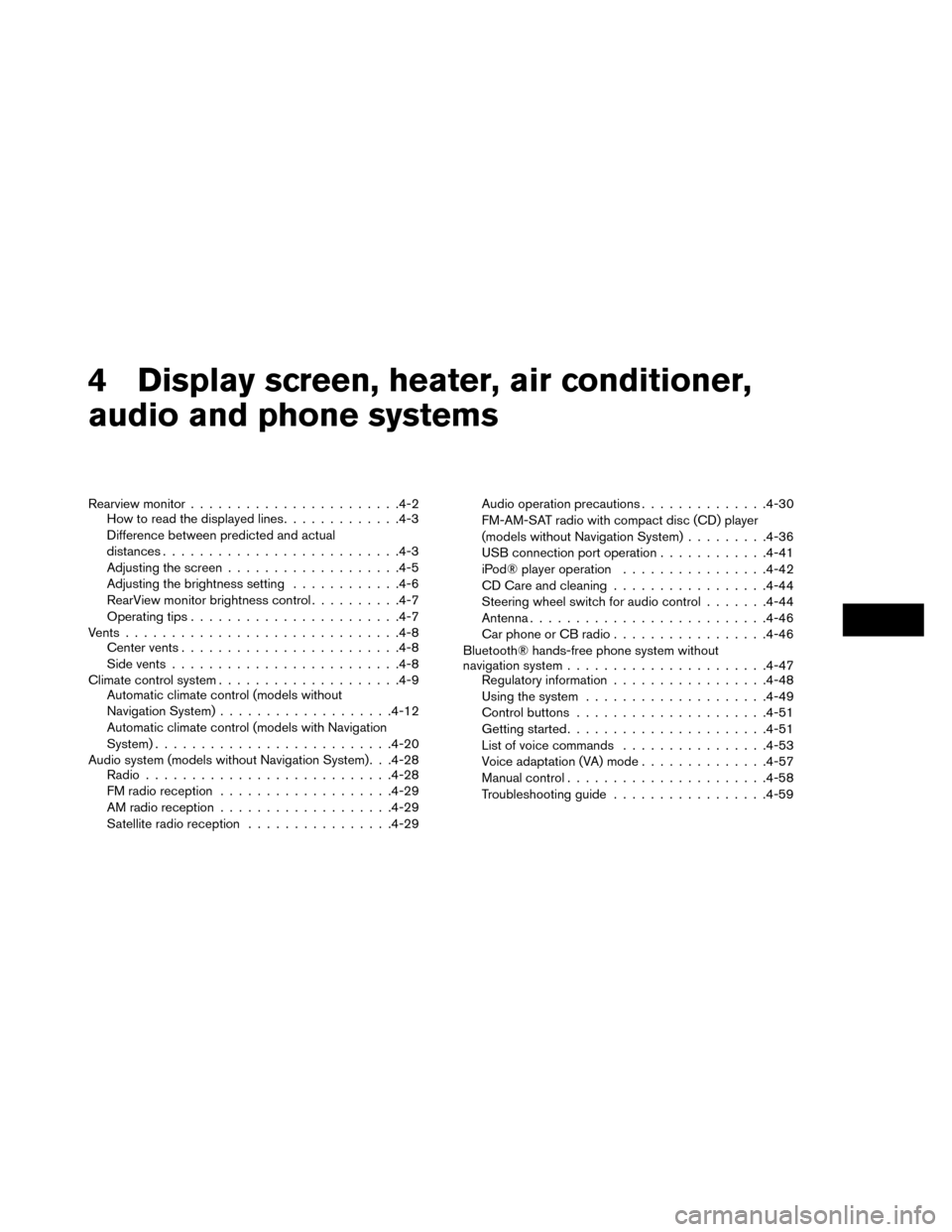

4 Display screen, heater, air conditioner,
audio and phone systems
Rearview monitor...................... .4-2
How to read the displayed lines .............4-3
Difference between predicted and actual
distances ......................... .4-3
Adjusting the screen .................. .4-5
Adjusting the brightness setting ............4-6
RearView monitor brightness control ..........4-7
Operating tips ...................... .4-7
Vents ............................. .4-8
Center vents ....................... .4-8
Side vents ........................ .4-8
Climate control system ................... .4-9
Automatic climate control (models without
Navigation System) .................. .4-12
Automatic climate control (models with Navigation
System) ......................... .4-20
Audio system (models without Navigation System). . .4-28 Radio .......................... .4-28
FM radio reception .................. .4-29
AM radio reception .................. .4-29
Satellite radio reception ................4-29 Audio operation precautions
..............4-30
FM-AM-SAT radio with compact disc (CD) player
(models without Navigation System) .........4-36
USB connection port operation ............4-41
iPod® player operation ................4-42
CD Care and cleaning ................ .4-44
Steering wheel switch for audio control .......4-44
Antenna ......................... .4-46
Car phone or CB radio ................ .4-46
Bluetooth® hands-free phone system without
navigation system ..................... .4-47
Regulatory information ................ .4-48
Using the system ................... .4-49
Control buttons .................... .4-51
Getting started ..................... .4-51
List of voice commands ................4-53
Voice adaptation (VA) mode ..............4-57
Manual control ......................4-58
T roubleshooting
guide ................ .4-59
Page 229 of 412

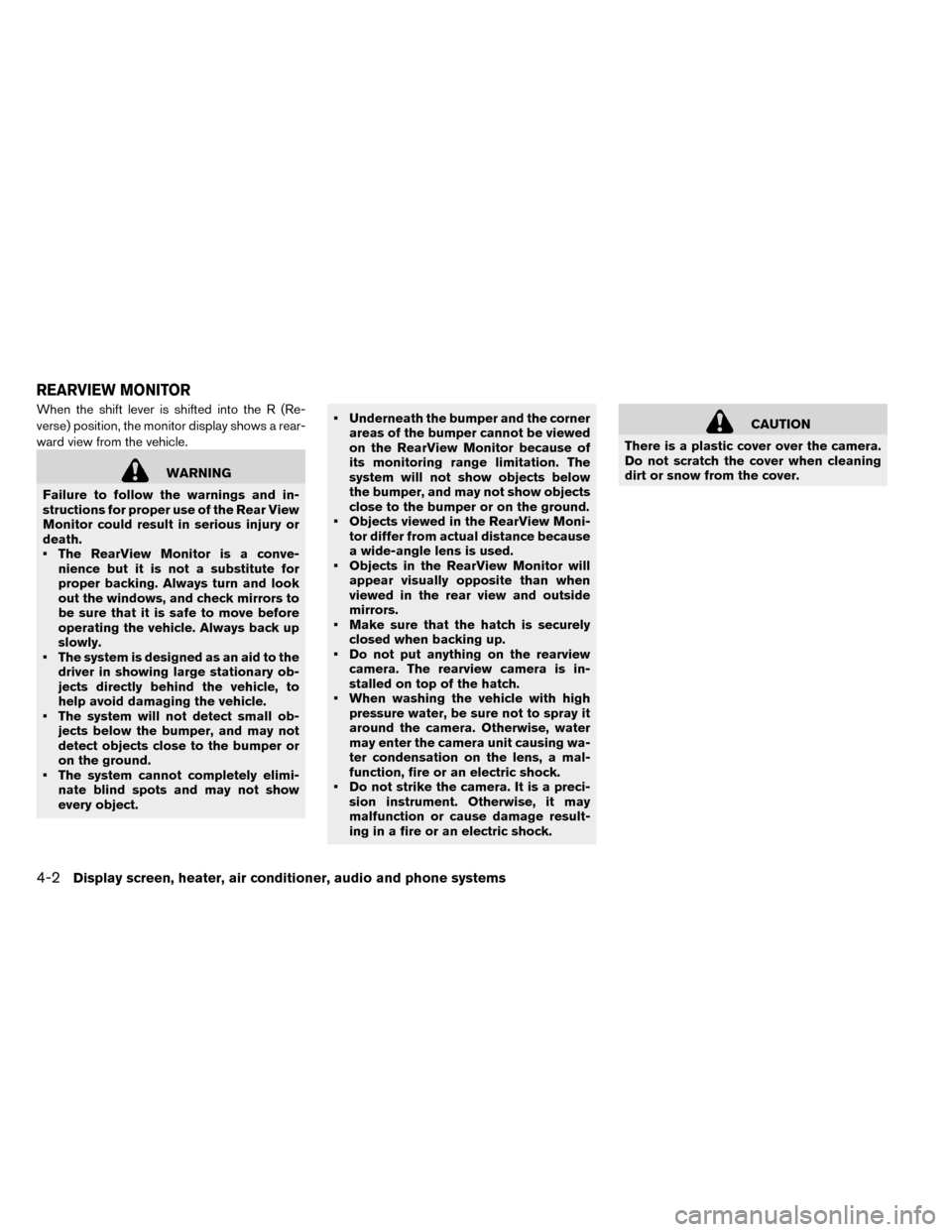

When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows a rear-
ward view from the vehicle.
WARNING
Failure to follow the warnings and in-
structions for proper use of the Rear View
Monitor could result in serious injury or
death.
• The RearView Monitor is a conve- nience but it is not a substitute for
proper backing. Always turn and look
out the windows, and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.
• The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to
help avoid damaging the vehicle.
• The system will not detect small ob- jects below the bumper, and may not
detect objects close to the bumper or
on the ground.
• The system cannot completely elimi- nate blind spots and may not show
every object. • Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of
its monitoring range limitation. The
system will not show objects below
the bumper, and may not show objects
close to the bumper or on the ground.
• Objects viewed in the RearView Moni- tor differ from actual distance because
a wide-angle lens is used.
• Objects in the RearView Monitor will appear visually opposite than when
viewed in the rear view and outside
mirrors.
• Make sure that the hatch is securely closed when backing up.
• Do not put anything on the rearview camera. The rearview camera is in-
stalled on top of the hatch.
• When washing the vehicle with high pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
• Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
REARVIEW MONITOR
4-2Display screen, heater, air conditioner, audio and phone systems
Page 230 of 412
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
• Red line
1: approx. 1.5 ft (0.5 m)
• Yellow line
2: approx. 3 ft (1 m)
• Green line
3: approx. 7 ft (2 m)
• Green line
4: approx. 10 ft (3 m)
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
Display screen, heater, air conditioner, audio and phone systems4-3
