The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
• Will operate most Radio Frequency (RF) de-vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
• Is powered by the vehicle’s 12-volt battery. No separate batteries are required. If the vehicle’s
12-volt battery is discharged or is discon-
nected, HomeLink® will retain all programming.
Once the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (for example, new vehicle pur-
chases) . Upon sale of the vehicle, the pro-
grammed HomeLink® Universal
Transceiver buttons should be erased for
security purposes. For additional informa-
tion, see “Programming HomeLink®” in
this section.
WARNING
• Do not use the HomeLink® Universal Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982.) A
garage door opener that cannot detect
an object in the path of a closing ga-
rage door and then automatically stop
and reverse, does not meet current
federal safety standards. Using a ga-
rage door opener without these fea-
tures increases the risk of serious in-
jury or death.
• During the programming procedure, your garage door or security gate will
open or close (if the transmitter is
within range) . Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.
• Place the power switch in the ACC or ON position while programming the
HomeLink® Universal Transceiver.
PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio-frequency.
1. Position the end of your hand-held transmitter
1–3 inches (2–8 cm) away from the
HomeLink® surface, keeping the HomeLink®
indicator light
1in view.
HOMELINK® UNIVERSAL
TRANSCEIVER (IF SO EQUIPPED)
Instruments and controls2-59

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having difficulties
training a gate operatororgarage door opener
by using the “Training” procedures, replace “Pro-
gramming HomeLink®” Step 2with the follow-
ing:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
1. See “Programing HomeLink®” step 1 in this section.
2. Using both hands, simultaneously press and hold the desired HomeLink® button and the
hand-held transmitter button. During training,
your hand-held transmitter may automatically stop transmitting. Continue to press and hold
the desired HomeLink® button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The
HomeLink® indicator light will flash slowly
and then rapidly after several seconds upon
successful training. DO NOT release until the
HomeLink® indicator light flashes slowly and
then rapidly. When the indicator light flashes
rapidly, both buttons may be released. The
rapid flashing indicates successful training.
Proceed with “Programming HomeLink®” step 3
to complete.
If the device was unplugged during the program-
ming procedure, remember to plug it back in
when programming is completed.OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release the appropriate programmed
HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted. For convenience, the hand-held transmitter of the
device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If HomeLink® does not quickly learn the hand-
held transmitter information, perform the follow-
ing steps.
• Replace the hand-held transmitter batteries
with new batteries.
• Position the hand-held transmitter with its bat- tery area facing away from the HomeLink®
surface.
• Push and hold both the HomeLink® and hand- held transmitter buttons without interruption.
• Position the hand-held transmitter 1 to 3 inches (2 to 8 cm) away from the HomeLink® surface.
Hold the transmitter in that position for up to 15
seconds. If HomeLink® is not programmed
within that time, try holding the transmitter in
another position while keeping the indicator
light in view at all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this Owner’s Manual.
Instruments and controls2-61

“Outgoing”C
Use the Outgoing command to list the outgoing
calls made from the vehicle.
“Redial”
D
Use the Redial command to dial the number of
the last outgoing call from the vehicle.
“Call Back”
E
Use the Call Back command to dial the number of
the last incoming call to the vehicle.
“Connect phone”
NOTE:
The Add Phone command is not available
when the vehicle is moving.
Main Menu“Connect Phone”“Add Phone”
A
“Replace Phone”B
“Select Phone”C
“Delete Phone”D
“Bluetooth OFF”E
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to enable
the Bluetooth® function on the vehicle. “Add Phone”
A
Use the Add Phone command to add a phone to
the vehicle. See “Connecting procedure” in this
section for more information.
“Replace Phone”
B
Use the Replace Phone command to replace an
existing phone pairing with a new phone. The
system will keep all voice tags assigned to your
phonebook.
“Select Phone”
C
Use the Select Phone command to select from a
list of phones connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
select. Only one phone can be active at a time.
“Delete Phone”
D
Use the Delete Phone command to delete a
phone that is connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
delete. Deleting a phone from the vehicle will also
delete that phonebook for that phone.
“Bluetooth OFF”
E
Use the Bluetooth OFF command to prevent a
wireless connection to your phone.
VOICE ADAPTATION (VA) MODE
Voice Adaptation allows up to two out-of-dialect
users to train the system to improve recognition
accuracy. By repeating a number of commands,
the users can create a voice model of their own
voice that is stored in the system. The system is
capable of storing a different voice adaptation
model for each connected phone.
Training procedure
The procedure for training a voice is as follows:
1. Position the vehicle in a reasonably quiet out-
door location.
2. Sit in the driver’s seat with the parking brake on and the transmission in P (Park) .
3. Press and hold the
button for more than
5 seconds.
4. The system announces: “Press the PHONE/ SEND (
) button for the hands-free
phone system to enter the voice adaptation
mode or press the PHONE/END (
)
button to select a different language.”
5. Press the
button.
For information on selecting a different lan-
guage, see “Choosing a language” in this
section.
Display screen, heater, air conditioner, audio and phone systems4-57

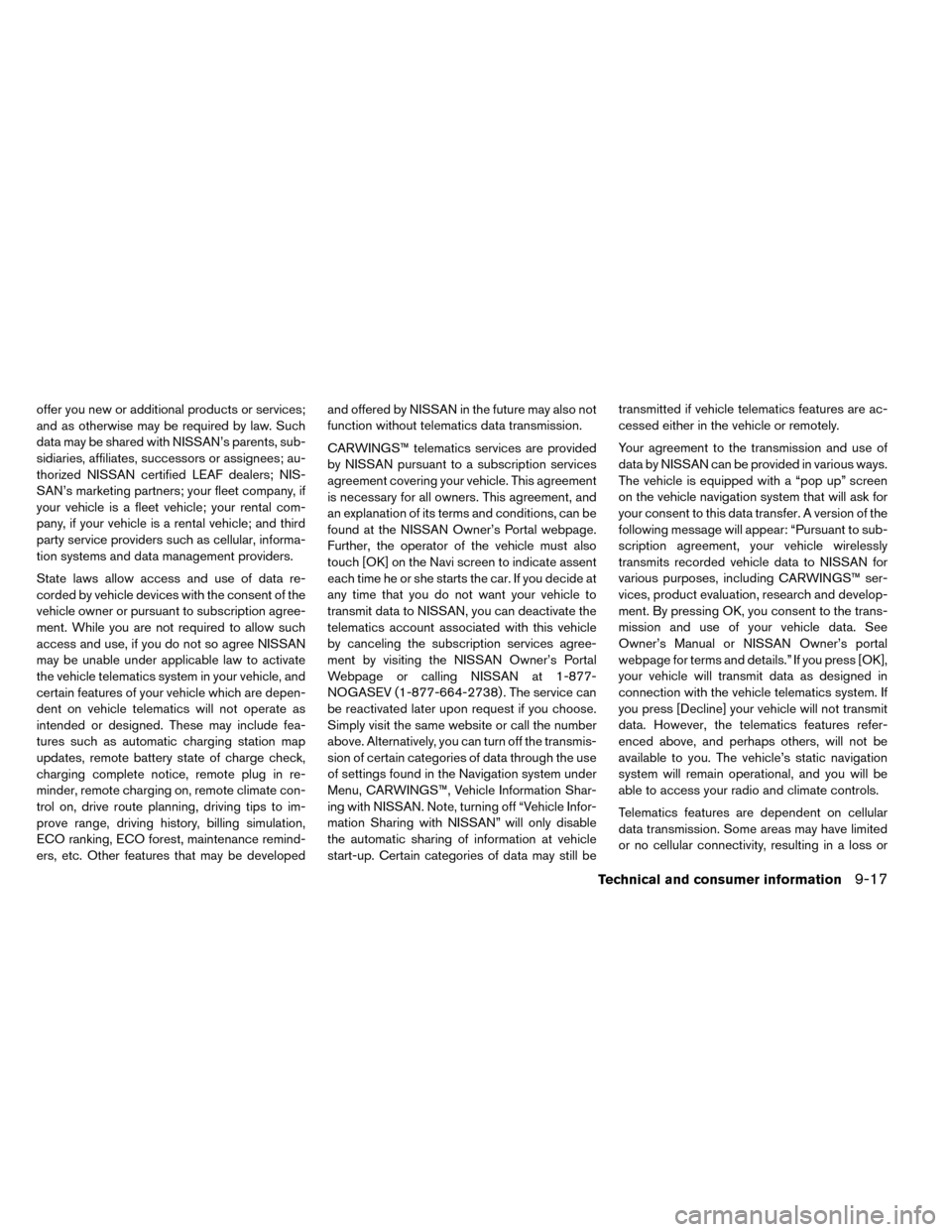

offer you new or additional products or services;
and as otherwise may be required by law. Such
data may be shared with NISSAN’s parents, sub-
sidiaries, affiliates, successors or assignees; au-
thorized NISSAN certified LEAF dealers; NIS-
SAN’s marketing partners; your fleet company, if
your vehicle is a fleet vehicle; your rental com-
pany, if your vehicle is a rental vehicle; and third
party service providers such as cellular, informa-
tion systems and data management providers.
State laws allow access and use of data re-
corded by vehicle devices with the consent of the
vehicle owner or pursuant to subscription agree-
ment. While you are not required to allow such
access and use, if you do not so agree NISSAN
may be unable under applicable law to activate
the vehicle telematics system in your vehicle, and
certain features of your vehicle which are depen-
dent on vehicle telematics will not operate as
intended or designed. These may include fea-
tures such as automatic charging station map
updates, remote battery state of charge check,
charging complete notice, remote plug in re-
minder, remote charging on, remote climate con-
trol on, drive route planning, driving tips to im-
prove range, driving history, billing simulation,
ECO ranking, ECO forest, maintenance remind-
ers, etc. Other features that may be developedand offered by NISSAN in the future may also not
function without telematics data transmission.
CARWINGS™ telematics services are provided
by NISSAN pursuant to a subscription services
agreement covering your vehicle. This agreement
is necessary for all owners. This agreement, and
an explanation of its terms and conditions, can be
found at the NISSAN Owner’s Portal webpage.
Further, the operator of the vehicle must also
touch [OK] on the Navi screen to indicate assent
each time he or she starts the car. If you decide at
any time that you do not want your vehicle to
transmit data to NISSAN, you can deactivate the
telematics account associated with this vehicle
by canceling the subscription services agree-
ment by visiting the NISSAN Owner’s Portal
Webpage or calling NISSAN at 1-877-
NOGASEV (1-877-664-2738) . The service can
be reactivated later upon request if you choose.
Simply visit the same website or call the number
above. Alternatively, you can turn off the transmis-
sion of certain categories of data through the use
of settings found in the Navigation system under
Menu, CARWINGS™, Vehicle Information Shar-
ing with NISSAN. Note, turning off “Vehicle Infor-
mation Sharing with NISSAN” will only disable
the automatic sharing of information at vehicle
start-up. Certain categories of data may still betransmitted if vehicle telematics features are ac-
cessed either in the vehicle or remotely.
Your agreement to the transmission and use of
data by NISSAN can be provided in various ways.
The vehicle is equipped with a “pop up” screen
on the vehicle navigation system that will ask for
your consent to this data transfer. A version of the
following message will appear: “Pursuant to sub-
scription agreement, your vehicle wirelessly
transmits recorded vehicle data to NISSAN for
various purposes, including CARWINGS™ ser-
vices, product evaluation, research and develop-
ment. By pressing OK, you consent to the trans-
mission and use of your vehicle data. See
Owner’s Manual or NISSAN Owner’s portal
webpage for terms and details.” If you press [OK],
your vehicle will transmit data as designed in
connection with the vehicle telematics system. If
you press [Decline] your vehicle will not transmit
data. However, the telematics features refer-
enced above, and perhaps others, will not be
available to you. The vehicle’s static navigation
system will remain operational, and you will be
able to access your radio and climate controls.
Telematics features are dependent on cellular
data transmission. Some areas may have limited
or no cellular connectivity, resulting in a loss or
Technical and consumer information9-17

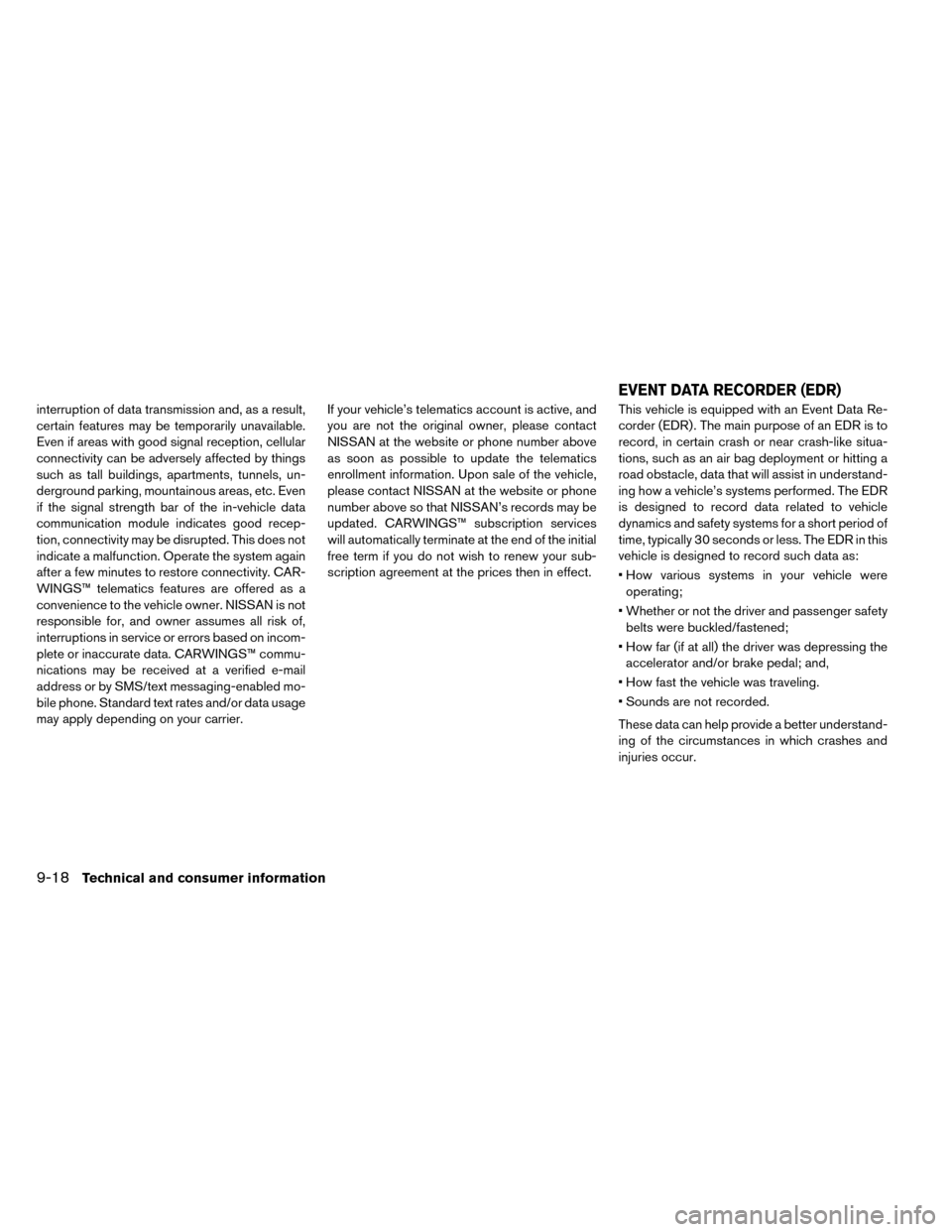

interruption of data transmission and, as a result,
certain features may be temporarily unavailable.
Even if areas with good signal reception, cellular
connectivity can be adversely affected by things
such as tall buildings, apartments, tunnels, un-
derground parking, mountainous areas, etc. Even
if the signal strength bar of the in-vehicle data
communication module indicates good recep-
tion, connectivity may be disrupted. This does not
indicate a malfunction. Operate the system again
after a few minutes to restore connectivity. CAR-
WINGS™ telematics features are offered as a
convenience to the vehicle owner. NISSAN is not
responsible for, and owner assumes all risk of,
interruptions in service or errors based on incom-
plete or inaccurate data. CARWINGS™ commu-
nications may be received at a verified e-mail
address or by SMS/text messaging-enabled mo-
bile phone. Standard text rates and/or data usage
may apply depending on your carrier.If your vehicle’s telematics account is active, and
you are not the original owner, please contact
NISSAN at the website or phone number above
as soon as possible to update the telematics
enrollment information. Upon sale of the vehicle,
please contact NISSAN at the website or phone
number above so that NISSAN’s records may be
updated. CARWINGS™ subscription services
will automatically terminate at the end of the initial
free term if you do not wish to renew your sub-
scription agreement at the prices then in effect.
This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
• How various systems in your vehicle were
operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
• Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur.
EVENT DATA RECORDER (EDR)
9-18Technical and consumer information
