NISSAN LEAF 2016 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: LEAF, Model: NISSAN LEAF 2016 1.GPages: 437, PDF Size: 4.56 MB
Page 91 of 437

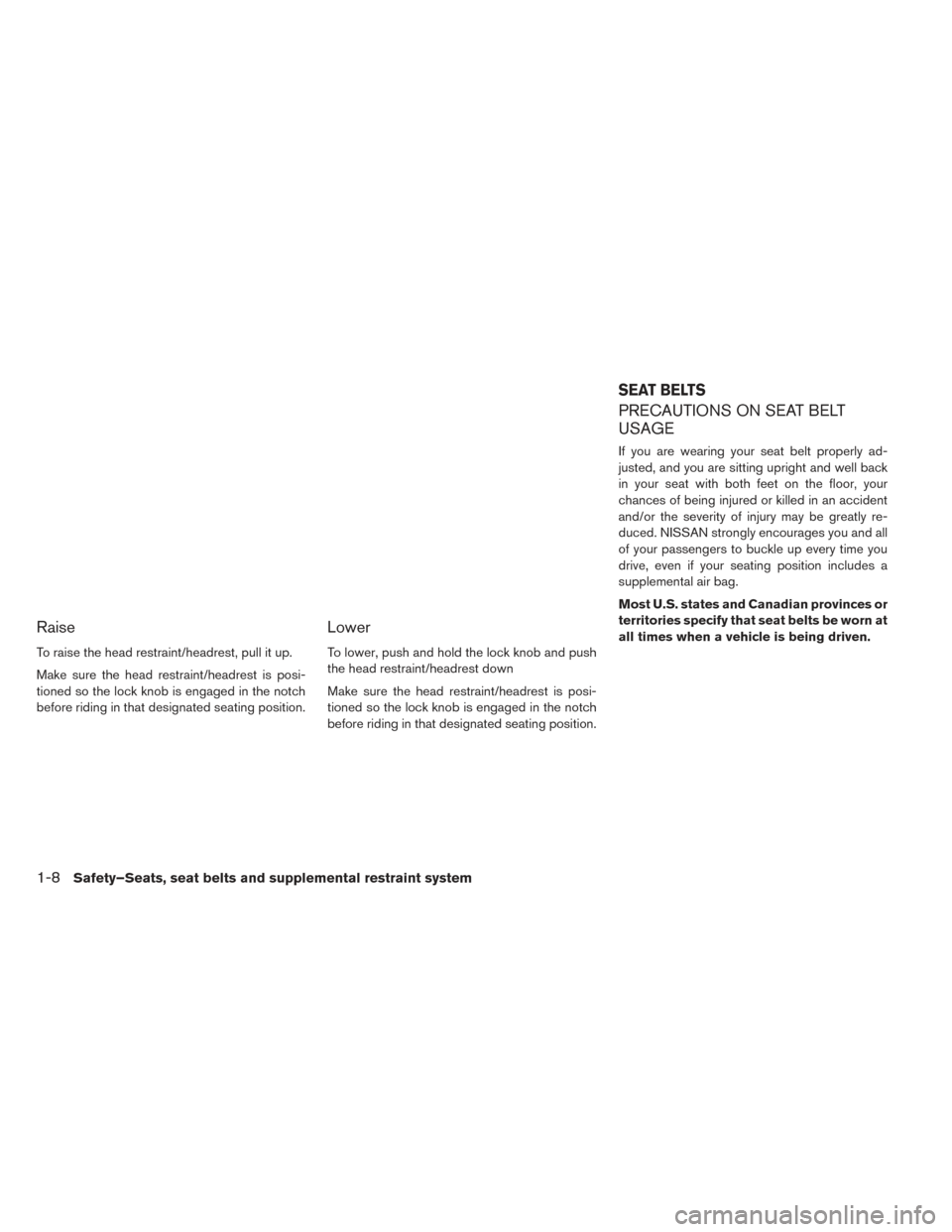

Raise
To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Lower
To lower, push and hold the lock knob and push
the head restraint/headrest down
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed, and you are sitting upright and well back
in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly re-
duced. NISSAN strongly encourages you and all
of your passengers to buckle up every time you
drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SEAT BELTS
1-8Safety–Seats, seat belts and supplemental restraint system
Page 92 of 437

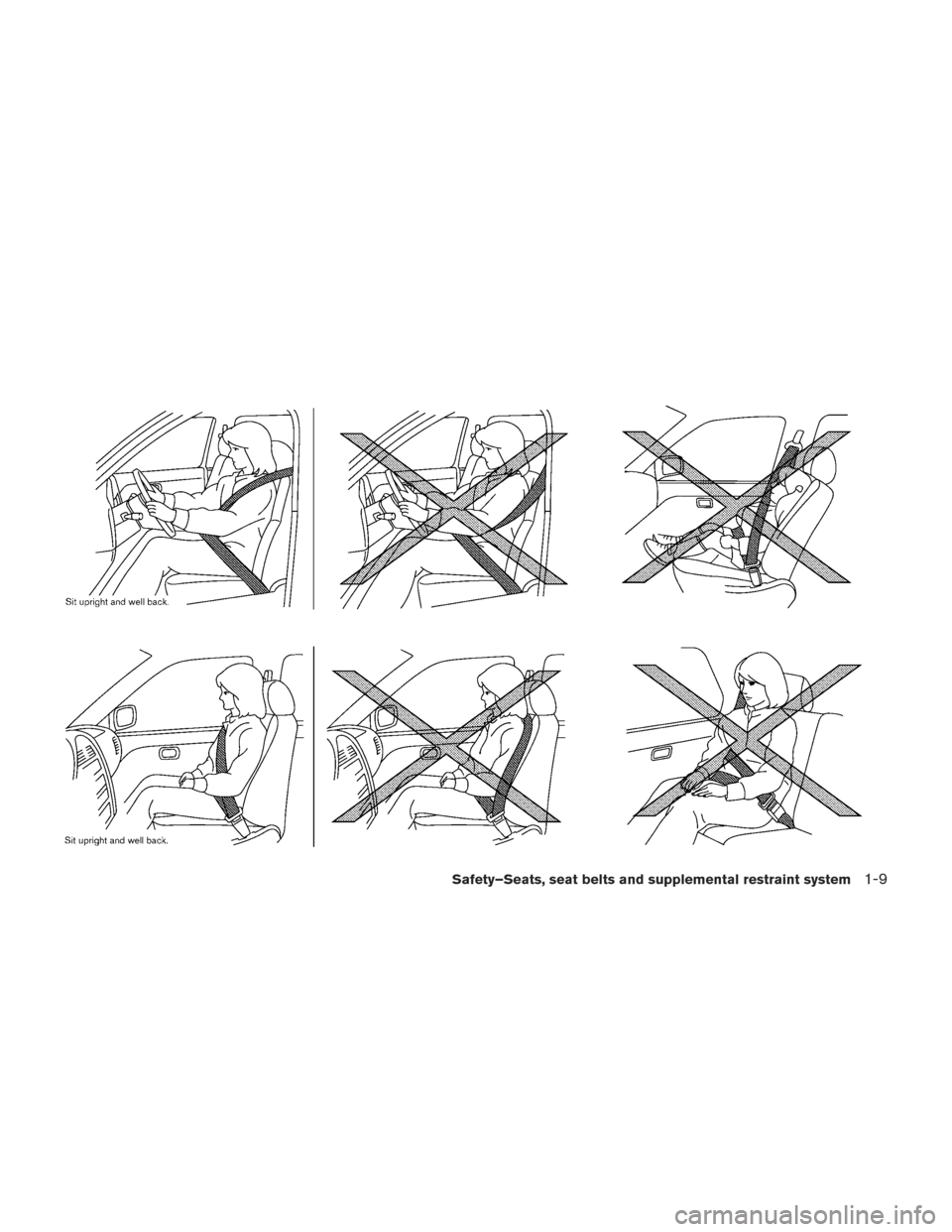

Safety–Seats, seat belts and supplemental restraint system1-9
Page 93 of 437

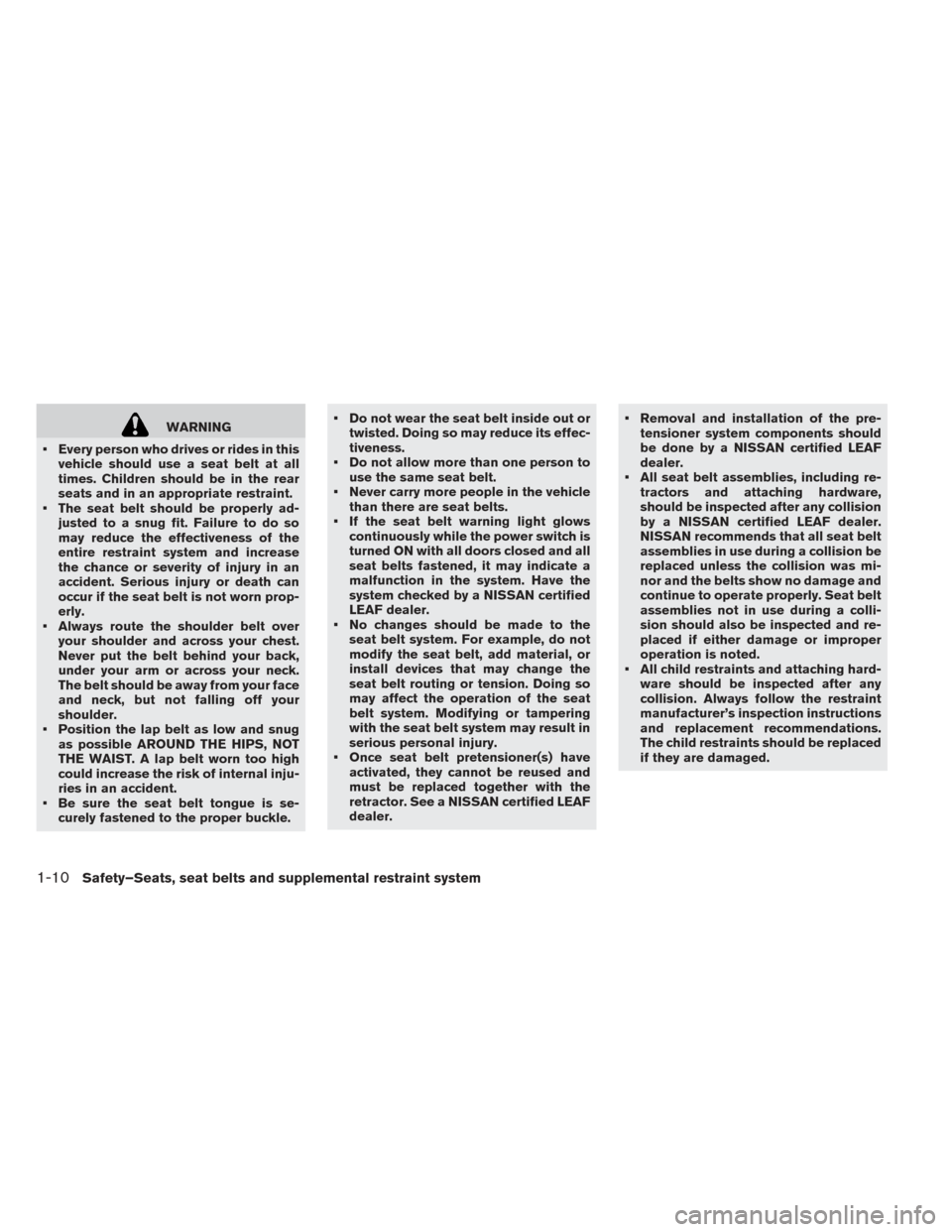

WARNING
• Every person who drives or rides in this vehicle should use a seat belt at all
times. Children should be in the rear
seats and in an appropriate restraint.
• The seat belt should be properly ad- justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident. Serious injury or death can
occur if the seat belt is not worn prop-
erly.
• Always route the shoulder belt over your shoulder and across your chest.
Never put the belt behind your back,
under your arm or across your neck.
The belt should be away from your face
and neck, but not falling off your
shoulder.
• Position the lap belt as low and snug as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal inju-
ries in an accident.
• Be sure the seat belt tongue is se- curely fastened to the proper buckle. • Do not wear the seat belt inside out or
twisted. Doing so may reduce its effec-
tiveness.
• Do not allow more than one person to use the same seat belt.
• Never carry more people in the vehicle than there are seat belts.
• If the seat belt warning light glows continuously while the power switch is
turned ON with all doors closed and all
seat belts fastened, it may indicate a
malfunction in the system. Have the
system checked by a NISSAN certified
LEAF dealer.
• No changes should be made to the seat belt system. For example, do not
modify the seat belt, add material, or
install devices that may change the
seat belt routing or tension. Doing so
may affect the operation of the seat
belt system. Modifying or tampering
with the seat belt system may result in
serious personal injury.
• Once seat belt pretensioner(s) have activated, they cannot be reused and
must be replaced together with the
retractor. See a NISSAN certified LEAF
dealer. • Removal and installation of the pre-
tensioner system components should
be done by a NISSAN certified LEAF
dealer.
• All seat belt assemblies, including re- tractors and attaching hardware,
should be inspected after any collision
by a NISSAN certified LEAF dealer.
NISSAN recommends that all seat belt
assemblies in use during a collision be
replaced unless the collision was mi-
nor and the belts show no damage and
continue to operate properly. Seat belt
assemblies not in use during a colli-
sion should also be inspected and re-
placed if either damage or improper
operation is noted.
• All child restraints and attaching hard- ware should be inspected after any
collision. Always follow the restraint
manufacturer’s inspection instructions
and replacement recommendations.
The child restraints should be replaced
if they are damaged.
1-10Safety–Seats, seat belts and supplemental restraint system
Page 94 of 437

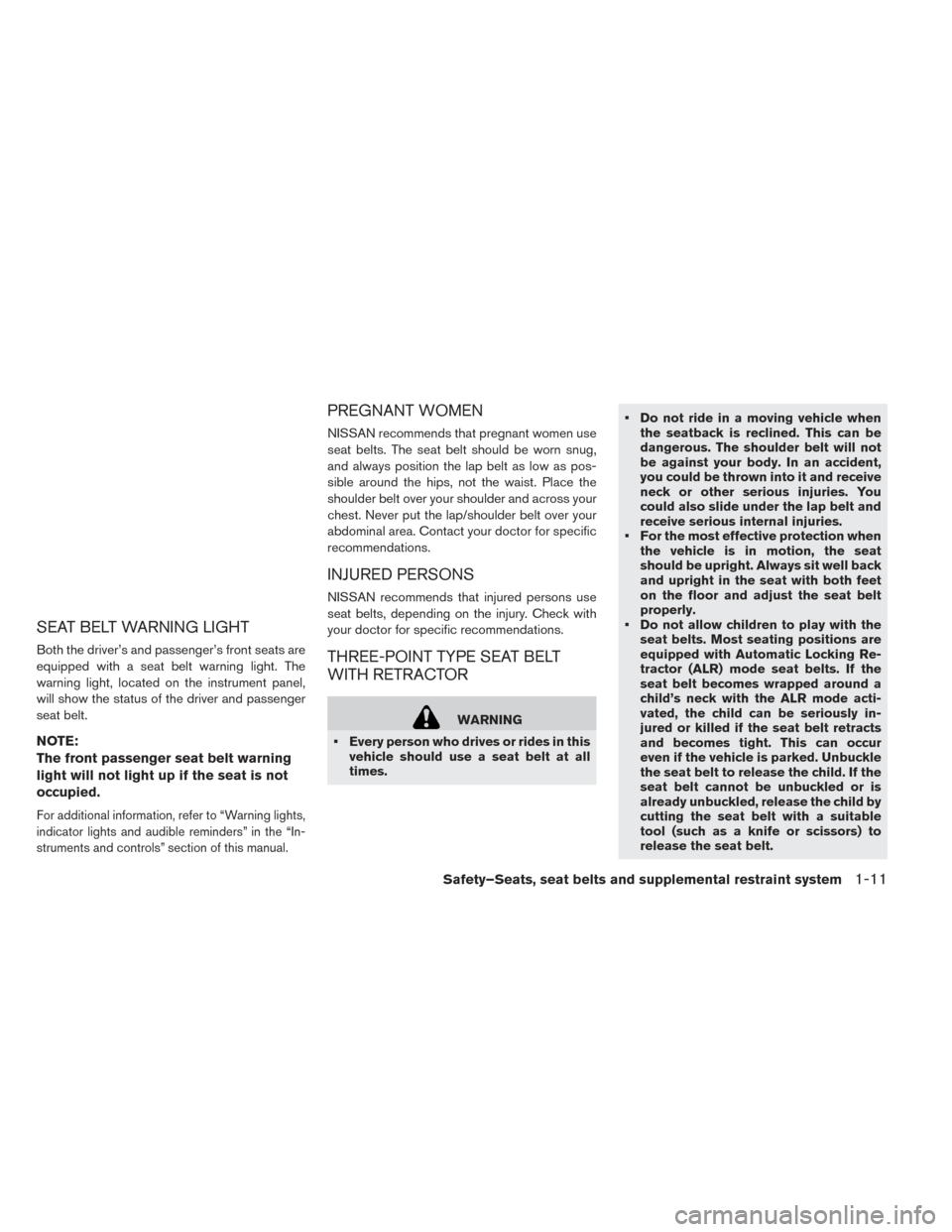

SEAT BELT WARNING LIGHT
Both the driver’s and passenger’s front seats are
equipped with a seat belt warning light. The
warning light, located on the instrument panel,
will show the status of the driver and passenger
seat belt.
NOTE:
The front passenger seat belt warning
light will not light up if the seat is not
occupied.
For additional information, refer to “Warning lights,
indicator lights and audible reminders” in the “In-
struments and controls” section of this manual.
PREGNANT WOMEN
NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as pos-
sible around the hips, not the waist. Place the
shoulder belt over your shoulder and across your
chest. Never put the lap/shoulder belt over your
abdominal area. Contact your doctor for specific
recommendations.
INJURED PERSONS
NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
• Every person who drives or rides in this vehicle should use a seat belt at all
times. • Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
• For the most effective protection when the vehicle is in motion, the seat
should be upright. Always sit well back
and upright in the seat with both feet
on the floor and adjust the seat belt
properly.
• Do not allow children to play with the seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously in-
jured or killed if the seat belt retracts
and becomes tight. This can occur
even if the vehicle is parked. Unbuckle
the seat belt to release the child. If the
seat belt cannot be unbuckled or is
already unbuckled, release the child by
cutting the seat belt with a suitable
tool (such as a knife or scissors) to
release the seat belt.
Safety–Seats, seat belts and supplemental restraint system1-11
Page 95 of 437

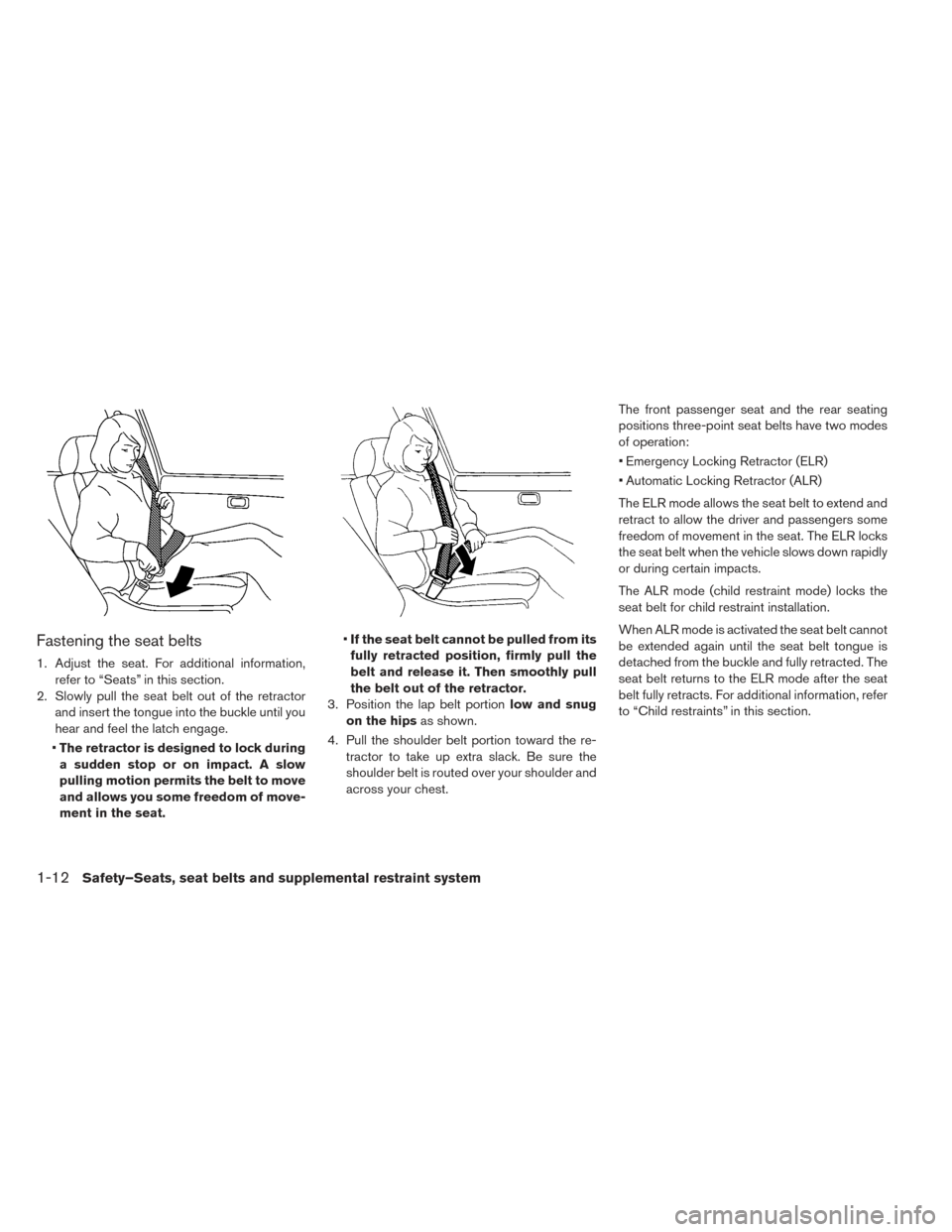

Fastening the seat belts
1. Adjust the seat. For additional information,refer to “Seats” in this section.
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you
hear and feel the latch engage.
• The retractor is designed to lock during
a sudden stop or on impact. A slow
pulling motion permits the belt to move
and allows you some freedom of move-
ment in the seat. •
If the seat belt cannot be pulled from its
fully retracted position, firmly pull the
belt and release it. Then smoothly pull
the belt out of the retractor.
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the re- tractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder and
across your chest. The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
• Emergency Locking Retractor (ELR)
• Automatic Locking Retractor (ALR)
The ELR mode allows the seat belt to extend and
retract to allow the driver and passengers some
freedom of movement in the seat. The ELR locks
the seat belt when the vehicle slows down rapidly
or during certain impacts.
The ALR mode (child restraint mode) locks the
seat belt for child restraint installation.
When ALR mode is activated the seat belt cannot
be extended again until the seat belt tongue is
detached from the buckle and fully retracted. The
seat belt returns to the ELR mode after the seat
belt fully retracts. For additional information, refer
to “Child restraints” in this section.
1-12Safety–Seats, seat belts and supplemental restraint system
Page 96 of 437

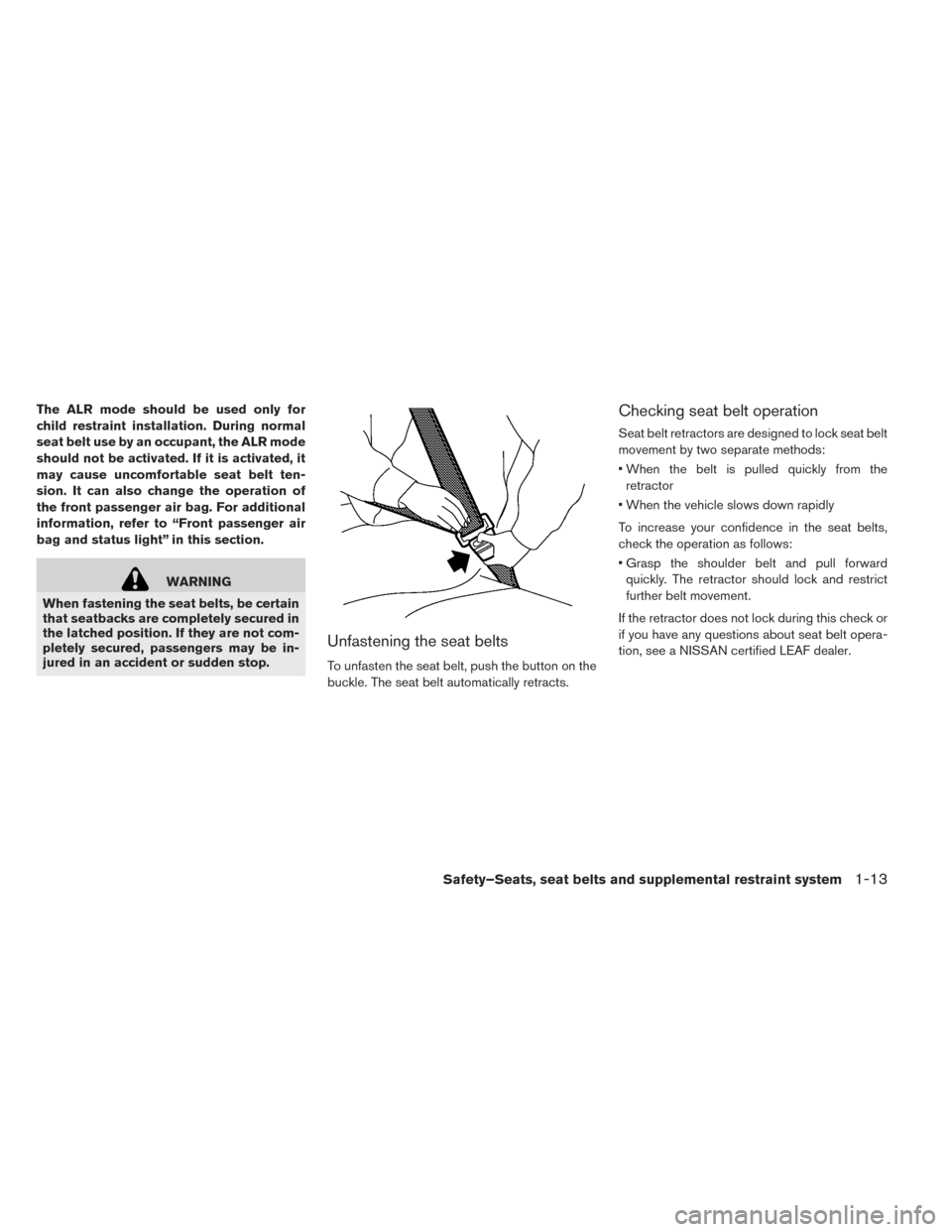

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten-
sion. It can also change the operation of
the front passenger air bag. For additional
information, refer to “Front passenger air
bag and status light” in this section.
WARNING
When fastening the seat belts, be certain
that seatbacks are completely secured in
the latched position. If they are not com-
pletely secured, passengers may be in-
jured in an accident or sudden stop.
Unfastening the seat belts
To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
Checking seat belt operation
Seat belt retractors are designed to lock seat belt
movement by two separate methods:
• When the belt is pulled quickly from the retractor
• When the vehicle slows down rapidly
To increase your confidence in the seat belts,
check the operation as follows:
• Grasp the shoulder belt and pull forward quickly. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check or
if you have any questions about seat belt opera-
tion, see a NISSAN certified LEAF dealer.
Safety–Seats, seat belts and supplemental restraint system1-13
Page 97 of 437

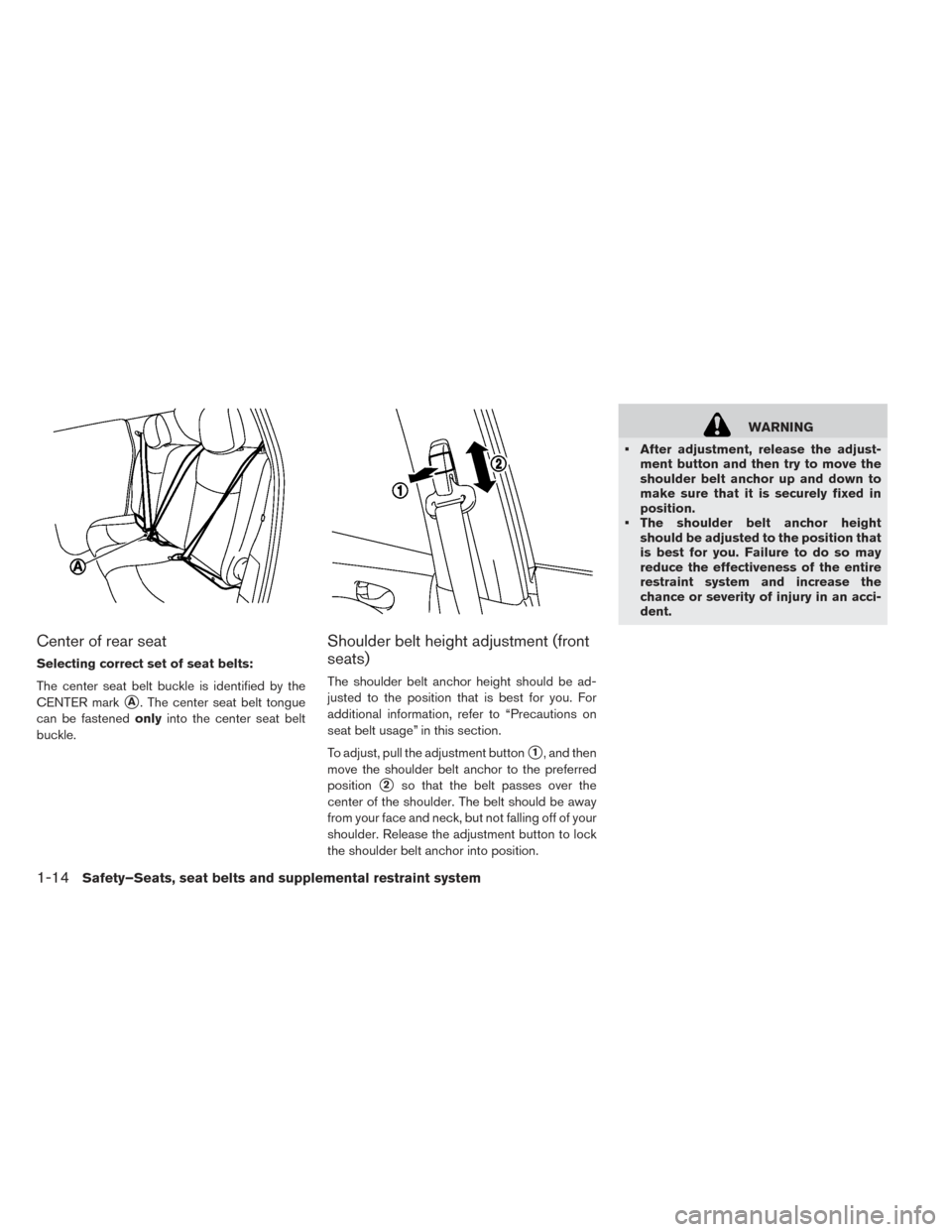

Center of rear seat
Selecting correct set of seat belts:
The center seat belt buckle is identified by the
CENTER mark
A. The center seat belt tongue
can be fastened onlyinto the center seat belt
buckle.
Shoulder belt height adjustment (front
seats)
The shoulder belt anchor height should be ad-
justed to the position that is best for you. For
additional information, refer to “Precautions on
seat belt usage” in this section.
To adjust, pull the adjustment button
1, and then
move the shoulder belt anchor to the preferred
position
2so that the belt passes over the
center of the shoulder. The belt should be away
from your face and neck, but not falling off of your
shoulder. Release the adjustment button to lock
the shoulder belt anchor into position.
WARNING
• After adjustment, release the adjust- ment button and then try to move the
shoulder belt anchor up and down to
make sure that it is securely fixed in
position.
• The shoulder belt anchor height should be adjusted to the position that
is best for you. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an acci-
dent.
1-14Safety–Seats, seat belts and supplemental restraint system
Page 98 of 437

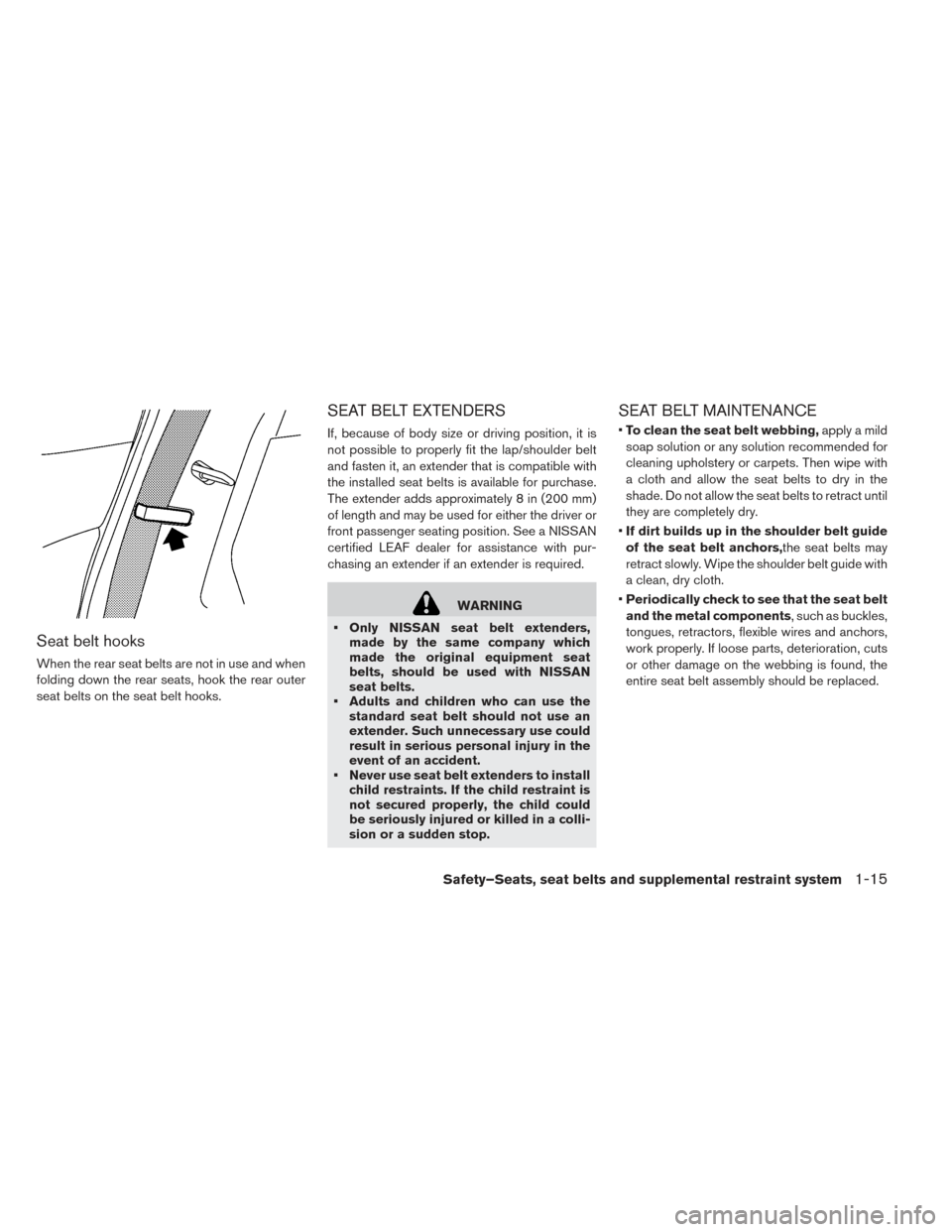

Seat belt hooks
When the rear seat belts are not in use and when
folding down the rear seats, hook the rear outer
seat belts on the seat belt hooks.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available for purchase.
The extender adds approximately 8 in (200 mm)
of length and may be used for either the driver or
front passenger seating position. See a NISSAN
certified LEAF dealer for assistance with pur-
chasing an extender if an extender is required.
WARNING
• Only NISSAN seat belt extenders, made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.
• Adults and children who can use the standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.
• Never use seat belt extenders to install child restraints. If the child restraint is
not secured properly, the child could
be seriously injured or killed in a colli-
sion or a sudden stop.
SEAT BELT MAINTENANCE
•To clean the seat belt webbing, apply a mild
soap solution or any solution recommended for
cleaning upholstery or carpets. Then wipe with
a cloth and allow the seat belts to dry in the
shade. Do not allow the seat belts to retract until
they are completely dry.
• If dirt builds up in the shoulder belt guide
of the seat belt anchors,the seat belts may
retract slowly. Wipe the shoulder belt guide with
a clean, dry cloth.
• Periodically check to see that the seat belt
and the metal components, such as buckles,
tongues, retractors, flexible wires and anchors,
work properly. If loose parts, deterioration, cuts
or other damage on the webbing is found, the
entire seat belt assembly should be replaced.
Safety–Seats, seat belts and supplemental restraint system1-15
Page 99 of 437

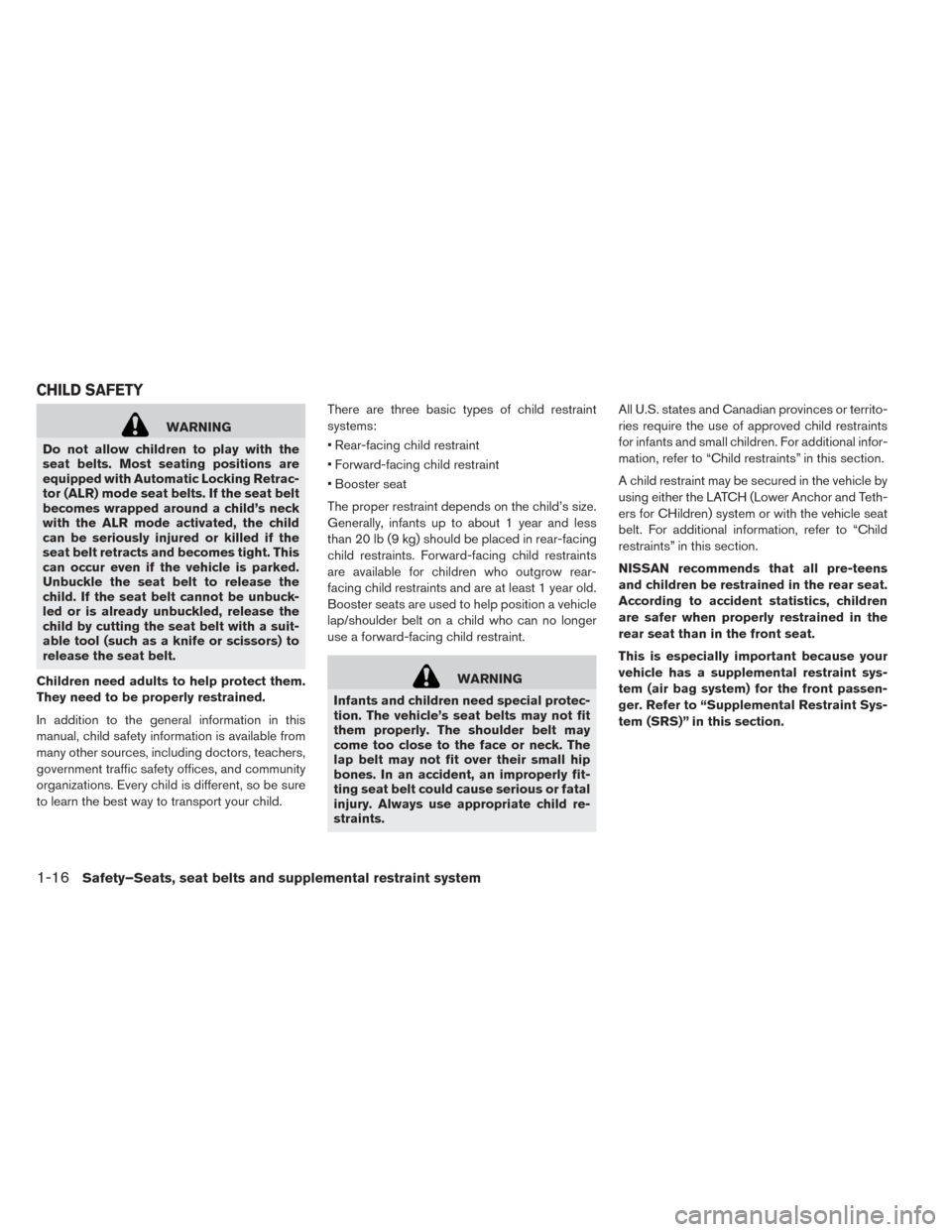

WARNING
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Retrac-
tor (ALR) mode seat belts. If the seat belt
becomes wrapped around a child’s neck
with the ALR mode activated, the child
can be seriously injured or killed if the
seat belt retracts and becomes tight. This
can occur even if the vehicle is parked.
Unbuckle the seat belt to release the
child. If the seat belt cannot be unbuck-
led or is already unbuckled, release the
child by cutting the seat belt with a suit-
able tool (such as a knife or scissors) to
release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child. There are three basic types of child restraint
systems:
• Rear-facing child restraint
• Forward-facing child restraint
• Booster seat
The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lb (9 kg) should be placed in rear-facing
child restraints. Forward-facing child restraints
are available for children who outgrow rear-
facing child restraints and are at least 1 year old.
Booster seats are used to help position a vehicle
lap/shoulder belt on a child who can no longer
use a forward-facing child restraint.
WARNING
Infants and children need special protec-
tion. The vehicle’s seat belts may not fit
them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly fit-
ting seat belt could cause serious or fatal
injury. Always use appropriate child re-
straints. All U.S. states and Canadian provinces or territo-
ries require the use of approved child restraints
for infants and small children. For additional infor-
mation, refer to “Child restraints” in this section.
A child restraint may be secured in the vehicle by
using either the LATCH (Lower Anchor and Teth-
ers for CHildren) system or with the vehicle seat
belt. For additional information, refer to “Child
restraints” in this section.
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. Refer to “Supplemental Restraint Sys-
tem (SRS)” in this section.
CHILD SAFETY
1-16Safety–Seats, seat belts and supplemental restraint system
Page 100 of 437

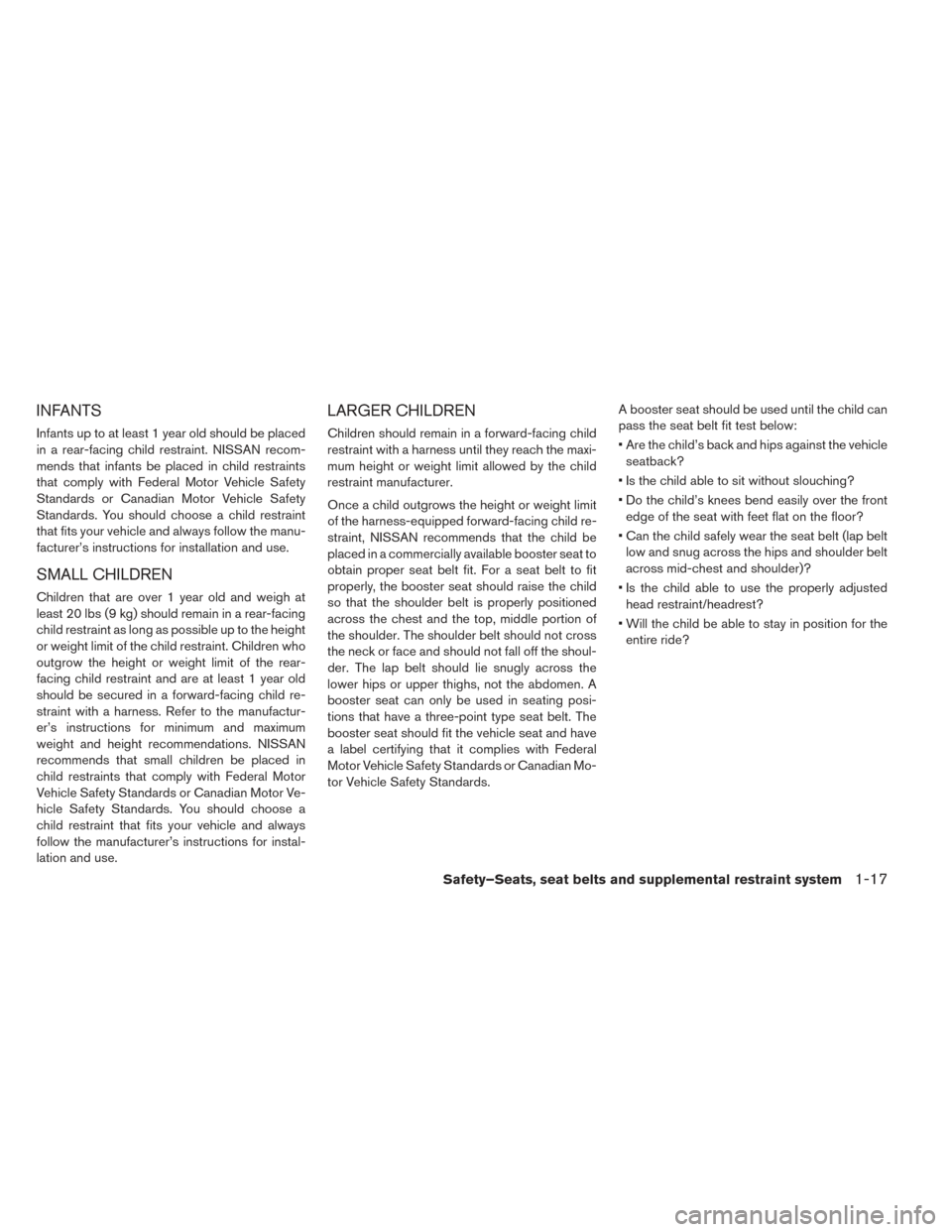

INFANTS
Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom-
mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the manu-
facturer’s instructions for installation and use.
SMALL CHILDREN
Children that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-facing
child restraint as long as possible up to the height
or weight limit of the child restraint. Children who
outgrow the height or weight limit of the rear-
facing child restraint and are at least 1 year old
should be secured in a forward-facing child re-
straint with a harness. Refer to the manufactur-
er’s instructions for minimum and maximum
weight and height recommendations. NISSAN
recommends that small children be placed in
child restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.
LARGER CHILDREN
Children should remain in a forward-facing child
restraint with a harness until they reach the maxi-
mum height or weight limit allowed by the child
restraint manufacturer.
Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child re-
straint, NISSAN recommends that the child be
placed in a commercially available booster seat to
obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the shoul-
der. The lap belt should lie snugly across the
lower hips or upper thighs, not the abdomen. A
booster seat can only be used in seating posi-
tions that have a three-point type seat belt. The
booster seat should fit the vehicle seat and have
a label certifying that it complies with Federal
Motor Vehicle Safety Standards or Canadian Mo-
tor Vehicle Safety Standards.A booster seat should be used until the child can
pass the seat belt fit test below:
• Are the child’s back and hips against the vehicle
seatback?
• Is the child able to sit without slouching?
• Do the child’s knees bend easily over the front edge of the seat with feet flat on the floor?
• Can the child safely wear the seat belt (lap belt low and snug across the hips and shoulder belt
across mid-chest and shoulder)?
• Is the child able to use the properly adjusted head restraint/headrest?
• Will the child be able to stay in position for the entire ride?
Safety–Seats, seat belts and supplemental restraint system1-17
