Page 101 of 437

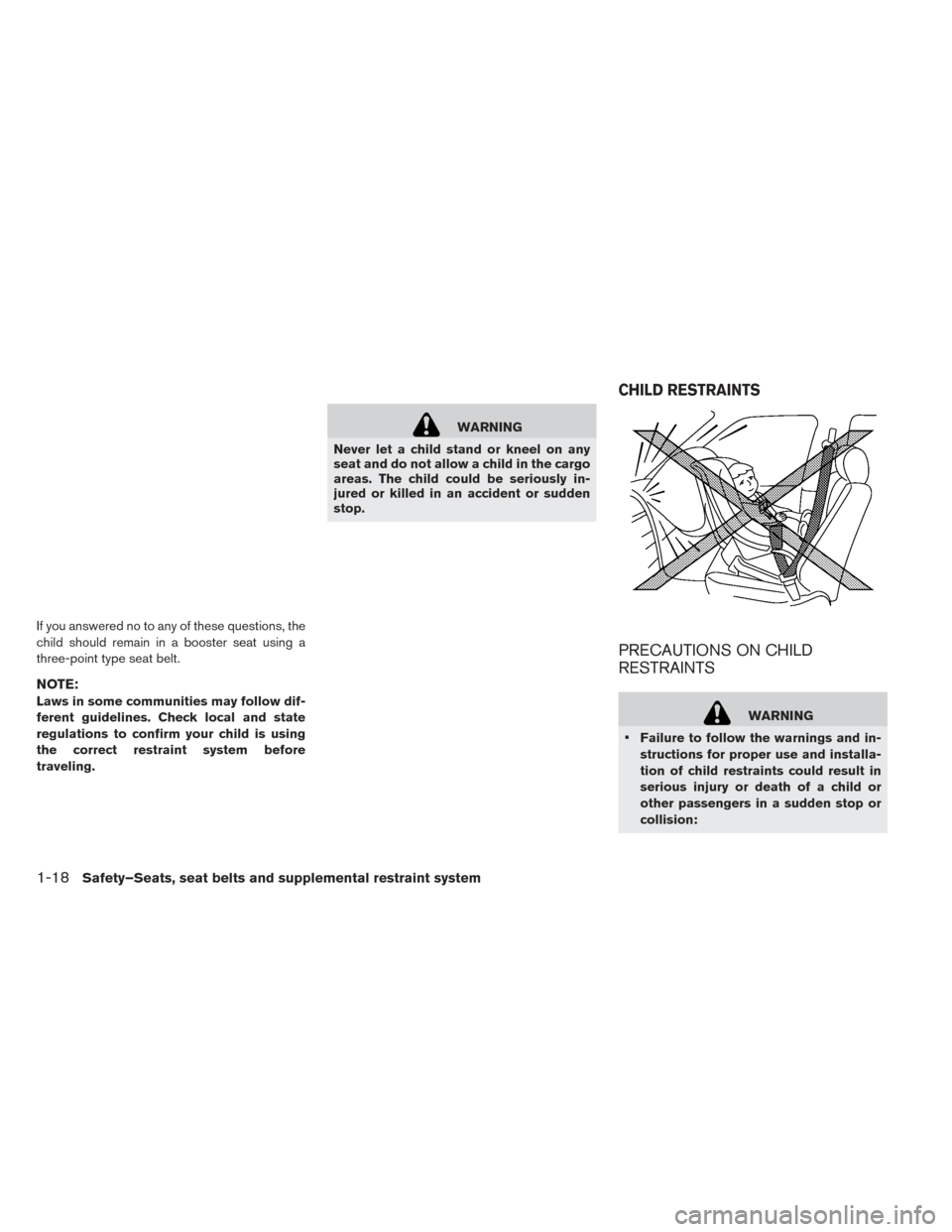

If you answered no to any of these questions, the
child should remain in a booster seat using a
three-point type seat belt.
NOTE:
Laws in some communities may follow dif-
ferent guidelines. Check local and state
regulations to confirm your child is using
the correct restraint system before
traveling.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the cargo
areas. The child could be seriously in-
jured or killed in an accident or sudden
stop.
PRECAUTIONS ON CHILD
RESTRAINTS
WARNING
• Failure to follow the warnings and in-
structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:
CHILD RESTRAINTS
1-18Safety–Seats, seat belts and supplemental restraint system
Page 102 of 437

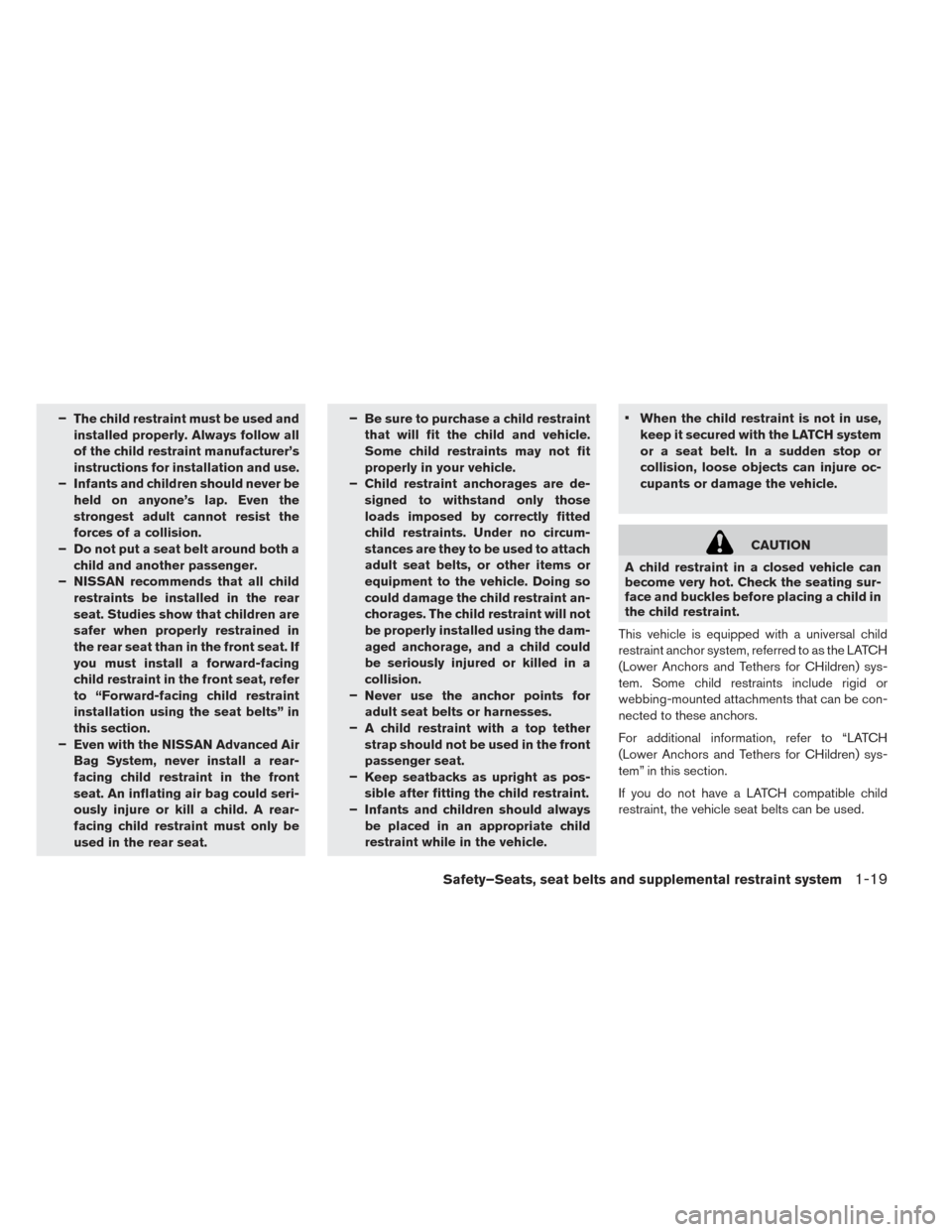

–The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer’s
instructions for installation and use.
– Infants and children should never be
held on anyone’s lap. Even the
strongest adult cannot resist the
forces of a collision.
– Do not put a seat belt around both a
child and another passenger.
– NISSAN recommends that all child
restraints be installed in the rear
seat. Studies show that children are
safer when properly restrained in
the rear seat than in the front seat. If
you must install a forward-facing
child restraint in the front seat, refer
to “Forward-facing child restraint
installation using the seat belts” in
this section.
– Even with the NISSAN Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could seri-
ously injure or kill a child. A rear-
facing child restraint must only be
used in the rear seat. –
Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
– Child restraint anchorages are de-
signed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used to attach
adult seat belts, or other items or
equipment to the vehicle. Doing so
could damage the child restraint an-
chorages. The child restraint will not
be properly installed using the dam-
aged anchorage, and a child could
be seriously injured or killed in a
collision.
– Never use the anchor points for
adult seat belts or harnesses.
– A child restraint with a top tether
strap should not be used in the front
passenger seat.
– Keep seatbacks as upright as pos-
sible after fitting the child restraint.
– Infants and children should always
be placed in an appropriate child
restraint while in the vehicle. •
When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or
collision, loose objects can injure oc-
cupants or damage the vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors.
For additional information, refer to “LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem” in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Safety–Seats, seat belts and supplemental restraint system1-19
Page 103 of 437

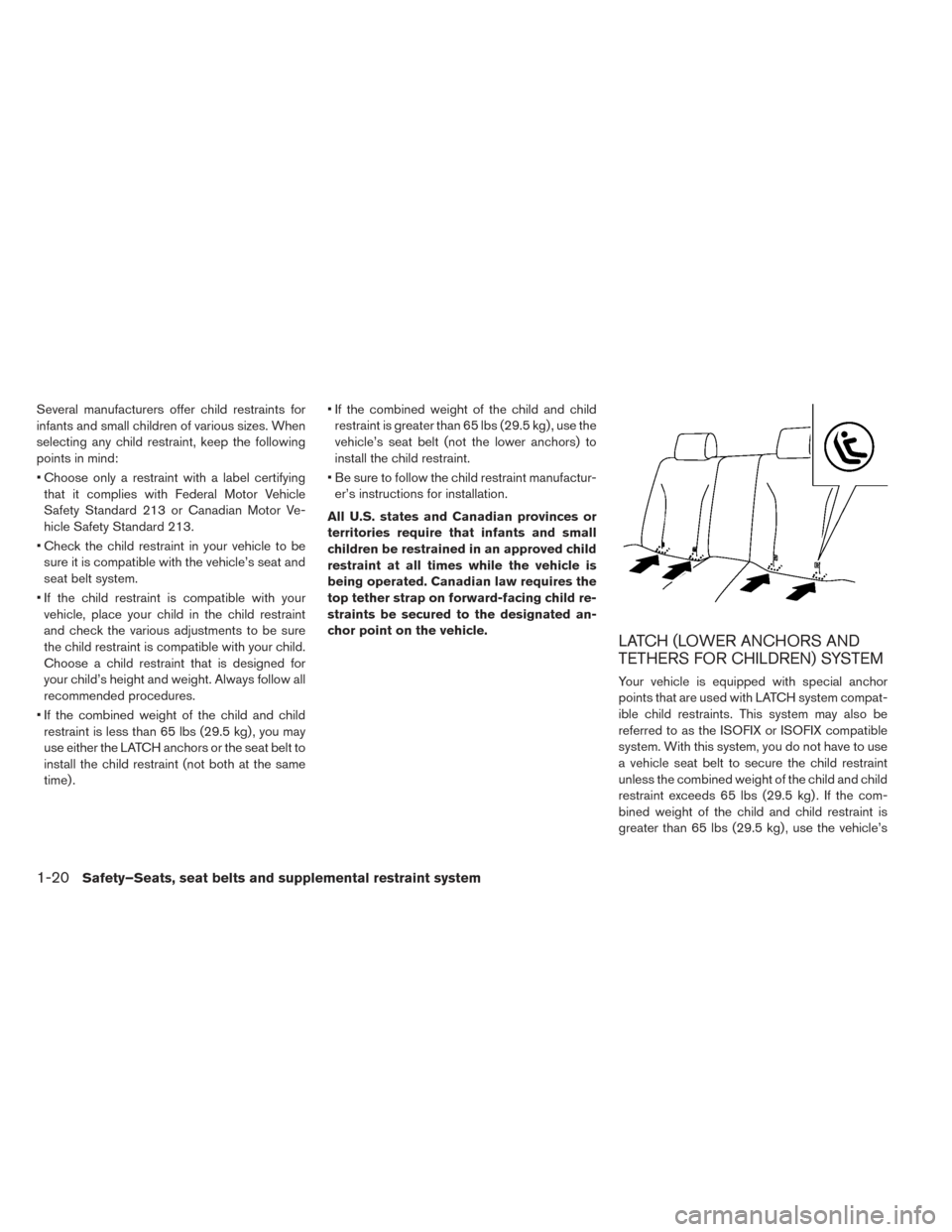

Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
• Choose only a restraint with a label certifyingthat it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor Ve-
hicle Safety Standard 213.
• Check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and
seat belt system.
• If the child restraint is compatible with your vehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your child.
Choose a child restraint that is designed for
your child’s height and weight. Always follow all
recommended procedures.
• If the combined weight of the child and child restraint is less than 65 lbs (29.5 kg) , you may
use either the LATCH anchors or the seat belt to
install the child restraint (not both at the same
time) . • If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg) , use the
vehicle’s seat belt (not the lower anchors) to
install the child restraint.
• Be sure to follow the child restraint manufactur- er’s instructions for installation.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child re-
straints be secured to the designated an-
chor point on the vehicle.
LATCH (LOWER ANCHORS AND
TETHERS FOR CHILDREN) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH system compat-
ible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint
unless the combined weight of the child and child
restraint exceeds 65 lbs (29.5 kg) . If the com-
bined weight of the child and child restraint is
greater than 65 lbs (29.5 kg) , use the vehicle’s
1-20Safety–Seats, seat belts and supplemental restraint system
Page 104 of 437
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child restraint
manufacturer’s instructions for installation.
The LATCH lower anchor points are provided to
install child restraints in the rear outboard seating
positions only. Do not attempt to install a child
restraint in the center position using the LATCH
lower anchors.
LATCH lower anchor
WARNING
Failure to follow the warnings and in-
structions for proper use and installation
of child restraints could result in serious
injury or death of a child or other passen-
gers in a sudden stop or collision:
• Attach LATCH system compatible child restraints only at the locations shown
in the illustration.
• Do not secure a child restraint in the center rear seating position using the
LATCH lower anchors. The child re-
straint will not be secured properly. • Inspect the lower anchors by inserting
your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such as
seat belt webbing or seat cushion ma-
terial. The child restraint will not be
secured properly if the lower anchors
are obstructed.
• Child restraint anchorages are de- signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.

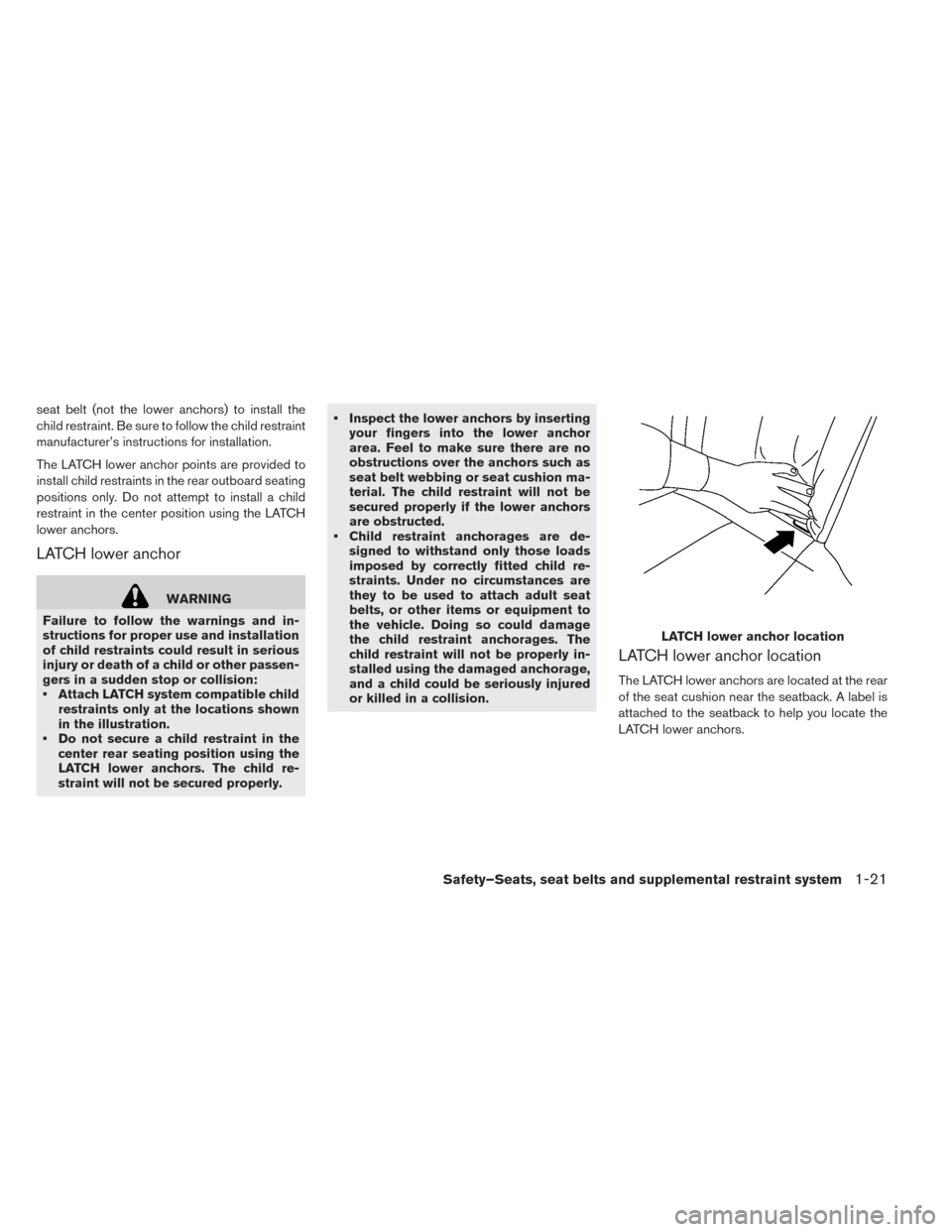

LATCH lower anchor location
The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH lower anchors.
LATCH lower anchor location
Safety–Seats, seat belts and supplemental restraint system1-21
Page 105 of 437

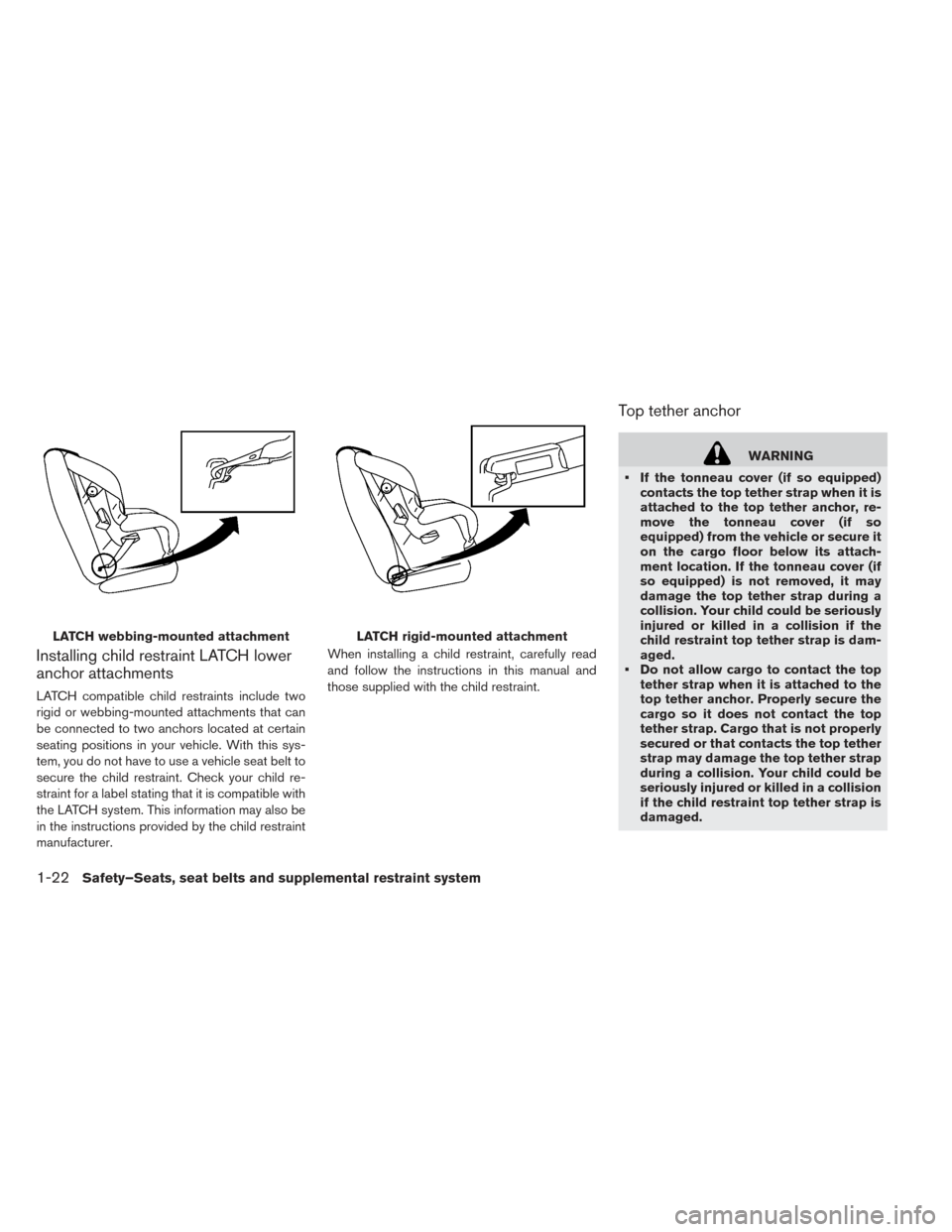

Installing child restraint LATCH lower
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this sys-
tem, you do not have to use a vehicle seat belt to
secure the child restraint. Check your child re-
straint for a label stating that it is compatible with
the LATCH system. This information may also be
in the instructions provided by the child restraint
manufacturer.When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
Top tether anchor
WARNING
• If the tonneau cover (if so equipped) contacts the top tether strap when it is
attached to the top tether anchor, re-
move the tonneau cover (if so
equipped) from the vehicle or secure it
on the cargo floor below its attach-
ment location. If the tonneau cover (if
so equipped) is not removed, it may
damage the top tether strap during a
collision. Your child could be seriously
injured or killed in a collision if the
child restraint top tether strap is dam-
aged.
• Do not allow cargo to contact the top tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or that contacts the top tether
strap may damage the top tether strap
during a collision. Your child could be
seriously injured or killed in a collision
if the child restraint top tether strap is
damaged.
LATCH webbing-mounted attachmentLATCH rigid-mounted attachment
1-22Safety–Seats, seat belts and supplemental restraint system
Page 106 of 437

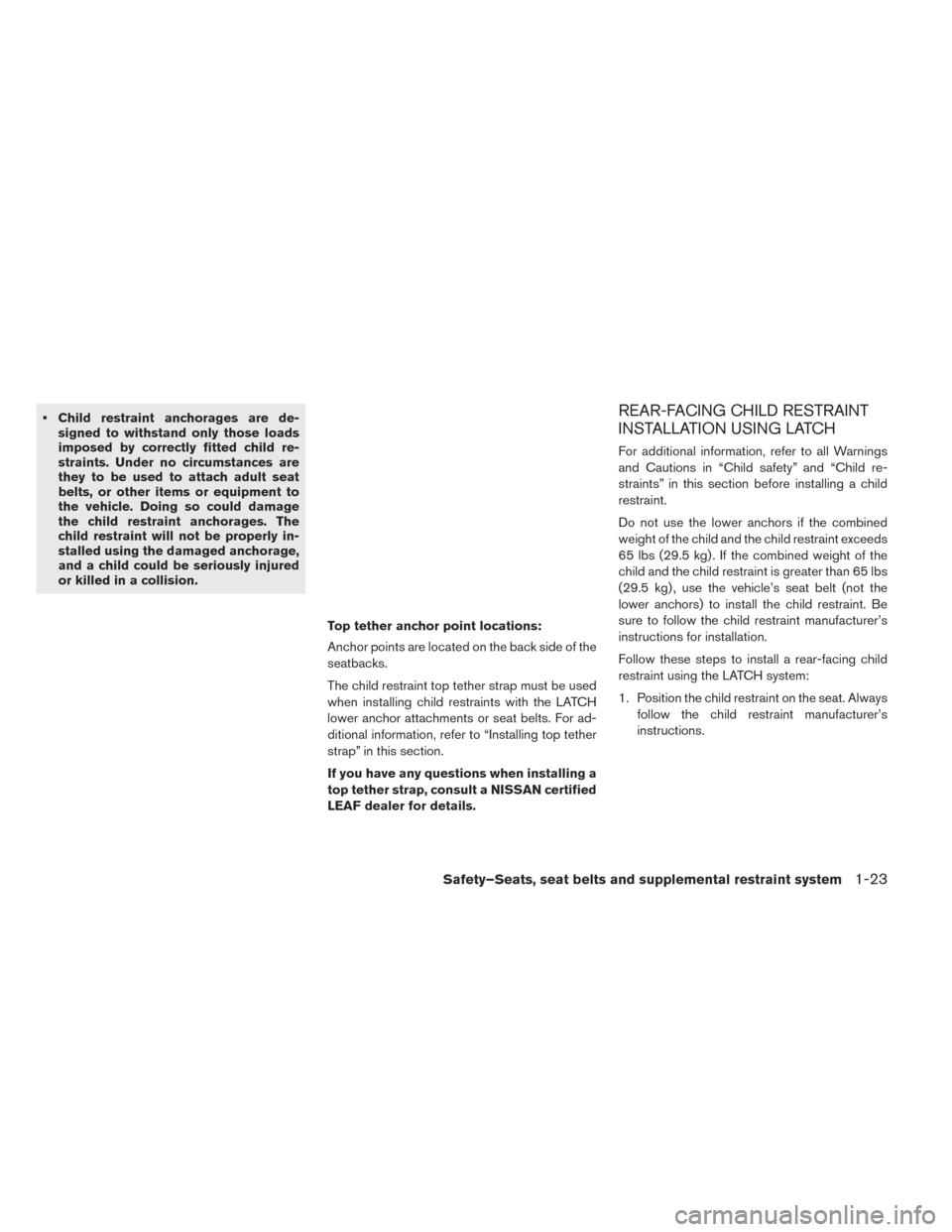

• Child restraint anchorages are de-signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.
Top tether anchor point locations:
Anchor points are located on the back side of the
seatbacks.
The child restraint top tether strap must be used
when installing child restraints with the LATCH
lower anchor attachments or seat belts. For ad-
ditional information, refer to “Installing top tether
strap” in this section.
If you have any questions when installing a
top tether strap, consult a NISSAN certified
LEAF dealer for details.REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
For additional information, refer to all Warnings
and Cautions in “Child safety” and “Child re-
straints” in this section before installing a child
restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and the child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat. Alwaysfollow the child restraint manufacturer’s
instructions.
Safety–Seats, seat belts and supplemental restraint system1-23
Page 107 of 437

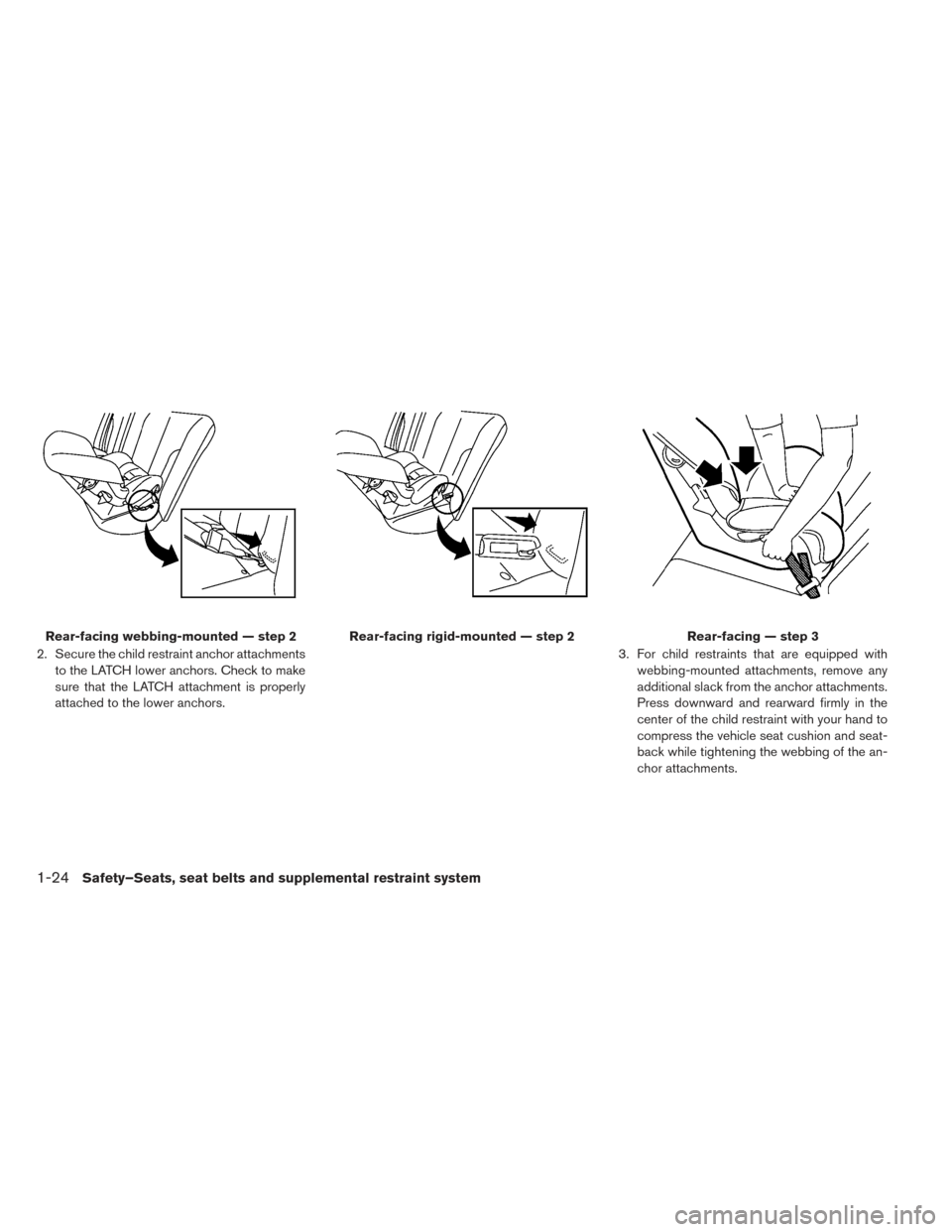

2. Secure the child restraint anchor attachmentsto the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors. 3. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your hand to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments.
Rear-facing webbing-mounted — step 2Rear-facing rigid-mounted — step 2Rear-facing — step 3
1-24Safety–Seats, seat belts and supplemental restraint system
Page 108 of 437
4.After attaching the child restraint, test it before
you place the child in it. Push it from side to side
while holding the seat near the LATCH attach-
ment path. The child restraint should not move
more than 1 inch (25 mm) , from side to side. Try
to tug it forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH at-
tachment as necessary, or put the restraint in
another seat and test it again. You may need to
try a different child restraint or try installing by
using the vehicle seat belt (if applicable) . Not all
child restraints fit in all types of vehicles.
5. Check to make sure that the child restraint is properly secured prior to each use. If the child
restraint is loose, repeat steps 2 through 4.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure
to use the ALR mode will result in the
child restraint not being properly se-
cured. The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front passen-
ger air bag. For additional information,
refer to “Front passenger air bag and
status light” in this section.
For additional information, refer to all Warnings
and Cautions in the “Child safety” and “Child
restraints” sections of this manual before install-
ing a child restraint. Do not use the lower anchors if the combined
weight of the child and child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.

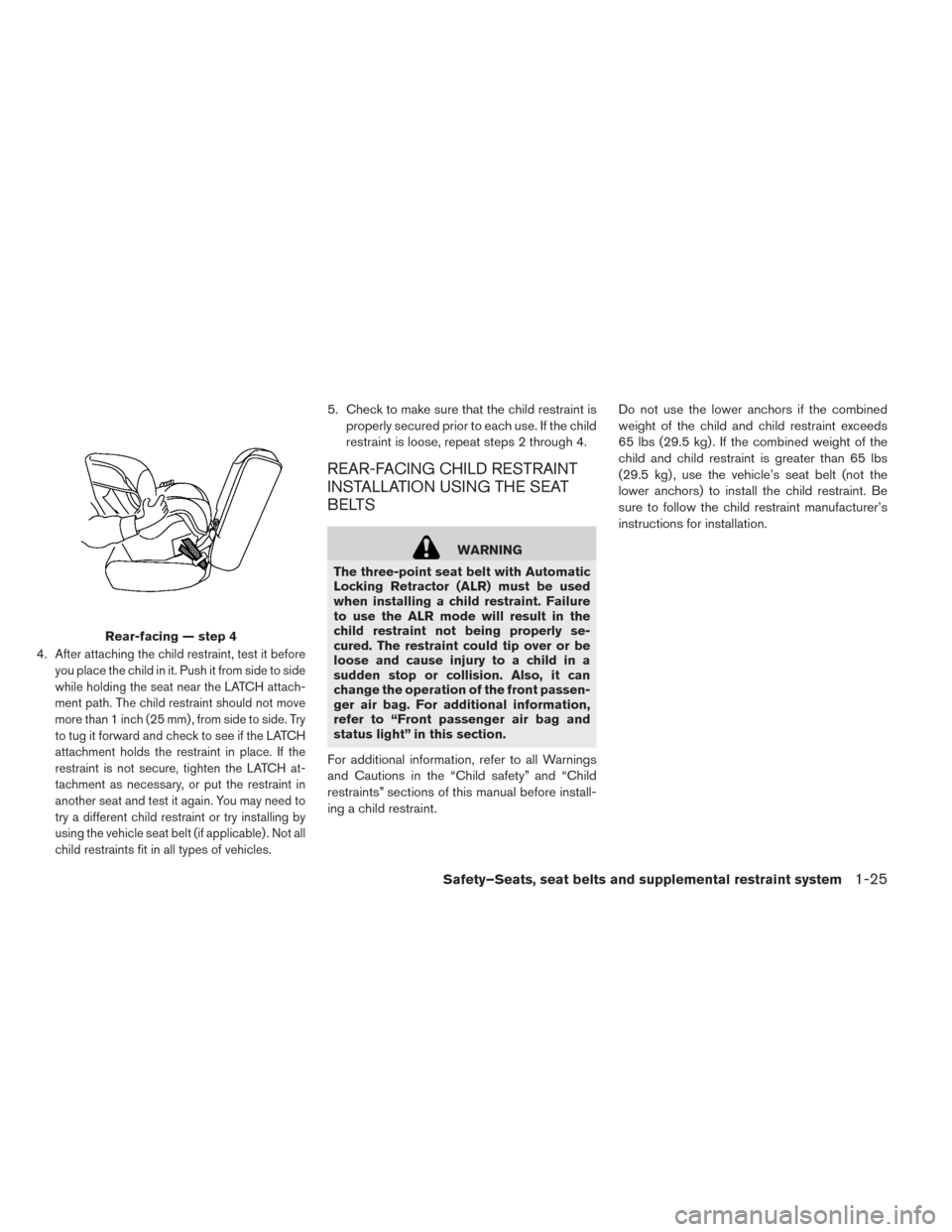

Rear-facing — step 4
Safety–Seats, seat belts and supplemental restraint system1-25
Page 109 of 437
Follow these steps to install a rear-facing child
restraint using the vehicle seat belt in the rear
seats:
1.Child restraints for infants must be used
in the rear-facing direction and there-
fore must not be used in the front seat.
Position the child restraint on the seat. Always
follow the child restraint manufacturer’s
instructions. 2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing. 3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the ALR mode (child restraint mode) . It
reverts to the ELR mode when the seat belt is
fully retracted.

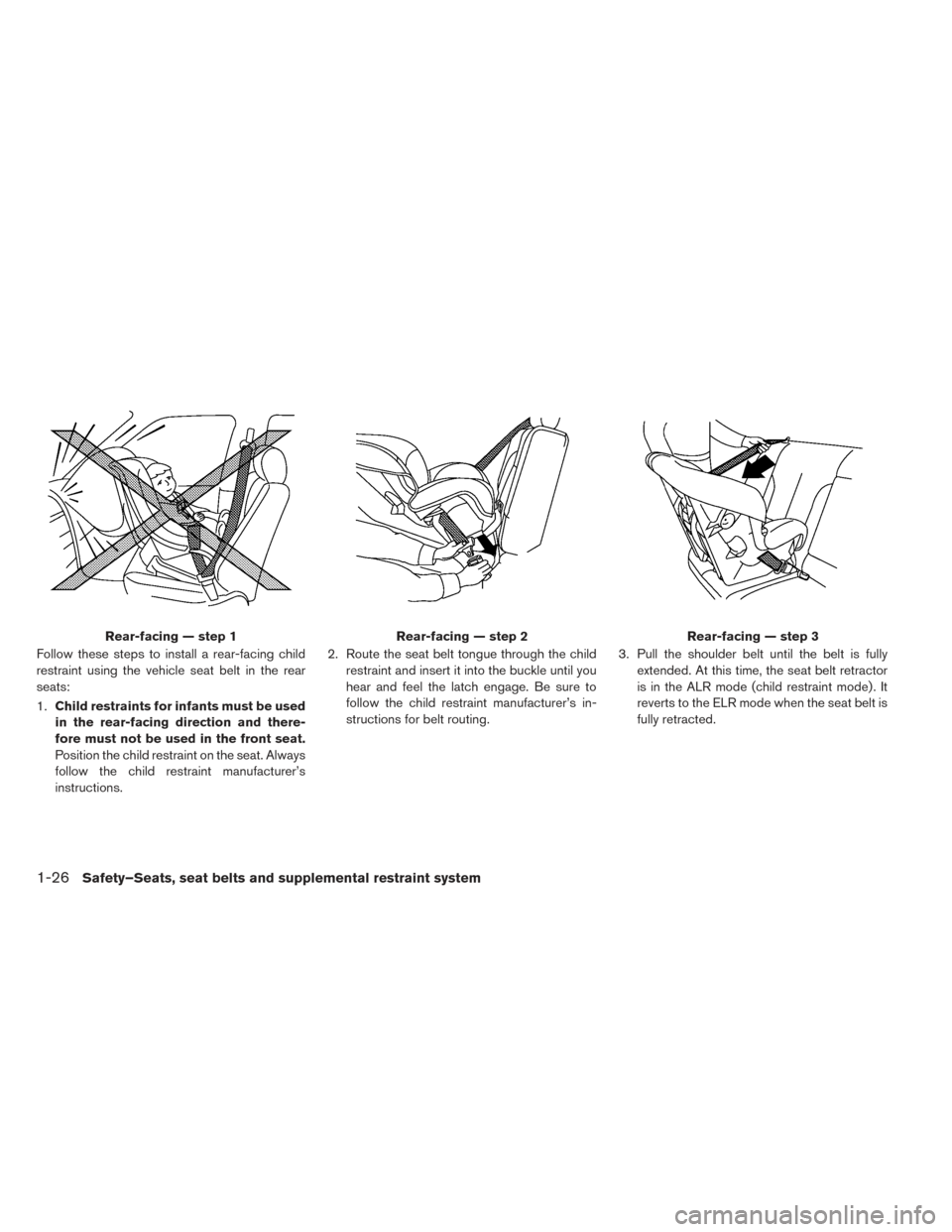

Rear-facing — step 1Rear-facing — step 2Rear-facing — step 3
1-26Safety–Seats, seat belts and supplemental restraint system
Page 110 of 437
4. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt. 5. Remove any additional slack from the child
restraint. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while pulling up on the seat belt. 6. After attaching the child restraint, test it be-
fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm) , from side
to side. Try to tug it forward and check to see
if the belt holds the restraint in place. If the
restraint is not secure, tighten the seat belt as
necessary, or put the restraint in another seat
and test it again. You may need to try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles.

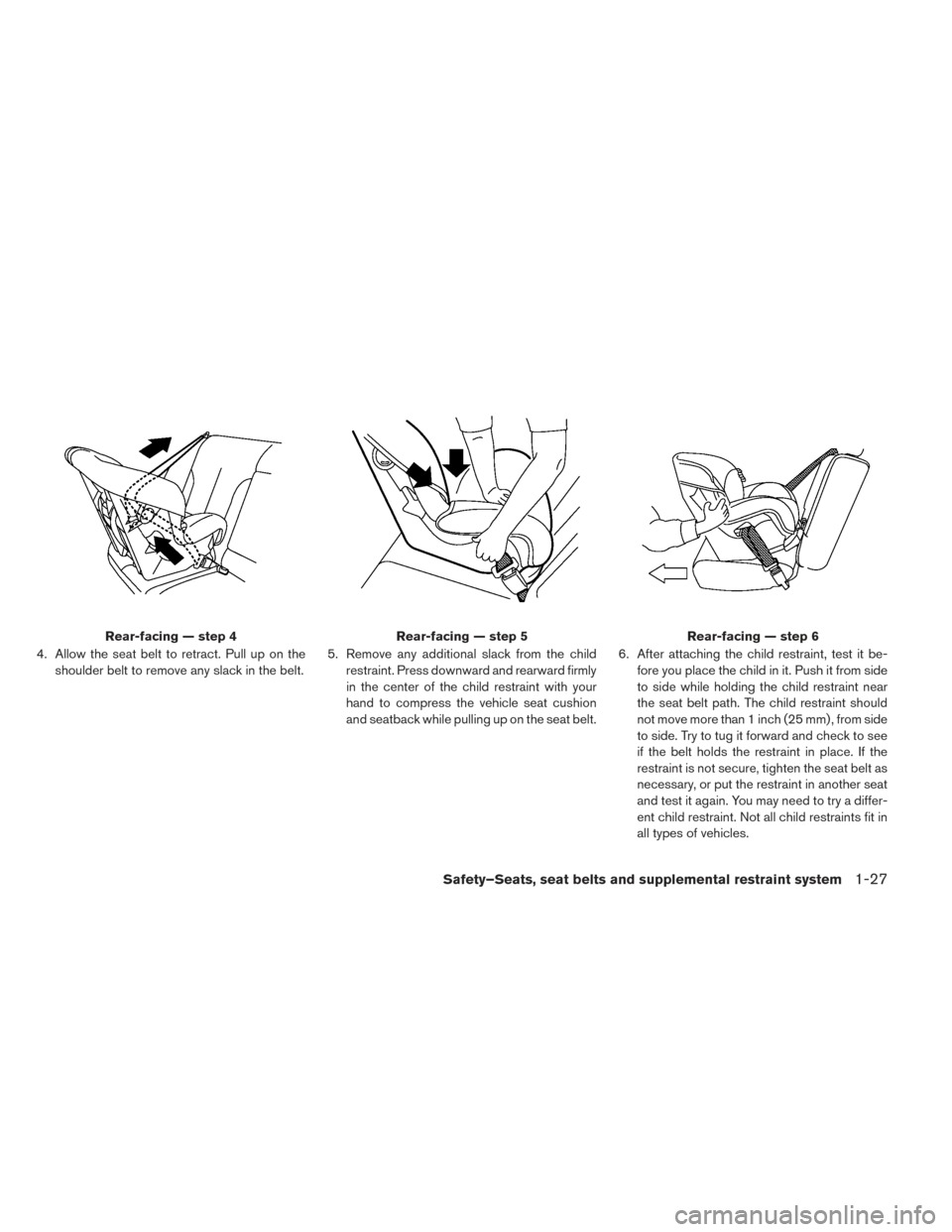

Rear-facing — step 4Rear-facing — step 5Rear-facing — step 6
Safety–Seats, seat belts and supplemental restraint system1-27
