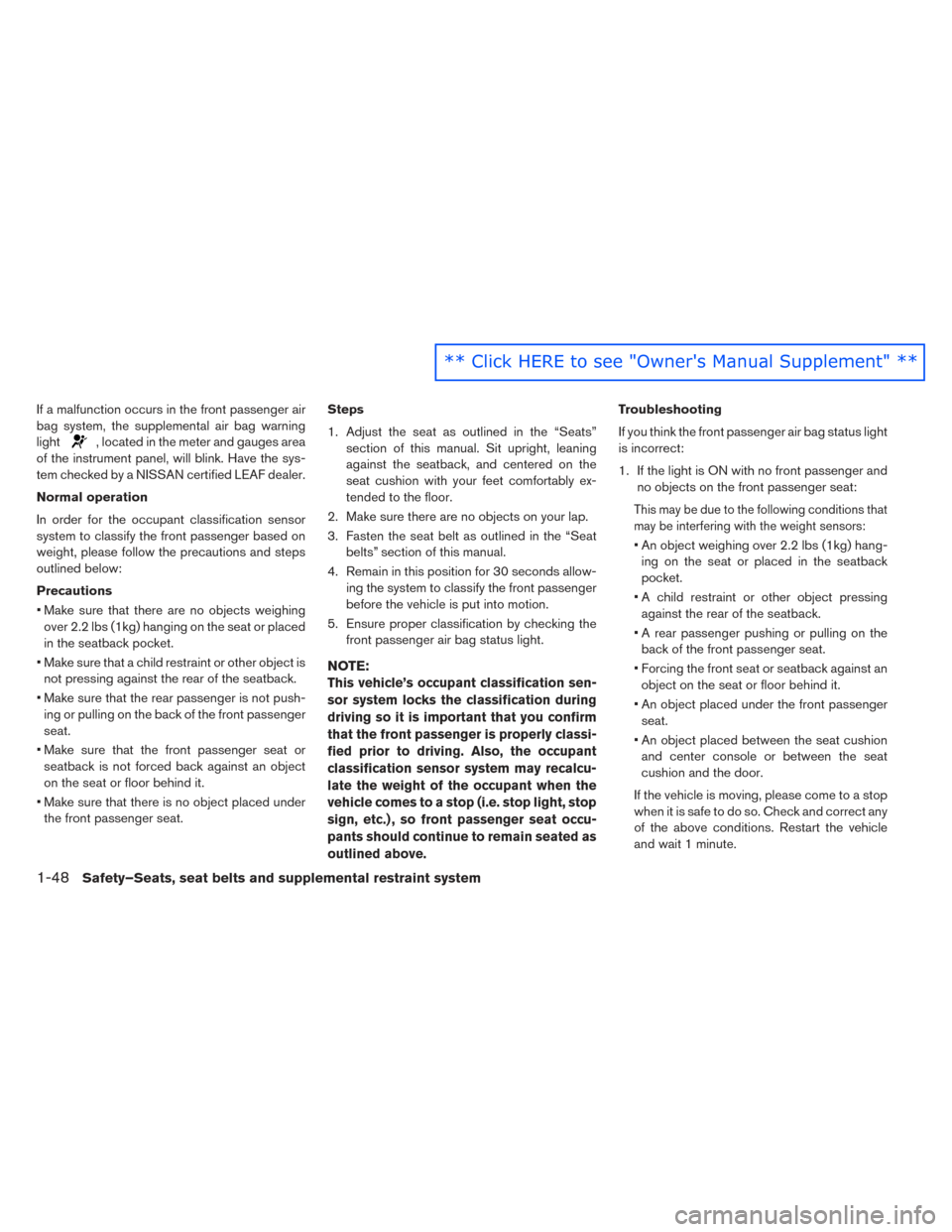

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light
, located in the meter and gauges area
of the instrument panel, will blink. Have the sys-
tem checked by a NISSAN certified LEAF dealer.
Normal operation
In order for the occupant classification sensor
system to classify the front passenger based on
weight, please follow the precautions and steps
outlined below:
Precautions
• Make sure that there are no objects weighing over 2.2 lbs (1kg) hanging on the seat or placed
in the seatback pocket.
• Make sure that a child restraint or other object is not pressing against the rear of the seatback.
• Make sure that the rear passenger is not push- ing or pulling on the back of the front passenger
seat.
• Make sure that the front passenger seat or seatback is not forced back against an object
on the seat or floor behind it.
• Make sure that there is no object placed under the front passenger seat. Steps
1. Adjust the seat as outlined in the “Seats”
section of this manual. Sit upright, leaning
against the seatback, and centered on the
seat cushion with your feet comfortably ex-
tended to the floor.
2. Make sure there are no objects on your lap.
3. Fasten the seat belt as outlined in the “Seat belts” section of this manual.
4. Remain in this position for 30 seconds allow- ing the system to classify the front passenger
before the vehicle is put into motion.
5. Ensure proper classification by checking the front passenger air bag status light.
NOTE:
This vehicle’s occupant classification sen-
sor system locks the classification during
driving so it is important that you confirm
that the front passenger is properly classi-
fied prior to driving. Also, the occupant
classification sensor system may recalcu-
late the weight of the occupant when the
vehicle comes to a stop (i.e. stop light, stop
sign, etc.) , so front passenger seat occu-
pants should continue to remain seated as
outlined above.
Troubleshooting
If you think the front passenger air bag status light
is incorrect:
1. If the light is ON with no front passenger andno objects on the front passenger seat:
This may be due to the following conditions that
may be interfering with the weight sensors:
• An object weighing over 2.2 lbs (1kg) hang-ing on the seat or placed in the seatback
pocket.
• A child restraint or other object pressing against the rear of the seatback.
• A rear passenger pushing or pulling on the back of the front passenger seat.
• Forcing the front seat or seatback against an object on the seat or floor behind it.
• An object placed under the front passenger seat.
• An object placed between the seat cushion and center console or between the seat
cushion and the door.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct any
of the above conditions. Restart the vehicle
and wait 1 minute.
1-48Safety–Seats, seat belts and supplemental restraint system
** Click HERE to see "Owner's Manual Supplement" **
Page 132 of 437

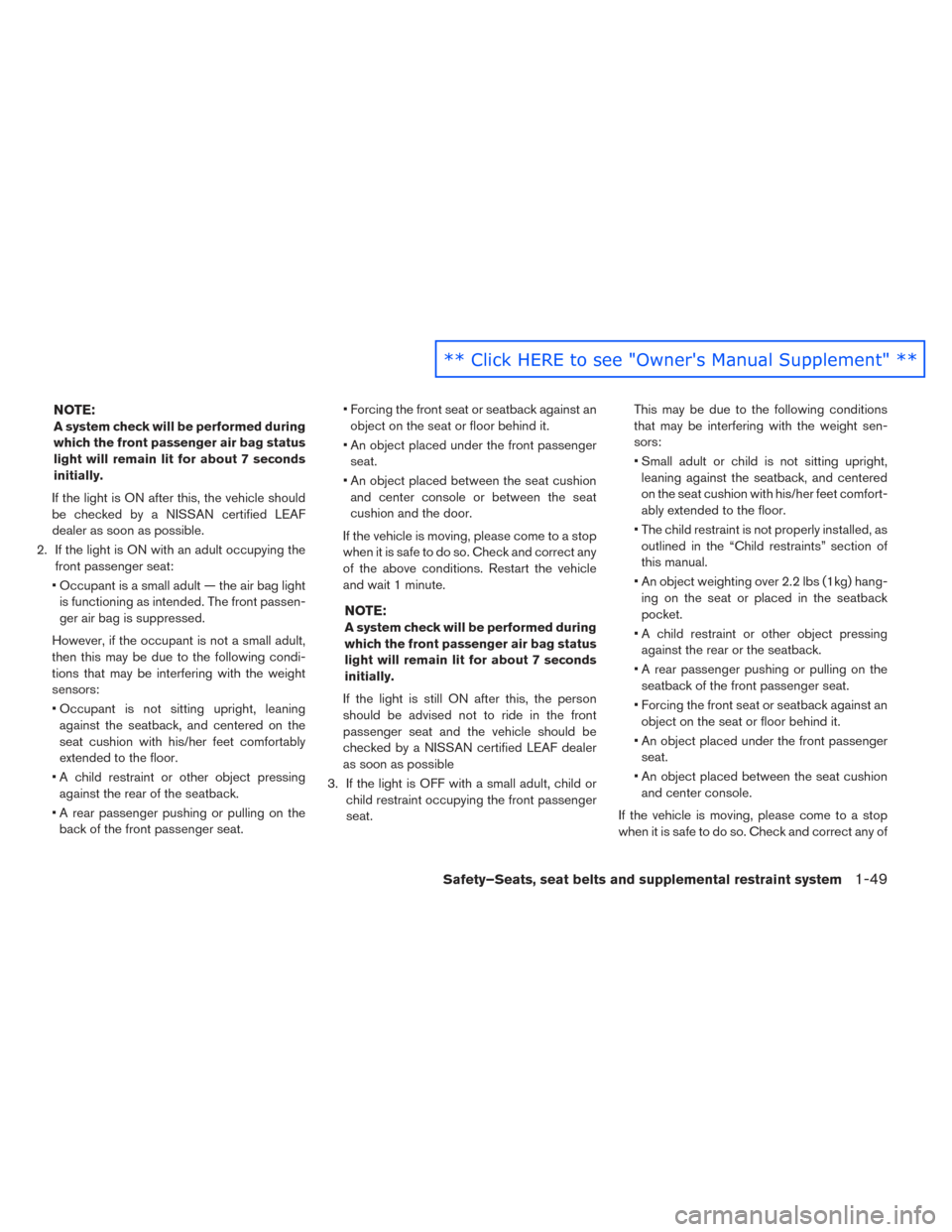

NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.
If the light is ON after this, the vehicle should
be checked by a NISSAN certified LEAF
dealer as soon as possible.
2. If the light is ON with an adult occupying the front passenger seat:
• Occupant is a small adult — the air bag light is functioning as intended. The front passen-
ger air bag is suppressed.
However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:
• Occupant is not sitting upright, leaning against the seatback, and centered on the
seat cushion with his/her feet comfortably
extended to the floor.
• A child restraint or other object pressing against the rear of the seatback.
• A rear passenger pushing or pulling on the back of the front passenger seat. • Forcing the front seat or seatback against an
object on the seat or floor behind it.
• An object placed under the front passenger seat.
• An object placed between the seat cushion and center console or between the seat
cushion and the door.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct any
of the above conditions. Restart the vehicle
and wait 1 minute.
NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.
If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked by a NISSAN certified LEAF dealer
as soon as possible
3. If the light is OFF with a small adult, child or child restraint occupying the front passenger
seat. This may be due to the following conditions
that may be interfering with the weight sen-
sors:
• Small adult or child is not sitting upright,
leaning against the seatback, and centered
on the seat cushion with his/her feet comfort-
ably extended to the floor.
• The child restraint is not properly installed, as outlined in the “Child restraints” section of
this manual.
• An object weighting over 2.2 lbs (1kg) hang- ing on the seat or placed in the seatback
pocket.
• A child restraint or other object pressing against the rear or the seatback.
• A rear passenger pushing or pulling on the seatback of the front passenger seat.
• Forcing the front seat or seatback against an object on the seat or floor behind it.
• An object placed under the front passenger seat.
• An object placed between the seat cushion and center console.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct any of
Safety–Seats, seat belts and supplemental restraint system1-49
** Click HERE to see "Owner's Manual Supplement" **
Page 133 of 437

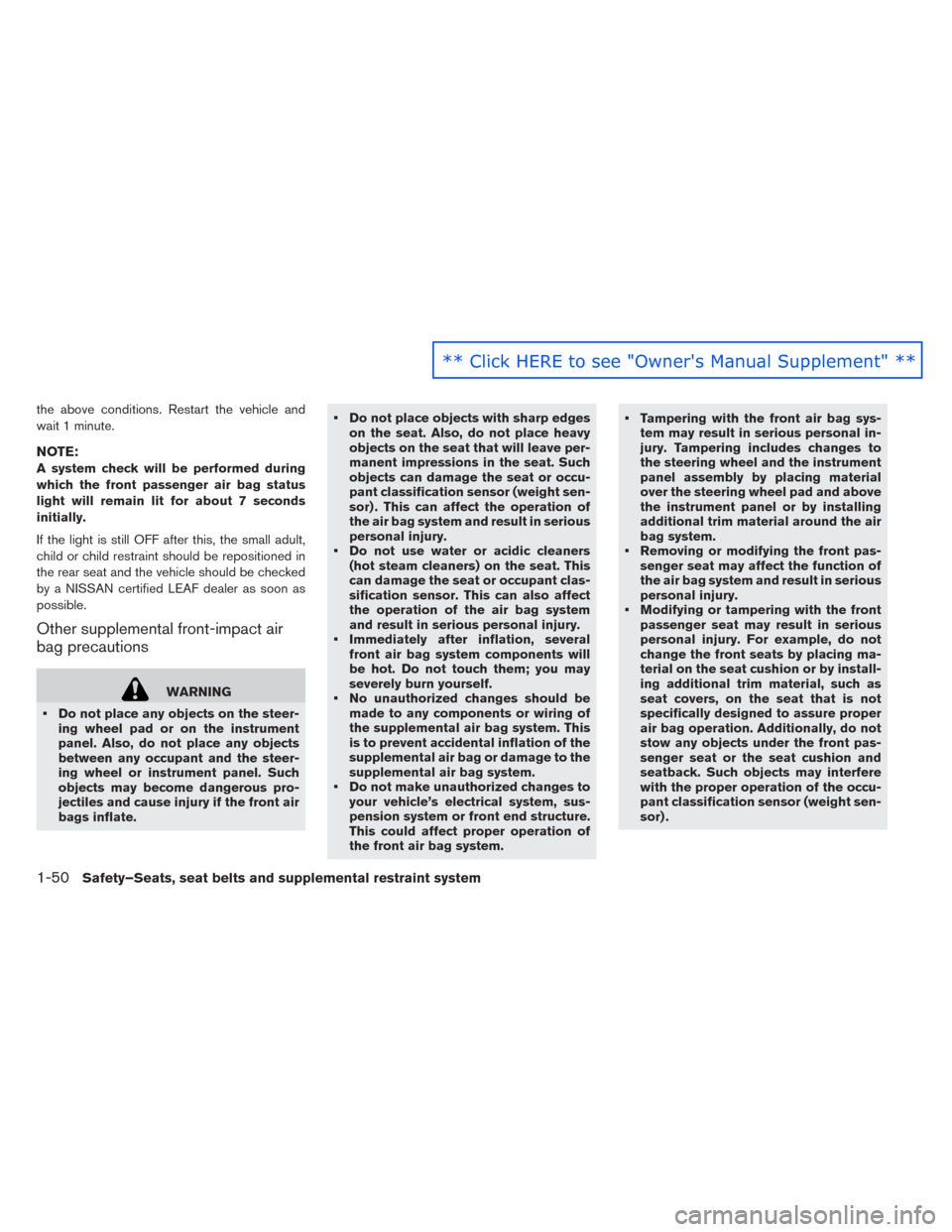

the above conditions. Restart the vehicle and
wait 1 minute.
NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.
If the light is still OFF after this, the small adult,
child or child restraint should be repositioned in
the rear seat and the vehicle should be checked
by a NISSAN certified LEAF dealer as soon as
possible.
Other supplemental front-impact air
bag precautions
WARNING
• Do not place any objects on the steer- ing wheel pad or on the instrument
panel. Also, do not place any objects
between any occupant and the steer-
ing wheel or instrument panel. Such
objects may become dangerous pro-
jectiles and cause injury if the front air
bags inflate. • Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave per-
manent impressions in the seat. Such
objects can damage the seat or occu-
pant classification sensor (weight sen-
sor) . This can affect the operation of
the air bag system and result in serious
personal injury.
• Do not use water or acidic cleaners (hot steam cleaners) on the seat. This
can damage the seat or occupant clas-
sification sensor. This can also affect
the operation of the air bag system
and result in serious personal injury.
• Immediately after inflation, several front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.
• No unauthorized changes should be made to any components or wiring of
the supplemental air bag system. This
is to prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.
• Do not make unauthorized changes to your vehicle’s electrical system, sus-
pension system or front end structure.
This could affect proper operation of
the front air bag system. • Tampering with the front air bag sys-
tem may result in serious personal in-
jury. Tampering includes changes to
the steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and above
the instrument panel or by installing
additional trim material around the air
bag system.
• Removing or modifying the front pas- senger seat may affect the function of
the air bag system and result in serious
personal injury.
• Modifying or tampering with the front passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing ma-
terial on the seat cushion or by install-
ing additional trim material, such as
seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensor (weight sen-
sor) .
1-50Safety–Seats, seat belts and supplemental restraint system
** Click HERE to see "Owner's Manual Supplement" **
Page 134 of 437

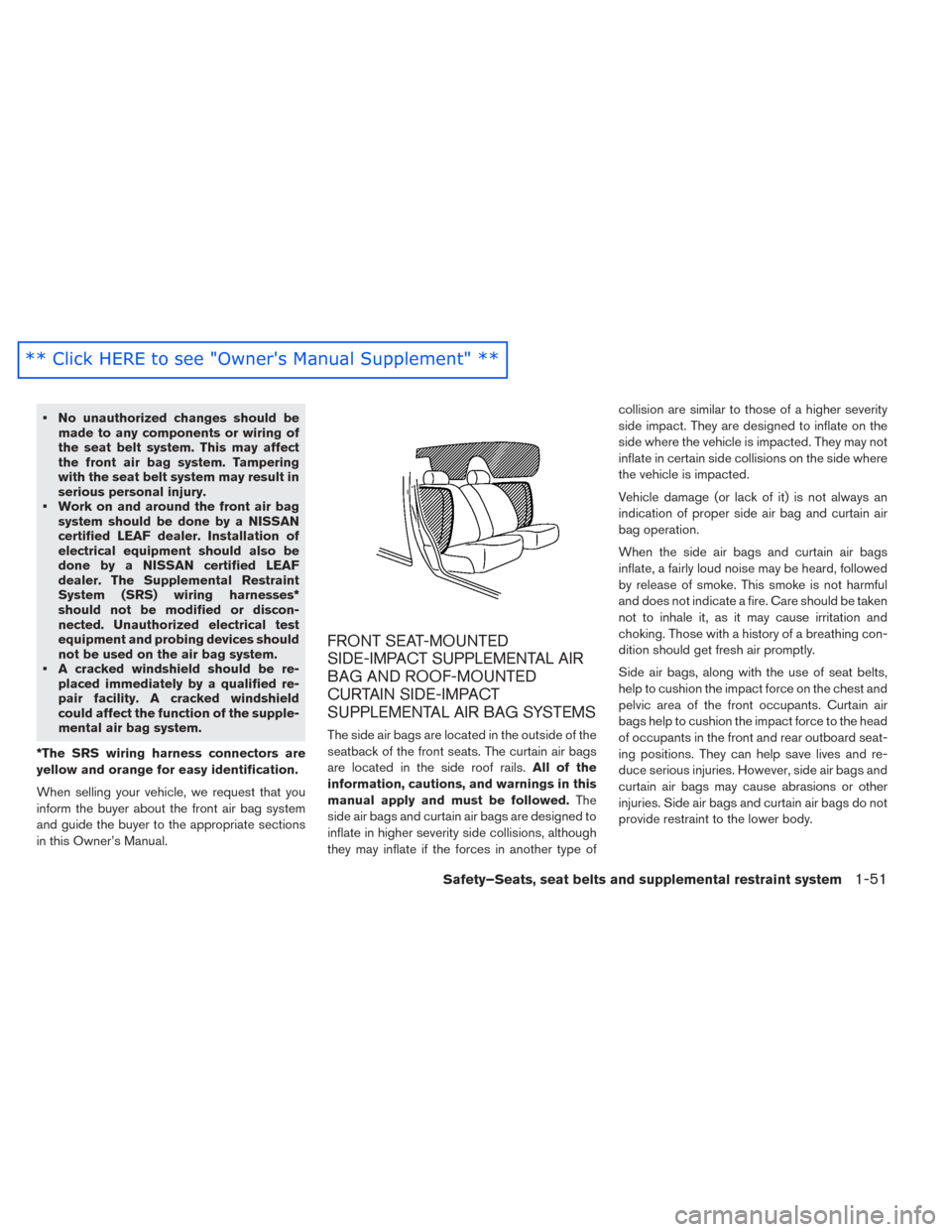

• No unauthorized changes should bemade to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result in
serious personal injury.
• Work on and around the front air bag system should be done by a NISSAN
certified LEAF dealer. Installation of
electrical equipment should also be
done by a NISSAN certified LEAF
dealer. The Supplemental Restraint
System (SRS) wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should
not be used on the air bag system.
• A cracked windshield should be re- placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the supple-
mental air bag system.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
FRONT SEAT-MOUNTED
SIDE-IMPACT SUPPLEMENTAL AIR
BAG AND ROOF-MOUNTED
CURTAIN SIDE-IMPACT
SUPPLEMENTAL AIR BAG SYSTEMS
The side air bags are located in the outside of the
seatback of the front seats. The curtain air bags
are located in the side roof rails. All of the
information, cautions, and warnings in this
manual apply and must be followed. The
side air bags and curtain air bags are designed to
inflate in higher severity side collisions, although
they may inflate if the forces in another type of collision are similar to those of a higher severity
side impact. They are designed to inflate on the
side where the vehicle is impacted. They may not
inflate in certain side collisions on the side where
the vehicle is impacted.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, followed
by release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing con-
dition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest and
pelvic area of the front occupants. Curtain air
bags help to cushion the impact force to the head
of occupants in the front and rear outboard seat-
ing positions. They can help save lives and re-
duce serious injuries. However, side air bags and
curtain air bags may cause abrasions or other
injuries. Side air bags and curtain air bags do not
provide restraint to the lower body.
Safety–Seats, seat belts and supplemental restraint system1-51
** Click HERE to see "Owner's Manual Supplement" **
Page 135 of 437

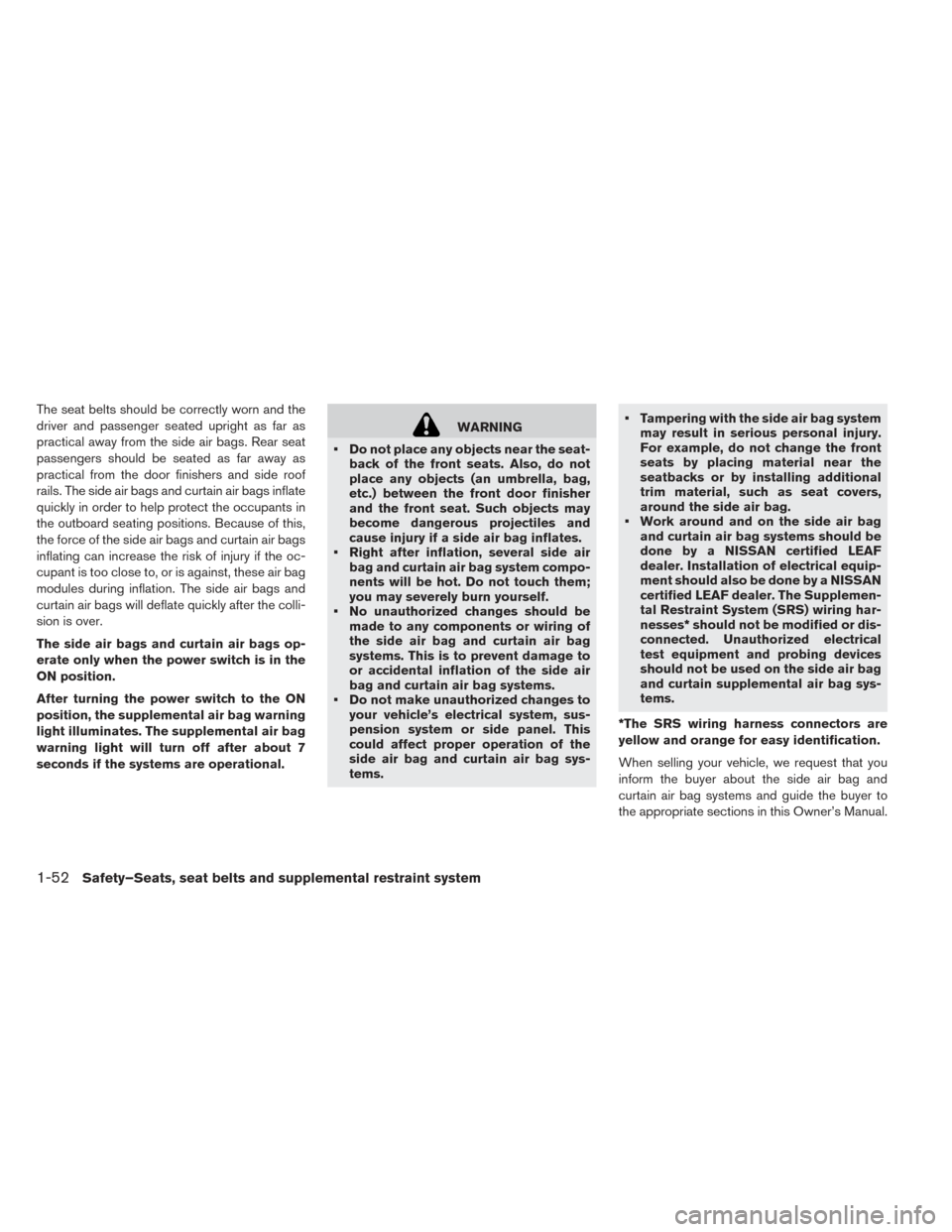

The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain air bags inflate
quickly in order to help protect the occupants in
the outboard seating positions. Because of this,
the force of the side air bags and curtain air bags
inflating can increase the risk of injury if the oc-
cupant is too close to, or is against, these air bag
modules during inflation. The side air bags and
curtain air bags will deflate quickly after the colli-
sion is over.
The side air bags and curtain air bags op-
erate only when the power switch is in the
ON position.
After turning the power switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
WARNING
• Do not place any objects near the seat- back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become dangerous projectiles and
cause injury if a side air bag inflates.
• Right after inflation, several side air bag and curtain air bag system compo-
nents will be hot. Do not touch them;
you may severely burn yourself.
• No unauthorized changes should be made to any components or wiring of
the side air bag and curtain air bag
systems. This is to prevent damage to
or accidental inflation of the side air
bag and curtain air bag systems.
• Do not make unauthorized changes to your vehicle’s electrical system, sus-
pension system or side panel. This
could affect proper operation of the
side air bag and curtain air bag sys-
tems. • Tampering with the side air bag system
may result in serious personal injury.
For example, do not change the front
seats by placing material near the
seatbacks or by installing additional
trim material, such as seat covers,
around the side air bag.
• Work around and on the side air bag and curtain air bag systems should be
done by a NISSAN certified LEAF
dealer. Installation of electrical equip-
ment should also be done by a NISSAN
certified LEAF dealer. The Supplemen-
tal Restraint System (SRS) wiring har-
nesses* should not be modified or dis-
connected. Unauthorized electrical
test equipment and probing devices
should not be used on the side air bag
and curtain supplemental air bag sys-
tems.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s Manual.
1-52Safety–Seats, seat belts and supplemental restraint system
Page 136 of 437

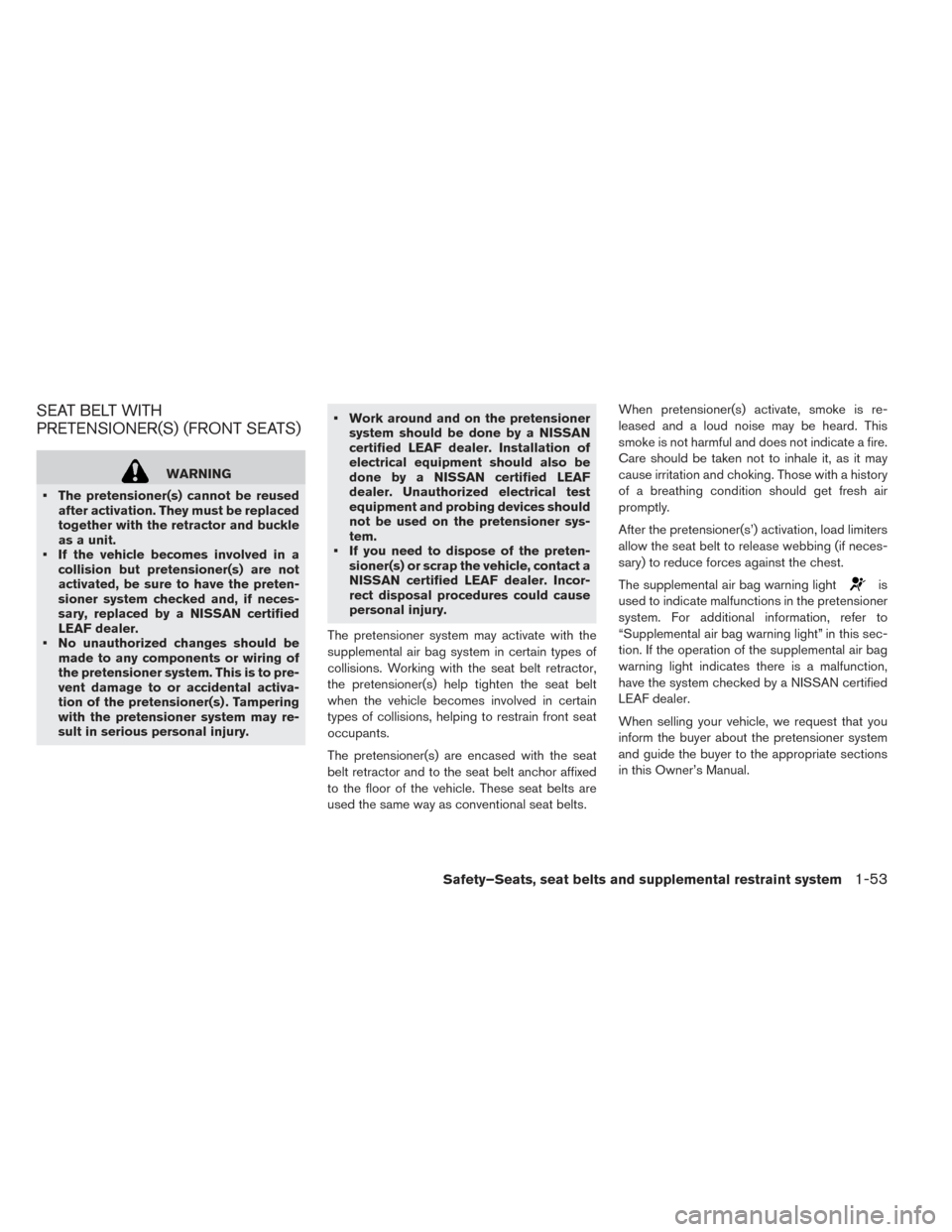

SEAT BELT WITH
PRETENSIONER(S) (FRONT SEATS)
WARNING
• The pretensioner(s) cannot be reused after activation. They must be replaced
together with the retractor and buckle
as a unit.
• If the vehicle becomes involved in a collision but pretensioner(s) are not
activated, be sure to have the preten-
sioner system checked and, if neces-
sary, replaced by a NISSAN certified
LEAF dealer.
• No unauthorized changes should be made to any components or wiring of
the pretensioner system. This is to pre-
vent damage to or accidental activa-
tion of the pretensioner(s) . Tampering
with the pretensioner system may re-
sult in serious personal injury. • Work around and on the pretensioner
system should be done by a NISSAN
certified LEAF dealer. Installation of
electrical equipment should also be
done by a NISSAN certified LEAF
dealer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner sys-
tem.
• If you need to dispose of the preten- sioner(s) or scrap the vehicle, contact a
NISSAN certified LEAF dealer. Incor-
rect disposal procedures could cause
personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioner(s) help tighten the seat belt
when the vehicle becomes involved in certain
types of collisions, helping to restrain front seat
occupants.
The pretensioner(s) are encased with the seat
belt retractor and to the seat belt anchor affixed
to the floor of the vehicle. These seat belts are
used the same way as conventional seat belts. When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After the pretensioner(s’) activation, load limiters
allow the seat belt to release webbing (if neces-
sary) to reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. For additional information, refer to
“Supplemental air bag warning light” in this sec-
tion. If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN certified
LEAF dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Safety–Seats, seat belts and supplemental restraint system1-53
Page 137 of 437

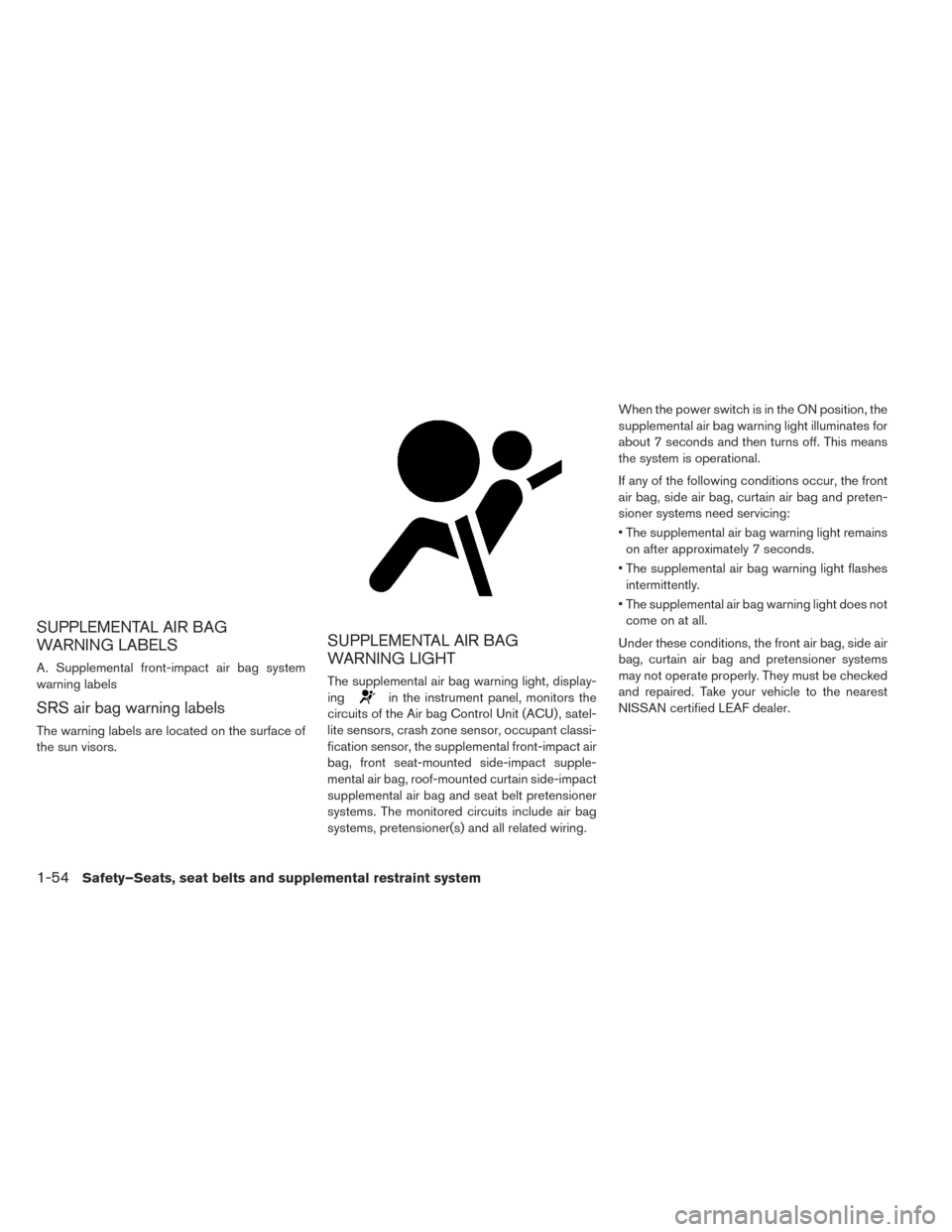

SUPPLEMENTAL AIR BAG
WARNING LABELS
A. Supplemental front-impact air bag system
warning labels
SRS air bag warning labels
The warning labels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the Air bag Control Unit (ACU) , satel-
lite sensors, crash zone sensor, occupant classi-
fication sensor, the supplemental front-impact air
bag, front seat-mounted side-impact supple-
mental air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt pretensioner
systems. The monitored circuits include air bag
systems, pretensioner(s) and all related wiring. When the power switch is in the ON position, the
supplemental air bag warning light illuminates for
about 7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
• The supplemental air bag warning light remains
on after approximately 7 seconds.
• The supplemental air bag warning light flashes intermittently.
• The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag and pretensioner systems
may not operate properly. They must be checked
and repaired. Take your vehicle to the nearest
NISSAN certified LEAF dealer.
1-54Safety–Seats, seat belts and supplemental restraint system
Page 138 of 437

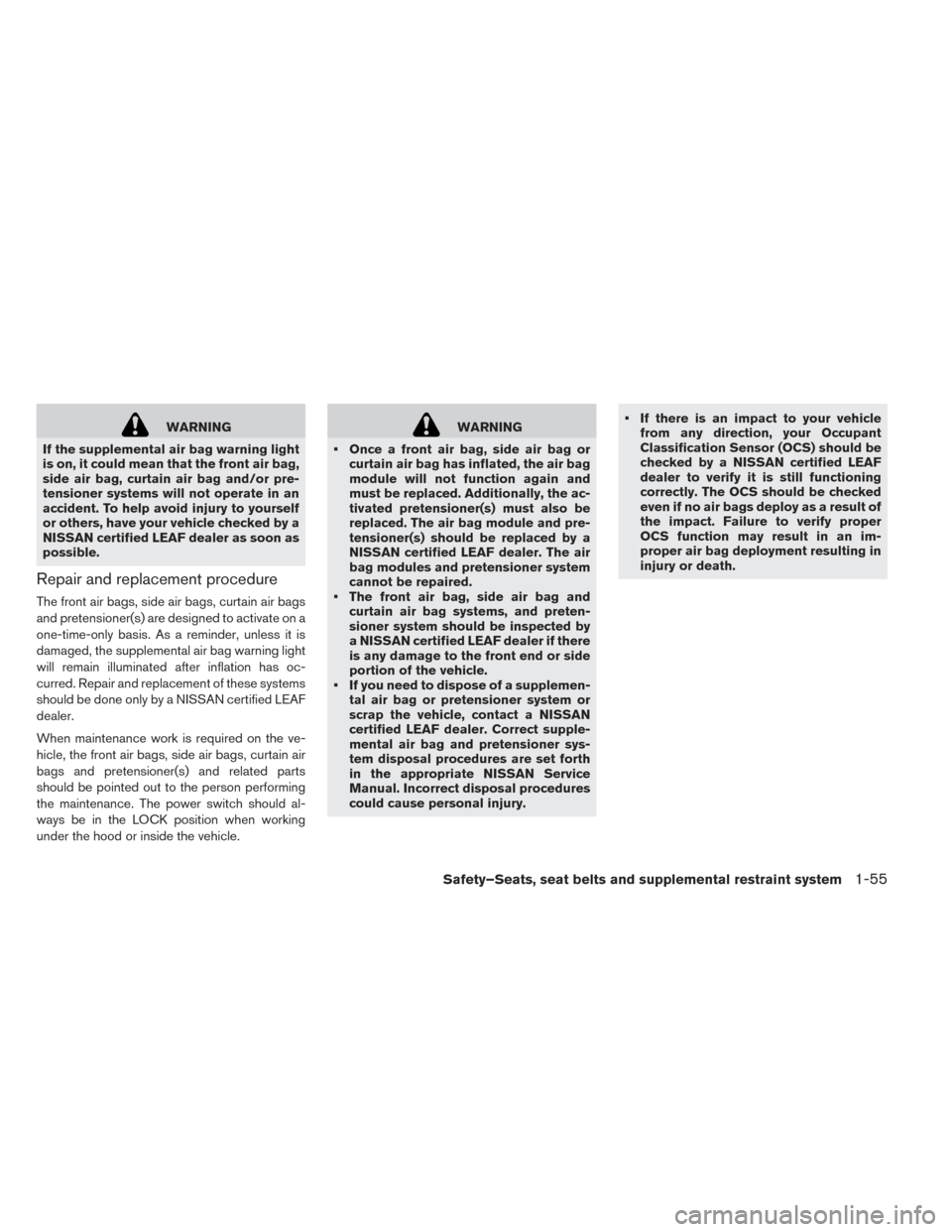

WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself
or others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioner(s) are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these systems
should be done only by a NISSAN certified LEAF
dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags and pretensioner(s) and related parts
should be pointed out to the person performing
the maintenance. The power switch should al-
ways be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
• Once a front air bag, side air bag or curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the ac-
tivated pretensioner(s) must also be
replaced. The air bag module and pre-
tensioner(s) should be replaced by a
NISSAN certified LEAF dealer. The air
bag modules and pretensioner system
cannot be repaired.
• The front air bag, side air bag and curtain air bag systems, and preten-
sioner system should be inspected by
a NISSAN certified LEAF dealer if there
is any damage to the front end or side
portion of the vehicle.
• If you need to dispose of a supplemen- tal air bag or pretensioner system or
scrap the vehicle, contact a NISSAN
certified LEAF dealer. Correct supple-
mental air bag and pretensioner sys-
tem disposal procedures are set forth
in the appropriate NISSAN Service
Manual. Incorrect disposal procedures
could cause personal injury. • If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked by a NISSAN certified LEAF
dealer to verify it is still functioning
correctly. The OCS should be checked
even if no air bags deploy as a result of
the impact. Failure to verify proper
OCS function may result in an im-
proper air bag deployment resulting in
injury or death.
Safety–Seats, seat belts and supplemental restraint system1-55
Page 139 of 437

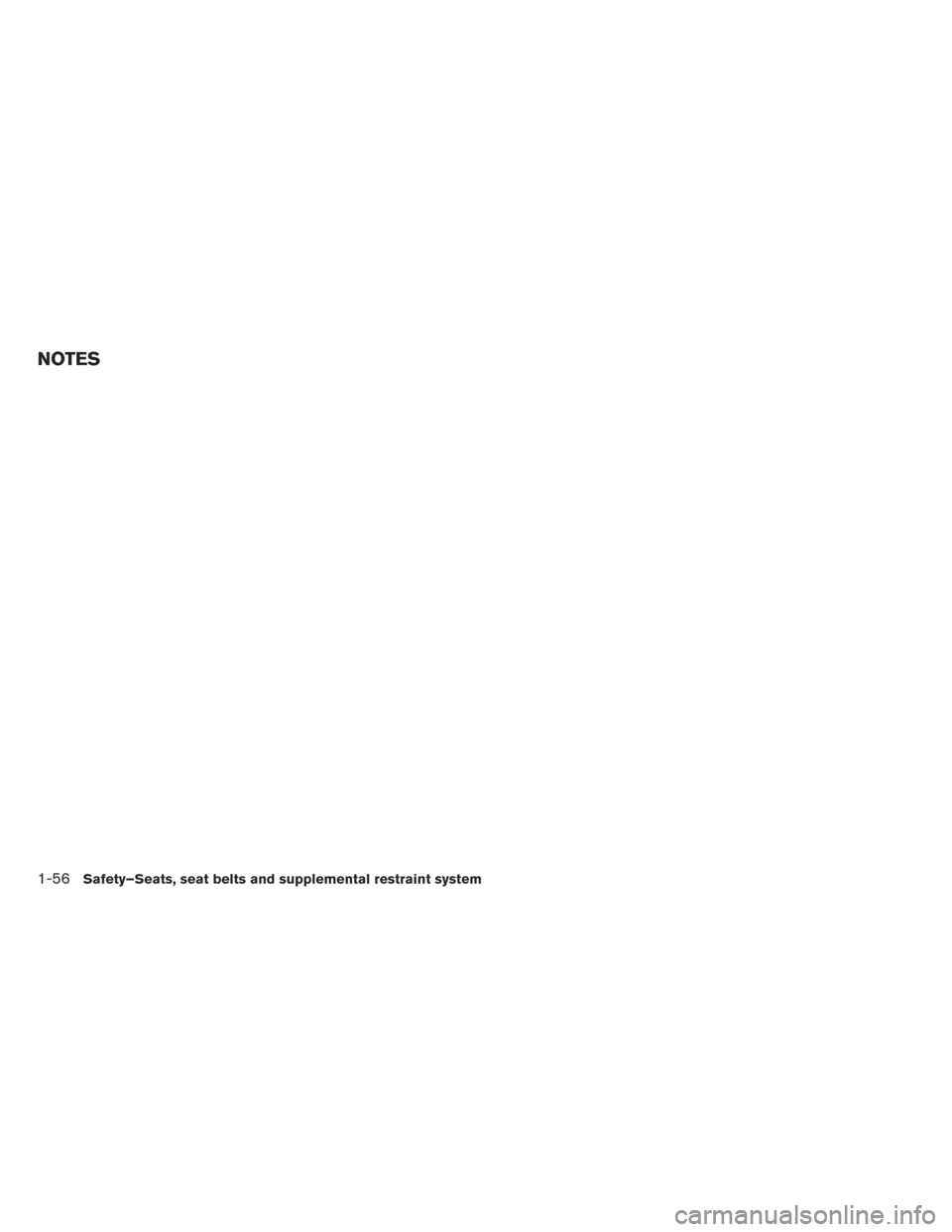

NOTES
1-56Safety–Seats, seat belts and supplemental restraint system
Page 140 of 437

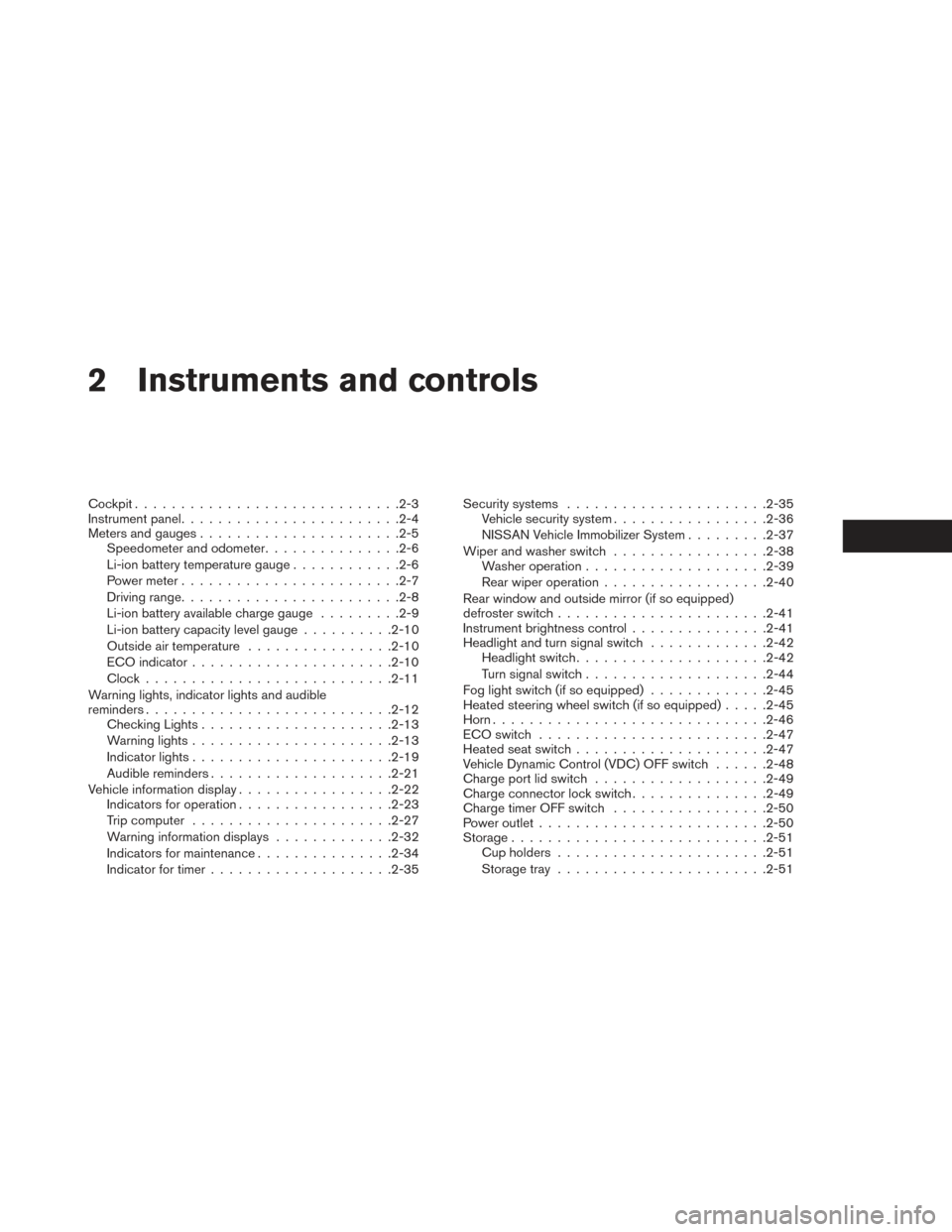

2 Instruments and controls
Cockpit............................ .2-3
Instrument panel ....................... .2-4
Meters and gauges ..................... .2-5
Speedometer and odometer ...............2-6
Li-ion battery temperature gauge ............2-6
Power meter ....................... .2-7
Driving range ....................... .2-8
Li-ion battery available charge gauge .........2-9
Li-ion battery capacity level gauge ..........2-10
Outside air temperature ................2-10
ECO indicator ..................... .2-10
Clock .......................... .2-11
Warning lights, indicator lights and audible
reminders .......................... .2-12
Checking Lights .................... .2-13
Warning lights ..................... .2-13
Indicator lights ..................... .2-19
Audible reminders ................... .2-21
Vehicle information display .................2-22
Indicators for operation ................ .2-23
Trip computer ..................... .2-27
Warning information displays .............2-32
Indicators for maintenance ...............2-34
Indicator for timer ................... .2-35Security systems
..................... .2-35
Vehicle security system ................ .2-36
NISSAN Vehicle Immobilizer System .........2-37
Wiper and washer switch .................2-38
Washer operation ................... .2-39
Rear wiper operation ................. .2-40
Rear window and outside mirror (if so equipped)
defroster switch ...................... .2-41
Instrument brightness control ...............2-41
Headlight and turn signal switch .............2-42
Headlight switch .................... .2-42
Turn signal switch ................... .2-44
Fog
light switch (if so equipped) .............2-45
Heated steering wheel switch (if so equipped) .....2-45
Horn ............................. .2-46
ECO switch ........................ .2-47
Heated seat switch .................... .2-47
Vehicle Dynamic Control (VDC) OFF switch ......2-48
Charge port lid switch .................. .2-49
Charge connector lock switch ...............2-49
Charge timer OFF switch .................2-50
Power outlet ........................ .2-50
Storage ........................... .2-51
Cup holders ...................... .2-51
Storage tray ...................... .2-51
