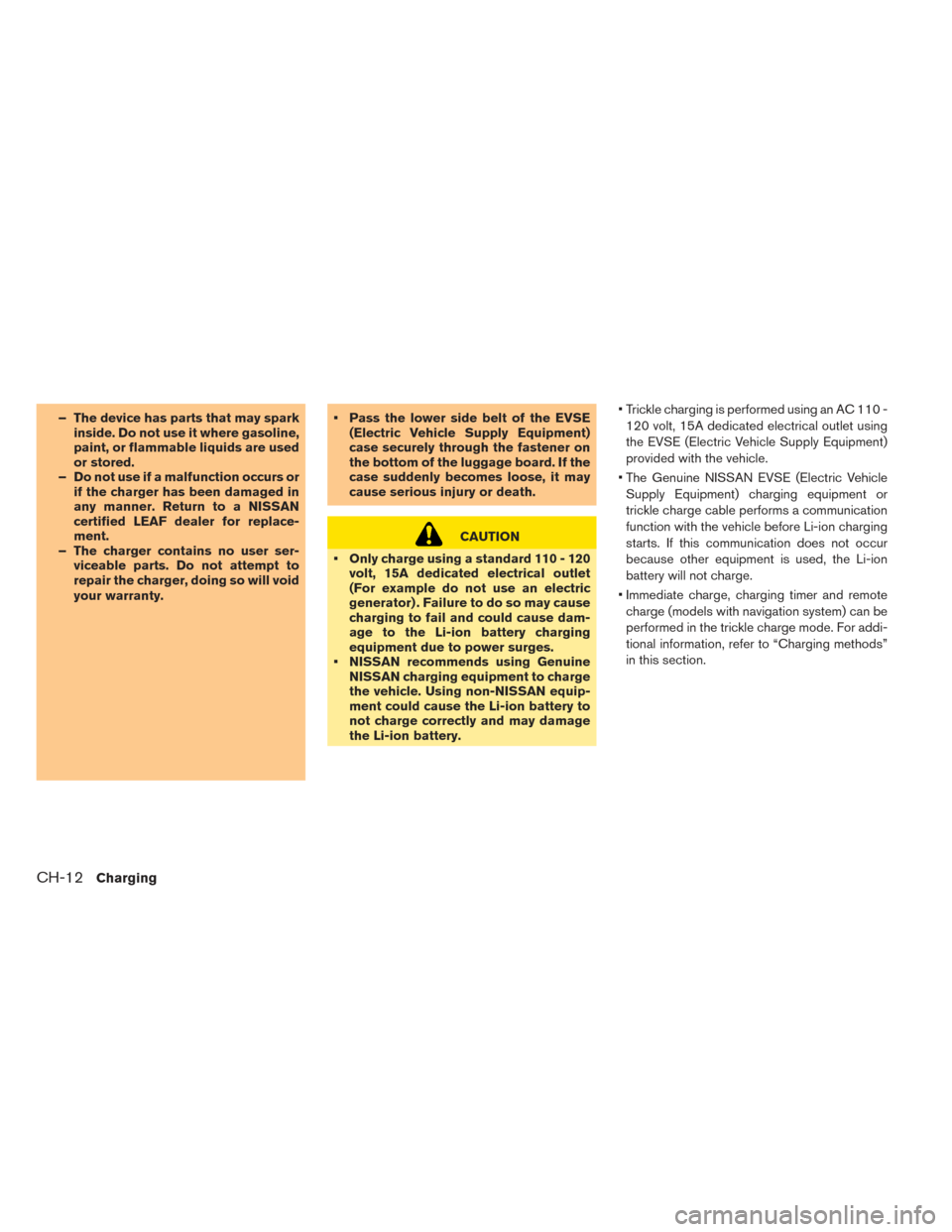

– The device has parts that may sparkinside. Do not use it where gasoline,
paint, or flammable liquids are used
or stored.
– Do not use if a malfunction occurs or if the charger has been damaged in
any manner. Return to a NISSAN
certified LEAF dealer for replace-
ment.
– The charger contains no user ser- viceable parts. Do not attempt to
repair the charger, doing so will void
your warranty.• Pass the lower side belt of the EVSE(Electric Vehicle Supply Equipment)
case securely through the fastener on
the bottom of the luggage board. If the
case suddenly becomes loose, it may
cause serious injury or death.
CAUTION
• Only charge using a standard 110 - 120 volt, 15A dedicated electrical outlet
(For example do not use an electric
generator) . Failure to do so may cause
charging to fail and could cause dam-
age to the Li-ion battery charging
equipment due to power surges.
• NISSAN recommends using Genuine NISSAN charging equipment to charge
the vehicle. Using non-NISSAN equip-
ment could cause the Li-ion battery to
not charge correctly and may damage
the Li-ion battery. • Trickle charging is performed using an AC 110 -
120 volt, 15A dedicated electrical outlet using
the EVSE (Electric Vehicle Supply Equipment)
provided with the vehicle.
• The Genuine NISSAN EVSE (Electric Vehicle Supply Equipment) charging equipment or
trickle charge cable performs a communication
function with the vehicle before Li-ion charging
starts. If this communication does not occur
because other equipment is used, the Li-ion
battery will not charge.
• Immediate charge, charging timer and remote charge (models with navigation system) can be
performed in the trickle charge mode. For addi-
tional information, refer to “Charging methods”
in this section.
CH-12Charging
Page 62 of 437

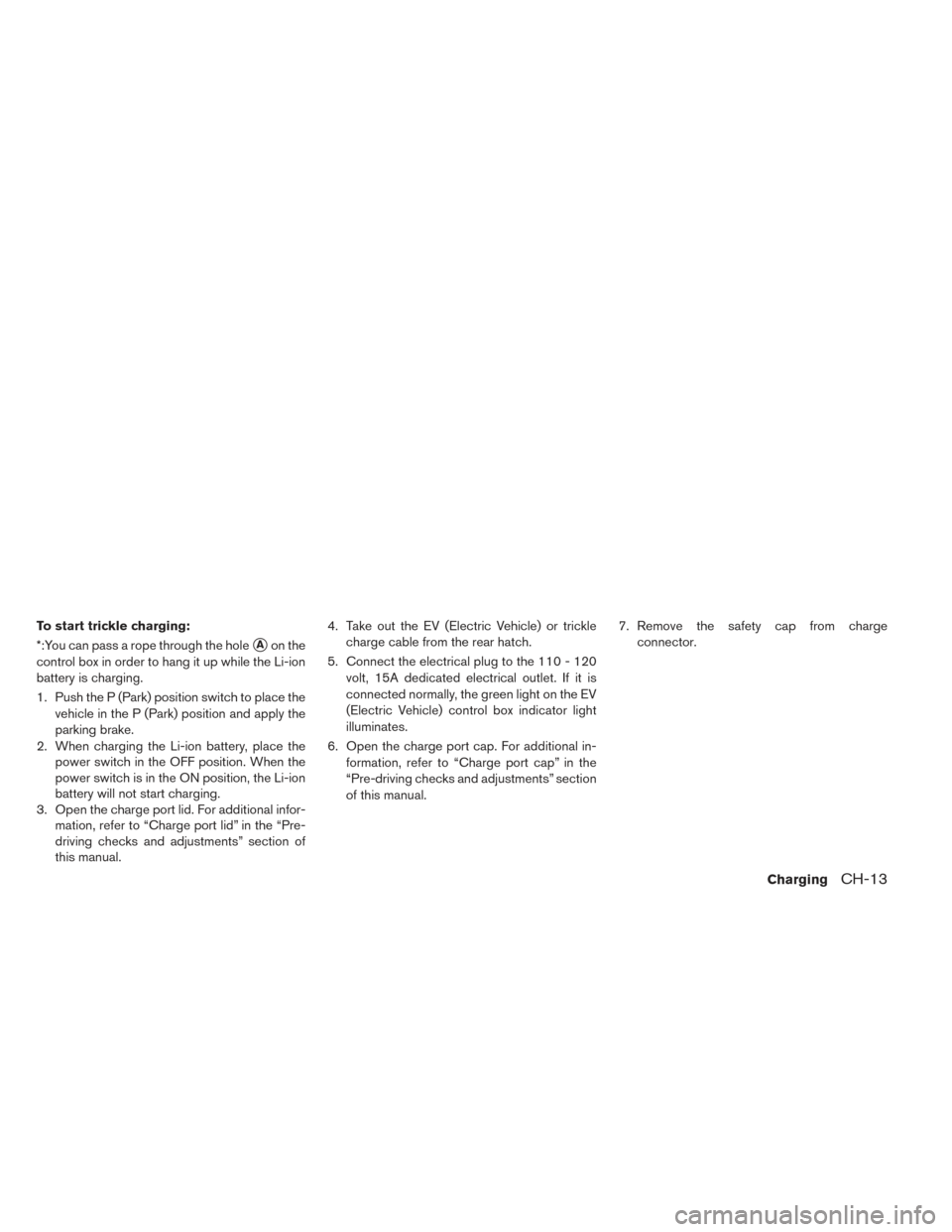

To start trickle charging:
*:You can pass a rope through the hole
Aon the
control box in order to hang it up while the Li-ion
battery is charging.
1. Push the P (Park) position switch to place the vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid. For additional infor- mation, refer to “Charge port lid” in the “Pre-
driving checks and adjustments” section of
this manual. 4. Take out the EV (Electric Vehicle) or trickle
charge cable from the rear hatch.
5. Connect the electrical plug to the 110 - 120 volt, 15A dedicated electrical outlet. If it is
connected normally, the green light on the EV
(Electric Vehicle) control box indicator light
illuminates.
6. Open the charge port cap. For additional in- formation, refer to “Charge port cap” in the
“Pre-driving checks and adjustments” section
of this manual. 7. Remove the safety cap from charge
connector.
ChargingCH-13
Page 63 of 437

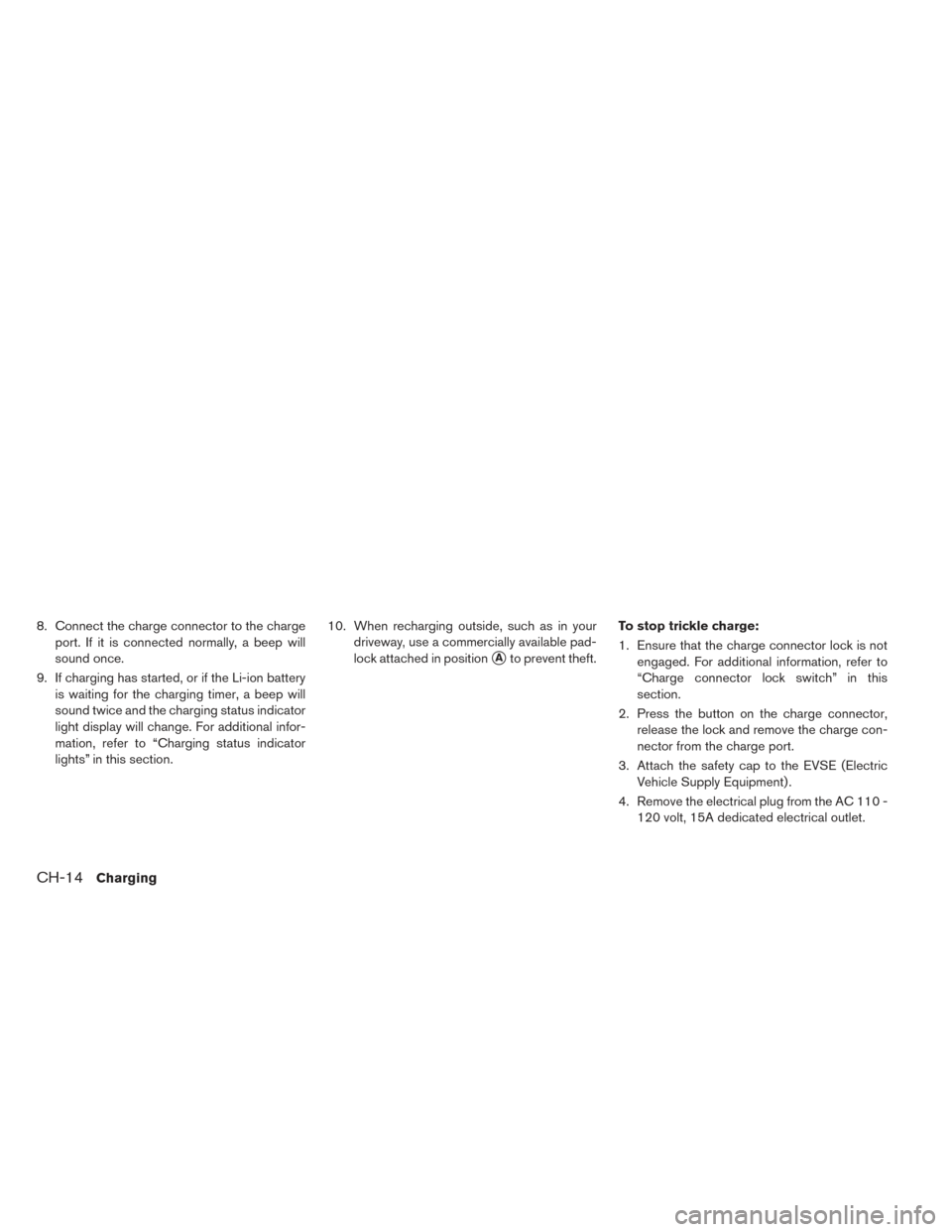

8. Connect the charge connector to the chargeport. If it is connected normally, a beep will
sound once.
9. If charging has started, or if the Li-ion battery is waiting for the charging timer, a beep will
sound twice and the charging status indicator
light display will change. For additional infor-
mation, refer to “Charging status indicator
lights” in this section. 10. When recharging outside, such as in your
driveway, use a commercially available pad-
lock attached in position
Ato prevent theft. To stop trickle charge:
1. Ensure that the charge connector lock is not
engaged. For additional information, refer to
“Charge connector lock switch” in this
section.
2. Press the button on the charge connector, release the lock and remove the charge con-
nector from the charge port.
3. Attach the safety cap to the EVSE (Electric Vehicle Supply Equipment) .
4. Remove the electrical plug from the AC 110 - 120 volt, 15A dedicated electrical outlet.
CH-14Charging
Page 64 of 437

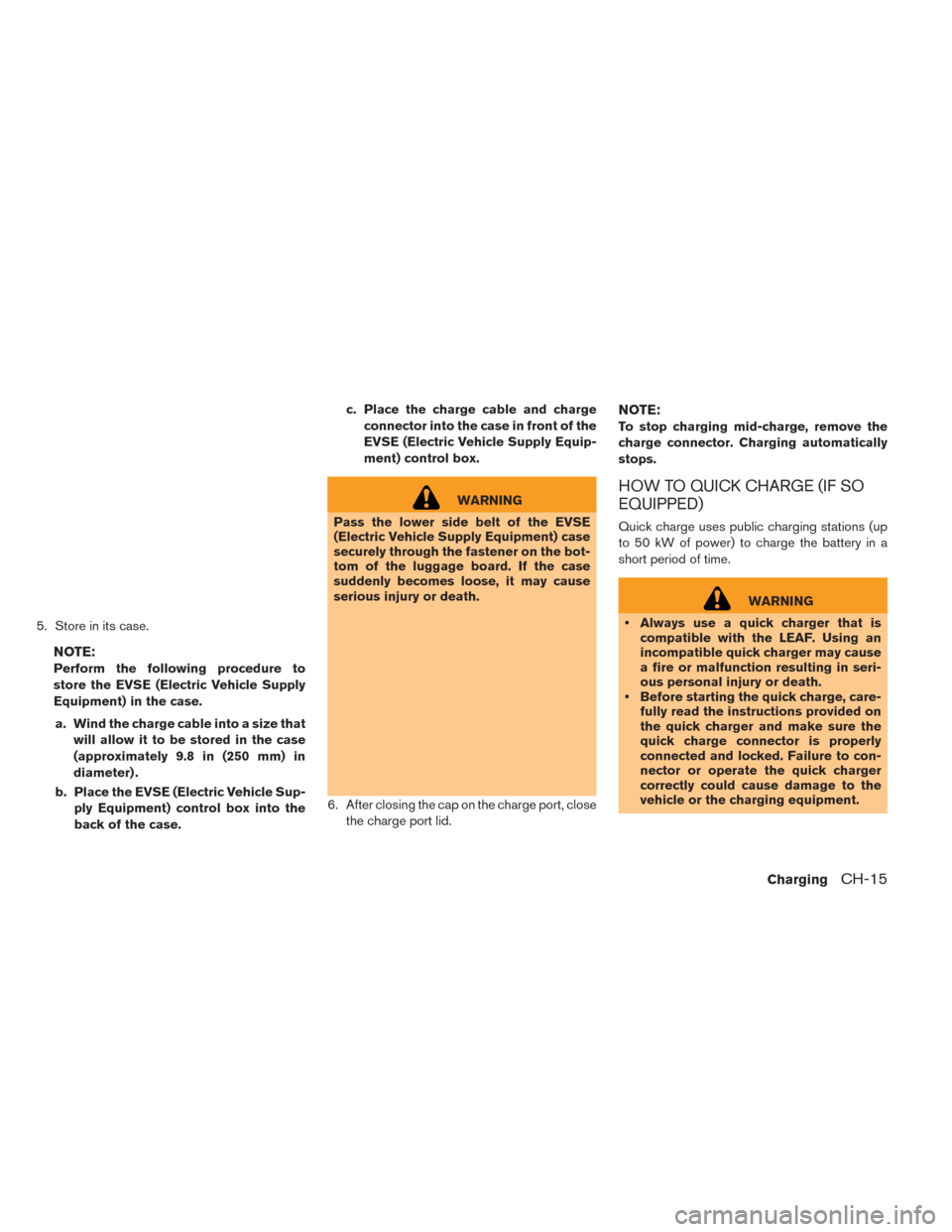

5. Store in its case.
NOTE:
Perform the following procedure to
store the EVSE (Electric Vehicle Supply
Equipment) in the case.a. Wind the charge cable into a size that will allow it to be stored in the case
(approximately 9.8 in (250 mm) in
diameter) .
b. Place the EVSE (Electric Vehicle Sup- ply Equipment) control box into the
back of the case. c. Place the charge cable and charge
connector into the case in front of the
EVSE (Electric Vehicle Supply Equip-
ment) control box.
WARNING
Pass the lower side belt of the EVSE
(Electric Vehicle Supply Equipment) case
securely through the fastener on the bot-
tom of the luggage board. If the case
suddenly becomes loose, it may cause
serious injury or death.
6. After closing the cap on the charge port, close the charge port lid.
NOTE:
To stop charging mid-charge, remove the
charge connector. Charging automatically
stops.
HOW TO QUICK CHARGE (IF SO
EQUIPPED)
Quick charge uses public charging stations (up
to 50 kW of power) to charge the battery in a
short period of time.
WARNING
• Always use a quick charger that is compatible with the LEAF. Using an
incompatible quick charger may cause
a fire or malfunction resulting in seri-
ous personal injury or death.
• Before starting the quick charge, care- fully read the instructions provided on
the quick charger and make sure the
quick charge connector is properly
connected and locked. Failure to con-
nector or operate the quick charger
correctly could cause damage to the
vehicle or the charging equipment.
ChargingCH-15
Page 65 of 437

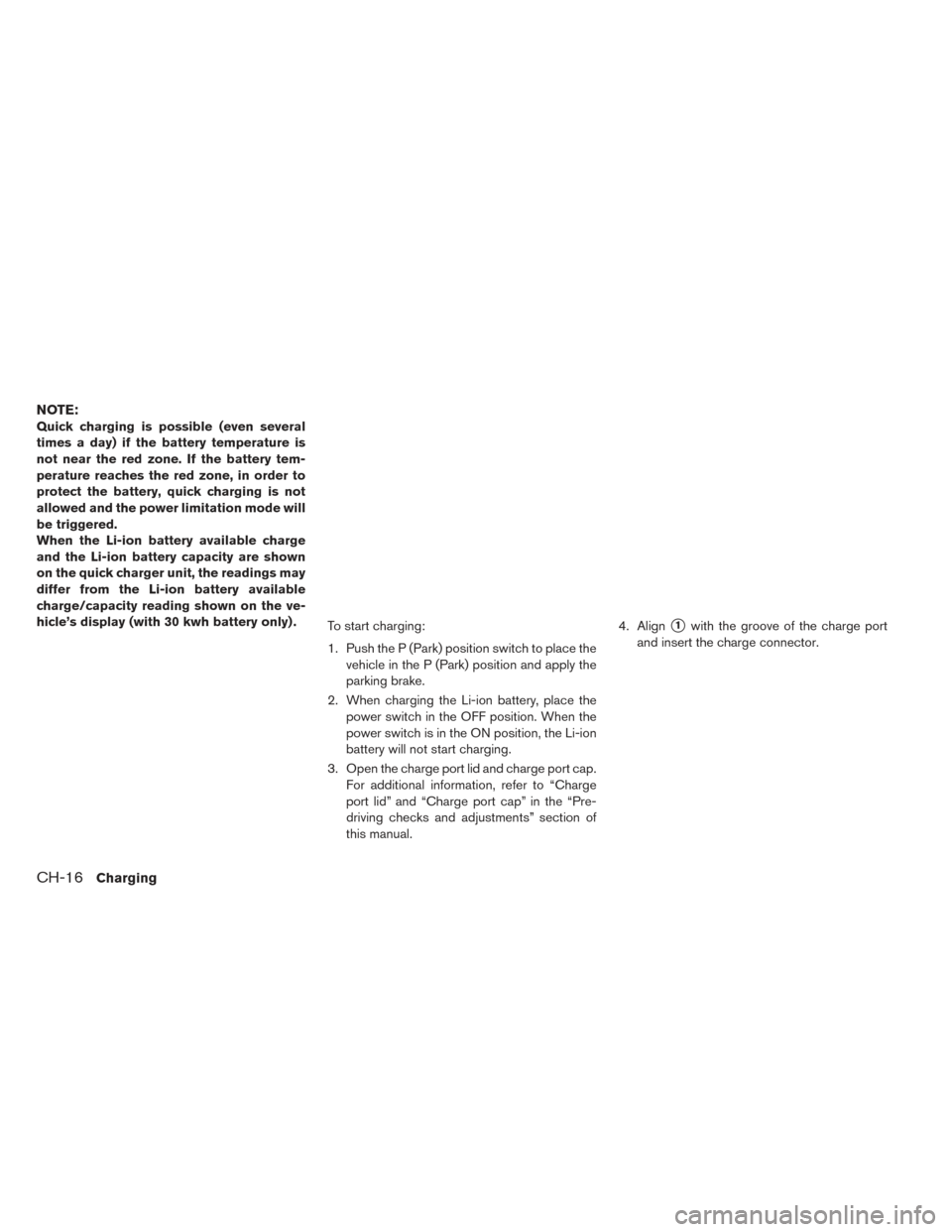

NOTE:
Quick charging is possible (even several
times a day) if the battery temperature is
not near the red zone. If the battery tem-
perature reaches the red zone, in order to
protect the battery, quick charging is not
allowed and the power limitation mode will
be triggered.
When the Li-ion battery available charge
and the Li-ion battery capacity are shown
on the quick charger unit, the readings may
differ from the Li-ion battery available
charge/capacity reading shown on the ve-
hicle’s display (with 30 kwh battery only) .To start charging:
1. Push the P (Park) position switch to place the
vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid and charge port cap. For additional information, refer to “Charge
port lid” and “Charge port cap” in the “Pre-
driving checks and adjustments” section of
this manual. 4. Align
1with the groove of the charge port
and insert the charge connector.
CH-16Charging
Page 66 of 437

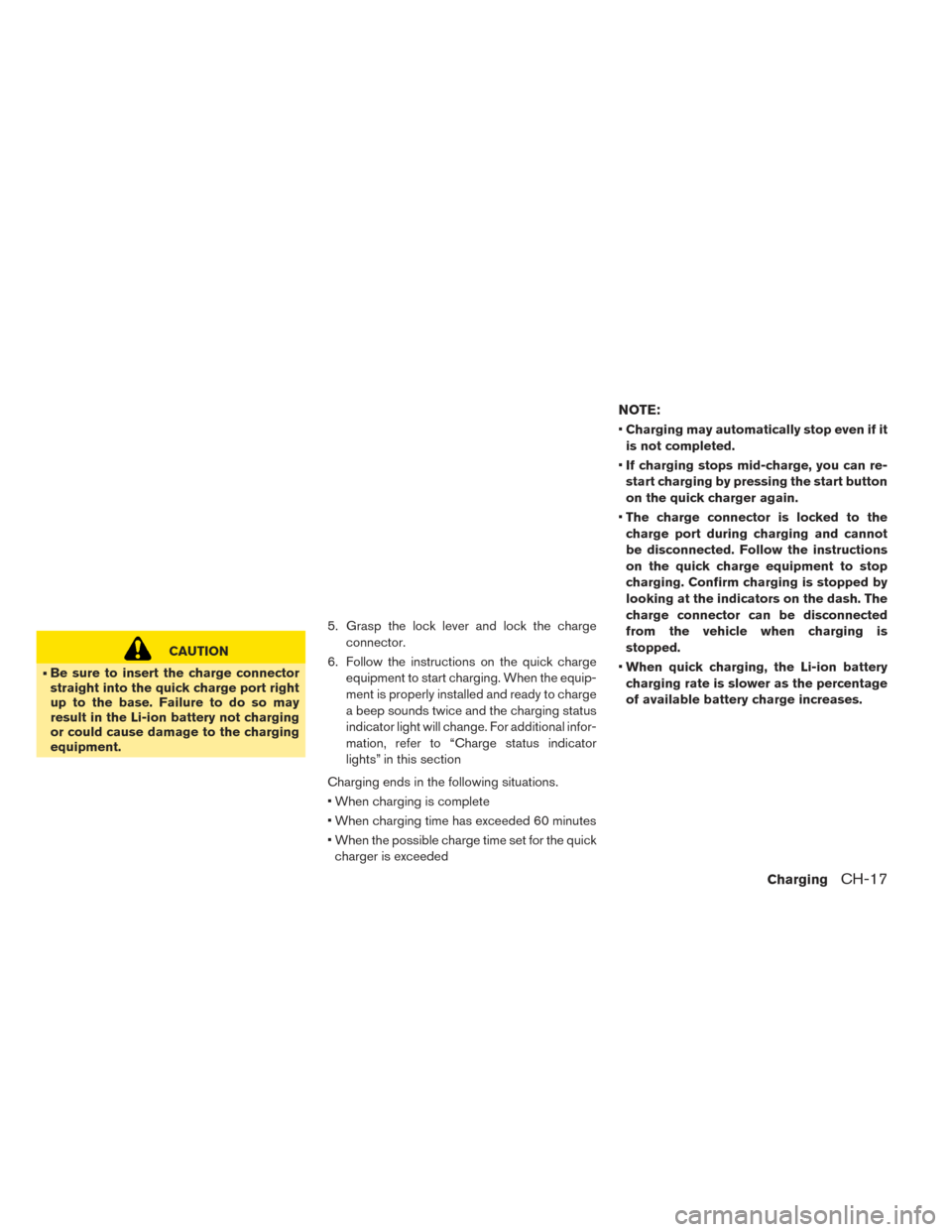

CAUTION
• Be sure to insert the charge connector
straight into the quick charge port right
up to the base. Failure to do so may
result in the Li-ion battery not charging
or could cause damage to the charging
equipment. 5. Grasp the lock lever and lock the charge
connector.
6. Follow the instructions on the quick charge equipment to start charging. When the equip-
ment is properly installed and ready to charge
a beep sounds twice and the charging status
indicator light will change. For additional infor-
mation, refer to “Charge status indicator
lights” in this section
Charging ends in the following situations.
• When charging is complete
• When charging time has exceeded 60 minutes
• When the possible charge time set for the quick charger is exceeded
NOTE:
•Charging may automatically stop even if it
is not completed.
• If charging stops mid-charge, you can re-
start charging by pressing the start button
on the quick charger again.
• The charge connector is locked to the
charge port during charging and cannot
be disconnected. Follow the instructions
on the quick charge equipment to stop
charging. Confirm charging is stopped by
looking at the indicators on the dash. The
charge connector can be disconnected
from the vehicle when charging is
stopped.
• When quick charging, the Li-ion battery
charging rate is slower as the percentage
of available battery charge increases.
ChargingCH-17
Page 67 of 437

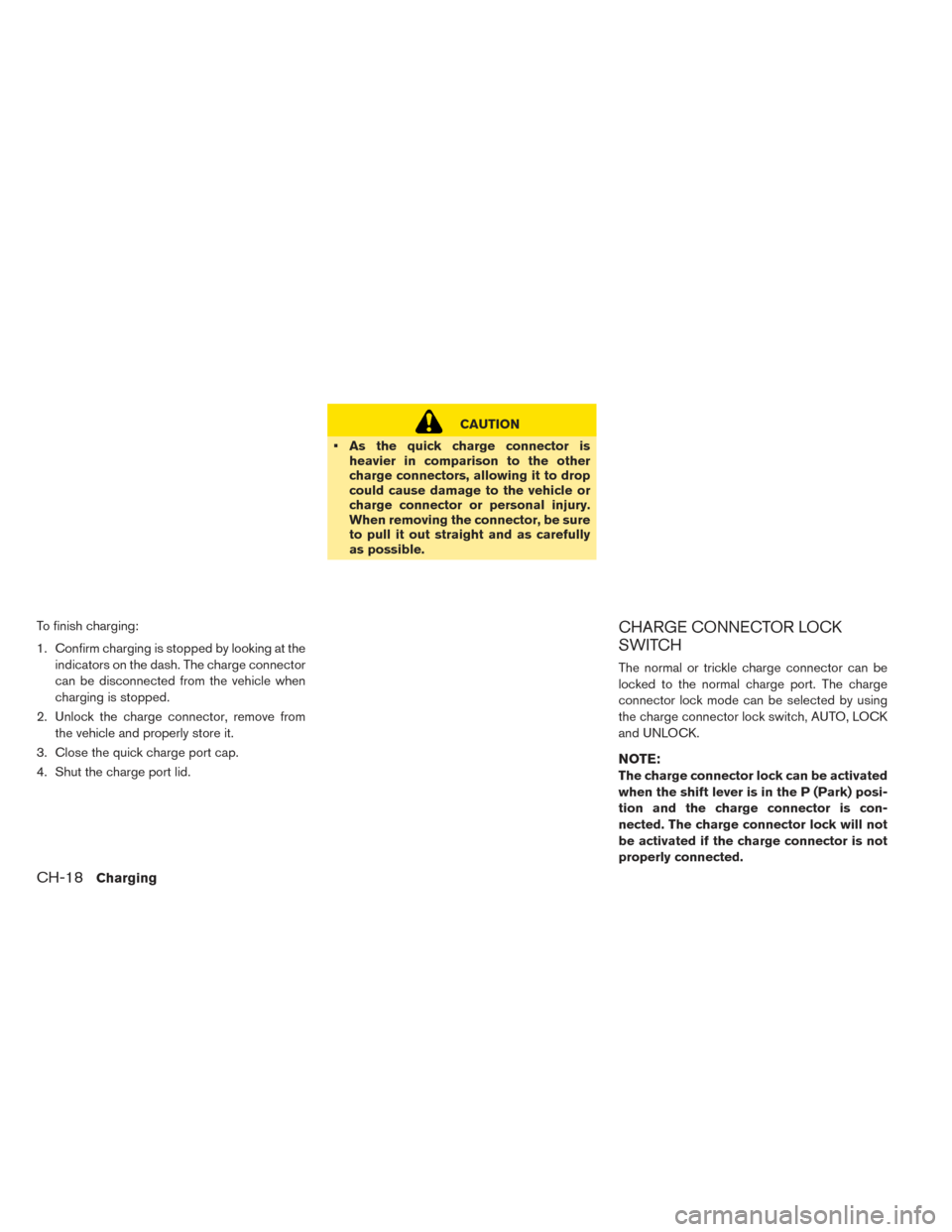

To finish charging:
1. Confirm charging is stopped by looking at theindicators on the dash. The charge connector
can be disconnected from the vehicle when
charging is stopped.
2. Unlock the charge connector, remove from the vehicle and properly store it.
3. Close the quick charge port cap.
4. Shut the charge port lid.
CAUTION
• As the quick charge connector is heavier in comparison to the other
charge connectors, allowing it to drop
could cause damage to the vehicle or
charge connector or personal injury.
When removing the connector, be sure
to pull it out straight and as carefully
as possible.
CHARGE CONNECTOR LOCK
SWITCH
The normal or trickle charge connector can be
locked to the normal charge port. The charge
connector lock mode can be selected by using
the charge connector lock switch, AUTO, LOCK
and UNLOCK.
NOTE:
The charge connector lock can be activated
when the shift lever is in the P (Park) posi-
tion and the charge connector is con-
nected. The charge connector lock will not
be activated if the charge connector is not
properly connected.
CH-18Charging
Page 68 of 437

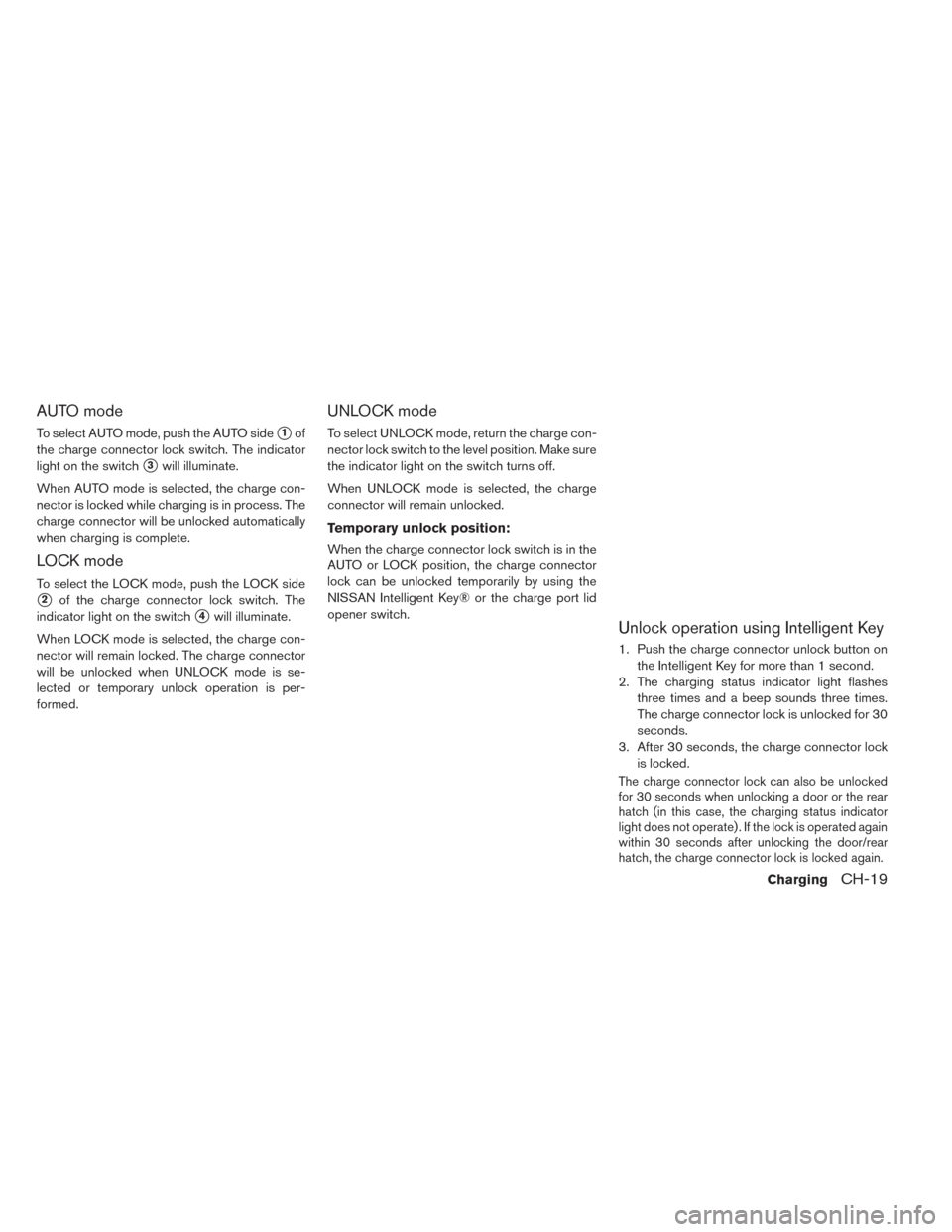

AUTO mode
To select AUTO mode, push the AUTO side1of
the charge connector lock switch. The indicator
light on the switch
3will illuminate.
When AUTO mode is selected, the charge con-
nector is locked while charging is in process. The
charge connector will be unlocked automatically
when charging is complete.
LOCK mode
To select the LOCK mode, push the LOCK side
2of the charge connector lock switch. The
indicator light on the switch
4will illuminate.
When LOCK mode is selected, the charge con-
nector will remain locked. The charge connector
will be unlocked when UNLOCK mode is se-
lected or temporary unlock operation is per-
formed.
UNLOCK mode
To select UNLOCK mode, return the charge con-
nector lock switch to the level position. Make sure
the indicator light on the switch turns off.
When UNLOCK mode is selected, the charge
connector will remain unlocked.
Temporary unlock position:
When the charge connector lock switch is in the
AUTO or LOCK position, the charge connector
lock can be unlocked temporarily by using the
NISSAN Intelligent Key® or the charge port lid
opener switch.
Unlock operation using Intelligent Key
1. Push the charge connector unlock button on the Intelligent Key for more than 1 second.
2. The charging status indicator light flashes three times and a beep sounds three times.
The charge connector lock is unlocked for 30
seconds.
3. After 30 seconds, the charge connector lock is locked.
The charge connector lock can also be unlocked
for 30 seconds when unlocking a door or the rear
hatch (in this case, the charging status indicator
light does not operate) . If the lock is operated again
within 30 seconds after unlocking the door/rear
hatch, the charge connector lock is locked again.
ChargingCH-19
Page 69 of 437

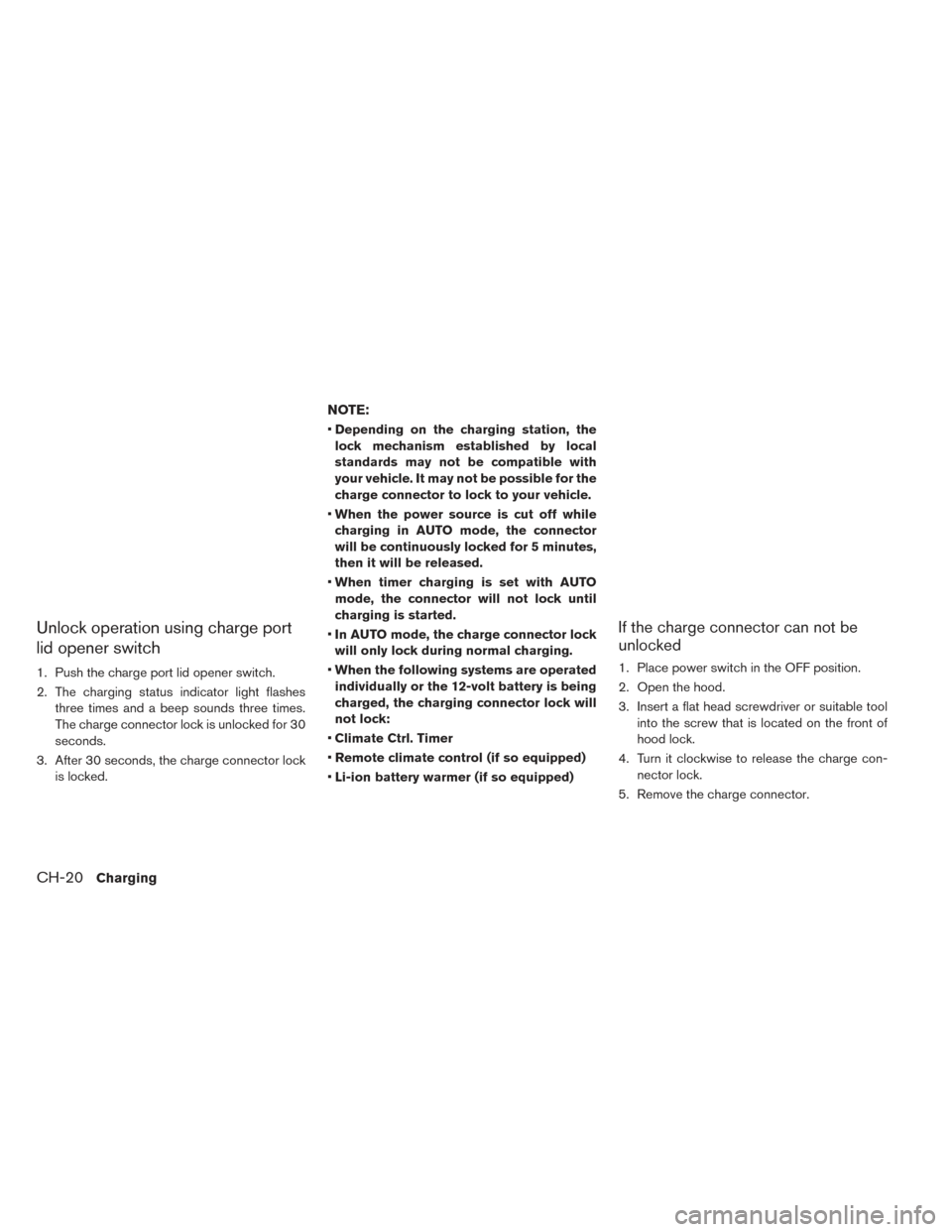

Unlock operation using charge port
lid opener switch
1. Push the charge port lid opener switch.
2. The charging status indicator light flashesthree times and a beep sounds three times.
The charge connector lock is unlocked for 30
seconds.
3. After 30 seconds, the charge connector lock is locked.
NOTE:
•Depending on the charging station, the
lock mechanism established by local
standards may not be compatible with
your vehicle. It may not be possible for the
charge connector to lock to your vehicle.
• When the power source is cut off while
charging in AUTO mode, the connector
will be continuously locked for 5 minutes,
then it will be released.
• When timer charging is set with AUTO
mode, the connector will not lock until
charging is started.
• In AUTO mode, the charge connector lock
will only lock during normal charging.
• When the following systems are operated
individually or the 12-volt battery is being
charged, the charging connector lock will
not lock:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery warmer (if so equipped)
If the charge connector can not be
unlocked
1. Place power switch in the OFF position.
2. Open the hood.
3. Insert a flat head screwdriver or suitable tool
into the screw that is located on the front of
hood lock.
4. Turn it clockwise to release the charge con- nector lock.
5. Remove the charge connector.
CH-20Charging
Page 70 of 437

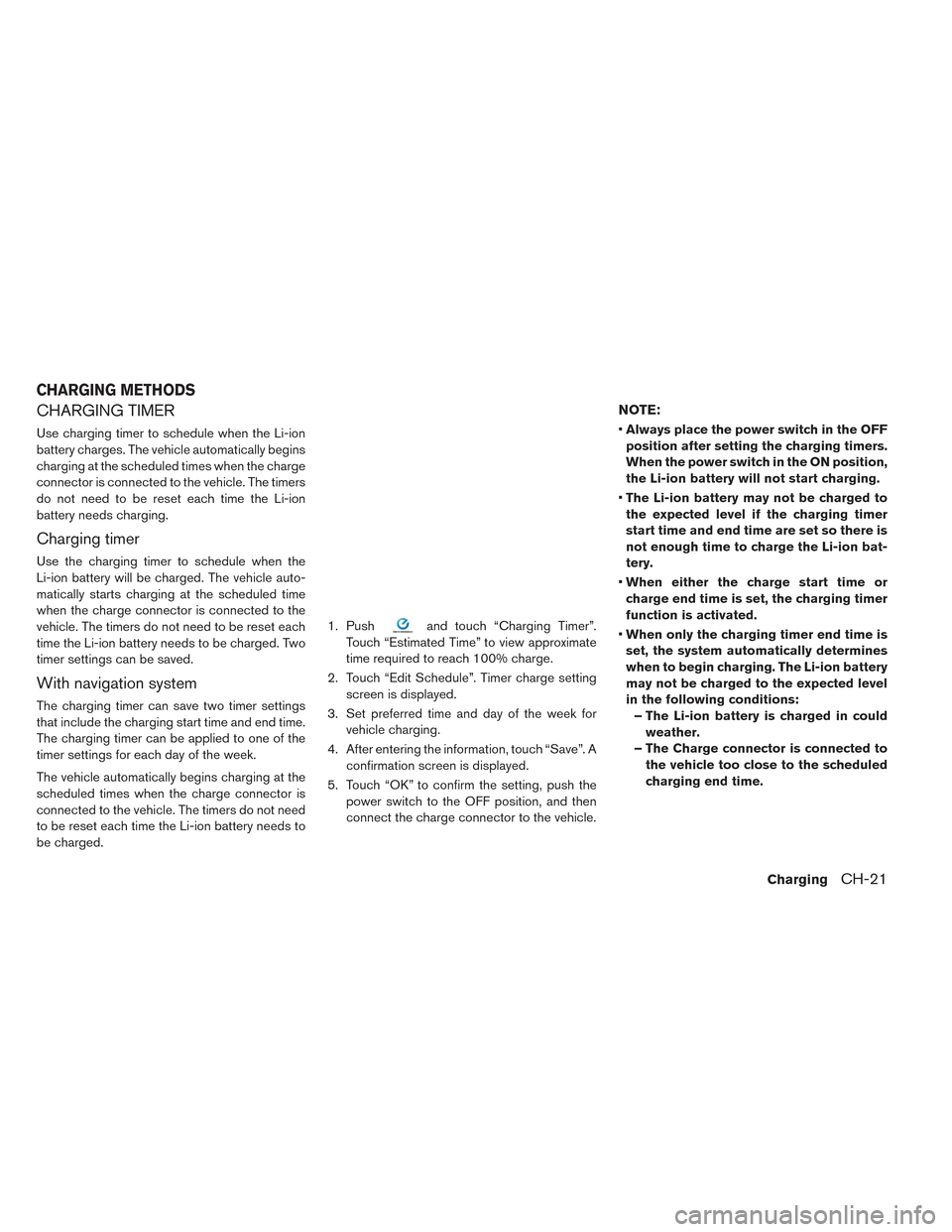

CHARGING TIMER
Use charging timer to schedule when the Li-ion
battery charges. The vehicle automatically begins
charging at the scheduled times when the charge
connector is connected to the vehicle. The timers
do not need to be reset each time the Li-ion
battery needs charging.
Charging timer
Use the charging timer to schedule when the
Li-ion battery will be charged. The vehicle auto-
matically starts charging at the scheduled time
when the charge connector is connected to the
vehicle. The timers do not need to be reset each
time the Li-ion battery needs to be charged. Two
timer settings can be saved.
With navigation system
The charging timer can save two timer settings
that include the charging start time and end time.
The charging timer can be applied to one of the
timer settings for each day of the week.
The vehicle automatically begins charging at the
scheduled times when the charge connector is
connected to the vehicle. The timers do not need
to be reset each time the Li-ion battery needs to
be charged.1. Push
and touch “Charging Timer”.
Touch “Estimated Time” to view approximate
time required to reach 100% charge.
2. Touch “Edit Schedule”. Timer charge setting screen is displayed.
3. Set preferred time and day of the week for vehicle charging.
4. After entering the information, touch “Save”. A confirmation screen is displayed.
5. Touch “OK” to confirm the setting, push the power switch to the OFF position, and then
connect the charge connector to the vehicle.
NOTE:
•Always place the power switch in the OFF
position after setting the charging timers.
When the power switch in the ON position,
the Li-ion battery will not start charging.
• The Li-ion battery may not be charged to
the expected level if the charging timer
start time and end time are set so there is
not enough time to charge the Li-ion bat-
tery.
• When either the charge start time or
charge end time is set, the charging timer
function is activated.
• When only the charging timer end time is
set, the system automatically determines
when to begin charging. The Li-ion battery
may not be charged to the expected level
in the following conditions: – The Li-ion battery is charged in could weather.
– The Charge connector is connected to the vehicle too close to the scheduled
charging end time.
CHARGING METHODS
ChargingCH-21
