NISSAN LEAF 2019 Owner´s Manual

When the chime sounds, immediately stop
the vehicle in a safe location and push the P
(Park) position switch on the shif t lever and
apply the parking brake. The 12-volt battery
charge warning light turns off and the
chime will stop when the parking brake is
applied or the vehicle is placed in the P
(Park) position. Have the system checked. It
is recommended that you visit a NISSAN
certified LEAF dealer for this service. For
additional information, refer to “12-volt bat-
tery charge warning light” in this section.The vehicle information display is located
to the lef t of the speedometer. It displays
items such as
• Battery information
• Energy economy
• Average vehicle speed
• Driving distance
• Driving time
• Cruise control information
• Intelligent Key information
• Indicators and warnings

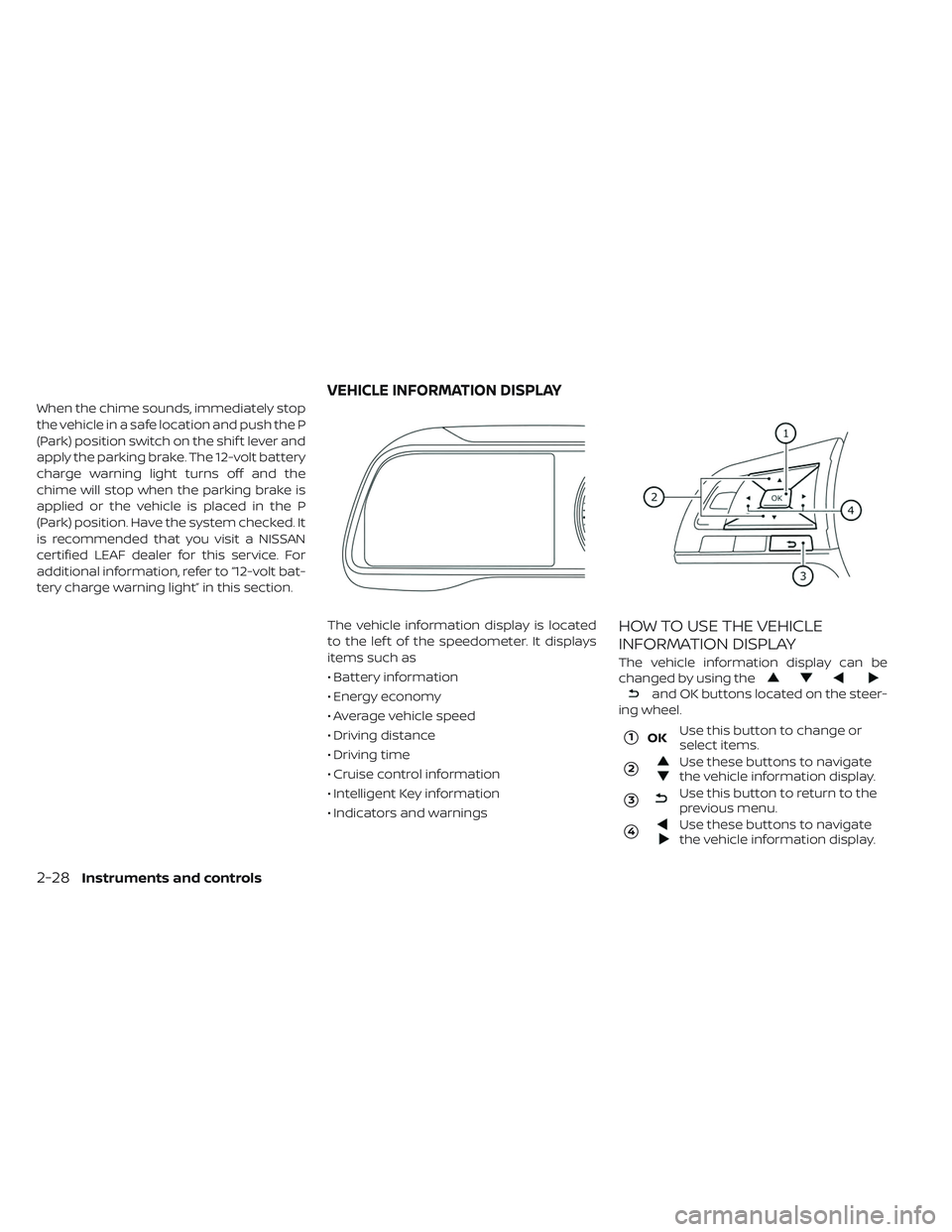

HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be
changed by using the
and OK buttons located on the steer-
ing wheel.
1OK Use this button to change or
select items.
2Use these buttons to navigate
the vehicle information display.
3Use this button to return to the
previous menu.
4Use these buttons to navigate
the vehicle information display.
VEHICLE INFORMATION DISPLAY
2-28Instruments and controls

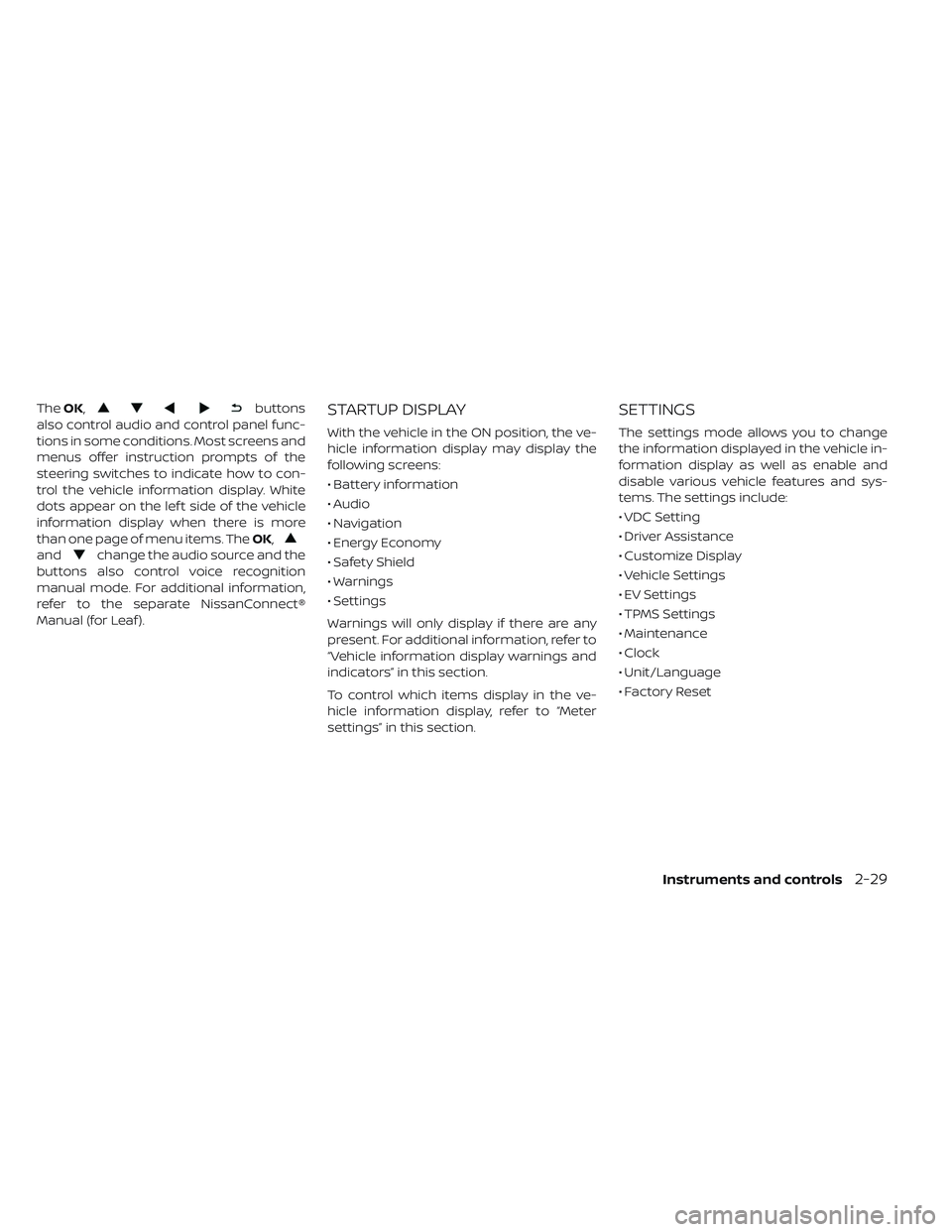

TheOK,buttons
also control audio and control panel func-
tions in some conditions. Most screens and
menus offer instruction prompts of the
steering switches to indicate how to con-
trol the vehicle information display. White
dots appear on the lef t side of the vehicle
information display when there is more
than one page of menu items. The OK,
andchange the audio source and the
buttons also control voice recognition
manual mode. For additional information,
refer to the separate NissanConnect®
Manual (for Leaf ).
STARTUP DISPLAY
With the vehicle in the ON position, the ve-
hicle information display may display the
following screens:
• Battery information
• Audio
• Navigation
• Energy Economy
• Safety Shield
• Warnings
• Settings
Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.
To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.
SETTINGS
The settings mode allows you to change
the information displayed in the vehicle in-
formation display as well as enable and
disable various vehicle features and sys-
tems. The settings include:
• VDC Setting
• Driver Assistance
• Customize Display
• Vehicle Settings
• EV Settings
• TPMS Settings
• Maintenance
• Clock
• Unit/Language
• Factory Reset
Instruments and controls2-29

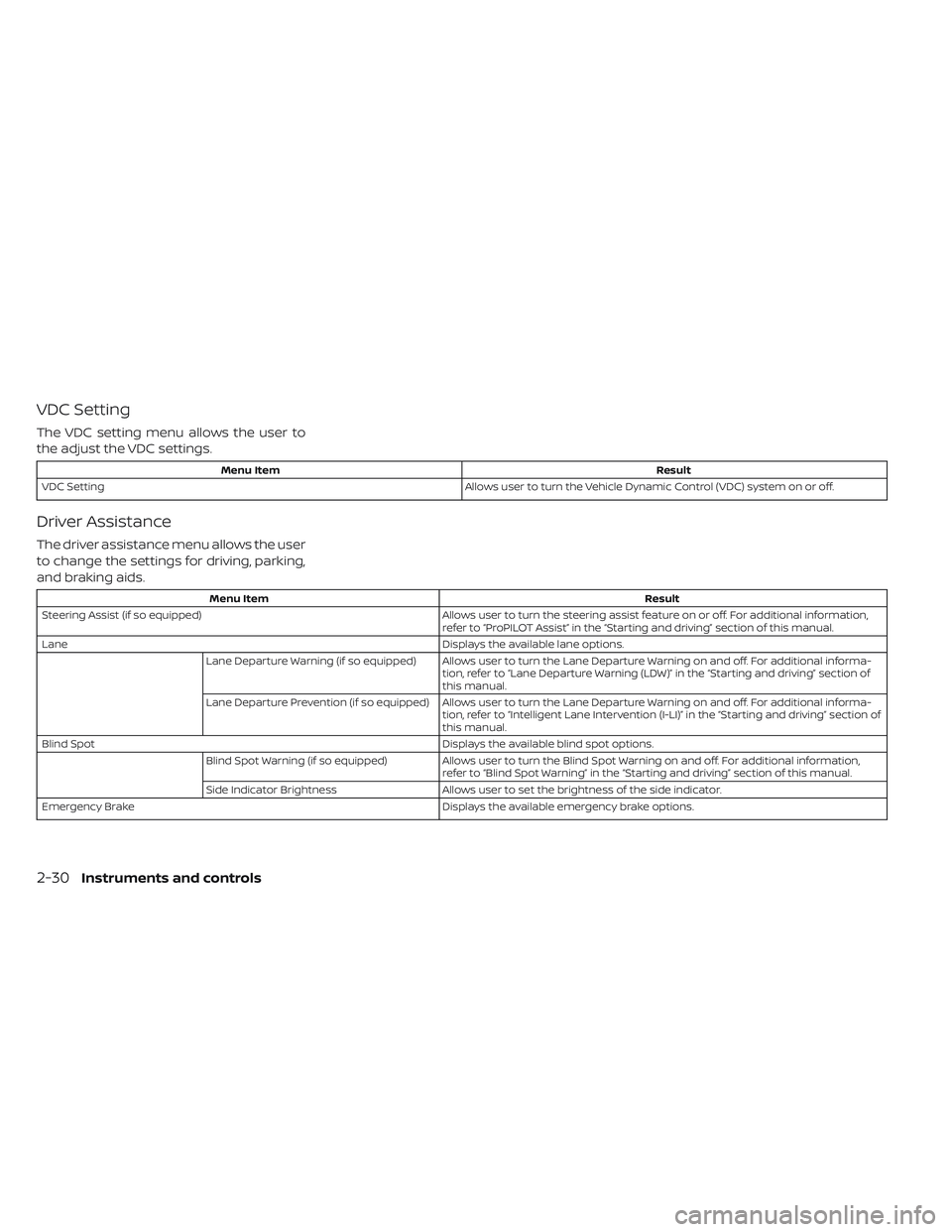

VDC Setting
The VDC setting menu allows the user to
the adjust the VDC settings.
Menu ItemResult
VDC Setting Allows user to turn the Vehicle Dynamic Control (VDC) system on or off.
Driver Assistance
The driver assistance menu allows the user
to change the settings for driving, parking,
and braking aids.
Menu Item Result
Steering Assist (if so equipped) Allows user to turn the steering assist feature on or off. For additional information,
refer to “ProPILOT Assist” in the “Starting and driving” section of this manual.
Lane Displays the available lane options.
Lane Departure Warning (if so equipped) Allows user to turn the Lane Departure Warning on and off. For additional informa- tion, refer to “Lane Departure Warning (LDW)” in the “Starting and driving” section of
this manual.
Lane Departure Prevention (if so equipped) Allows user to turn the Lane Departure Warning on and off. For additional informa- tion, refer to “Intelligent Lane Intervention (I-LI)” in the “Starting and driving” section of
this manual.
Blind Spot Displays the available blind spot options.
Blind Spot Warning (if so equipped) Allows user to turn the Blind Spot Warning on and off. For additional information,
refer to “Blind Spot Warning” in the “Starting and driving” section of this manual.
Side Indicator Brightness Allows user to set the brightness of the side indicator.
Emergency Brake Displays the available emergency brake options.
2-30Instruments and controls

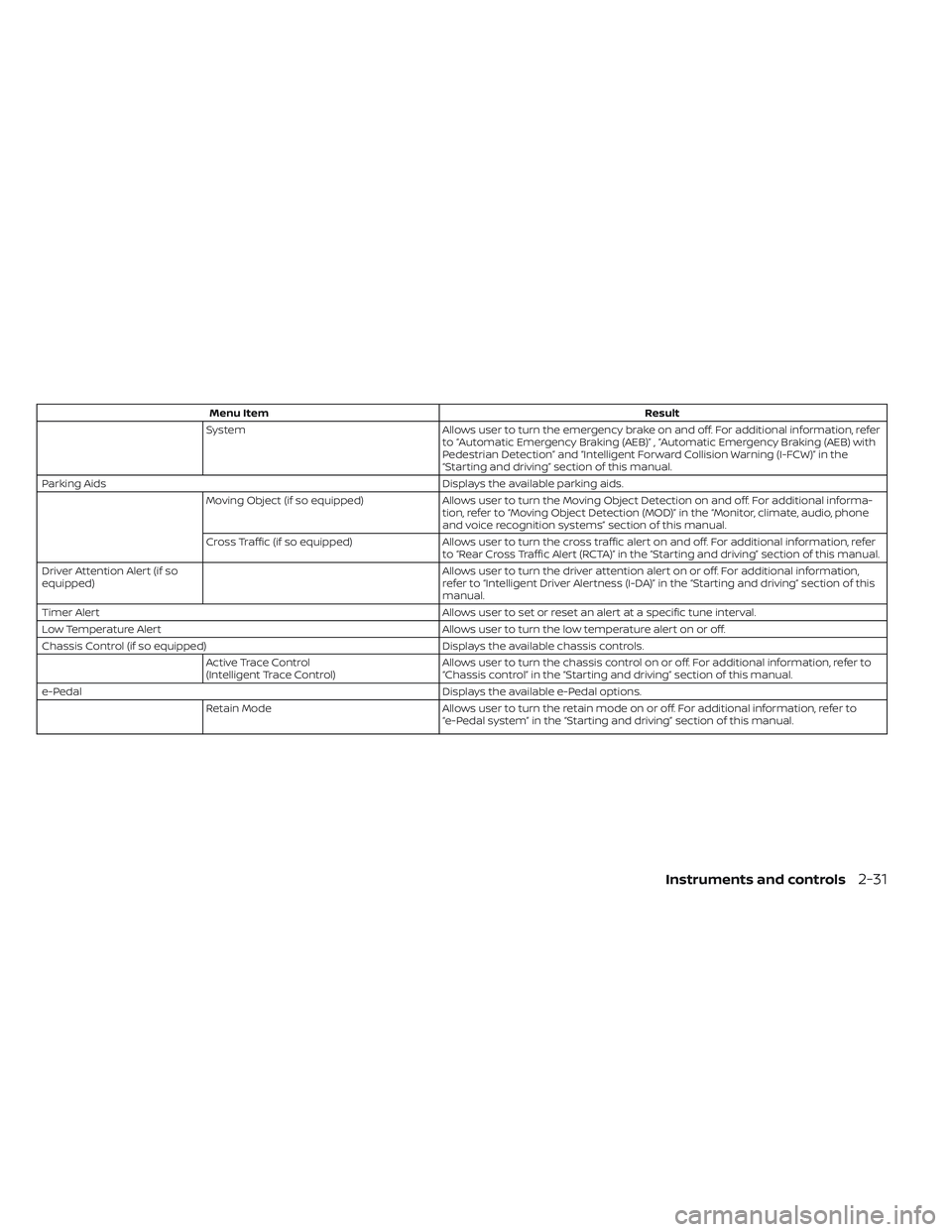

Menu ItemResult
System Allows user to turn the emergency brake on and off. For additional information, refer
to “Automatic Emergency Braking (AEB)” , “Automatic Emergency Braking (AEB) with
Pedestrian Detection” and “Intelligent Forward Collision Warning (I-FCW)” in the
“Starting and driving” section of this manual.
Parking Aids Displays the available parking aids.
Moving Object (if so equipped) Allows user to turn the Moving Object Detection on and off. For additional informa-
tion, refer to “Moving Object Detection (MOD)” in the “Monitor, climate, audio, phone
and voice recognition systems” section of this manual.
Cross Traffic (if so equipped) Allows user to turn the cross traffic alert on and off. For additional information, refer
to “Rear Cross Traffic Alert (RCTA)” in the “Starting and driving” section of this manual.
Driver Attention Alert (if so
equipped) Allows user to turn the driver attention alert on or off. For additional information,
refer to “Intelligent Driver Alertness (I-DA)” in the “Starting and driving” section of this
manual.
Timer Alert Allows user to set or reset an alert at a specific tune interval.
Low Temperature Alert Allows user to turn the low temperature alert on or off.
Chassis Control (if so equipped) Displays the available chassis controls.
Active Trace Control
(Intelligent Trace Control) Allows user to turn the chassis control on or off. For additional information, refer to
“Chassis control” in the “Starting and driving” section of this manual.
e-Pedal Displays the available e-Pedal options.
Retain Mode Allows user to turn the retain mode on or off. For additional information, refer to
“e-Pedal system” in the “Starting and driving” section of this manual.
Instruments and controls2-31

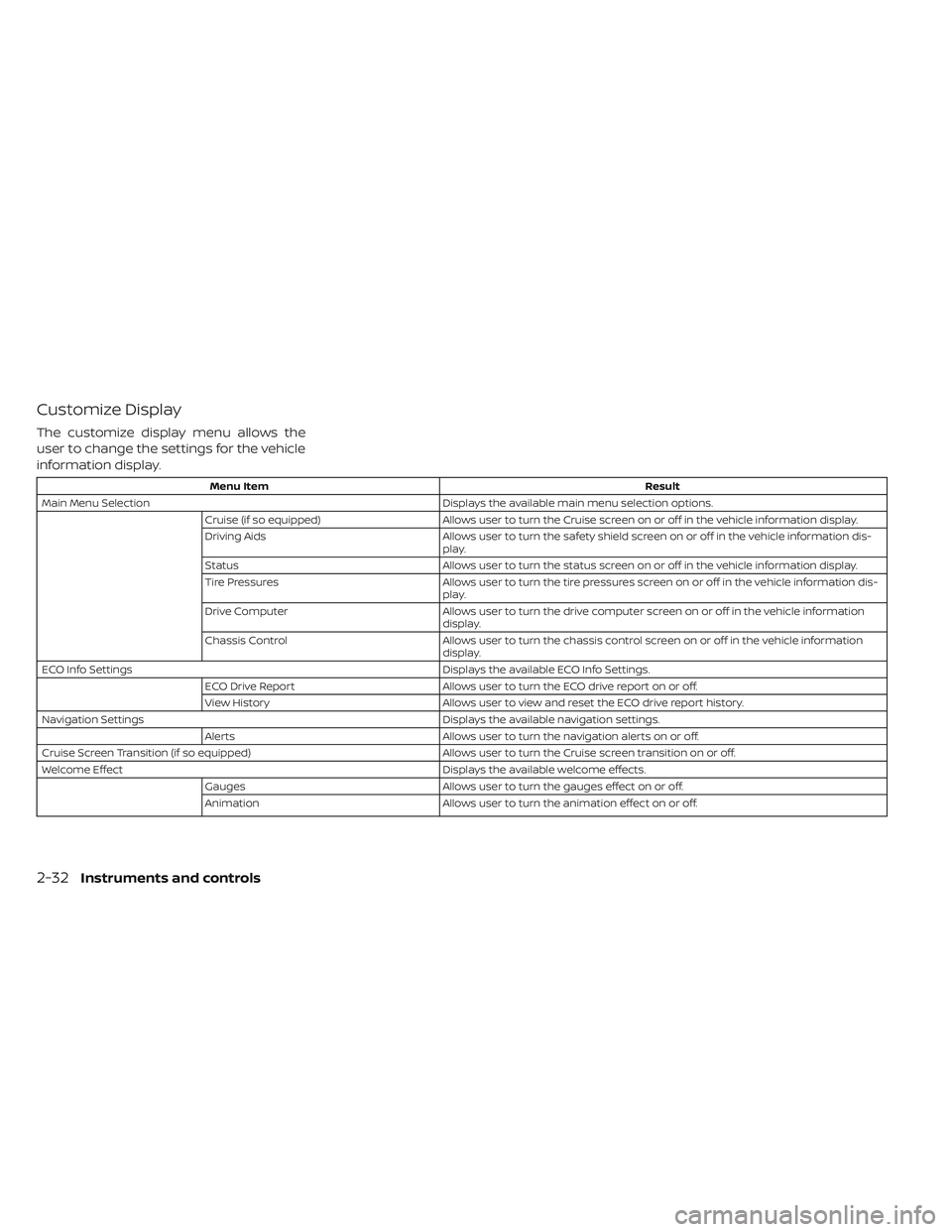

Customize Display
The customize display menu allows the
user to change the settings for the vehicle
information display.
Menu ItemResult
Main Menu Selection Displays the available main menu selection options.
Cruise (if so equipped) Allows user to turn the Cruise screen on or off in the vehicle information display.
Driving Aids Allows user to turn the safety shield screen on or off in the vehicle information dis-
play.
Status Allows user to turn the status screen on or off in the vehicle information display.
Tire Pressures Allows user to turn the tire pressures screen on or off in the vehicle information dis-
play.
Drive Computer Allows user to turn the drive computer screen on or off in the vehicle information
display.
Chassis Control Allows user to turn the chassis control screen on or off in the vehicle information
display.
ECO Info Settings Displays the available ECO Info Settings.
ECO Drive Report Allows user to turn the ECO drive report on or off.
View History Allows user to view and reset the ECO drive report history.
Navigation Settings Displays the available navigation settings.
Alerts Allows user to turn the navigation alerts on or off.
Cruise Screen Transition (if so equipped) Allows user to turn the Cruise screen transition on or off.
Welcome Effect Displays the available welcome effects.
Gauges Allows user to turn the gauges effect on or off.
Animation Allows user to turn the animation effect on or off.
2-32Instruments and controls

Vehicle Settings
The vehicle settings menu allows the user
to change the settings for the lights, locks
and wipers.
Menu ItemResult
Rear Door Alert (if so equipped) Displays the available Rear Door Alert options. For additional information, refer to
“Rear Door Alert” in this section.
Horn & Alert When selected, the alert is displayed and horn sounds.
Alert Only When selected, only the alert is displayed.
OFF When selected, no alert or horn will be active.
Lighting Displays the available lighting options.
Auto Room Lamp Allows user to turn the auto room lamp on or off
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside
the vehicle.
Light Off Delay Allows user to change the duration of time that the automatic headlights stay on
af ter the vehicle is shut off.
Locking Displays the available locking options.
Ext. Door Switch Allows user to turn the exterior door switch on or off. When turned on, the request
switch on the door is activated.
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the current door
is unlocked af ter the door unlock operation. When the door handle request switch
on the driver’s or front passenger’s side door is pushed to be unlocked, only the cor-
responding door is unlocked first. All the doors can be unlocked if the door unlock
operation is performed again within 5 seconds. When this item is turned off, all the
doors will be unlocked af ter the door unlock operation is performed once.
Wipers Displays the available wiper settings. For additional information, refer to “Wiper and
washer switch” in this section.
Speed Dependent Allows user to turn the speed dependent feature on or off.
Instruments and controls2-33

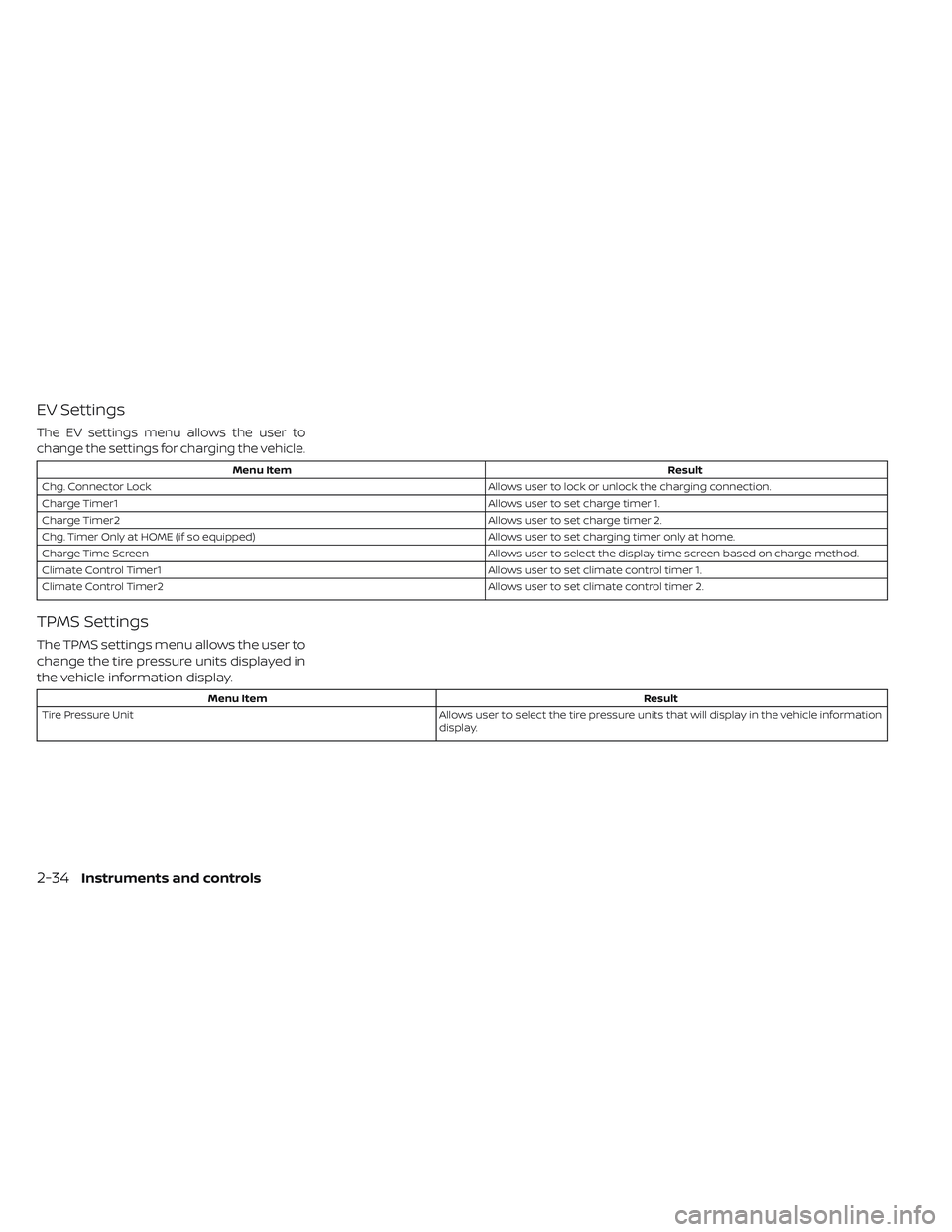

EV Settings
The EV settings menu allows the user to
change the settings for charging the vehicle.
Menu ItemResult
Chg. Connector Lock Allows user to lock or unlock the charging connection.
Charge Timer1 Allows user to set charge timer 1.
Charge Timer2 Allows user to set charge timer 2.
Chg. Timer Only at HOME (if so equipped) Allows user to set charging timer only at home.
Charge Time Screen Allows user to select the display time screen based on charge method.
Climate Control Timer1 Allows user to set climate control timer 1.
Climate Control Timer2 Allows user to set climate control timer 2.
TPMS Settings
The TPMS settings menu allows the user to
change the tire pressure units displayed in
the vehicle information display.
Menu ItemResult
Tire Pressure Unit Allows user to select the tire pressure units that will display in the vehicle information
display.
2-34Instruments and controls

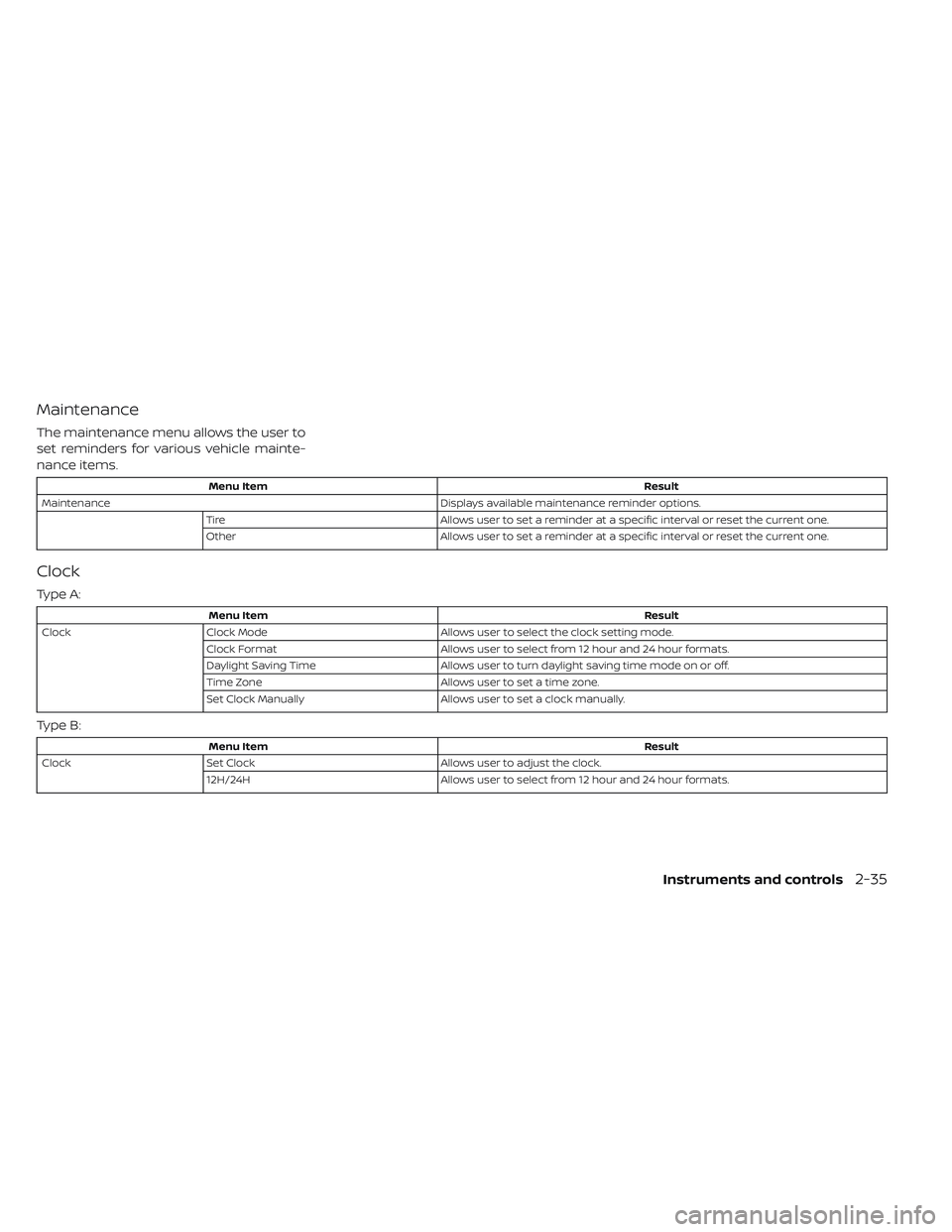

Maintenance
The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.
Menu ItemResult
Maintenance Displays available maintenance reminder options.
Tire Allows user to set a reminder at a specific interval or reset the current one.
Other Allows user to set a reminder at a specific interval or reset the current one.
Clock
Type A:
Menu Item Result
Clock Clock Mode Allows user to select the clock setting mode.
Clock Format Allows user to select from 12 hour and 24 hour formats.
Daylight Saving Time Allows user to turn daylight saving time mode on or off.
Time Zone Allows user to set a time zone.
Set Clock Manually Allows user to set a clock manually.
Type B:
Menu Item Result
Clock Set Clock Allows user to adjust the clock.
12H/24H Allows user to select from 12 hour and 24 hour formats.
Instruments and controls2-35

Type C:
Menu ItemResult
Clock When selected, the following message appears: “Go to the settings menu on the
center display to set clock.” For additional information, refer to the separate
NissanConnect® Manual (for Leaf )
Unit/Language
The unit/language menu allows the user to
change the units shown in the vehicle in-
formation display.
Menu Item Result
Mileage/Energy Allows user to select the preferred mileage/energy unit of measure to display.
Tire Pressures Allows user to select the preferred tire pressure unit of measure to display.
Temperature Allows user to select the preferred temperature unit of measure to display.
Language Allows user to select the preferred language to display.
Factory Reset
The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.
Menu Item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory
settings. Once selected, the user can confirm or cancel the reset.
2-36Instruments and controls

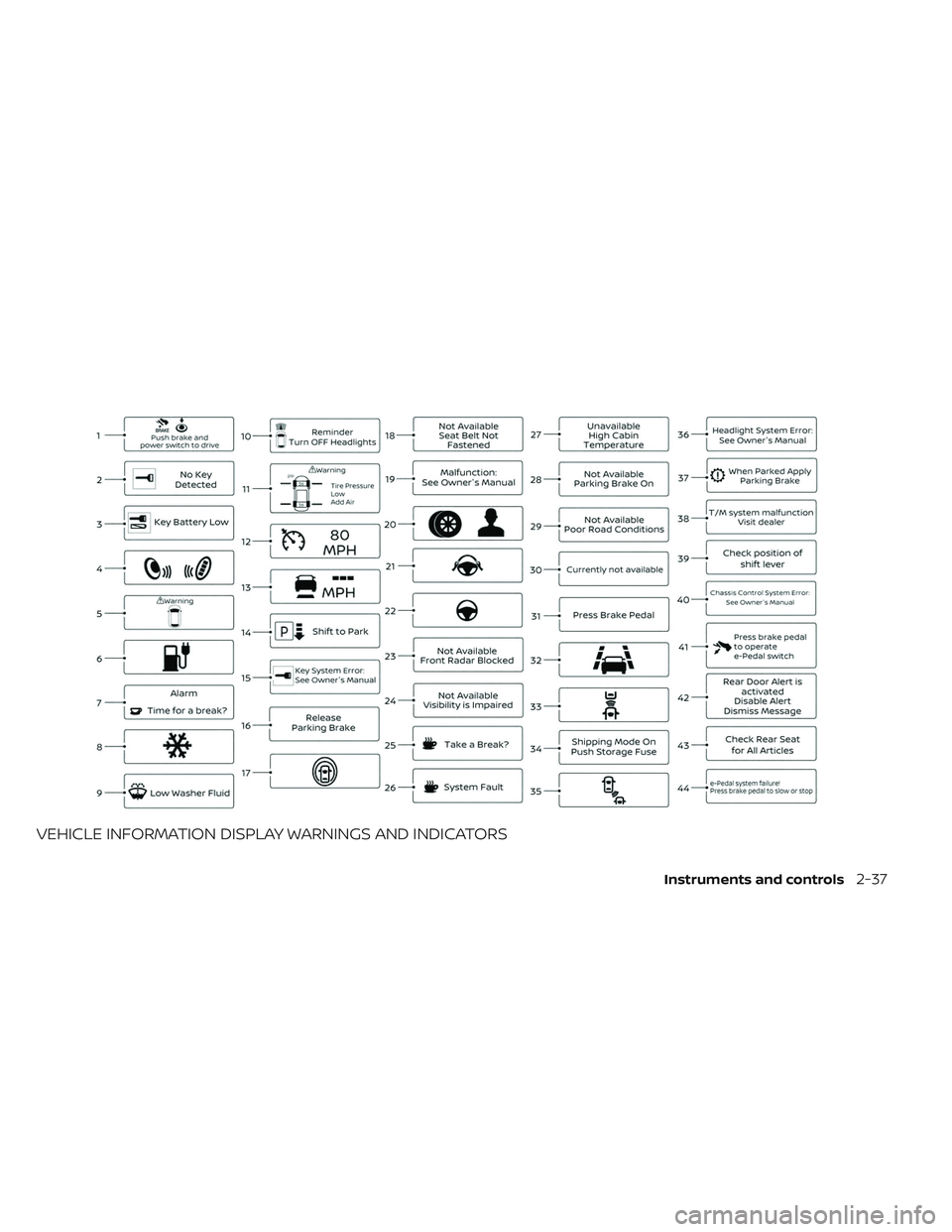

VEHICLE INFORMATION DISPLAY WARNINGS AND INDICATORS
Instruments and controls2-37
