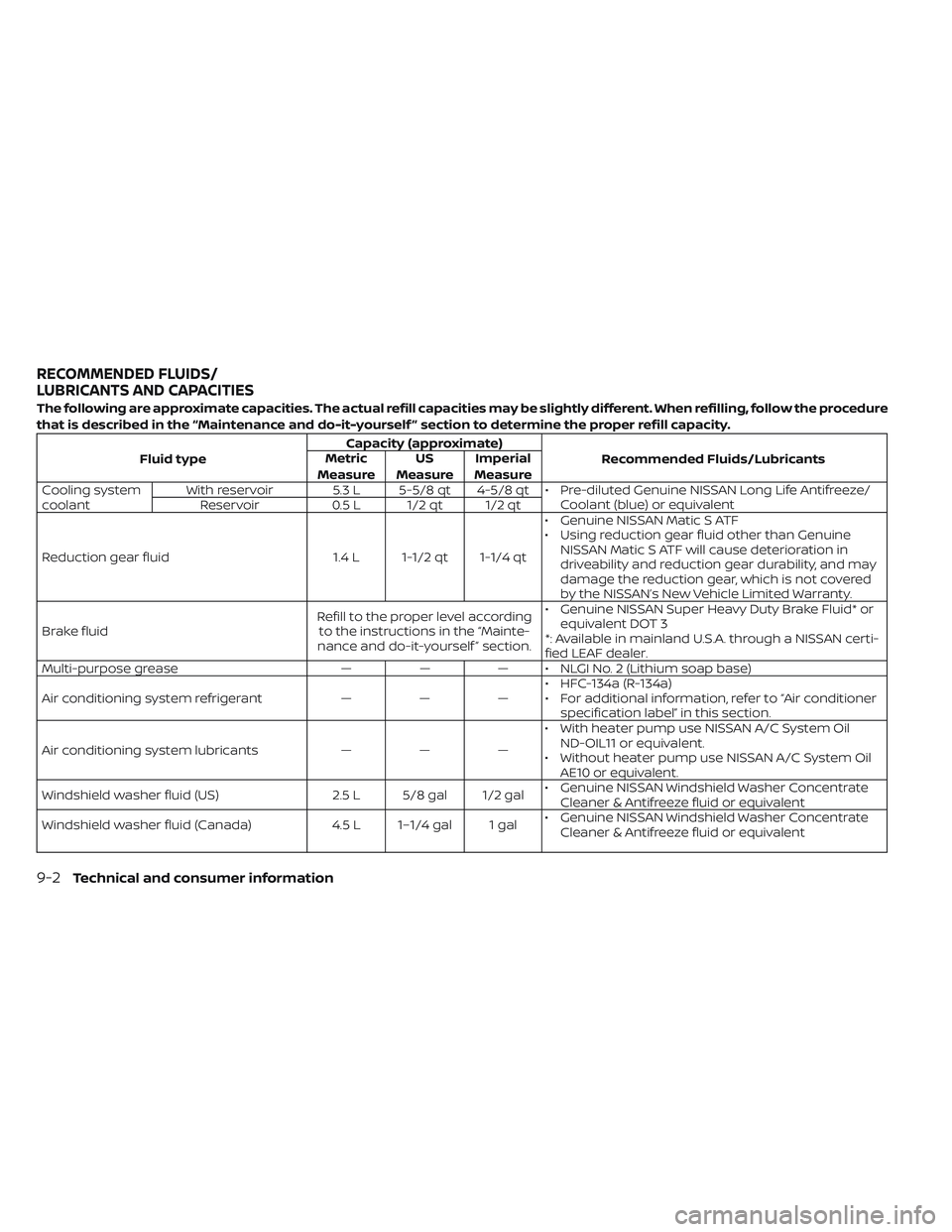

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
that is described in the “Maintenance and do-it-yourself ” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Cooling system
coolant With reservoir 5.3 L 5-5/8 qt 4-5/8 qt • Pre-diluted Genuine NISSAN Long Life Antifreeze/
Coolant (blue) or equivalent
Reservoir 0.5 L 1/2 qt 1/2 qt
Reduction gear fluid 1.4 L 1-1/2 qt 1-1/4 qt• Genuine NISSAN Matic S ATF
• Using reduction gear fluid other than Genuine
NISSAN Matic S ATF will cause deterioration in
driveability and reduction gear durability, and may
damage the reduction gear, which is not covered
by the NISSAN’s New Vehicle Limited Warranty.
Brake fluid Refill to the proper level according
to the instructions in the “Mainte-
nance and do-it-yourself ” section. • Genuine NISSAN Super Heavy Duty Brake Fluid* or
equivalent DOT 3
*: Available in mainland U.S.A. through a NISSAN certi-
fied LEAF dealer.
Multi-purpose grease ——— • NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ———• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner
specification label” in this section.
Air conditioning system lubricants ———• With heater pump use NISSAN A/C System Oil
ND-OIL11 or equivalent.
• Without heater pump use NISSAN A/C System Oil AE10 or equivalent.
Windshield washer fluid (US) 2.5 L 5/8 gal 1/2 gal• Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze fluid or equivalent
Windshield washer fluid (Canada) 4.5 L 1–1/4 gal 1 gal• Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze fluid or equivalent
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information

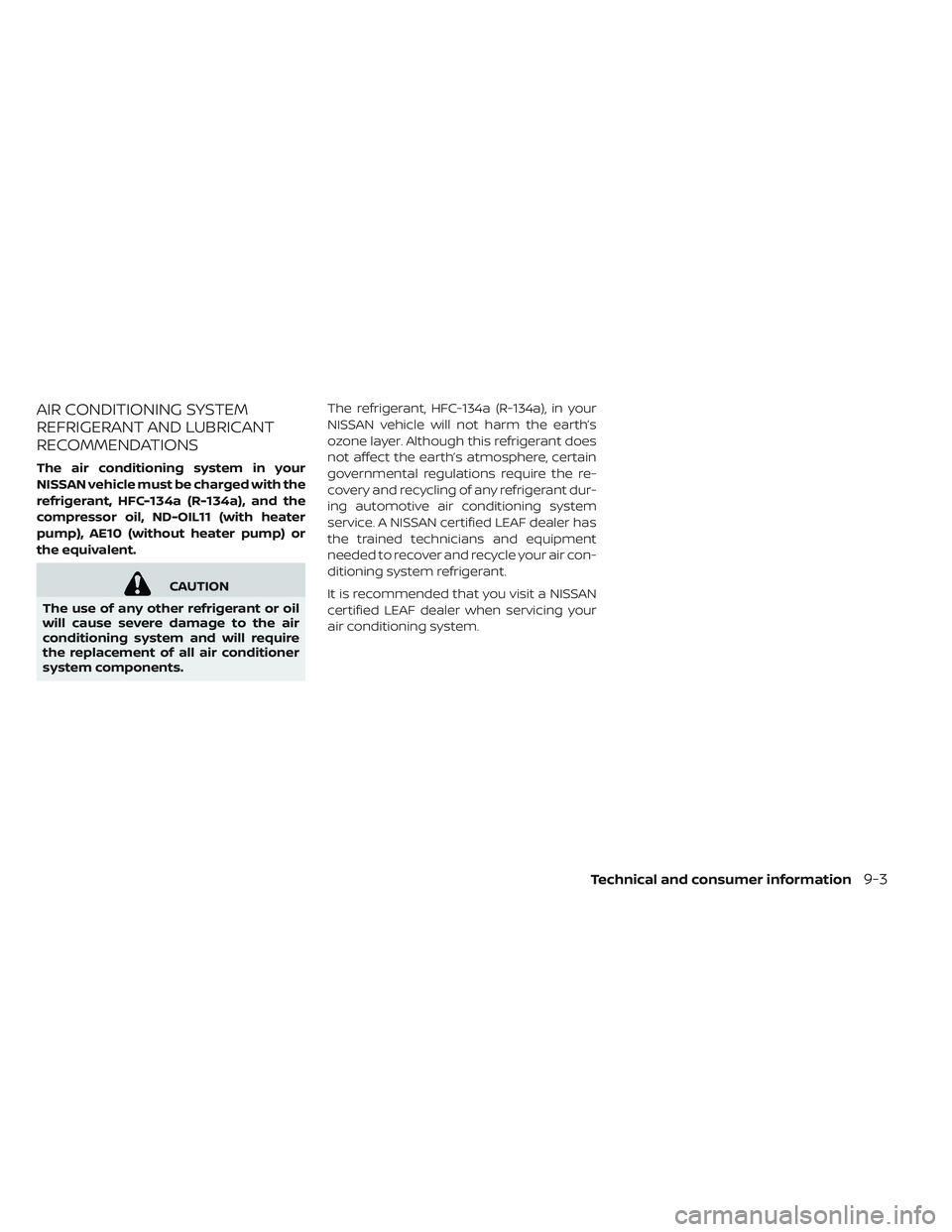

AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant, HFC-134a (R-134a), and the
compressor oil, ND-OIL11 (with heater
pump), AE10 (without heater pump) or
the equivalent.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner
system components. The refrigerant, HFC-134a (R-134a), in your
NISSAN vehicle will not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
governmental regulations require the re-
covery and recycling of any refrigerant dur-
ing automotive air conditioning system
service. A NISSAN certified LEAF dealer has
the trained technicians and equipment
needed to recover and recycle your air con-
ditioning system refrigerant.
It is recommended that you visit a NISSAN
certified LEAF dealer when servicing your
air conditioning system.
Technical and consumer information9-3

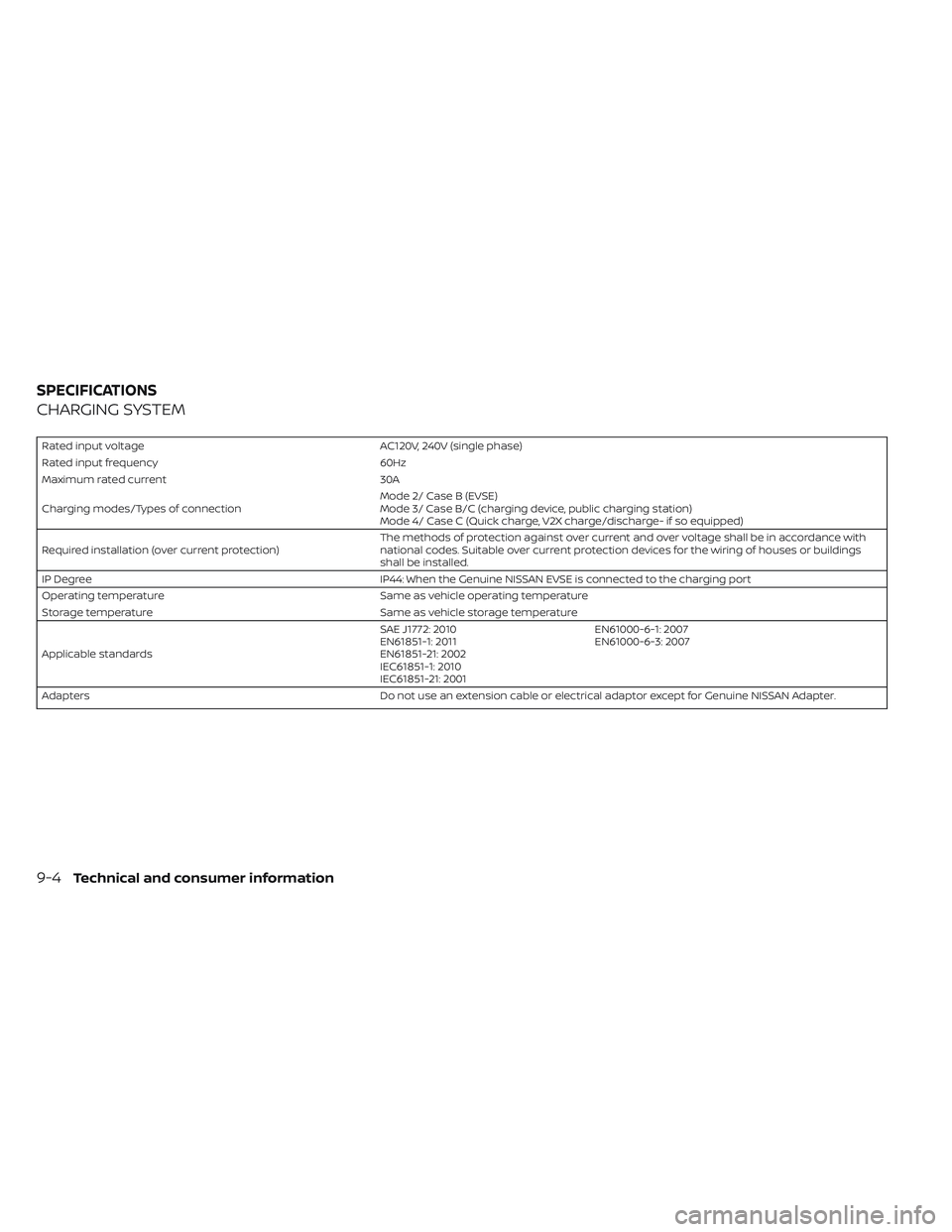

CHARGING SYSTEM
Rated input voltageAC120V, 240V (single phase)
Rated input frequency 60Hz
Maximum rated current 30A
Charging modes/Types of connection Mode 2/ Case B (EVSE)
Mode 3/ Case B/C (charging device, public charging station)
Mode 4/ Case C (Quick charge, V2X charge/discharge- if so equipped)
Required installation (over current protection) The methods of protection against over current and over voltage shall be in accordance with
national codes. Suitable over current protection devices for the wiring of houses or buildings
shall be installed.
IP Degree IP44: When the Genuine NISSAN EVSE is connected to the charging port
Operating temperature Same as vehicle operating temperature
Storage temperature Same as vehicle storage temperature
Applicable standards SAE J1772: 2010
EN61851-1: 2011
EN61851-21: 2002
IEC61851-1: 2010
IEC61851-21: 2001EN61000-6-1: 2007
EN61000-6-3: 2007
Adapters Do not use an extension cable or electrical adaptor except for Genuine NISSAN Adapter.
SPECIFICATIONS
9-4Technical and consumer information

MOTOR
ModelEM57

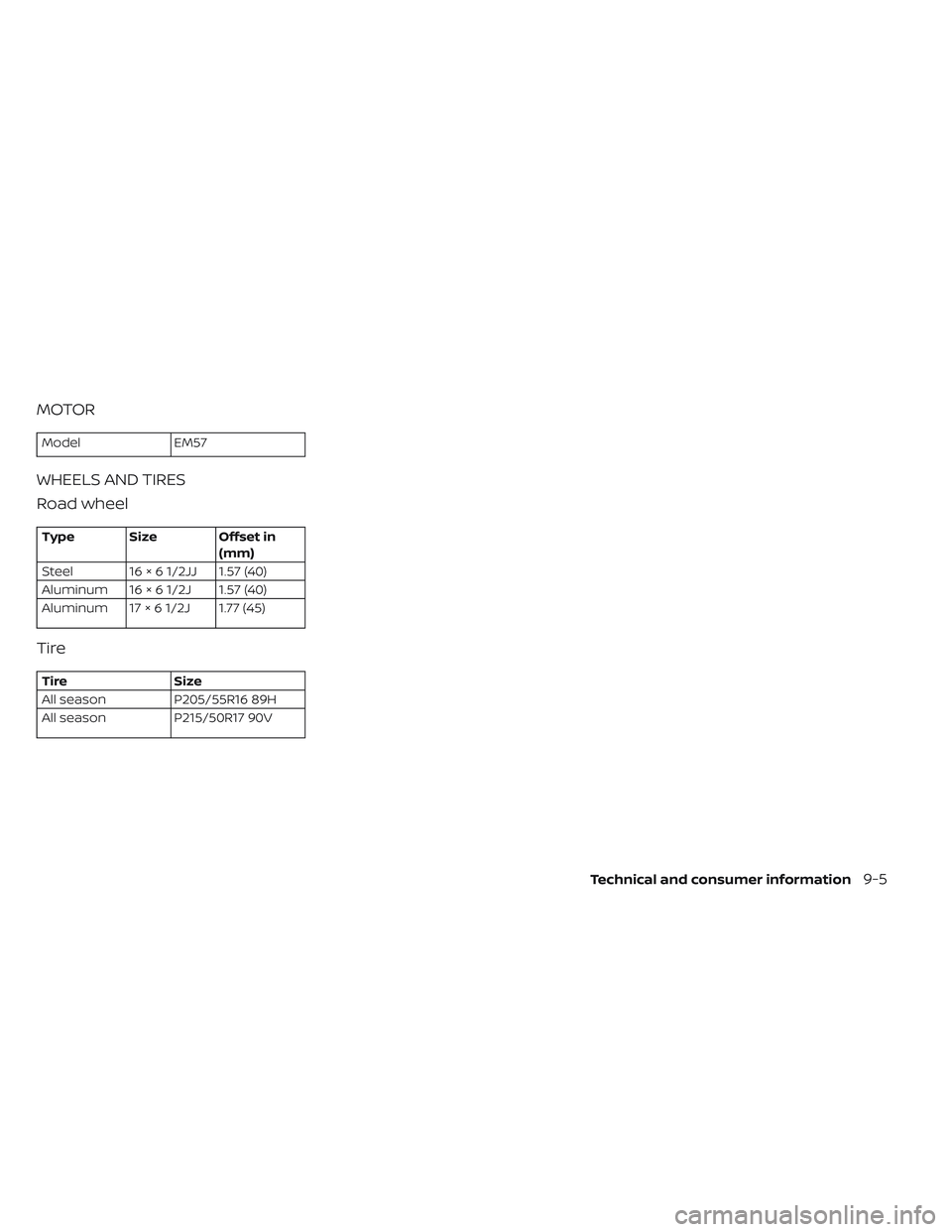

WHEELS AND TIRES
Road wheel
Type Size Offset in
(mm)
Steel 16 × 6 1/2JJ 1.57 (40)
Aluminum 16 × 6 1/2J 1.57 (40)
Aluminum 17 × 6 1/2J 1.77 (45)
Tire
Tire Size
All season P205/55R16 89H
All season P215/50R17 90V
Technical and consumer information9-5

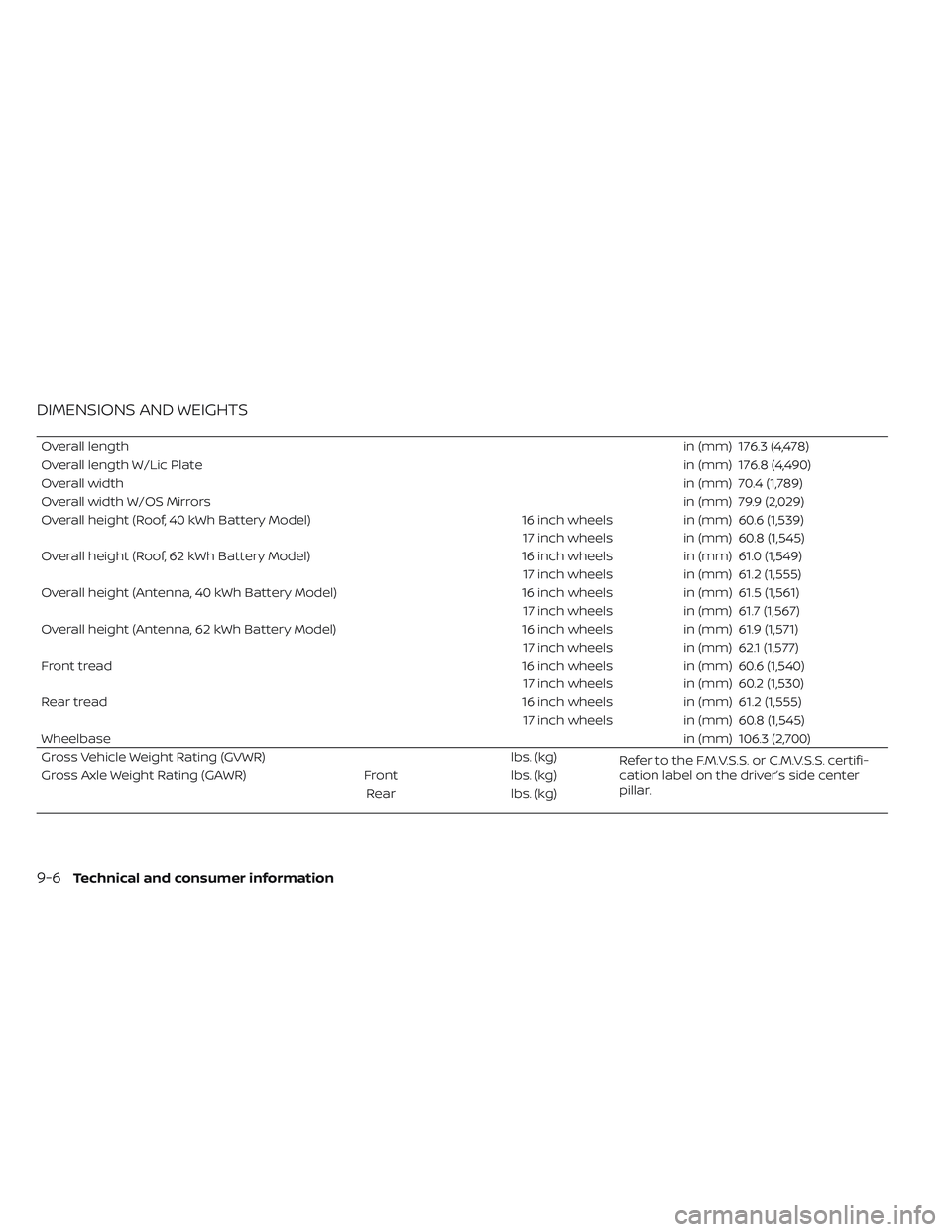

DIMENSIONS AND WEIGHTS
Overall lengthin (mm) 176.3 (4,478)
Overall length W/Lic Plate in (mm) 176.8 (4,490)
Overall width in (mm) 70.4 (1,789)
Overall width W/OS Mirrors in (mm) 79.9 (2,029)
Overall height (Roof, 40 kWh Battery Model) 16 inch wheelsin (mm) 60.6 (1,539)
17 inch wheels in (mm) 60.8 (1,545)
Overall height (Roof, 62 kWh Battery Model) 16 inch wheelsin (mm) 61.0 (1,549)
17 inch wheels in (mm) 61.2 (1,555)
Overall height (Antenna, 40 kWh Battery Model) 16 inch wheelsin (mm) 61.5 (1,561)
17 inch wheels in (mm) 61.7 (1,567)
Overall height (Antenna, 62 kWh Battery Model) 16 inch wheelsin (mm) 61.9 (1,571)
17 inch wheels in (mm) 62.1 (1,577)
Front tread 16 inch wheelsin (mm) 60.6 (1,540)
17 inch wheels in (mm) 60.2 (1,530)
Rear tread 16 inch wheelsin (mm) 61.2 (1,555)
17 inch wheels in (mm) 60.8 (1,545)
Wheelbase in (mm) 106.3 (2,700)
Gross Vehicle Weight Rating (GVWR) lbs. (kg)
Refer to the F.M.V.S.S. or C.M.V.S.S. certifi-
cation label on the driver’s side center
pillar.
Gross Axle Weight Rating (GAWR)
Frontlbs. (kg)
Rear lbs. (kg)
9-6Technical and consumer information

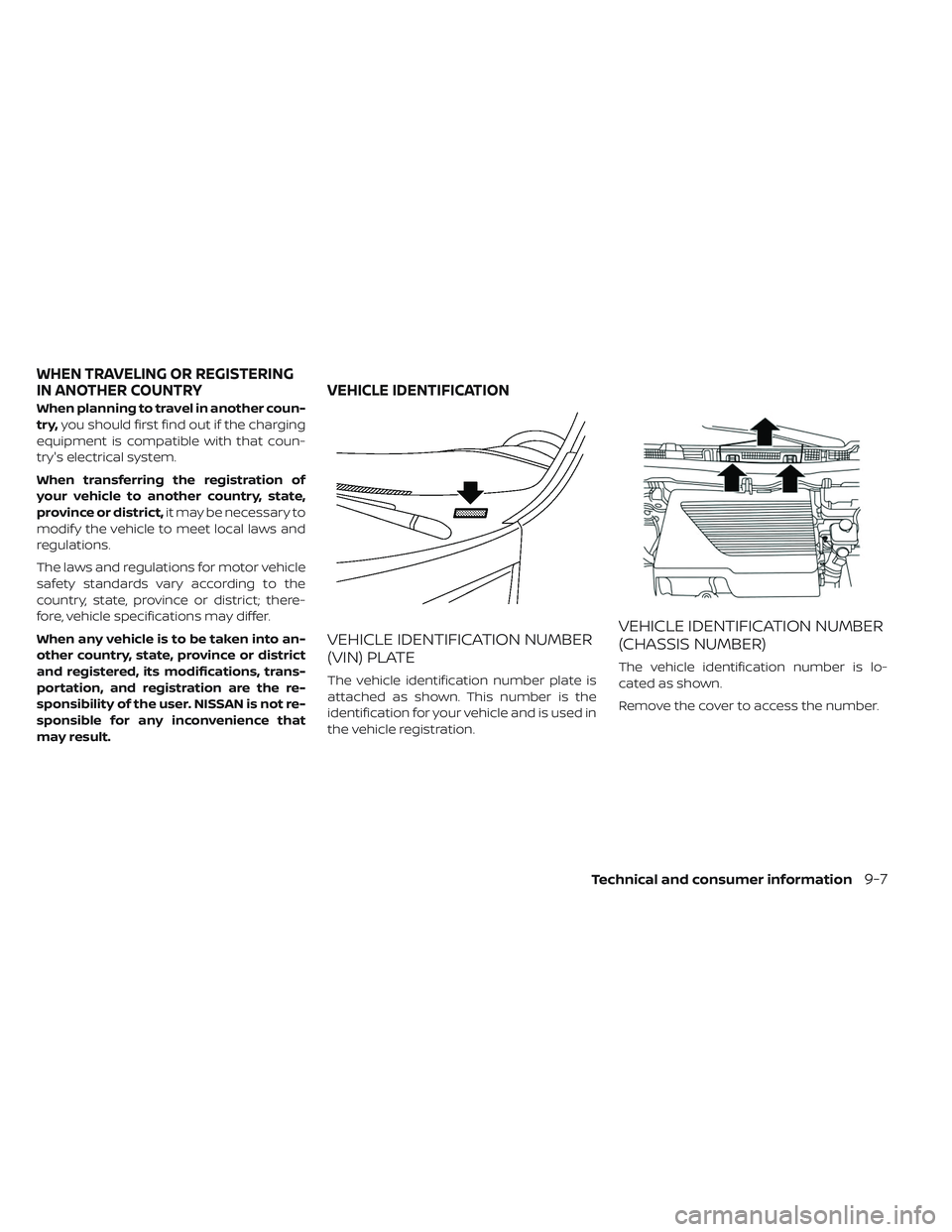

When planning to travel in another coun-
try,you should first find out if the charging
equipment is compatible with that coun-
try's electrical system.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary to
modif y the vehicle to meet local laws and
regulations.
The laws and regulations for motor vehicle
safety standards vary according to the
country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation, and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used in
the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)
The vehicle identification number is lo-
cated as shown.
Remove the cover to access the number.
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information9-7

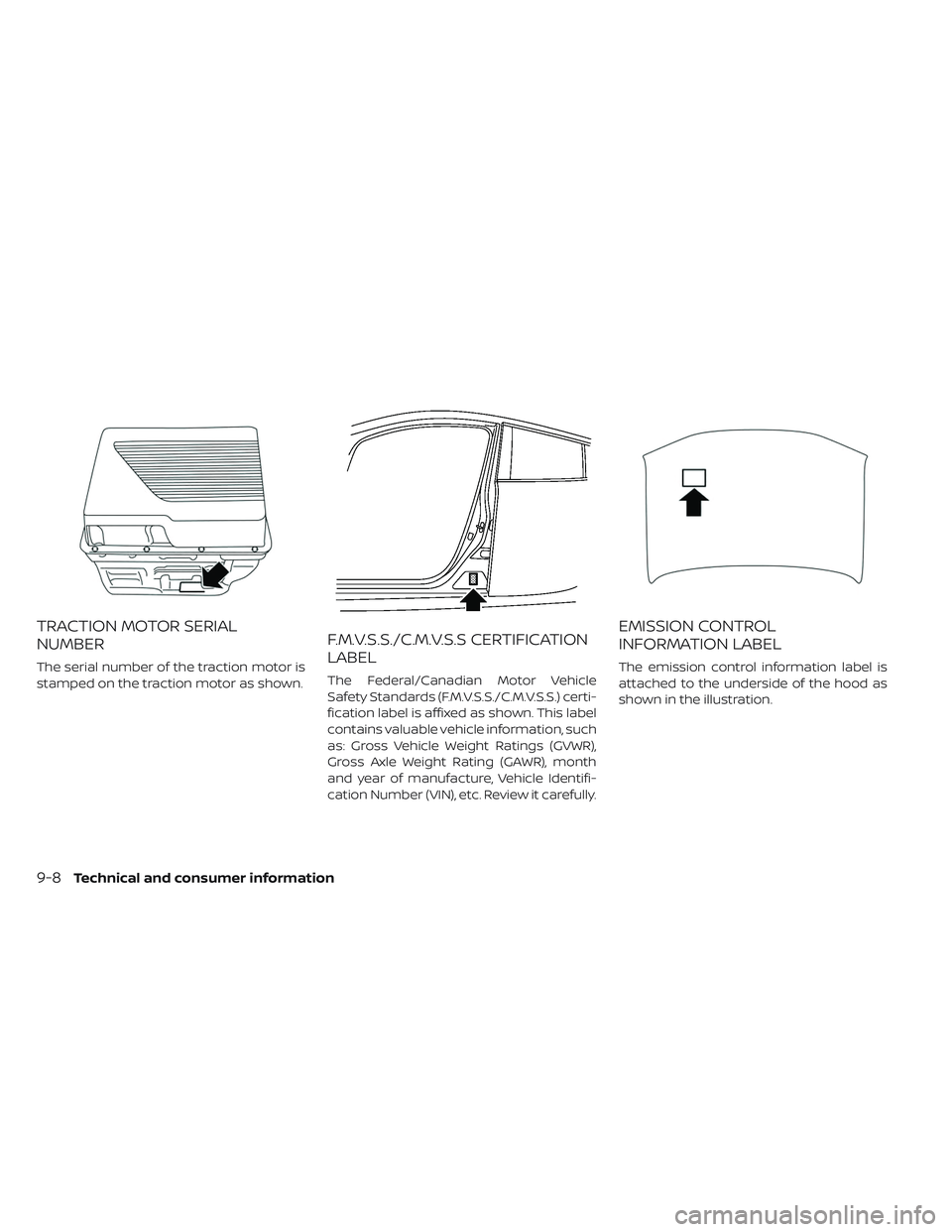

TRACTION MOTOR SERIAL
NUMBER
The serial number of the traction motor is
stamped on the traction motor as shown.
F.M.V.S.S./C.M.V.S.S CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle
Safety Standards (F.M.V.S.S./C.M.V.S.S.) certi-
fication label is affixed as shown. This label
contains valuable vehicle information, such
as: Gross Vehicle Weight Ratings (GVWR),
Gross Axle Weight Rating (GAWR), month
and year of manufacture, Vehicle Identifi-
cation Number (VIN), etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is
attached to the underside of the hood as
shown in the illustration.
9-8Technical and consumer information

TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire
and Loading Information label affixed to
the driver's side center pillar as shown.

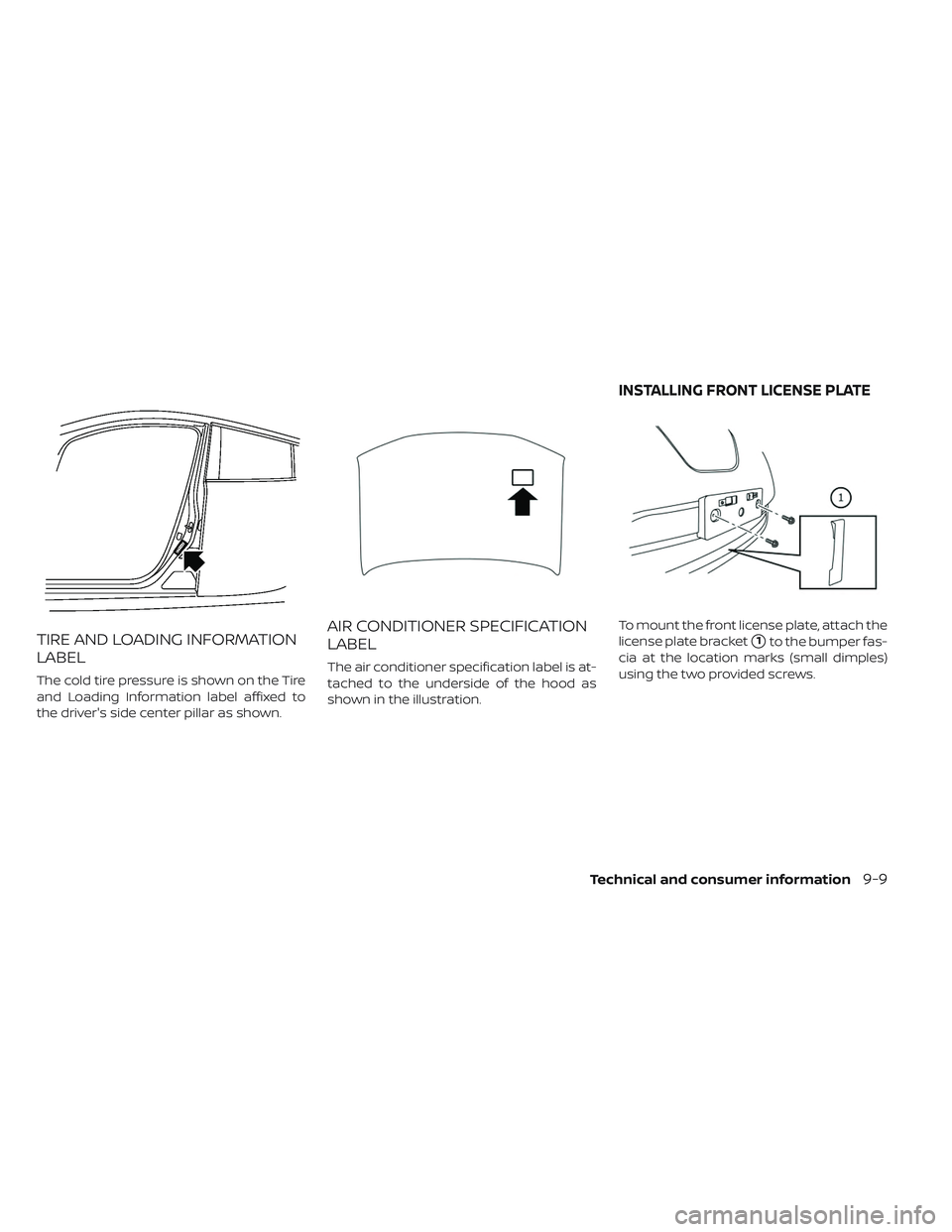

AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is at-
tached to the underside of the hood as
shown in the illustration.To mount the front license plate, attach the
license plate bracket
1to the bumper fas-
cia at the location marks (small dimples)
using the two provided screws.
INSTALLING FRONT LICENSE PLATE
Technical and consumer information9-9

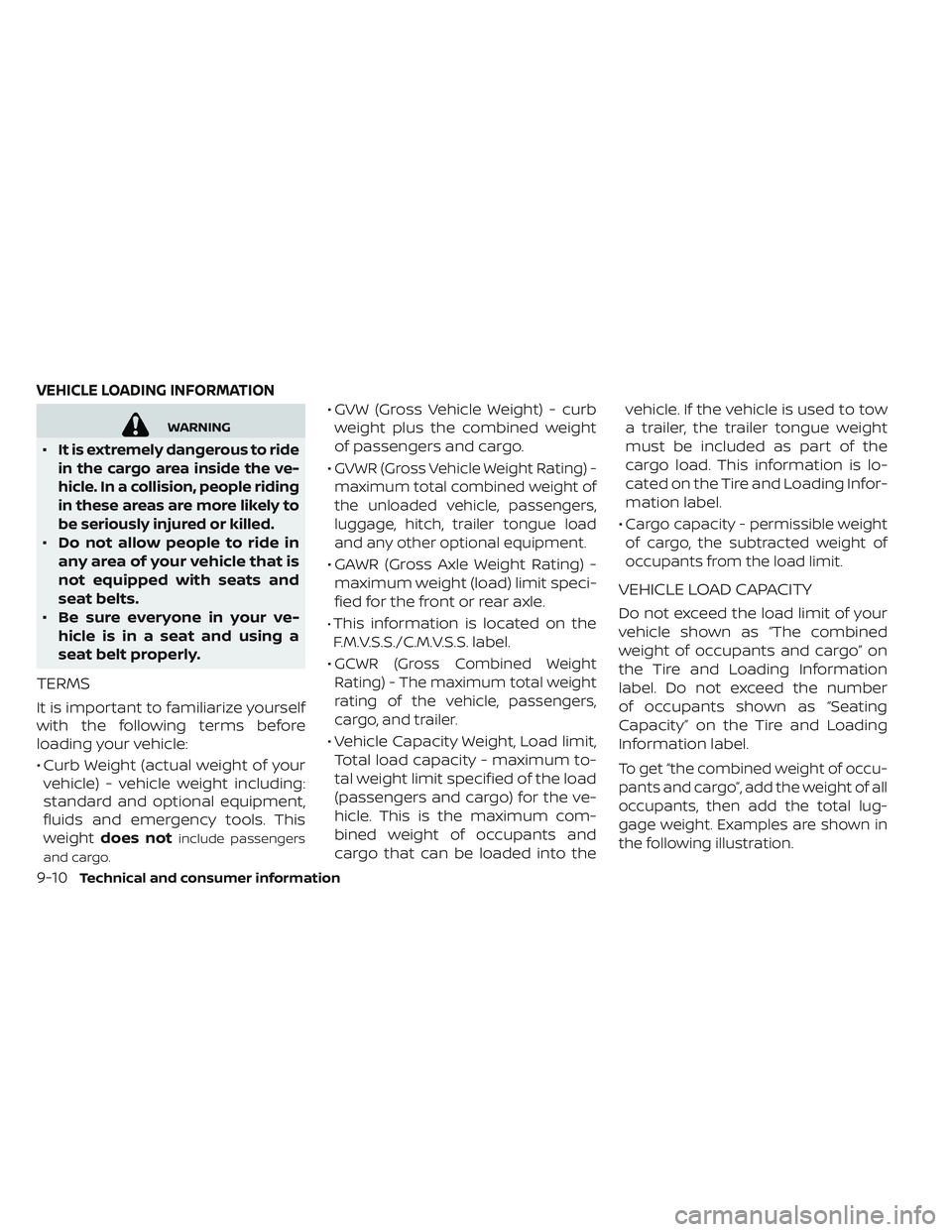

WARNING
•
It is extremely dangerous to ride
in the cargo area inside the ve-
hicle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
•Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.
•Be sure everyone in your ve-
hicle is in a seat and using a
seat belt properly.
TERMS
It is important to familiarize yourself
with the following terms before
loading your vehicle:
• Curb Weight (actual weight of your vehicle) - vehicle weight including:
standard and optional equipment,
fluids and emergency tools. This
weight does not
include passengers
and cargo.
• GVW (Gross Vehicle Weight) - curb weight plus the combined weight
of passengers and cargo.
•
GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of
the unloaded vehicle, passengers,
luggage, hitch, trailer tongue load
and any other optional equipment.
• GAWR (Gross Axle Weight Rating) - maximum weight (load) limit speci-
fied for the front or rear axle.
•This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
•
GCWR (Gross Combined Weight
Rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.
• Vehicle Capacity Weight, Load limit, Total load capacity - maximum to-
tal weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum com-
bined weight of occupants and
cargo that can be loaded into the vehicle. If the vehicle is used to tow
a trailer, the trailer tongue weight
must be included as part of the
cargo load. This information is lo-
cated on the Tire and Loading Infor-
mation label.
•
Cargo capacity - permissible weight
of cargo, the subtracted weight of
occupants from the load limit.
VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on
the Tire and Loading Information
label. Do not exceed the number
of occupants shown as “Seating
Capacity” on the Tire and Loading
Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total lug-
gage weight. Examples are shown in
the following illustration.
VEHICLE LOADING INFORMATION
9-10Technical and consumer information

Steps for determining correct
load limit
1. Locate the statement “The com-bined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs.” on your vehicle’s Tire
and Loading Information label. 2. Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs. 4. The resulting figure equals the
available amount of cargo and
luggage load capacity. For ex-
ample, if the XXX amount equals
1400 lbs. and there will be five
150 lbs. passengers in your ve-
hicle, the amount of available
cargo and luggage load capacity
is 650 lbs. (1400 − 750 (5 x 150) =
650 lbs.) or (640 − 340 (5 x 70) =
300 kg.)
5. Determine the combined weight of luggage and cargo being
loaded on the vehicle. That weight
may not safely exceed the avail-
able cargo and luggage load ca-
pacity calculated in Step 4.
Before driving a loaded vehicle, con-
firm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. For addi-
tional information, refer to “Measure-
ment of weights” in this section.
