EV Overview
The EV (Electric Vehicle) system...........EV-2
Li-ion battery .......................EV-2
Driving with a discharged Li-ion battery . . . .EV-3
Charging the 12-volt battery ............EV-5
Li-ion battery warmer ................EV-5
High voltage precautions ...............EV-9
High-voltage components .............EV-9
Road accident precautions ..............EV-10
Emergency shut-off system ...........EV-10
EV characteristics ................... .EV-11
Noise and vibration ................ .EV-12
Life with an EV (scene guide) .............EV-12
Charging the Li-ion battery ............EV-12
Before driving your vehicle (models with
Navigation System) ................ .EV-15
Checking Li-ion battery charging status . . .EV-15 Operating the climate control system before
driving
.........................EV-16
Starting your vehicle ................EV-17
Driving the vehicle ................. .EV-18
Charging af ter driving ...............EV-22
Efficient use of your vehicle .............EV-23
Range .........................EV-23
Improve driving range ...............EV-23
Li-ion battery life ................. .EV-24
Li-ion battery maintenance ...........EV-25
EV unique information ................ .EV-25
Meters and indicators ...............EV-25
Approaching Vehicle Sound for Pedestrians
(VSP) system .................... .EV-28
Electric shif t control system ...........EV-29
LED headlight (low beam) (if so equipped) . .EV-29
Driving range .................... .EV-29

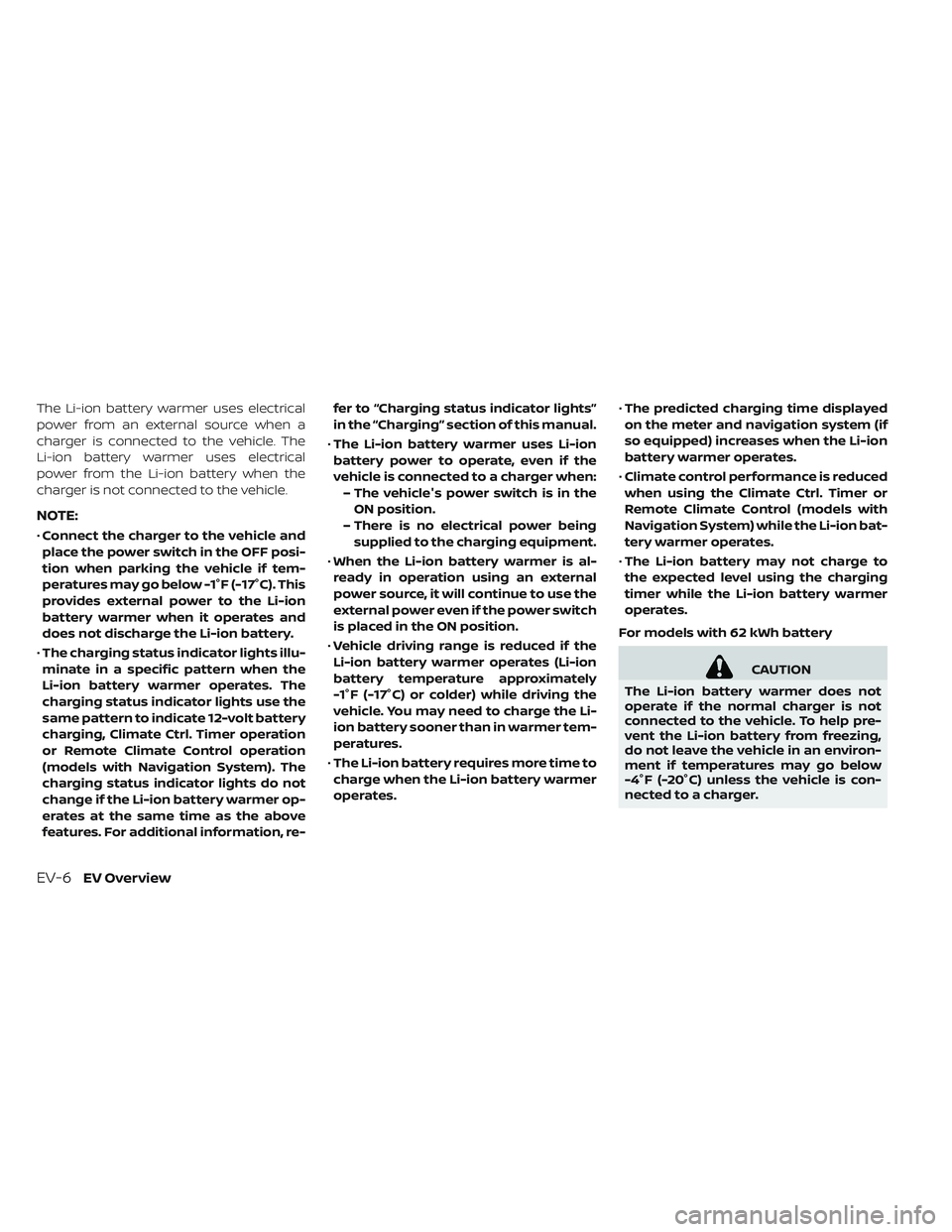

The Li-ion battery warmer uses electrical
power from an external source when a
charger is connected to the vehicle. The
Li-ion battery warmer uses electrical
power from the Li-ion battery when the
charger is not connected to the vehicle.
NOTE:
•Connect the charger to the vehicle and
place the power switch in the OFF posi-
tion when parking the vehicle if tem-
peratures may go below -1°F (-17°C). This
provides external power to the Li-ion
battery warmer when it operates and
does not discharge the Li-ion battery.
• The charging status indicator lights illu-
minate in a specific pattern when the
Li-ion battery warmer operates. The
charging status indicator lights use the
same pattern to indicate 12-volt battery
charging, Climate Ctrl. Timer operation
or Remote Climate Control operation
(models with Navigation System). The
charging status indicator lights do not
change if the Li-ion battery warmer op-
erates at the same time as the above
features. For additional information, re- fer to “Charging status indicator lights”
in the “Charging” section of this manual.
• The Li-ion battery warmer uses Li-ion
battery power to operate, even if the
vehicle is connected to a charger when:
– The vehicle's power switch is in the ON position.
– There is no electrical power being supplied to the charging equipment.
• When the Li-ion battery warmer is al-
ready in operation using an external
power source, it will continue to use the
external power even if the power switch
is placed in the ON position.
• Vehicle driving range is reduced if the
Li-ion battery warmer operates (Li-ion
battery temperature approximately
-1°F (-17°C) or colder) while driving the
vehicle. You may need to charge the Li-
ion battery sooner than in warmer tem-
peratures.
• The Li-ion battery requires more time to
charge when the Li-ion battery warmer
operates. •
The predicted charging time displayed
on the meter and navigation system (if
so equipped) increases when the Li-ion
battery warmer operates.
• Climate control performance is reduced
when using the Climate Ctrl. Timer or
Remote Climate Control (models with
Navigation System) while the Li-ion bat-
tery warmer operates.
• The Li-ion battery may not charge to
the expected level using the charging
timer while the Li-ion battery warmer
operates.
For models with 62 kWh battery
CAUTION
The Li-ion battery warmer does not
operate if the normal charger is not
connected to the vehicle. To help pre-
vent the Li-ion battery from freezing,
do not leave the vehicle in an environ-
ment if temperatures may go below
-4°F (-20°C) unless the vehicle is con-
nected to a charger.
EV-6EV Overview

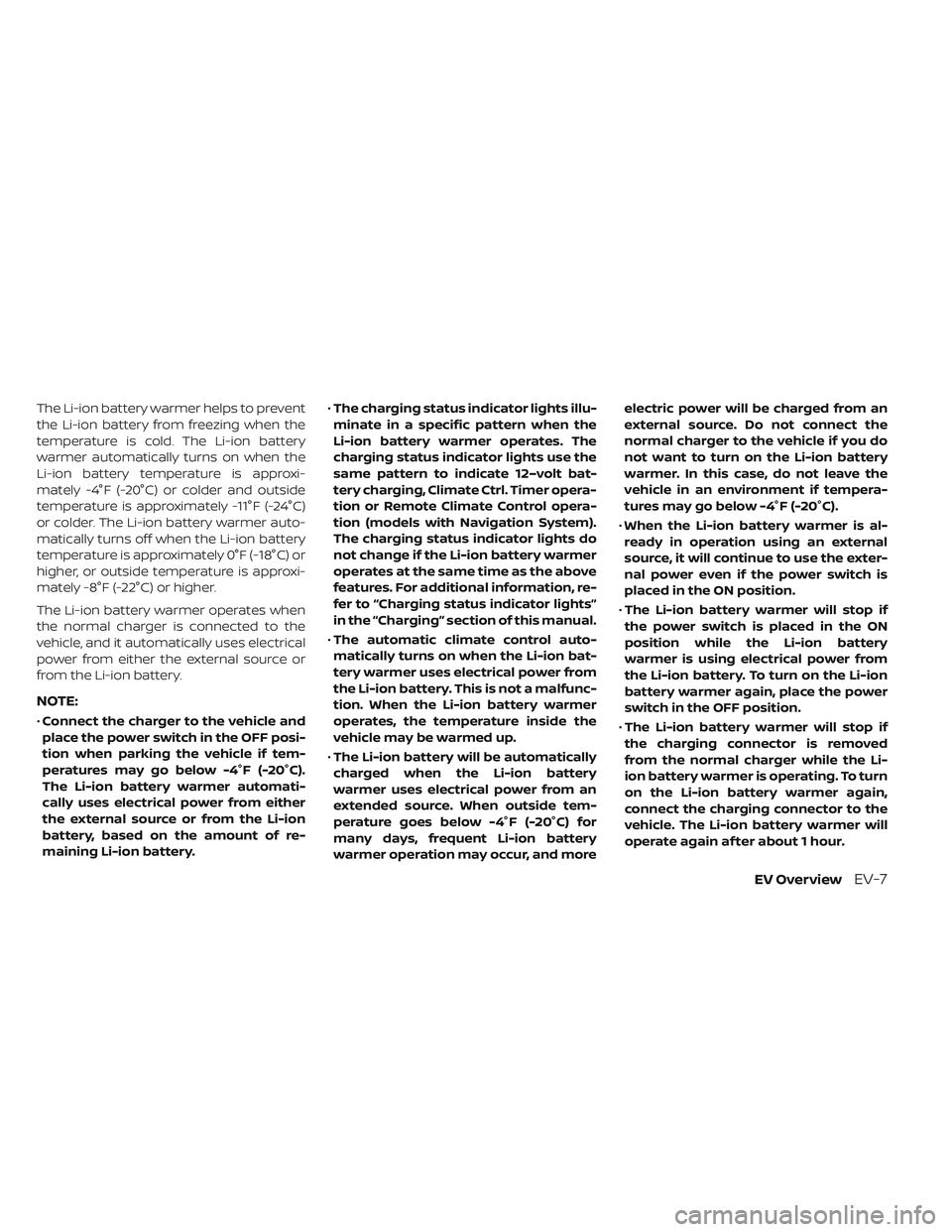

The Li-ion battery warmer helps to prevent
the Li-ion battery from freezing when the
temperature is cold. The Li-ion battery
warmer automatically turns on when the
Li-ion battery temperature is approxi-
mately -4°F (-20°C) or colder and outside
temperature is approximately -11°F (-24°C)
or colder. The Li-ion battery warmer auto-
matically turns off when the Li-ion battery
temperature is approximately 0°F (-18°C) or
higher, or outside temperature is approxi-
mately -8°F (-22°C) or higher.
The Li-ion battery warmer operates when
the normal charger is connected to the
vehicle, and it automatically uses electrical
power from either the external source or
from the Li-ion battery.
NOTE:
•Connect the charger to the vehicle and
place the power switch in the OFF posi-
tion when parking the vehicle if tem-
peratures may go below -4°F (-20°C).
The Li-ion battery warmer automati-
cally uses electrical power from either
the external source or from the Li-ion
battery, based on the amount of re-
maining Li-ion battery. •
The charging status indicator lights illu-
minate in a specific pattern when the
Li-ion battery warmer operates. The
charging status indicator lights use the
same pattern to indicate 12–volt bat-
tery charging, Climate Ctrl. Timer opera-
tion or Remote Climate Control opera-
tion (models with Navigation System).
The charging status indicator lights do
not change if the Li-ion battery warmer
operates at the same time as the above
features. For additional information, re-
fer to “Charging status indicator lights”
in the “Charging” section of this manual.
• The automatic climate control auto-
matically turns on when the Li-ion bat-
tery warmer uses electrical power from
the Li-ion battery. This is not a malfunc-
tion. When the Li-ion battery warmer
operates, the temperature inside the
vehicle may be warmed up.
• The Li-ion battery will be automatically
charged when the Li-ion battery
warmer uses electrical power from an
extended source. When outside tem-
perature goes below -4°F (-20°C) for
many days, frequent Li-ion battery
warmer operation may occur, and more electric power will be charged from an
external source. Do not connect the
normal charger to the vehicle if you do
not want to turn on the Li-ion battery
warmer. In this case, do not leave the
vehicle in an environment if tempera-
tures may go below -4°F (-20°C).
• When the Li-ion battery warmer is al-
ready in operation using an external
source, it will continue to use the exter-
nal power even if the power switch is
placed in the ON position.
• The Li-ion battery warmer will stop if
the power switch is placed in the ON
position while the Li-ion battery
warmer is using electrical power from
the Li-ion battery. To turn on the Li-ion
battery warmer again, place the power
switch in the OFF position.
• The Li-ion battery warmer will stop if
the charging connector is removed
from the normal charger while the Li-
ion battery warmer is operating. To turn
on the Li-ion battery warmer again,
connect the charging connector to the
vehicle. The Li-ion battery warmer will
operate again af ter about 1 hour.
EV OverviewEV-7

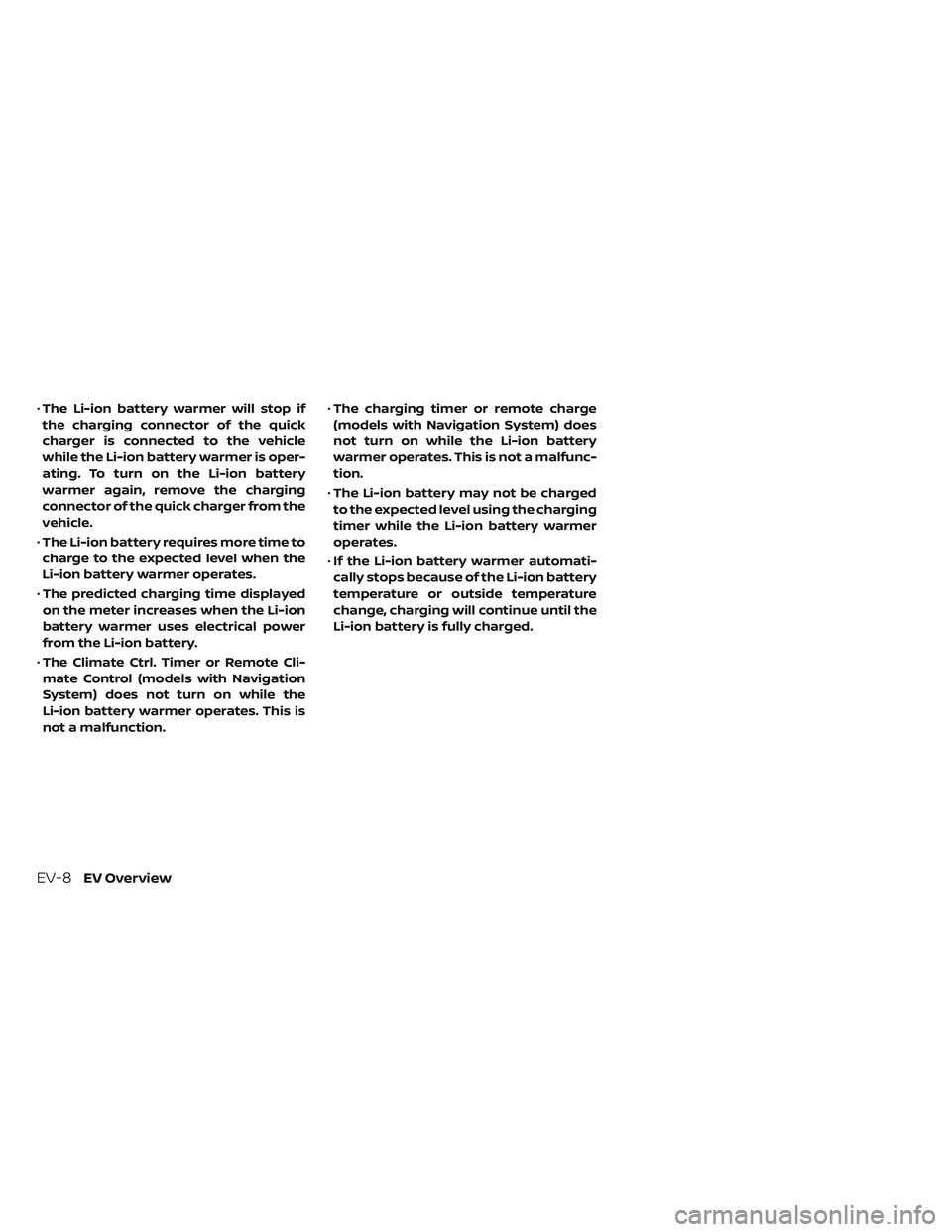

•The Li-ion battery warmer will stop if
the charging connector of the quick
charger is connected to the vehicle
while the Li-ion battery warmer is oper-
ating. To turn on the Li-ion battery
warmer again, remove the charging
connector of the quick charger from the
vehicle.
• The Li-ion battery requires more time to
charge to the expected level when the
Li-ion battery warmer operates.
• The predicted charging time displayed
on the meter increases when the Li-ion
battery warmer uses electrical power
from the Li-ion battery.
• The Climate Ctrl. Timer or Remote Cli-
mate Control (models with Navigation
System) does not turn on while the
Li-ion battery warmer operates. This is
not a malfunction. •
The charging timer or remote charge
(models with Navigation System) does
not turn on while the Li-ion battery
warmer operates. This is not a malfunc-
tion.
• The Li-ion battery may not be charged
to the expected level using the charging
timer while the Li-ion battery warmer
operates.
• If the Li-ion battery warmer automati-
cally stops because of the Li-ion battery
temperature or outside temperature
change, charging will continue until the
Li-ion battery is fully charged.
EV-8EV Overview

•Less deceleration is provided by the re-
generative brake system when the Li-
ion battery is fully charged. The regen-
erative brake is automatically reduced
when the Li-ion battery is fully charged
to prevent the Li-ion battery from be-
coming overcharged. The regenerative
brake is also automatically reduced
when the battery temperature is high/
low (indicated by the red/blue zones on
the Li-ion battery temperature gauge)
to prevent Li-ion battery damage.
• The brake pedal should be used to slow
or stop the vehicle depending on traffic
or road conditions. The vehicle brakes
are not affected by the regenerative

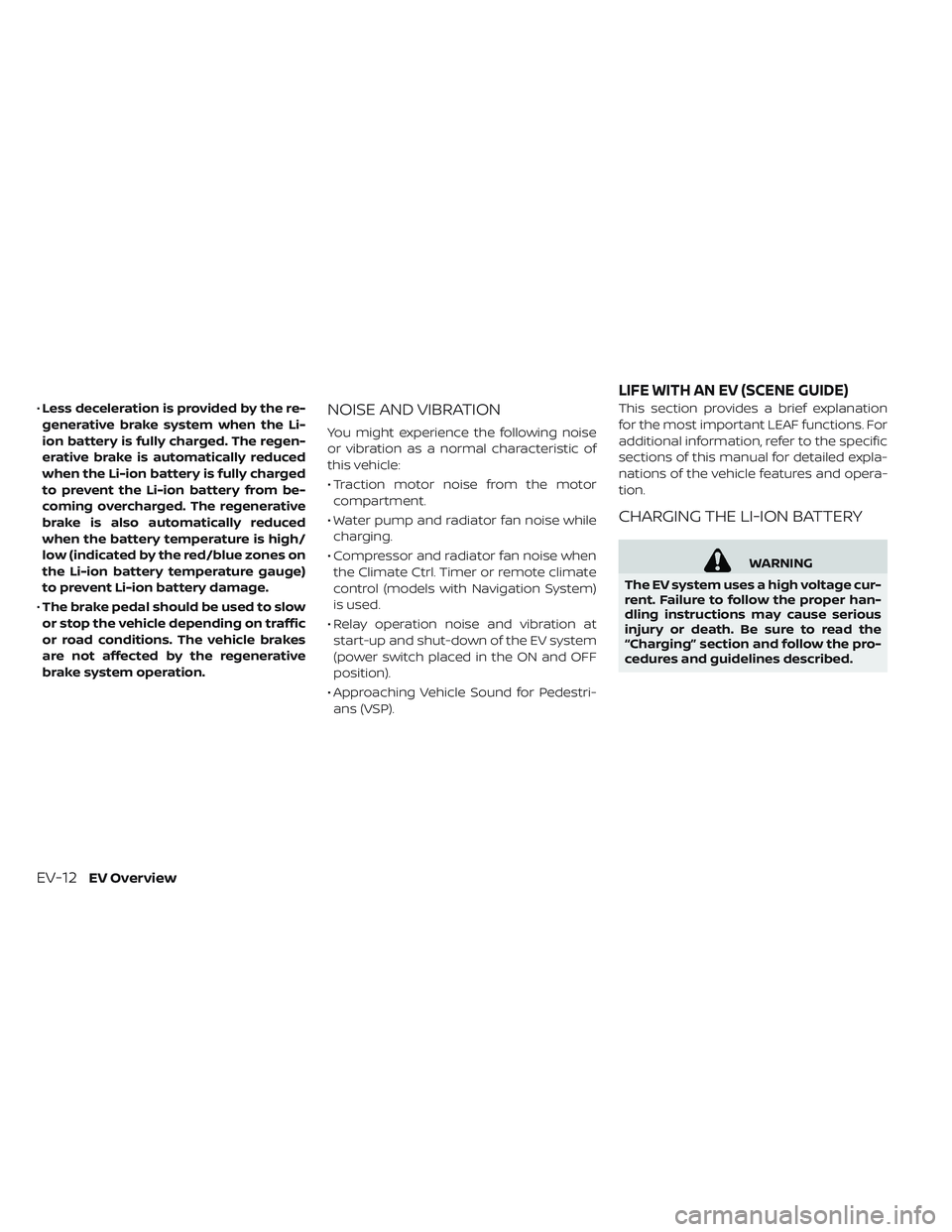

brake system operation.NOISE AND VIBRATION
You might experience the following noise
or vibration as a normal characteristic of
this vehicle:
• Traction motor noise from the motor
compartment.
• Water pump and radiator fan noise while charging.
• Compressor and radiator fan noise when the Climate Ctrl. Timer or remote climate
control (models with Navigation System)
is used.
• Relay operation noise and vibration at start-up and shut-down of the EV system
(power switch placed in the ON and OFF
position).
• Approaching Vehicle Sound for Pedestri- ans (VSP). This section provides a brief explanation
for the most important LEAF functions. For
additional information, refer to the specific
sections of this manual for detailed expla-
nations of the vehicle features and opera-
tion.
CHARGING THE LI-ION BATTERY
WARNING
The EV system uses a high voltage cur-
rent. Failure to follow the proper han-
dling instructions may cause serious
injury or death. Be sure to read the
“Charging” section and follow the pro-
cedures and guidelines described.
LIFE WITH AN EV (SCENE GUIDE)
EV-12EV Overview

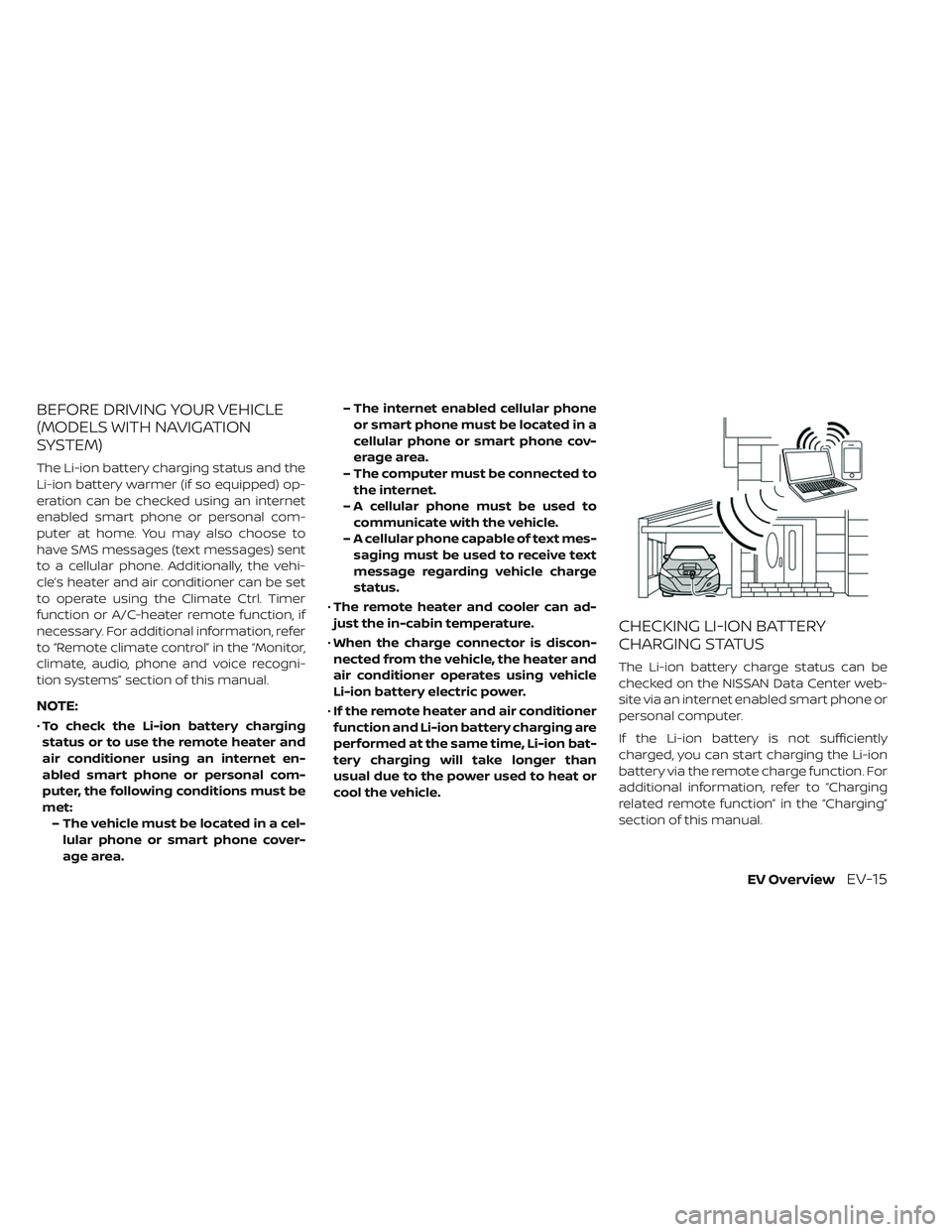

BEFORE DRIVING YOUR VEHICLE
(MODELS WITH NAVIGATION
SYSTEM)
The Li-ion battery charging status and the
Li-ion battery warmer (if so equipped) op-
eration can be checked using an internet
enabled smart phone or personal com-
puter at home. You may also choose to
have SMS messages (text messages) sent
to a cellular phone. Additionally, the vehi-
cle’s heater and air conditioner can be set
to operate using the Climate Ctrl. Timer
function or A/C-heater remote function, if
necessary. For additional information, refer
to “Remote climate control” in the “Monitor,
climate, audio, phone and voice recogni-
tion systems” section of this manual.
NOTE:
•To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal com-
puter, the following conditions must be
met:
– The vehicle must be located in a cel- lular phone or smart phone cover-
age area. – The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
– The computer must be connected to the internet.
– A cellular phone must be used to communicate with the vehicle.
– A cellular phone capable of text mes- saging must be used to receive text
message regarding vehicle charge
status.
• The remote heater and cooler can ad-
just the in-cabin temperature.
• When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
• If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion bat-
tery charging will take longer than
usual due to the power used to heat or
cool the vehicle.
CHECKING LI-ION BATTERY
CHARGING STATUS
The Li-ion battery charge status can be
checked on the NISSAN Data Center web-
site via an internet enabled smart phone or
personal computer.
If the Li-ion battery is not sufficiently
charged, you can start charging the Li-ion
battery via the remote charge function. For
additional information, refer to “Charging
related remote function” in the “Charging”
section of this manual.
EV OverviewEV-15

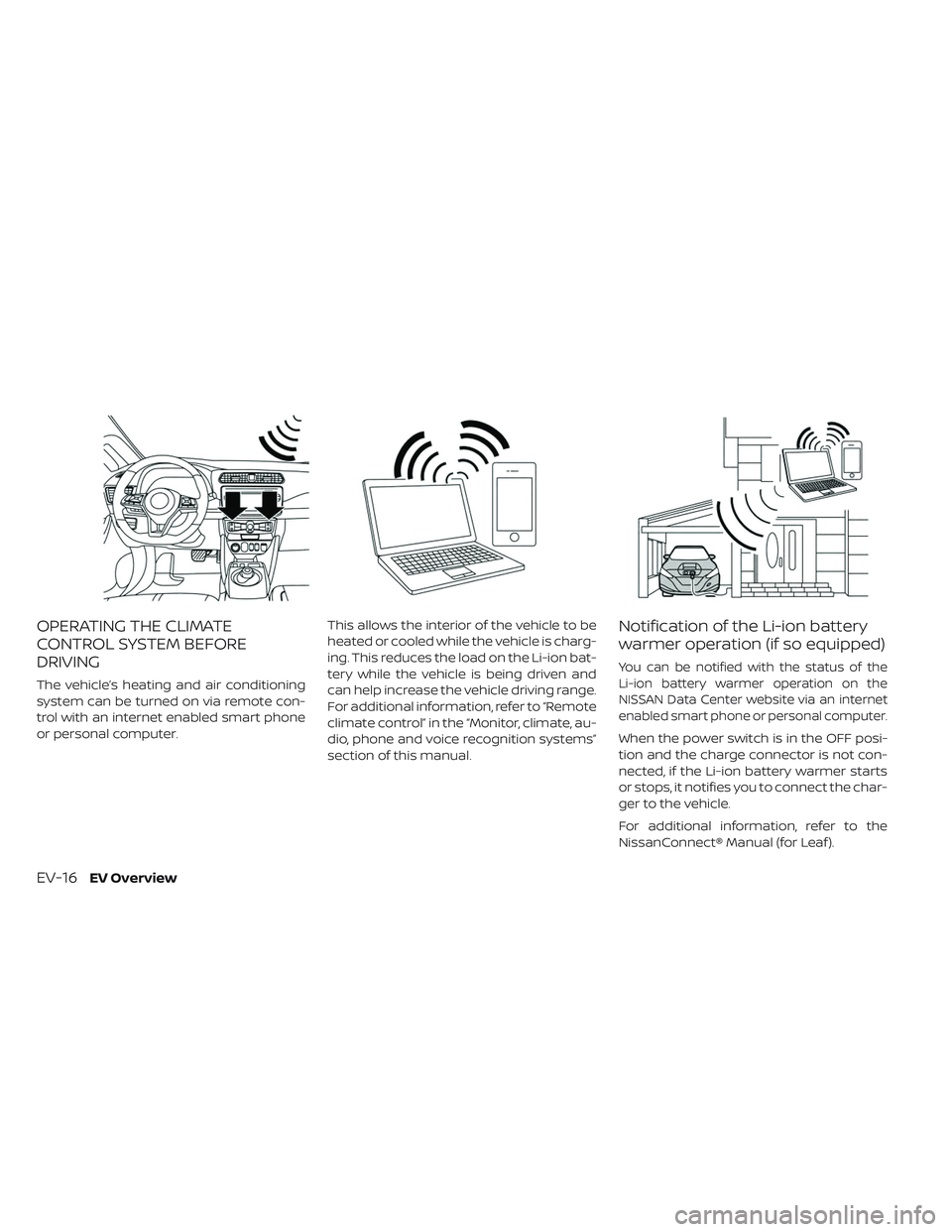

OPERATING THE CLIMATE
CONTROL SYSTEM BEFORE
DRIVING
The vehicle’s heating and air conditioning
system can be turned on via remote con-
trol with an internet enabled smart phone
or personal computer.This allows the interior of the vehicle to be
heated or cooled while the vehicle is charg-
ing. This reduces the load on the Li-ion bat-
tery while the vehicle is being driven and
can help increase the vehicle driving range.
For additional information, refer to “Remote
climate control” in the “Monitor, climate, au-
dio, phone and voice recognition systems”
section of this manual.
Notification of the Li-ion battery
warmer operation (if so equipped)
You can be notified with the status of the
Li-ion battery warmer operation on the
NISSAN Data Center website via an internet
enabled smart phone or personal computer.
When the power switch is in the OFF posi-
tion and the charge connector is not con-
nected, if the Li-ion battery warmer starts
or stops, it notifies you to connect the char-
ger to the vehicle.
For additional information, refer to the
NissanConnect® Manual (for Leaf ).
EV-16EV Overview

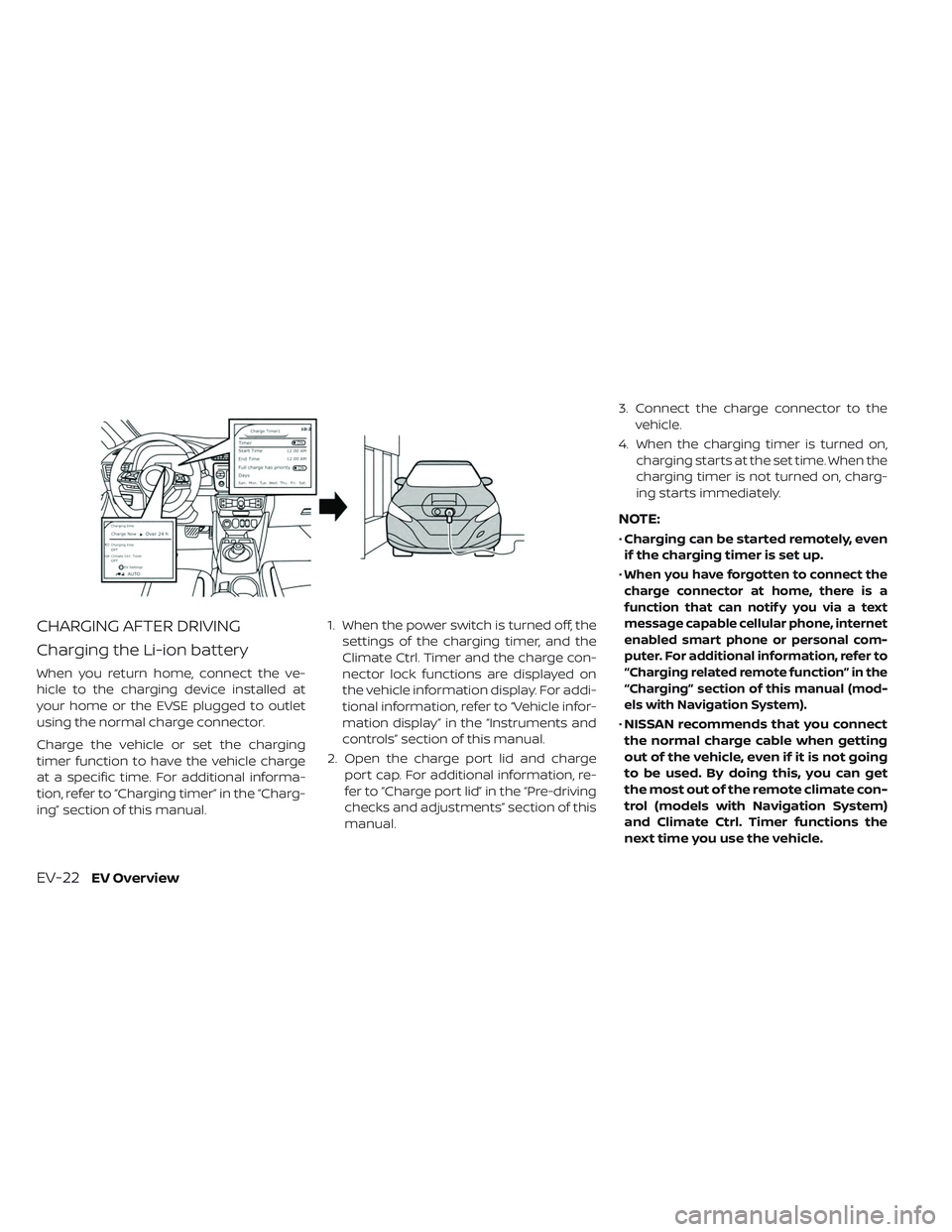

CHARGING AFTER DRIVING
Charging the Li-ion battery
When you return home, connect the ve-
hicle to the charging device installed at
your home or the EVSE plugged to outlet
using the normal charge connector.
Charge the vehicle or set the charging
timer function to have the vehicle charge
at a specific time. For additional informa-
tion, refer to “Charging timer” in the “Charg-
ing” section of this manual.1. When the power switch is turned off, the
settings of the charging timer, and the
Climate Ctrl. Timer and the charge con-
nector lock functions are displayed on
the vehicle information display. For addi-
tional information, refer to “Vehicle infor-
mation display” in the “Instruments and
controls” section of this manual.
2. Open the charge port lid and charge port cap. For additional information, re-
fer to “Charge port lid” in the “Pre-driving
checks and adjustments” section of this
manual. 3. Connect the charge connector to the
vehicle.
4. When the charging timer is turned on, charging starts at the set time. When the
charging timer is not turned on, charg-
ing starts immediately.
NOTE:
•Charging can be started remotely, even
if the charging timer is set up.
•
When you have forgotten to connect the
charge connector at home, there is a
function that can notif y you via a text
message capable cellular phone, internet
enabled smart phone or personal com-
puter. For additional information, refer to
“Charging related remote function” in the
“Charging” section of this manual (mod-
els with Navigation System).
• NISSAN recommends that you connect
the normal charge cable when getting
out of the vehicle, even if it is not going
to be used. By doing this, you can get
the most out of the remote climate con-
trol (models with Navigation System)
and Climate Ctrl. Timer functions the
next time you use the vehicle.
EV-22EV Overview

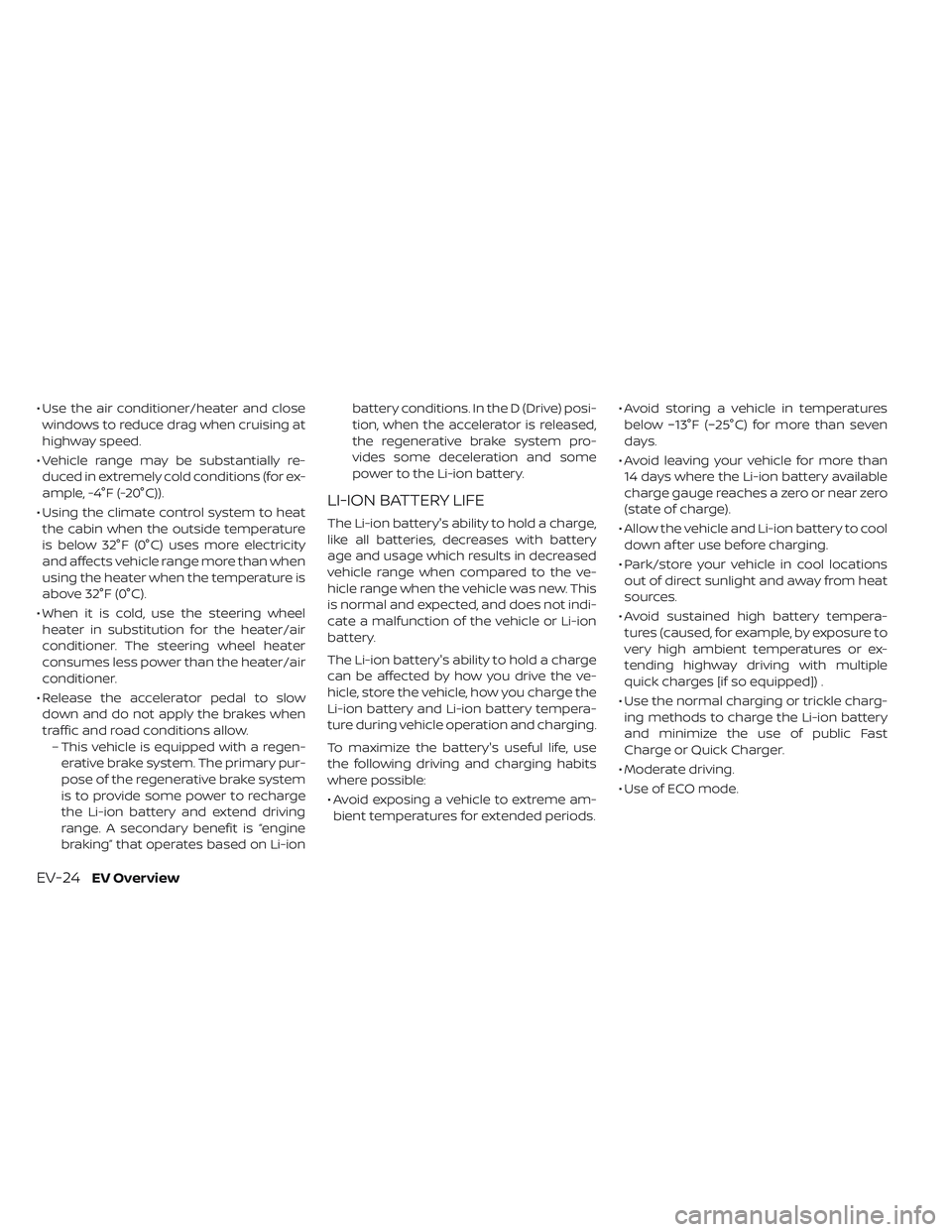

• Use the air conditioner/heater and closewindows to reduce drag when cruising at
highway speed.
• Vehicle range may be substantially re- duced in extremely cold conditions (for ex-
ample, -4°F (-20°C)).
• Using the climate control system to heat the cabin when the outside temperature
is below 32°F (0°C) uses more electricity
and affects vehicle range more than when
using the heater when the temperature is
above 32°F (0°C).
• When it is cold, use the steering wheel heater in substitution for the heater/air
conditioner. The steering wheel heater
consumes less power than the heater/air
conditioner.
• Release the accelerator pedal to slow down and do not apply the brakes when
traffic and road conditions allow. – This vehicle is equipped with a regen-erative brake system. The primary pur-
pose of the regenerative brake system
is to provide some power to recharge
the Li-ion battery and extend driving
range. A secondary benefit is “engine
braking” that operates based on Li-ion battery conditions. In the D (Drive) posi-
tion, when the accelerator is released,
the regenerative brake system pro-
vides some deceleration and some
power to the Li-ion battery.
LI-ION BATTERY LIFE
The Li-ion battery's ability to hold a charge,
like all batteries, decreases with battery
age and usage which results in decreased
vehicle range when compared to the ve-
hicle range when the vehicle was new. This
is normal and expected, and does not indi-
cate a malfunction of the vehicle or Li-ion
battery.
The Li-ion battery's ability to hold a charge
can be affected by how you drive the ve-
hicle, store the vehicle, how you charge the
Li-ion battery and Li-ion battery tempera-
ture during vehicle operation and charging.
To maximize the battery's useful life, use
the following driving and charging habits
where possible:
• Avoid exposing a vehicle to extreme am-
bient temperatures for extended periods. • Avoid storing a vehicle in temperatures
below −13°F (−25°C) for more than seven
days.
• Avoid leaving your vehicle for more than 14 days where the Li-ion battery available
charge gauge reaches a zero or near zero
(state of charge).
• Allow the vehicle and Li-ion battery to cool down af ter use before charging.
• Park/store your vehicle in cool locations out of direct sunlight and away from heat
sources.
• Avoid sustained high battery tempera- tures (caused, for example, by exposure to
very high ambient temperatures or ex-
tending highway driving with multiple
quick charges [if so equipped]) .
• Use the normal charging or trickle charg- ing methods to charge the Li-ion battery
and minimize the use of public Fast
Charge or Quick Charger.
• Moderate driving.
• Use of ECO mode.
EV-24EV Overview
