NISSAN LEAF 2020 Owner´s Manual

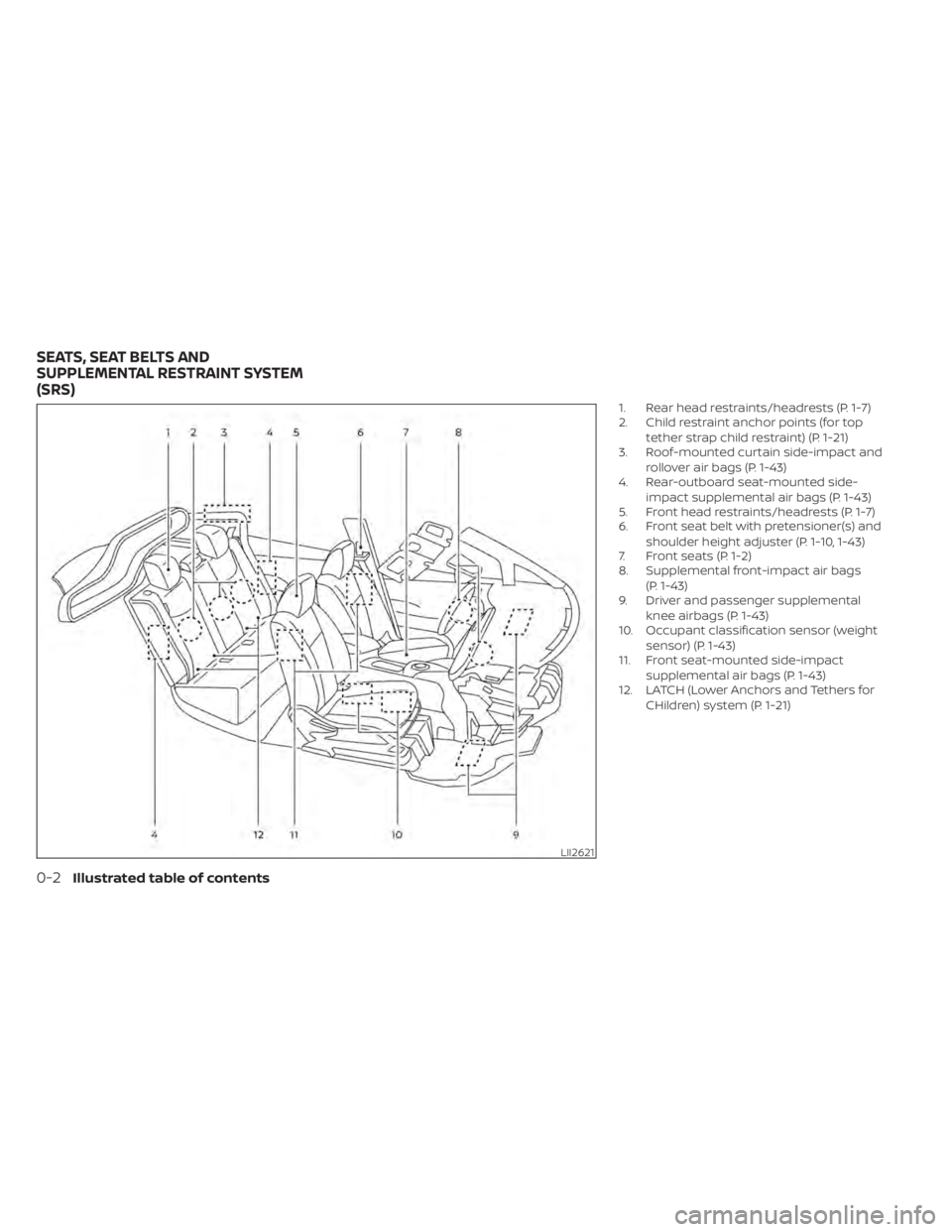

1. Rear head restraints/headrests (P. 1-7)
2. Child restraint anchor points (for toptether strap child restraint) (P. 1-21)
3. Roof-mounted curtain side-impact and
rollover air bags (P. 1-43)
4. Rear-outboard seat-mounted side-
impact supplemental air bags (P. 1-43)
5. Front head restraints/headrests (P. 1-7)
6. Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-10, 1-43)
7. Front seats (P. 1-2)
8. Supplemental front-impact air bags
(P. 1-43)
9. Driver and passenger supplemental
knee airbags (P. 1-43)
10. Occupant classification sensor (weight
sensor) (P. 1-43)
11. Front seat-mounted side-impact
supplemental air bags (P. 1-43)
12. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-21)
LII2621
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
0-2Illustrated table of contents

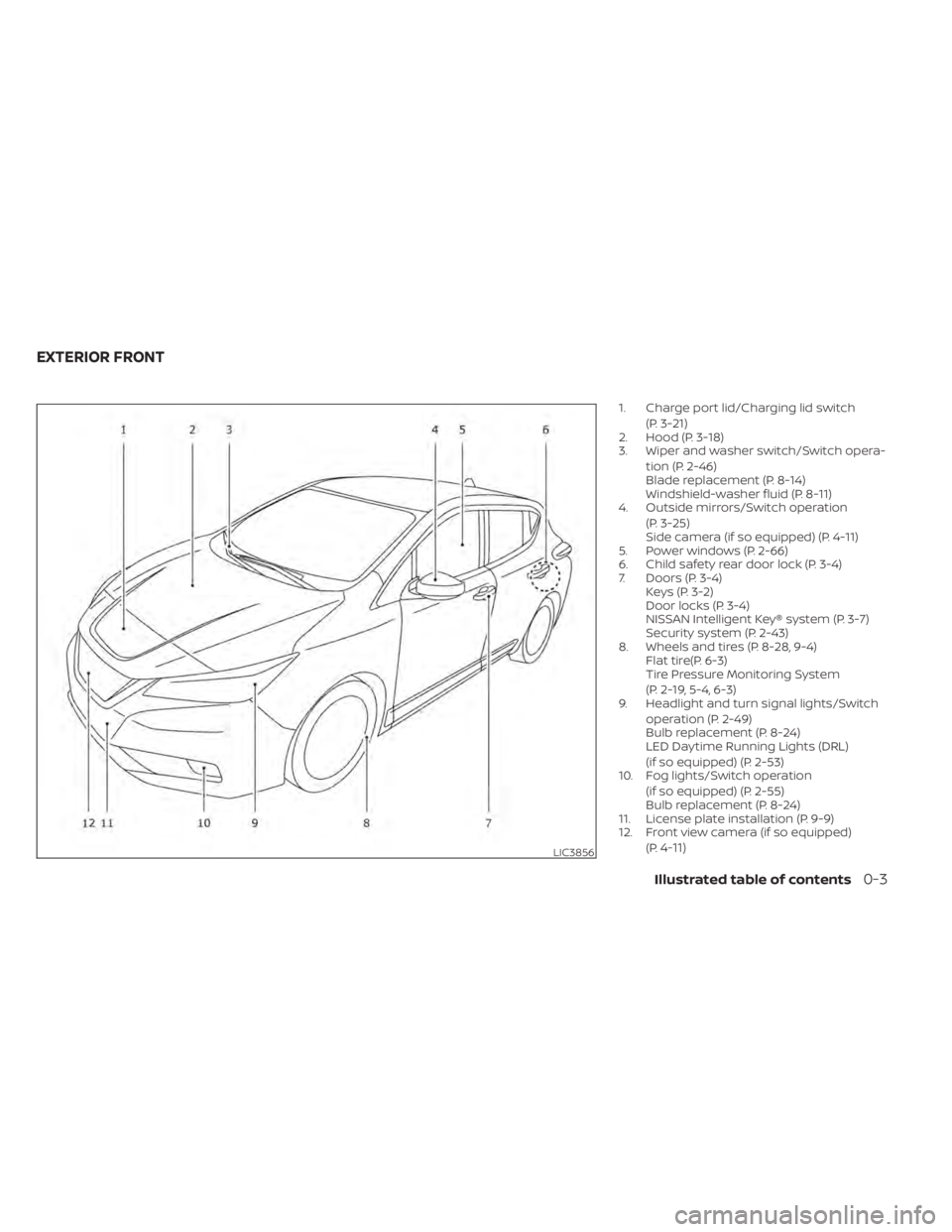

1. Charge port lid/Charging lid switch(P. 3-21)
2. Hood (P. 3-18)
3. Wiper and washer switch/Switch opera-
tion (P. 2-46)
Blade replacement (P. 8-14)
Windshield-washer fluid (P. 8-11)
4. Outside mirrors/Switch operation
(P. 3-25)
Side camera (if so equipped) (P. 4-11)
5. Power windows (P. 2-66)
6. Child safety rear door lock (P. 3-4)
7. Doors (P. 3-4) Keys (P. 3-2)
Door locks (P. 3-4)
NISSAN Intelligent Key® system (P. 3-7)
Security system (P. 2-43)
8. Wheels and tires (P. 8-28, 9-4) Flat tire(P. 6-3)
Tire Pressure Monitoring System
(P. 2-19, 5-4, 6-3)
9. Headlight and turn signal lights/Switch
operation (P. 2-49)
Bulb replacement (P. 8-24)
LED Daytime Running Lights (DRL)
(if so equipped) (P. 2-53)
10. Fog lights/Switch operation
(if so equipped) (P. 2-55)
Bulb replacement (P. 8-24)
11. License plate installation (P. 9-9)
12. Front view camera (if so equipped)
(P.
4-11)LIC3856
EXTERIOR FRONT
Illustrated table of contents0-3

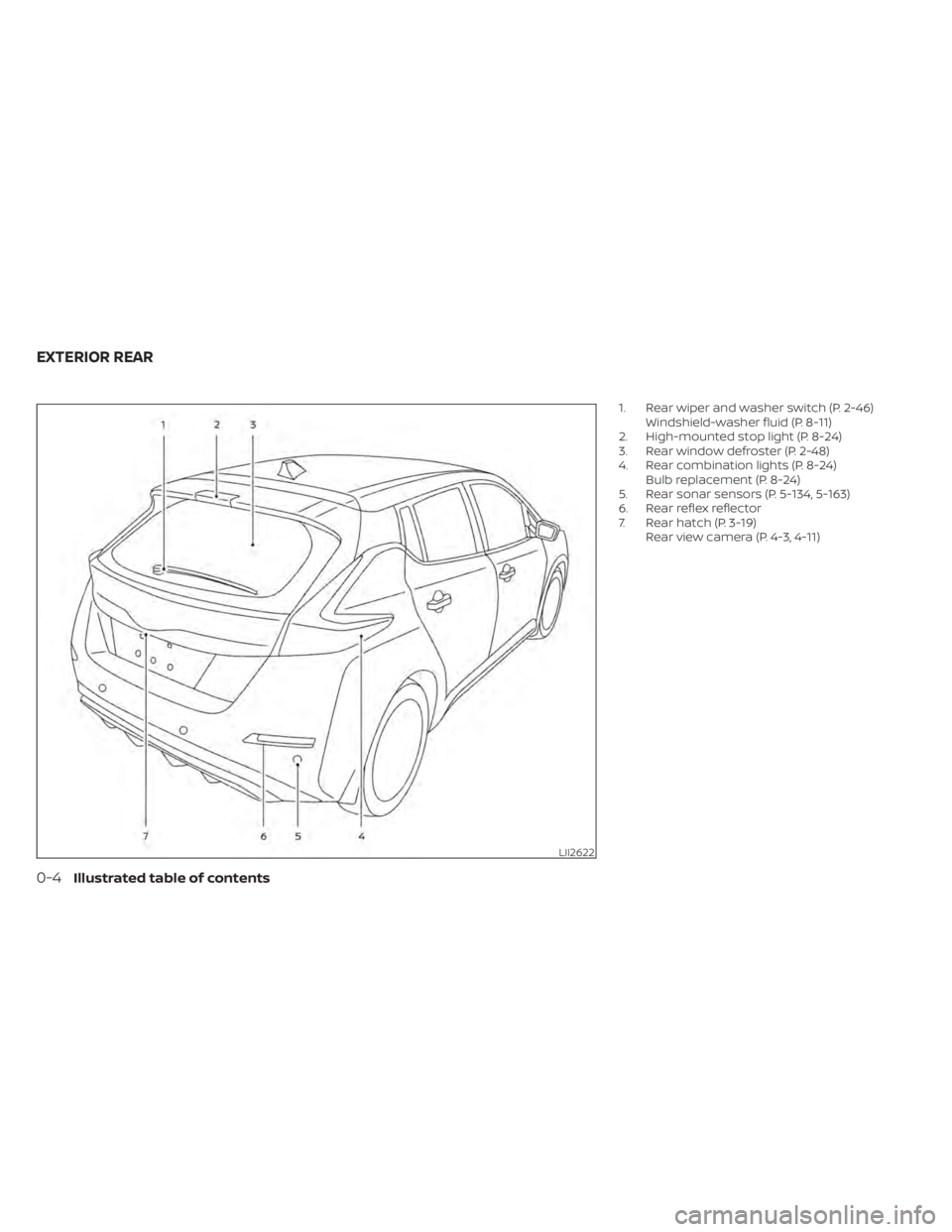

1. Rear wiper and washer switch (P. 2-46)Windshield-washer fluid (P. 8-11)
2. High-mounted stop light (P. 8-24)
3. Rear window defroster (P. 2-48)
4. Rear combination lights (P. 8-24) Bulb replacement (P. 8-24)
5. Rear sonar sensors (P. 5-134, 5-163)
6. Rear reflex reflector
7. Rear hatch (P. 3-19) Rear view camera (P. 4-3, 4-11)
LII2622
EXTERIOR REAR
0-4Illustrated table of contents

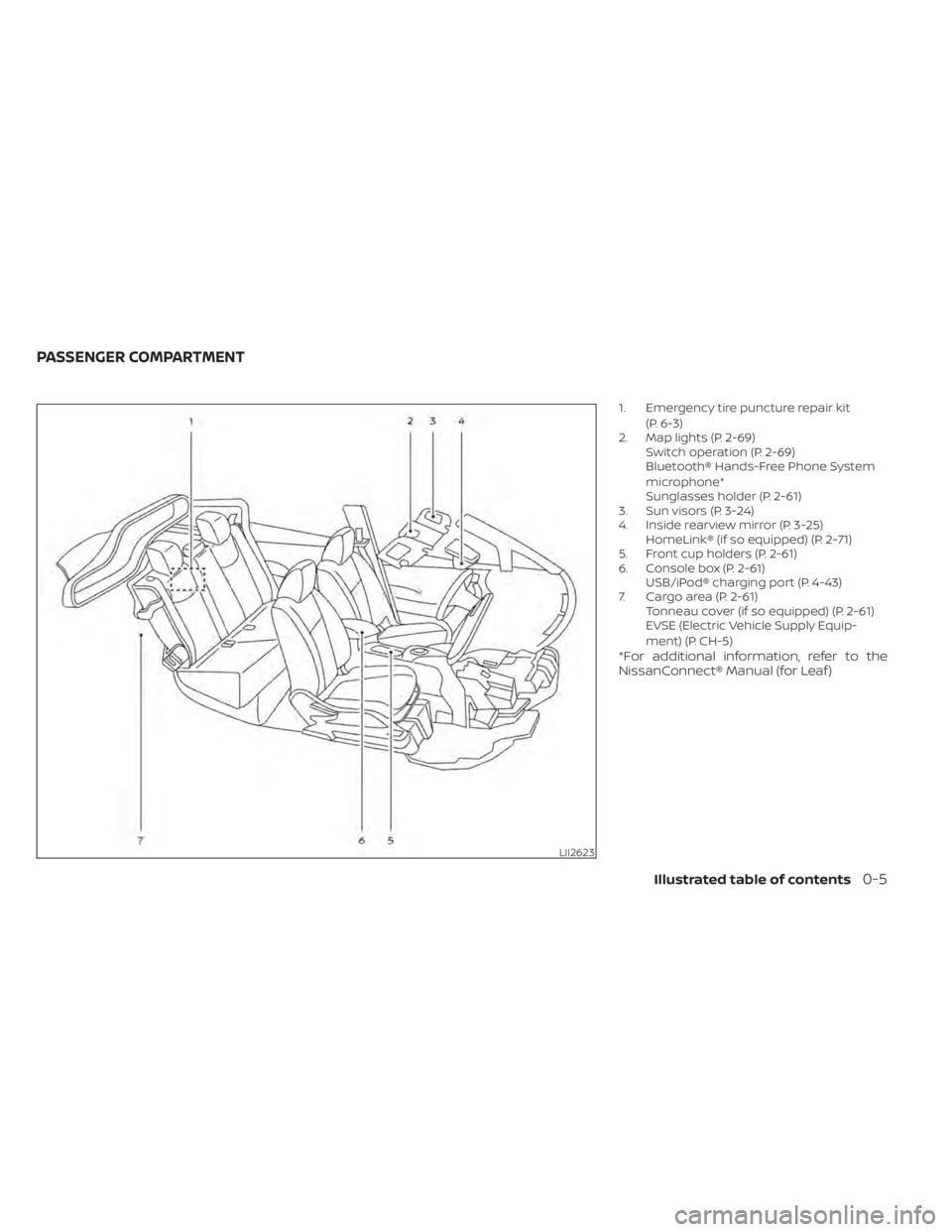

1. Emergency tire puncture repair kit(P. 6-3)
2. Map lights (P. 2-69) Switch operation (P. 2-69)
Bluetooth® Hands-Free Phone System
microphone*
Sunglasses holder (P. 2-61)
3. Sun visors (P. 3-24)
4. Inside rearview mirror (P. 3-25) HomeLink® (if so equipped) (P. 2-71)
5. Front cup holders (P. 2-61)
6. Console box (P. 2-61) USB/iPod® charging port (P. 4-43)
7. Cargo area (P. 2-61) Tonneau cover (if so equipped) (P. 2-61)
EVSE (Electric Vehicle Supply Equip-
ment) (P. CH-5)
*For additional information, refer to the
NissanConnect® Manual (for Leaf )
LII2623
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. TRIP RESET switch for twin tripodometer (P. 2-6)
Instrument brightness control switch
(P. 2-54)
2. Headlight, fog light (if so equipped) and
turn signal switch (P. 2-49)
3. Steering-wheel-mounted controls
(lef t side)
—Audio control*
—Vehicle information display controls
(P. 2-25)
4. Steering wheel (P. 5-156) Power steering system (P. 5-156)
Horn (P. 2-55)
Driver's supplemental air bag (P. 1-43)
5. Wiper and washer switch (P. 2-46)
6. Steering-wheel-mounted controls
(right side)
—Cruise control switches (if so
equipped) (P. 5-66)
—Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-69)
—ProPILOT Assist switch (if so equipped)
(P. 5-92)
—Bluetooth® Hands-Free Phone System
control*
7. Shif t lever (P. 5-15) ECO switch (P. 2-55)
e-Pedal switch (P. 5-22)
8. Console box (P. 2-61)
LII2624
COCKPIT
0-6Illustrated table of contents

9. Parking brake (switch type)(if so equipped) (P. 5-19)
10. Tilt and telescopic steering wheel
lever(P. 3-23)
11. Lower instrument panel switches
(P. 3-21)
—Charge port lid switch (P. 3-21)
—Immediate charge switch (P. 2-58)
—Heated steering wheel switch
(if so equipped) (P. 2-57)
—Steering Assist switch (if so equipped)
(P. 5-92)
—Dynamic driver assistance switch
(if so equipped) (P. 5-92, 5-31, 5-47)
12. Fuse box cover (P. 8-18)
*For additional information, refer to the
NissanConnect® manual (for Leaf )
Illustrated table of contents0-7

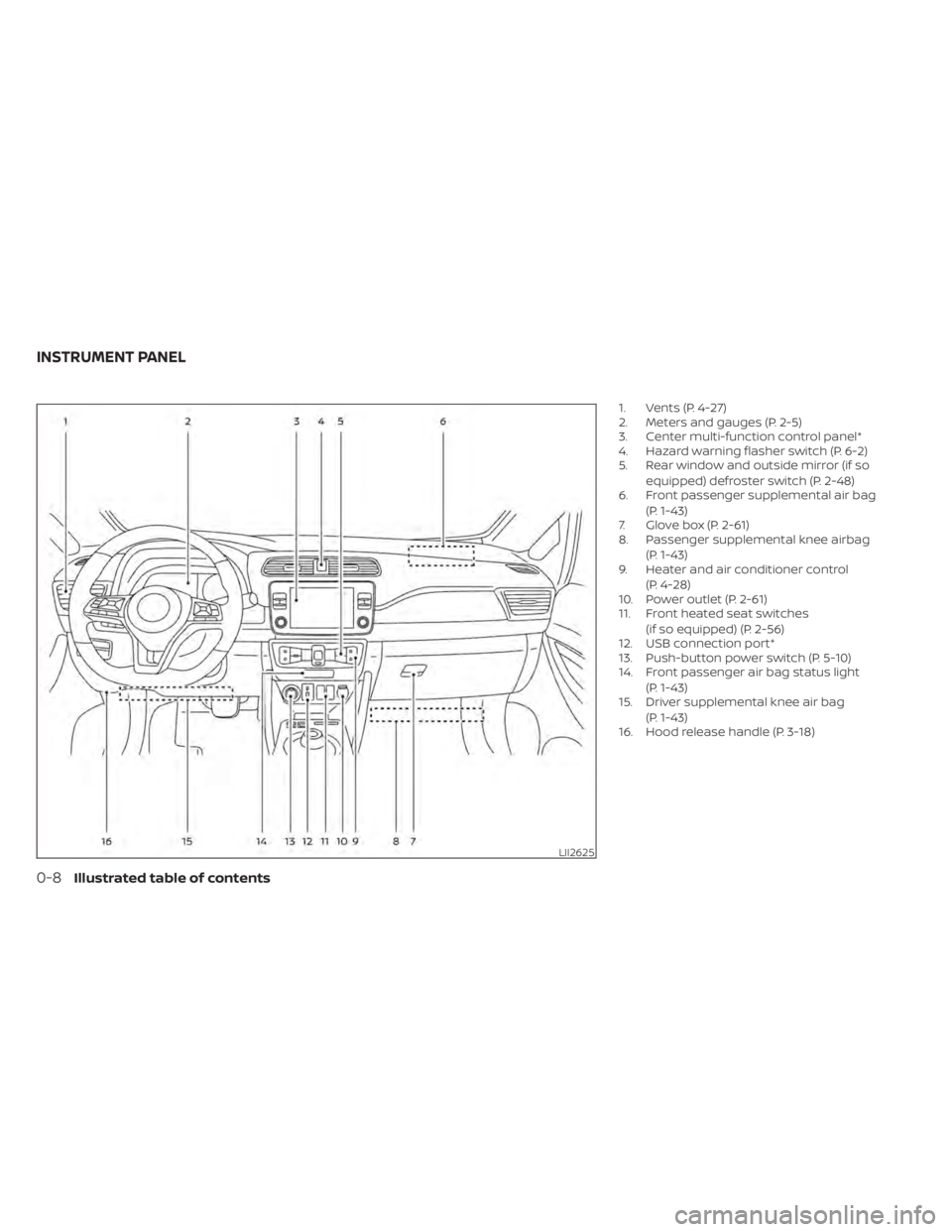

1. Vents (P. 4-27)
2. Meters and gauges (P. 2-5)
3. Center multi-function control panel*
4. Hazard warning flasher switch (P. 6-2)
5. Rear window and outside mirror (if soequipped) defroster switch (P. 2-48)
6. Front passenger supplemental air bag
(P. 1-43)
7. Glove box (P. 2-61)
8. Passenger supplemental knee airbag
(P. 1-43)
9. Heater and air conditioner control
(P. 4-28)
10. Power outlet (P. 2-61)
11. Front heated seat switches
(if so equipped) (P. 2-56)
12. USB connection port*
13. Push-button power switch (P. 5-10)
14. Front passenger air bag status light
(P. 1-43)
15. Driver supplemental knee air bag
(P. 1-43)
16. Hood release handle (P. 3-18)
LII2625
INSTRUMENT PANEL
0-8Illustrated table of contents

1. Vehicle information display (P. 2-25)Clock (P. 2-13)
Outside air temperature (P. 2-12)
Li-ion battery available charge gauge
(P. 2-9)
Driving range (P. 2-9)
Odometer/twin trip odometer (P. 2-6)
Indicator for timer (P. CH-43)
Power meter (P. 2-8)
2. Warning and indicator lights (P. 2-14) Turn signal/Hazard indicator light
(P. 2-49)
READY to drive indicator light (P. 2-23)
ECO mode indicator (P. 2-13)
3. Speedometer (P. 2-6)
LIC3861
METERS AND GAUGES
Illustrated table of contents0-9

1. Fuse/Fusible link holder (P. 8-18)
2. Brake fluid reservoir (P. 8-10)
3. 12-volt battery (P. 8-12)
4. Fuse holder (P. 8-18)
5. Windshield-washer fluid reservoir(P. 8-11)
6. Fuse/Fusible link holder (P. 8-18)
7. Coolant reservoir cap (P. 8-8)
LDI3464
MOTOR COMPARTMENT
0-10Illustrated table of contents

Warninglight Name Page
12-volt battery
charge warning
light 2-15
orAnti-lock Braking
System (ABS)
warning light2-16
Approaching Ve-
hicle Sound for
Pedestrians (VSP)
OFF system
warning light2-16
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light2-16
Warning
light Name Page
orBrake system
warning light (yel-
low) 2-17
orBrake warning
light (red)
2-17
or
Electronic parking
brake system
warning light (yel-
low) (if so
equipped)2-18
Electric shif t con-
trol system warn-
ing light
2-18
Warning
light Name Page
Electric Vehicle
(EV) system warn-
ing light 2-19
Low tire pressure
warning light
2-19
Master warning
light (red/yellow)2-20
Power steering
warning light 2-21
Rear Automatic
Braking (RAB)
warning light2-21
Seat belt warning
light
2-21
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-11
