NISSAN MAXIMA 2008 A34 / 6.G 06IT Navigation Manual

Black plate (114,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
MEMO
5-26Route guidance

Black plate (16,1)

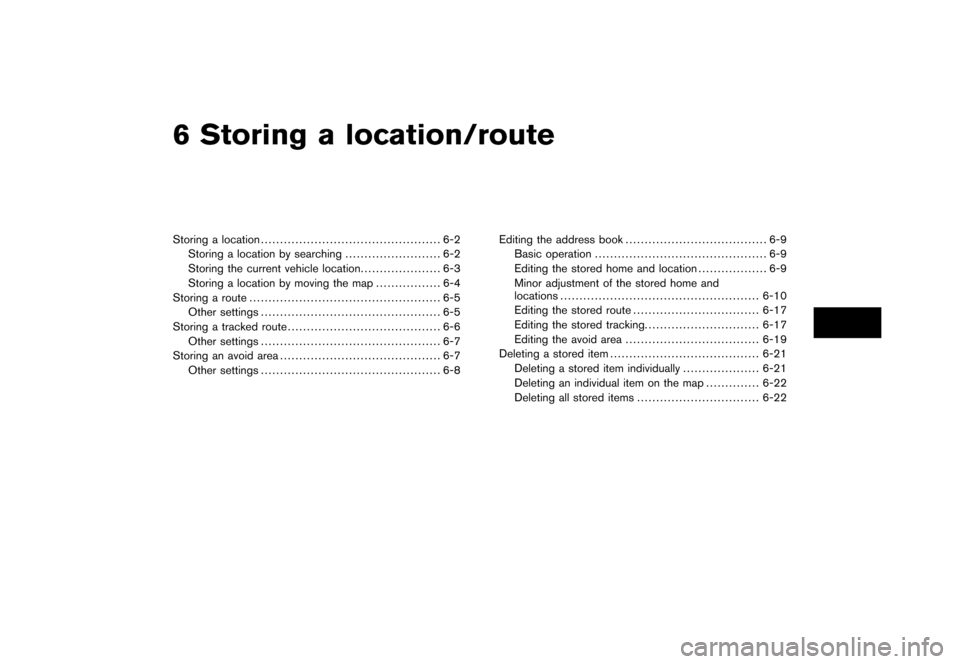

6 Storing a location/route
Model "NAV2-N" EDITED: 2007/ 3/ 8
Storing a location............................................... 6-2
Storing a location by searching......................... 6-2
Storing the current vehicle location..................... 6-3
Storing a location by moving the map................. 6-4
Storing a route.................................................. 6-5
Other settings............................................... 6-5
Storing a tracked route........................................ 6-6
Other settings............................................... 6-7
Storing an avoid area.......................................... 6-7
Other settings............................................... 6-8Editing the address book..................................... 6-9
Basic operation............................................. 6-9
Editing the stored home and location.................. 6-9
Minor adjustment of the stored home and
locations....................................................6-10
Editing the stored route.................................6-17
Editing the stored tracking..............................6-17
Editing the avoid area...................................6-19
Deleting a stored item.......................................6-21
Deleting a stored item individually....................6-21
Deleting an individual item on the map..............6-22
Deleting all stored items................................6-22

Black plate (116,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
Locations that you often visit can be stored in
the Address Book. The stored locations can be
easily retrieved to set them as a destination or
waypoint.
INFO:
.The Address Book can store up to 200
locations.
.New information placed in the same storage
position will overwrite the old data.
STORING A LOCATION BY SEARCH-
ING
After you have searched for a location as
previously described, you can store the location
for future use.
1. Push.
2. Highlight [Navigation] and push.
3. Highlight [Address Book] and push
.
4. Highlight [Stored Location] and push
.
5. Highlight [Home Location (Add New)] or
[None (Add New)] and push.
6. Highlight the appropriate method to search
for a location and push.
“4. Setting a destination”
STORING A LOCATION
6-2Storing a location/route

Black plate (117,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
7. When your preferred location is displayed at
the center of the map, confirm the location
and push.
A message is displayed, and the location is
stored in the Address Book.
INFO:
.When you store the location from the
Address Book, you cannot use [Address
Book] to search for the location.
.You can adjust a location by selecting
[Move Location] using the same method
as the one for a destination.
“ADJUSTING THE LOCATION
OF THE DESTINATION”
(page 4-25)
8. Adjust the location of the stored item and
edit the contents of the stored item as
necessary. After finishing the setting, high-
light [OK] and push.
STORING THE CURRENT VEHICLE
LOCATION
1. Push

Black plate (118,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
INFO:
The location is stored in the first available
position number in the Address Book list.
Setting by voice command
1. Pushlocated on the steering
switch.
2. After the tone sounds, speak a command.
To store a current location:
“Store Location”
STORING A LOCATION BY MOVING
THE MAP
1. Move to the preferred location on the map
and push.
2. Highlight [Store Location] and push
. A message is displayed, and
the location is stored in the Address Book.
3. Push

Black plate (119,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9

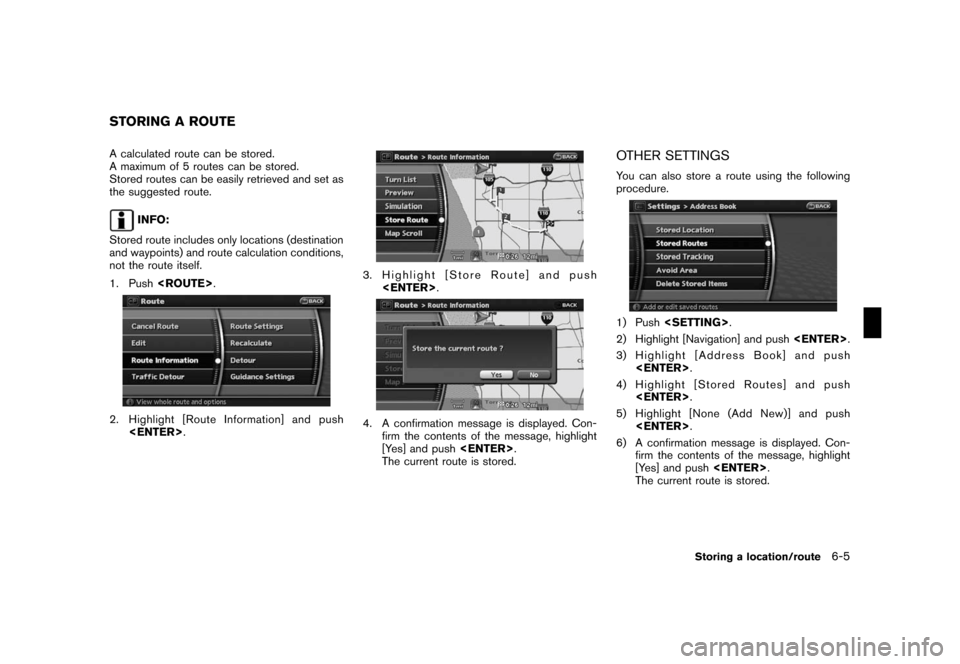

A calculated route can be stored.
A maximum of 5 routes can be stored.
Stored routes can be easily retrieved and set as
the suggested route.
INFO:
Stored route includes only locations (destination
and waypoints) and route calculation conditions,
not the route itself.
1. Push.
2. Highlight [Route Information] and push
.
3. Highlight [Store Route] and push
.
4. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push.
The current route is stored.
OTHER SETTINGS
You can also store a route using the following
procedure.
1) Push.
2) Highlight [Navigation] and push.
3) Highlight [Address Book] and push
.
4) Highlight [Stored Routes] and push
.
5) Highlight [None (Add New)] and push
.
6) A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push.
The current route is stored.
STORING A ROUTE
Storing a location/route6-5

Black plate (120,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
INFO:
.The route is stored in the first available
position number in the store current route
list.
.A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
“DELETING A STORED ITEM”
(page 6-21)
.If you have not set any waypoints on the
route, the route cannot be stored.You can store the route you have traveled up to
the current location. A maximum of 5 tracked
routes can be stored.
1. Push

Black plate (121,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
OTHER SETTINGS
You can also store a tracked route using the
following procedure.
1. Push.
2. Highlight [Navigation] and push.
3. Highlight [Address Book] and push
.
4. Highlight [Stored Tracking] and push
.
5. Highlight [None (Add New)] and push
.
INFO:
You can store the tracked route on the setting
screen only when [Current Tracking] is set to on.An Avoid Area can be stored.
The Avoid Area is an area that you want to
exclude from a route, such as a road that is
always congested. Once you store Avoid Areas,
the system avoids those areas when calculating
a route. Up to 10 Avoid Areas can be stored.
1. Push.
2. Highlight [Navigation] and push.
3. Highlight [Avoid Area Settings] and push
.
INFO:
You can also access and store an Avoid
Area from the Address Book.
4. Highlight [None (Add New)] and push
.
INFO:
A maximum of 10 Avoid Areas can be
stored.
“DELETING A STORED ITEM”
(page 6-21)
STORING AN AVOID AREA
Storing a location/route6-7

Black plate (122,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
5. Highlight the appropriate method to search
for a location and push.
“4. Setting a destination”
6. Set the following items for the searched
location.Available setting items
.Rename:
Changes the name.
“Rename” (page 6-19)
.Move Location:
Adjusts the location of the Avoid Area.
“Move Location” (page 6-19)
.Resize Area:
Adjusts the range of the Avoid Area.
“Resize Area” (page 6-20)
.FWY:
Avoids freeways.
“FWY” (page 6-20)
.Delete:
Deletes the avoid area.
“Delete” (page 6-20)
7. After finishing the setting, highlight [OK] and
push.
OTHER SETTINGS
You can also store an avoid area using the
following procedure.
1. Push.
2. Highlight [Navigation] and push.
3. Highlight [Address Book] and push
.
4. Highlight [Avoid Area] and push.
5. Highlight [None (Add New)] and push
.
6-8Storing a location/route

Black plate (123,1)
Model "NAV2-N" EDITED: 2007/ 3/ 9
Items stored in the Address Book can be
modified. You can edit these settings to make
the navigation system more useful.
BASIC OPERATION
1. Push.
2. Highlight [Navigation] and push.
3. Highlight [Address Book] and push
.
4. Highlight the preferred item and push
.
Available items
.Stored Location:
Edits the information of a stored home and
location.
“EDITING THE STORED HOME AND
LOCATION” (page 6-9)
.Stored Routes:
Edits the information of a stored route.
“EDITING THE STORED ROUTE”
(page 6-17)
.Stored Tracking:
Edits the information of a stored tracked
route.
“EDITING THE STORED TRACKING”
(page 6-17)
.Avoid Area:
Edits the information of a stored Avoid Area.
“EDITING THE AVOID AREA”
(page 6-19)
.Delete Stored Items:
Deletes a stored location or route.
“DELETING ALL STORED ITEMS”
(page 6-22)
EDITING THE STORED HOME AND
LOCATION
1. Highlight [Stored Location] and push
.
2. Highlight the preferred stored home location
or stored location and push.
INFO:
.Selecting [Sort List] displays a list of
various sort functions.
To use the sort functions, stored loca-
tions must be set in advance.
“MINOR ADJUSTMENT OF THE
STORED HOME AND LOCA-
TIONS” (page 6-10)
.Select [Play All] to play back the stored
voicetag.
“Voicetag (only for stored loca-
tions)” (page 6-11)
EDITING THE ADDRESS BOOK
Storing a location/route6-9
