To reply to/exit from a text1. When a new text message is received and [Read] is selected, operation keys
are displayed on the vehicle informa-
tion display.
2. Use
orto highlight the pre-
ferred item and press the OK button to
select the item.
Available keys Action
[Reply] Available pre-determined messages will be displayed
on the vehicle information display if the steering
switch controls are used. Further operations, such as
voice recognition reply operation, is available when
using the touch-screen display.
[Exit] Ends text message operation and the vehicle infor-
mation display will show the previous screen.
INFO
A cellular phone device must be connected and selected from among other connected
Bluetooth® devices before hands-free operation. The paired phone must be able to
support the Bluetooth® requests for display. For additional information, refer to the sepa-
rate NissanConnect® Owner’s Manual.
Instruments and controls2-39

NAVIGATION SYSTEM (if so
equipped)
Turn-by-turn route guidance can be dis-
played on the vehicle information display.
To view turn-by-turn route guidance on the
vehicle information display, use
orand scroll toon the vehicle
information display menu.
City view
City view shows representation of intersec-
tions with road curvature and surround-
ings.
Lane guidance will appear in the lower right
corner if the data is available for that street.
The next turn and the distance to the next
turn are displayed on the vehicle informa-
tion display. A countdown bar is shown in
the arrow. The bar gets smaller as you get
closer to the next turn.
Arrow view
Lane guidance will appear in the lower right
corner, if the data is available for that street.
A turn direction arrow with an icon indicat-
ing your current route location is displayed.
A countdown bar will be shown on the lef t
side of the vehicle information display. The
bar gets smaller as you get closer to the
next turn.
LIC3228LIC3163
2-40Instruments and controls

Compass view
Compass view is displayed when no route is
set, and shows current weather conditions
and speed limit information (if available).
Far screen view
Far screen view shows destination infor-
mation, weather and speed limit informa-
tion (if available for the street).
Navigation settings
The navigation related display settings can
be changed.1. Select
usingorand press the OK button. A menu will
display.
2. Using
or, select [Customize
Display] and then select [Navigation
Settings].
3. Select the preferred item using
or.
Available items Action
[Alerts] When enabled, navigation turn alerts will interrupt the display if navigation is not being shown.
[View Mode] Allows the user to select between City and Arrow view for turn guidance. [Arrow View] When this mode is selected, the upcoming turn will be represented as an arrow as the vehicle
approaches a guide point.
[City View] When this mode is selected, the upcoming turn will be represented on a map of the intersection
as the vehicle approaches a guide point.
4. Press the OK button to turn on or off the [Alerts] setting or to toggle the view mode between [Arrow] or [City].
LIC3229LIC3230
Instruments and controls2-41

NAVIGATION SWIPE TO METER (if
so equipped)
Turn-by-turn route guidance can also be
viewed in the vehicle information display by
using Navigation Swipe to Meter. This can
be done by programming a route, touching
the turn-by-turn route icon on the center
display, and swiping towards the general
direction of the vehicle information display.The turn-by-turn route icon will move
across the center display and transfer the
route information to the vehicle informa-
tion display when the vehicle is not moving.
The icon will not move across the screen if
the vehicle is moving over speeds of 4 mph
(7 km/h), yet the information will still trans-
fer to the vehicle information display.
The turn-by-turn route guidance cannot
be transferred to the vehicle information
display if the navigation screen is already
shown or if a warning is present.
For additional information, refer to the
separate NissanConnect® Owner’s Manual.
Your vehicle has two types of security sys-
tems:
∙ Vehicle security system
∙ NISSAN Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, trunk, or hood when the
system is armed. It is not, however, a mo-
tion detection type system that activates
when a vehicle is moved or when a vibra-
tion occurs.
LIC4158LIC2930
SECURITY SYSTEMS
2-42Instruments and controls

The system helps deter vehicle thef t but
cannot prevent it, nor can it prevent the
thef t of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key in the ve-
hicle, and always lock the vehicle when un-
attended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various thef t protection
features.
How to arm the vehicle security
system
1. Close all windows.(The system can be
armed even if the windows are open.)
2. Remove the Intelligent Key from the ve- hicle. 3. Close all doors, hood and trunk. Lock all
doors. The doors can be locked with
the Intelligent Key or door handle re-
quest switch.
4. Confirm that the
security indica-
tor light stays on for about 30 seconds.
The vehicle security system is now pre-
armed. The vehicle security system will
automatically shif t into the armed
phase. The
security light begins
to flash once every three seconds. If
during the pre-armed phase one of the
following occurs, the system will not
arm:
∙ Any door is unlocked with the Intelligent Key or door request switch.
∙ Ignition switch is placed in ACC or ON position.
∙ Even when the driver and/or passen-
gers are in the vehicle, the system will
activate with all the doors, hood and
trunk lid locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in
the ACC or ON position, the system
will be released.
Vehicle security system activation
The vehicle security system will give the
following alarm:
∙ The headlights blink and the horn sounds intermittently but synchro-
nously.
∙ The alarm automatically turns off af ter a period of time. However, the alarm
reactivates if the vehicle is tampered
with again.
The alarm is activated by: ∙ opening any door or hood without us- ing the Intelligent Key (even if the door is
unlocked by releasing the door inside
lock knob).
How to stop an activated alarm
The alarm stops only by pushing thebutton on the Intelligent Key, or pushing the
request switch on the driver’s or passen-
ger’s door with the Intelligent Key in range
of the door handle.
Instruments and controls2-43

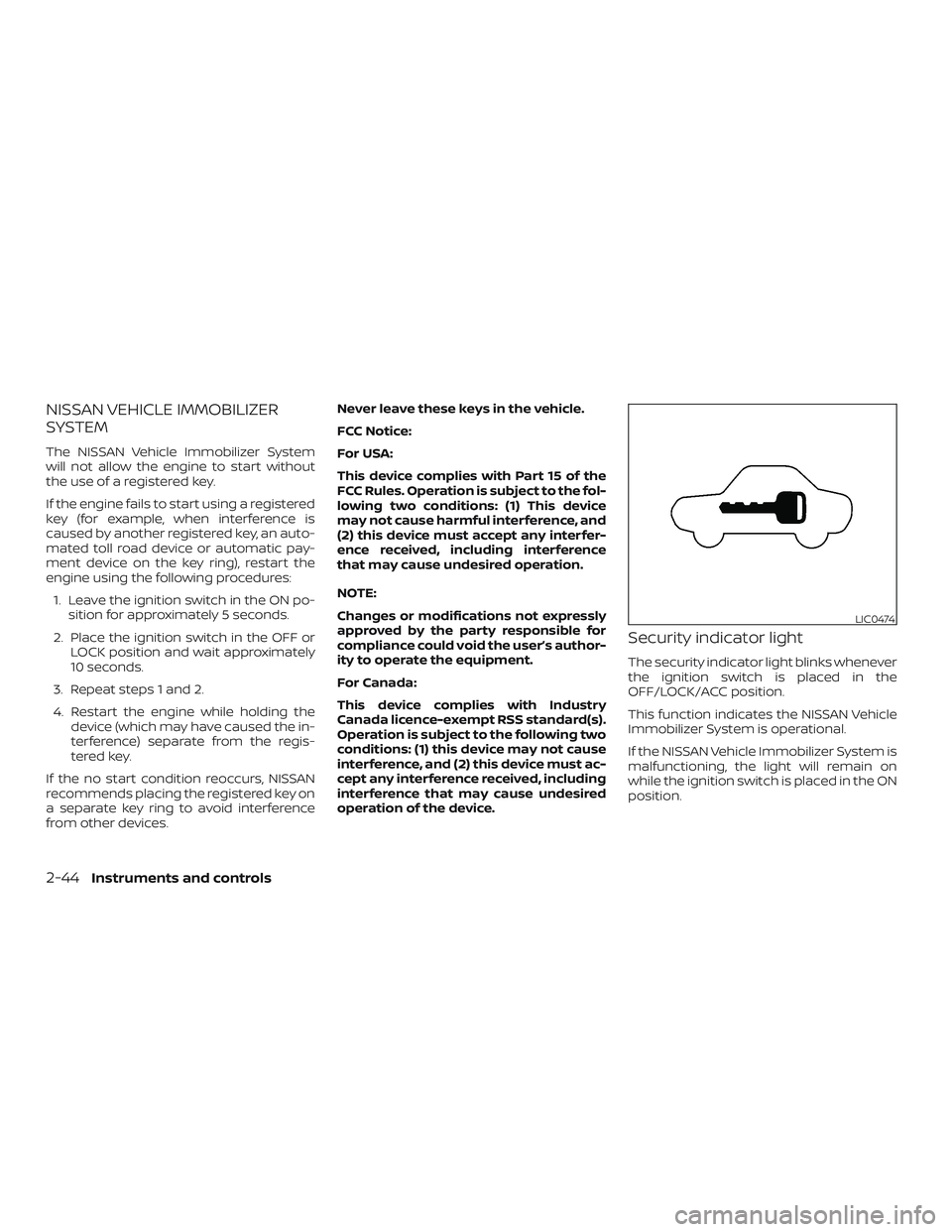

NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.
If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the in-
terference) separate from the regis-
tered key.
If the no start condition reoccurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices. Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.
For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation of the device.
Security indicator light
The security indicator light blinks whenever
the ignition switch is placed in the
OFF/LOCK/ACC position.
This function indicates the NISSAN Vehicle
Immobilizer System is operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.
LIC0474
2-44Instruments and controls

If the light still remains on and/or the
engine will not start, seek service for the
NISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
registered keys that you have. It is rec-
ommended that you visit a NISSAN
dealer for this service.

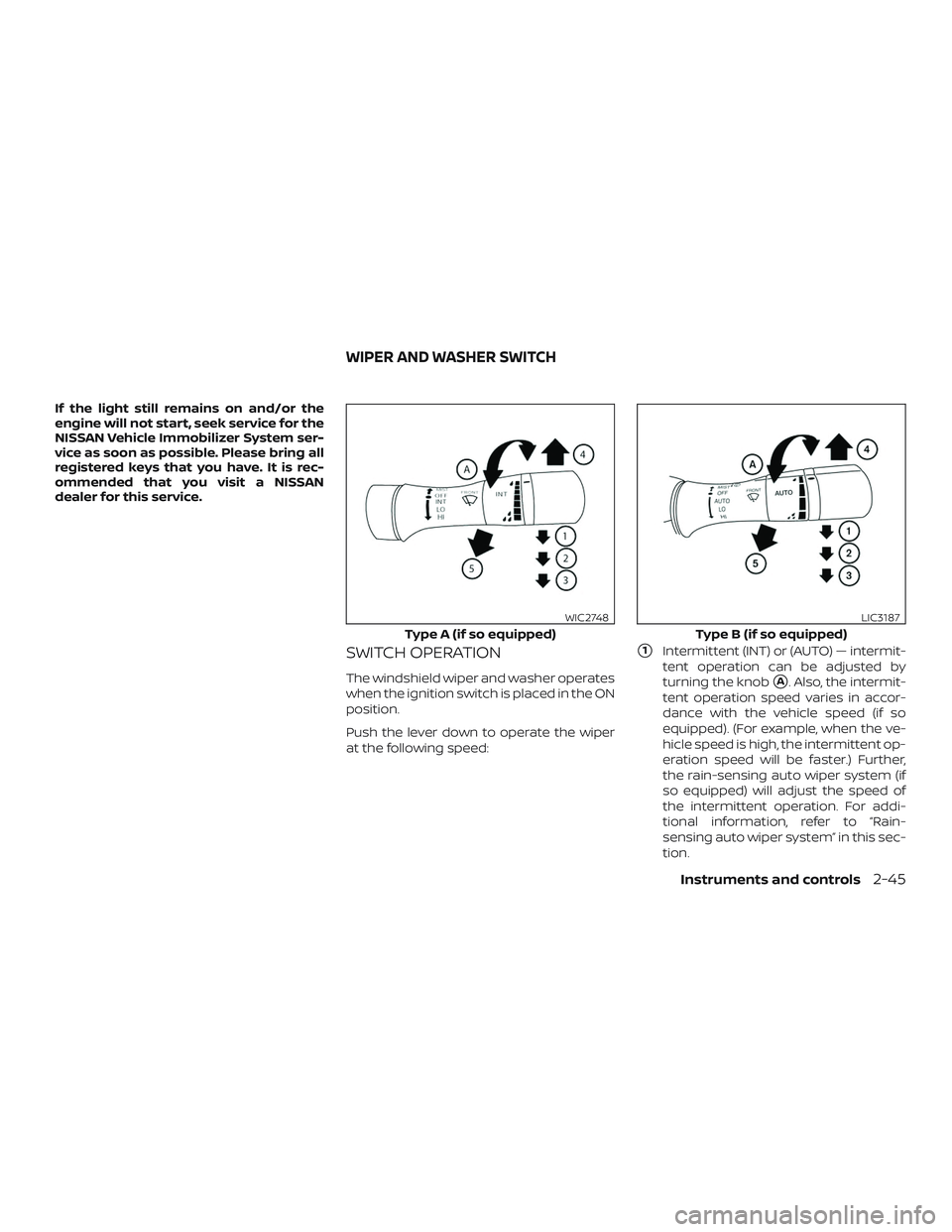

SWITCH OPERATION
The windshield wiper and washer operates
when the ignition switch is placed in the ON
position.
Push the lever down to operate the wiper
at the following speed:
1Intermittent (INT) or (AUTO) — intermit-
tent operation can be adjusted by
turning the knob
A. Also, the intermit-
tent operation speed varies in accor-
dance with the vehicle speed (if so
equipped). (For example, when the ve-
hicle speed is high, the intermittent op-
eration speed will be faster.) Further,
the rain-sensing auto wiper system (if
so equipped) will adjust the speed of
the intermittent operation. For addi-
tional information, refer to “Rain-
sensing auto wiper system” in this sec-
tion.
Type A (if so equipped)
WIC2748
Type B (if so equipped)
LIC3187
WIPER AND WASHER SWITCH
Instruments and controls2-45

2Low (LO) — continuous low speed op-
eration
3High (HI) — continuous high speed op-
eration
Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times.
NOTE:
The speed-dependent intermittent (if so
equipped) function may be disabled. For
additional information, refer to “Vehicle
information display ” in this section.
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm the windshield
with the defroster before you wash the
windshield.
CAUTION
∙ Do not operate the washer continu- ously for more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer
fluid concentrates at full strength.
Some methyl alcohol based
windshield-washer fluid concen-
trates may permanently stain the
grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid con- centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water. NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.
2-46Instruments and controls

RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
The rain-sensing auto wiper system can
automatically turn on the wipers and ad-
just the wiper speed depending on the
rainfall by using the rain sensor located on
the upper part of the windshield.
To set the rain-sensing auto wiper system,
push the lever down to the AUTO position
1. The wiper will sweep once while the
ignition switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
2(High) or toward the rear3(Low). – High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, push up the lever to the OFF position, or
pull down the lever to the LO or HI position.
For additional information on disabling the
rain-sensing feature, refer to “Vehicle infor-
mation display” in this section.
CAUTION
∙ Do not touch the rain sensor and
around it when the wiper switch is in
the AUTO position and the ignition
switch is in the ON position. The wip-
ers may operate unexpectedly and
cause an injury or may damage a
wiper.
∙ The rain-sensing auto wipers are in- tended for use during rain. If the
switch is lef t in the AUTO position, the
wipers may operate unexpectedly
when dirt, fingerprints, oil film or in-
sects are stuck on or around the sen-
sor. The wipers may also operate
when exhaust gas or moisture affect
the rain sensor. ∙ When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be
higher even though the amount of the
rainfall is small.
∙ Be sure to turn off the rain-sensing auto wiper system when you use a car
wash.
∙ The rain-sensing auto wipers may not operate if rain does not hit the rain
sensor even if it is raining.
∙ Using Genuine NISSAN wiper blades is recommended for proper operation
of the rain-sensing auto wiper sys-
tem. For additional information, refer
to “Windshield wiper blades” in the
“Do-it-yourself ” section of this
manual.
LIC3233
Instruments and controls2-47

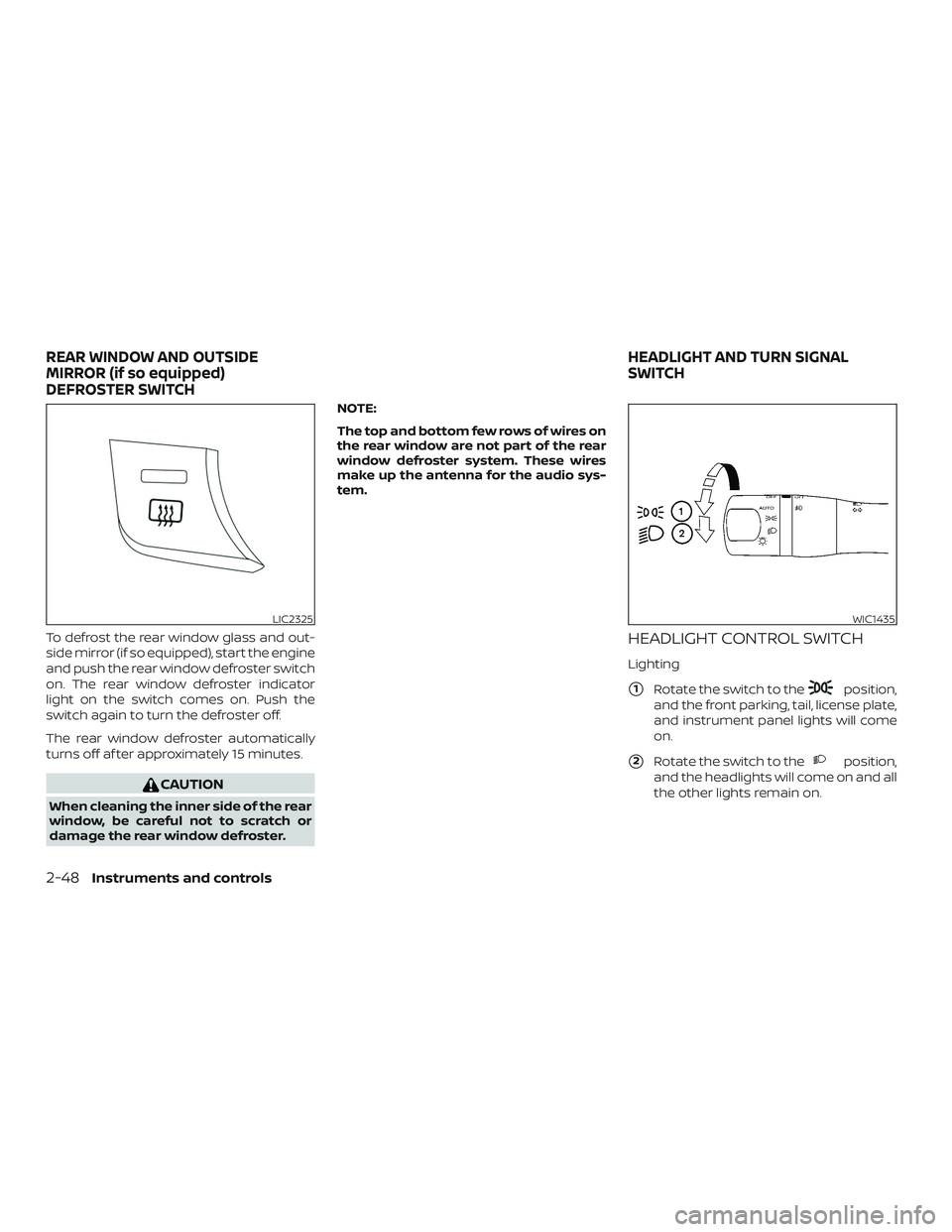

To defrost the rear window glass and out-
side mirror (if so equipped), start the engine
and push the rear window defroster switch
on. The rear window defroster indicator
light on the switch comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically
turns off af ter approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.NOTE:
The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio sys-
tem.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come
on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
LIC2325WIC1435
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
2-48Instruments and controls
