NISSAN MURANO 2005 1.G Owners Manual

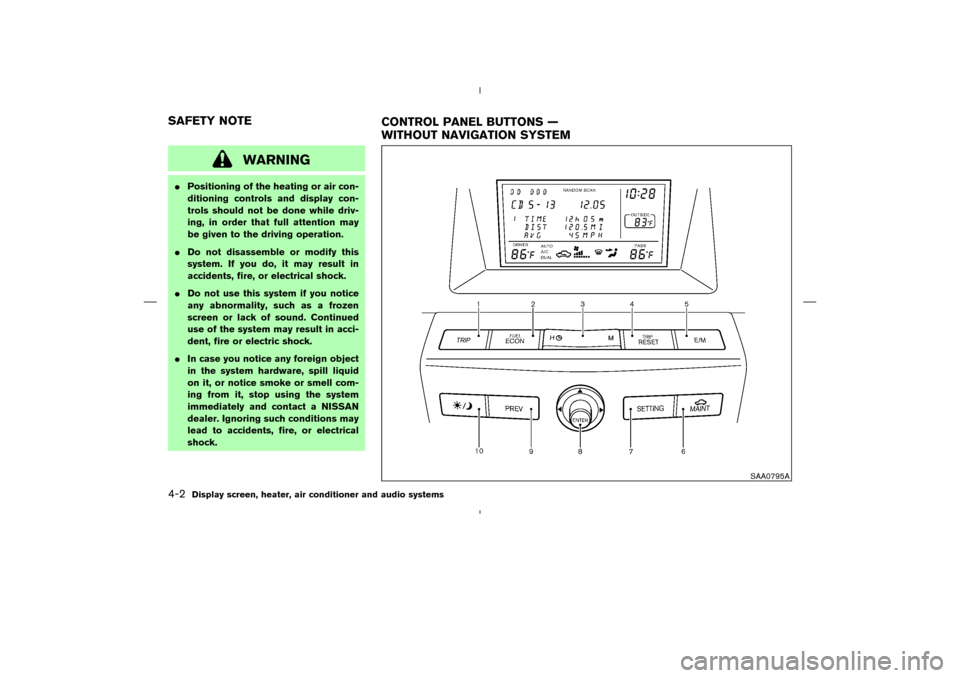

WARNING

Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, in order that full attention may
be given to the driving operation.

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electrical shock.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electrical
shock.
SAA0795A
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITHOUT NAVIGATION SYSTEM4-2
Display screen, heater, air conditioner and audio systems


04.8.3/Z50-D/V5.0


1. “TRIP” drive computer button; refer to page
4-3.
2. “FUEL ECON” button; refer to page 4-4.
3. Clock adjust button; refer to page 4-4.
4. “TRIP RESET” button; refer to page 4-3.
5. “E/M” button; refer to page 4-4.
6. “MAINT” maintenance button; refer to page
4-5.
7. “SETTING” button; refer to page 4-6.
8. JOYSTICK and “ENTER” button; refer to
page 4-3.
9. “PREV” previous button; refer to page 4-3.
10. “DAY/NIGHT” brightness control button;
refer to page 4-7.
Make sure the engine is running before using
this system.
Using the system with the engine off (igni-
tion ONor ACC) for extended periods will
drain the battery power, and the engine
may not start.HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick.
Push the “ENTER” button only when the use ofit is instructed on the display.
HOW TO USE “PREV” BUTTONFinish setup:
If you push the “PREV” button after the setup is
completed, the display will return to the previous
screen.
HOW TO USE THE “TRIP” BUTTONWhen the “TRIP” button is pushed, the following
modes will display on the screen.
TRIP 1 (TIME, DIST, AVG)→TRIP 2 (TIME,
DIST, AVG)→OFF
You can set the two kinds of journey time (TIME
— max 99 hours 59 minutes), trip odometer
(DIST — mile or km) and average speed (AVG —
MPH or km/h).
To reset the TRIP 1 or TRIP 2, push the “TRIP”
button or the “TRIP RESET” button for more
than approximately 1.5 seconds.
SAA0796
Display screen, heater, air conditioner and audio systems
4-3


04.8.3/Z50-D/V5.0


HOW TO USE “FUEL ECON”
BUTTONThe average fuel consumption (MPG or L/100
km) and the distance to empty (DTE — MI or km)
will appear on the screen when the “FUEL
ECON” button is pushed.Average fuel consumption
(Mpg or L/100 km)The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the “TRIP RESET”
or “FUEL ECON” button for more than approxi-
mately 1.5 seconds.The display is updated every 30 seconds. At
about the first 30 seconds and 1/3 miles (500
m) after a reset or connecting battery cable, the
display will show (----).
Distance to empty (DTE — mile or
km)The distance to empty (DTE) mode provides you
with an estimation of the distance that can be
driven before refueling. The DTE is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
When the fuel level is low, the DTE display will
change to (*).
NOTE:

The DTE reading may not change from
the previous reading if the amount of
fuel added is small.

Fuel moving in the tank while driving
may cause the reading to momentarily
change.CLOCKThe digital clock displays time when the ignition
switch is in ACC or ON.
If the battery cable is disconnected, theclock will not indicate the correct time.
Readjust the time.
Adjusting the timeTo adjust the time, push the “H” or “M” button for
more than approximately 1.5 seconds. The time
indicator will flash.
Push theHbutton to adjust the hour.
Push theMbutton to adjust the minute.
To finish the adjusting, push the “PREV” button
or the screen will return to normal after 10
seconds.HOW TO USE “E/M” BUTTONYou can change the unit as follows using the
“E/M” (English/Metric) button.
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
SAA0797
4-4
Display screen, heater, air conditioner and audio systems


04.8.3/Z50-D/V5.0


HOW TO USE “MAINT”
(Maintenance) BUTTONPushing the “MAINT” button will change the
maintenance menu as follows:
ENGINE OIL→TIRE ROTATION→TIRE
PRESSURE (if so equipped)
To reset the driving distance, push the “MAINT”
button or “TRIP RESET” button for more than
approximately 1.5 seconds.
Move the joystick to left or right to set the
distance.
To automatically display the Maintenance menu(“ENGINE OIL” or “TIRE ROTATION”) when the
vehicle is driven the set distance, turn ON the
service alert key.
To turn the service alert key ON, refer to “How to
use the setting button” in this section.
When the vehicle is driven the set distance, the
MAINTENANCE screen will be automatically
displayed and the Maintenance menu (“ENGINE
OIL”, “TIRE ROTATION” and “TIRE PRES-
SURE” (if so equipped)) will blink.
To return to the previous display after the Main-
tenance Notice message is displayed, push the
PREV button.
The “MAINTENANCE NOTICE” screen displays
each time the key is turned ON until one of the
following conditions are met:

“MAINT” button or “TRIP RESET” button is
pushed.

“Service alert key” is set OFF.

the maintenance interval is set again.
Tire pressure information (if so
equipped)Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
In case of low tire pressure, a message (FLAT
SAA0646
SAA0798
Display screen, heater, air conditioner and audio systems
4-5


04.8.3/Z50-D/V5.0


TIRE or CHECK ALL TIRE) is displayed on the
screen:
FLAT TIRE — low tire pressure.
WARNING
When a spare tire is mounted or a wheel
is replaced, the pressure of that tire will
not be indicated and not be monitored
by the low tire pressure warning system.
Contact a NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.HOW TO USE “SETTING” BUTTONPushing the “SETTING” button will change the
settings menu as follows:1DISPLAY ON/OFF
2LANGUAGE
3BEEP SET
4SERVICE ALERT
5PERSONALIZED SETTINGS MENU
Display ON/OFFTo turn off the screen, select the “OFF” key of
the “Display ON/OFF” using the joystick.
The screen will change to “CONFIRM DISPLAY
OFF YES or NO”.
If “YES” key is selected using the joystick, the
screen will turn off after 2 beep sound and
approximately 1 second.
To turn on the screen, push the “SETTING”, trip
control, air conditioner (except rear window de-
froster button) or audio button.LanguageThe language can be changed to “English” or
“Franc¸ ais” using the joystick.Beep setIf the beep set “OFF” key is selected using the
joystick, the beep sound will not operate. (except
some caution beep sounds)Service alertIf the service alert “ON” key is selected, the
information will be displayed when the engine oil
and the tire rotation reaches the preset driving
distance.
Personalized setting menuYou can set the electronic systems as follows
using the joystick.
Slide back DR seat on exit:
The driver’s seat automatically moves back and
returns to the original position for ease of exit
and entry.
Remote unlock door logic:
This key can switch the unlock doors of the 1st
unlocking operation as follows:
Only the driver side door←→All the doors
Horn chirp with remote*:
This key changes the horn chirp mode that
occurs when pushing the LOCK button on the
keyfob.
Lights flash with remote*:
This key changes the hazard indicator flash
mode that occurs when pushing the LOCK or
UNLOCK button on the keyfob.
* Even if you change the horn chirp or the
hazard flash with the keyfob, the change
may not be reflected in the display. Use
the keyfob to return to the previous
mode.
4-6
Display screen, heater, air conditioner and audio systems


04.8.3/Z50-D/V5.0


Auto re-lock time:
The length of the auto door re-lock time can be
set. Select the “Auto Re-Lock time” key, then
move the joystick to adjust the time.
Auto headlights sensitivity:
Automatic light illumination can be set as de-
sired.
Select the “Sensitivity of Automatic Headlights”
key, then move the joystick to the left (lower) or
right (higher).
Auto headlights off delay:
You can control how long it takes the automatic
turn off timer to extinguish the headlights in the
AUTO position.
Select the “Automatic Headlights Off Delay” key,
then move the joystick to the left or right to
adjust the timer.
Speed sensing wiper interval:
This key turns on and off the driving speed
dependent intermittent wiper function.
Confirm reset settings:
To display the “Confirm Reset Settings”, select
“YES”.
When this key is selected and turned on using
the “ENTER” button, all settings made by PER-SONALIZED SETTINGS will return to the initial
conditions.
Return all settings to default:
When this key is selected and turned on using
the joystick, all settings made by personalized
setting menu will return to the initial conditions.
“DAY/NIGHT” BUTTONTo change the display brightness, push the
“DAY/NIGHT” button. Pushing the button again
will change the display to DAY or NIGHT dis-
play. Then, adjust the brightness moving the
joystick right or left.
If no operation is done within 10 seconds, or if
the “PREV” button is pushed, the display will
return to the previous display.
Pushing the “DAY/NIGHT” button for more than
approximately 1.5 seconds will turn the display
off. The screen will change to “CONFIRM DIS-
PLAY OFF YES or NO”.
Display screen, heater, air conditioner and audio systems
4-7


04.8.3/Z50-D/V5.0


1. “TRIP” drive computer button; refer to page
4-9.
2. “SETTING” button; refer to page 4-12.
3. Joystick and “ENTER” push button; refer to
page 4-8.
4. “PREV” previous button; refer to page 4-8.
5. “DAY/NIGHT” brightness control button; re-
fer to page 4-17.
6 - 10. For Navigation system control buttons
A; refer to the separate Navigation
Owner’s Manual.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the “ENTER” button for operation.HOW TO USE “PREV” BUTTONThis has two functions.

Go back to the previous display (cancel).
SAA0648A
CONTROL PANEL BUTTONS —
WITH NAVIGATION SYSTEM4-8
Display screen, heater, air conditioner and audio systems


04.8.3/Z50-D/V5.0


If you touch “PREV” button during setup, the
setup will be canceled and/or the display will
return to the previous screen.

Finish setup.
If you touch this button after the setup is com-
pleted, the setup will start over, and the display
will return to the climate control or Audio mode,
and Navigation screen.SETTING UP THE START-UP
SCREENWhen you turn the ignition switch to ACC, the
SYSTEM START-UP warning is displayed on
the screen. Read the warning and select the
“I AGREE” (English) or “ENTER” (Franc¸ ais) key
then push the “ENTER” button.
If you do not push the “ENTER” button, this
system will not proceed to the next step display.
If you do not touch the button or screen key for
more than 1 minute on the TRIP, SETTING or
START-UP screen, the screen will change to
TRIP screen automatically.
To proceed to the next step, refer to the separate
Navigation system Owner’s Manual.HOW TO USE THE “TRIP” BUTTONWhen the “TRIP” button is pushed, the following
models will display on the screen.Warning message (if there are any)→TRIP 1
(Elapsed Time, Driving Distance, Average
Speed)→TRIP 2→FUEL ECONOMY (Aver-
age Fuel Economy, Distance to Empty)→
MAINTENANCE (Engine Oil, Tire Rotation and
Tire Pressure — if so equipped).
Trip 1, trip 2 and fuel economy itemsTo reset the TRIP 1, TRIP 2 and FUEL
ECONOMY, select the “RESET” key using the
joystick and push the “ENTER” button or push
the “TRIP” button for more than approximately
1.5 seconds.
SAA0654
Display screen, heater, air conditioner and audio systems
4-9


04.8.3/Z50-D/V5.0


Maintenance itemsYou can set the engine oil and the tire rotation
interval.
And the tire pressure will appear on the screen
(if the tire pressure system is equipped).
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and push the joystick to right or left.
To reset the maintenance interval, select the
“RESET” key using the joystick and push the
“ENTER” button.
To display the MAINTENANCE NOTICE, auto-
matically when setting trip distance is reached,
select the “Display Maintenance Notification”
key and push the “ENTER” button.
SAA0695
SAA0655
SAA0656
4-10
Display screen, heater, air conditioner and audio systems


04.8.3/Z50-D/V5.0


MAINTENANCE NOTICEThe “MAINTENANCE NOTICE” screen (“EN-
GINE OIL” or “TIRE ROTATION”) will be auto-
matically displayed as shown when both of the
following conditions are met:

the vehicle is driven the set distance and the
ignition switch is turned OFF.

the ignition key is turned ON the next time the
vehicle will be driven.
To return to the previous display after the
“MAINTENANCE NOTICE” screen is displayed,
push the PREV button.The “MAINTENANCE NOTICE” screen displays
each time the key is turned ON until one of the
following conditions are met:

“RESET” is selected.

“Display Maintenance Notification” is set
OFF.

the maintenance interval is set again.
Tire pressure information (if so
equipped)To view “TIRE PRESSURE” information, push
the “TRIP” button repeatedly until the “MAINTE-
NANCE” screen is displayed. Select “TIRE
PRESSURE” using the joystick and push the
“ENTER” button.
Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
SAA0858B
SAA0657
Display screen, heater, air conditioner and audio systems
4-11


04.8.3/Z50-D/V5.0
