NISSAN MURANO 2005 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2005, Model line: MURANO, Model: NISSAN MURANO 2005 1.GPages: 321, PDF Size: 3.49 MB
Page 111 of 321
HomeLink
button you’ve just programmed.
Push and release the HomeLink
button up
to three times to complete the training.
8. Your HomeLink
button should now be pro-
grammed. (To program the remaining
HomeLink
buttons for additional door or
gate openers, follow steps 2 through 8 only.)
NOTE:
Do not repeat step one unless you want to
“clear” all previously programmed
HomeLinkbuttons).
If you have any questions or are having difficulty
programming your HomeLink
buttons, please
refer to the HomeLinkwebsite at:
www.homelink.com or call 1-800-355-3515.
PROGRAMMING HomeLink
FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmitter
to HomeLink
, continue to push and hold the
HomeLinkbutton (note steps 2 through 4
under “Programming HomeLink
”) while you
push and re-push (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
light flashes rapidly (indicating successful pro-
gramming).NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener compo-
nents.
OPERATING THE HomeLinkUNIVERSAL TRANSCEIVERThe HomeLink
Universal Transceiver (once
programmed) may now be used to activate the
garage door, etc. To operate, simply push the
appropriate programmed HomeLink
Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE
DIAGNOSISIf the HomeLink
does not quickly learn the
hand-held transmitter information:
replace the hand-held transmitter batteries
with new batteries.
position the hand-held transmitter with its
battery area facing away from the HomeLink
surface.
push and hold both the HomeLink
and
hand-held transmitter buttons without inter-
ruption.position the hand-held transmitter 2 to 5
inches (50 to 127 mm) away from the
HomeLink
surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLinkis not programmed within that
time, try holding the transmitter in another
position - keeping the indicator light in view at
all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATIONIndividual buttons cannot be cleared, however to
clear all programming, push and hold the two
outside buttons and release when the indicator
light begins to flash (approximately 20 seconds).
2-44
Instruments and controls
04.8.3/Z50-D/V5.0
Page 112 of 321
REPROGRAMMING A SINGLE
HomeLink
BUTTON
To reprogram a HomeLink
Universal Trans-
ceiver button, complete the following.
1. Push and hold the desired HomeLink
but-
ton.Do notrelease the button until step 4
has been completed.
2. When the indicator light begins to flash
slowly (after 20 seconds), position the hand-
held transmitter 2 to 5 inches (50 to 127 mm)
away from the HomeLink
surface.
3. Push and hold the hand-held transmitter but-
ton.
4. The HomeLink
indicator light will flash, first
slowly and then rapidly. When the indicator
light begins to flash rapidly, release both
buttons.
The HomeLinkUniversal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
buttons.
IF YOUR VEHICLE IS STOLENIf your vehicle is stolen, you should change the
codes of any non-rolling code device that hasbeen programmed into HomeLink
. Consult the
Owner’s Manual of each device or call the
manufacturer or dealer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
This device complies with FCC rules part
15. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference and (2) This
device must accept any interference that
may be received, including interference
that may cause undesired operation.
The transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
Instruments and controls
2-45
04.8.3/Z50-D/V5.0
Page 113 of 321
MEMO2-46
Instruments and controls
04.8.3/Z50-D/V5.0
Page 114 of 321
3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
NISSAN Vehicle Immobilizer System
(NVIS) keys ........................................................................ 3-2
Doors......................................................................................... 3-3
Locking with key ............................................................... 3-3
Locking with inside lock knob...................................... 3-4
Locking with power door lock switch ......................... 3-4
Child safety rear door lock ............................................ 3-5
Remote keyless entry system (models without
Intelligent Key system) .......................................................... 3-5
How to use remote keyless entry system.................. 3-6
Intelligent Key system (if so equipped) ............................ 3-9
Door locks/unlocks precaution ................................. 3-11
Intelligent Key operation .............................................. 3-12
Operating the engine.................................................... 3-13
Intelligent Key operating range ................................. 3-15
Warning signals ............................................................. 3-17
Trouble-shooting guide ................................................ 3-19
Operation with intelligent remote keyless entry
system .............................................................................. 3-20Operation with the mechanical key and valet
key ..................................................................................... 3-23
Hood ....................................................................................... 3-24
Back door .............................................................................. 3-25
Fuel filler lid ........................................................................... 3-26
Open the filler lid ........................................................... 3-26
Fuel filler cap .................................................................. 3-27
Steering wheel ..................................................................... 3-28
Tilt operation ................................................................... 3-28
Pedal position adjustment (if so equipped).................. 3-29
Sun visors.............................................................................. 3-30
Mirrors .................................................................................... 3-30
Inside mirror .................................................................... 3-30
Automatic anti-glare inside mirror
(if so equipped).............................................................. 3-31
Outside mirrors .............................................................. 3-32
Automatic drive positioner (if so equipped) ................. 3-33
Entry/exit function .......................................................... 3-33
Memory storage ............................................................. 3-33
System operation ........................................................... 3-34
04.8.3/Z50-D/V5.0
Page 115 of 321
1. Master keys (with built-in transponder chip)
2. Key number plate
3. Valet key (with built-in transponder chip)
1. Intelligent Key 2 sets (Refer to “Intelligent
Key system” later in this section)
2. Mechanical key (metal key) 2 sets (Refer to
“Intelligent Key system” later in this section)
3. Valet key (with built-in transponder chip)
4. Key number plateA key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number.
A key number is necessary when you have lost
all keys and do not have one to duplicate from. If
you still have a key, a NISSAN dealer can
duplicate it.
NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS) KEYSYou can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
The master key can be used for all the locks.
The valet key cannot be used for glove box and
console box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
Never leave these keys in the vehicle.
NISSAN Vehicle Immobilizer System KEY —
Master and Valet keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
SPA1379E
SPA1919
KEYS3-2
Pre-driving checks and adjustments
04.8.3/Z50-D/V5.0
Page 116 of 321
Immobilizer System keys. A NISSAN dealer can
duplicate it. As many as 5 NVIS keys can be
used with one vehicle. You should bring all NVIS
keys that you have to a NISSAN dealer for
registration. This is because the registration
process will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer
System (NVIS) during registration. Any key that
is not given to your dealer at the time of regis-
tration will no longer be able to start your vehicle.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. This
could affect system function.

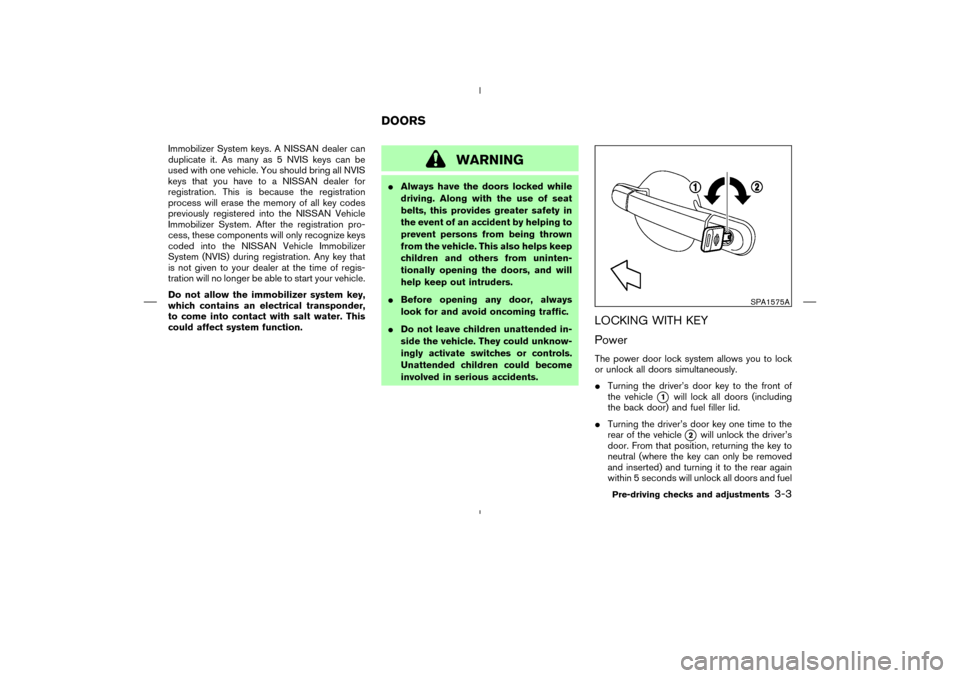

WARNING
Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.
Before opening any door, always
look for and avoid oncoming traffic.
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
LOCKING WITH KEY
PowerThe power door lock system allows you to lock
or unlock all doors simultaneously.
Turning the driver’s door key to the front of
the vehicle
1
will lock all doors (including
the back door) and fuel filler lid.
Turning the driver’s door key one time to the
rear of the vehicle2
will unlock the driver’s
door. From that position, returning the key to
neutral (where the key can only be removed
and inserted) and turning it to the rear again
within 5 seconds will unlock all doors and fuel
SPA1575A
DOORS
Pre-driving checks and adjustments
3-3
04.8.3/Z50-D/V5.0
Page 117 of 321
filler lid. Unlock simulation can be changed.
See the “4. Display screen, heater, air condi-
tioner and audio system” section.
Opening and closing front windowsTurn the driver’s door key to the unlock position
and hold for about 1 second, the front windows
will begin to lower.
To stop opening, turn the key to the neutral
position.
To close the front windows with the door key
cylinder, turn the key to the lock position and
hold for about 1 second.
To stop closing, turn the key to the neutral
position.
In the event of a hand in the way, or other
obstruction, the auto reverse function will acti-
vate.
LOCKING WITH INSIDE LOCK
KNOBTo individually lock the doors, move the inside
lock knobto the LOCK position
1, then close
the door.
To unlock, move the inside lock knobup to the
UNLOCK position
2.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
LOCKING WITH POWER DOOR
LOCK SWITCHOperating the lock-unlock switch will lock or
unlock all doors. (driver and front passenger
sides)
To lock the doors, push the power door lock
switch located on the driver’s
1
or front pas-
senger’s
2armrest to the lock position
Awith
the driver’s or front passenger’s door open, then
close the door.
When locking the door this way, be certain
not to leave the key inside the vehicle.
SPA1814
SPA1576A
3-4
Pre-driving checks and adjustments
04.8.3/Z50-D/V5.0
Page 118 of 321
To unlock, push the power door lock switch to
the unlock position
B.
Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position with
the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
CHILD SAFETY REAR DOOR LOCKChild safety locking helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the lever is in the LOCK position
1,
the rear door can be opened only from the
outside.
To disengage, move the lever to the FREE
position
2.It is possible to lock/unlock all doors (including
the back door) and fuel filler lid and activate the
panic alarm by using the keyfob from outside the
vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as five keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfobwill not function when:
the battery is discharged,
the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.

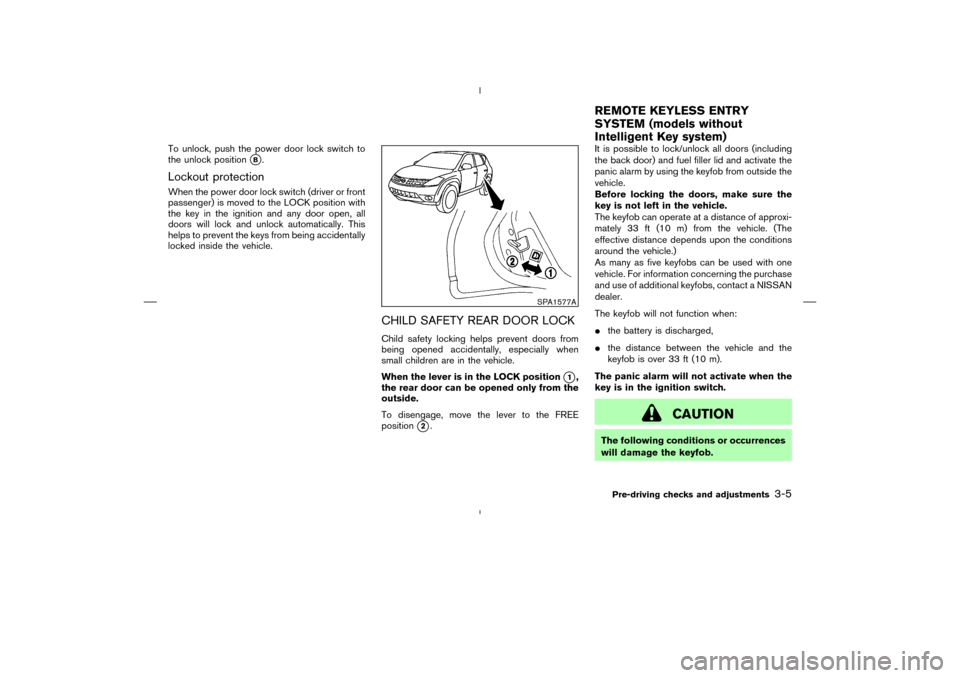

CAUTION
The following conditions or occurrences
will damage the keyfob.
SPA1577A
REMOTE KEYLESS ENTRY
SYSTEM (models without
Intelligent Key system)
Pre-driving checks and adjustments
3-5
04.8.3/Z50-D/V5.0
Page 119 of 321

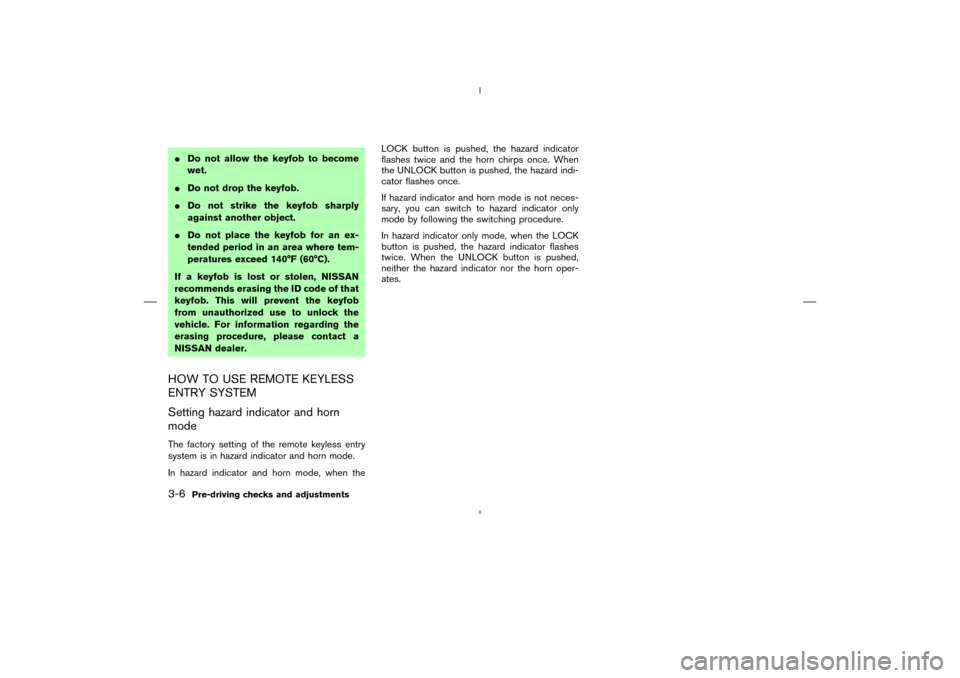

Do not allow the keyfob to become
wet.
Do not drop the keyfob.
Do not strike the keyfob sharply
against another object.
Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is in hazard indicator and horn mode.
In hazard indicator and horn mode, when theLOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.3-6
Pre-driving checks and adjustments
04.8.3/Z50-D/V5.0
Page 120 of 321
(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
Locking doors and fuel filler lid1. Remove the ignition key.*1
2. Close all the doors and fuel filler lid.*2
3. Push the LOCK button
A
on the keyfob.
4. All the doors and fuel filler lid will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition switch is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
SPA1260
SPA1397C
Pre-driving checks and adjustments
3-7
04.8.3/Z50-D/V5.0
