NISSAN MURANO 2007 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: MURANO, Model: NISSAN MURANO 2007 1.GPages: 345, PDF Size: 3.57 MB
Page 161 of 345

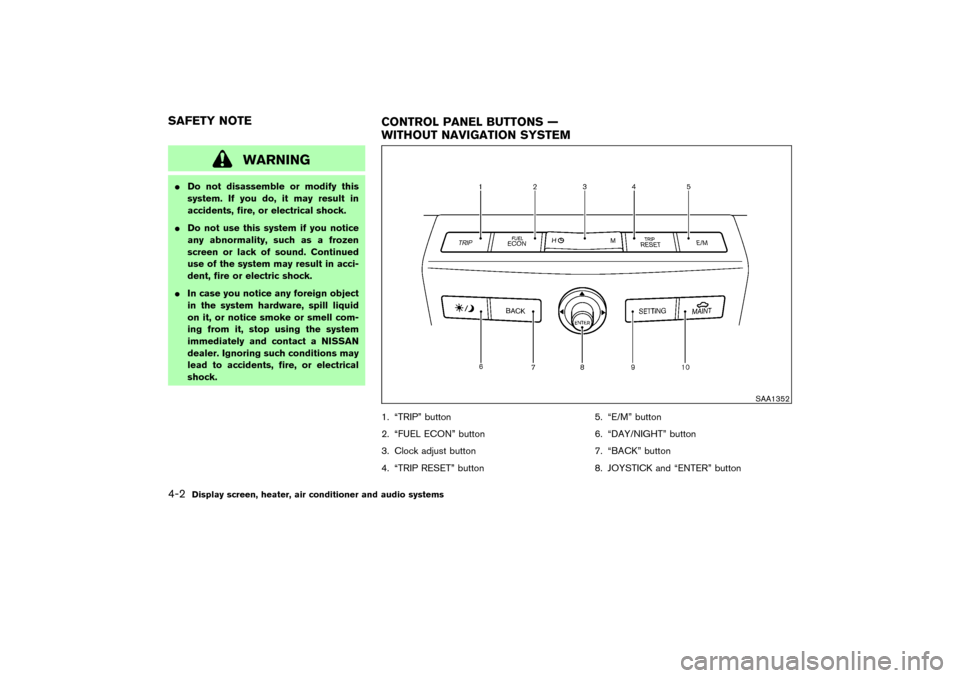

WARNING
Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electrical shock.
Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.
In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electrical
shock.
1. “TRIP” button
2. “FUEL ECON” button
3. Clock adjust button
4. “TRIP RESET” button5. “E/M” button
6. “DAY/NIGHT” button
7. “BACK” button
8. JOYSTICK and “ENTER” button
SAA1352
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITHOUT NAVIGATION SYSTEM4-2
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 162 of 345
9. “SETTING” button
10. “MAINT” maintenance button
Make sure the engine is running before using
this system.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick.
Push the “ENTER” button only when the use of
it is instructed on the display.HOW TO USE “BACK” BUTTONFinish setup:
If you push the “BACK” button after the setup is
completed, the display will return to the previous
screen.
HOW TO USE “TRIP” BUTTONWhen the “TRIP” button is pushed, the following
modes will display on the screen.
TRIP 1 (TIME, DIST, AVG)→TRIP 2 (TIME,
DIST, AVG)→OFF
Elapsed Time, Driving Distance and Average
Speed will be displayed.
To reset, select the “Reset” key using the joy-
stick and push the “ENTER” button, or push the
“TRIP RESET” or “TRIP” button for more than
approximately 1.5 seconds.
HOW TO USE “FUEL ECON”
BUTTONAverage Fuel Economy and Distance to Empty
will be displayed for reference when the “FUEL
ECON” button is pushed.
To reset, select the “Reset” key using the joy-
stick and push the “ENTER” button, or push the
“TRIP RESET” or “TRIP” button for more than
approximately 1.5 seconds.
SAA1317
SAA1318
Display screen, heater, air conditioner and audio systems
4-3
06.7.5/Z50-D/V5.0
Page 163 of 345
CLOCKThe digital clock displays time when the ignition
switch is in ACC or ON.
If the battery cable is disconnected, the
clock will not indicate the correct time.
Readjust the time.Adjusting the timeTo adjust the time, push the “H” or “M” button for
more than approximately 1.5 seconds. The time
indicator will flash.
Push theHbutton to adjust the hour.
Push theMbutton to adjust the minute.To finish the adjusting, push the “BACK” button
or the screen will return to normal after 10
seconds.
The clock can be adjusted on the setting display.
See the “HOW TO USE “SETTING” BUTTON”
later in this section.
HOW TO USE “E/M” BUTTONYou can change the unit as follows using the
“E/M” (English/Metric) button.
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
HOW TO USE “MAINT”
(Maintenance) BUTTONMaintenance and tire pressure information (if so
equipped) will be displayed when the “MAINT”
button is pushed.
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.
To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and move the joystick to the right or left.
To reset the maintenance interval, select the
SAA1353
SAA1319
4-4
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 164 of 345
“Reset” key using the joystick and push the
“ENTER” button.
To display the MAINTENANCE NOTICE, auto-
matically when setting trip distance is reached,
select the “Display Maintenance Notification”
key and push the “ENTER” button.
MAINTENANCE NOTICEThe “MAINTENANCE NOTICE” screen (“EN-
GINE OIL” or “TIRE ROTATION”) will be auto-
matically displayed as shown when both of the
following conditions are met:
the vehicle is driven the set distance and the
ignition switch is turned OFF.
the ignition key is turned ON the next time the
vehicle will be driven.
To return to the previous display after the
“MAINTENANCE NOTICE” screen is displayed,
push the “BACK” button.The “MAINTENANCE NOTICE” screen displays
each time the key is turned ON until one of the
following conditions are met:
“RESET” is selected.
“Display Maintenance Notification” is set
OFF.
the maintenance interval is set again.
SAA1320
SAA1354
Display screen, heater, air conditioner and audio systems
4-5
06.7.5/Z50-D/V5.0
Page 165 of 345
Tire pressure information (if so
equipped)Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
In case of low tire pressure, a message (FLATTIRE or CHECK ALL TIRE) is displayed on the
screen:
FLAT TIRE — Check All Tires.

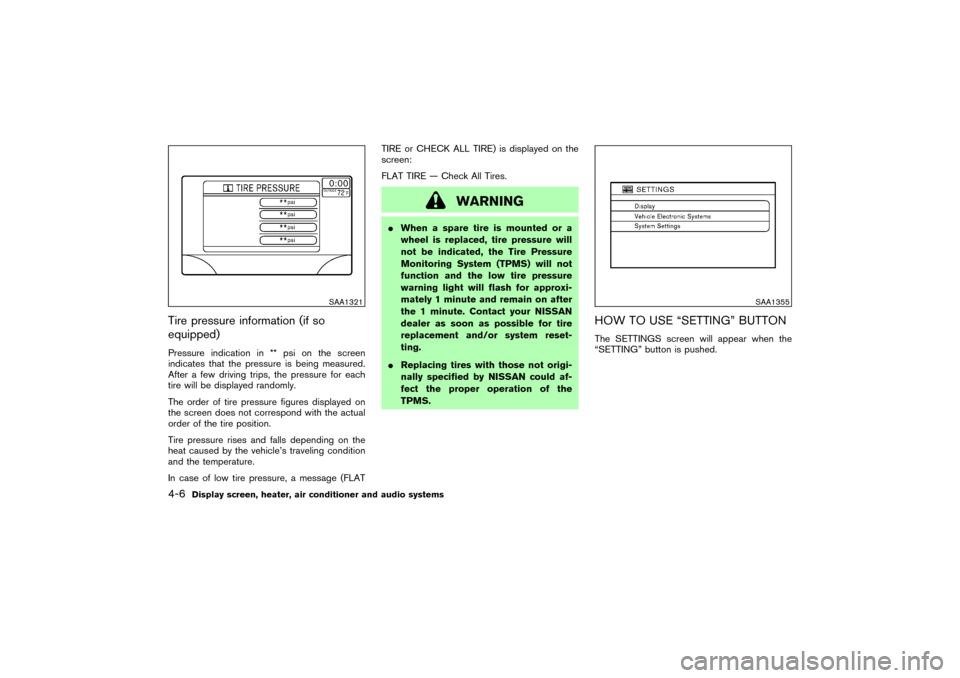

WARNING
When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the Tire Pressure
Monitoring System (TPMS) will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.
Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.
HOW TO USE “SETTING” BUTTONThe SETTINGS screen will appear when the
“SETTING” button is pushed.
SAA1321
SAA1355
4-6
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 166 of 345
“Display” settingsThe DISPLAY SETTINGS screen will appear
when selecting the “Display” key and pushing
the “ENTER” button.
Brightness/Contrast:
To adjust the brightness and contrast of the
screen, select the “Brightness/Contrast” key
and push the “ENTER” button. Then you can
adjust the brightness to Darker or Brighter, the
contrast to Lower or Higher using the joystick.Display Off:
To turn off the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key. The indicator of the “Display Off” will
turn on. When any mode button is pushed with
the screen off, the screen turns on for further
operation. The screen will turn off automatically 5
seconds after the operation is finished.
To turn on the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key, then set the screen to on by pushing
the “ENTER” button.
Setting Audio or HVAC display:
Choose the “Audio” or “HVAC” (Heater and air
conditioner) key to be displayed at the bottom,
by using the joystick. The audio or HVAC
(heater, air conditioner) setting condition will
normally appear on the screen.
To return to the setting screen, push the
“SETTING” button or “BACK” button.
Vehicle electronic systemsThe VEHICLE ELECTRONIC SYSTEMS screen
will appear when selecting the “Vehicle Elec-
tronic Systems” key with the joystick and push-
ing the “ENTER” button.
You can set the various electronic systems
operating conditions.
To set an operating condition, select the appli-
cable item using the joystick, and push the
“ENTER” button.
The indicator light alternately turns on and off
each time the “ENTER” button is pushed.
Indicator light is illuminated. — ON
SAA1550
SAA1357
Display screen, heater, air conditioner and audio systems
4-7
06.7.5/Z50-D/V5.0
Page 167 of 345
Indicator light is not illuminated. — OFF
Adjust driver seat when exiting vehicle:
The driver’s seat automatically moves back and
returns to the original position for ease of exit
and entry.
Selective door unlock:
This key can switch the unlock doors of the 1st
unlocking operation as follows:
ON (Only the driver side door)←→OFF (All the
doors)Keyless Remote Response — Horn*:
This key changes the horn chirp mode that
occurs when pushing the LOCK button on the
keyfobor the Intelligent Key.
Keyless Remote Response — Lights*:
This key changes the hazard indicator flash
mode that occurs when pushing the LOCK or
UNLOCK button on the keyfob or the Intelligent
Key.
* Even if you change the horn chirp or the
hazard flash with the keyfob or the Intel-
ligent Key, the change may not be re-
flected in the display. Use the keyfob orthe Intelligent Key to return to the previ-
ous mode.
Auto Re-Lock Time:
The length of the auto door re-lock time can be
set. Select the “Auto Re-Lock Time” key, then
move the joystick and push the ENTER button to
adjust the time.
Sensitivity of Automatic Headlights:
Automatic light illumination can be set as de-
sired.
Select the “Sensitivity of Automatic Headlights”
key, then move the joystick to the left (lower) or
right (higher).
Automatic Headlights Off Delay:
You can control how long it takes the automatic
turn off timer to extinguish the headlights in the
AUTO position.
Select the “Automatic Headlights Off Delay” key,
then move the joystick to the left or right to
adjust the timer.
Speed Dependent Wiper:
When this item is turned to on, the wiper interval
is adjusted automatically according to the ve-
hicle speed.
SAA1548
SAA1549
4-8
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 168 of 345
Intelligent Key Lock Response — Sound
(if so equipped):
The sound pattern of the Intelligent request
switch operation can be set as desired. Select
the “Intelligent Key lock response — Sound” key,
then push the ENTER button to change the
sound pattern.
Intelligent Key Unlock Response — Beep
Sound (if so equipped):
The beep sounds when unlocking door with the
Intelligent request switch can be turned on or off.
Return All Settings to Default:
When this key is selected and turned on using
the “ENTER” button, all settings made by
VEHICLE ELECTRONICS will return to the initial
conditions.
System settingsLanguage/Unit:
The LANGUAGE/UNIT screen will appear when
selecting the “Language/Unit” key and pushing
the “ENTER” button.
Language: English or French
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
You can select the language and unit using the
joystick and “ENTER” button.Clock:
Adjusting the time
Select the “Hours” or “Minutes” key and move
the joystick to the right or left to adjust the time.
The time will change step by step.
After completion of the setting, push the “BACK”
button.
SAA1327
SAA1353
Display screen, heater, air conditioner and audio systems
4-9
06.7.5/Z50-D/V5.0
Page 169 of 345
“DAY/NIGHT” BUTTONPushing the “DAY/NIGHT” button will change
the display to the DAY or NIGHT display. Then,
adjust the brightness moving the joystick right or
left.
If no operation is done within 10 seconds, or if
the “BACK” button is pushed, the display will
return to the previous display.
Pushing the “DAY/NIGHT” button for more than
approximately 2 seconds will turn the display off
and on.4-10
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 170 of 345
1. “DAY/NIGHT” button
2. “BACK” button
3. Joystick and “ENTER” button
4. “SETTING” button
5. “TRIP” buttonA: For Navigation system control buttons; refer
to the separate Navigation System Owner’s
Manual.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the “ENTER” button for operation.HOW TO USE “BACK” BUTTONThis has two functions.
Go back to the previous display (cancel).
If you push the “BACK” button during setup, the
setup will be canceled and/or the display will
return to the previous screen.
SAA1316
CONTROL PANEL BUTTONS —
WITH NAVIGATION SYSTEM
Display screen, heater, air conditioner and audio systems
4-11
06.7.5/Z50-D/V5.0
