NISSAN MURANO 2007 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: MURANO, Model: NISSAN MURANO 2007 1.GPages: 345, PDF Size: 3.57 MB
Page 201 of 345
Compact disc (CD) changer
operationTurn the ignition switch to the ACC or ON
position and insert the compact disc into the slot
with the label side facing up. The compact disc
will be guided automatically into the slot and
start playing. To insert the disc, first push the
LOAD button.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
If the system has been turned off while the
compact disc was playing, pushing the
POWER/VOL control knobwill start the com-
pact disc.
3.1 in (8 cm) diameter discs cannot be used
(even with an adapter).
button:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading slot by pushing the CD insert select
button (1 to 6), then insert the CD.
To insert 6 CDs to the CD changer, push the
LOAD button for more than 1.5 seconds.The inserted slot numbers will illuminate on the
display.
PLAY:
When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with the com-
pact disc loaded with the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.FF (Fast Forward), REW
(Rewind), APS (Automatic
Program Search) FF, APS REW:
When the
(fast forward) or
(rewind)
button is pushed and hold while the compact
disc is being played, the compact disc will play
while fast forwarding or rewinding. When the
button is released, the compact disc will return
to normal play speed.
When the
button is pushed for less than
0.5 second while the compact disc is being
played, the program next to the present one will
start to play from its beginning. Push several
times to skip through programs. The compact
disc will advance the number of times the button
is pushed. (When the last program on the
compact disc is skipped through, the first pro-
gram will be played.) When the
button ispushed for less than 1.5 seconds, the program
being played returns to its beginning. Push
several times to skip back through programs.
The compact disc will go back the number of
times the button is pushed.
You can also skip the program by turning the
TRACK knob.
SCAN:
When the SCAN button is pushed while the CD
is playing, each track will play for about 10
seconds.
To stop scanning, push the SCAN button again.FOLDER FF, REW:
When the FOLDER button is pushed while the
MP3/WMA CD is playing, the folder will forward
(rewind) to the next (previous) folder.
CD PLAY button:
To change CD, push the CD play select button
(1 to 6). You can select if the CD is inserted.RPT (Repeat)/RDM (Random):
When the RPT/RDM button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
4-42
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 202 of 345
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the selected discs by the EJECT button,
push it for less than 1.5 seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
CD CARE AND CLEANINGHandle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
Always place the discs in the storage case
when they are not being used.
To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.1. Volume control switch
2. MODE select switch
3. POWER on/off switch
4. Memory change⋅Seek and APS switch
STEERING SWITCH FOR AUDIO
CONTROL (if so equipped)The audio system can be operated using the
controls on the steering wheel.POWER on/off switchWith the ignition switch turned to the ACC or
ON position, push the POWER on/off switch to
turn the audio system on or off.
SAA0451
SIC3172
Display screen, heater, air conditioner and audio systems
4-43
06.7.5/Z50-D/V5.0
Page 203 of 345
MODE select switchPush the mode select switch to change the
mode in the sequence of FM, AM, SAT, CD and
Tape.Volume control switchPush up or down the volume control switch to
increase or decrease the volume.
Tuning
Memory change (radio):
Push the tuning switch
or
for less
than 1.5 seconds to change the radio frequency.
Seek tuning (radio):
Push the tuning switch
or
for more
than 1.5 seconds to seek the next or previous
radio station.
APS (Automatic Program Search) FF,
APS REW (tape and CD):
Push the tuning switch
or
for less
than 1.5 seconds to return to the beginning of
the present program or skip to the next program.
Push several times to skip back or skip through
programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-tween programs, the system may not stop in the
desired or expected location.
FF REW (tape or CD):
Push the tuning switch
or
for more
than 1.5 seconds to rewind or fast forward the
tape or to change the playing disc up or down.
To stop the FF or REW function, push the
or
button for less than 1.5 seconds
again.
ANTENNA
Placing the antennaYou can adjust the antenna positions manually.
SAA1236
4-44
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 204 of 345
Removing the antennaYou can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.

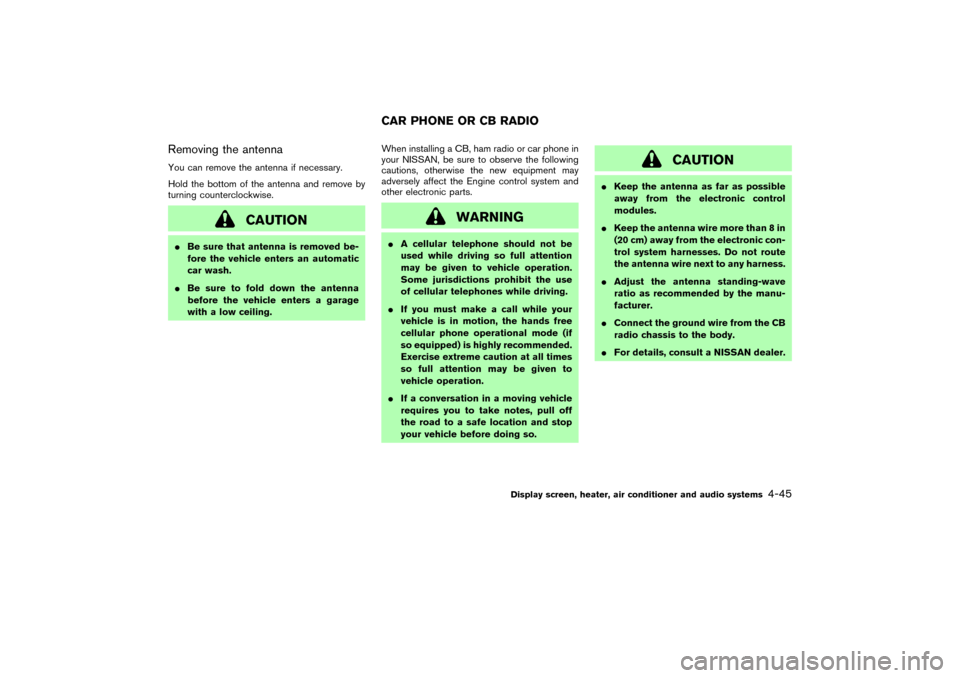

CAUTION
Be sure that antenna is removed be-
fore the vehicle enters an automatic
car wash.
Be sure to fold down the antenna
before the vehicle enters a garage
with a low ceiling.When installing a CB, ham radio or car phone in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING
A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.
If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.
If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
Keep the antenna as far as possible
away from the electronic control
modules.
Keep the antenna wire more than 8 in
(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.
Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.
Connect the ground wire from the CB
radio chassis to the body.
For details, consult a NISSAN dealer.
CAR PHONE OR CB RADIO
Display screen, heater, air conditioner and audio systems
4-45
06.7.5/Z50-D/V5.0
Page 205 of 345
MEMO4-46
Display screen, heater, air conditioner and audio systems
06.7.5/Z50-D/V5.0
Page 206 of 345
5 Starting and drivingPrecautions when starting and driving ............................. 5-2
Exhaust gas (Carbon monoxide) .................................. 5-2
Three-way catalyst ........................................................... 5-3
Tire pressure monitoring system (TPMS) ................. 5-3
Avoiding collision and rollover ...................................... 5-5
On-pavement and offroad driving precautions
(AWD) ................................................................................. 5-6
Drinking alcohol/drugs and driving .............................. 5-6
Driving safety precautions.............................................. 5-6
Ignition switch (Except for Intelligent Key equipped
model) ....................................................................................... 5-9
Key positions .................................................................. 5-10
NISSAN Vehicle Immobilizer System (NVIS) ......... 5-10
Ignition switch (Intelligent Key System equipped
model)..................................................................................... 5-10
Ignition switch positions .............................................. 5-11
NISSAN Vehicle Immobilizer System (NVIS) ......... 5-12
Before starting the engine ................................................ 5-12
Starting the engine ............................................................. 5-13
Driving the vehicle ............................................................... 5-13
CVT (Continuously Variable Transmission)............. 5-13
M-CVT (CVT with Manual shift mode)..................... 5-17
Parking brake........................................................................ 5-21
Cruise control ....................................................................... 5-22Precautions on cruise control .................................... 5-22
Cruise control operations ............................................ 5-22
Break-in schedule .............................................................. 5-24
Increasing fuel economy .................................................... 5-24
Using all-wheel drive (AWD) (if so equipped) ............ 5-25
AWD lock switch operations...................................... 5-25
AWD warning light ........................................................ 5-27
Parking/parking on hills...................................................... 5-29
Power steering ..................................................................... 5-30
Brake system ........................................................................ 5-30
Braking precautions ...................................................... 5-30
Anti-lock Braking System (ABS) ............................... 5-31
Vehicle Dynamic Control (VDC) system
(if so equipped) .................................................................. 5-32
Cold weather driving .......................................................... 5-34
Freeing a frozen door lock .......................................... 5-34
Antifreeze ......................................................................... 5-34
Battery .............................................................................. 5-34
Draining of coolant water ............................................ 5-34
Tire equipment................................................................ 5-34
Special winter equipment ............................................ 5-35
Driving on snow or ice ................................................. 5-35
Engine block heater (if so equipped) ....................... 5-35
06.7.5/Z50-D/V5.0
Page 207 of 345

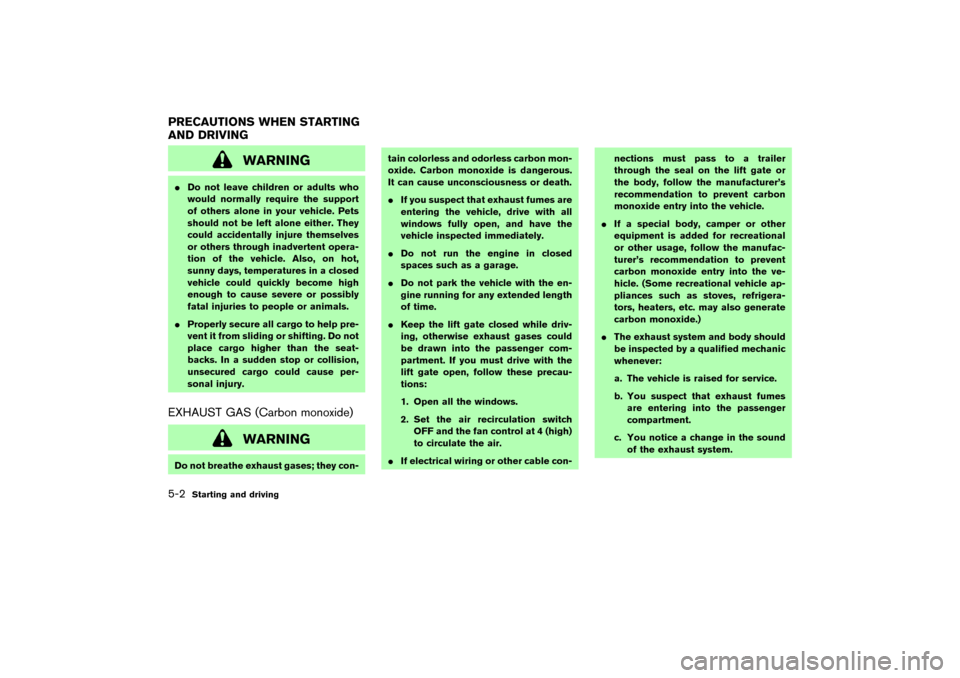

WARNING
Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.
Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.
If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.
Do not run the engine in closed
spaces such as a garage.
Do not park the vehicle with the en-
gine running for any extended length
of time.
Keep the lift gate closed while driv-
ing, otherwise exhaust gases could
be drawn into the passenger com-
partment. If you must drive with the
lift gate open, follow these precau-
tions:
1. Open all the windows.
2. Set the air recirculation switch
OFF and the fan control at 4 (high)
to circulate the air.
If electrical wiring or other cable con-nections must pass to a trailer
through the seal on the lift gate or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.
If a special body, camper or other
equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the ve-
hicle. (Some recreational vehicle ap-
pliances such as stoves, refrigera-
tors, heaters, etc. may also generate
carbon monoxide.)
The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound
of the exhaust system.PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving
06.7.5/Z50-D/V5.0
Page 208 of 345

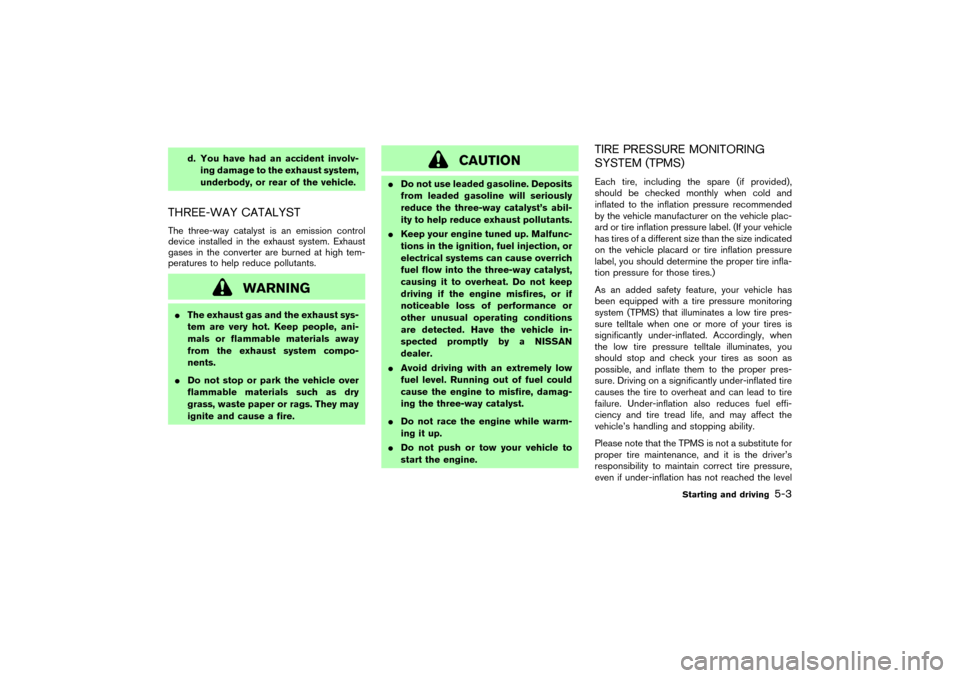

d. You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.
THREE-WAY CATALYSTThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING
The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system compo-
nents.
Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION
Do not use leaded gasoline. Deposits
from leaded gasoline will seriously
reduce the three-way catalyst’s abil-
ity to help reduce exhaust pollutants.
Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.
Do not race the engine while warm-
ing it up.
Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure
label, you should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
Starting and driving
5-3
06.7.5/Z50-D/V5.0
Page 209 of 345
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indica-
tor is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.Additional informationThe TPMS does not monitor the tire pressure
of the spare tire.
The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a suddendrop in tire pressure (for example a flat tire
while driving).
The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and
the outside temperature. Low outside tem-
perature can lower the temperature of the air
inside the tire which can cause a lower tire
inflation pressure. This may cause the low tire
pressure warning light to illuminate. If the
warning light illuminates in low ambient tem-
perature, check the tire pressure for all four
tires.
You can also check the pressure of all tires
(except the spare tire) on the display screen.
The order of the tire pressure figures dis-
played on the screen does not correspond
with the actual order of the tire position. See
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tem” section.
For additional information, see “Low tire pres-sure warning light” in the “2. Instruments and
controls” section and “Tire pressure monitoring
system (TPMS)” in the “6. In case of emergency”
section.

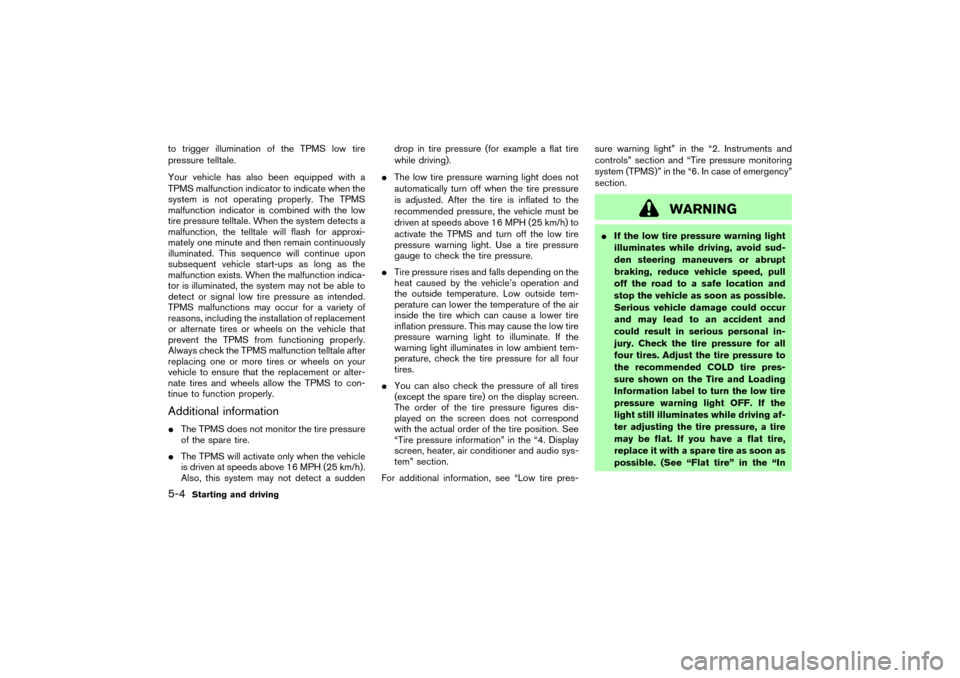

WARNING
If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See “Flat tire” in the “In
5-4
Starting and driving
06.7.5/Z50-D/V5.0
Page 210 of 345

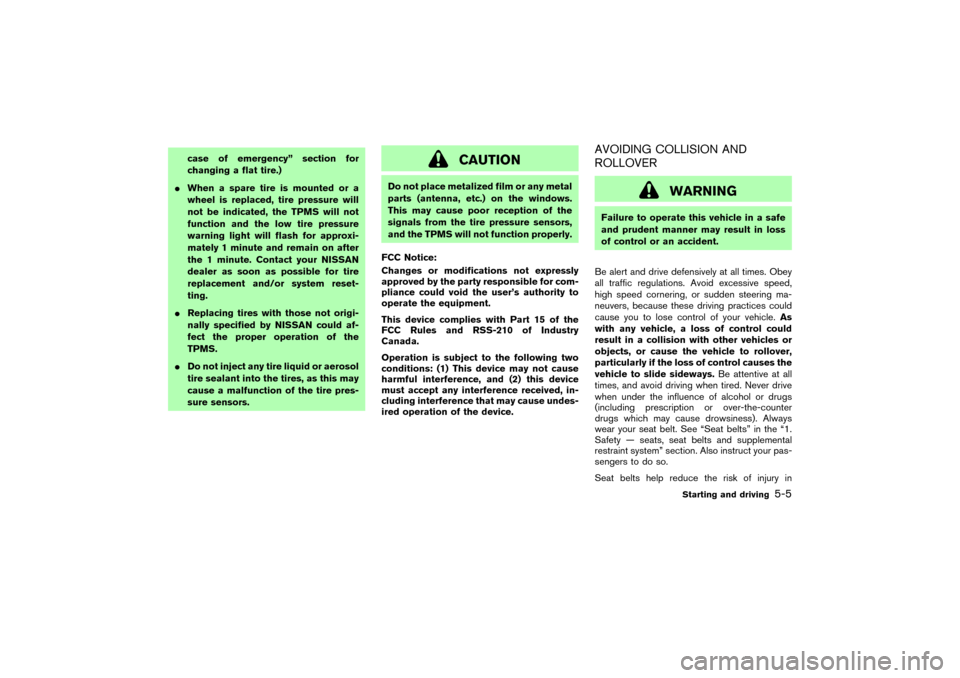

case of emergency” section for
changing a flat tire.)
When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.
Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.
Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
FCC Notice:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.As
with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt. See “Seat belts” in the “1.
Safety — seats, seat belts and supplemental
restraint system” section. Also instruct your pas-
sengers to do so.
Seat belts help reduce the risk of injury in
Starting and driving
5-5
06.7.5/Z50-D/V5.0
