NISSAN MURANO 2007 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: MURANO, Model: NISSAN MURANO 2007 1.GPages: 345, PDF Size: 3.57 MB
Page 121 of 345
sal Transceiver with your new transmitter
information.
FCC Notice:
This device complies with FCC rules part
15. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference and (2) This
device must accept any interference that
may be received, including interference
that may cause undesired operation.
The transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
DOC: ISTC 1763K1313
FCC I.D.: CB2V676902-48
Instruments and controls
06.7.5/Z50-D/V5.0
Page 122 of 345
MEMO
Instruments and controls
2-49
06.7.5/Z50-D/V5.0
Page 123 of 345
MEMO2-50
Instruments and controls
06.7.5/Z50-D/V5.0
Page 124 of 345
3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
NISSAN Vehicle Immobilizer System (NVIS)
keys ...................................................................................... 3-2
Doors......................................................................................... 3-3
Locking with key ............................................................... 3-3
Locking with inside lock knob...................................... 3-4
Locking with power door lock switch ......................... 3-4
Child safety rear door lock ............................................ 3-5
Remote keyless entry system (models without
Intelligent Key system) .......................................................... 3-5
How to use remote keyless entry system.................. 3-6
Intelligent Key system (if so equipped) ............................ 3-9
Door locks/unlocks precaution ................................. 3-11
Intelligent Key operation .............................................. 3-12
Operating the engine.................................................... 3-13
Intelligent Key operating range ................................. 3-15
Warning signals ............................................................. 3-17
Trouble-shooting guide ................................................ 3-19
Operation with intelligent remote keyless entry
system .............................................................................. 3-20Operation with the mechanical key and valet
key ..................................................................................... 3-23
Hood ....................................................................................... 3-24
Lift gate .................................................................................. 3-24
Fuel-filler door ...................................................................... 3-26
Open the fuel-filler door .............................................. 3-26
Fuel-filler cap .................................................................. 3-27
Steering wheel ..................................................................... 3-28
Tilt operation ................................................................... 3-28
Pedal position adjustment (if so equipped).................. 3-29
Sun visors.............................................................................. 3-30
Mirrors .................................................................................... 3-30
Inside mirror .................................................................... 3-30
Automatic anti-glare inside mirror (if so
equipped)......................................................................... 3-31
Outside mirrors .............................................................. 3-32
Automatic drive positioner (if so equipped) ................. 3-33
Entry/exit function .......................................................... 3-33
Memory storage ............................................................. 3-33
System operation ........................................................... 3-34
06.7.5/Z50-D/V5.0
Page 125 of 345
1. Master keys (with built-in transponder chip)
2. Key number plate
3. Valet key (with built-in transponder chip)
1. Intelligent Key 2 sets*
2. Mechanical key (metal key) 2 sets*
3. Valet key (with built-in transponder chip)
4. Key number plate
*: Refer to “Intelligent Key system” later in this
section.A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number.
A key number is necessary when you have lost
all keys and do not have one to duplicate from. If
you still have a key, a NISSAN dealer can
duplicate it.
NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS) KEYSYou can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
The master key can be used for all the locks.
The valet key cannot be used for glove box and
console box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
Never leave these keys in the vehicle.
NISSAN Vehicle Immobilizer System KEY —
Master and Valet keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
SPA1379E
SPA1919
KEYS3-2
Pre-driving checks and adjustments
06.7.5/Z50-D/V5.0
Page 126 of 345
Immobilizer System keys. A NISSAN dealer can
duplicate it. As many as 5 NVIS keys can be
used with one vehicle. You should bring all NVIS
keys that you have to a NISSAN dealer for
registration. This is because the registration
process will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer
System (NVIS) during registration. Any key that
is not given to your dealer at the time of regis-
tration will no longer be able to start your vehicle.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. This
could affect system function.

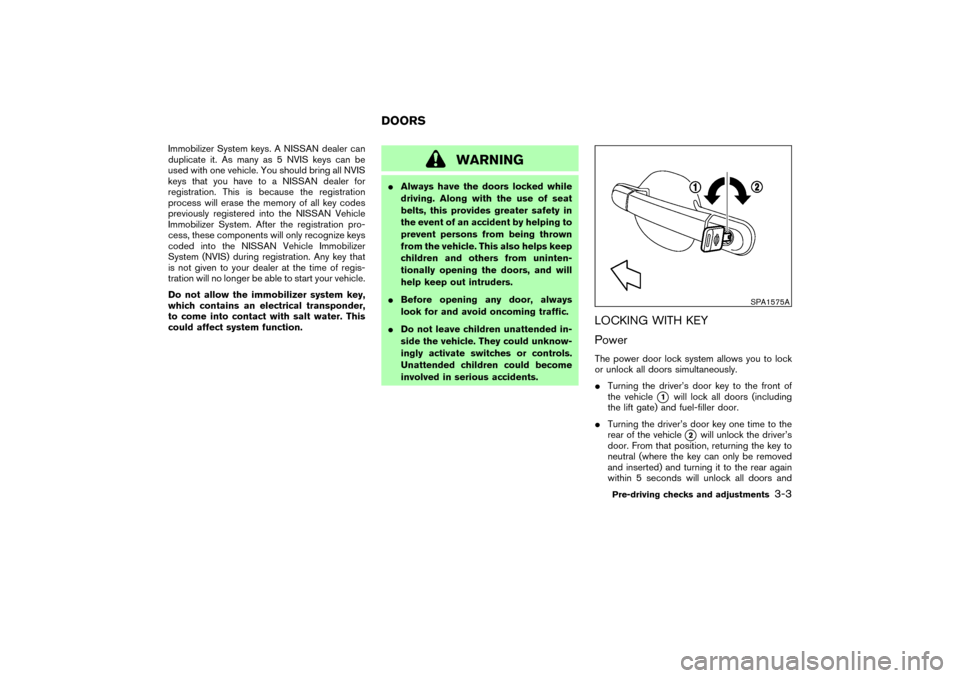

WARNING
Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.
Before opening any door, always
look for and avoid oncoming traffic.
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
LOCKING WITH KEY
PowerThe power door lock system allows you to lock
or unlock all doors simultaneously.
Turning the driver’s door key to the front of
the vehicle
1
will lock all doors (including
the lift gate) and fuel-filler door.
Turning the driver’s door key one time to the
rear of the vehicle2
will unlock the driver’s
door. From that position, returning the key to
neutral (where the key can only be removed
and inserted) and turning it to the rear again
within 5 seconds will unlock all doors and
SPA1575A
DOORS
Pre-driving checks and adjustments
3-3
06.7.5/Z50-D/V5.0
Page 127 of 345
fuel-filler door. Unlock simulation can be
changed. See the “4. Display screen, heater,
air conditioner and audio system” section.
Opening and closing front windowsTurn the driver’s door key to the unlock position
and hold for about 1 second, the front windows
will begin to lower.
To stop opening, turn the key to the neutral
position.
To close the front windows with the door key
cylinder, turn the key to the lock position and
hold for about 1 second.
To stop closing, turn the key to the neutral
position.
LOCKING WITH INSIDE LOCK
KNOBTo individually lock the doors, move the inside
lock knobto the LOCK position
1, then close
the door.
To unlock, move the inside lock knobup to the
UNLOCK position
2.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
LOCKING WITH POWER DOOR
LOCK SWITCHOperating the lock-unlock switch will lock or
unlock all doors. (driver and front passenger
sides)
To lock the doors, push the power door lock
switch located on the driver’s or front passen-
ger’s armrest to the lock position
1
with the
driver’s or front passenger’s door open, then
close the door.
When locking the door this way, be certain
not to leave the key inside the vehicle.
SPA1814
SPA2320
3-4
Pre-driving checks and adjustments
06.7.5/Z50-D/V5.0
Page 128 of 345
To unlock, push the power door lock switch to
the unlock position
2.
Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position with
the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
CHILD SAFETY REAR DOOR LOCKChild safety locking helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the lever is in the LOCK position
1,
the rear door can be opened only from the
outside.
To disengage, move the lever to the FREE
position
2.It is possible to lock/unlock all doors (including
the lift gate) and fuel-filler door and activate the
panic alarm by using the keyfob from outside the
vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as five keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfobwill not function when:
the battery is discharged,
the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.

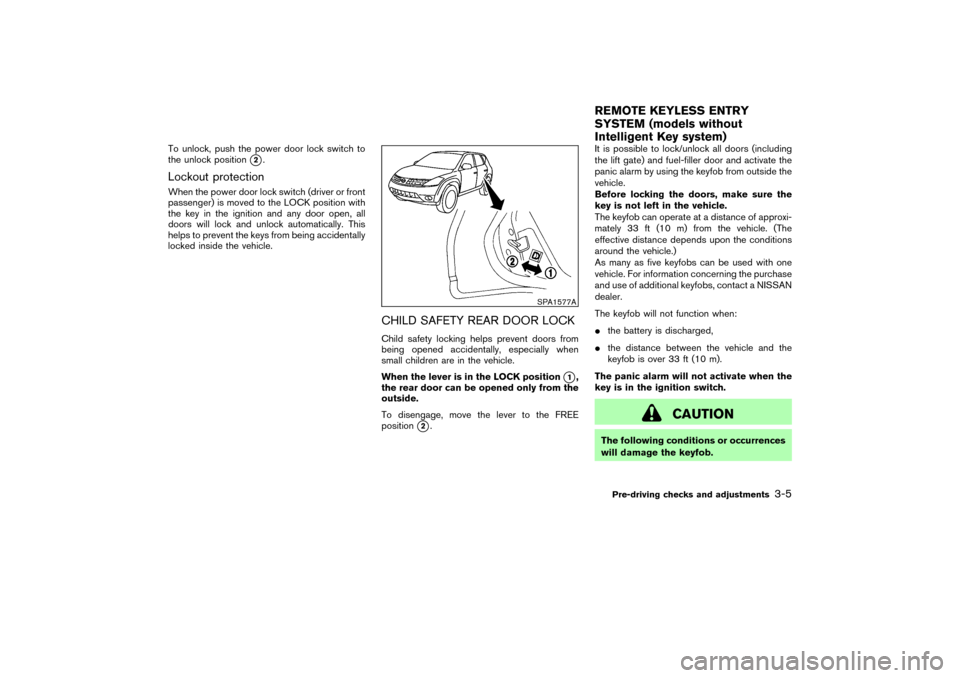

CAUTION
The following conditions or occurrences
will damage the keyfob.
SPA1577A
REMOTE KEYLESS ENTRY
SYSTEM (models without
Intelligent Key system)
Pre-driving checks and adjustments
3-5
06.7.5/Z50-D/V5.0
Page 129 of 345
Do not allow the keyfob to become
wet.
Do not drop the keyfob.
Do not strike the keyfob sharply
against another object.
Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is in hazard indicator and horn mode.
In hazard indicator and horn mode, when theLOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.3-6
Pre-driving checks and adjustments
06.7.5/Z50-D/V5.0
Page 130 of 345
(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
Locking doors and fuel-filler door1. Remove the ignition key.*1
2. Close all the doors and fuel-filler door.*2
3. Push the LOCK button
A
on the keyfob.
4. All the doors and fuel-filler door will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition switch is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
SPA1260
SPA1397C
Pre-driving checks and adjustments
3-7
06.7.5/Z50-D/V5.0
