Page 391 of 507
Black plate (389,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

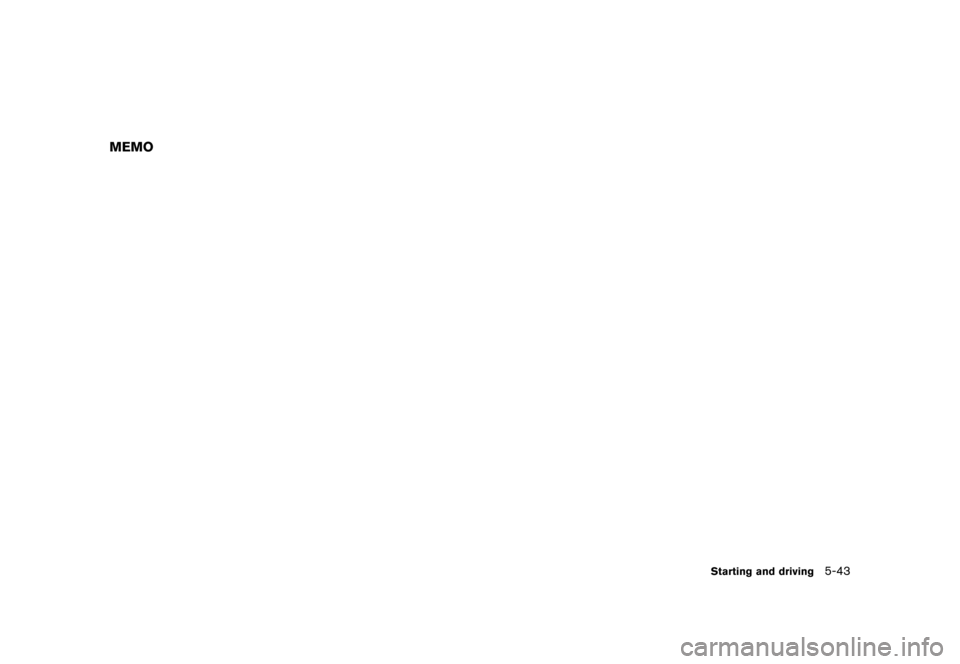

MEMO
Starting and driving5-43
Condition:
Page 392 of 507
Black plate (390,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

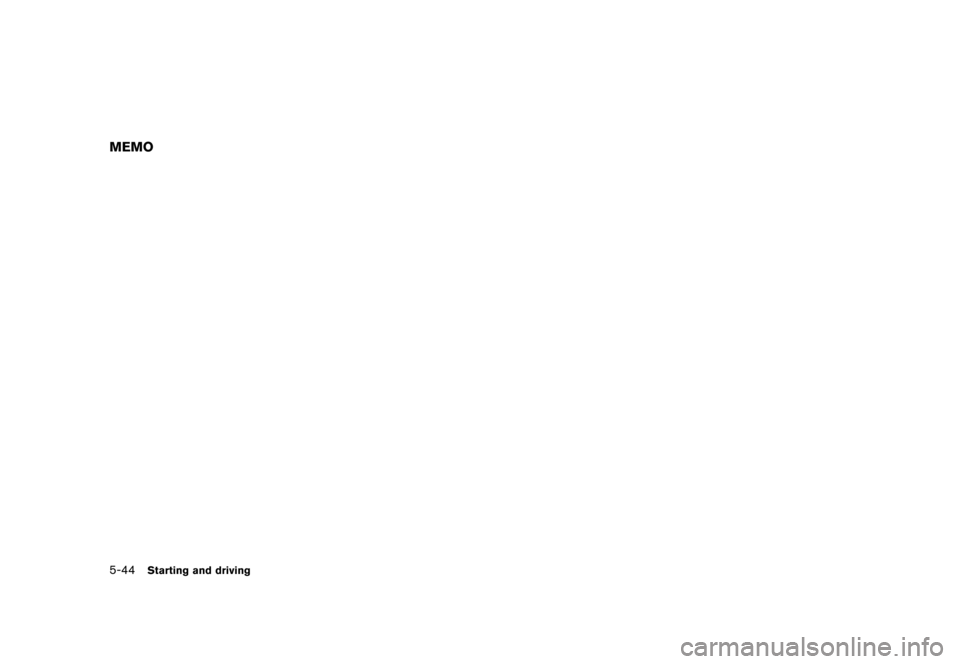

5-44Starting and driving
MEMO
Condition:
Page 393 of 507
Black plate (391,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off ...
..................................................... 6-2
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire (Hardtop models) ...
.......................... 6-4
Repairing flat tire (CrossCabriolet models) ...
............... 6-10 Jump starting
...
........................................................................\
.. 6-15
Push starting ...
........................................................................\
... 6-17
If your vehicle overheats ...
...................................................... 6-17
Towing your vehicle ...
.............................................................. 6-19
Towing recommended by NISSAN ...
........................... 6-20
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-22
Condition:
Page 394 of 507
Black plate (392,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

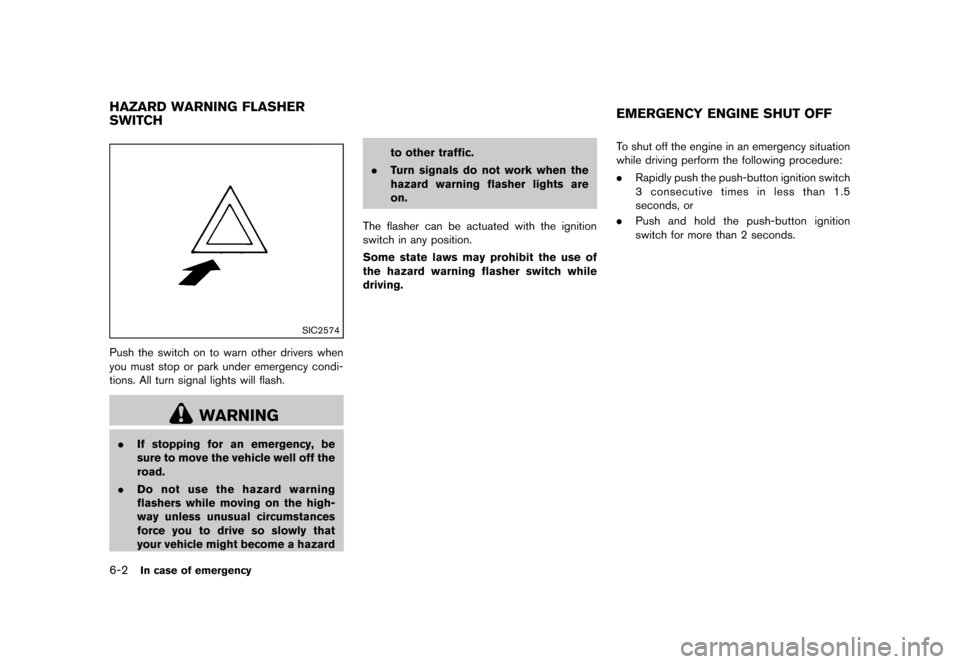

6-2In case of emergency
GUID-6A75B42D-D28E-4CDF-84D2-DC5652B93673
SIC2574
Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
.If stopping for an emergency, be
sure to move the vehicle well off the
road.
. Do not use the hazard warning
flashers while moving on the high-
way unless unusual circumstances
force you to drive so slowly that
your vehicle might become a hazard to other traffic.
. Turn signals do not work when the
hazard warning flasher lights are
on.
The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
GUID-A4BE01F9-B39B-4F16-AEA3-8AD0D549DC73To shut off the engine in an emergency situation
while driving perform the following procedure:
. Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.
HAZARD WARNING FLASHER
SWITCH EMERGENCY ENGINE SHUT OFF
Condition:
Page 395 of 507
Black plate (393,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

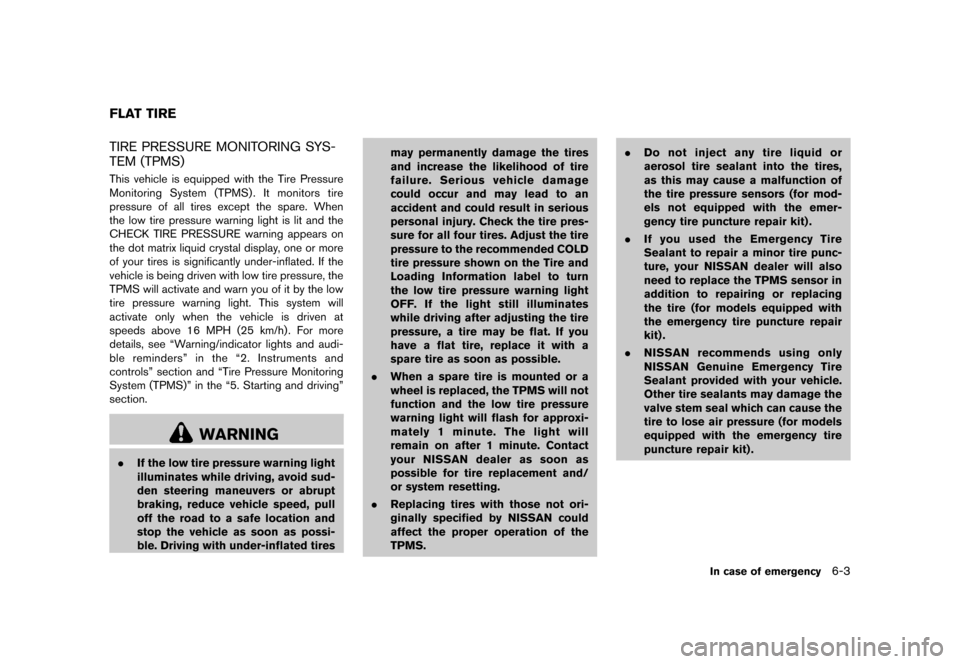

GUID-AEE01352-1840-4E29-9B03-2EFC7AC383A3TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-44022350-9F34-420B-8D0B-18021E82464DThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the dot matrix liquid crystal display, one or more
of your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h). For more
details, see “Warning/indicator lights and audi-
ble reminders” in the “2. Instruments and
controls” section and “Tire Pressure Monitoring
System (TPMS)” in the “5. Starting and driving”
section.
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you
have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS. .
Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors (for mod-
els not equipped with the emer-
gency tire puncture repair kit) .
. If you used the Emergency Tire
Sealant to repair a minor tire punc-
ture, your NISSAN dealer will also
need to replace the TPMS sensor in
addition to repairing or replacing
the tire (for models equipped with
the emergency tire puncture repair
kit) .
. NISSAN recommends using only
NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure (for models
equipped with the emergency tire
puncture repair kit) .
In case of emergency6-3
FLAT TIRE
Condition:
Page 396 of 507
Black plate (394,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

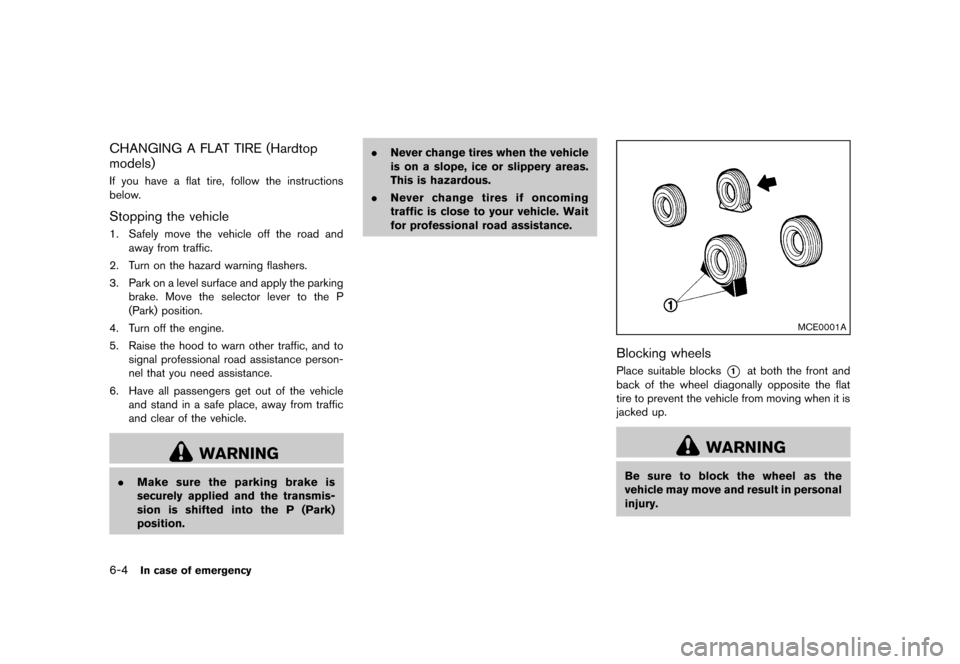

6-4In case of emergency
CHANGING A FLAT TIRE (Hardtop
models)
GUID-2556453E-6860-4E75-99C5-BC1B96104DFBIf you have a flat tire, follow the instructions
below.
Stopping the vehicleGUID-E4EE9E45-D178-479D-91CE-31CB9A6D16A81. Safely move the vehicle off the road andaway from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the selector lever to the P
(Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the P (Park)
position. .
Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
MCE0001A
Blocking wheelsGUID-591F1C44-25E0-41F8-A3D8-BF31D93FB210Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.
Condition:
Page 397 of 507
Black plate (395,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

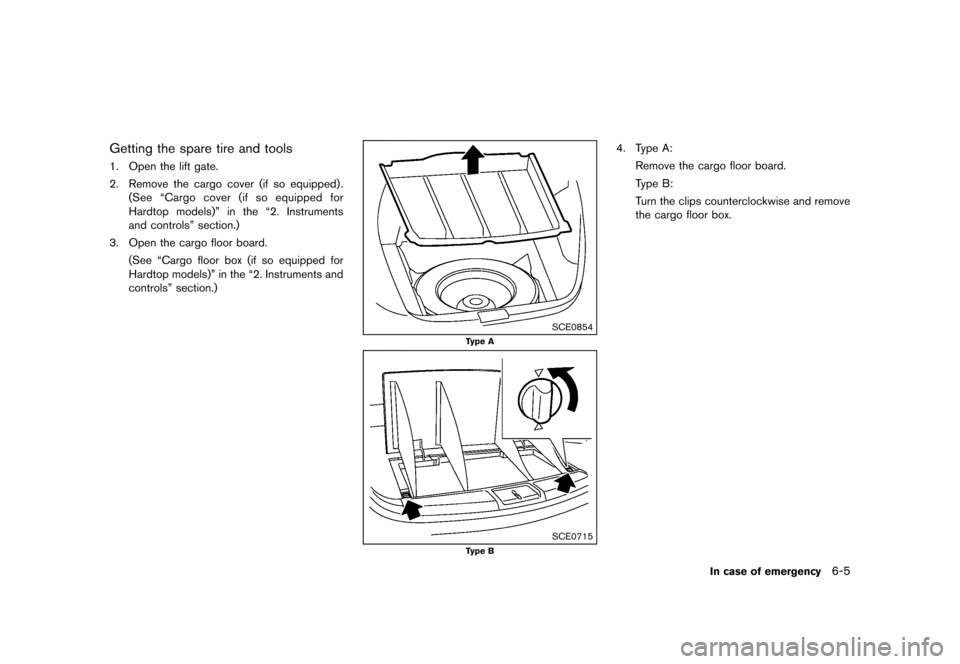

Getting the spare tire and toolsGUID-B6F9EBC6-3B3A-4BD7-A242-5D184901006E1. Open the lift gate.
2. Remove the cargo cover (if so equipped) .(See “Cargo cover (if so equipped for
Hardtop models)” in the “2. Instruments
and controls” section.)
3. Open the cargo floor board. (See “Cargo floor box (if so equipped for
Hardtop models)” in the “2. Instruments and
controls” section.)
SCE0854
Type A
SCE0715
Type B
4. Type A:Remove the cargo floor board.
Type B:
Turn the clips counterclockwise and remove
the cargo floor box.
In case of emergency6-5
Condition:
Page 398 of 507
Black plate (396,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

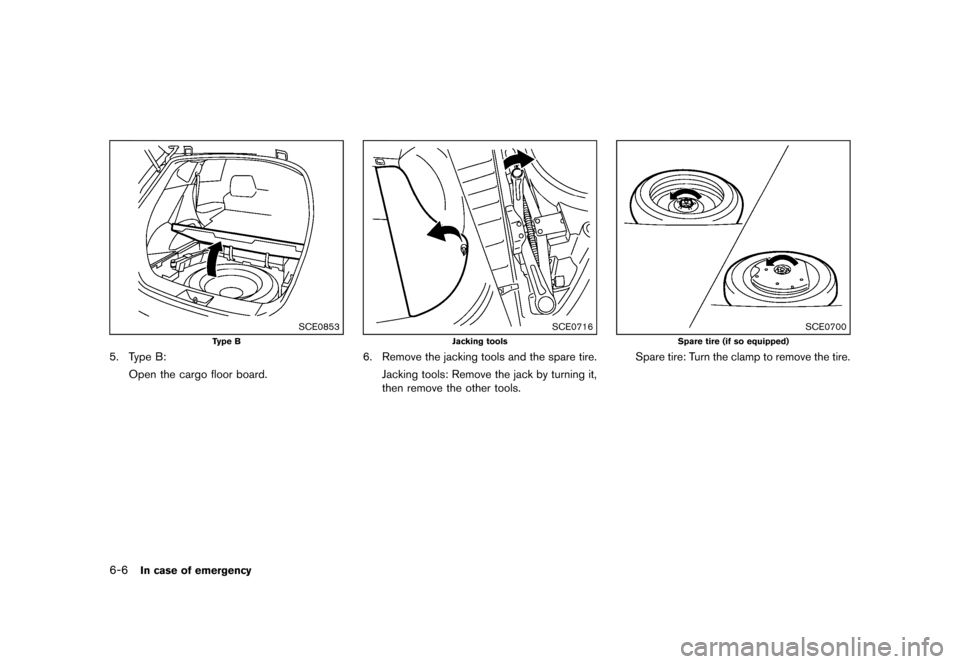

6-6In case of emergency
SCE0853
Type B
5. Type B:Open the cargo floor board.
SCE0716
Jacking tools
6. Remove the jacking tools and the spare tire.Jacking tools: Remove the jack by turning it,
then remove the other tools.
SCE0700
Spare tire (if so equipped)
Spare tire: Turn the clamp to remove the tire.
Condition:
Page 399 of 507
Black plate (397,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

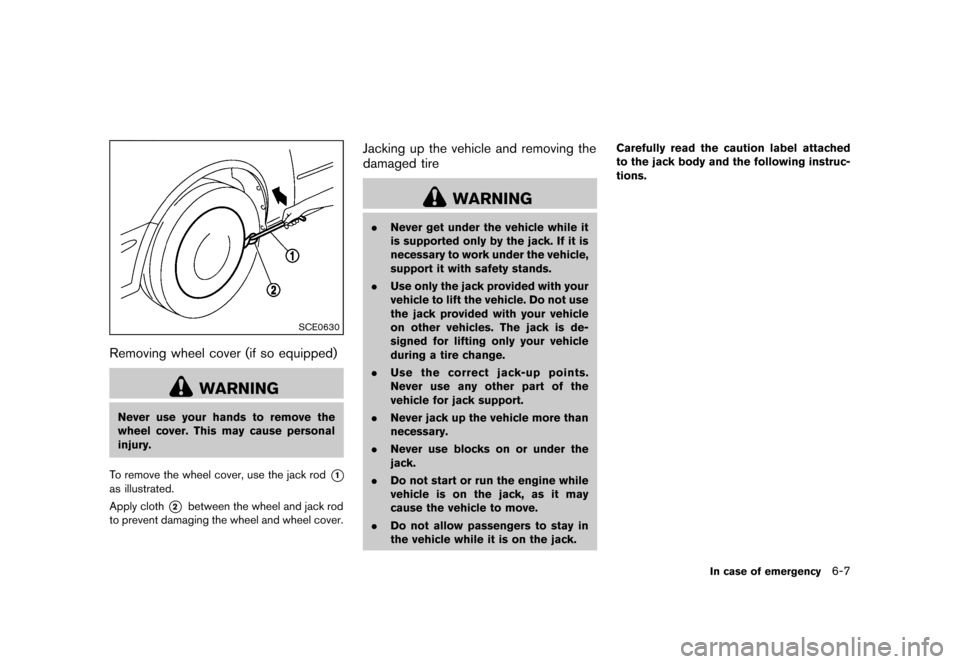

SCE0630
Removing wheel cover (if so equipped)GUID-E9EED2F7-FDF0-4055-A2AE-76E61B2670DA
WARNING
Never use your hands to remove the
wheel cover. This may cause personal
injury.
To remove the wheel cover, use the jack rod
*1
as illustrated.
Apply cloth
*2between the wheel and jack rod
to prevent damaging the wheel and wheel cover.
Jacking up the vehicle and removing the
damaged tire
GUID-112ACE36-B21C-4E34-AF28-262C25B71F36
WARNING
. Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move.
. Do not allow passengers to stay in
the vehicle while it is on the jack. Carefully read the caution label attached
to the jack body and the following instruc-
tions.
In case of emergency6-7
Condition:
Page 400 of 507
Black plate (398,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

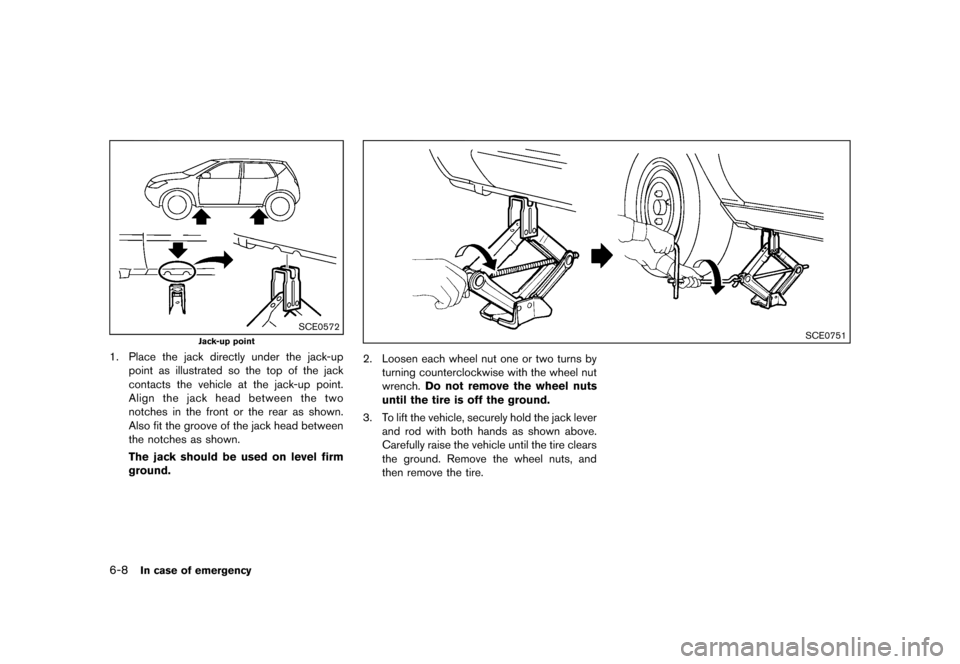

6-8In case of emergency
SCE0572
Jack-up point
1. Place the jack directly under the jack-uppoint as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head between
the notches as shown.
The jack should be used on level firm
ground.
SCE0751
2. Loosen each wheel nut one or two turns byturning counterclockwise with the wheel nut
wrench. Do not remove the wheel nuts
until the tire is off the ground.
3. To lift the vehicle, securely hold the jack lever and rod with both hands as shown above.
Carefully raise the vehicle until the tire clears
the ground. Remove the wheel nuts, and
then remove the tire.
