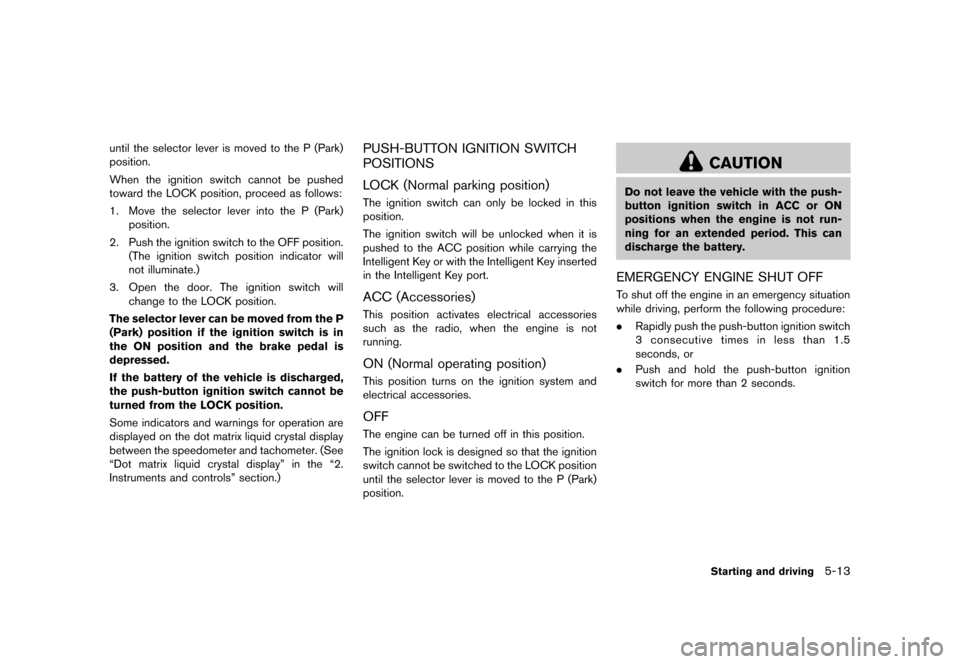

until the selector lever is moved to the P (Park)
position.
When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1. Move the selector lever into the P (Park)position.
2. Push the ignition switch to the OFF position. (The ignition switch position indicator will
not illuminate.)
3. Open the door. The ignition switch will
change to the LOCK position.
The selector lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
turned from the LOCK position.
Some indicators and warnings for operation are
displayed on the dot matrix liquid crystal display
between the speedometer and tachometer. (See
“Dot matrix liquid crystal display” in the “2.
Instruments and controls” section.)PUSH-BUTTON IGNITION SWITCH
POSITIONS
GUID-2DA63785-8ABA-4F35-89C9-8EC5E99D0005
LOCK (Normal parking position)GUID-4B0ADEFB-3415-4B03-963E-0C0C5B8558F4The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the Intelligent Key port.
ACC (Accessories)GUID-1142617A-DFBE-4A4C-86B0-2A451772941CThis position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-BB4F7743-D4C8-4CD5-B0E0-E2CC0EA06860This position turns on the ignition system and
electrical accessories.
OFFGUID-F0D3DF80-AF4F-4421-A7D9-6137FEB28588The engine can be turned off in this position.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the selector lever is moved to the P (Park)
position.
CAUTION
Do not leave the vehicle with the push-
button ignition switch in ACC or ON
positions when the engine is not run-
ning for an extended period. This can
discharge the battery.
EMERGENCY ENGINE SHUT OFFGUID-06748DB5-CB47-498E-AD33-8015C01F2E78To shut off the engine in an emergency situation
while driving, perform the following procedure:
. Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.
Starting and driving5-13
Condition:

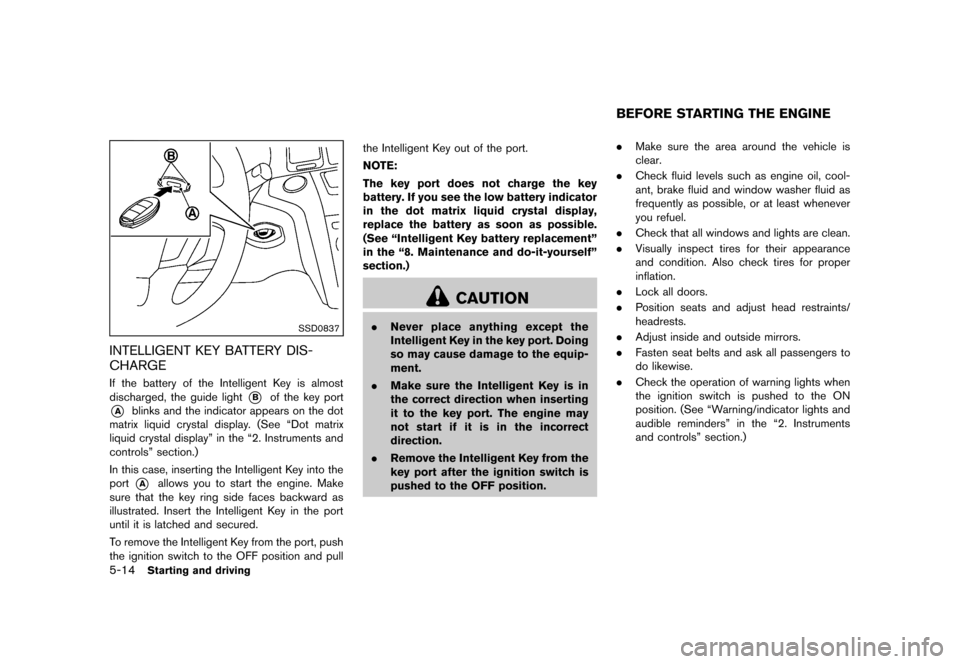

Page 362 of 507
Black plate (360,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-14Starting and driving
SSD0837
INTELLIGENT KEY BATTERY DIS-
CHARGE
GUID-B0FA47F4-2F8B-42AE-95A0-B8BDCC855CA4If the battery of the Intelligent Key is almost
discharged, the guide light
*Bof the key port
*Ablinks and the indicator appears on the dot
matrix liquid crystal display. (See “Dot matrix
liquid crystal display” in the “2. Instruments and
controls” section.)
In this case, inserting the Intelligent Key into the
port
*Aallows you to start the engine. Make
sure that the key ring side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port, push
the ignition switch to the OFF position and pull the Intelligent Key out of the port.
NOTE:
The key port does not charge the key
battery. If you see the low battery indicator
in the dot matrix liquid crystal display,
replace the battery as soon as possible.
(See “Intelligent Key battery replacement”
in the “8. Maintenance and do-it-yourself”
section.)
CAUTION
.
Never place anything except the
Intelligent Key in the key port. Doing
so may cause damage to the equip-
ment.
. Make sure the Intelligent Key is in
the correct direction when inserting
it to the key port. The engine may
not start if it is in the incorrect
direction.
. Remove the Intelligent Key from the
key port after the ignition switch is
pushed to the OFF position.
GUID-147FB3A5-0560-4EED-8FD9-82CD1174F15F.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seats and adjust head restraints/
headrests.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “Warning/indicator lights and
audible reminders” in the “2. Instruments
and controls” section.)
BEFORE STARTING THE ENGINE
Condition:
Page 363 of 507
Black plate (361,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

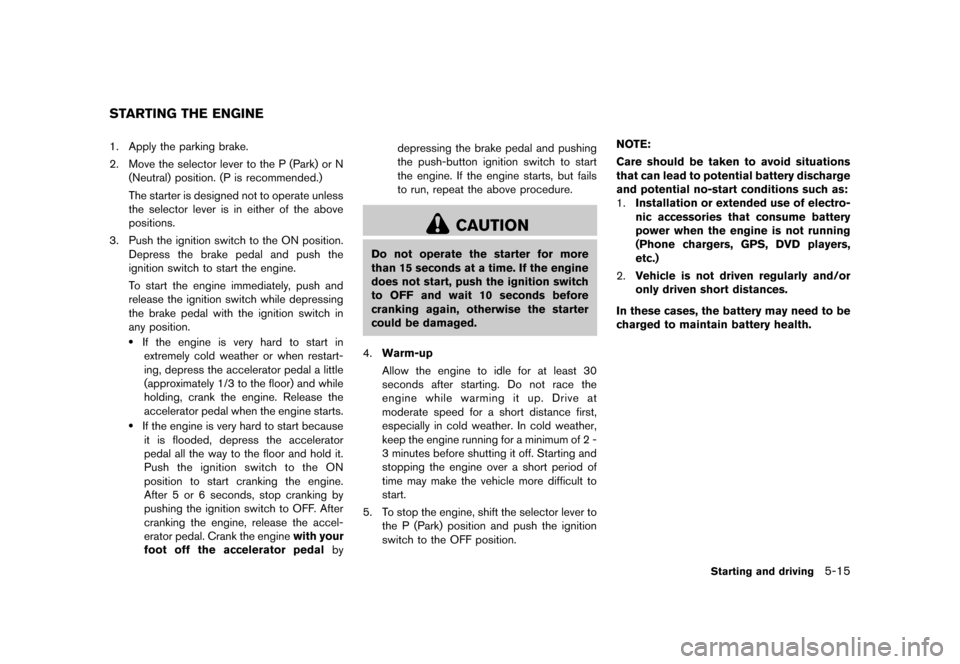

GUID-F37FF9D7-0BFA-4B95-99B8-BFD3E3B487841. Apply the parking brake.
2. Move the selector lever to the P (Park) or N(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
3. Push the ignition switch to the ON position. Depress the brake pedal and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
.If the engine is very hard to start becauseit is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal bydepressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance first,
especially in cold weather. In cold weather,
keep the engine running for a minimum of 2 -
3 minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
5. To stop the engine, shift the selector lever to the P (Park) position and push the ignition
switch to the OFF position. NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1.
Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Starting and driving5-15
STARTING THE ENGINE
Condition:
Page 364 of 507
Black plate (362,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-16Starting and driving

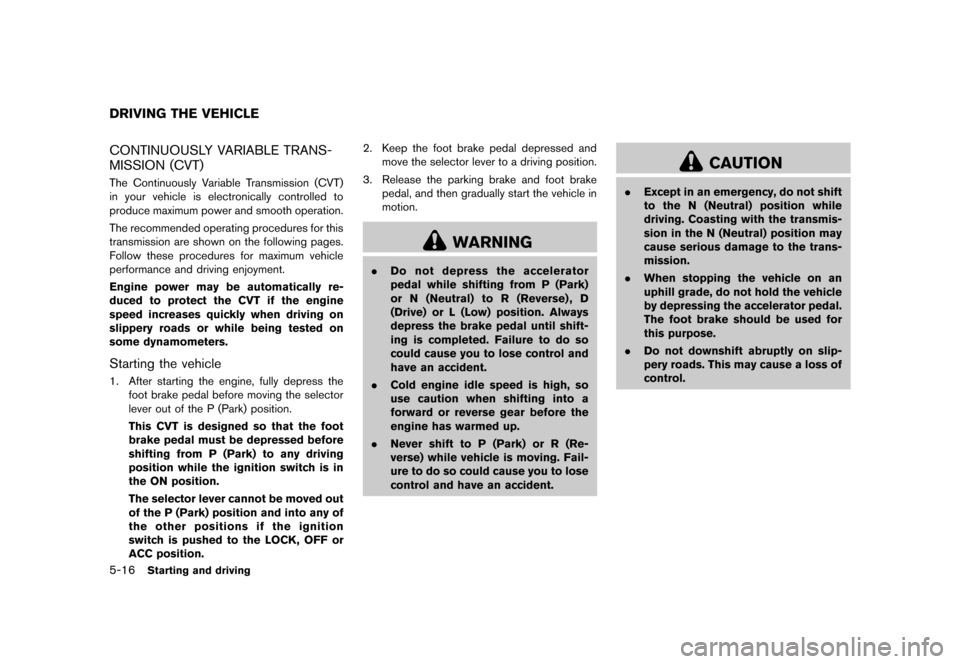

GUID-874DAAA4-503F-461F-8A66-BEEC6486BBB0CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-ACCD68EB-D536-48ED-BBB3-82DB1D8F06BAThe Continuously Variable Transmission (CVT)
in your vehicle is electronically controlled to
produce maximum power and smooth operation.
The recommended operating procedures for this
transmission are shown on the following pages.
Follow these procedures for maximum vehicle
performance and driving enjoyment.
Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.
Starting the vehicleGUID-35972EF7-F09E-4D7E-99A4-08117777767B1. After starting the engine, fully depress thefoot brake pedal before moving the selector
lever out of the P (Park) position.
This CVT is designed so that the foot
brake pedal must be depressed before
shifting from P (Park) to any driving
position while the ignition switch is in
the ON position.
The selector lever cannot be moved out
of the P (Park) position and into any of
the other positions if the ignition
switch is pushed to the LOCK, OFF or
ACC position. 2. Keep the foot brake pedal depressed and
move the selector lever to a driving position.
3. Release the parking brake and foot brake pedal, and then gradually start the vehicle in
motion.
WARNING
.Do not depress the accelerator
pedal while shifting from P (Park)
or N (Neutral) to R (Reverse) , D
(Drive) or L (Low) position. Always
depress the brake pedal until shift-
ing is completed. Failure to do so
could cause you to lose control and
have an accident.
. Cold engine idle speed is high, so
use caution when shifting into a
forward or reverse gear before the
engine has warmed up.
. Never shift to P (Park) or R (Re-
verse) while vehicle is moving. Fail-
ure to do so could cause you to lose
control and have an accident.
CAUTION
.Except in an emergency, do not shift
to the N (Neutral) position while
driving. Coasting with the transmis-
sion in the N (Neutral) position may
cause serious damage to the trans-
mission.
. When stopping the vehicle on an
uphill grade, do not hold the vehicle
by depressing the accelerator pedal.
The foot brake should be used for
this purpose.
. Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.
DRIVING THE VEHICLE
Condition:
Page 365 of 507
Black plate (363,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

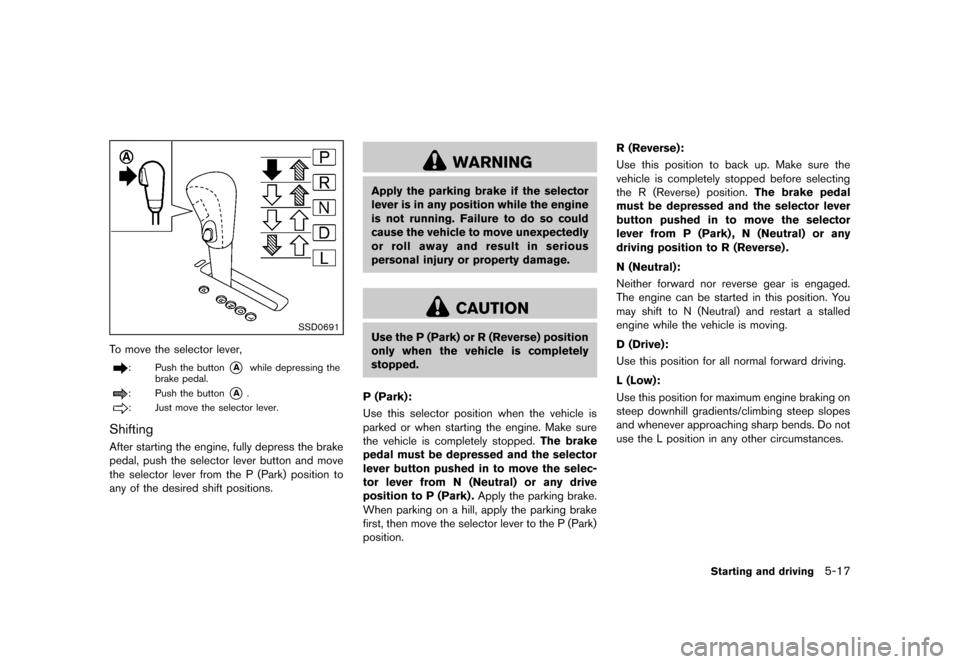

SSD0691
To move the selector lever,
: Push the button*Awhile depressing the
brake pedal.
: Push the button*A.
: Just move the selector lever.
ShiftingGUID-D5026A04-B5E5-49C1-B727-309E2651B4AEAfter starting the engine, fully depress the brake
pedal, push the selector lever button and move
the selector lever from the P (Park) position to
any of the desired shift positions.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious
personal injury or property damage.
CAUTION
Use the P (Park) or R (Reverse) position
only when the vehicle is completely
stopped.
P (Park):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector
lever button pushed in to move the selec-
tor lever from N (Neutral) or any drive
position to P (Park) . Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position. R (Reverse):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position to back up. Make sure the
vehicle is completely stopped before selecting
the R (Reverse) position.
The brake pedal
must be depressed and the selector lever
button pushed in to move the selector
lever from P (Park) , N (Neutral) or any
driving position to R (Reverse) .
N (Neutral):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to N (Neutral) and restart a stalled
engine while the vehicle is moving.
D (Drive):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for all normal forward driving.
L (Low):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
Starting and driving5-17
Condition:
Page 366 of 507
Black plate (364,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-18Starting and driving

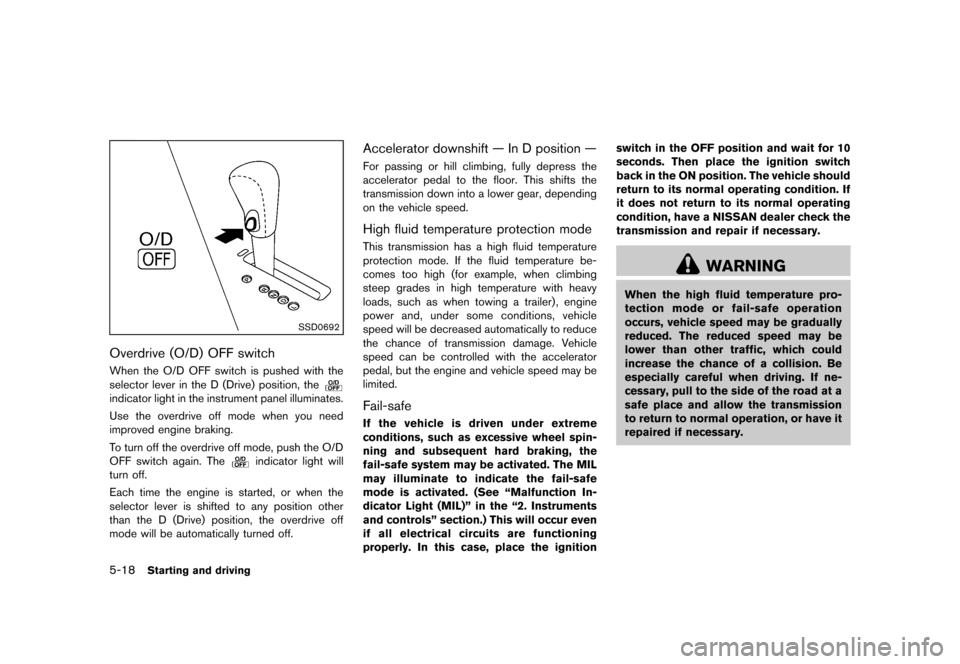

SSD0692
Overdrive (O/D) OFF switchGUID-8A3D61C2-25AC-4088-A419-A1EAB3D4657FWhen the O/D OFF switch is pushed with the
selector lever in the D (Drive) position, the
indicator light in the instrument panel illuminates.
Use the overdrive off mode when you need
improved engine braking.
To turn off the overdrive off mode, push the O/D
OFF switch again. The
indicator light will
turn off.
Each time the engine is started, or when the
selector lever is shifted to any position other
than the D (Drive) position, the overdrive off
mode will be automatically turned off.
Accelerator downshift — In D position —GUID-CD19E66D-4772-4785-B00D-BC9BC6AC4E04For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into a lower gear, depending
on the vehicle speed.
High fluid temperature protection modeGUID-FE0DB0A0-F4AF-44F6-8609-E1599FEA814DThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may be
limited.
Fail-safeGUID-CA9C7C97-9363-4621-960F-9DED536408A1If the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. The MIL
may illuminate to indicate the fail-safe
mode is activated. (See “Malfunction In-
dicator Light (MIL)” in the “2. Instruments
and controls” section.) This will occur even
if all electrical circuits are functioning
properly. In this case, place the ignition switch in the OFF position and wait for 10
seconds. Then place the ignition switch
back in the ON position. The vehicle should
return to its normal operating condition. If
it does not return to its normal operating
condition, have a NISSAN dealer check the
transmission and repair if necessary.
WARNING
When the high fluid temperature pro-
tection mode or fail-safe operation
occurs, vehicle speed may be gradually
reduced. The reduced speed may be
lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If ne-
cessary, pull to the side of the road at a
safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
Condition:
Page 367 of 507
Black plate (365,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

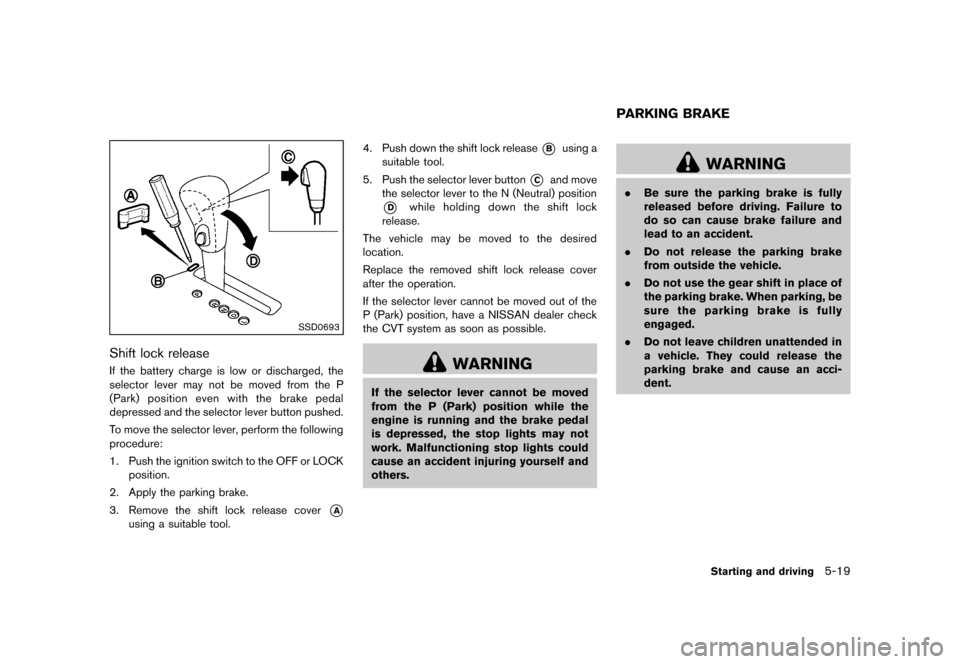

SSD0693
Shift lock releaseGUID-4E0BBA67-0709-45D4-82B6-4589F6D64379If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal
depressed and the selector lever button pushed.
To move the selector lever, perform the following
procedure:
1. Push the ignition switch to the OFF or LOCKposition.
2. Apply the parking brake.
3. Remove the shift lock release cover
*A
using a suitable tool. 4. Push down the shift lock release
*Busing a
suitable tool.
5. Push the selector lever button
*Cand move
the selector lever to the N (Neutral) position
*Dwhile holding down the shift lock
release.
The vehicle may be moved to the desired
location.
Replace the removed shift lock release cover
after the operation.
If the selector lever cannot be moved out of the
P (Park) position, have a NISSAN dealer check
the CVT system as soon as possible.
WARNING
If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake pedal
is depressed, the stop lights may not
work. Malfunctioning stop lights could
cause an accident injuring yourself and
others.
GUID-E081E1F7-54B4-4901-B654-AF785D4BF47C
WARNING
. Be sure the parking brake is fully
released before driving. Failure to
do so can cause brake failure and
lead to an accident.
. Do not release the parking brake
from outside the vehicle.
. Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully
engaged.
. Do not leave children unattended in
a vehicle. They could release the
parking brake and cause an acci-
dent.
Starting and driving5-19
PARKING BRAKE
Condition:
Page 368 of 507
Black plate (366,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-20Starting and driving
SPA2331
To apply:Fully depress the parking brake pedal
*1.
To release:
1. Firmly apply the foot brake
*2.
2. Depress the parking brake pedal
*1and
the parking brake will be released.
3. Before driving, be sure the brake warning light goes out.
GUID-EAE4D145-2304-42BA-802A-31B01291BFE6The Blind Spot Warning (BSW) system helps
alert the driver of other vehicles in adjacent lanes
when changing lanes.
The Lane Departure Warning (LDW) system
helps alert the driver when the vehicle is
traveling close to either the left or the right of a
traveling lane.
JVS0152X
The BSW/LDW systems use the RearView
Monitor camera unit
*1with automatic washer
and blower.
WARNING
. The BSW system is not a replace-
ment for proper driving procedure
and is not designed to prevent
contact with vehicles or objects.
When changing lanes, always use
the side and rear mirrors and turn
and look in the direction you will
move to ensure it is safe to change
lanes. Never rely solely on the BSW
BLIND SPOT WARNING (BSW)/
LANE DEPARTURE WARNING (LDW)
SYSTEMS (if so equipped)
Condition:
Page 369 of 507
Black plate (367,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
system.
. The LDW system is only a warning
device to help inform the driver of a
potential unintended lane depar-
ture. It will not steer the vehicle or
prevent loss of control. It is the
driver’s responsibility to stay alert,
drive safely, keep the vehicle in the
traveling lane, and be in control of
the vehicle at all times.
. The camera unit may not function
properly under the following condi-
tions:
— When towing a trailer.
— When strong light enters the
camera unit. (for example, light
directly shines on the rear of the
vehicle at sunrise or sunset.)
— When ambient brightness changes suddenly. (for example,
when the vehicle enters or exits
a tunnel or passes under a
bridge.)
. If the camera lens is excessively
dirty, the automatic washer may not
be able to completely clean the lens.
This could result in the camera not
detecting vehicles or lane markers. .
Excessive noise (for example, audio
system volume, open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.

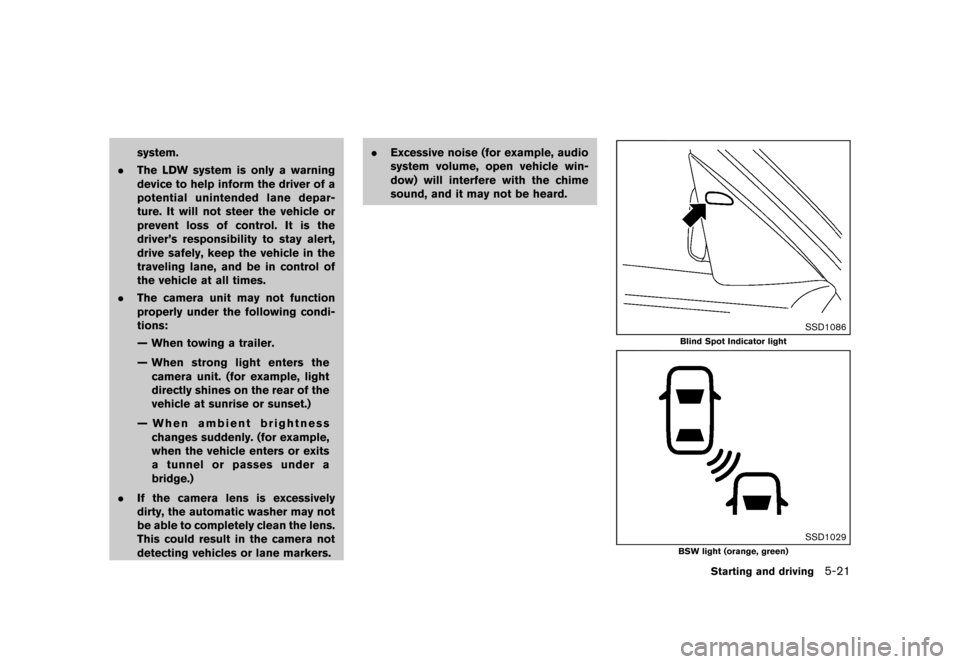

SSD1086
Blind Spot Indicator light
SSD1029
BSW light (orange, green)
Starting and driving5-21
Condition:
Page 370 of 507
Black plate (368,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5-22Starting and driving

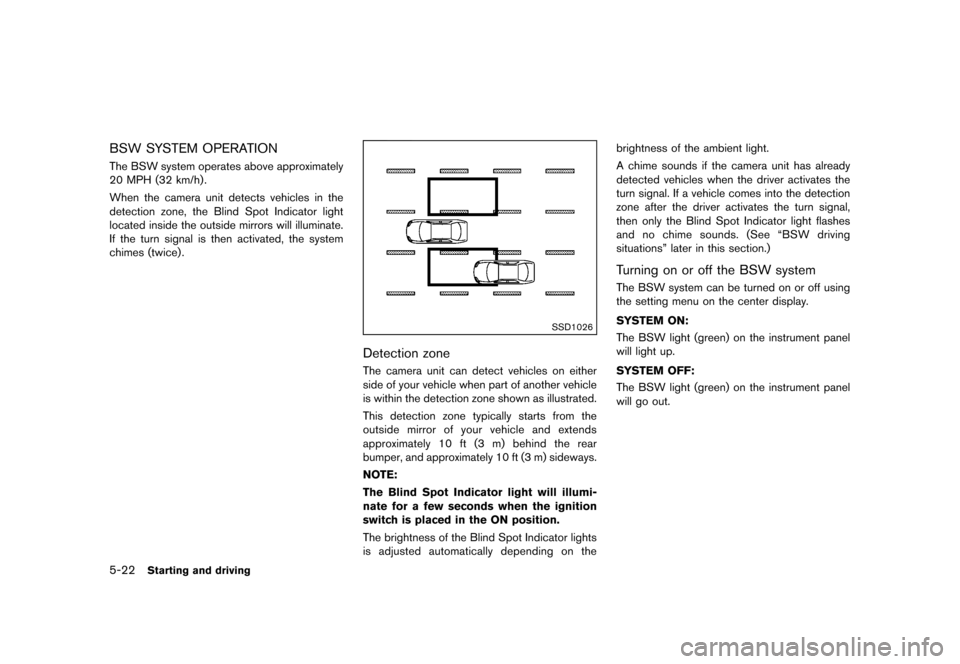

BSW SYSTEM OPERATIONGUID-57C34072-19AD-4F92-8527-4EC338107115The BSW system operates above approximately
20 MPH (32 km/h) .
When the camera unit detects vehicles in the
detection zone, the Blind Spot Indicator light
located inside the outside mirrors will illuminate.
If the turn signal is then activated, the system
chimes (twice) .
SSD1026
Detection zoneGUID-EDF6517E-4B22-4DBC-B7D0-02DAE5036383The camera unit can detect vehicles on either
side of your vehicle when part of another vehicle
is within the detection zone shown as illustrated.
This detection zone typically starts from the
outside mirror of your vehicle and extends
approximately 10 ft (3 m) behind the rear
bumper, and approximately 10 ft (3 m) sideways.
NOTE:
The Blind Spot Indicator light will illumi-
nate for a few seconds when the ignition
switch is placed in the ON position.
The brightness of the Blind Spot Indicator lights
is adjusted automatically depending on thebrightness of the ambient light.
A chime sounds if the camera unit has already
detected vehicles when the driver activates the
turn signal. If a vehicle comes into the detection
zone after the driver activates the turn signal,
then only the Blind Spot Indicator light flashes
and no chime sounds. (See “BSW driving
situations” later in this section.)
Turning on or off the BSW systemGUID-C47C5086-5272-41CD-9A3F-A6BA43F0B737The BSW system can be turned on or off using
the setting menu on the center display.
SYSTEM ON:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The BSW light (green) on the instrument panel
will light up.
SYSTEM OFF:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The BSW light (green) on the instrument panel
will go out.
Condition:
