NISSAN MURANO 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: MURANO, Model: NISSAN MURANO 2013 2.GPages: 507, PDF Size: 4.61 MB
Page 411 of 507
Black plate (409,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

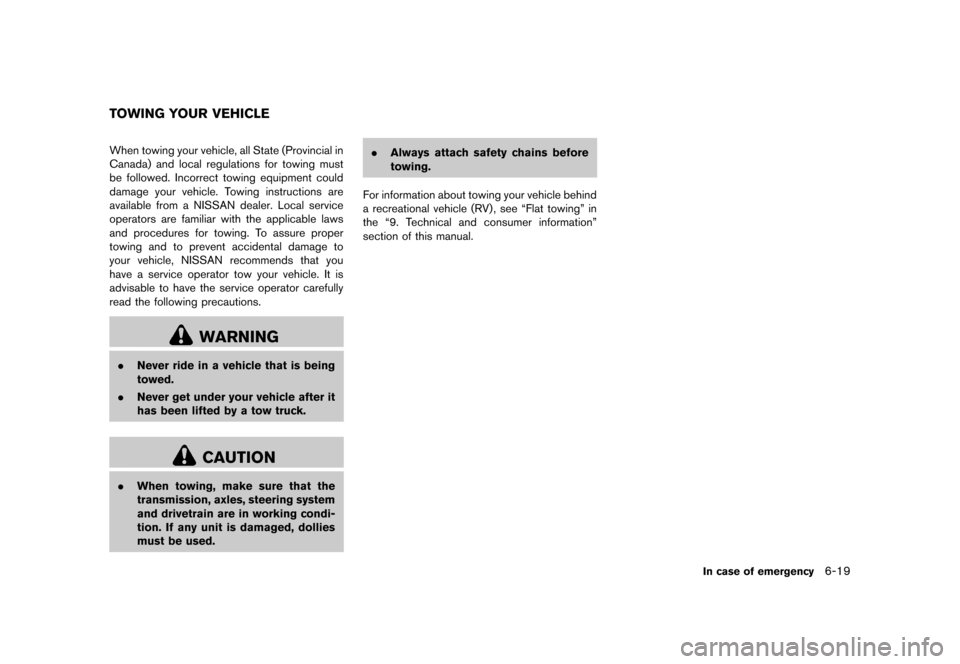

GUID-2D9C548F-F9FC-45C3-B51B-87AD8F011697When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from a NISSAN dealer. Local service
operators are familiar with the applicable laws
and procedures for towing. To assure proper
towing and to prevent accidental damage to
your vehicle, NISSAN recommends that you
have a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions.
WARNING
.Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION
.When towing, make sure that the
transmission, axles, steering system
and drivetrain are in working condi-
tion. If any unit is damaged, dollies
must be used. .
Always attach safety chains before
towing.
For information about towing your vehicle behind
a recreational vehicle (RV) , see “Flat towing” in
the “9. Technical and consumer information”
section of this manual.
In case of emergency6-19
TOWING YOUR VEHICLE
Condition:
Page 412 of 507
Black plate (410,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6-20In case of emergency

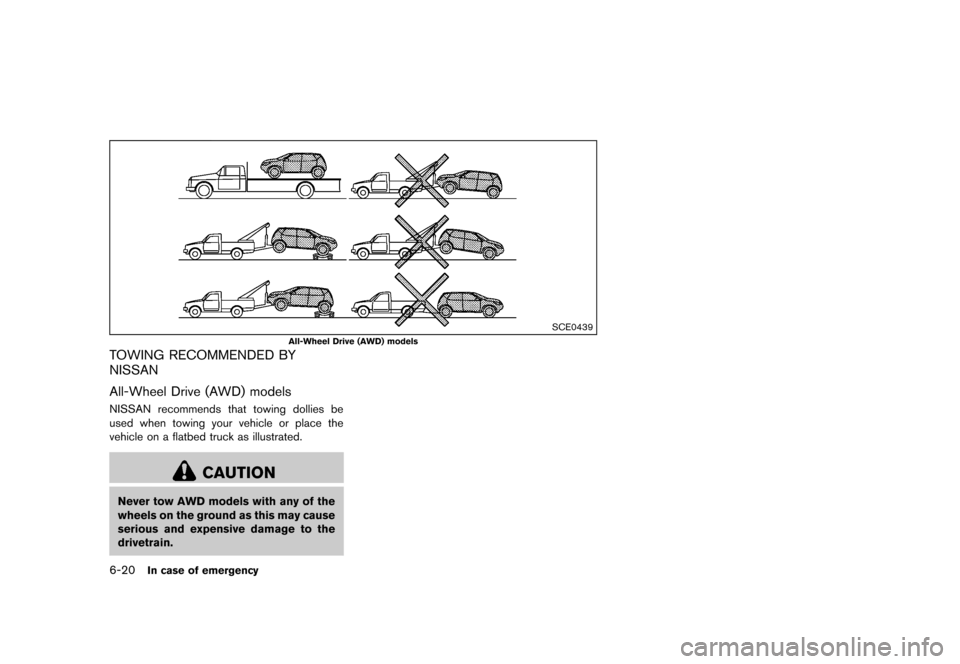

SCE0439
All-Wheel Drive (AWD) models
TOWING RECOMMENDED BY
NISSAN
GUID-93B317C1-3745-461E-A3A7-3DF7B83E2737
All-Wheel Drive (AWD) modelsGUID-1C9AD8B5-65C0-4193-BB02-393AB50F08B0NISSAN recommends that towing dollies be
used when towing your vehicle or place the
vehicle on a flatbed truck as illustrated.
CAUTION
Never tow AWD models with any of the
wheels on the ground as this may cause
serious and expensive damage to the
drivetrain.
Condition:
Page 413 of 507
Black plate (411,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

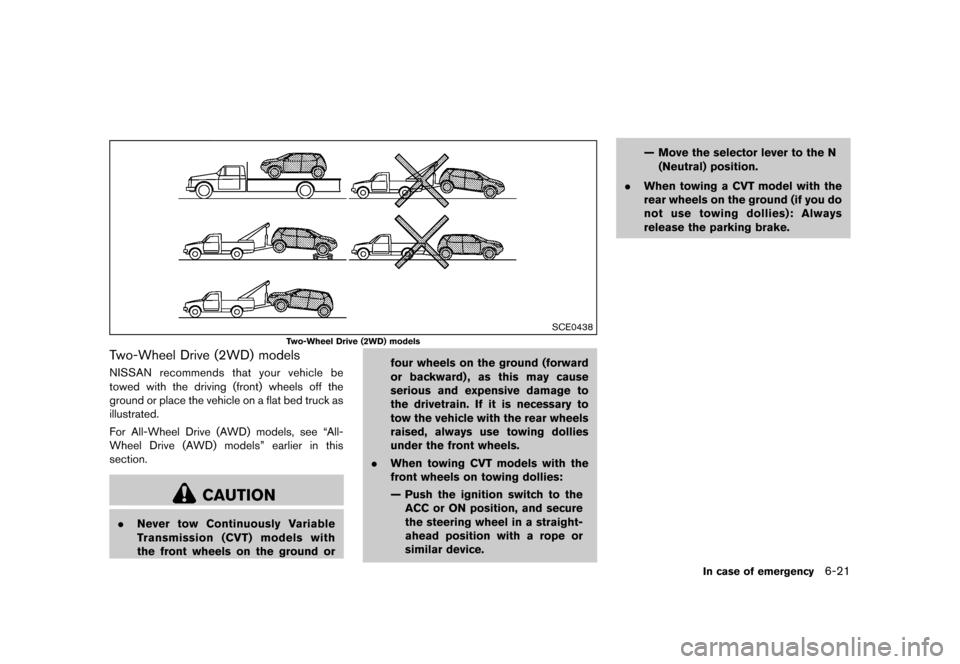

SCE0438
Two-Wheel Drive (2WD) models
Two-Wheel Drive (2WD) modelsGUID-F69CDF34-4EA1-44CF-824A-16A614B5B272NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.
For All-Wheel Drive (AWD) models, see “All-
Wheel Drive (AWD) models” earlier in this
section.
CAUTION
.Never tow Continuously Variable
Transmission (CVT) models with
the front wheels on the ground or four wheels on the ground (forward
or backward) , as this may cause
serious and expensive damage to
the drivetrain. If it is necessary to
tow the vehicle with the rear wheels
raised, always use towing dollies
under the front wheels.
. When towing CVT models with the
front wheels on towing dollies:
— Push the ignition switch to the
ACC or ON position, and secure
the steering wheel in a straight-
ahead position with a rope or
similar device. — Move the selector lever to the N
(Neutral) position.
. When towing a CVT model with the
rear wheels on the ground (if you do
not use towing dollies): Always
release the parking brake.
In case of emergency6-21
Condition:
Page 414 of 507
Black plate (412,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6-22In case of emergency

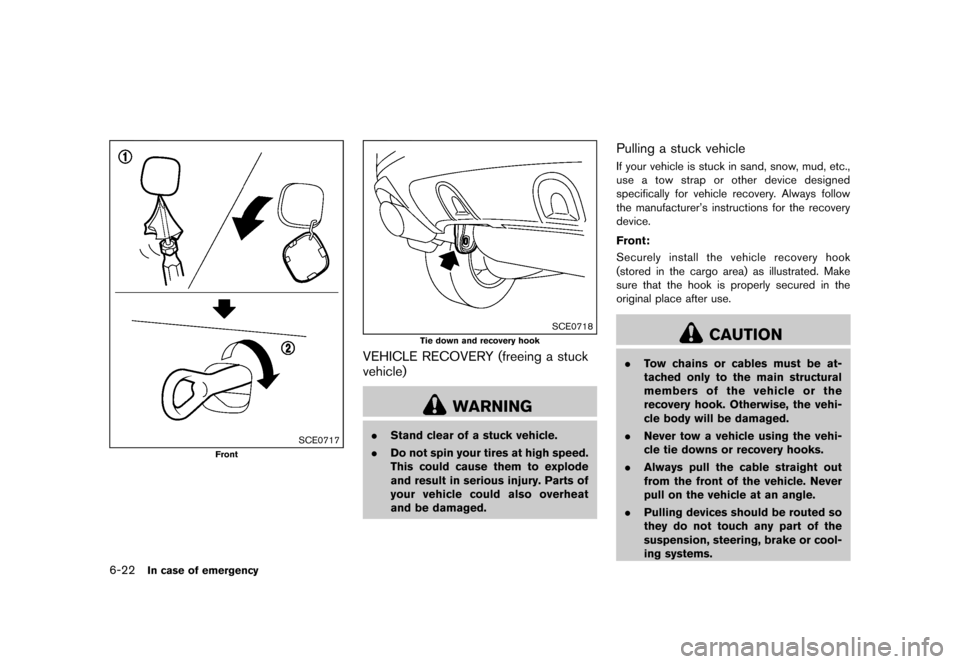

SCE0717
Front
SCE0718
Tie down and recovery hook
VEHICLE RECOVERY (freeing a stuck
vehicle)
GUID-B3BD7373-382C-47A0-B6A5-6832BD608ED7
WARNING
.Stand clear of a stuck vehicle.
. Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat
and be damaged.
Pulling a stuck vehicleGUID-B9FF31ED-C7E4-4C3F-BE7C-B0275BD8339CIf your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed
specifically for vehicle recovery. Always follow
the manufacturer’s instructions for the recovery
device.
Front:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Securely install the vehicle recovery hook
(stored in the cargo area) as illustrated. Make
sure that the hook is properly secured in the
original place after use.
CAUTION
.Tow chains or cables must be at-
tached only to the main structural
members of the vehicle or the
recovery hook. Otherwise, the vehi-
cle body will be damaged.
. Never tow a vehicle using the vehi-
cle tie downs or recovery hooks.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
Condition:
Page 415 of 507
Black plate (413,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
.Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.

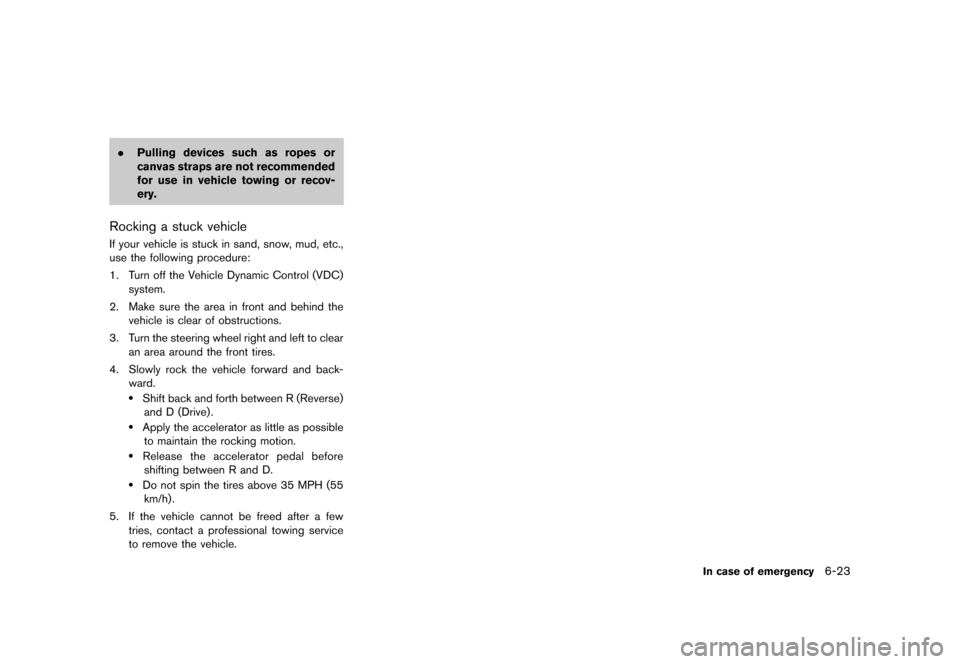

Rocking a stuck vehicleGUID-582FCDE1-D44D-495B-920F-AA398AAC93E9If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between R (Reverse)and D (Drive).
.Apply the accelerator as little as possibleto maintain the rocking motion.
.Release the accelerator pedal before
shifting between R and D.
.Do not spin the tires above 35 MPH (55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.
In case of emergency6-23
Condition:
Page 416 of 507
Black plate (414,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

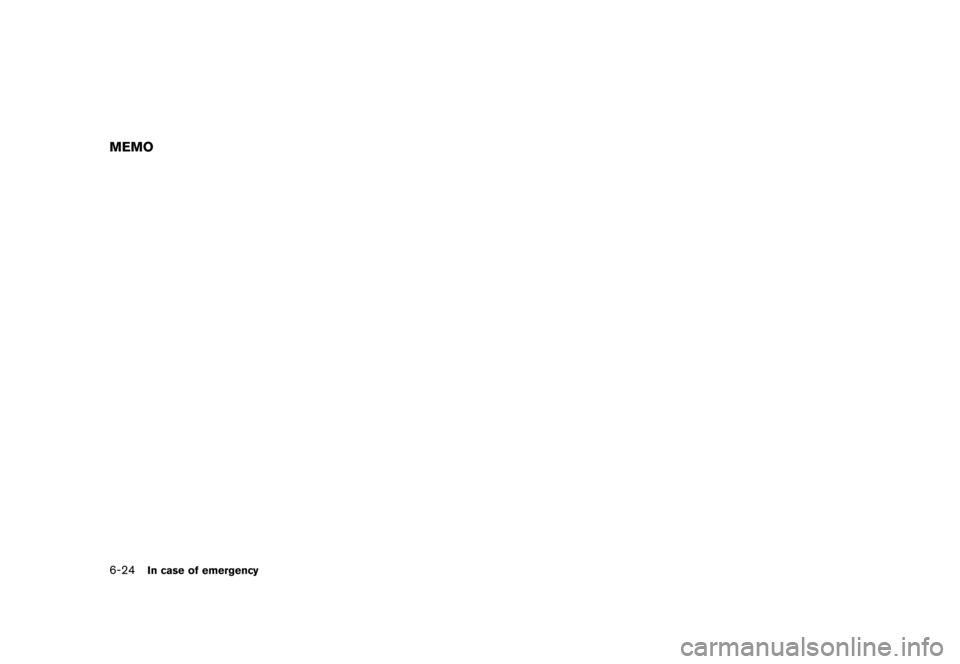

6-24In case of emergency
MEMO
Condition:
Page 417 of 507
Black plate (415,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

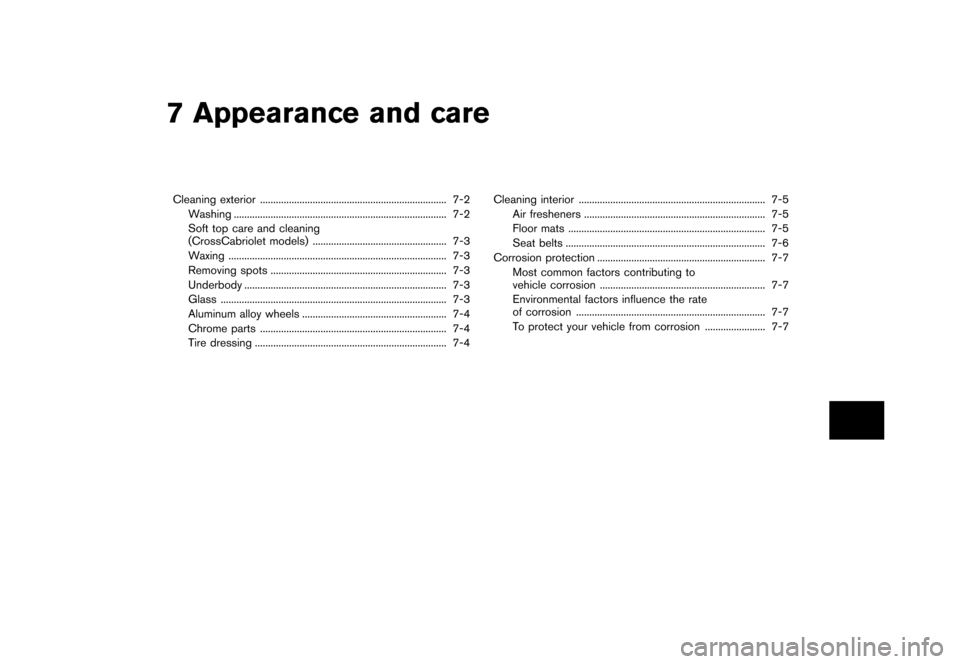

7 Appearance and care
Cleaning exterior...
....................................................................... 7-2
Washing ...
........................................................................\
......... 7-2
Soft top care and cleaning
(CrossCabriolet models) ...
................................................... 7-3
Waxing ...
........................................................................\
........... 7-3
Removing spots ...
................................................................... 7-3
Underbody ...
........................................................................\
..... 7-3
Glass ...
........................................................................\
.............. 7-3
Aluminum alloy wheels ...
....................................................... 7-4
Chrome parts ...
....................................................................... 7-4
Tire dressing ...
........................................................................\
. 7-4 Cleaning interior
...
....................................................................... 7-5
Air fresheners ...
..................................................................... 7-5
Floor mats ...
........................................................................\
... 7-5
Seat belts ...
........................................................................\
.... 7-6
Corrosion protection ...
................................................................ 7-7
Most common factors contributing to
vehicle corrosion ...
............................................................... 7-7
Environmental factors influence the rate
of corrosion ...
........................................................................\
7-7
To protect your vehicle from corrosion ...
....................... 7-7
Condition:
Page 418 of 507
Black plate (416,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

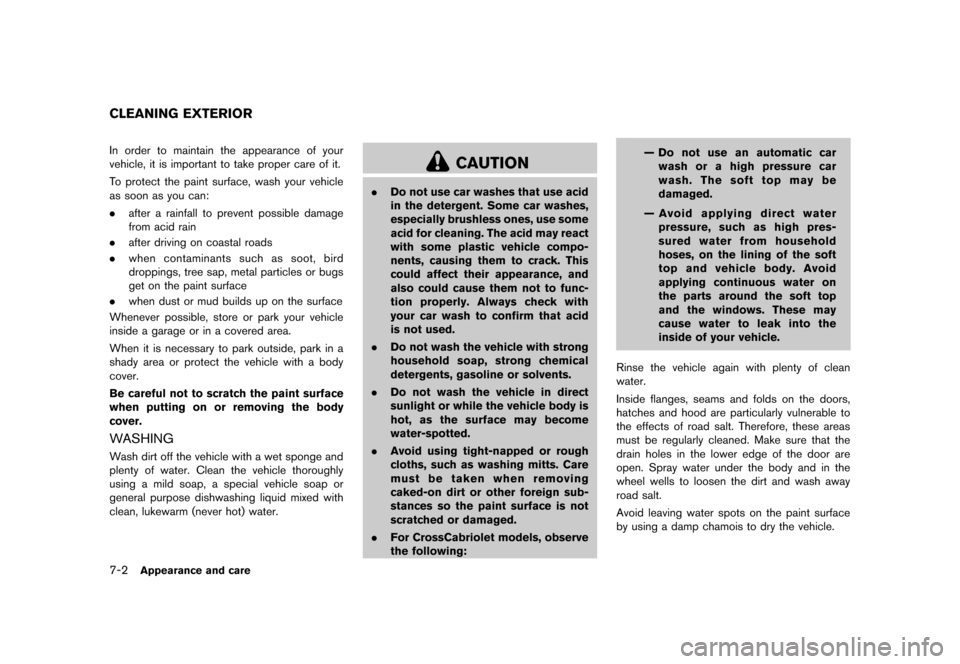

7-2Appearance and care
GUID-2AD6B705-9E6F-4362-9435-E1577A526821In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surface, wash your vehicle
as soon as you can:
.after a rainfall to prevent possible damage
from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.
WASHINGGUID-D51A0660-4C29-4EF2-A28F-AE1DA33F4E15Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION
. Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical
detergents, gasoline or solvents.
. Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
. For CrossCabriolet models, observe
the following: — Do not use an automatic car
wash or a high pressure car
wash. The soft top may be
damaged.
— Avoid applying direct water pressure, such as high pres-
sured water from household
hoses, on the lining of the soft
top and vehicle body. Avoid
applying continuous water on
the parts around the soft top
and the windows. These may
cause water to leak into the
inside of your vehicle.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
CLEANING EXTERIOR
Condition:
Page 419 of 507
Black plate (417,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

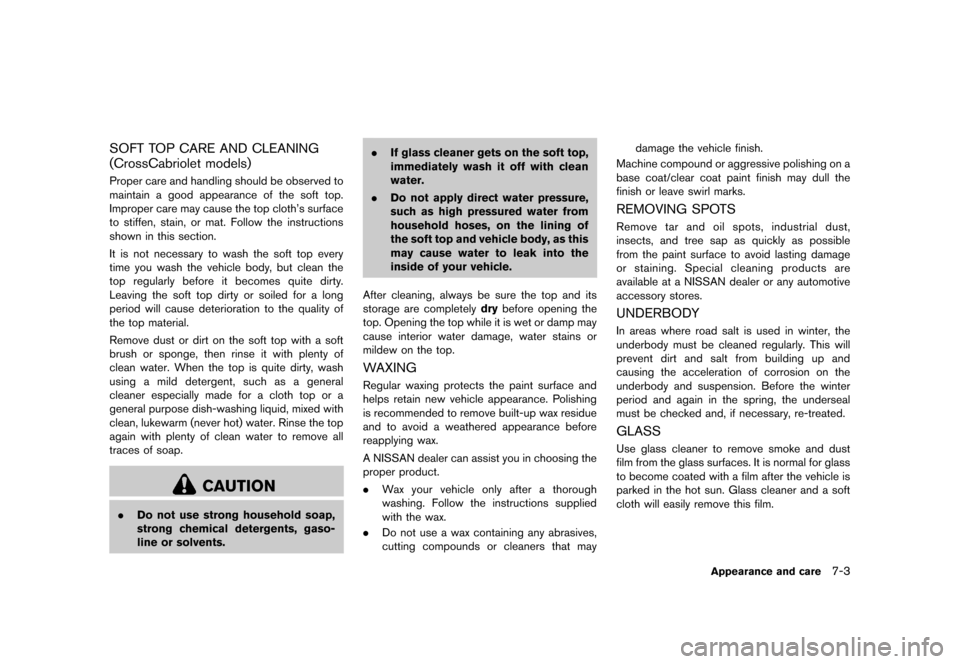

SOFT TOP CARE AND CLEANING
(CrossCabriolet models)
GUID-AA88797D-0FA7-4772-A989-D5C99AD917D9Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
top regularly before it becomes quite dirty.
Leaving the soft top dirty or soiled for a long
period will cause deterioration to the quality of
the top material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION
.Do not use strong household soap,
strong chemical detergents, gaso-
line or solvents. .
If glass cleaner gets on the soft top,
immediately wash it off with clean
water.
. Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of
the soft top and vehicle body, as this
may cause water to leak into the
inside of your vehicle.
After cleaning, always be sure the top and its
storage are completely drybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGGUID-20BC5BC6-C913-47BE-8285-58A5A20FFCBFRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
REMOVING SPOTSGUID-82CD7643-19F6-49BE-AE20-E97740B4311BRemove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a NISSAN dealer or any automotive
accessory stores.
UNDERBODYGUID-F3F926C4-50B1-44F7-85C9-37404B358943In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSGUID-AA3F797F-6D23-47DE-BD9F-52F6024D6755Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
Appearance and care7-3
Condition:
Page 420 of 507
Black plate (418,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

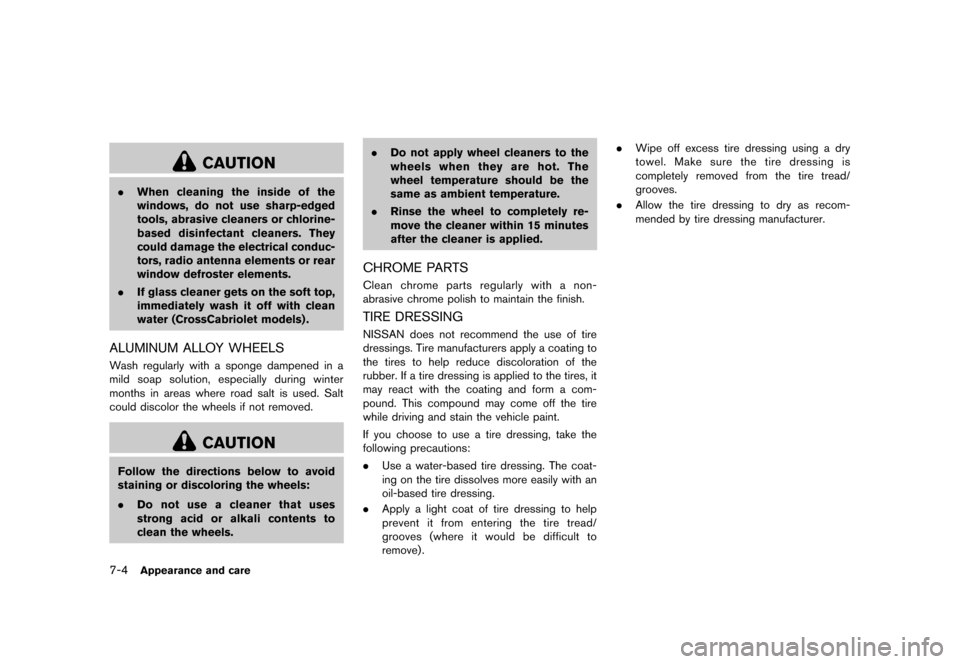

7-4Appearance and care
CAUTION
.When cleaning the inside of the
windows, do not use sharp-edged
tools, abrasive cleaners or chlorine-
based disinfectant cleaners. They
could damage the electrical conduc-
tors, radio antenna elements or rear
window defroster elements.
. If glass cleaner gets on the soft top,
immediately wash it off with clean
water (CrossCabriolet models) .
ALUMINUM ALLOY WHEELSGUID-9F1C3802-9D3B-47C3-8352-2B1CE547A4F2Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:
.Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels. .
Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSGUID-F3E4D57D-0215-409B-935F-28BFFF137B7EClean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGGUID-341760BC-1EC8-47E6-B2E8-49786F6FC160NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) . .
Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.
. Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
Condition:
