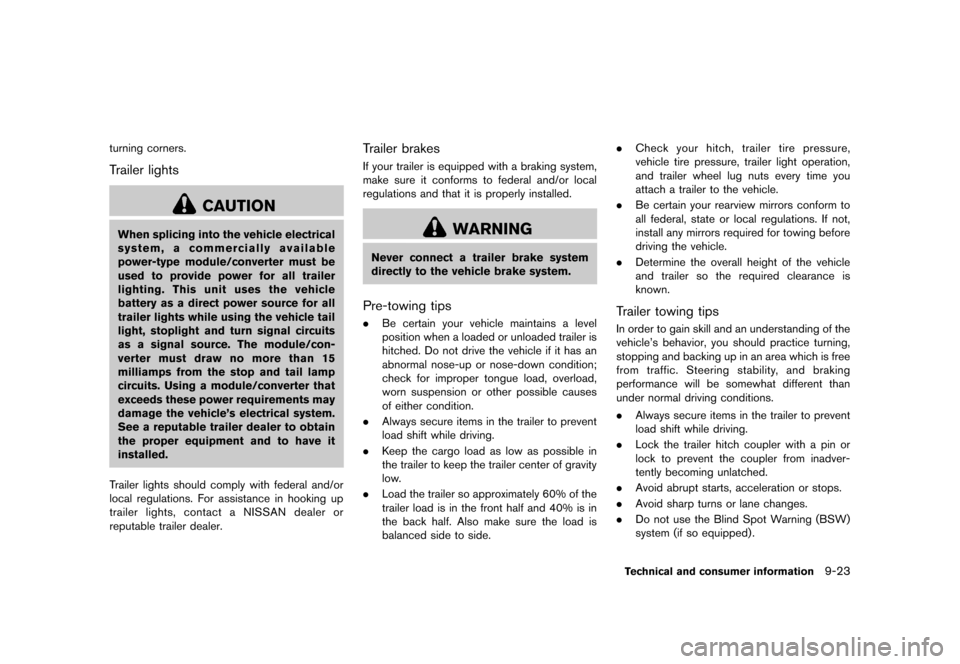

![NISSAN MURANO 2013 2.G Owners Manual Black plate (489,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
turning corners.
Trailer lightsGUID-C0E60E1B-4E97-47ED-94B2-2A921EA2AF95
CAUTION
When splicing into the vehicle electrical
system, a commercially NISSAN MURANO 2013 2.G Owners Manual Black plate (489,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
turning corners.
Trailer lightsGUID-C0E60E1B-4E97-47ED-94B2-2A921EA2AF95
CAUTION
When splicing into the vehicle electrical
system, a commercially](/img/5/332/w960_332-490.png)
Black plate (489,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
turning corners.
Trailer lightsGUID-C0E60E1B-4E97-47ED-94B2-2A921EA2AF95
CAUTION
When splicing into the vehicle electrical
system, a commercially available
power-type module/converter must be
used to provide power for all trailer
lighting. This unit uses the vehicle
battery as a direct power source for all
trailer lights while using the vehicle tail
light, stoplight and turn signal circuits
as a signal source. The module/con-
verter must draw no more than 15
milliamps from the stop and tail lamp
circuits. Using a module/converter that
exceeds these power requirements may
damage the vehicle’s electrical system.
See a reputable trailer dealer to obtain
the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, contact a NISSAN dealer or
reputable trailer dealer.
Trailer brakesGUID-21DD387F-EC09-4A2A-95BA-58E6193E64FAIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.
Pre-towing tipsGUID-2726CCBF-1308-4A9A-9EE9-831D4F3E1608. Be certain your vehicle maintains a level
position when a loaded or unloaded trailer is
hitched. Do not drive the vehicle if it has an
abnormal nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes
of either condition.
. Always secure items in the trailer to prevent
load shift while driving.
. Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
. Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side. .
Check your hitch, trailer tire pressure,
vehicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
. Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
. Determine the overall height of the vehicle
and trailer so the required clearance is
known.Trailer towing tipsGUID-18AE22C3-1763-4039-AB9A-7D6C36240ACDIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking
performance will be somewhat different than
under normal driving conditions.
.Always secure items in the trailer to prevent
load shift while driving.
. Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
. Avoid abrupt starts, acceleration or stops.
. Avoid sharp turns or lane changes.
. Do not use the Blind Spot Warning (BSW)
system (if so equipped) .
Technical and consumer information9-23
Condition:
Page 492 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (490,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-24Technical and consumer information
.Do not use the Lane Departure Warning
(LDW) system (if so equipped) .
. Always drive your vehicle at a mo NISSAN MURANO 2013 2.G Owners Manual Black plate (490,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-24Technical and consumer information
.Do not use the Lane Departure Warning
(LDW) system (if so equipped) .
. Always drive your vehicle at a mo](/img/5/332/w960_332-491.png)

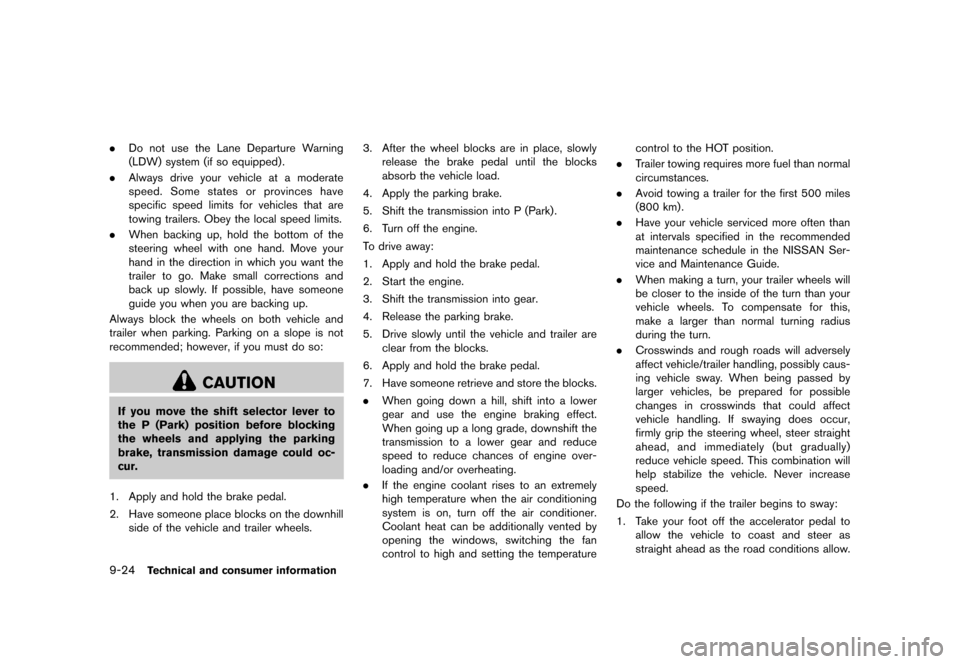

Black plate (490,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-24Technical and consumer information
.Do not use the Lane Departure Warning
(LDW) system (if so equipped) .
. Always drive your vehicle at a moderate
speed. Some states or provinces have
specific speed limits for vehicles that are
towing trailers. Obey the local speed limits.
. When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector lever to
the P (Park) position before blocking
the wheels and applying the parking
brake, transmission damage could oc-
cur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels. 3. After the wheel blocks are in place, slowly
release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
. When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine over-
loading and/or overheating.
. If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
opening the windows, switching the fan
control to high and setting the temperature control to the HOT position.
. Trailer towing requires more fuel than normal
circumstances.
. Avoid towing a trailer for the first 500 miles
(800 km) .
. Have your vehicle serviced more often than
at intervals specified in the recommended
maintenance schedule in the NISSAN Ser-
vice and Maintenance Guide.
. When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
. Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling. If swaying does occur,
firmly grip the steering wheel, steer straight
ahead, and immediately (but gradually)
reduce vehicle speed. This combination will
help stabilize the vehicle. Never increase
speed.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
Condition:
Page 493 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (491,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
This combination will help stabilize the
vehicle.
.Do not correct trailer sway by steering orapplying the brakes.
2. When the trailer sway stops, NISSAN MURANO 2013 2.G Owners Manual Black plate (491,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
This combination will help stabilize the
vehicle.
.Do not correct trailer sway by steering orapplying the brakes.
2. When the trailer sway stops,](/img/5/332/w960_332-492.png)

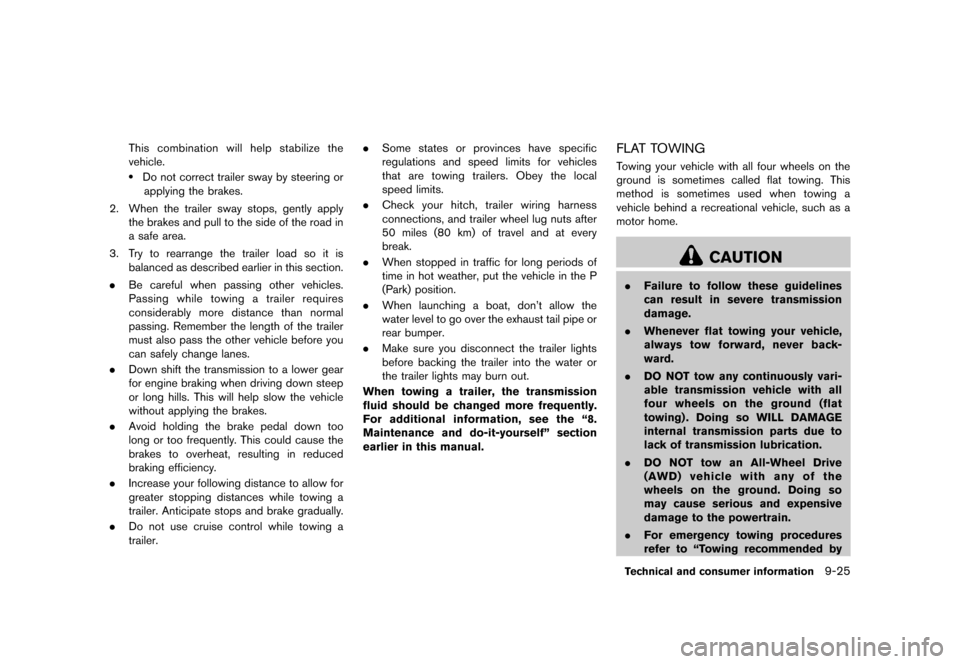

Black plate (491,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
This combination will help stabilize the
vehicle.
.Do not correct trailer sway by steering orapplying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in
a safe area.
3. Try to rearrange the trailer load so it is balanced as described earlier in this section.
. Be careful when passing other vehicles.
Passing while towing a trailer requires
considerably more distance than normal
passing. Remember the length of the trailer
must also pass the other vehicle before you
can safely change lanes.
. Down shift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
. Avoid holding the brake pedal down too
long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
. Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
. Do not use cruise control while towing a
trailer. .
Some states or provinces have specific
regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits.
. Check your hitch, trailer wiring harness
connections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every
break.
. When stopped in traffic for long periods of
time in hot weather, put the vehicle in the P
(Park) position.
. When launching a boat, don’t allow the
water level to go over the exhaust tail pipe or
rear bumper.
. Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, the transmission
fluid should be changed more frequently.
For additional information, see the “8.
Maintenance and do-it-yourself” section
earlier in this manual.
FLAT TOWINGGUID-3E848B66-44FF-4B16-8142-29DBD9690D46Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
. Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any continuously vari-
able transmission vehicle with all
four wheels on the ground (flat
towing) . Doing so WILL DAMAGE
internal transmission parts due to
lack of transmission lubrication.
. DO NOT tow an All-Wheel Drive
(AWD) vehicle with any of the
wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.
. For emergency towing procedures
refer to “Towing recommended by
Technical and consumer information9-25
Condition:
Page 494 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (492,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-26Technical and consumer information
NISSAN” in the “6. In case of
emergency” section of this manual.
Continuously Variable Transmission
NISSAN MURANO 2013 2.G Owners Manual Black plate (492,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-26Technical and consumer information
NISSAN” in the “6. In case of
emergency” section of this manual.
Continuously Variable Transmission](/img/5/332/w960_332-493.png)

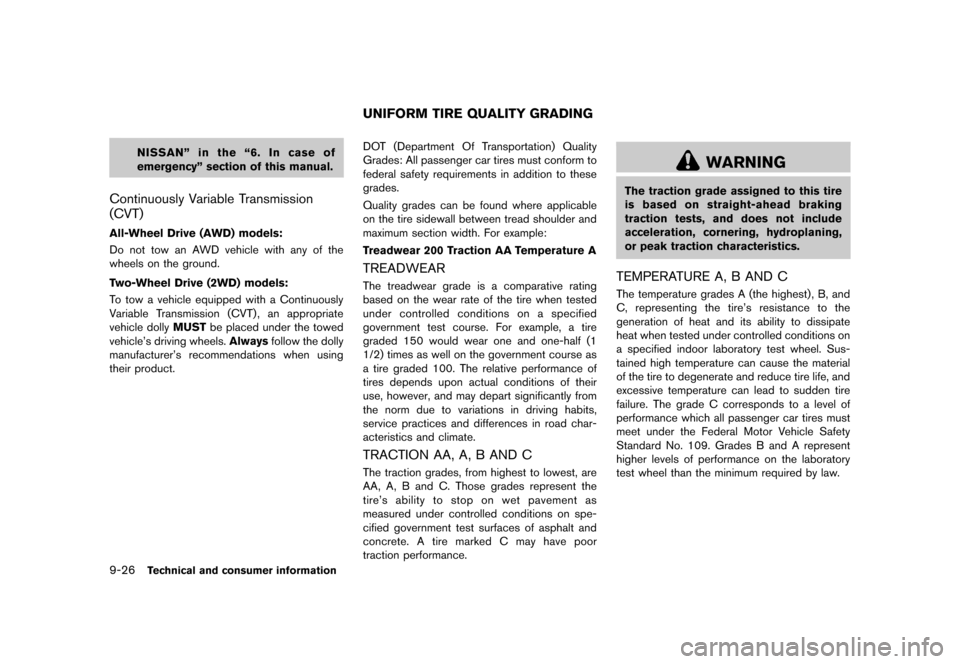

Black plate (492,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-26Technical and consumer information
NISSAN” in the “6. In case of
emergency” section of this manual.
Continuously Variable Transmission
(CVT)
GUID-2AEBE4E4-E0D5-492D-AA37-E27015E39277
All-Wheel Drive (AWD) models:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To tow a vehicle equipped with a Continuously
Variable Transmission (CVT) , an appropriate
vehicle dollyMUSTbe placed under the towed
vehicle’s driving wheels. Alwaysfollow the dolly
manufacturer’s recommendations when using
their product.
GUID-B742813A-9B62-42D0-B446-A6B0CFD16DF2DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-D8E60542-2737-4D58-9810-4EE9CE4B6744The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half (1
1/2) times as well on the government course as
a tire graded 100. The relative performance of
tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND CGUID-FF0AABDE-3976-447A-8911-BE64F5A5C056The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-738CE2E4-0C30-4FA9-9E42-152697D53964The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
UNIFORM TIRE QUALITY GRADING
Condition:
Page 495 of 507

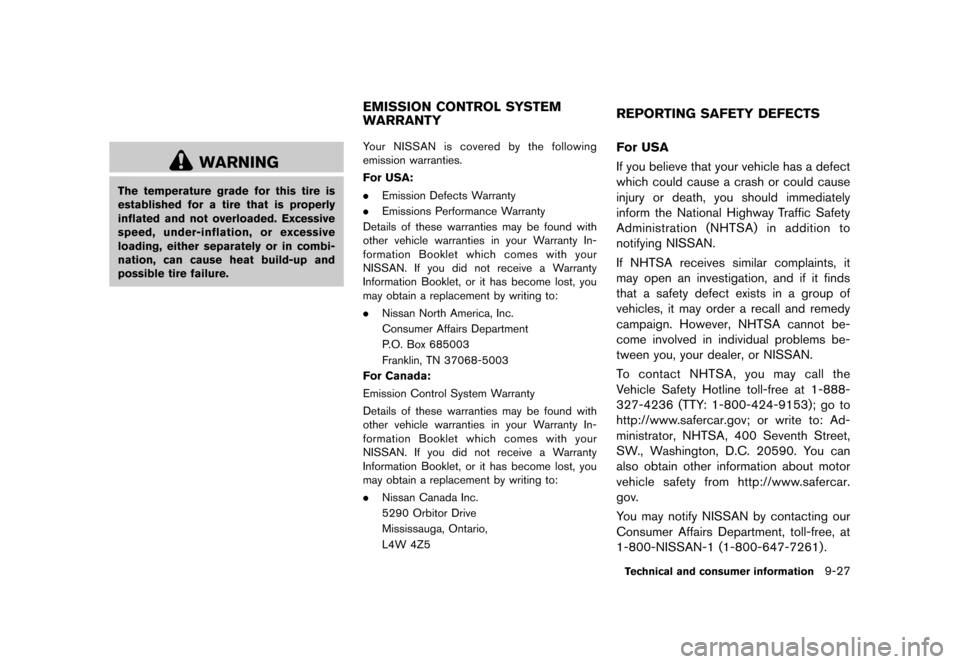

![NISSAN MURANO 2013 2.G Owners Manual Black plate (493,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflat NISSAN MURANO 2013 2.G Owners Manual Black plate (493,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflat](/img/5/332/w960_332-494.png)
Black plate (493,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-3D75299D-8D8D-42C4-BD73-3446D8B8AFD2Your NISSAN is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5GUID-61C292B9-5FCF-47DD-9C2D-0431833188EEFor USA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington, D.C. 20590. You can
also obtain other information about motor
vehicle safety from http://www.safercar.
gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1 (1-800-647-7261).
Technical and consumer information9-27
EMISSION CONTROL SYSTEM
WARRANTY REPORTING SAFETY DEFECTS
Condition:
Page 496 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (494,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-28Technical and consumer information
For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury o NISSAN MURANO 2013 2.G Owners Manual Black plate (494,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-28Technical and consumer information
For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury o](/img/5/332/w960_332-495.png)
Black plate (494,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-28Technical and consumer information
For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada in addition to
notifying NISSAN.
If Transport Canada receives complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become involved
in individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division toll
free at 1-800-333-0510. You may also
report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere(French speakers).
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
GUID-D4D45566-401E-4F0A-995A-35B330AF403B
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing) , or similar equip-
ment. Make sure you inform test facility
personnel that your vehicle is equipped
with AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Condition:
Page 497 of 507

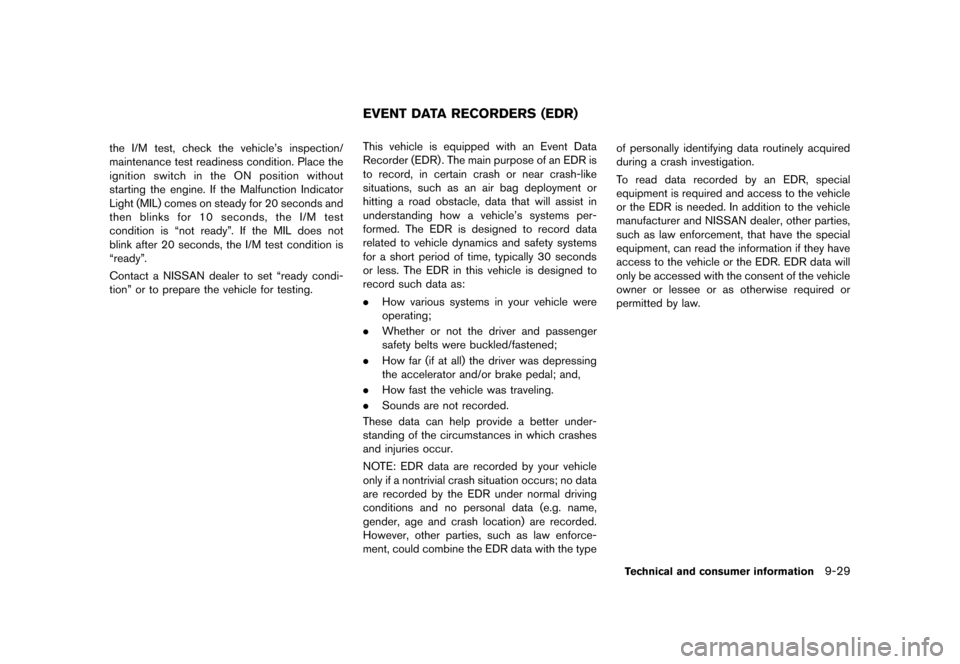

![NISSAN MURANO 2013 2.G Owners Manual Black plate (495,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starti NISSAN MURANO 2013 2.G Owners Manual Black plate (495,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starti](/img/5/332/w960_332-496.png)
Black plate (495,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.
GUID-5806F2C7-ABF6-48A5-B377-3E98320DFB18This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
Technical and consumer information9-29
EVENT DATA RECORDERS (EDR)
Condition:
Page 498 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (496,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-30Technical and consumer information
GUID-63089829-29DE-4259-8B9D-7A8EAE7A2ABDGenuine NISSAN Service Manuals for this
model year and prior can NISSAN MURANO 2013 2.G Owners Manual Black plate (496,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-30Technical and consumer information
GUID-63089829-29DE-4259-8B9D-7A8EAE7A2ABDGenuine NISSAN Service Manuals for this
model year and prior can](/img/5/332/w960_332-497.png)

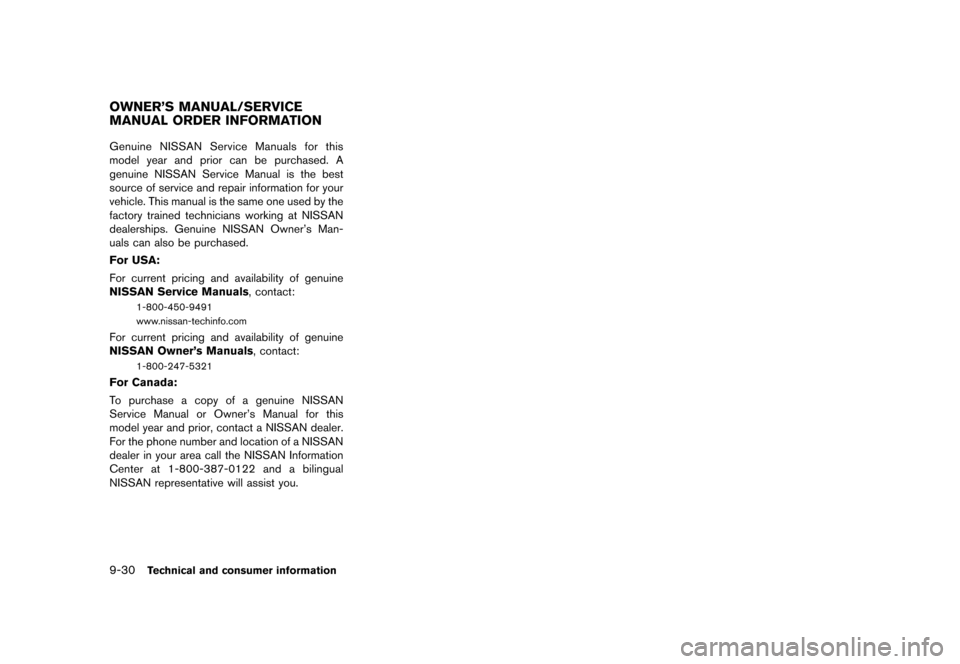

Black plate (496,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9-30Technical and consumer information
GUID-63089829-29DE-4259-8B9D-7A8EAE7A2ABDGenuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory trained technicians working at NISSAN
dealerships. Genuine NISSAN Owner’s Man-
uals can also be purchased.
For USA:
For current pricing and availability of genuine
NISSAN Service Manuals, contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior, contact a NISSAN dealer.
For the phone number and location of a NISSAN
dealer in your area call the NISSAN Information
Center at 1-800-387-0122 and a bilingual
NISSAN representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Condition:
Page 499 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (497,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-38
Advanced air bag system ...
...................................... NISSAN MURANO 2013 2.G Owners Manual Black plate (497,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-38
Advanced air bag system ...
......................................](/img/5/332/w960_332-498.png)

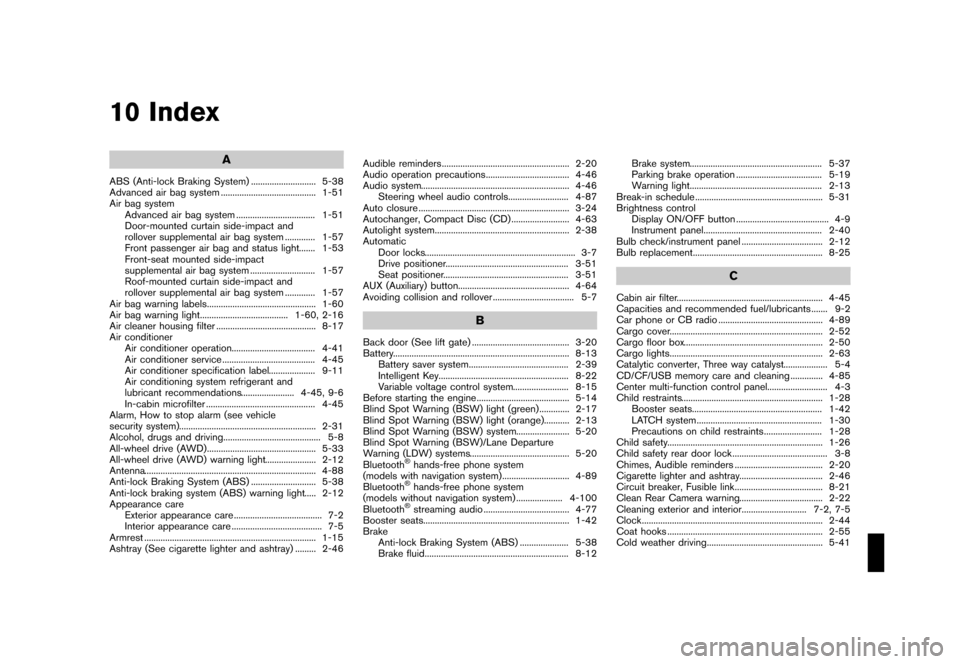

Black plate (497,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-38
Advanced air bag system ...
......................................... 1-51
Air bag system Advanced air bag system ...
.................................. 1-51
Door-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-57
Front passenger air bag and status light ...
....... 1-53
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-57
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-57
Air bag warning labels ...
............................................... 1-60
Air bag warning light ...
...................................... 1-60, 2-16
Air cleaner housing filter ...
........................................... 8-17
Air conditioner Air conditioner operation ...
.................................... 4-41
Air conditioner service ...
........................................ 4-45
Air conditioner specification label ...
.................... 9-11
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-45, 9-6
In-cabin microfilter ...
............................................... 4-45
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-31
Alcohol, drugs and driving ...
.......................................... 5-8
All-wheel drive (AWD) ...
............................................... 5-33
All-wheel drive (AWD) warning light ...
...................... 2-12
Antenna ...
.......................................................................... 4-88
Anti-lock Braking System (ABS) ...
............................ 5-38
Anti-lock braking system (ABS) warning light ...
..... 2-12
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-5
Armrest ...
.......................................................................... 1-15
Ashtray (See cigarette lighter and ashtray) ...
......... 2-46 Audible reminders
...
....................................................... 2-20
Audio operation precautions ...
.................................... 4-46
Audio system ...
................................................................ 4-46
Steering wheel audio controls ...
.......................... 4-87
Auto closure ...
................................................................. 3-24
Autochanger, Compact Disc (CD) ...
......................... 4-63
Autolight system ...
.......................................................... 2-38
Automatic Door locks ...
................................................................. 3-7
Drive positioner ...
..................................................... 3-51
Seat positioner ...
...................................................... 3-51
AUX (Auxiliary) button ...
................................................ 4-64
Avoiding collision and rollover ...
................................... 5-7
B
Back door (See lift gate) ...
.......................................... 3-20
Battery ...
............................................................................ 8-13
Battery saver system ...
........................................... 2-39
Intelligent Key ...
........................................................ 8-22
Variable voltage control system ...
........................ 8-15
Before starting the engine ...
........................................ 5-14
Blind Spot Warning (BSW) light (green) ...
............. 2-17
Blind Spot Warning (BSW) light (orange) ...
........... 2-13
Blind Spot Warning (BSW) system ...
....................... 5-20
Blind Spot Warning (BSW)/Lane Departure
Warning (LDW) systems ...
........................................... 5-20
Bluetooth
®hands-free phone system
(models with navigation system) ...
............................. 4-89
Bluetooth
®hands-free phone system
(models without navigation system) ...
.................... 4-100
Bluetooth
®streaming audio ...
..................................... 4-77
Booster seats ...
............................................................... 1-42
Brake Anti-lock Braking System (ABS) ...
..................... 5-38
Brake fluid ...
.............................................................. 8-12 Brake system
...
......................................................... 5-37
Parking brake operation ...
..................................... 5-19
Warning light ...
......................................................... 2-13
Break-in schedule ...
....................................................... 5-31
Brightness control Display ON/OFF button ...
........................................ 4-9
Instrument panel ...
................................................... 2-40
Bulb check/instrument panel ...
................................... 2-12
Bulb replacement ...
........................................................ 8-25
C
Cabin air filter ...
............................................................... 4-45
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-89
Cargo cover ...
.................................................................. 2-52
Cargo floor box ...
............................................................ 2-50
Cargo lights ...
.................................................................. 2-63
Catalytic converter, Three way catalyst ...
................... 5-4
CD/CF/USB memory care and cleaning ...
.............. 4-85
Center multi-function control panel ...
.......................... 4-3
Child restraints ...
............................................................. 1-28
Booster seats ...
........................................................ 1-42
LATCH system ...
...................................................... 1-30
Precautions on child restraints ...
......................... 1-28
Child safety ...
................................................................... 1-26
Child safety rear door lock ...
......................................... 3-8
Chimes, Audible reminders ...
...................................... 2-20
Cigarette lighter and ashtray ...
.................................... 2-46
Circuit breaker, Fusible link ...
...................................... 8-21
Clean Rear Camera warning ...
.................................... 2-22
Cleaning exterior and interior ...
............................ 7-2, 7-5
Clock ...
.............................................................................. 2-44
Coat hooks ...
................................................................... 2-55
Cold weather driving ...
.................................................. 5-41
Condition:
Page 500 of 507
![NISSAN MURANO 2013 2.G Owners Manual Black plate (498,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10-2
Compact Disc (CD) changer (See
audio system)...
............................................................... 4-63
Compact Disc (CD) playe NISSAN MURANO 2013 2.G Owners Manual Black plate (498,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10-2
Compact Disc (CD) changer (See
audio system)...
............................................................... 4-63
Compact Disc (CD) playe](/img/5/332/w960_332-499.png)

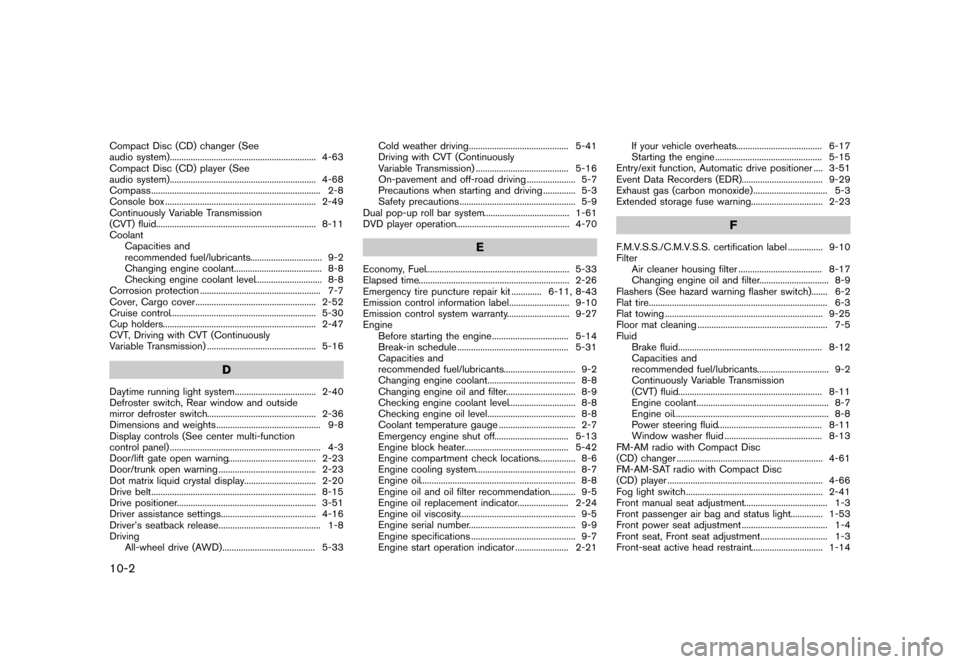

Black plate (498,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
10-2
Compact Disc (CD) changer (See
audio system)...
............................................................... 4-63
Compact Disc (CD) player (See
audio system) ...
............................................................... 4-68
Compass ...
......................................................................... 2-8
Console box ...
................................................................. 2-49
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-7
Cover, Cargo cover ...
.................................................... 2-52
Cruise control ...
............................................................... 5-30
Cup holders ...
.................................................................. 2-47
CVT, Driving with CVT (Continuously
Variable Transmission) ...
............................................... 5-16
D
Daytime running light system ...
................................... 2-40
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-36
Dimensions and weights ...
............................................. 9-8
Display controls (See center multi-function
control panel) ...
................................................................. 4-3
Door/lift gate open warning ...
...................................... 2-23
Door/trunk open warning ...
.......................................... 2-23
Dot matrix liquid crystal display ...
............................... 2-20
Drive belt ...
....................................................................... 8-15
Drive positioner ...
............................................................ 3-51
Driver assistance settings ...
......................................... 4-16
Driver’s seatback release ...
............................................ 1-8
Driving All-wheel drive (AWD) ...
........................................ 5-33 Cold weather driving
...
........................................... 5-41
Driving with CVT (Continuously
Variable Transmission) ...
........................................ 5-16
On-pavement and off-road driving ...
..................... 5-7
Precautions when starting and driving ...
.............. 5-3
Safety precautions ...
.................................................. 5-9
Dual pop-up roll bar system ...
..................................... 1-61
DVD player operation ...
................................................. 4-70
E
Economy, Fuel ...
.............................................................. 5-33
Elapsed time ...
................................................................. 2-26
Emergency tire puncture repair kit ...
............. 6-11, 8-43
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-27
Engine Before starting the engine ...
................................. 5-14
Break-in schedule ...
................................................ 5-31
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-13
Engine block heater ...
............................................. 5-42
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil replacement indicator ...
...................... 2-24
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
Engine start operation indicator ...
....................... 2-21 If your vehicle overheats
...
..................................... 6-17
Starting the engine ...
.............................................. 5-15
Entry/exit function, Automatic drive positioner ...
.... 3-51
Event Data Recorders (EDR) ...
................................... 9-29
Exhaust gas (carbon monoxide) ...
................................ 5-3
Extended storage fuse warning ...
............................... 2-23
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-10
Filter Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-25
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Power steering fluid ...
............................................. 8-11
Window washer fluid ...
.......................................... 8-13
FM-AM radio with Compact Disc
(CD) changer ...
............................................................... 4-61
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-66
Fog light switch ...
........................................................... 2-41
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-53
Front power seat adjustment ...
..................................... 1-4
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraint ...
............................... 1-14
Condition:
