Page 11 of 44

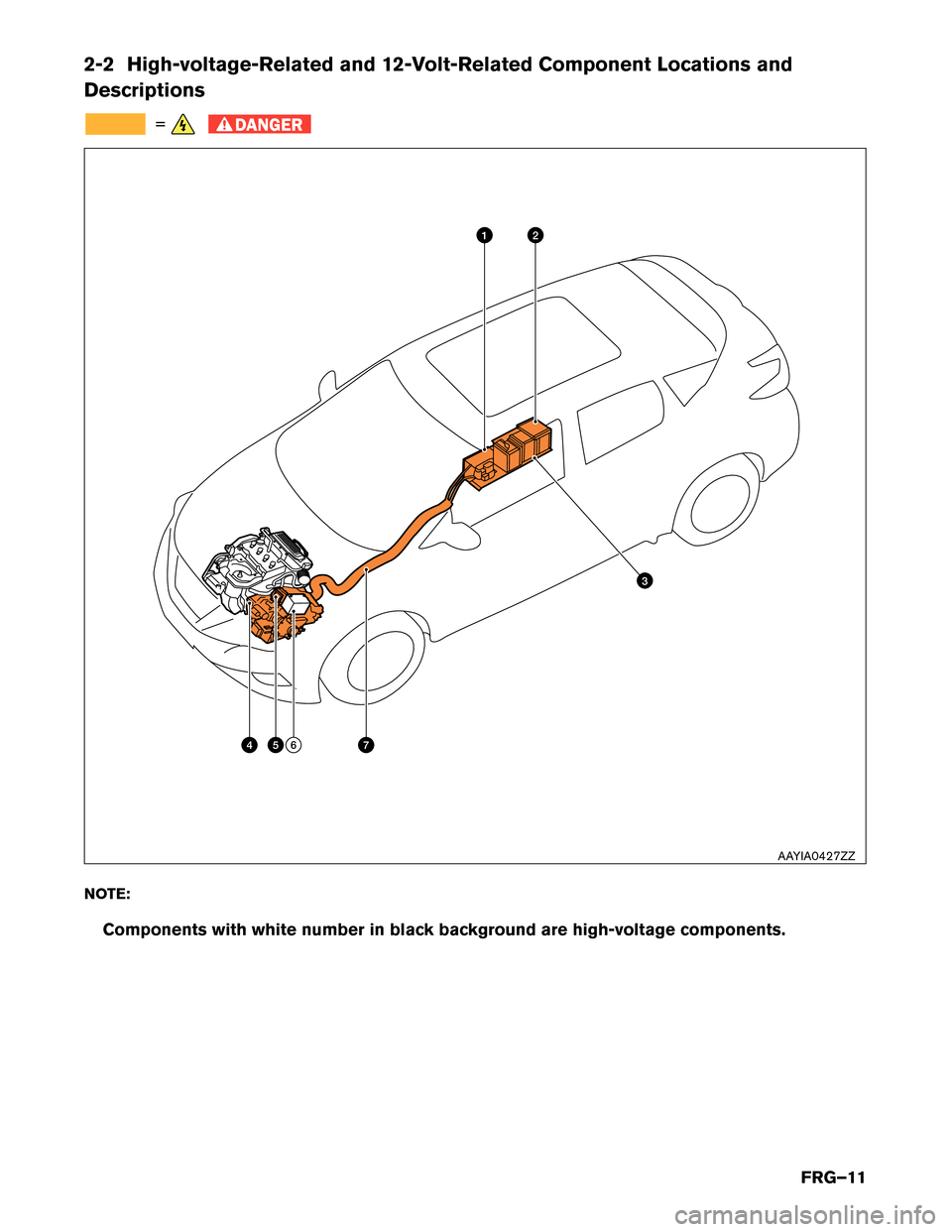

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 2-2 High-voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
DANGER
NOTE:
Components with white number in black background are high-voltage components. 5 74 6 2
31
AAYIA0427ZZ
F

Page 12 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide No. Component
LocationDescription
� DC/DC
Converter Inside the centerconsole area
(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide

Page 13 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 2-4 High-voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage co

Page 14 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide The following warning label is applied to the high-voltage battery located inside the passenger compartment
center
console.
2-5 High-voltage Safety System

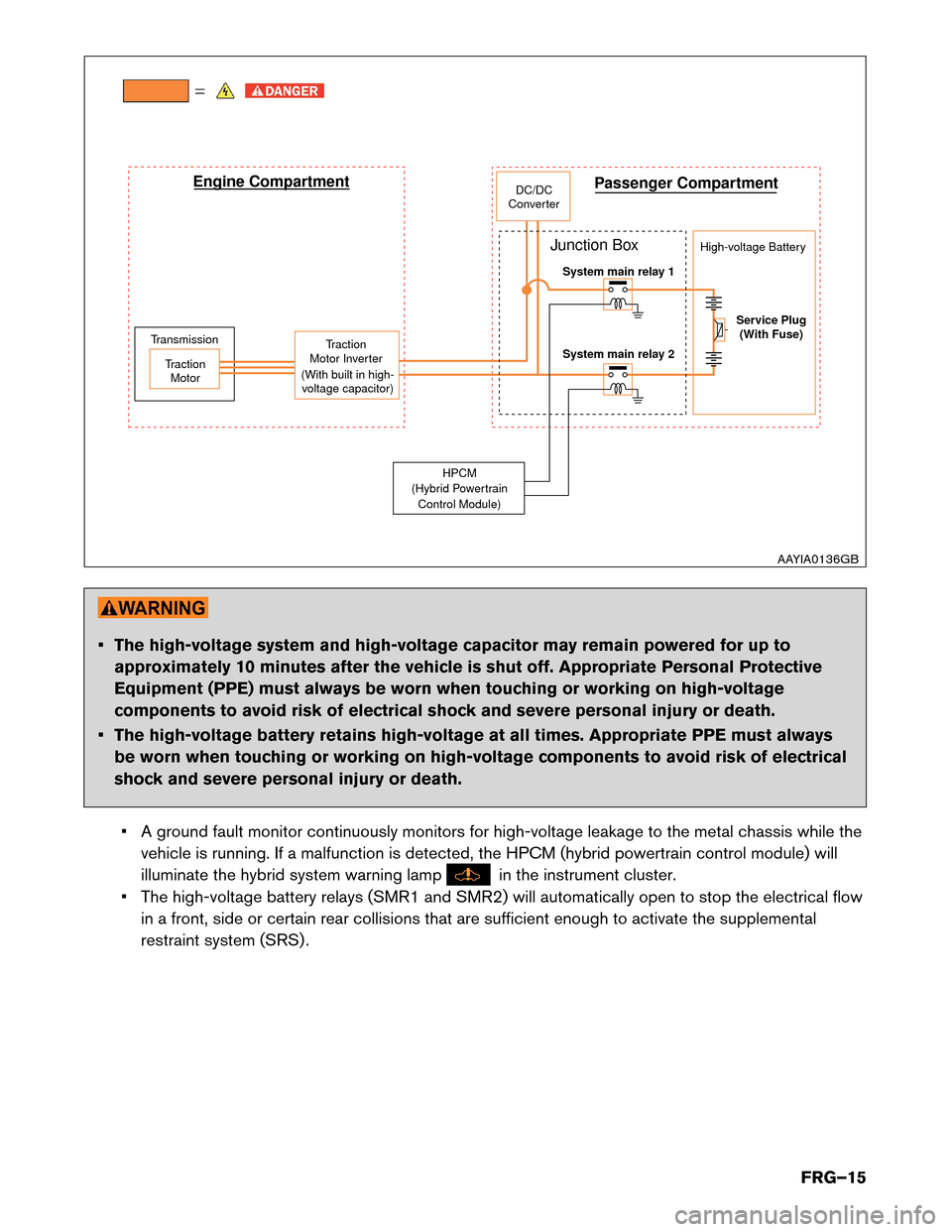

The high-voltage safety system is intended to

Page 15 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide • The high-voltage system and high-voltage capacitor may remain powered for up to
approximately 10 minutes after the vehicle is shut off. Appropriate Personal Protective
Equipment (PPE) must always

Page 16 of 44

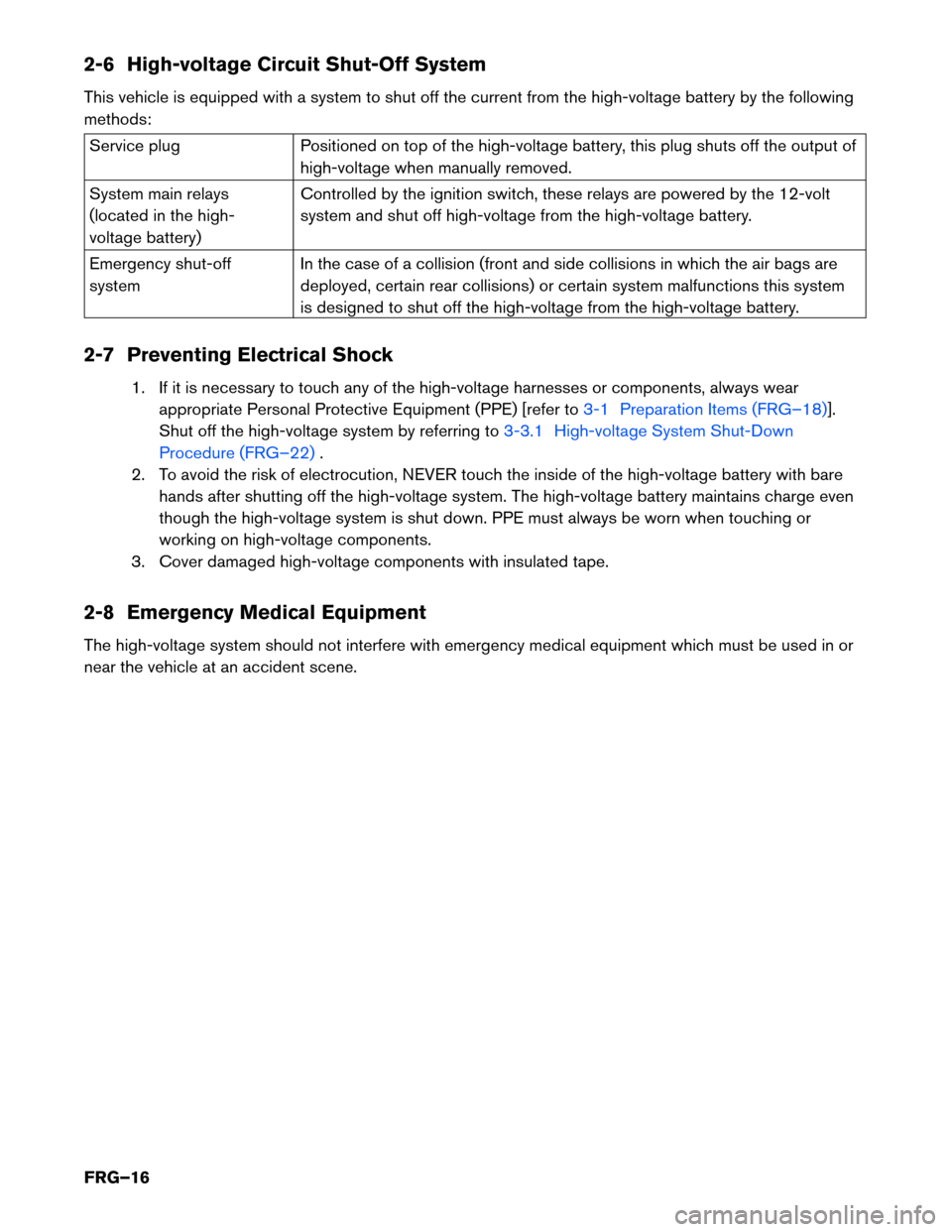

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 2-6 High-voltage Circuit Shut-Off System
This
vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned on top of the hi

Page 17 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3. Emergency Response Steps
DANGER
• Failure to properly shut down the high-voltage electrical system before the
Emergency Response Procedures are performed will result in serious injury or death
fr

Page 18 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
–

Page 19 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform
an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
3-1.2

Page 20 of 44

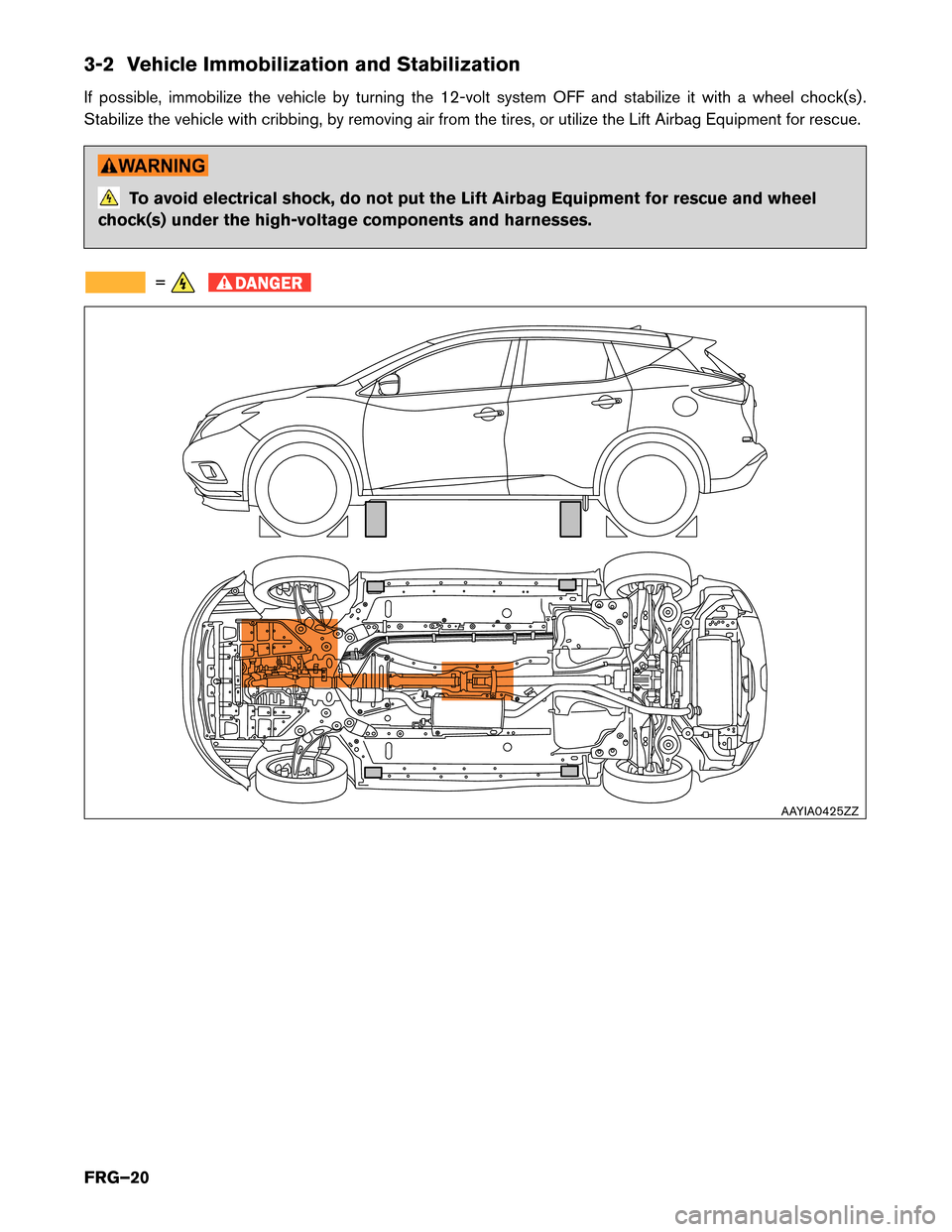

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-2 Vehicle Immobilization and StabilizationIf possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by remov
