Wiring Diagram Ð SHIFT Ð
TAT047M
TROUBLE DIAGNOSES Ð A/T Shift Lock System
AT-2013

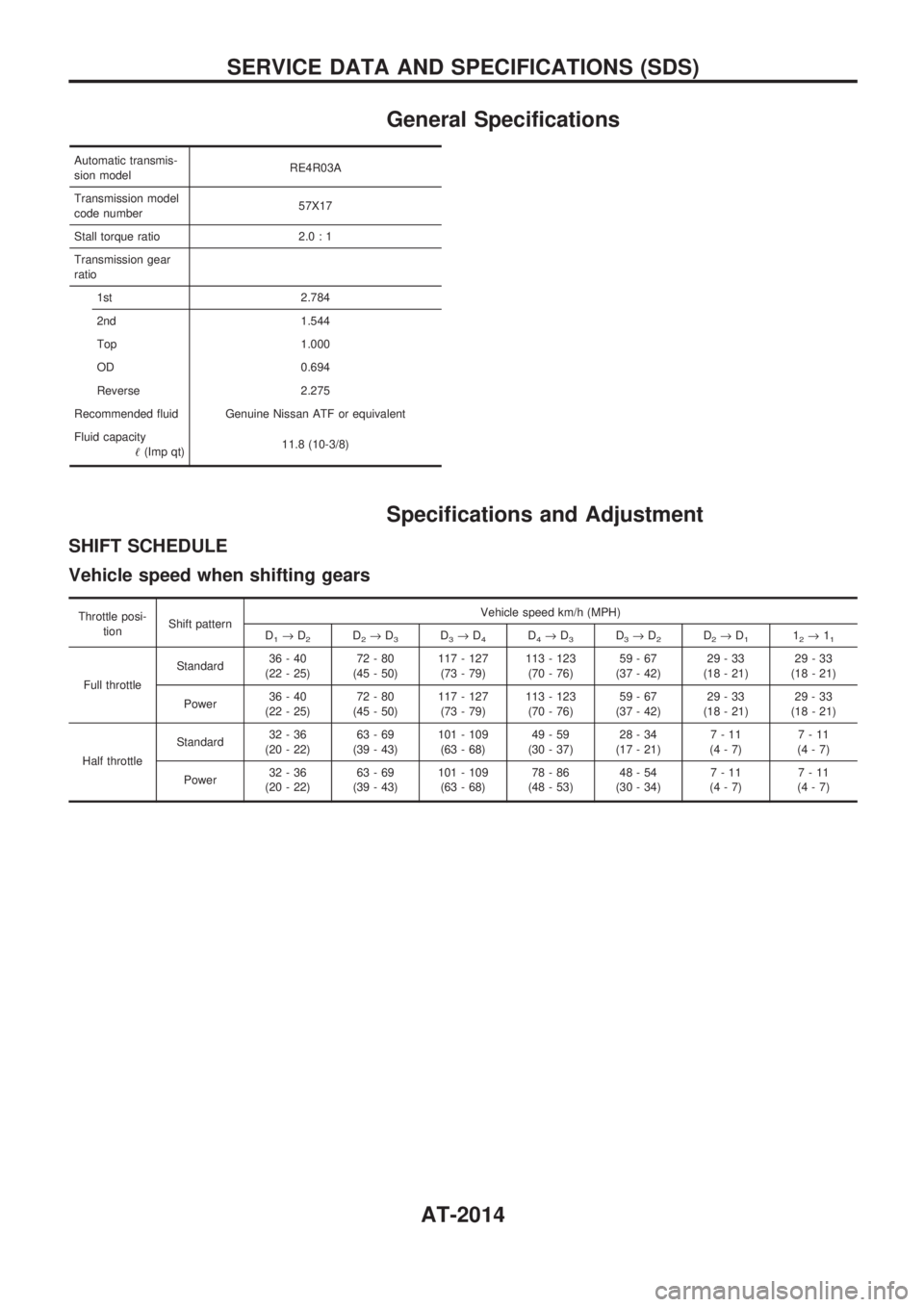

General Specifications
Automatic transmis-
sion modelRE4R03A
Transmission model
code number57X17
Stall torque ratio 2.0 : 1
Transmission gear
ratio
1st 2.784
2nd 1.544
Top 1.000
OD 0.694
Reverse 2.275
Recommended fluid Genuine Nissan ATF or equivalent
Fluid capacity
!(Imp qt)11.8 (10-3/8)
Specifications and Adjustment
SHIFT SCHEDULE
Vehicle speed when shifting gears
Throttle posi-
tionShift patternVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttleStandard36-40
(22 - 25)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)59-67
(37 - 42)29-33
(18 - 21)29-33
(18 - 21)
Power36-40
(22 - 25)72-80
(45 - 50)117 - 127
(73 - 79)113 - 123
(70 - 76)59-67
(37 - 42)29-33
(18 - 21)29-33
(18 - 21)
Half throttleStandard32-36
(20 - 22)63-69
(39 - 43)101 - 109
(63 - 68)49-59
(30 - 37)28-34
(17 - 21)7-11
(4-7)7-11
(4-7)
Power32-36
(20 - 22)63-69
(39 - 43)101 - 109
(63 - 68)78-86
(48 - 53)48-54
(30 - 34)7-11
(4-7)7-11
(4-7)
SERVICE DATA AND SPECIFICATIONS (SDS)
AT-2014

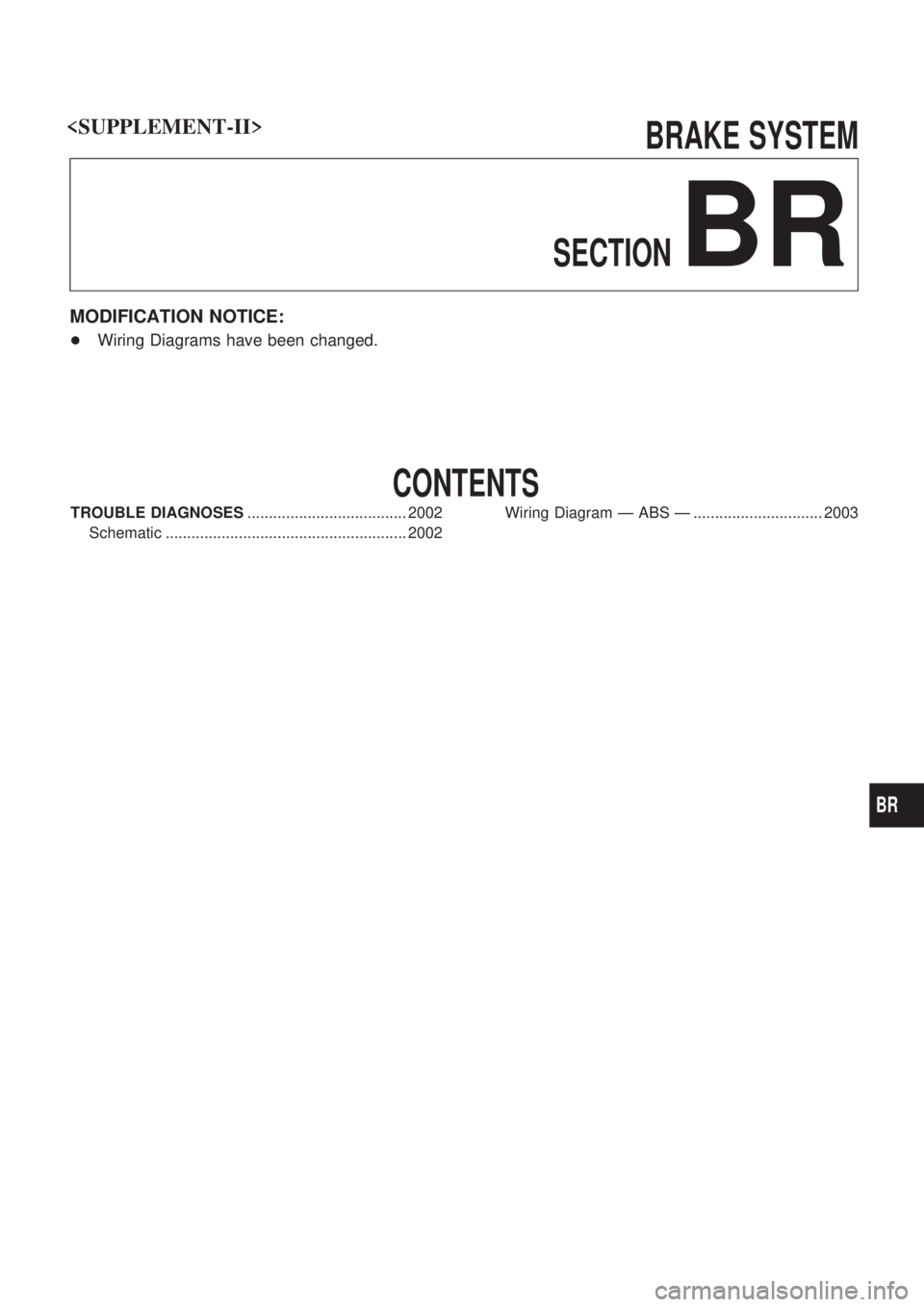

BRAKE SYSTEM
SECTION
BR
MODIFICATION NOTICE:
+Wiring Diagrams have been changed.
CONTENTS
TROUBLE DIAGNOSES..................................... 2002
Schematic ........................................................ 2002Wiring Diagram Ð ABS Ð .............................. 2003

BR

Schematic
TBR021M
TROUBLE DIAGNOSES
BR-2002

Wiring Diagram Ð ABS Ð
TBR022M
TROUBLE DIAGNOSES
BR-2003

TBR023M
TROUBLE DIAGNOSES
Wiring Diagram Ð ABS Ð (Cont'd)
BR-2004
