NISSAN PATROL 2002 Electronic Repair Manual

Wiring Diagram Ð DIFF/L Ð
TPD016M
DIFFERENTIAL LOCK
PD-3002

TPD015M
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð (Cont'd)
PD-3003

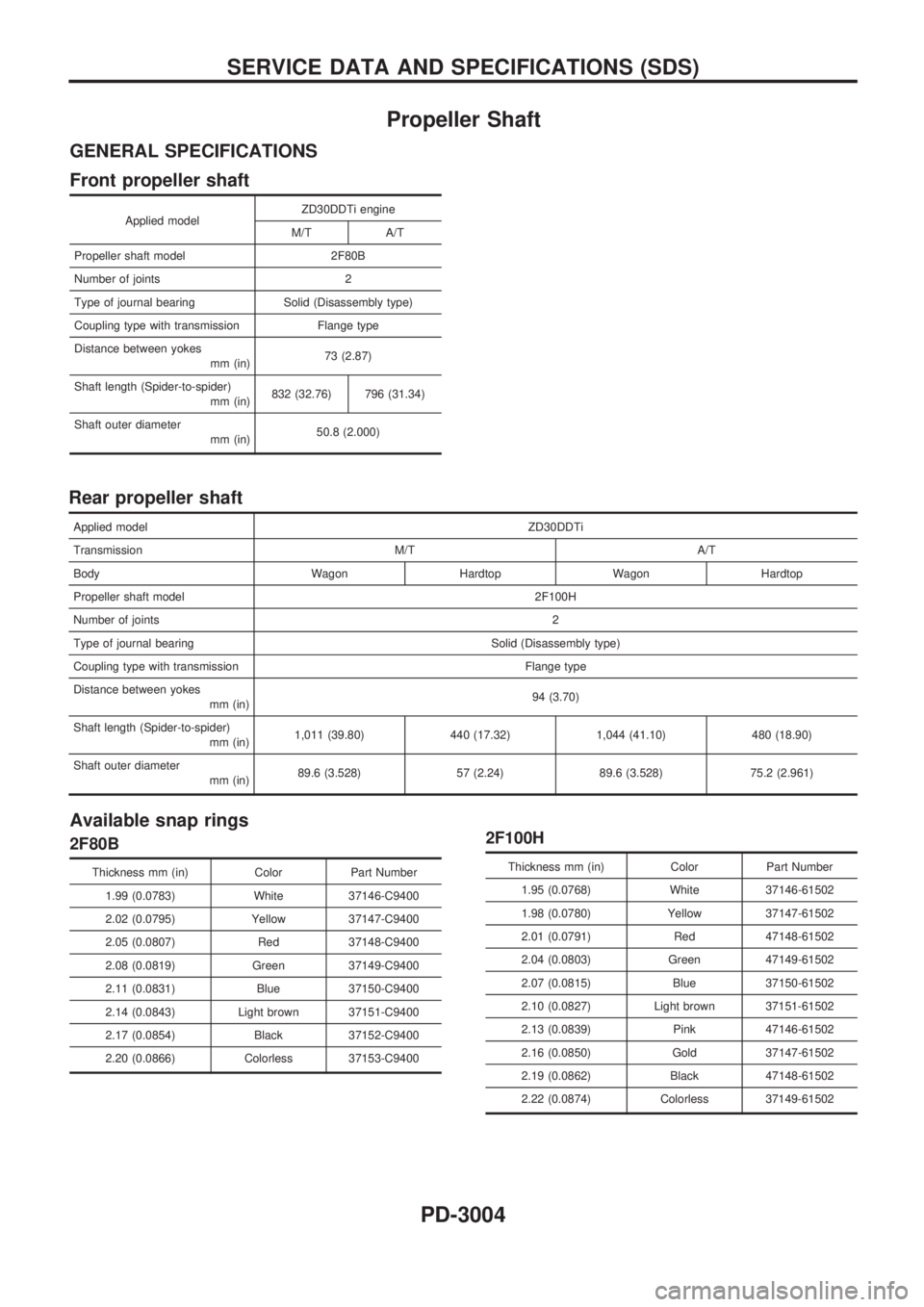

Propeller Shaft
GENERAL SPECIFICATIONS
Front propeller shaft
Applied modelZD30DDTi engine
M/T A/T
Propeller shaft model 2F80B
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with transmission Flange type
Distance between yokes
mm (in)73 (2.87)
Shaft length (Spider-to-spider)
mm (in)832 (32.76) 796 (31.34)
Shaft outer diameter
mm (in)50.8 (2.000)
Rear propeller shaft
Applied modelZD30DDTi
Transmission M/T A/T
Body Wagon Hardtop Wagon Hardtop
Propeller shaft model 2F100H
Number of joints2
Type of journal bearing Solid (Disassembly type)
Coupling type with transmission Flange type
Distance between yokes
mm (in)94 (3.70)
Shaft length (Spider-to-spider)
mm (in)1,011 (39.80) 440 (17.32) 1,044 (41.10) 480 (18.90)
Shaft outer diameter
mm (in)89.6 (3.528) 57 (2.24) 89.6 (3.528) 75.2 (2.961)
Available snap rings
2F80B
Thickness mm (in) Color Part Number
1.99 (0.0783) White 37146-C9400
2.02 (0.0795) Yellow 37147-C9400
2.05 (0.0807) Red 37148-C9400
2.08 (0.0819) Green 37149-C9400
2.11 (0.0831) Blue 37150-C9400
2.14 (0.0843) Light brown 37151-C9400
2.17 (0.0854) Black 37152-C9400
2.20 (0.0866) Colorless 37153-C9400
2F100H
Thickness mm (in) Color Part Number
1.95 (0.0768) White 37146-61502
1.98 (0.0780) Yellow 37147-61502
2.01 (0.0791) Red 47148-61502
2.04 (0.0803) Green 47149-61502
2.07 (0.0815) Blue 37150-61502
2.10 (0.0827) Light brown 37151-61502
2.13 (0.0839) Pink 47146-61502
2.16 (0.0850) Gold 37147-61502
2.19 (0.0862) Black 47148-61502
2.22 (0.0874) Colorless 37149-61502
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-3004

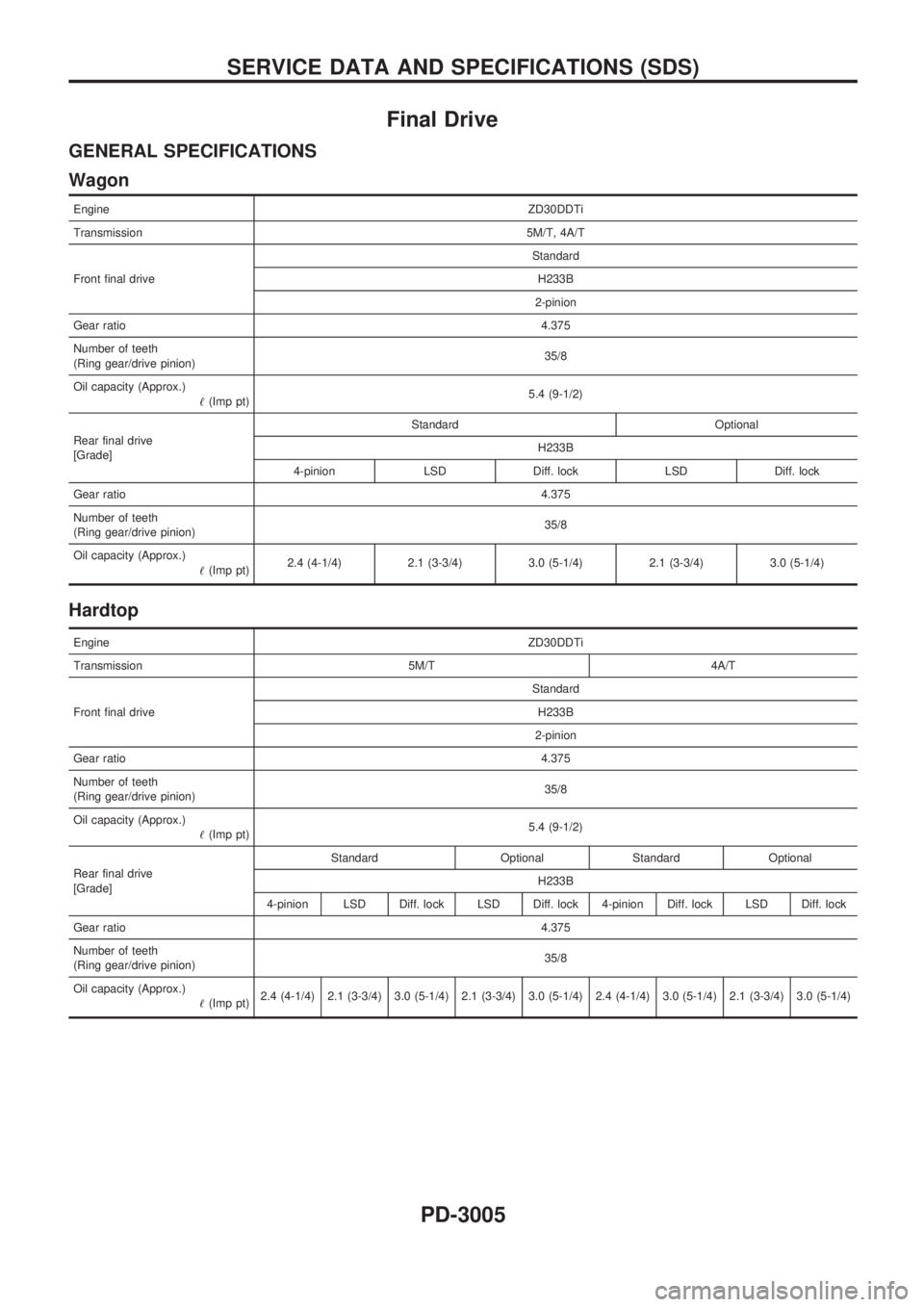

Final Drive
GENERAL SPECIFICATIONS
Wagon
EngineZD30DDTi
Transmission5M/T, 4A/T
Front final driveStandard
H233B
2-pinion
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear final drive
[Grade]Standard Optional
H233B
4-pinion LSD Diff. lock LSD Diff. lock
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4)
Hardtop
EngineZD30DDTi
Transmission 5M/T 4A/T
Front final driveStandard
H233B
2-pinion
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear final drive
[Grade]Standard Optional Standard Optional
H233B
4-pinion LSD Diff. lock LSD Diff. lock 4-pinion Diff. lock LSD Diff. lock
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.4 (4-1/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-3005

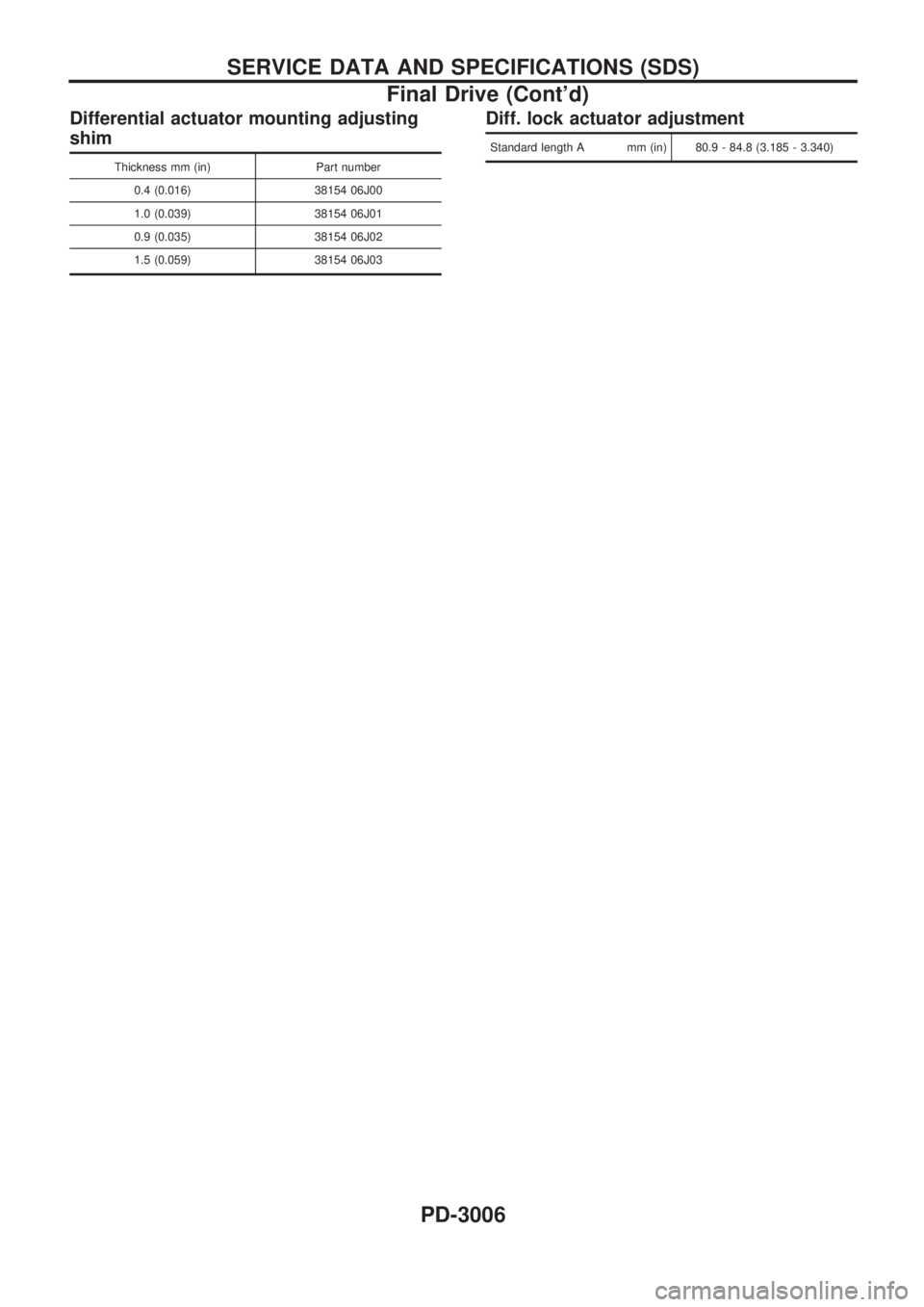

Differential actuator mounting adjusting
shim
Thickness mm (in) Part number
0.4 (0.016) 38154 06J00
1.0 (0.039) 38154 06J01
0.9 (0.035) 38154 06J02
1.5 (0.059) 38154 06J03
Diff. lock actuator adjustment
Standard length A mm (in) 80.9 - 84.8 (3.185 - 3.340)
SERVICE DATA AND SPECIFICATIONS (SDS)
Final Drive (Cont'd)
PD-3006

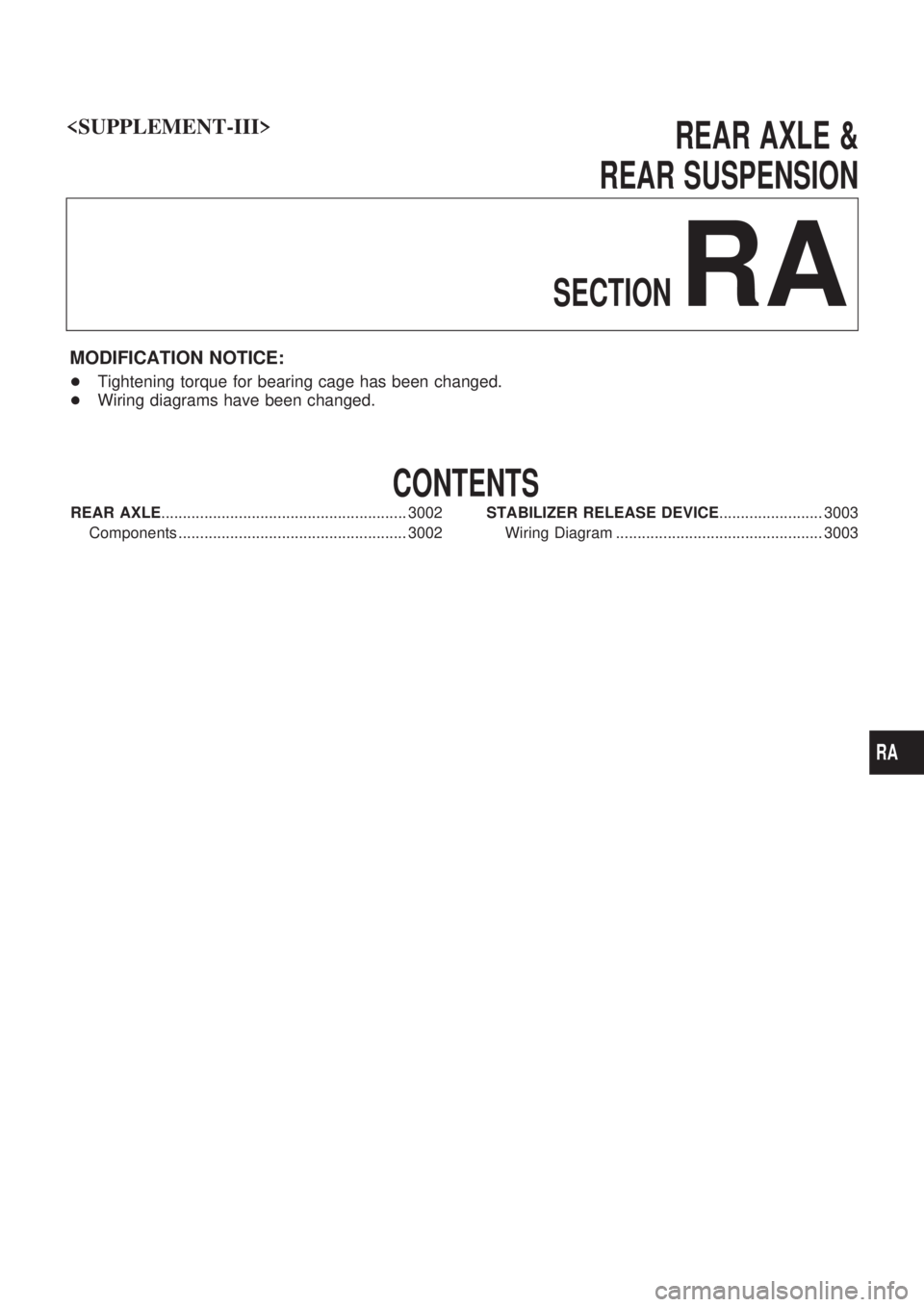

REAR AXLE &
REAR SUSPENSION
SECTION
RA
MODIFICATION NOTICE:
+Tightening torque for bearing cage has been changed.
+Wiring diagrams have been changed.
CONTENTS
REAR AXLE......................................................... 3002
Components ..................................................... 3002STABILIZER RELEASE DEVICE........................ 3003
Wiring Diagram ................................................ 3003

RA

Components
DRUM BRAKE TYPE
SRA887A
REAR AXLE
RA-3002

Wiring Diagram
TRA007M
STABILIZER RELEASE DEVICE
RA-3003

TRA008M
STABILIZER RELEASE DEVICE
Wiring Diagram (Cont'd)
RA-3004

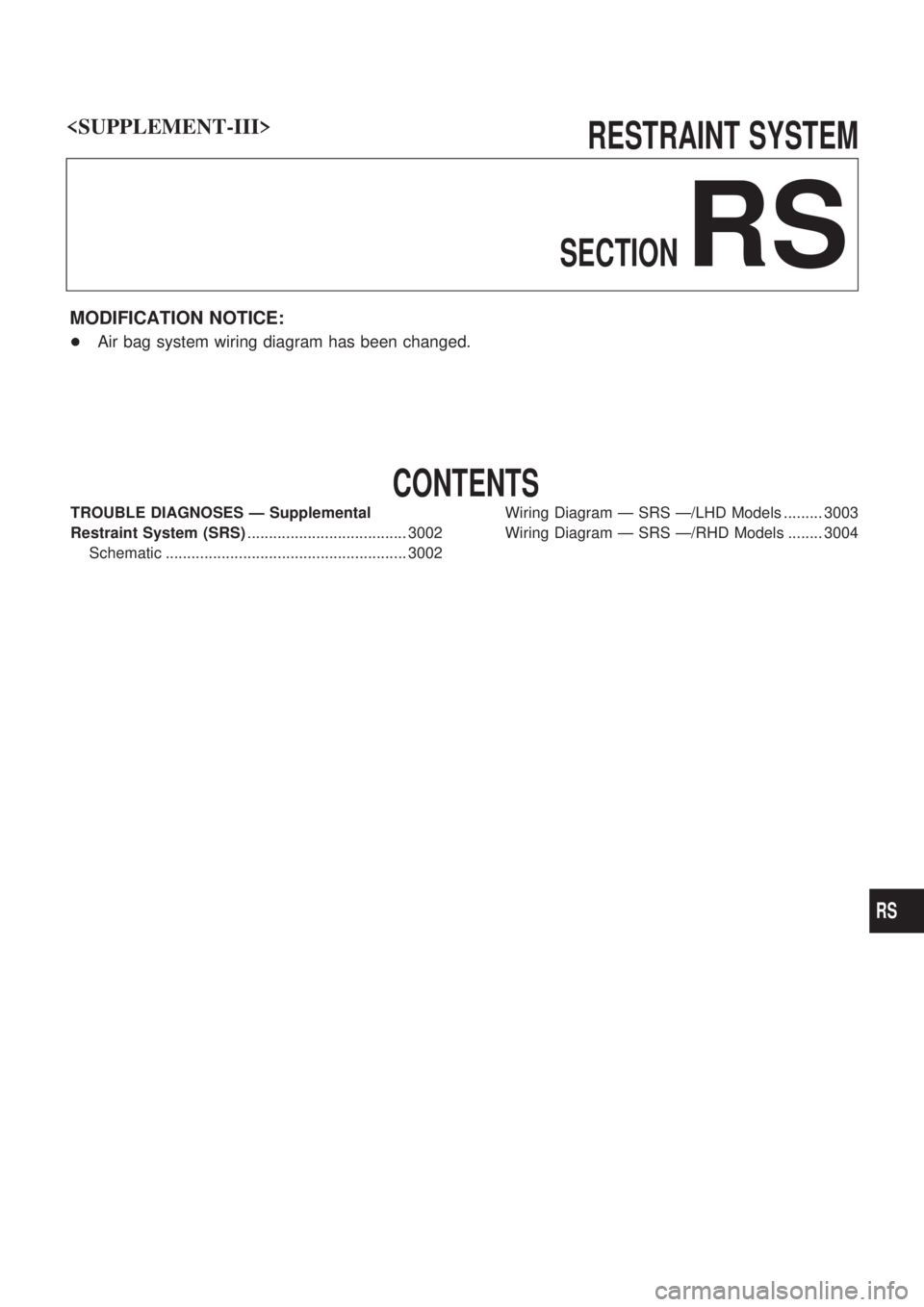

RESTRAINT SYSTEM
SECTION
RS
MODIFICATION NOTICE:
+Air bag system wiring diagram has been changed.
CONTENTS
TROUBLE DIAGNOSES Ð Supplemental
Restraint System (SRS)..................................... 3002
Schematic ........................................................ 3002Wiring Diagram Ð SRS Ð/LHD Models ......... 3003
Wiring Diagram Ð SRS Ð/RHD Models ........ 3004

RS
