COMBINATION SWITCH
Check (Cont'd)
EL-3035

Check
WITH ASCD AND AUDIO SWITCH
CEL310M
STEERING SWITCH
EL-3036

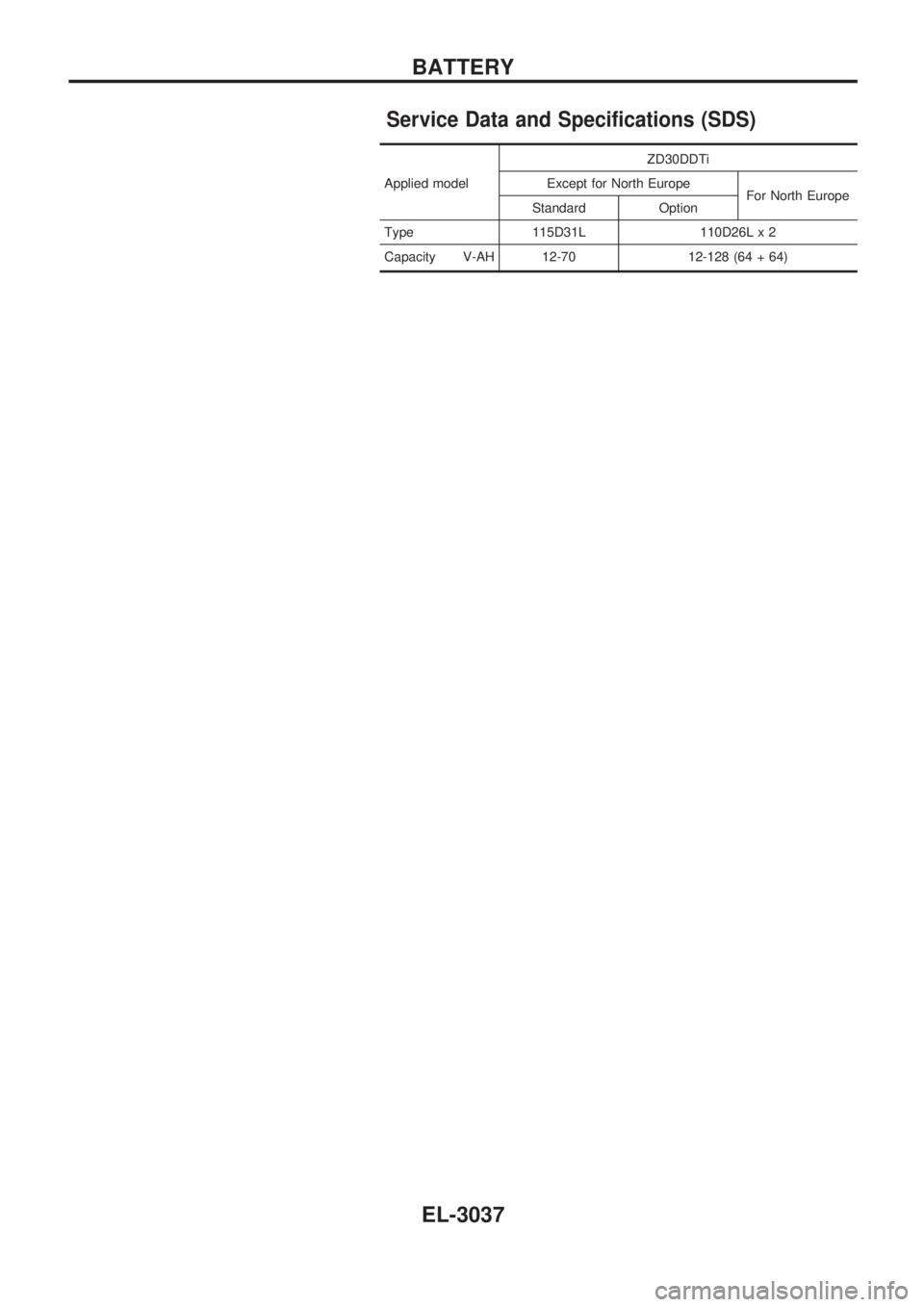

Service Data and Specifications (SDS)
Applied modelZD30DDTi
Except for North Europe
For North Europe
Standard Option
Type 115D31L 110D26L x 2
Capacity V-AH 12-70 12-128 (64 + 64)
BATTERY
EL-3037

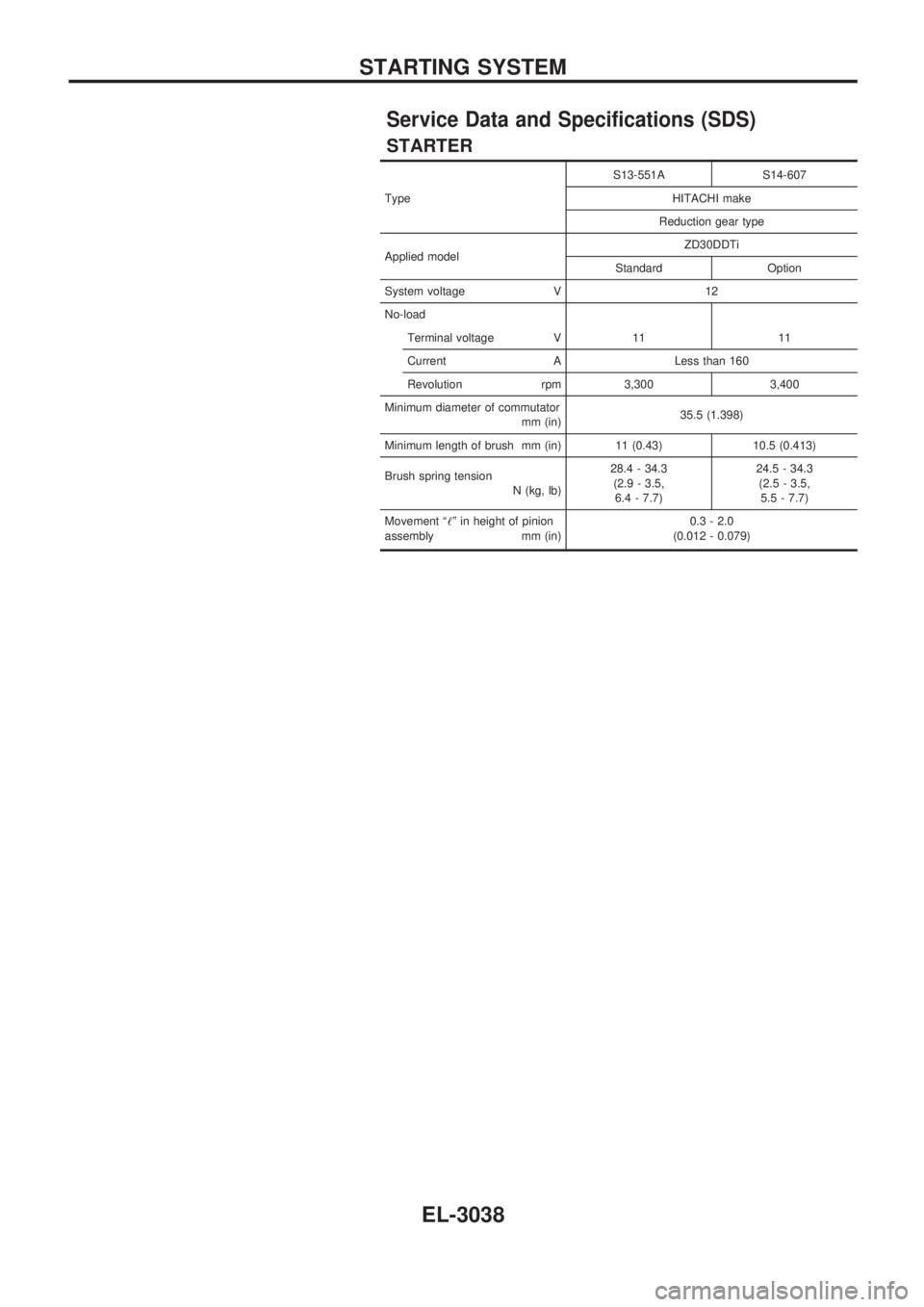

Service Data and Specifications (SDS)
STARTER
TypeS13-551A S14-607
HITACHI make
Reduction gear type
Applied modelZD30DDTi
Standard Option
System voltage V 12
No-load
Terminal voltage V 11 11
Current A Less than 160
Revolution rpm 3,300 3,400
Minimum diameter of commutator
mm (in)35.5 (1.398)
Minimum length of brush mm (in) 11 (0.43) 10.5 (0.413)
Brush spring tension
N (kg, lb)28.4 - 34.3
(2.9 - 3.5,
6.4 - 7.7)24.5 - 34.3
(2.5 - 3.5,
5.5 - 7.7)
Movement ª!º in height of pinion
assembly mm (in)0.3 - 2.0
(0.012 - 0.079)
STARTING SYSTEM
EL-3038

Wiring Diagram Ð CHARGE Ð
TEL653M
CHARGING SYSTEM
EL-3039

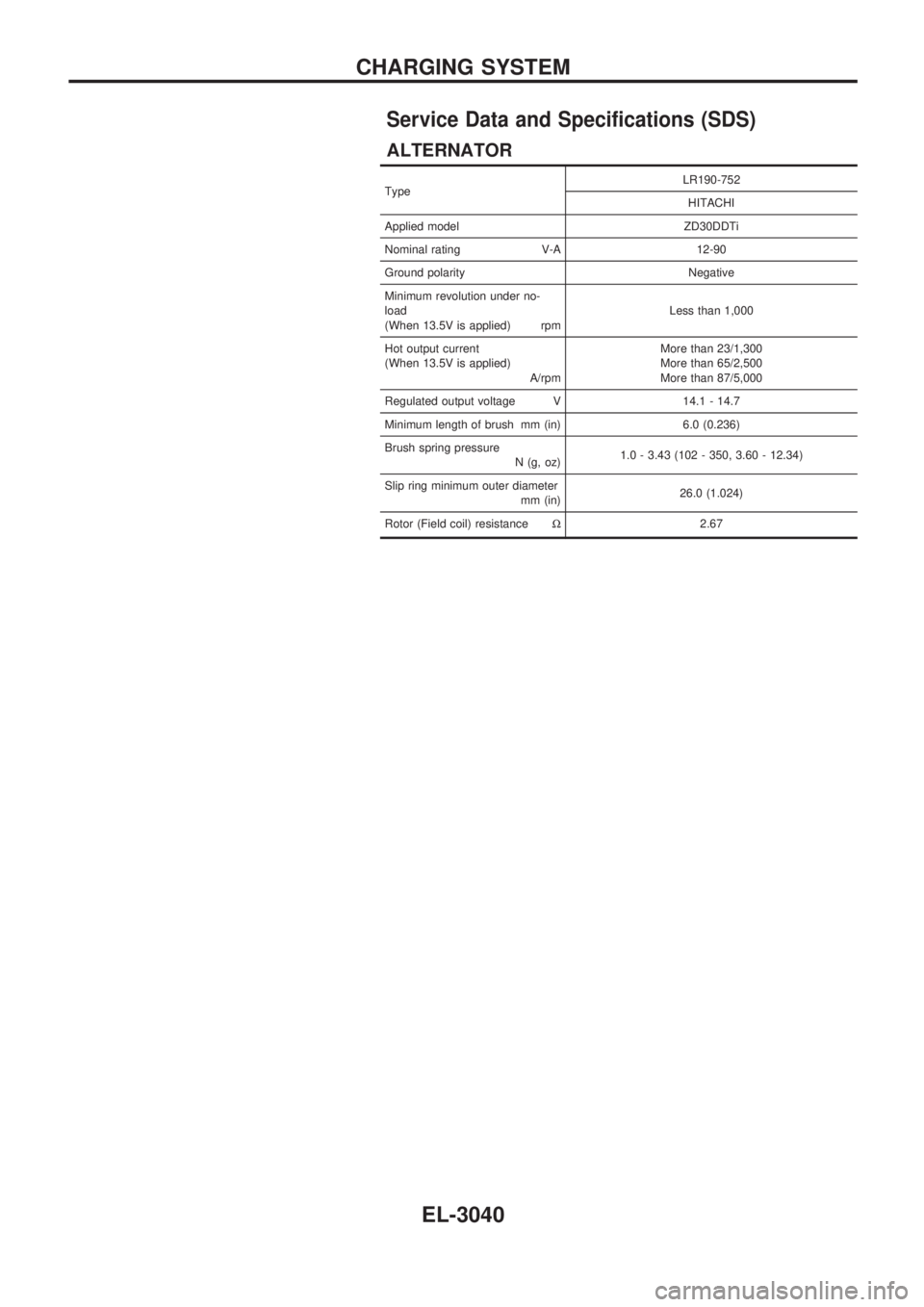

Service Data and Specifications (SDS)
ALTERNATOR
TypeLR190-752
HITACHI
Applied model ZD30DDTi
Nominal rating V-A 12-90
Ground polarity Negative
Minimum revolution under no-
load
(When 13.5V is applied) rpmLess than 1,000
Hot output current
(When 13.5V is applied)
A/rpmMore than 23/1,300
More than 65/2,500
More than 87/5,000
Regulated output voltage V 14.1 - 14.7
Minimum length of brush mm (in) 6.0 (0.236)
Brush spring pressure
N (g, oz)1.0 - 3.43 (102 - 350, 3.60 - 12.34)
Slip ring minimum outer diameter
mm (in)26.0 (1.024)
Rotor (Field coil) resistanceW2.67
CHARGING SYSTEM
EL-3040

Wiring Diagram Ð H/LAMP Ð
TEL654M
HEADLAMP Ð Conventional Type Ð
EL-3041

Wiring Diagram Ð H/AIM Ð
TEL736M
HEADLAMP Ð Headlamp Aiming Control Ð
EL-3042

TEL751M
HEADLAMP Ð Headlamp Aiming Control Ð
Wiring Diagram Ð H/AIM Ð (Cont'd)
EL-3043

Wiring Diagram Ð DTRL Ð
TEL655M
HEADLAMP Ð Daytime Light System Ð
