NISSAN PICK-UP 1999 Repair Manual

Wiring Diagram Ð TAIL/L Ð/LHD Models
HEL696A

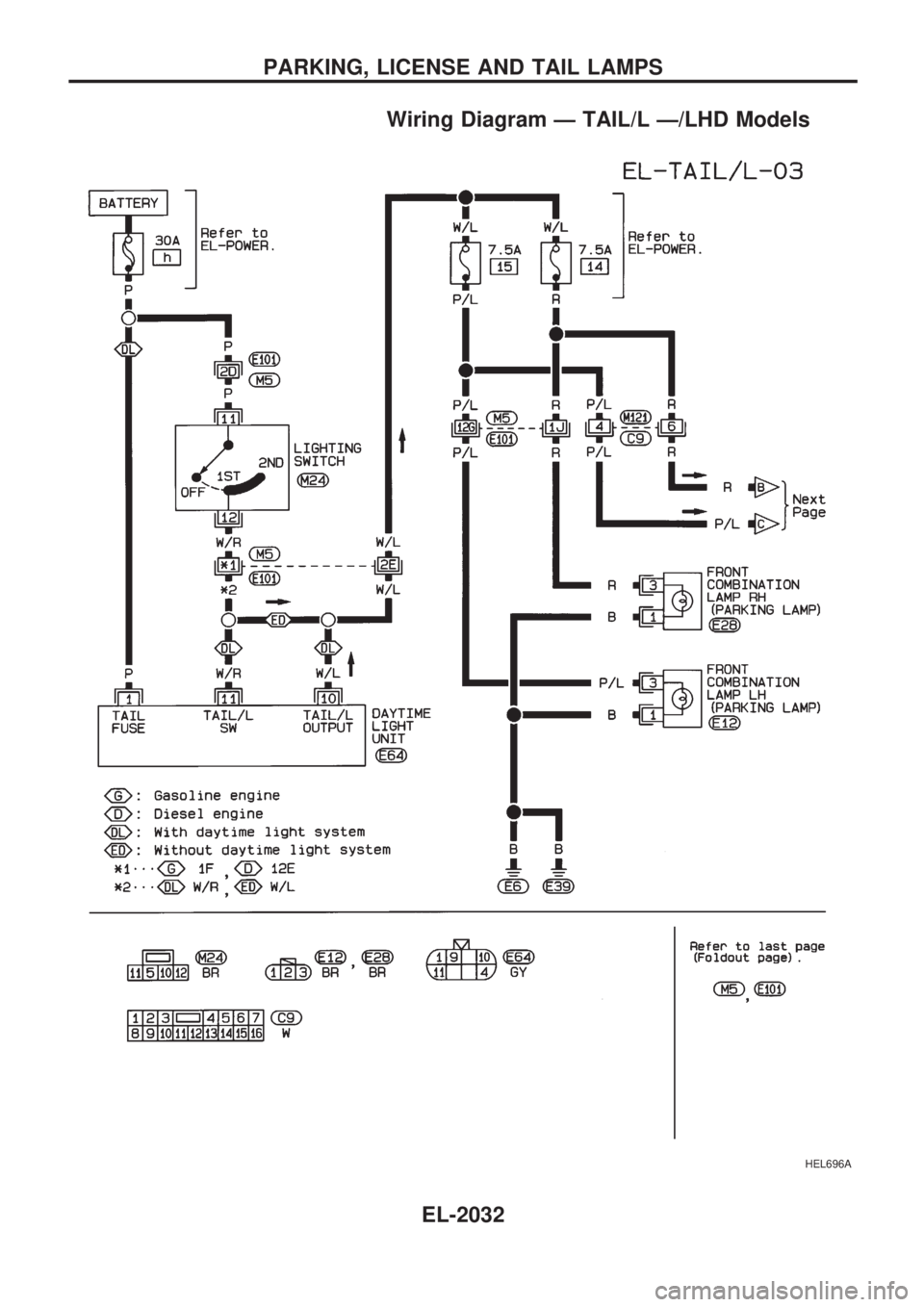

PARKING, LICENSE AND TAIL LAMPS
EL-2032

HEL697A

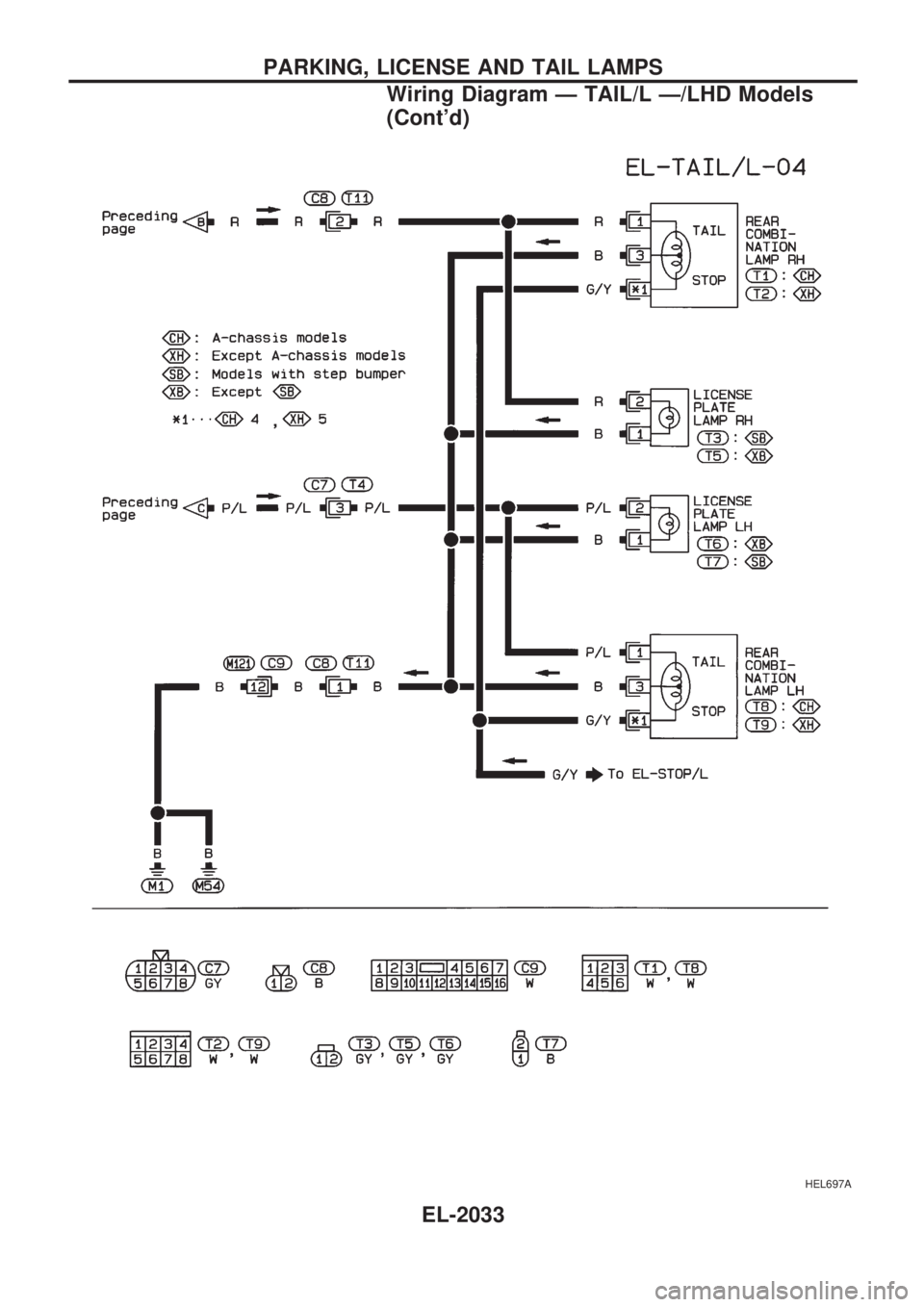

PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/LHD Models
(Cont'd)
EL-2033

Wiring Diagram Ð STOP/L Ð
HEL698A
STOP LAMP
EL-2034

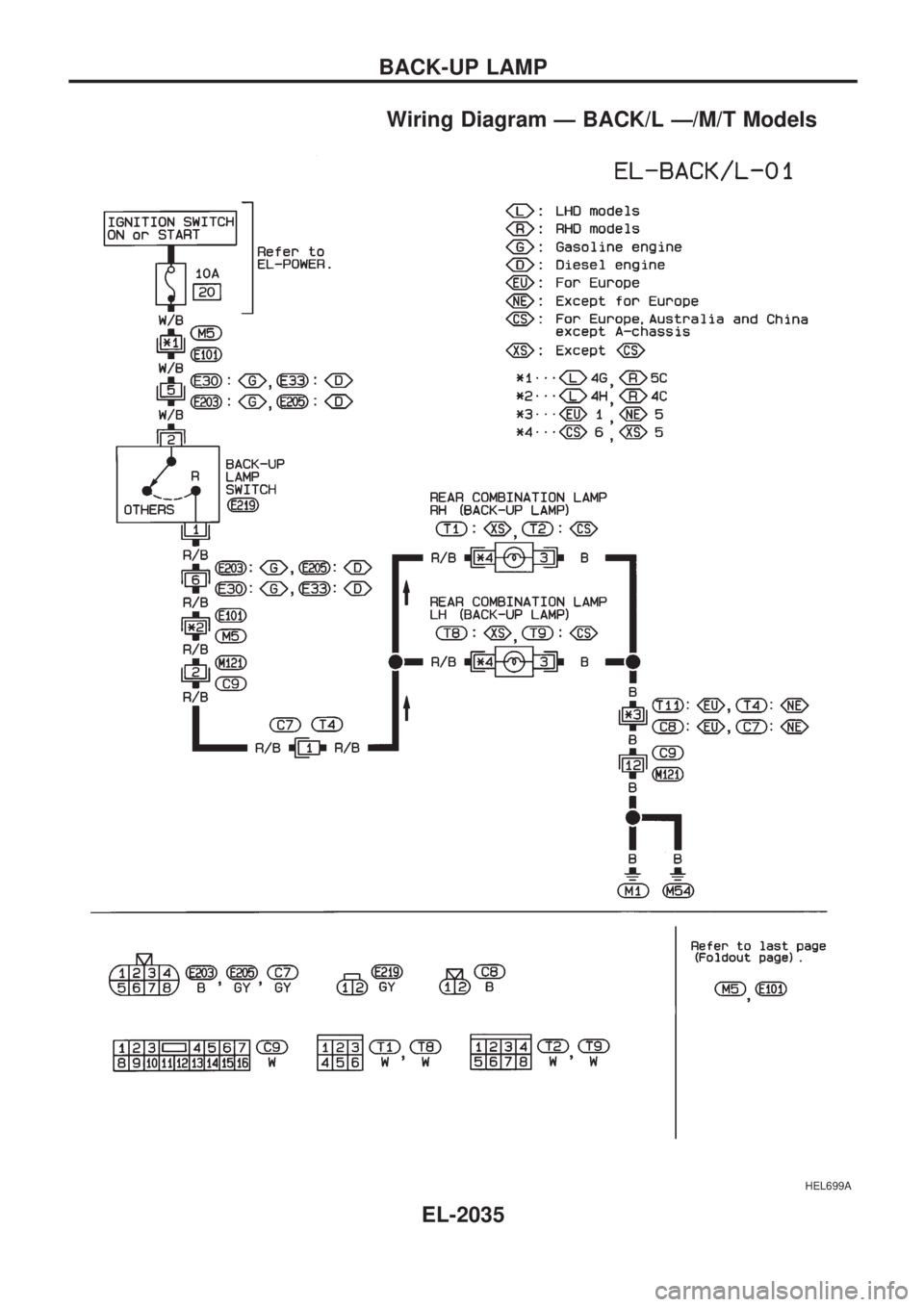

Wiring Diagram Ð BACK/L Ð/M/T Models
HEL699A
BACK-UP LAMP
EL-2035

Wiring Diagram Ð R/FOG Ð/LHD Models
HEL701A
REAR FOG LAMP
EL-2036

Wiring Diagram Ð R/FOG Ð/RHD Models
HEL702A
REAR FOG LAMP
EL-2037

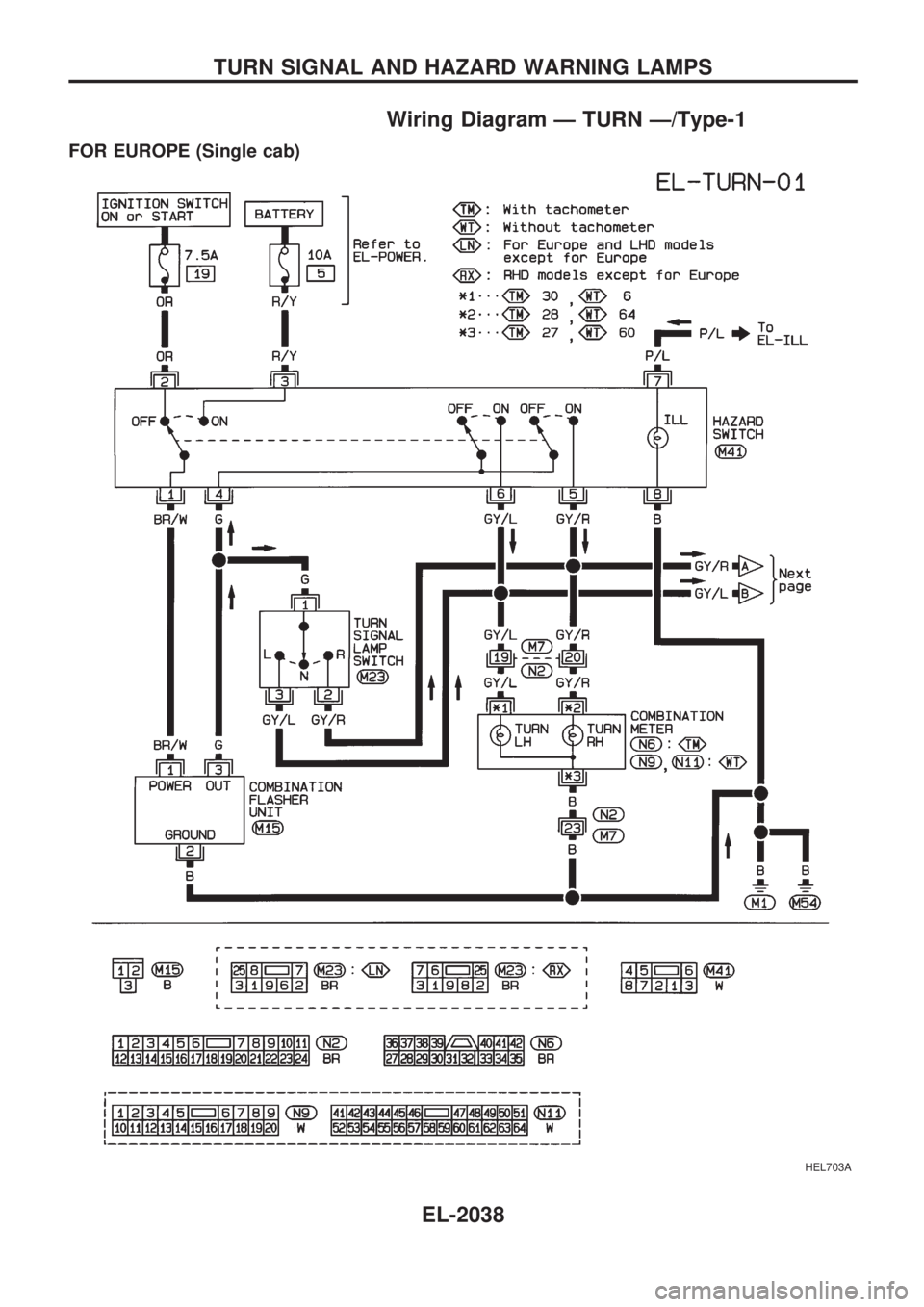

Wiring Diagram Ð TURN Ð/Type-1
FOR EUROPE (Single cab)
HEL703A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-2038

HEL704A
TURN SIGNAL AND HAZARD WARNING LAMPS

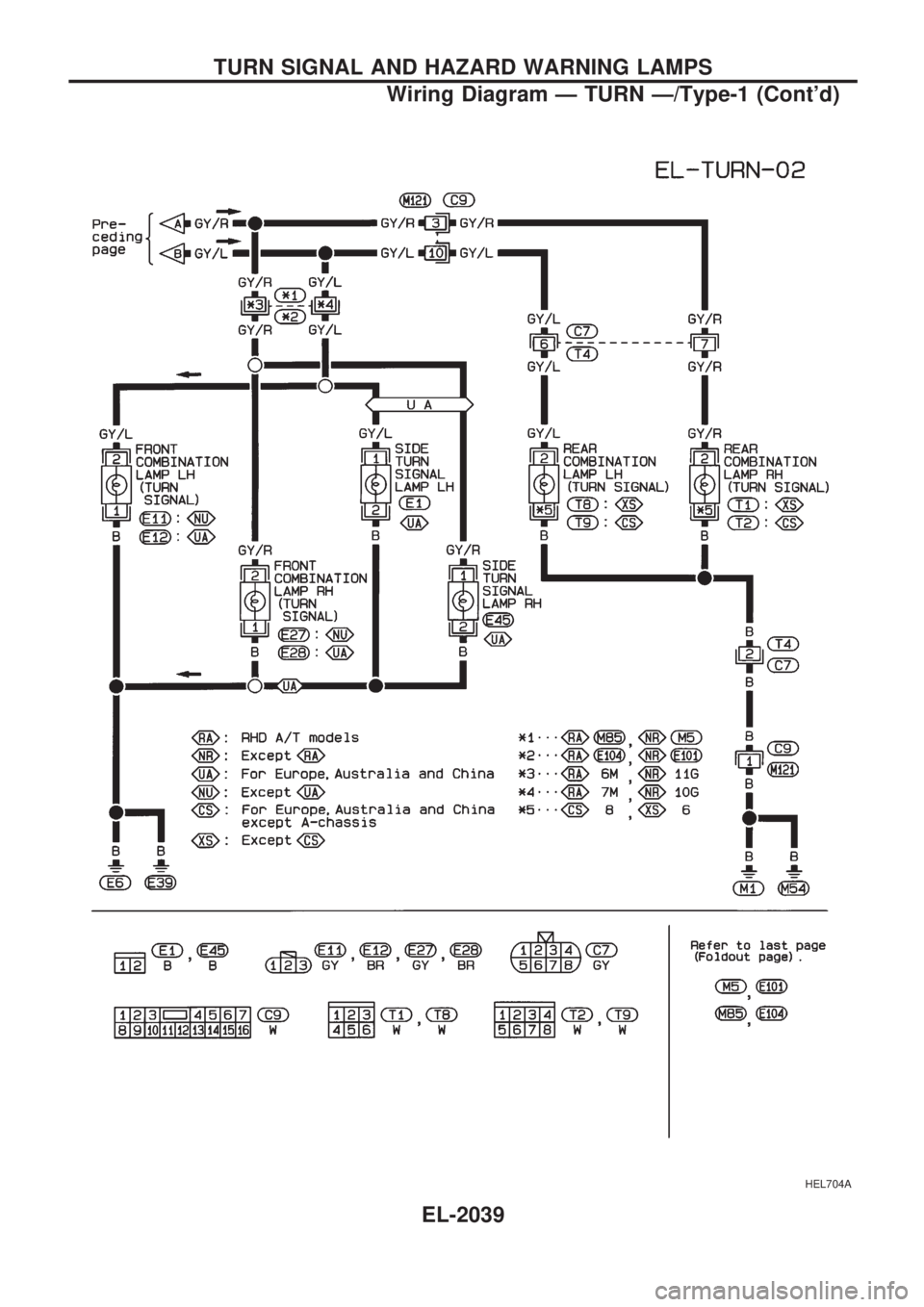

Wiring Diagram Ð TURN Ð/Type-1 (Cont'd)
EL-2039

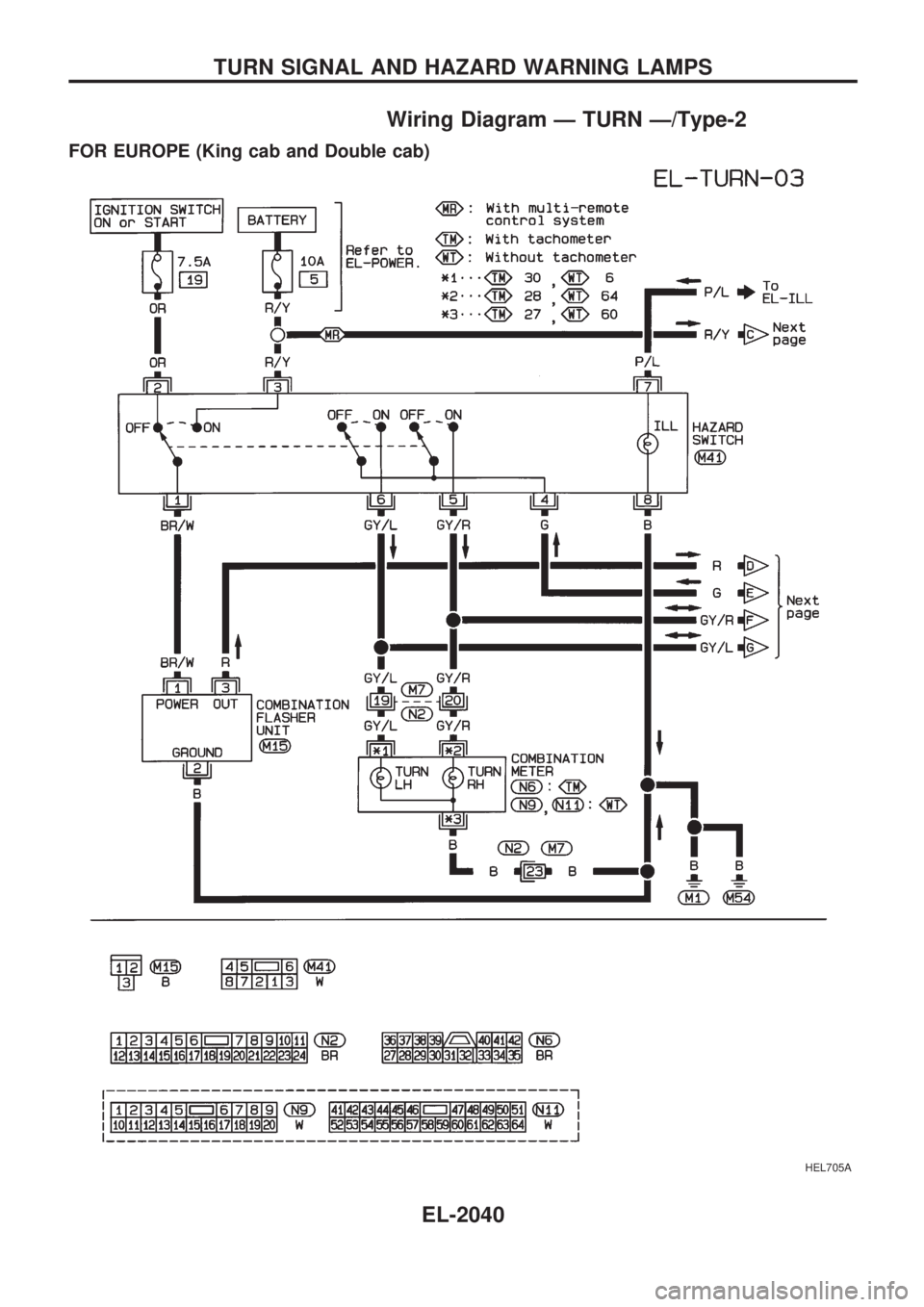

Wiring Diagram Ð TURN Ð/Type-2
FOR EUROPE (King cab and Double cab)
HEL705A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-2040

HEL706A
TURN SIGNAL AND HAZARD WARNING LAMPS

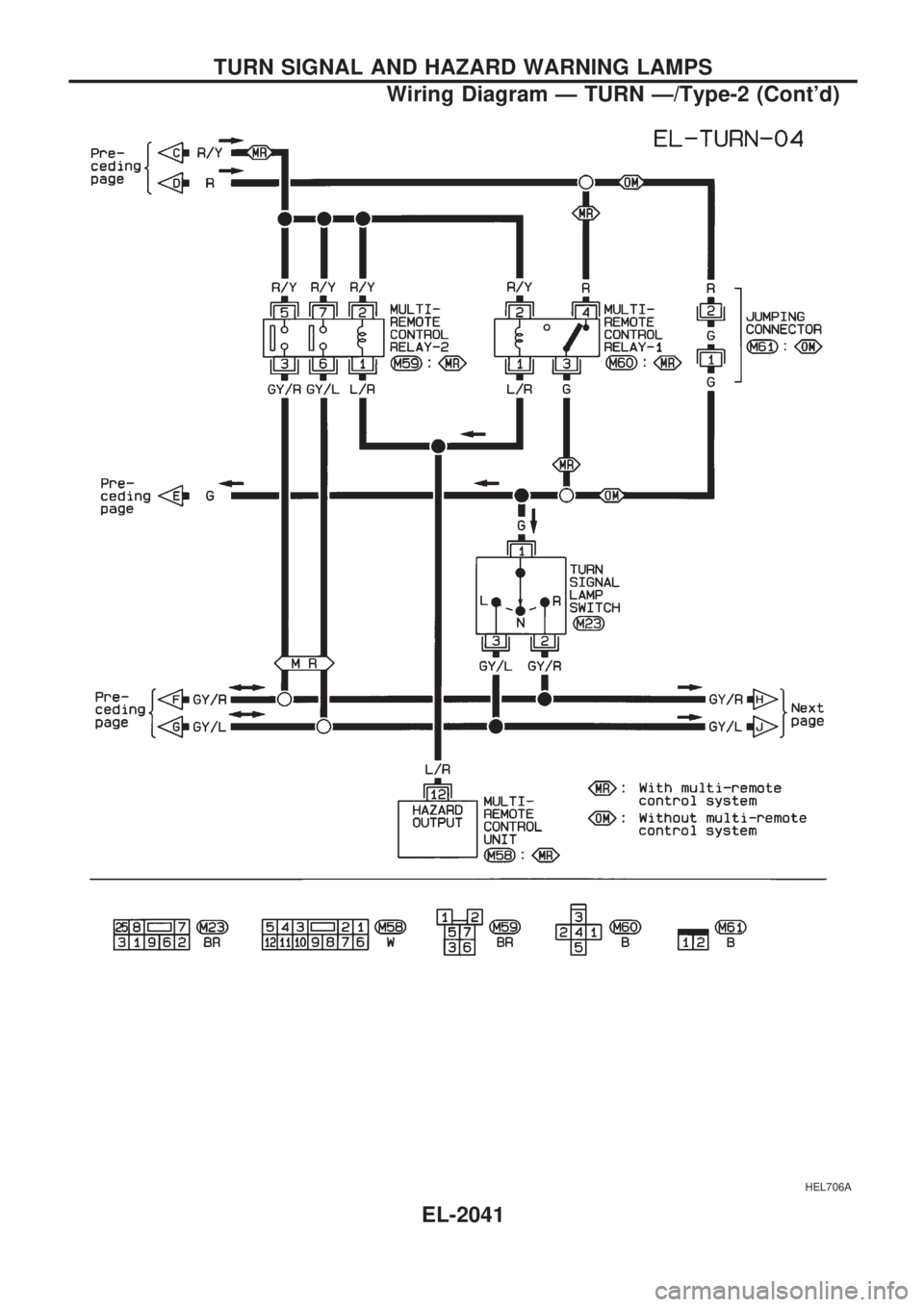

Wiring Diagram Ð TURN Ð/Type-2 (Cont'd)
EL-2041
