PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/Except LHD
Models for Europe (Cont'd)
EL-3040

Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe
GEL379A
PARKING, LICENSE AND TAIL LAMPS
EL-3041

GEL380A
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe (Cont'd)
EL-3042

Wiring Diagram Ð STOP/L Ð
GEL461A
STOP LAMP
EL-3043

Wiring Diagram Ð BACK/L Ð/M/T Models
GEL462A
BACK-UP LAMP
EL-3044

Wiring Diagram Ð R/FOG Ð/LHD Models
GEL383A
REAR FOG LAMP
EL-3045

Wiring Diagram Ð R/FOG Ð/RHD Models
GEL384A
REAR FOG LAMP
EL-3046

Wiring Diagram Ð TURN Ð
GEL385A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-3047

GEL463A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð (Cont'd)
EL-3048

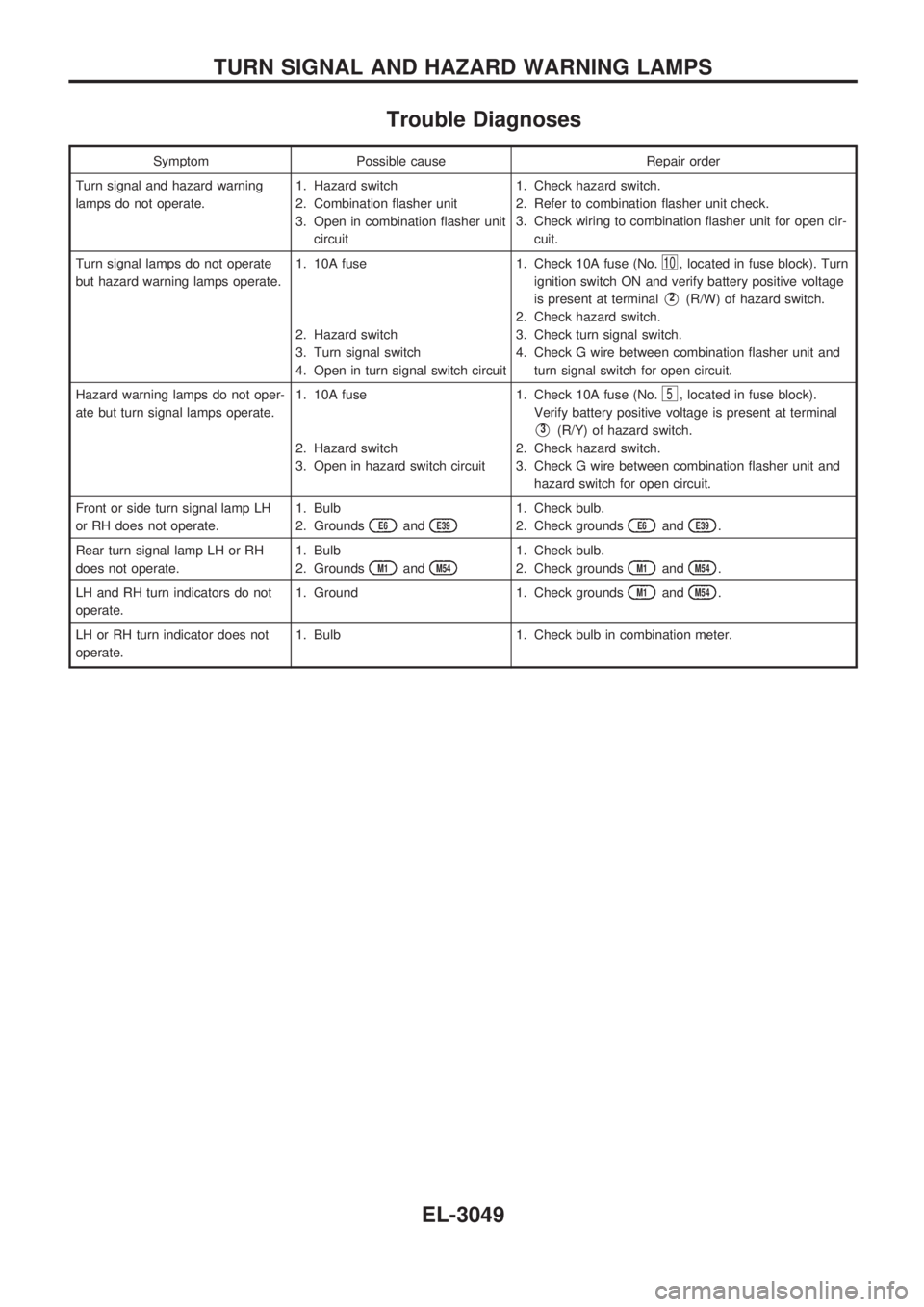

Trouble Diagnoses
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit
circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open cir-
cuit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal switch
4. Open in turn signal switch circuit1. Check 10A fuse (No.
10, located in fuse block). Turn
ignition switch ON and verify battery positive voltage
is present at terminal
V2(R/W) of hazard switch.
2. Check hazard switch.
3. Check turn signal switch.
4. Check G wire between combination flasher unit and
turn signal switch for open circuit.
Hazard warning lamps do not oper-
ate but turn signal lamps operate.1. 10A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 10A fuse (No.
5, located in fuse block).
Verify battery positive voltage is present at terminal
V3(R/Y) of hazard switch.
2. Check hazard switch.
3. Check G wire between combination flasher unit and
hazard switch for open circuit.
Front or side turn signal lamp LH
or RH does not operate.1. Bulb
2. Grounds
E6andE39
1. Check bulb.
2. Check grounds
E6andE39.
Rear turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds
M1andM54
1. Check bulb.
2. Check grounds
M1andM54.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds
M1andM54.
LH or RH turn indicator does not
operate.1. Bulb 1. Check bulb in combination meter.
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-3049
