NISSAN PICK-UP 2001 Repair Manual

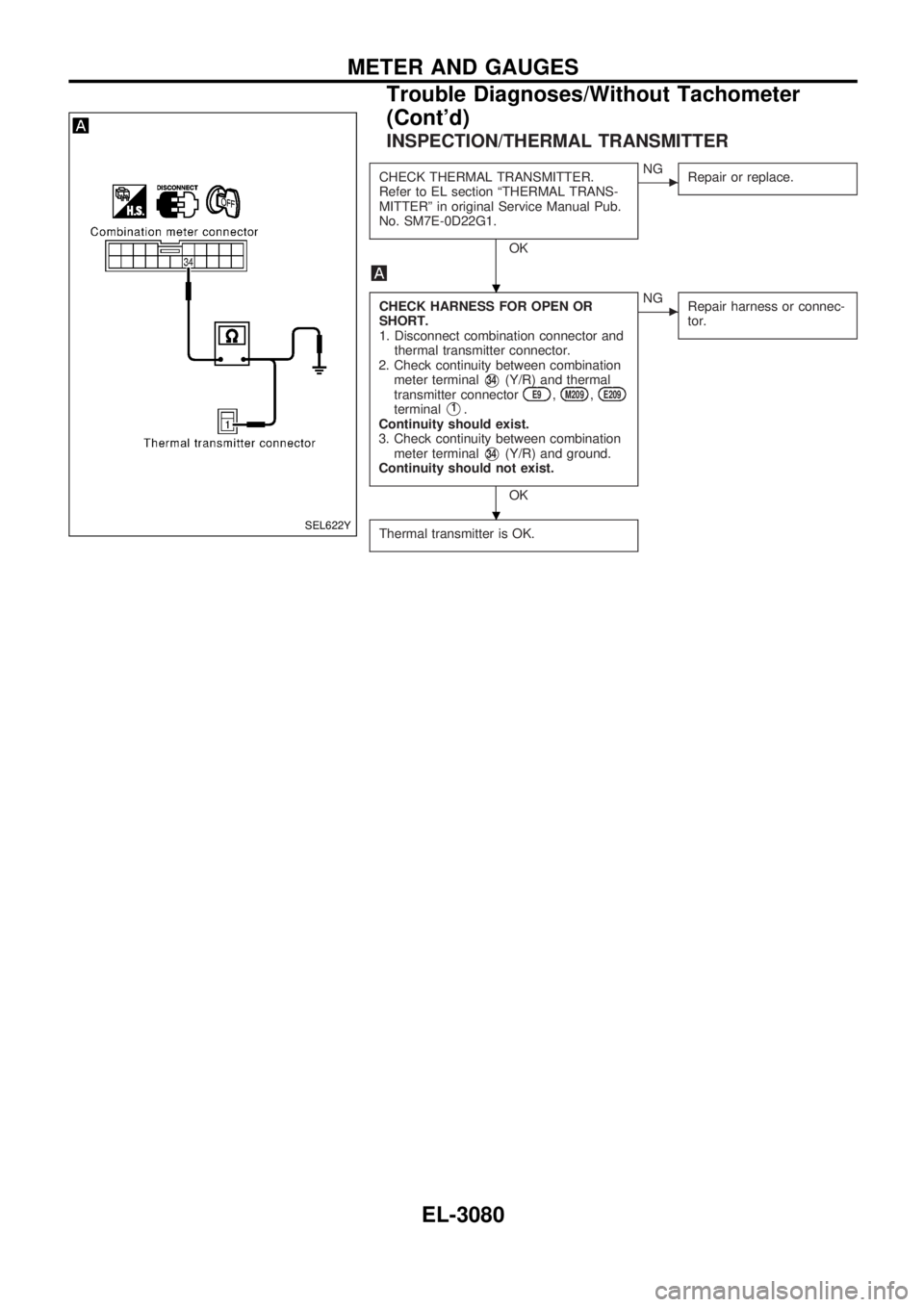

INSPECTION/THERMAL TRANSMITTER
CHECK THERMAL TRANSMITTER.
Refer to EL section ªTHERMAL TRANS-
MITTERº in original Service Manual Pub.
No. SM7E-0D22G1.
OK
cNG
Repair or replace.
CHECK HARNESS FOR OPEN OR
SHORT.
1. Disconnect combination connector and
thermal transmitter connector.
2. Check continuity between combination
meter terminal
V34(Y/R) and thermal
transmitter connectorE9,M209,E209terminalV1.
Continuity should exist.
3. Check continuity between combination
meter terminal
V34(Y/R) and ground.
Continuity should not exist.
OK
cNG
Repair harness or connec-
tor.
Thermal transmitter is OK.SEL622Y
.
.
METER AND GAUGES
Trouble Diagnoses/Without Tachometer
(Cont'd)
EL-3080

Schematic/With Tachometer
GEL399A
WARNING LAMPS
EL-3081

Schematic/Without Tachometer
GEL408A
WARNING LAMPS
EL-3082

Wiring Diagram Ð WARN Ð/Gasoline Engine
with Tachometer
GEL400A
WARNING LAMPS
EL-3083

GEL401A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Gasoline
Engine with Tachometer (Cont'd)
EL-3084

GEL402A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Gasoline
Engine with Tachometer (Cont'd)
EL-3085

GEL403A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Gasoline
Engine with Tachometer (Cont'd)
EL-3086

Wiring Diagram Ð WARN Ð/Gasoline Engine
without Tachometer
GEL409A
WARNING LAMPS
EL-3087

GEL410A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Gasoline
Engine without Tachometer (Cont'd)
EL-3088

GEL411A
WARNING LAMPS
Wiring Diagram Ð WARN Ð/Gasoline
Engine without Tachometer (Cont'd)
EL-3089
